◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#62074) — 55 parça

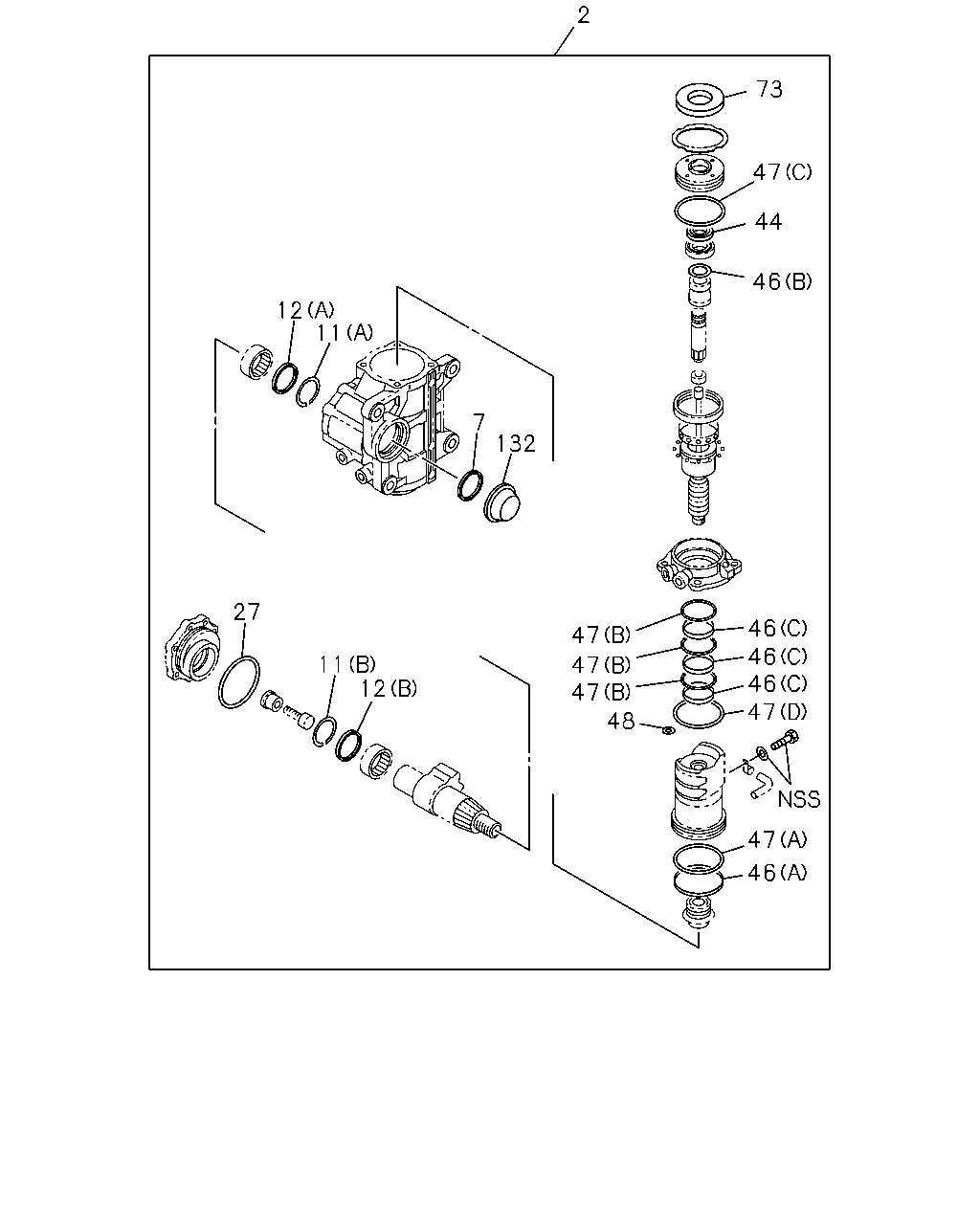

çizim 169957
2 73 47 44 46 12 11 7 132 27 46 46 46 47 47 11 12 47 47 48 47 46
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-917-2 		8-98166-305-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-917-2 		8-98159-116-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-917-2 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-917-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-917-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-917-2 		8-98166-307-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-227-0 01 1 -

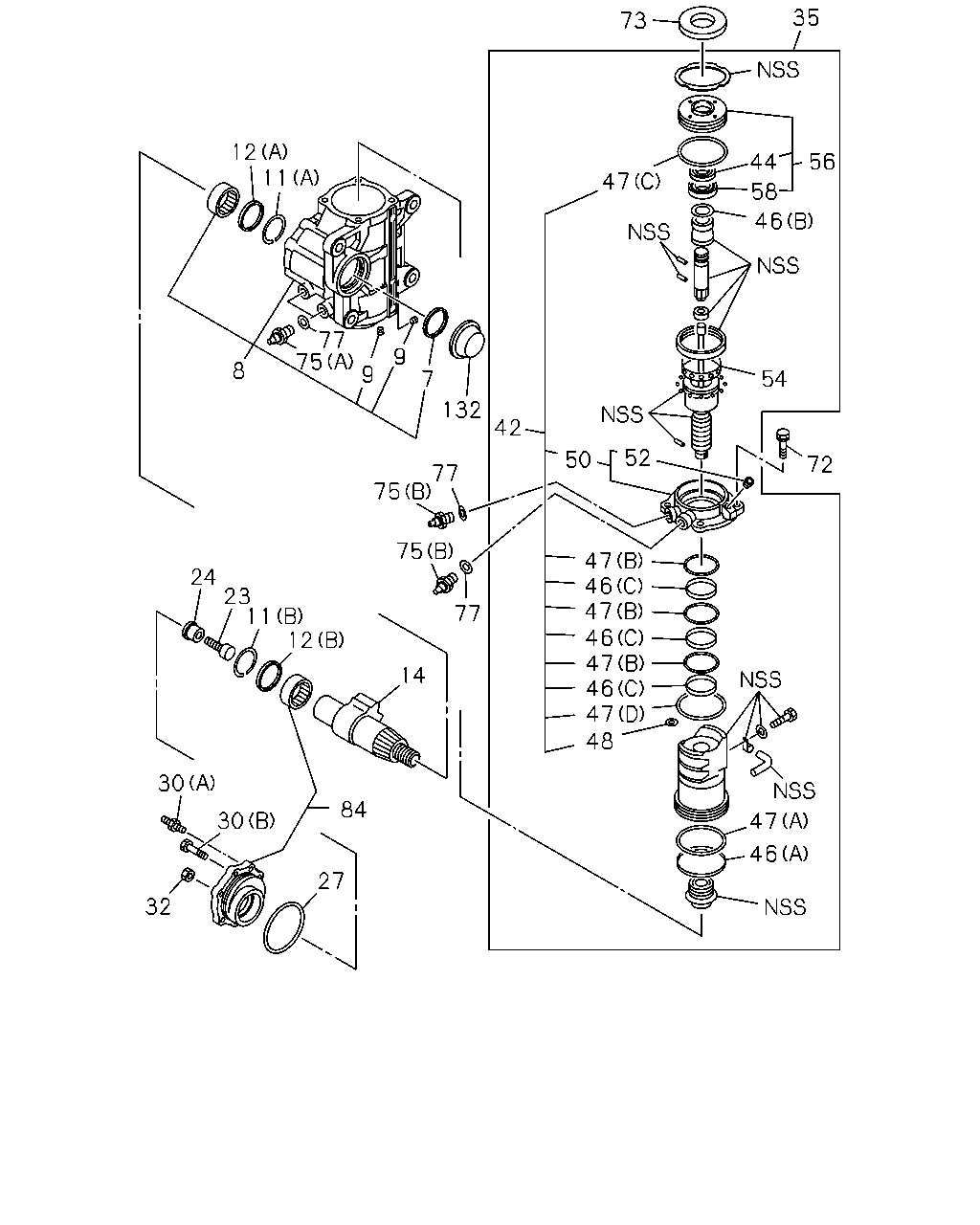

çizim 169978
35 73 12 11 56 44 47 58 46 77 75 9 9 8 54 7 132 42 52 50 72 77 75 75 47 46 47 46 47 46 47 48 24 23 11 12 77 14 30 84 30 47 46 27 32
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-917-2 		8-98159-116-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44240-154-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-265-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44321-032-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-917-2 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44150-095-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-917-2 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-917-2 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-917-2 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-917-2 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-917-2 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44560-076-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-917-2 		8-98166-307-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-917-2 		1-44259-034-1 02 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-917-2 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-917-2 		9-89970-787-0 04 1 -
84 COVER ASM; STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44260-030-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-917-2 		1-44519-227-0 01 1 -
