Isuzu WW
▶
TRUCKS
▶
CYH
▶
11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-36 - POWER STEERING CONTROL; ENGINE SIDE
▶

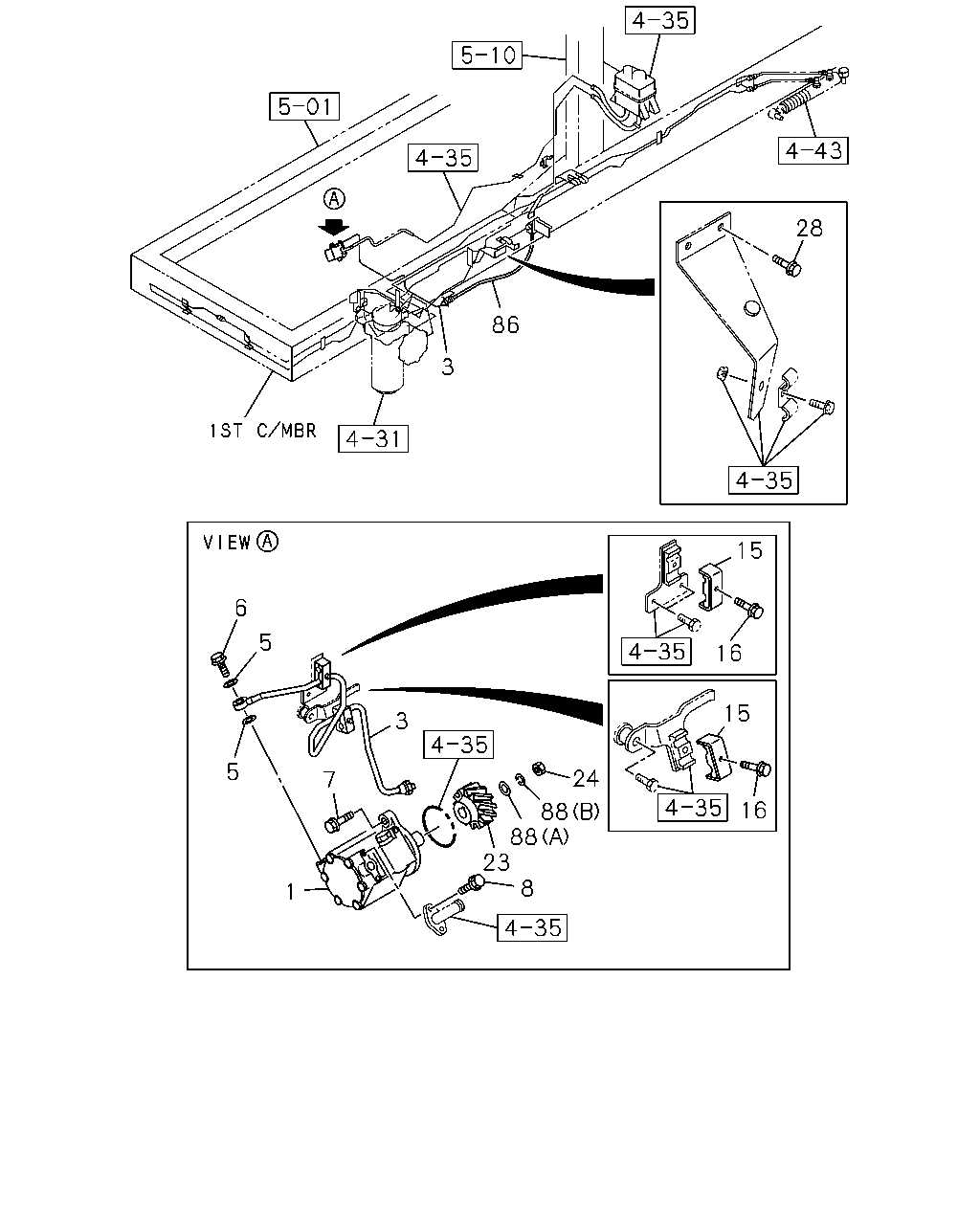

4-36 — POWER STEERING CONTROL; ENGINE SIDE
(#62073) — 14 parça
28
86
3
15
6
5
16
15
3
5
24
7
16
88
88
23
8
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT.
1-19500-617-3
01
1
1008-
3
PIPE; OIL,CHARGE,P/S
1-13314-057-0
01
1
1008-
5
GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4
1-09630-087-0
02
1
1008-
6
BOLT; EYE,P/S PIPE
M18X33
1-09675-058-0
01
1
1008-
7
BOLT; OIL PUMP,P/S
M10X130 FLANGE
0-28156-013-0
02
1
1008-
8
BOLT; OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1008-
15
CLIP; OIL PIPE SUCTION
1-09701-195-3
02
1
1008-
16
BOLT; STAY,P/S OIL PUMP
M6X35 FLANGE
0-28650-635-0
02
1
1008-
23
GEAR; OIL PUMP
Z=20
1-19581-041-0
01
1
1008-
24
NUT; GEAR,P/S PUMP
M16
9-19519-112-0
01
1
1008-
28
BOLT; BRKT,FLEX HOSE,P/S
M8X25 FLANGE
0-28650-825-0
02
1
1008-
86
HOSE; FLEX,P/S
L=470
1-09365-177-0
01
1
1008-
88
WASHER; GEAR,P/S PUMP
(A)
1-19519-293-0
01
1
1008-
88
WASHER; GEAR,P/S PUMP
(B)
9-09150-016-0
01
1
1008-
