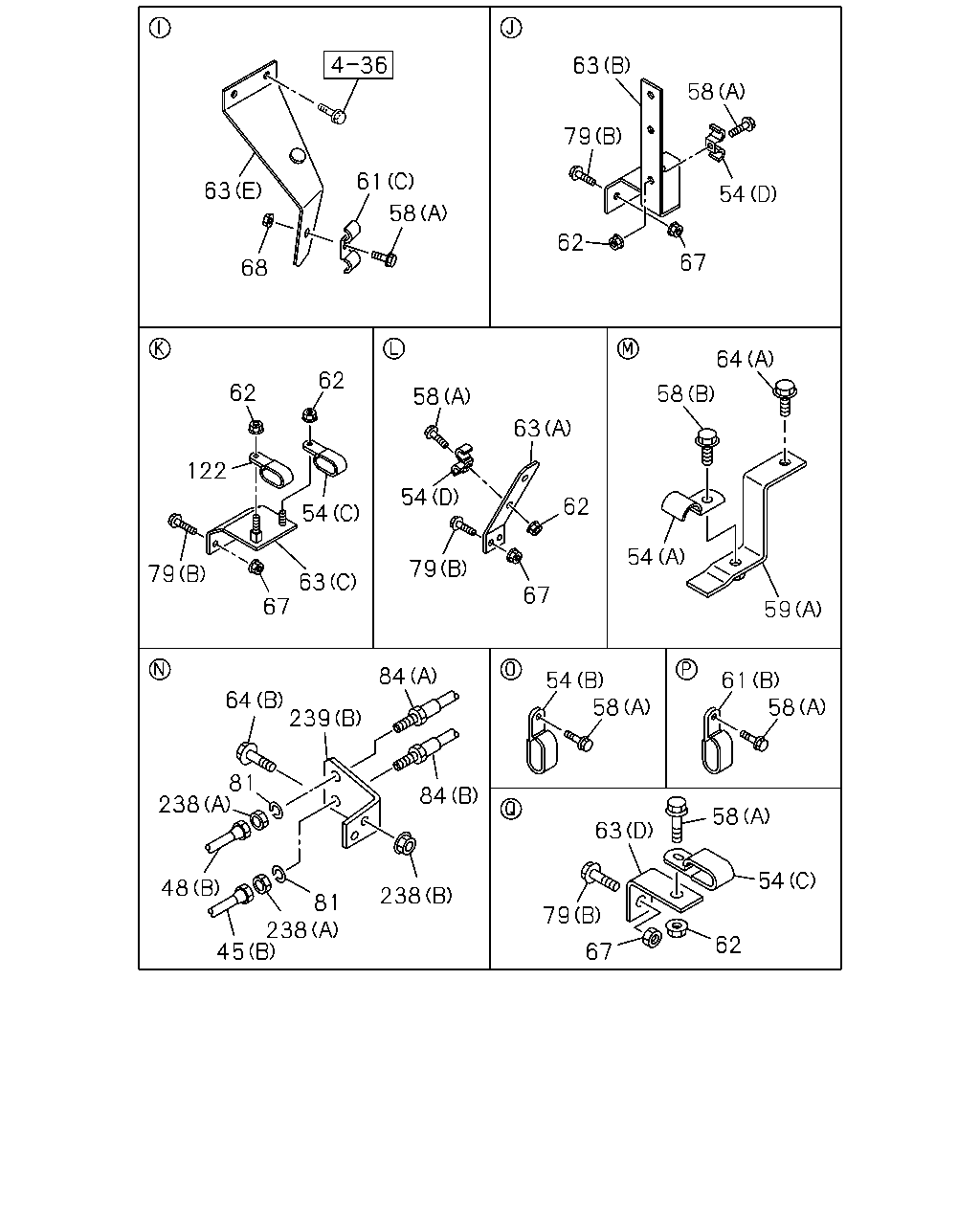

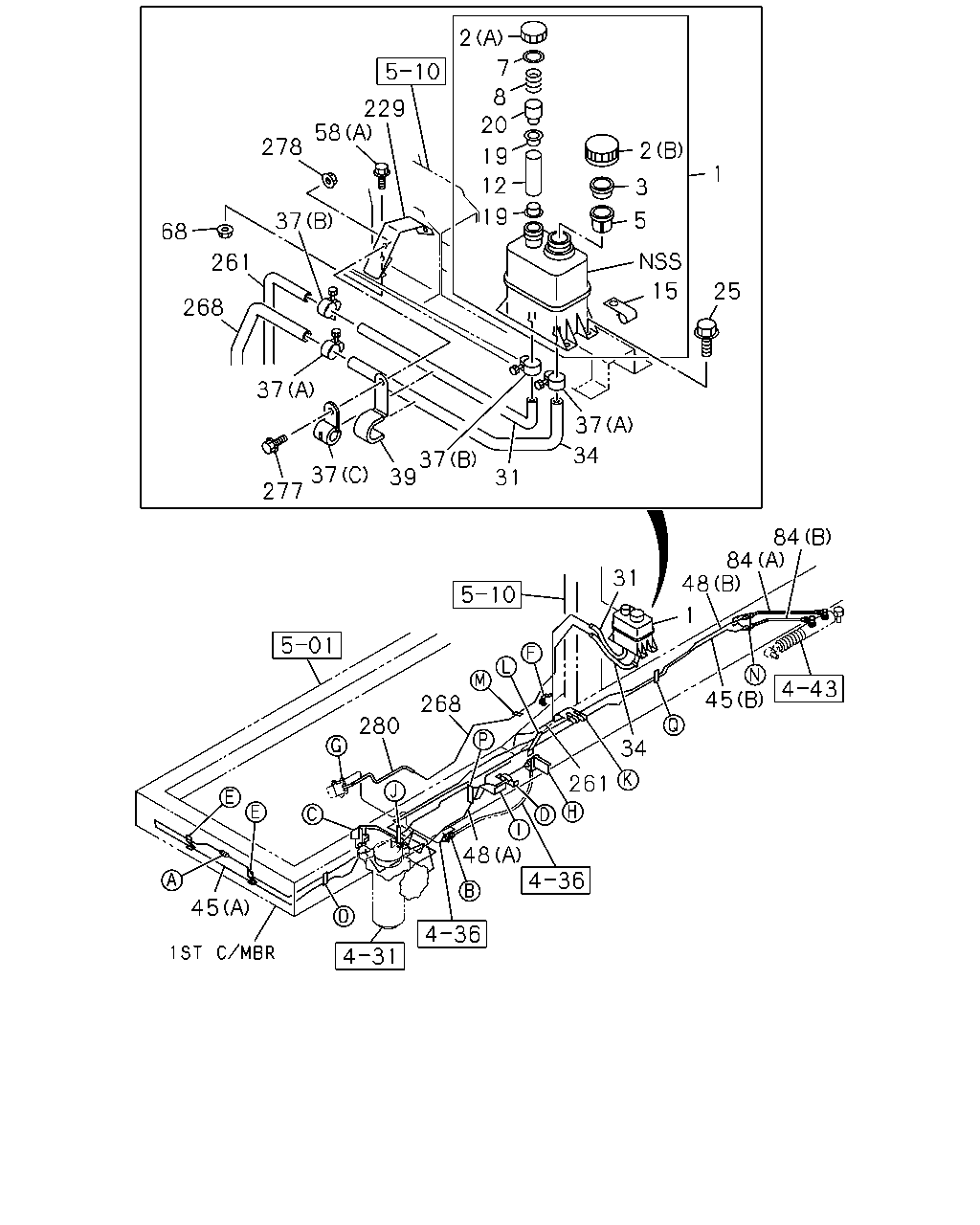

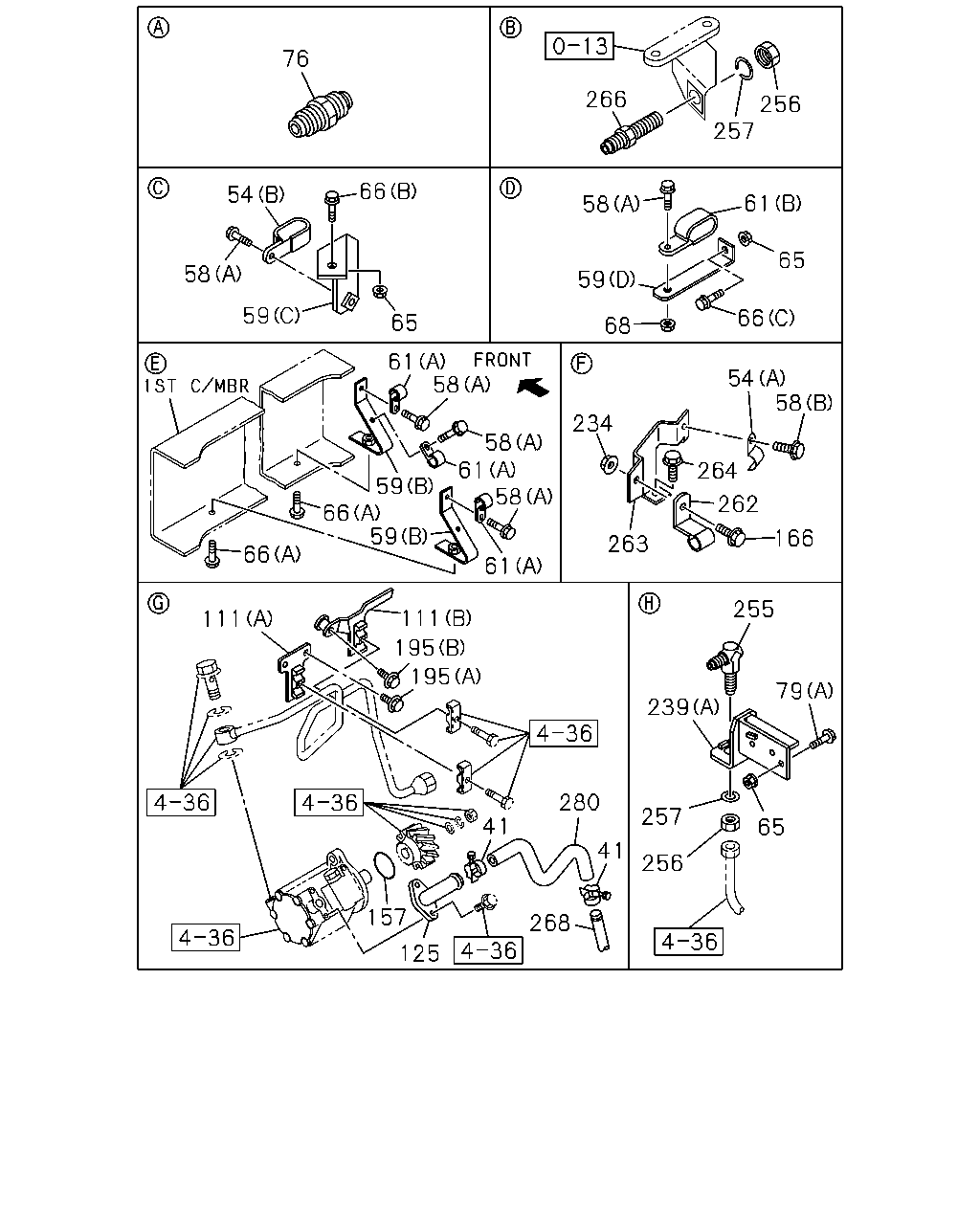

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#62072) — 127 parça

63 58 79 61 63 54 58 62 67 68 64 62 62 58 58 63 122 54 62 54 54 79 79 63 67 67 59 84 54 58 61 58 64 239 81 84 238 58 63 54 48 238 81 238 45 79 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1895	8-98168-559-0	01	1	1008-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE (D) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1008-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=16 L=20	0-95235-535-0	01	1	1008-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1008-
63	BRACKET; CLIP,P/S (E)	1-47471-146-0	01	1	1008-
63	BRACKET; CLIP,P/S (A)	1-47471-268-0	01	1	1008-
63	BRACKET; CLIP,P/S (B)	1-47471-269-0	01	1	1008-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1008-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1008-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1008-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1008-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	02	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
122	CLIP; PIPE,P/S ID=13X2 L=20	0-95325-236-0	01	1	1008-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	1008-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1008-
239	BRACKET; FLEX HOSE (B)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-

2 7 8 20 229 58 278 2 19 1 12 3 19 5 37 68 261 15 25 268 37 37 34 37 39 37 277 31 84 84 48 31 1 45 268 280 34 261 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-235-1	01	1	1008-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-6	01	1	1008-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-4	01	1	1008-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	1008-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	1008-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	1008-
8	SPRING; OIL TANK,P/S	1-09580-599-0	01	1	1008-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	1008-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	1008-
19	SEAT; OIL TANK	1-21262-001-0	02	1	1008-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	1008-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28650-820-0	04	1	1008-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	1008-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	1008-
37	CLIP; HOSE,P/S (C) ID=28 L=30	1-09700-607-1	01	1	1008-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1008-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1008-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=2553	8-98163-432-0	01	1	1008-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=2457	8-98168-560-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B) L=2412	8-98163-433-0	01	1	1008-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1895	8-98168-559-0	01	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1008-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1008-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	1008-
261	PIPE; OIL,UNION TO HOSE L=2944	8-98169-745-0	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28651-025-0	01	1	1008-
278	NUT; HOSE CLIP M10 FLANGE	0-91180-210-0	01	1	1008-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1008-

76 266 256 257 66 54 61 58 65 58 59 59 66 65 68 61 58 54 58 234 58 61 58 264 59 59 262 66 166 263 66 61 255 111 111 195 195 79 239 280 41 257 65 41 256 157 268 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1008-
54	CLIP; OIL PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
54	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	1008-
54	CLIP; OIL PIPE (D) ID=13 & 13 L=18 & 18	1-09700-833-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	03	1	1008-
58	BOLT; CLIP (A) M8X25 FLANGE	0-28650-825-0	07	1	1008-
58	BOLT; CLIP (B) M10X25 FLANGE	0-28651-025-0	02	1	1008-
58	BOLT; CLIP MJX16P M/T(Y3Z) (A) M8X20 FLANGE	0-28650-820-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (D) L=112	1-47475-694-1	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-145-0	01	1	1008-
59	BRACKET; CLIP,OIL PIPE (B)	1-47479-521-0	02	1	1008-
59	BRACKET; CLIP,OIL PIPE (C)	1-53441-537-0	01	1	1008-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-535-0	02	1	1008-
61	CLIP; OIL PIPE (B) ID=16X2 L=20	0-95325-535-0	02	1	1008-
61	CLIP; OIL PIPE (C) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	1008-
61	CLIP; OIL PIPE MJX16P M/T(Y3Z) (A) ID=16 L=20	0-95235-535-0	01	1	1008-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1008-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	01	1	1008-
66	BOLT; BRKT,OIL PIPE (C) M8X35 FLANGE	0-28650-835-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1008-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	1008-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1008-
79	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	07	1	1008-
79	BOLT; BRKT (A) M8X35 FLANGE	0-28650-835-0	02	1	1008-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1008-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1008-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1008-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1008-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28050-812-0	02	1	1008-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1008-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1008-
239	BRACKET; FLEX HOSE (B)	1-47479-146-0	01	1	1008-
239	BRACKET; FLEX HOSE (A)	8-98144-458-1	01	1	1008-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09650-375-1	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
256	NUT; UNION M22	0-91111-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1008-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1008-
263	BRACKET; P/S PIPE	1-47476-483-2	01	1	1008-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1008-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=1276	1-21117-830-0	01	1	1008-
280	HOSE; P/S OIL PUMP,INL	1-21117-301-0	01	1	1008-
