◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#6207) — 140 parça

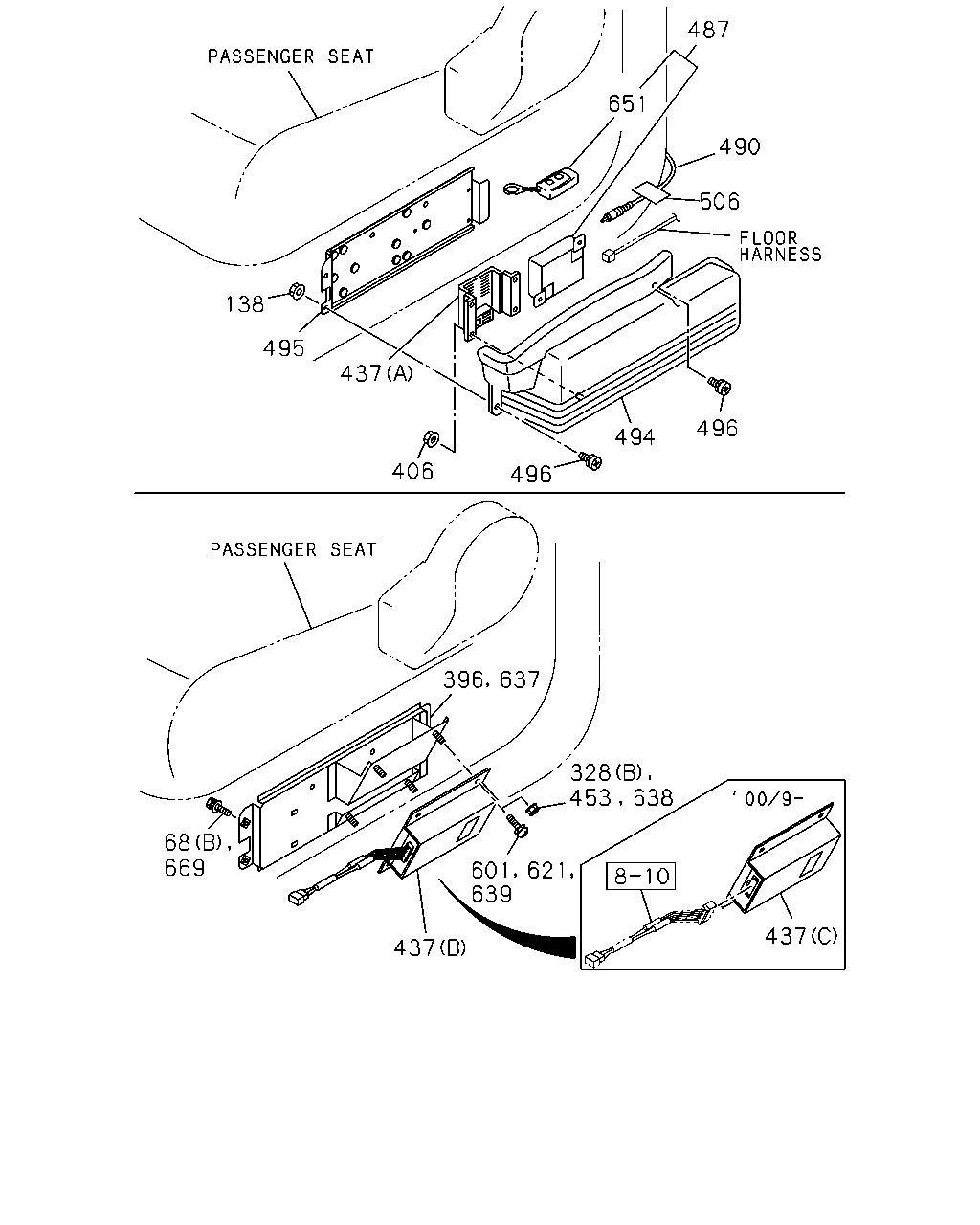

çizim 37569
487 651 490 506 138 495 437 496 494 406 496 396 637 328 453 68 669 601 639 621 437 437 638
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0104
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0403
68 BOLT; BRKT
INSPECTION LAMP<T95> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512
68 BOLT; BRKT
INSPECTION LAMP<T95> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0104
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0302-0602
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603-
138 NUT; BRKT
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 02 1 0003-0104
138 NUT; BRKT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0105-0301
328 NUT
(A) M16 		9-99111-416-0 02 1 9905-0512
328 NUT
(A) M16 		0-91111-516-0 02 1 0601-
328 NUT
ELEC OUTLET 12V<TAW> (B) M6 FLANGE 		0-91150-106-0 04 1 9905-9907
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6 FLANGE 		0-91150-106-0 04 1 9908-9911
396 BRACKET
ELEC OUTLET 12V<TAW> 		1-75557-483-0 01 1 9905-9907
396 BRACKET
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> 		1-75557-483-1 01 1 9908-0104
406 NUT; COVER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-0301
406 NUT; COVER
M6 FLANGE 		0-91150-106-0 04 1 0302-0602
406 NUT; COVER
M6 FLANGE 		0-91180-106-0 04 1 0603-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) 		1-84122-005-0 01 1 9905-0104
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (C) MITSUBISHI 		1-84122-034-1 01 1 0105-0301
437 CONVERTER; DC
(C) MITSUBISHI 		1-84122-034-1 01 1 0302-0604
437 CONVERTER; DC
(C) METRO DENSO 		8-98046-423-0 01 1 0605-
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (B) 		1-84122-037-0 01 1 9905-9907
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) 		1-84122-037-1 01 1 9908-0008
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (C) MITSUBISHI 		1-84122-034-1 01 1 0009-0104
453 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0302-0602
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-006-1 01 1 0105-0106
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-0 01 1 0107-0301
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0302-0809
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0105-0301
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0302-0809
494 COVER; ELEC BOX 1-72538-160-3 01 1 0302-0810
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811-
494 COVER; ELEC BOX
ELEC OUTLET 12V<TAW> 		1-72538-160-2 01 1 0003-0104
494 COVER; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		1-72538-160-2 01 1 0105-0301
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0302-
495 BRACKET; ELEC BOX
ELEC OUTLET 12V<TAW> 		1-75558-488-5 01 1 0003-0104
495 BRACKET; ELEC BOX
REMOTE CONT DOOR LOCK<SLG> 		1-75558-488-5 01 1 0105-0301
496 SCREW; COVER
ELEC OUTLET 12V<TAW> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0003-0104
496 SCREW; COVER
REMOTE CONT DOOR LOCK<SLG> M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0105-0301
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0302-0703
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704-
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0803-0809
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0302-0703
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704-
621 SCREW
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> M6X12 W/PL WASHER 		1-09981-380-0 04 1 9912-0104
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0105-0301
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0302-
638 NUT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6 FLANGE 		0-91150-106-0 04 1 9905-0104
639 BOLT; BRKT,DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-0004
639 BOLT; BRKT,DC-DC CONVERTER
ELEC OUTLET 12V<TAW> EXC. NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0005-0005
639 BOLT; BRKT,DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0006-0301
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-017-0 01 1 0105-0106
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0107-0301
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0302-0809
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0105-0301
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0302-

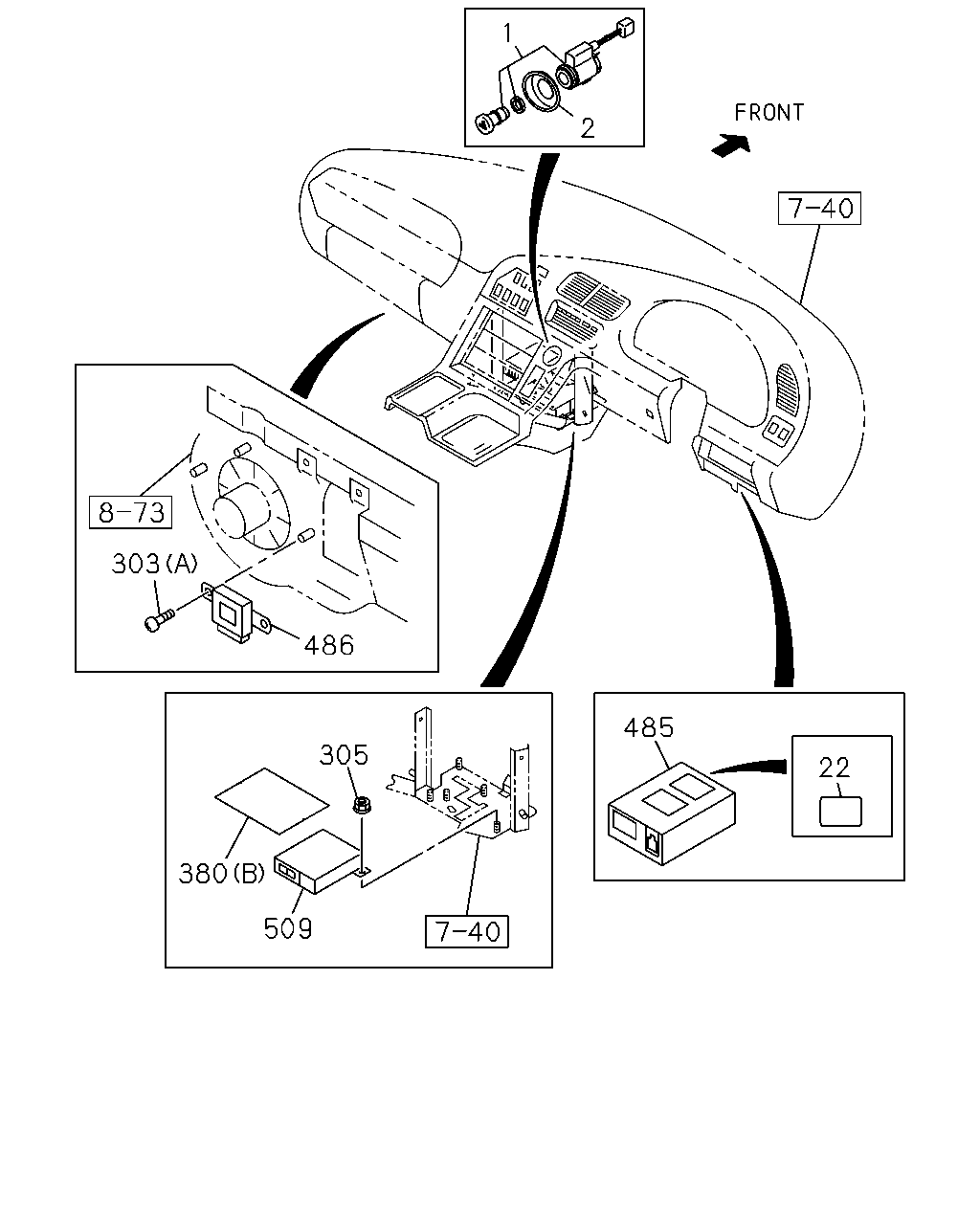

çizim 37617
1 2 303 486 485 305 22 380 509
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97064-970-1 01 1 9905-0108
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0109-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 9905-
22 SEAL; TAPE 1-80199-006-0 02 1 0603-1212
22 SEAL; TAPE 8-98166-639-0 02 1 1301-
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> (A) M5X14 		8-94279-325-0 01 1 9905-0301
303 SCREW; CONT UNIT
(B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0302-0602
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 9905-0602
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603-0802
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0803-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0803-0809
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810-
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 9905-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
485 CONTROL UNIT; SPEED SENSOR 1-80190-038-1 01 1 9905-0205
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0206-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 9905-0301
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-032-0 01 1 9905-0104
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0105-

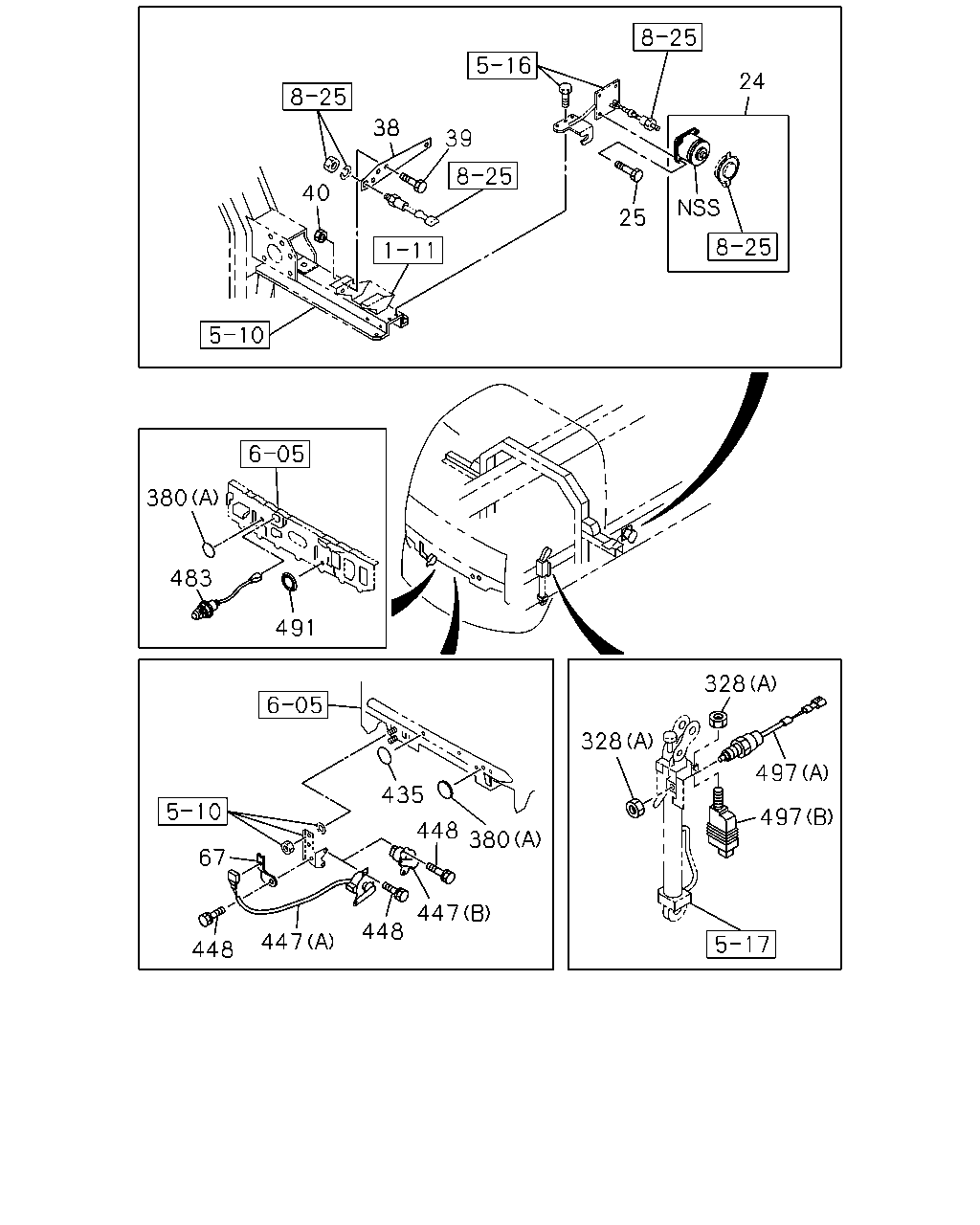

çizim 37670
24 38 39 40 25 380 483 491 328 328 497 435 497 448 380 67 447 448 447 448
BalonParca AdiParca NoAdetTipApplied Date
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 9905-
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 9905-0512
25 BOLT; SW BOX
M6X16 FLANGE 		0-28050-616-0 02 1 0601-
38 BRACKET; SW,STARTER SUB 1-82699-741-0 01 1 9905-
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512
39 BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91150-108-0 02 1 9905-0602
40 NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE 		0-91180-108-0 02 1 0603-
67 BRACKET; CONT UNIT
FULL FLOATING CAB(W16) 		1-82699-355-1 01 1 9905-0104
328 NUT
(A) M16 		9-99111-416-0 02 1 9905-0512
328 NUT
(A) M16 		0-91111-516-0 02 1 0601-
328 NUT
ELEC OUTLET 12V<TAW> (B) M6 FLANGE 		0-91150-106-0 04 1 9905-9907
328 NUT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6 FLANGE 		0-91150-106-0 04 1 9908-9911
380 SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK 		1-76798-019-0 04 1 9905-
380 SEAL
FULL FLOATING CAB(W16) (B) 450X350 		1-76770-008-0 01 1 0212-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 04 1 9905-0103
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0104-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) W/HARNESS 		1-81541-067-4 01 1 9905-0104
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) WO/HARNESS 		1-80250-010-1 01 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (C) W/HARNESS 		1-81541-069-3 01 1 9905-0104
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (D) WO/HARNESS 		1-80250-011-1 01 1 0105-
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-0407
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0408-
483 SWITCH 1-82440-092-0 01 1 9905-0003
483 SWITCH 1-82440-118-0 01 1 0004-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 9905-
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 9905-
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 9905-

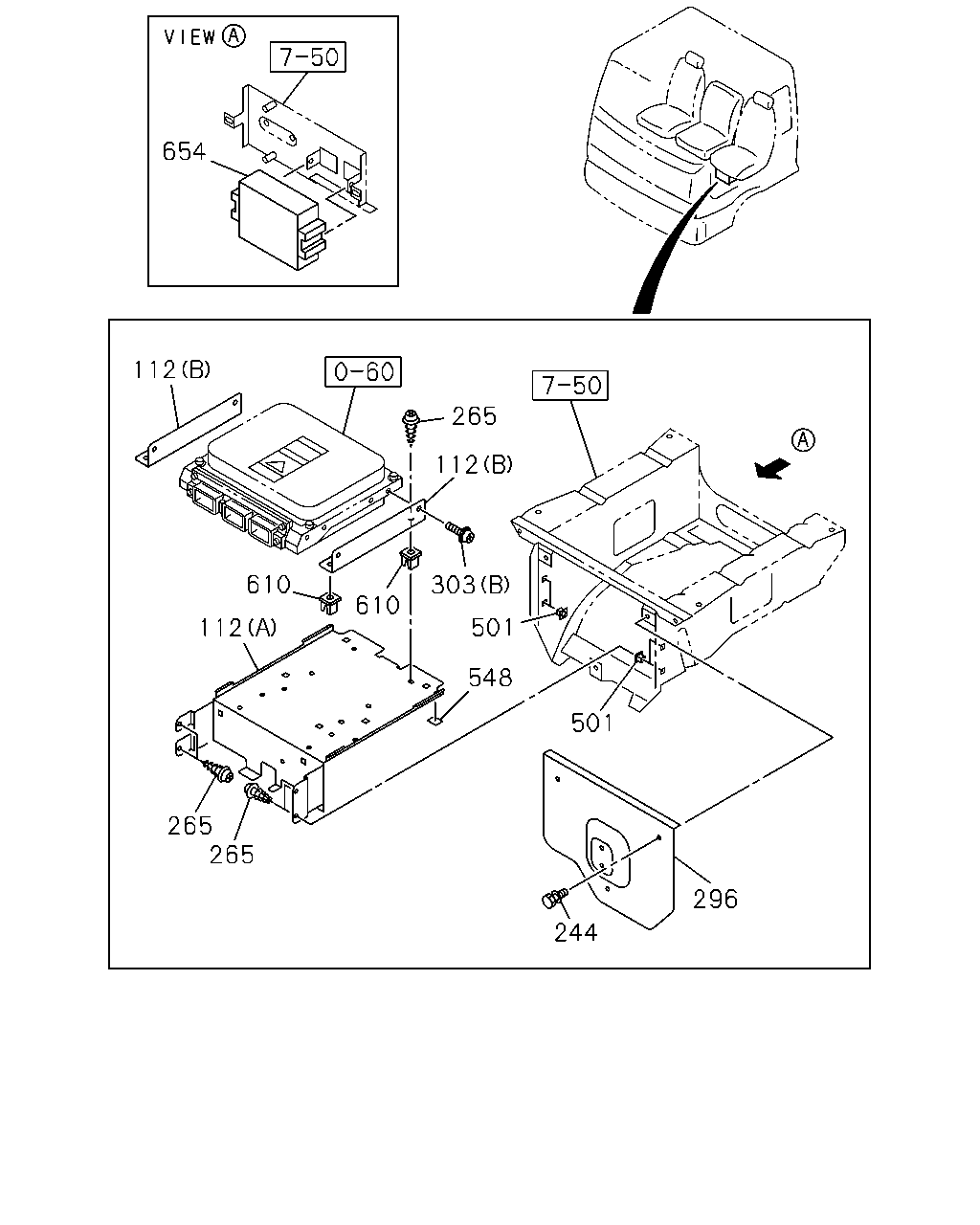

çizim 37672
654 112 265 112 610 303 610 501 112 548 501 265 265 296 244
BalonParca AdiParca NoAdetTipApplied Date
112 BRACKET; CONT UNIT
(B) 		1-75558-566-0 02 1 0302-
112 BRACKET; CONT UNIT
(A) 		1-75558-598-3 01 1 0302-0602
112 BRACKET; CONT UNIT
(A) 		1-75557-511-5 01 1 0603-
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-0703
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0302-
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0302-
296 COVER; CONT UNIT 1-75558-523-4 01 1 9905-0104
296 COVER; CONT UNIT 1-75557-489-1 01 1 0105-0602
296 COVER; CONT UNIT 1-75558-523-4 01 1 0603-
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> (A) M5X14 		8-94279-325-0 01 1 9905-0301
303 SCREW; CONT UNIT
(B) M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0302-0602
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0302-
548 SEAL; NOISE
30X30 		8-97866-626-0 03 1 0302-0309
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0310-0908
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306-
610 GROMMET; SCREW,BRKT ELEC UNIT
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0302-
654 CONTROL UNIT; EXH & RETARDER 1-80150-118-0 01 1 0302-

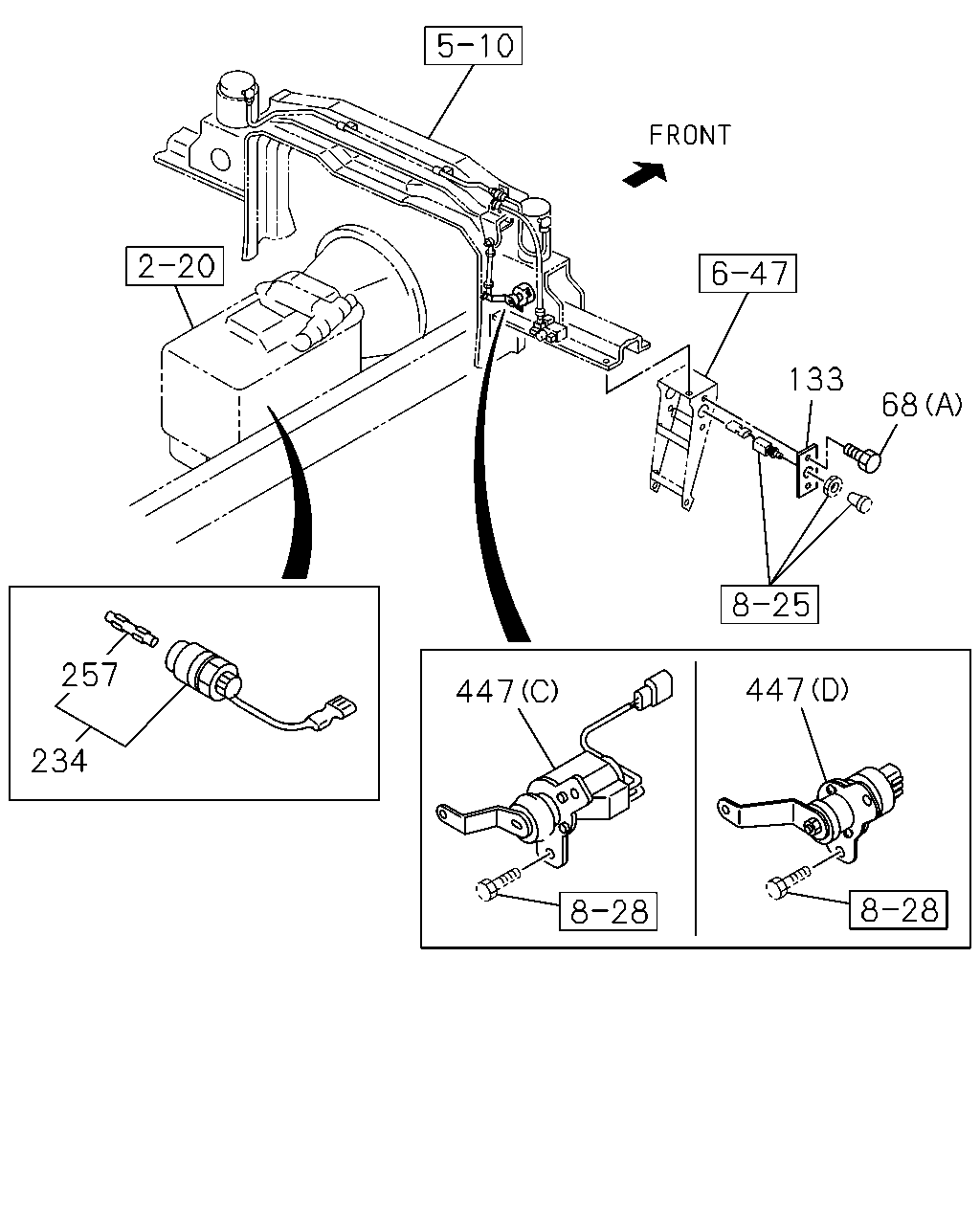

çizim 100313
133 68 257 447 447 234
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0104
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0105-0403
68 BOLT; BRKT
INSPECTION LAMP<T95> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0404-0512
68 BOLT; BRKT
INSPECTION LAMP<T95> (A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-9907
68 BOLT; BRKT
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (B) M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9908-0104
133 BRACKET; SWITCH 1-82699-815-0 01 1 9905-0403
133 BRACKET; SWITCH
INSPECTION LAMP<T95> 		1-82699-815-0 01 1 0404-
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 9905-
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 9905-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) W/HARNESS 		1-81541-067-4 01 1 9905-0104
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) WO/HARNESS 		1-80250-010-1 01 1 0105-
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (C) W/HARNESS 		1-81541-069-3 01 1 9905-0104
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (D) WO/HARNESS 		1-80250-011-1 01 1 0105-
