Sayfa 4-10 - Isuzu EPC

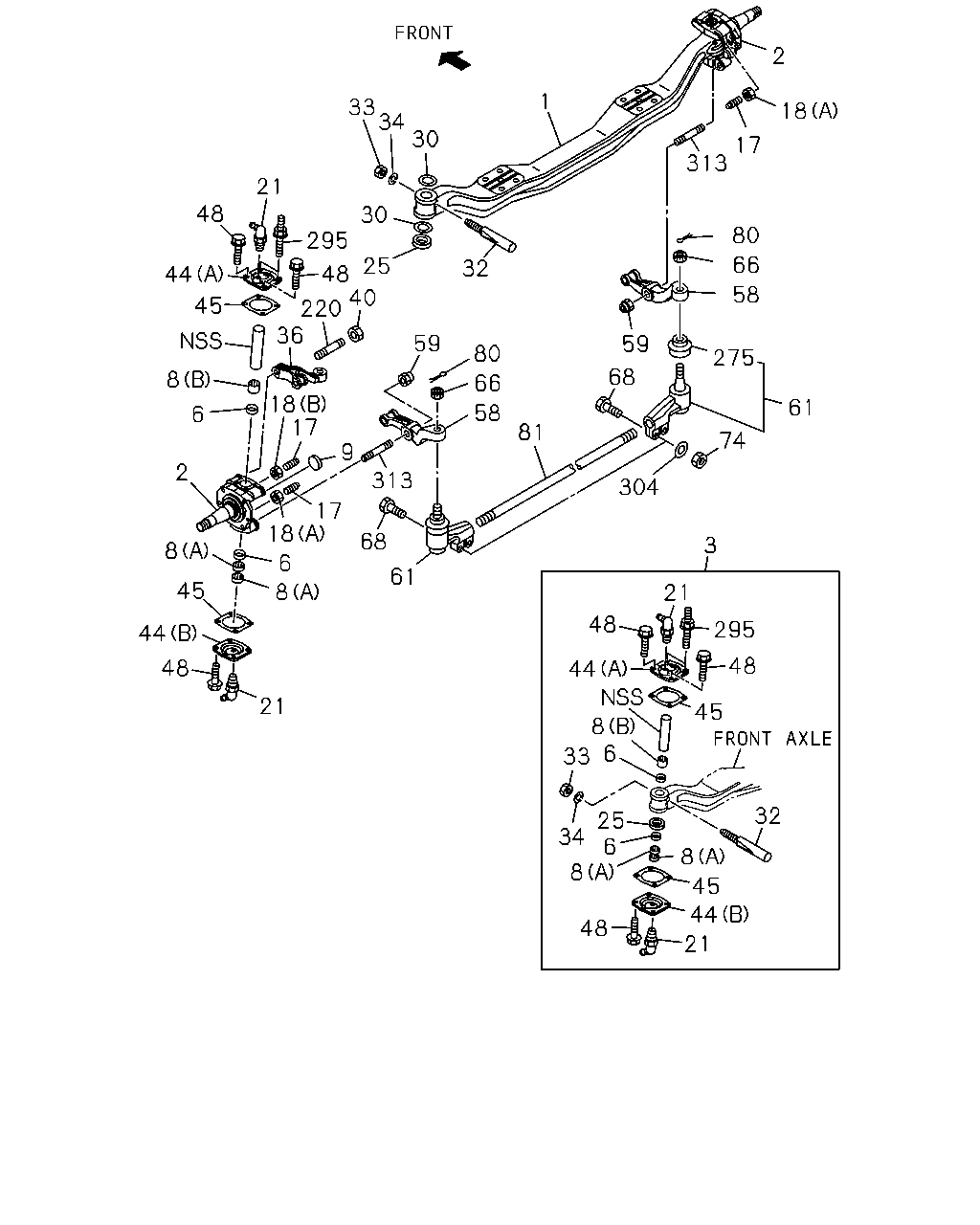

4-10 — FRONT AXLE (#62065) — 251 parça

2 1 33 34 30 18 17 313 21 48 30 80 295 66 25 32 48 40 220 36 44 58 45 59 59 80 275 68 8 66 18 17 61 58 6 81 74 9 2 313 304 17 18 68 3 8 6 61 45 8 21 48 295 44 48 48 44 45 21 8 6 33 32 25 6 34 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1008-
1	AXLE; FRT	1-43111-178-3	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
3	KING PIN SET	1-87831-349-3	02	1	1008-
3	KING PIN SET	1-87831-349-3	02	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) FORWARD M18X53	1-09009-066-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) FORWARD M18X43	1-09009-190-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) REARWARD M18X53	1-09009-066-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) REARWARD M18X56	1-09009-108-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) FORWARD M18X53	1-09009-066-0	03	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) REARWARD M18X53	1-09009-066-0	03	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1008-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1008-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1008-
58	ARM; TIE ROD FORWARD	8-98145-592-0	01	1	1008-
58	ARM; TIE ROD FORWARD	8-98145-593-0	01	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	1008-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-

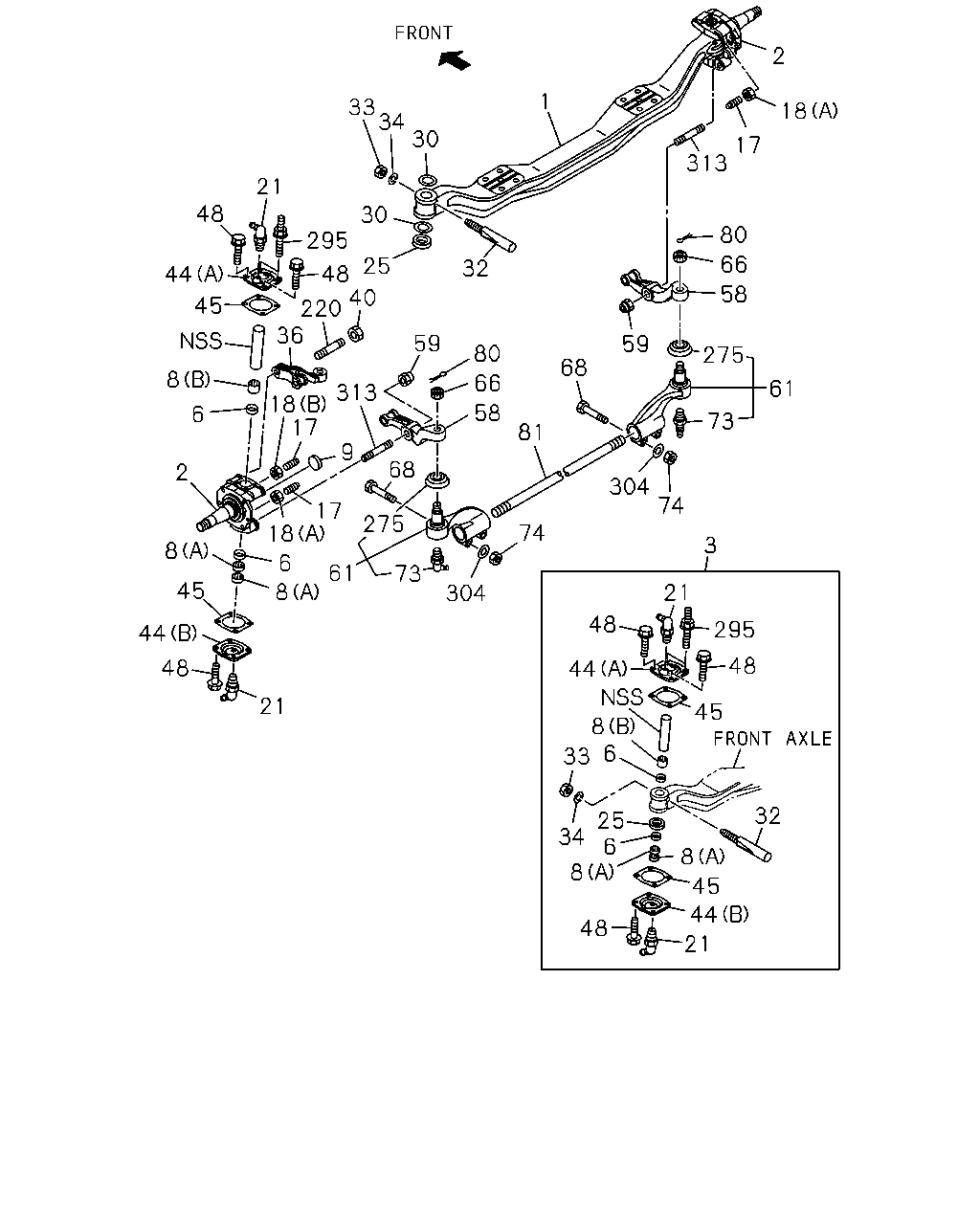

2 1 33 34 30 18 17 313 21 48 30 80 295 66 25 32 48 40 220 36 44 58 45 275 59 59 80 68 8 66 61 313 18 17 58 6 73 81 68 9 2 304 74 17 275 74 18 3 8 6 61 73 45 8 21 304 48 295 44 48 48 44 45 21 8 6 33 32 25 6 34 8 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-178-3	01	1	1008-
1	AXLE; FRT	1-43111-178-3	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43131-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
2	KNUCKLE; FRT AXLE	1-43132-120-1	01	1	1008-
3	KING PIN SET	1-87831-349-3	02	1	1008-
3	KING PIN SET	1-87831-349-3	02	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
6	SEAL; KING PIN	9-09926-024-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1008-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) FORWARD M18X53	1-09009-066-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) FORWARD M18X43	1-09009-190-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) REARWARD M18X53	1-09009-066-0	02	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) REARWARD M18X56	1-09009-108-0	01	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 6500MM(65W),WHEEL BASE 7400MM(74W) FORWARD M18X53	1-09009-066-0	03	1	1008-
17	BOLT; STOPPER KNUCKLE WHEEL BASE 7800MM(78W) REARWARD M18X53	1-09009-066-0	03	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (A) M18	0-91110-518-0	02	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
18	NUT; STOPPER BOLT,KNUCKLE (B) OCTAGON M18	1-09469-011-1	01	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
36	ARM; KNUCKLE	1-43133-083-3	01	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1008-
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	16	1	1008-
58	ARM; TIE ROD REARWARD	1-43134-060-2	01	1	1008-
58	ARM; TIE ROD REARWARD	1-43135-060-2	01	1	1008-
58	ARM; TIE ROD FORWARD	8-98145-592-0	01	1	1008-
58	ARM; TIE ROD FORWARD	8-98145-593-0	01	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1008-
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98054-851-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98054-853-0	01	1	1008-1009
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1306
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1008-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1008-
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	1-43151-154-0	01	1	1008-1009
81	ROD; TIE	8-98105-064-0	01	1	1010-
81	ROD; TIE	8-98105-064-0	01	1	1010-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1008-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1008-1009
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	1008-
304	WASHER; PL ID=12.5	0-91614-512-0	04	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1008-

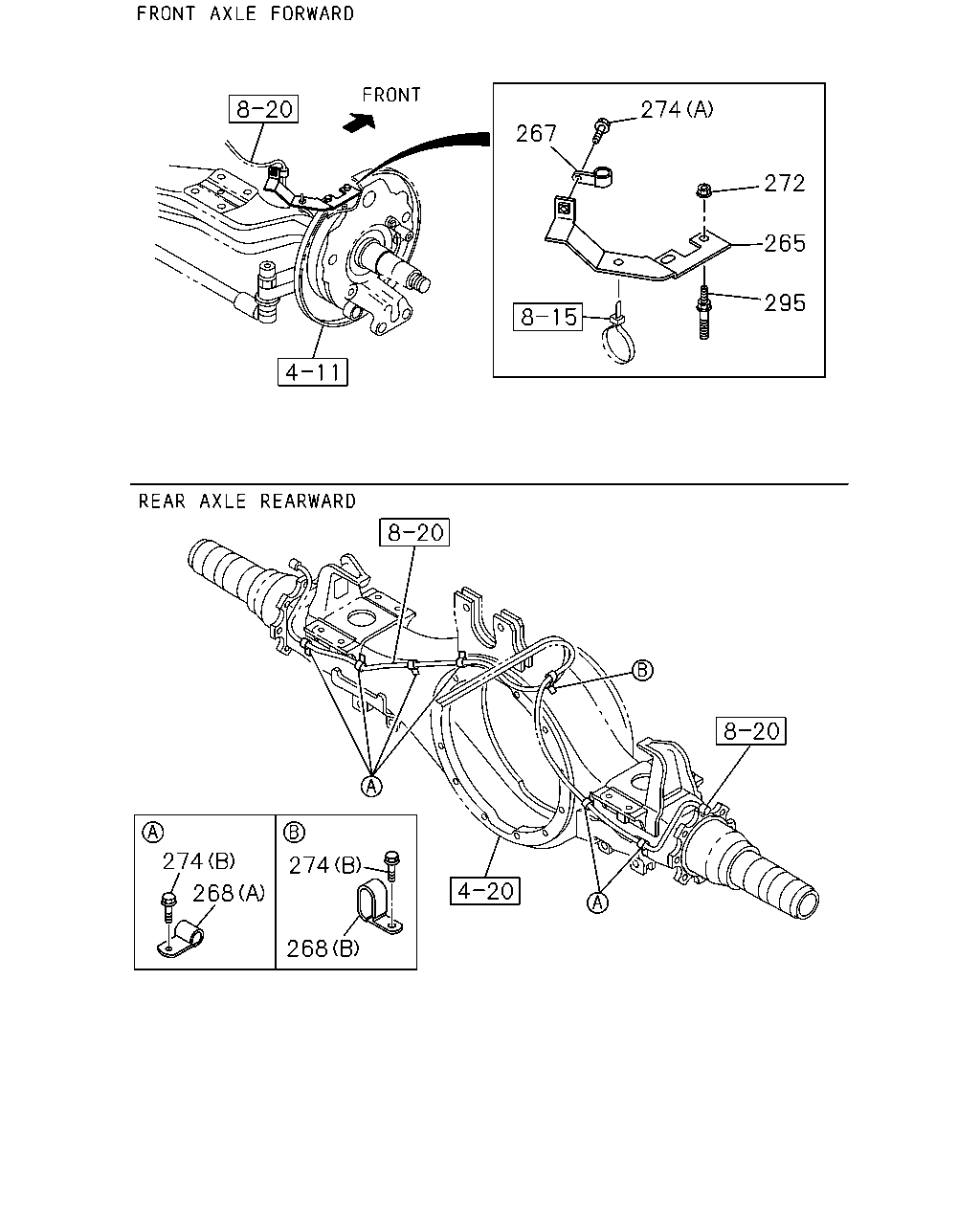

274 267 272 265 295 274 274 268 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1008-
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1008-
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1008-
268	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	06	1	1008-
268	CLIP; HARNESS (B) ID=11X2 L=20	1-09700-871-0	01	1	1008-
272	NUT; CLIP M10 FLANGE	0-91180-110-0	04	1	1008-
274	BOLT; CLIP (B) M8X10 FLANGE	0-28050-810-0	07	1	1008-
274	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	02	1	1008-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
