Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#62061) — 343 parça

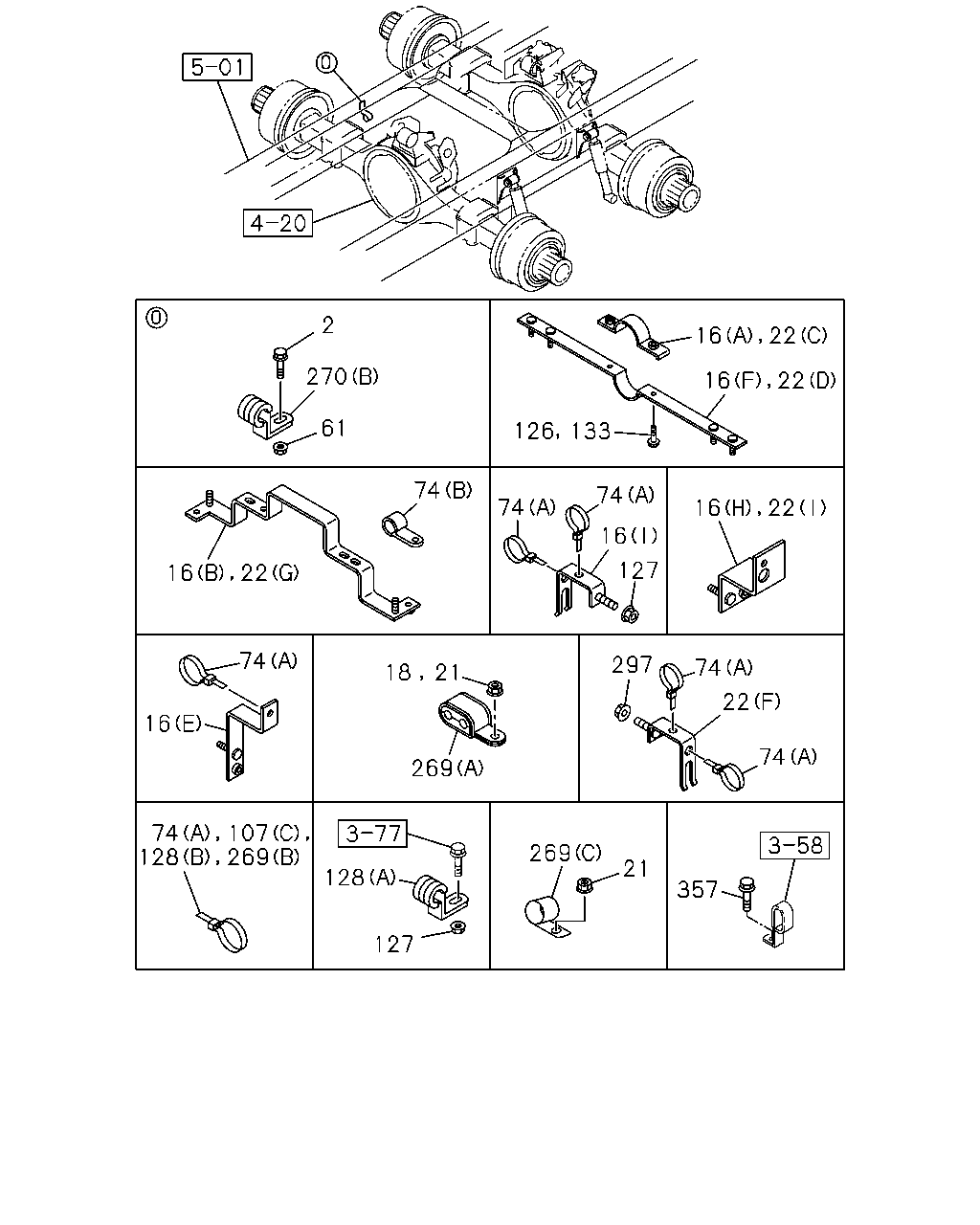

2 16 22 270 61 126 133 74 74 74 16 127 74 297 74 18 21 22 16 74 269 74 107 269 21 128 357 127 16 22 22 16 22 16 128 269

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1008-
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1008-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1008-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	02	1	1008-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1008-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1008-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (I)	1-47479-381-2	04	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (G)	1-47479-693-0	02	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W) (I)	1-47479-381-2	06	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (G)	1-47479-693-0	03	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7800MM(78W) (I)	1-47479-381-2	07	1	1008-
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1008-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	1008-
22	BRACKET; CLIP (M)	1-47477-571-3	01	1	1008-
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	1008-
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1008-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1008-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1008-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1008-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1008-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1008-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1008-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1008-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1008-
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (F)	1-47479-381-2	01	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	1-47479-381-2	08	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (F)	1-47479-381-2	10	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E)	1-47479-693-0	03	1	1008-
22	BRACKET; CLIP WHEEL BASE 7800MM(78W) (F)	1-47479-381-2	11	1	1008-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1008-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1008-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1008-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1008-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1008-
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	03	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	18	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	22	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 7800MM(78W) (A) L=350	1-09707-183-0	23	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1008-
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1008-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-
126	BOLT; CLIP BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	08	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	11	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	12	1	1008-
128	CLIP; NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	02	1	1008-
128	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	1008-
128	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (B) L=350	1-09707-183-0	12	1	1008-
128	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (B) L=350	1-09707-183-0	16	1	1008-
128	CLIP; NYLON TUBE WHEEL BASE 7800MM(78W) (B) L=350	1-09707-183-0	17	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1312-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	1008-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1008-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	08	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1008-1107
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
269	CLIP; BAND,NYLON TUBE (C) ID=13	1-09701-030-1	03	1	1008-
269	CLIP; BAND,NYLON TUBE (A) ID=11X2 L=42	1-09701-306-0	06	1	1008-
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1008-
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1008-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1008-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1108-1311
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	20	1	1008-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	23	1	1008-
297	NUT; BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	24	1	1008-
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1008-

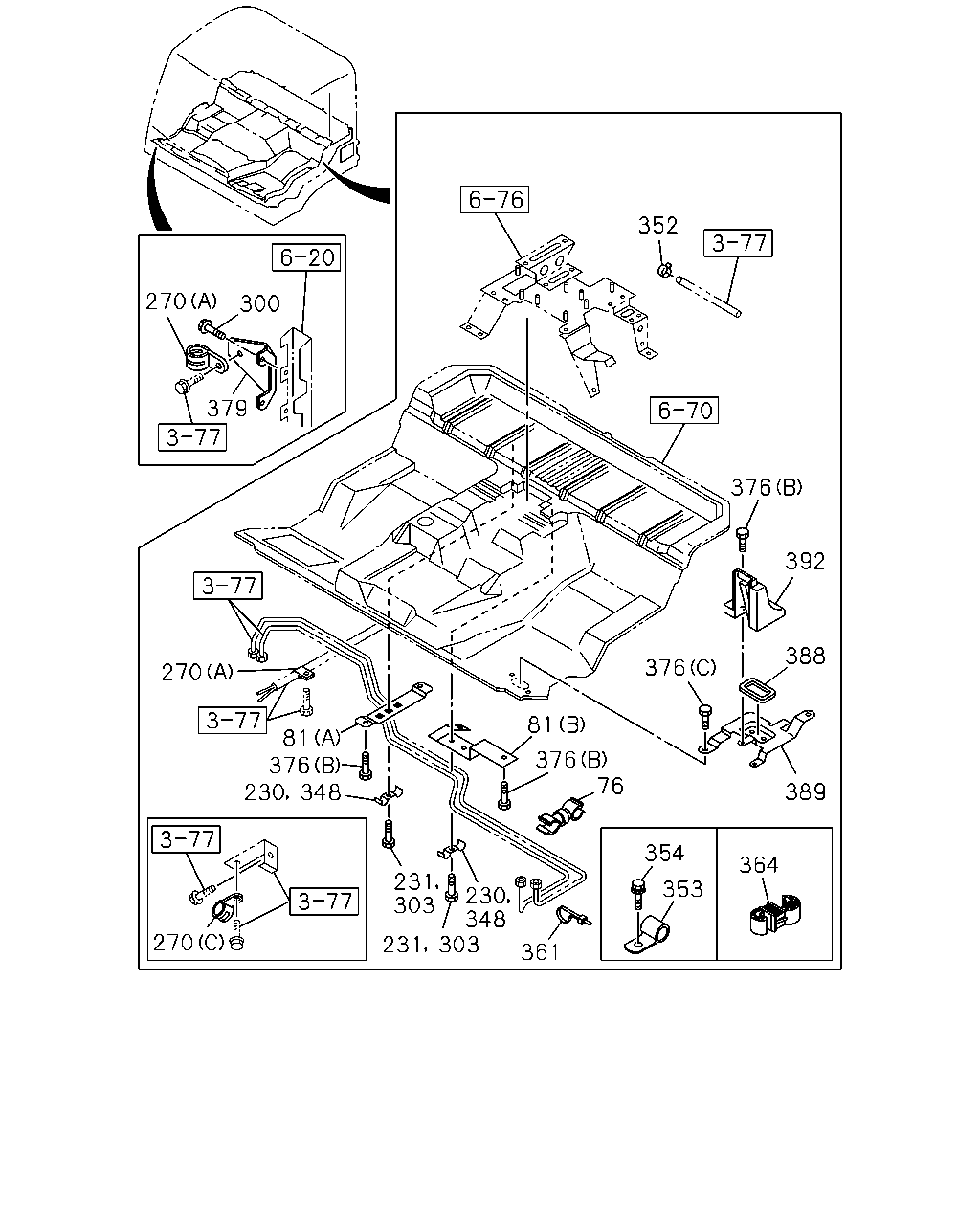

352 270 300 379 376 392 388 376 270 81 81 376 376 76 389 354 231 303 364 353 230 348 303 270 231 361 230 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	1008-
81	BRACKET; CLIP (E)	1-47477-694-0	02	1	1008-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1008-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1008-
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1008-
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1008-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1008-
81	BRACKET; CLIP (F)	8-98061-758-0	03	1	1008-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1008-
81	BRACKET; CLIP MJT7S M/T(Y3E) (C)	1-47479-381-2	01	1	1008-
230	CLIP; PIPE,AIR BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-
231	BOLT; CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1008-
270	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1008-
270	CLIP; NYLON TUBE (A) ID=28 L=32	1-09701-107-1	03	1	1008-
270	CLIP; NYLON TUBE (B) ID=16 H=25 L=25	1-09701-162-0	02	1	1008-
300	BOLT; TUBE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	1008-
303	BOLT; PIPE CLIP BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	1008-
303	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1008-
303	BOLT; PIPE CLIP EXC. FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	1008-
348	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-061-0	03	1	1008-
348	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-
348	CLIP; AIR PIPE EXC. FULL TRAILER PIPING<Z25> ID=11 & 9 L=15 & 15	1-09700-062-0	03	1	1008-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	1008-
353	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=9 L=16	0-95234-822-0	01	1	1008-
354	BOLT; PIPE CLIP FULL TRAILER PIPING<Z25> M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	1008-
361	CLIP; FLEX HOSE,AIR PRESS GAGE L=250	5-09707-030-1	01	1	1008-
364	CLIP; AIR PIPE FULL TRAILER PIPING<Z25> ID=8.3 & 10	8-94176-792-0	01	1	1008-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1008-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-
379	BRACKET; NYLON TUBE	1-79996-110-2	01	1	1008-
388	SEAL L=215	1-79738-794-1	01	1	1008-
389	BRACKET; UNION	1-79738-790-1	01	1	1008-
392	COVER; BRKT	1-73996-264-1	01	1	1008-

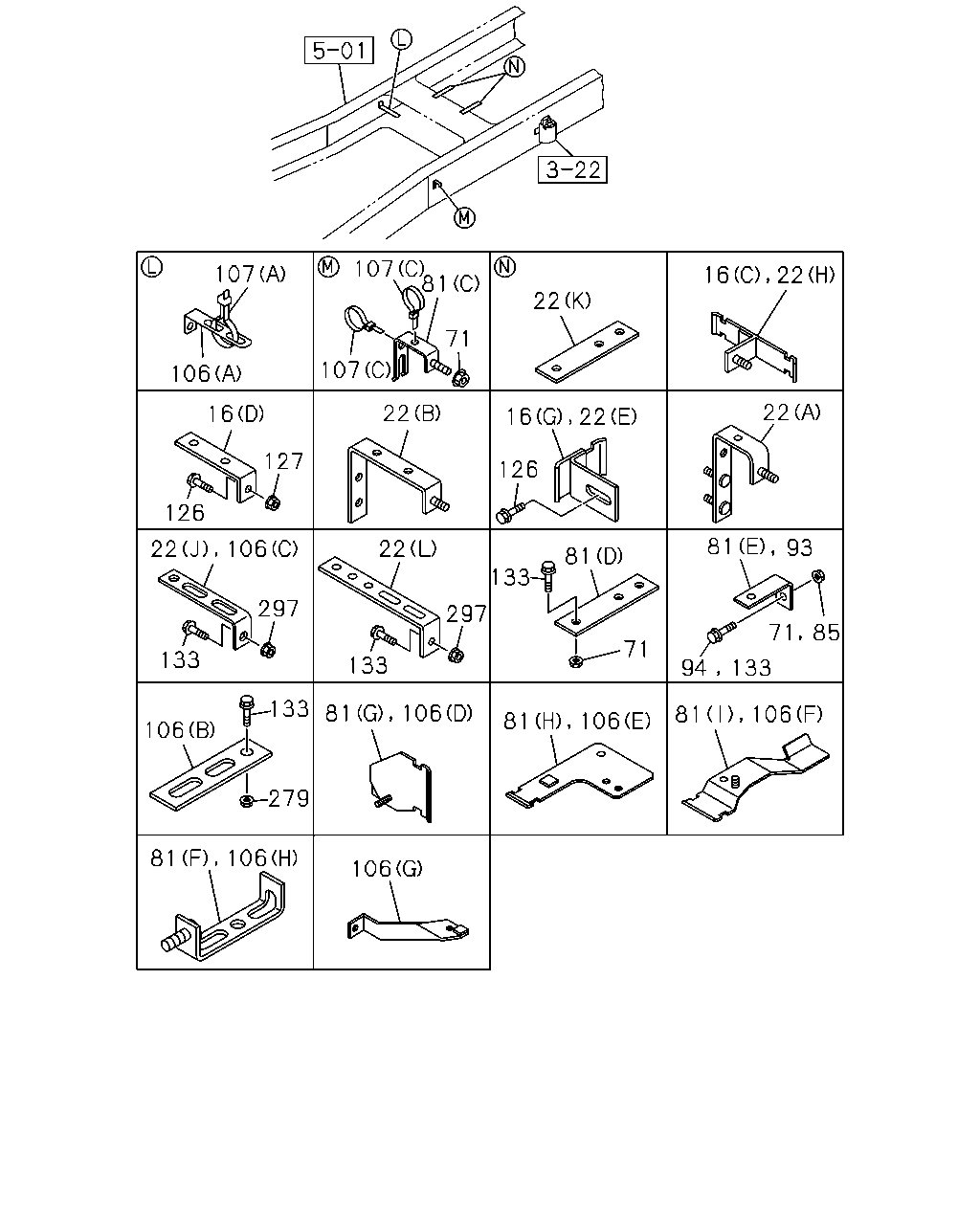

107 81 107 22 71 107 106 22 22 16 16 22 127 126 126 81 93 22 106 22 81 133 297 297 71 85 71 133 133 94 133 133 81 106 81 106 81 106 106 279 81 106 106 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	BRACKET; PIPE CLIP (A)	1-47479-546-0	01	1	1008-
16	BRACKET; PIPE CLIP (F)	1-47479-720-0	01	1	1008-
16	BRACKET; PIPE CLIP (E)	1-47479-721-0	02	1	1008-
16	BRACKET; PIPE CLIP (H)	1-47479-722-1	01	1	1008-
16	BRACKET; PIPE CLIP (B)	1-47479-898-0	01	1	1008-
16	BRACKET; PIPE CLIP (D) L=30	1-47479-481-0	01	1	1008-
16	BRACKET; PIPE CLIP (C)	1-47479-554-0	01	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (I)	1-47479-381-2	04	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 6500MM(65W) (G)	1-47479-693-0	02	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W) (I)	1-47479-381-2	06	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (G)	1-47479-693-0	03	1	1008-
16	BRACKET; PIPE CLIP WHEEL BASE 7800MM(78W) (I)	1-47479-381-2	07	1	1008-
22	BRACKET; CLIP (M)	1-47477-571-3	01	1	1008-
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	1008-
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1008-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1008-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1008-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1008-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1008-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1008-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1008-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1008-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1008-
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (F)	1-47479-381-2	01	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	1-47479-381-2	08	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (F)	1-47479-381-2	10	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E)	1-47479-693-0	03	1	1008-
22	BRACKET; CLIP WHEEL BASE 7800MM(78W) (F)	1-47479-381-2	11	1	1008-
71	NUT; BRKT MJT7S M/T(Y3E) M8 FLANGE	0-91180-108-0	09	1	1008-
71	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	08	1	1008-
81	BRACKET; CLIP (E)	1-47477-694-0	02	1	1008-
81	BRACKET; CLIP (D) L=130	1-47478-959-0	02	1	1008-
81	BRACKET; CLIP (B)	1-79996-133-2	01	1	1008-
81	BRACKET; CLIP (G)	8-98046-950-0	01	1	1008-
81	BRACKET; CLIP (H)	8-98052-412-0	01	1	1008-
81	BRACKET; CLIP (I)	8-98052-414-0	01	1	1008-
81	BRACKET; CLIP (F)	8-98061-758-0	03	1	1008-
81	BRACKET; CLIP (A)	1-79996-127-2	01	1	1008-
81	BRACKET; CLIP MJT7S M/T(Y3E) (C)	1-47479-381-2	01	1	1008-
85	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	03	1	1008-
93	BRACKET; PIPE CLIP L=75	1-47478-323-0	01	1	1008-
93	BRACKET; PIPE CLIP L=95	1-82699-085-0	02	1	1008-
94	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	03	1	1008-
106	BRACKET; TUBE CLIP (B)	1-47477-514-3	01	1	1008-
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	05	1	1008-
106	BRACKET; TUBE CLIP (C)	1-47479-598-0	01	1	1008-
106	BRACKET; TUBE CLIP (D)	8-98046-949-0	01	1	1008-
106	BRACKET; TUBE CLIP (E)	8-98052-408-0	01	1	1008-1412
106	BRACKET; TUBE CLIP (E)	8-98297-188-0	01	1	1501-
106	BRACKET; TUBE CLIP (F)	8-98052-410-0	01	1	1008-
106	BRACKET; TUBE CLIP (G)	8-98057-133-0	01	1	1008-
106	BRACKET; TUBE CLIP (H)	8-98061-758-0	01	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1008-
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1008-
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
126	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1008-
126	BOLT; CLIP BRKT M8X35 FLANGE	0-28650-835-0	04	1	1008-
126	BOLT; CLIP BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
126	BOLT; CLIP BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
127	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	02	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	08	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	11	1	1008-
127	NUT; CLIP BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	12	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1312-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	1008-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1008-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	08	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1008-1107
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1008-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1108-1311
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	20	1	1008-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	23	1	1008-
297	NUT; BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	24	1	1008-

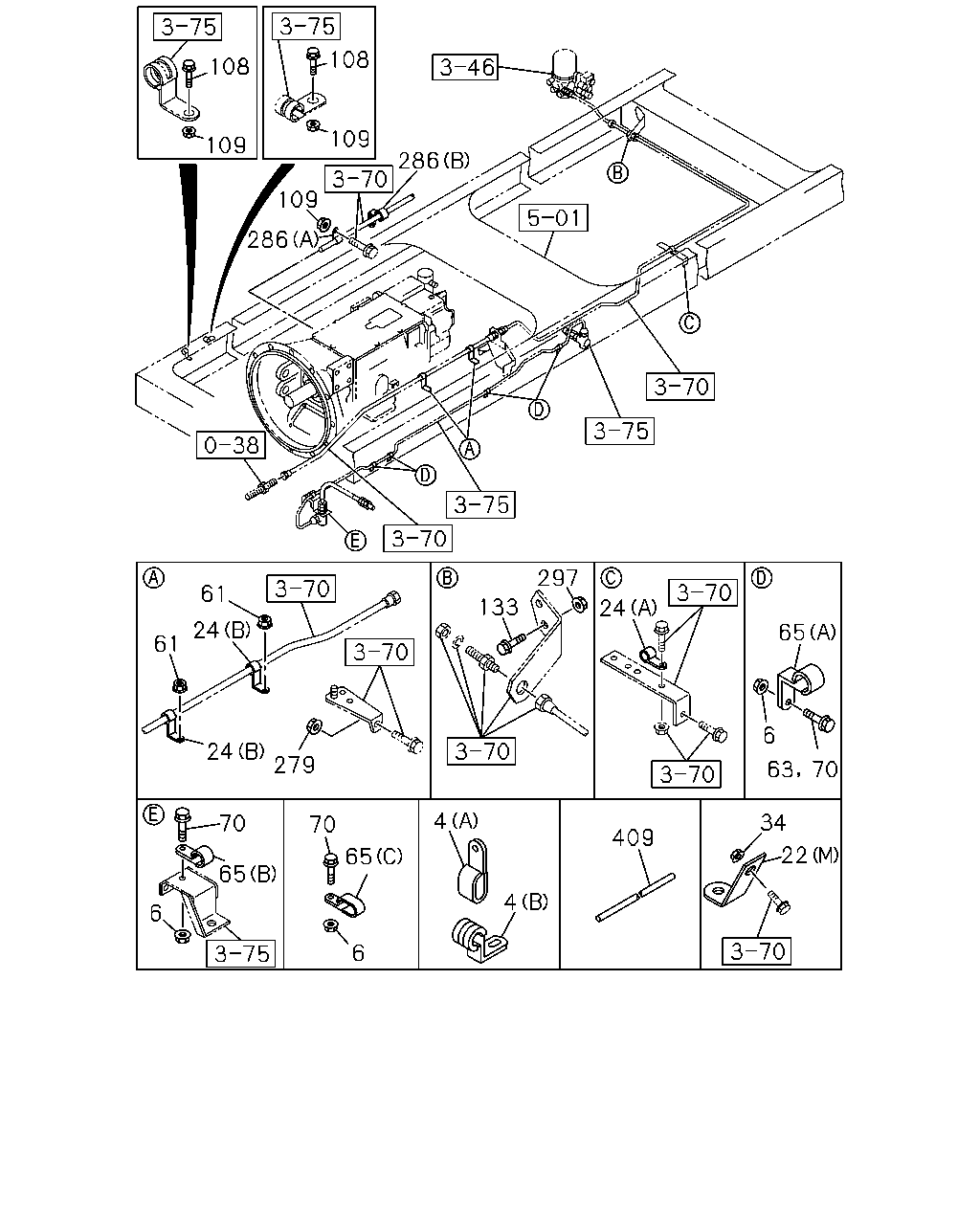

108 108 109 109 286 109 286 297 61 133 24 24 65 61 6 24 279 63 70 4 34 70 70 409 22 65 65 4 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	CLIP; AIR PIPE (A) ID=16X2 L=20	0-95325-535-0	01	1	1008-
4	CLIP; AIR PIPE (B) ID=12 H=24 L=20	1-09700-605-0	01	1	1008-
6	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	06	1	1008-
22	BRACKET; CLIP (M)	1-47477-571-3	01	1	1008-
22	BRACKET; CLIP (K) L=130	1-47478-959-0	02	1	1008-
22	BRACKET; CLIP (A)	1-47479-329-0	01	1	1008-
22	BRACKET; CLIP (C)	1-47479-546-0	01	1	1008-
22	BRACKET; CLIP (D)	1-47479-720-0	01	1	1008-
22	BRACKET; CLIP (I)	1-47479-722-1	01	1	1008-
22	BRACKET; CLIP (L) L=160 H=30	1-47479-759-0	03	1	1008-
22	BRACKET; CLIP (G)	1-47479-898-0	01	1	1008-
22	BRACKET; CLIP (H)	1-47479-554-0	01	1	1008-
22	BRACKET; CLIP (J)	1-47479-754-0	01	1	1008-
22	BRACKET; CLIP (B)	1-47479-800-0	01	1	1008-
22	BRACKET; CLIP FULL TRAILER PIPING<Z25> (F)	1-47479-381-2	01	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (F)	1-47479-381-2	08	1	1008-
22	BRACKET; CLIP WHEEL BASE 6500MM(65W) (E)	1-47479-693-0	02	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W) (F)	1-47479-381-2	10	1	1008-
22	BRACKET; CLIP WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) (E)	1-47479-693-0	03	1	1008-
22	BRACKET; CLIP WHEEL BASE 7800MM(78W) (F)	1-47479-381-2	11	1	1008-
24	CLIP; PIPE (A) ID=19 L=20	0-95235-836-0	01	1	1008-
24	CLIP; PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	1008-
34	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1008-
61	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1008-
63	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1008-
65	CLIP; AIR PIPE (B) ID=13 L=20	0-95235-236-0	01	1	1008-
65	CLIP; AIR PIPE (C) ID=13X2 L=20	0-95325-236-0	01	1	1008-
65	CLIP; AIR PIPE (C) ID=16X2 L=20	0-95325-535-0	01	1	1008-
65	CLIP; AIR PIPE (A) ID=12 H=24 L=20	1-09700-605-0	04	1	1008-
70	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	04	1	1008-
70	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28650-825-0	01	1	1008-
70	BOLT; CLIP,AIR PIPE M8X30 FLANGE	0-28650-830-0	03	1	1008-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1008-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1008-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	07	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1312-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	1008-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1008-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	08	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1008-1107
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
279	NUT; BRKT M8 FLANGE	0-91180-108-0	11	1	1008-
286	CLIP; NYLON TUBE MJT7S M/T(Y3E) (B) ID=16 H=25 L=25	1-09701-162-0	01	1	1008-
286	CLIP; NYLON TUBE MJX16P M/T(Y3Z) (A) ID=18 L=28	1-09701-067-0	01	1	1008-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1108-1311
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	20	1	1008-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	23	1	1008-
297	NUT; BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	24	1	1008-
409	TUBE; DISTANCE L=22	9-22159-024-0	01	1	1008-

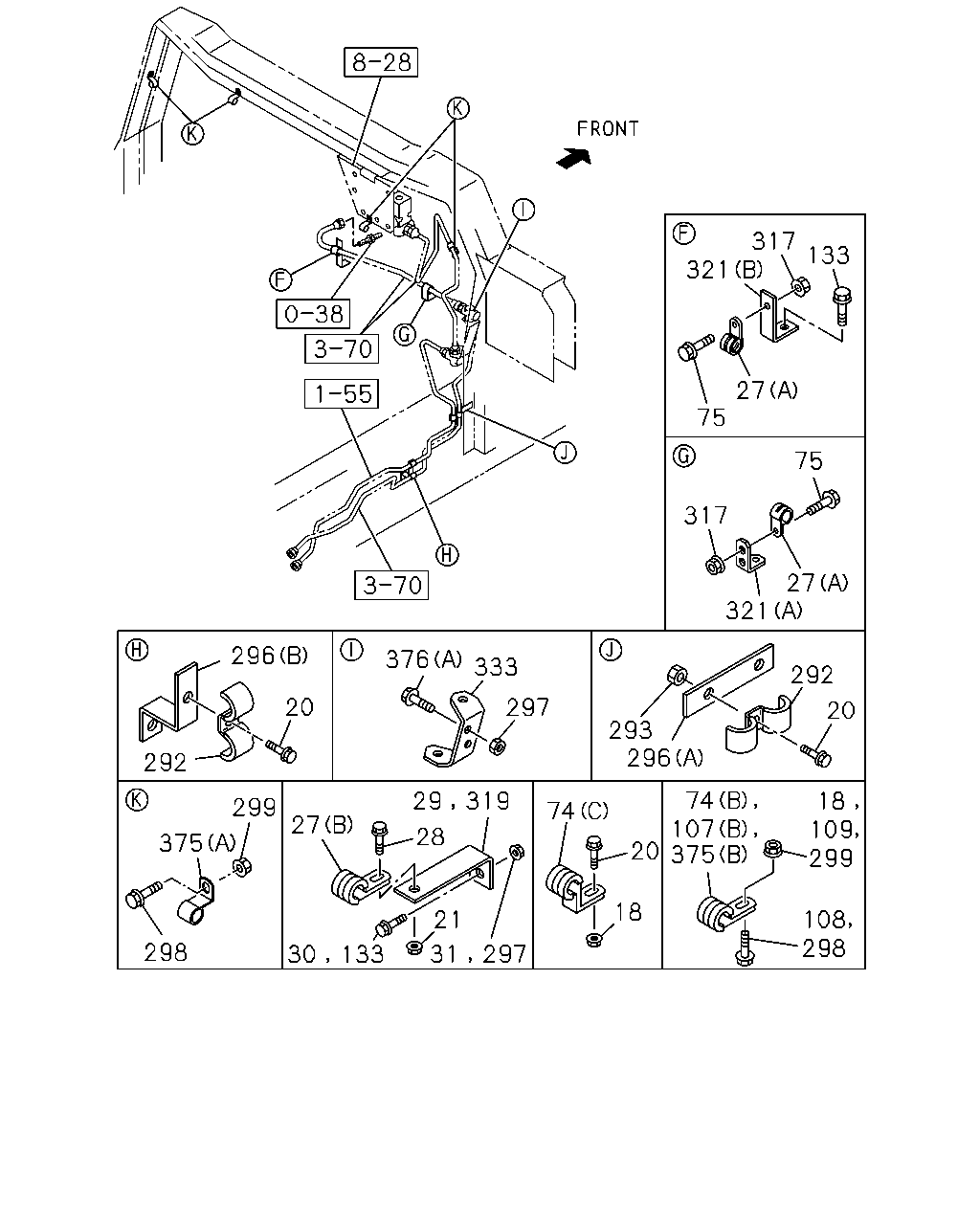

317 321 133 27 75 75 317 27 321 296 376 333 292 20 297 20 293 296 292 74 107 375 18 109 299 299 74 27 28 375 20 18 108 298 21 298 31 297 30 133 29 319

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	1008-
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	06	1	1008-
20	BOLT; CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-
21	NUT; CLIP M8 FLANGE	0-91180-108-0	10	1	1008-
27	CLIP; FLEX HOSE (B) ID=26 L=27	1-09701-006-0	01	1	1008-
27	CLIP; FLEX HOSE EXC. MIXER TRUCK<RA2> (A) ID=15 L=28	1-09701-216-0	02	1	1008-
28	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28650-820-0	01	1	1008-
29	BRACKET; CLIP,AIR PIPE L=145 B=25	1-47479-123-0	01	1	1008-
30	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1008-
31	NUT; CLIP BRKT M8 FLANGE	0-91180-108-0	01	1	1008-
74	CLIP; NYLON TUBE (B) ID=13	1-09701-030-1	03	1	1008-
74	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	02	1	1008-
74	CLIP; NYLON TUBE (C) ID=45 H=31 L=35	1-09701-308-0	01	1	1008-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	01	1	1008-
74	CLIP; NYLON TUBE FULL TRAILER PIPING<Z25> (A) L=350	1-09707-183-0	03	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 6500MM(65W) (A) L=350	1-09707-183-0	18	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 7400MM(74W) (A) L=350	1-09707-183-0	22	1	1008-
74	CLIP; NYLON TUBE WHEEL BASE 7800MM(78W) (A) L=350	1-09707-183-0	23	1	1008-
75	BOLT; CLIP EXC. MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	01	1	1008-
107	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	20	1	1008-
107	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1008-
107	CLIP; NYLON TUBE (B) ID=21 L=24	8-98019-191-0	01	1	1008-
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1008-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28650-825-0	03	1	1008-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	02	1	1008-
108	BOLT; TUBE CLIP M8X35 FLANGE	0-28650-835-0	01	1	1008-
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	07	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1312-
133	BOLT; BRKT M8X12 FLANGE	0-28050-812-0	02	1	1008-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1008-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	10	1	1008-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1008-
133	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	08	1	1008-
133	BOLT; BRKT MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1008-1107
133	BOLT; BRKT EXC. MIXER TRUCK<RA2> M6X10 FLANGE	0-28050-610-0	01	1	1008-
133	BOLT; BRKT WHEEL BASE 6500MM(65W) M8X30 FLANGE	0-28650-830-0	02	1	1008-
133	BOLT; BRKT WHEEL BASE 7400MM(74W),WHEEL BASE 7800MM(78W) M8X30 FLANGE	0-28650-830-0	03	1	1008-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	1008-
293	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1008-
296	BRACKET; CLIP (A)	1-47475-648-0	01	1	1008-
296	BRACKET; CLIP (B) L=85 H=40	1-47476-676-0	01	1	1008-
297	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	1008-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1008-1107
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1108-1311
297	NUT; BRKT FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1312-
297	NUT; BRKT EXC. MIXER TRUCK<RA2> M12 FLANGE	0-91180-212-0	01	1	1008-
297	NUT; BRKT WHEEL BASE 6500MM(65W) M8 FLANGE	0-91180-108-0	20	1	1008-
297	NUT; BRKT WHEEL BASE 7400MM(74W) M8 FLANGE	0-91180-108-0	23	1	1008-
297	NUT; BRKT WHEEL BASE 7800MM(78W) M8 FLANGE	0-91180-108-0	24	1	1008-
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	02	1	1108-
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	03	1	1008-1107
298	BOLT; CLIP MIXER TRUCK<RA2> M8X20 FLANGE	0-28650-820-0	01	1	1108-
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1108-
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	03	1	1008-1107
299	NUT; CLIP MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	01	1	1108-
317	NUT; CLIP EXC. MIXER TRUCK<RA2> M8 FLANGE	0-91180-108-0	02	1	1008-
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1312-
319	BRACKET; CLIP MIXER TRUCK<RA2> L=75	1-47477-119-0	01	1	1008-1107
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (A)	1-47477-337-1	01	1	1008-
321	BRACKET; CLIP EXC. MIXER TRUCK<RA2> (B) L=75	1-47478-328-0	01	1	1008-
333	BRACKET; BRK AIR PIPE	1-47477-045-0	01	1	1008-
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (B) ID=7 L=20	0-95234-635-0	02	1	1008-
375	CLIP; AIR PIPE MIXER TRUCK<RA2> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1008-
376	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	1008-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	1008-
376	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	1008-
376	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	03	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
