3-75 — BRAKE PIPING; AIR,FRONT (#62059) — 144 parça

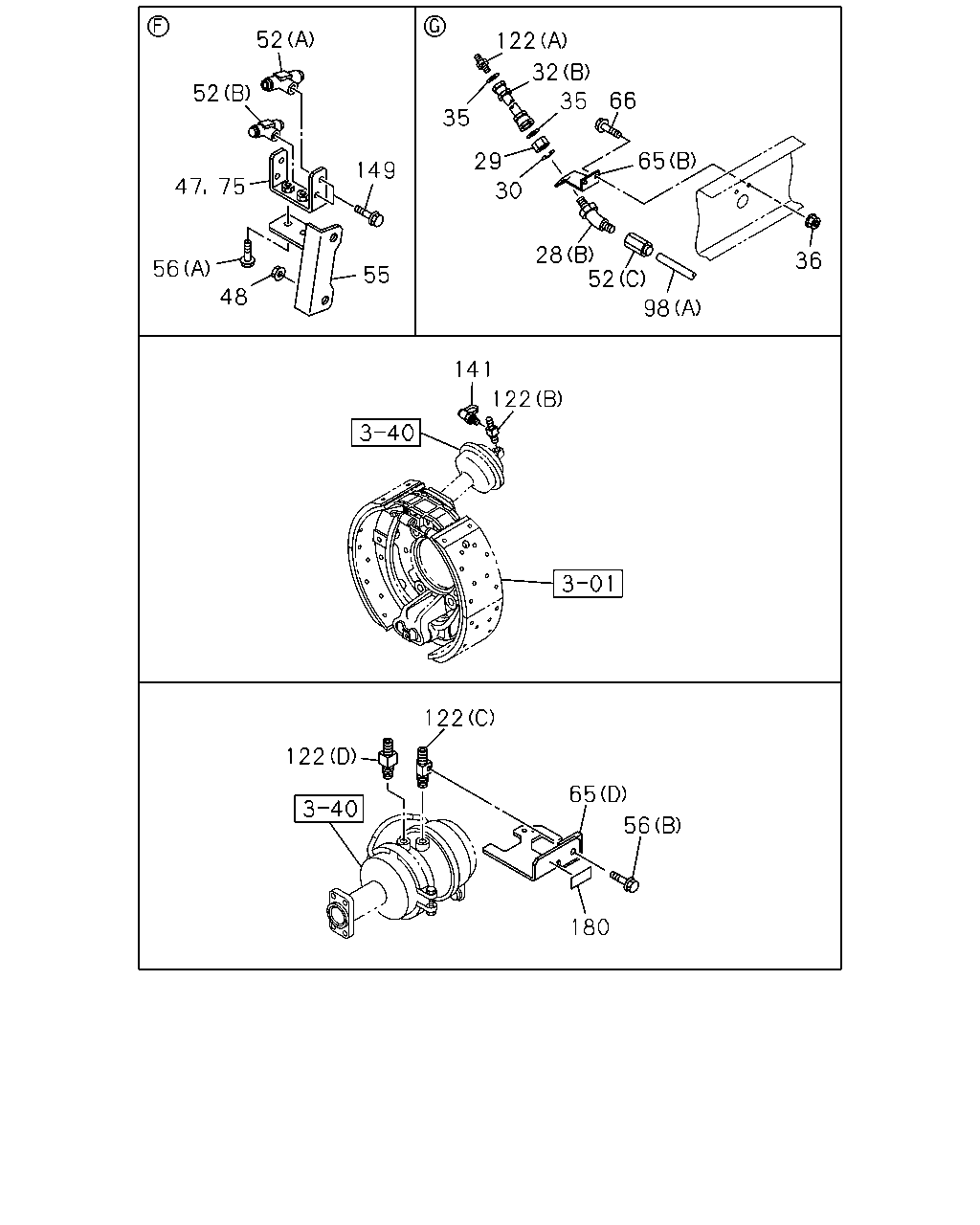

çizim 169928
52 122 32 52 66 35 35 65 29 149 47 75 30 28 52 36 56 55 48 98 141 122 122 122 65 56 180
BalonParca AdiParca NoAdetTipApplied Date
28 NIPPLE; AIR PIPE
(A) M20 & M20 ELBOW 		1-09654-128-1 02 1 1008-
28 NIPPLE; AIR PIPE
(B) M20 		1-09654-199-2 01 1 1008-
28 NIPPLE; AIR PIPE
(C) M20 & M20 ELBOW 		1-09654-397-1 02 1 1008-
29 NUT; NIPPLE
M20 		0-91111-520-0 07 1 1008-
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 05 1 1008-
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1008-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1008-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1008-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1008-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-
47 BRACKET; PIPE UNION
TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> 		1-47471-023-0 01 1 1008-
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 1008-
52 CONNECTOR; NYLON TUBE
(C) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 1008-
52 CONNECTOR; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1008-
52 CONNECTOR; NYLON TUBE
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 1008-
52 CONNECTOR; NYLON TUBE
EXC. FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 01 1 1008-
52 CONNECTOR; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 1008-
55 BRACKET; TUBE UNION 1-47479-993-1 01 1 1008-
56 BOLT; UNION BRKT
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1008-
56 BOLT; UNION BRKT
(A) M8X16 FLANGE 		0-28050-816-0 02 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1008-
65 BRACKET; FLEX HOSE
(A) 		1-47471-247-1 01 1 1008-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1008-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1008-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
75 BRACKET; UNION
EXC. FULL TRAILER PIPING<Z25> 		1-47471-023-0 01 1 1008-
75 BRACKET; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL<NLG> 		1-47471-023-0 01 1 1008-
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1008-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 01 1 1008-
122 CONNECTOR; FLEX HOSE
(B) R3/8 & RC1/4 & M20 3WAY 		1-09661-607-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-478-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-479-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-476-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-477-0 01 1 1008-
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-
141 CONNECTOR; TEST
R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1008-
149 BOLT; UNION
FULL TRAILER PIPING<Z25> EXC. TRAILER BRAKE HAND CONTROL<NLG> M8X16 FLANGE 		0-28050-816-0 03 1 1008-
149 BOLT; UNION
EXC. FULL TRAILER PIPING<Z25> M8X16 FLANGE 		0-28050-816-0 02 1 1008-
149 BOLT; UNION
TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M8X16 FLANGE 		0-28050-816-0 04 1 1008-
180 PLATE; CAUTION 8-98164-504-0 02 1 1008-

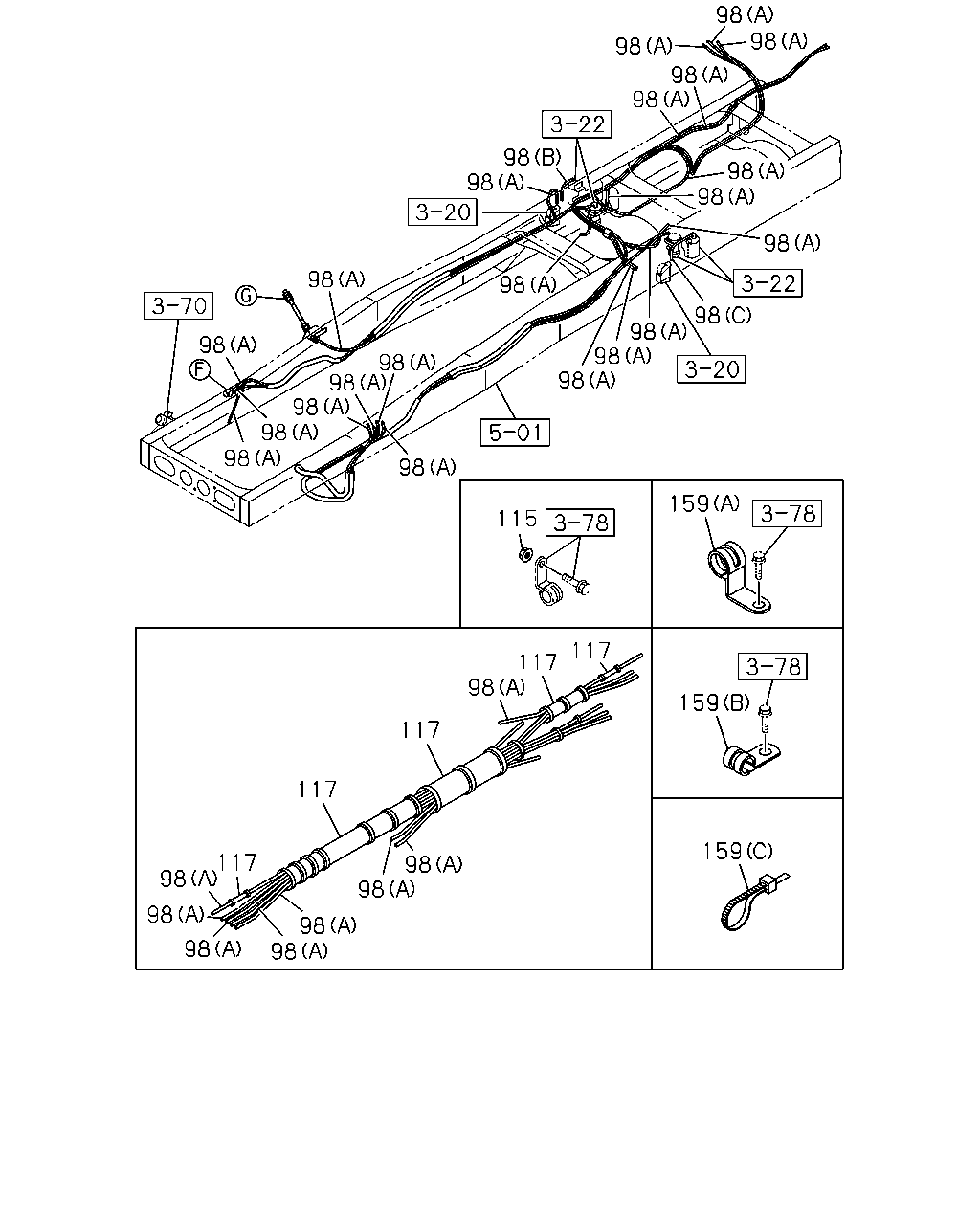

çizim 169931
98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 98 159 115 117 117 98 159 117 117 159 117 98 98 98 98 98 98 98
BalonParca AdiParca NoAdetTipApplied Date
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1008-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008-
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 01 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87411-029-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1008-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 1008-
159 CLIP; NYLON TUBE
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 1008-
159 CLIP; NYLON TUBE
(A) ID=31 H=30 L=35 		1-09700-994-0 01 1 1008-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 16 1 1008-
159 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (B) ID=35 L=33 		1-09700-945-0 01 1 1008-
159 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (B) ID=28 L=40 		1-09701-261-0 01 1 1008-

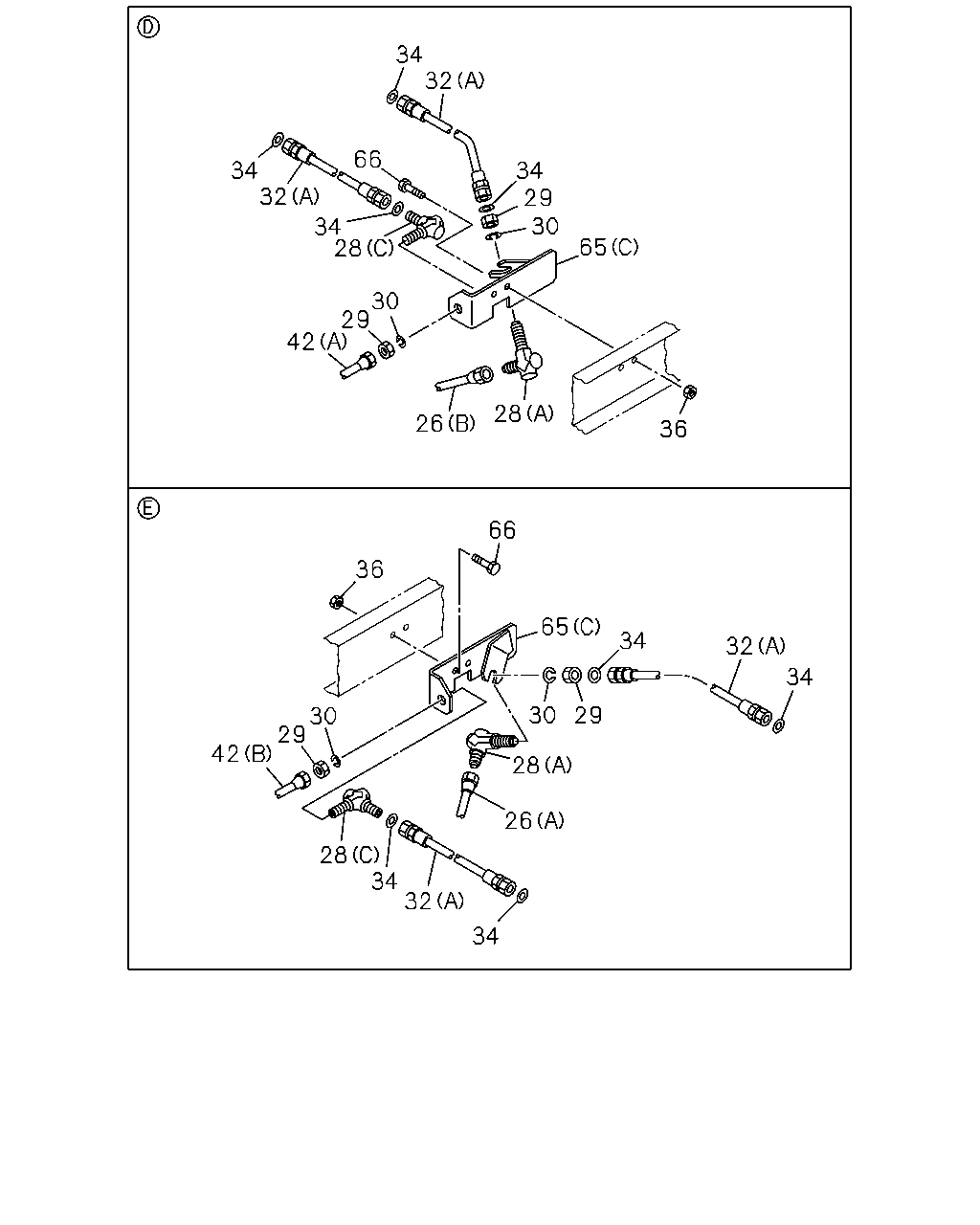

çizim 169935
34 32 66 34 32 34 29 30 34 28 65 30 29 42 28 26 36 66 36 65 34 32 34 30 29 30 29 42 28 26 28 34 32 34
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1157 		8-98174-979-0 01 1 1008-
26 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1107 		8-98174-980-0 01 1 1008-
28 NIPPLE; AIR PIPE
(A) M20 & M20 ELBOW 		1-09654-128-1 02 1 1008-
28 NIPPLE; AIR PIPE
(B) M20 		1-09654-199-2 01 1 1008-
28 NIPPLE; AIR PIPE
(C) M20 & M20 ELBOW 		1-09654-397-1 02 1 1008-
29 NUT; NIPPLE
M20 		0-91111-520-0 07 1 1008-
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 05 1 1008-
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1008-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1008-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1008-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 08 1 1008-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(A) L=1107 SERVICED BY L=1200 		1-49115-487-0 01 1 1008-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(B) L=1215 		8-98169-345-0 01 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1008-
65 BRACKET; FLEX HOSE
(A) 		1-47471-247-1 01 1 1008-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1008-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1008-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-

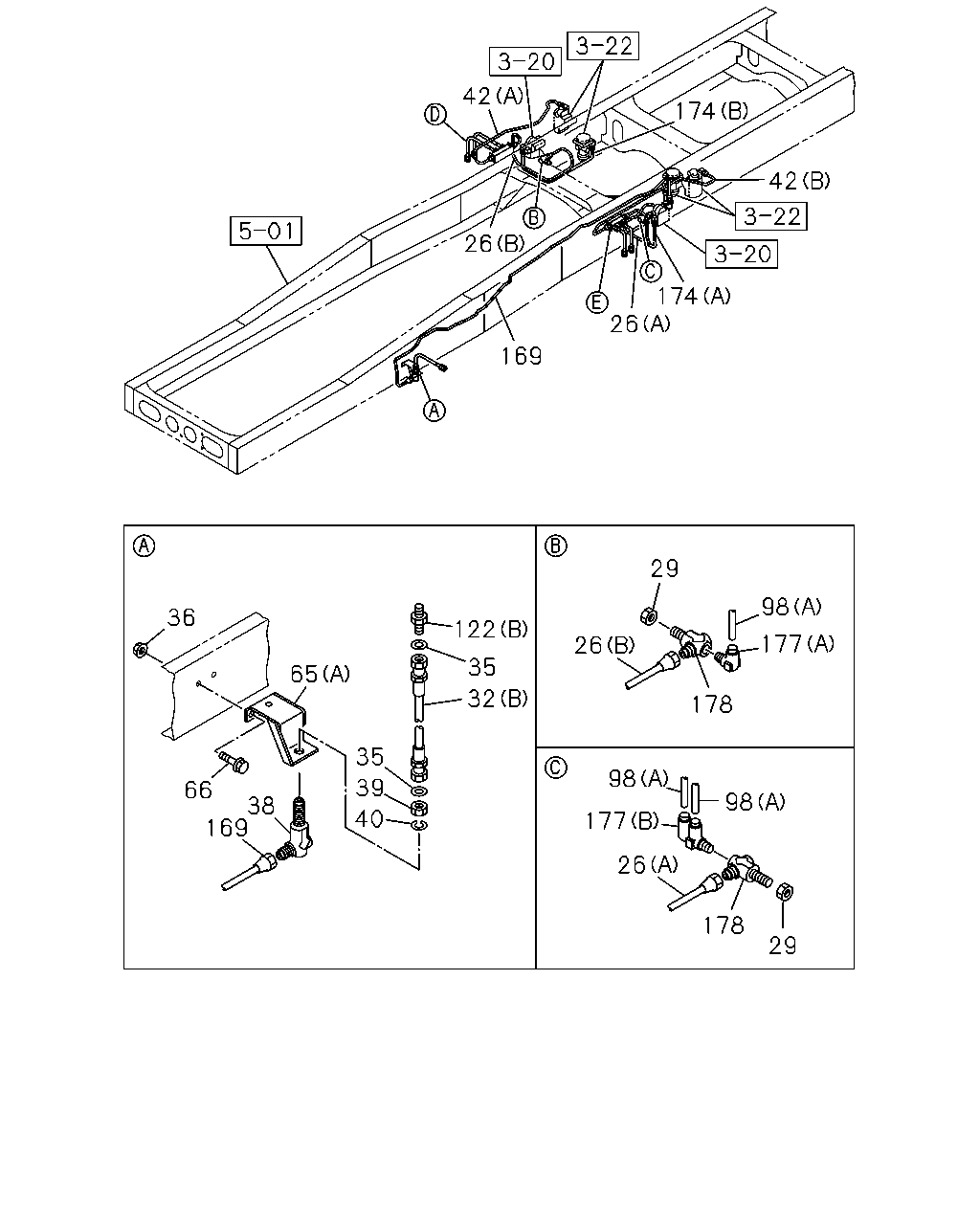

çizim 169949
42 174 42 26 174 26 169 29 98 36 122 177 26 35 65 32 178 35 98 39 66 98 38 169 40 177 26 178 29
BalonParca AdiParca NoAdetTipApplied Date
26 PIPE; AIR,UNION TO FLEX HOSE
(A) L=1157 		8-98174-979-0 01 1 1008-
26 PIPE; AIR,UNION TO FLEX HOSE
(B) L=1107 		8-98174-980-0 01 1 1008-
29 NUT; NIPPLE
M20 		0-91111-520-0 07 1 1008-
32 HOSE; FLEX,FRT
(B) L=470 		0-57847-470-1 01 1 1008-
32 HOSE; FLEX,FRT
(B) L=500 		0-57847-500-1 01 1 1008-
32 HOSE; FLEX,FRT
(A) L=550 		0-57847-550-1 04 1 1008-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 1008-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 1008-
38 UNION; AIR PIPE
M20 & M20 ELBOW 		1-09654-128-1 01 1 1008-
39 NUT; PIPE UNION
M20 		0-91111-520-0 01 1 1008-
40 WASHER; LK,PIPE UNION
ID=20.2 		0-91510-520-0 01 1 1008-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(A) L=1107 SERVICED BY L=1200 		1-49115-487-0 01 1 1008-
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
(B) L=1215 		8-98169-345-0 01 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98179-015-0 01 1 1008-
65 BRACKET; FLEX HOSE
(C) 		8-98176-155-0 01 1 1008-
65 BRACKET; FLEX HOSE
(A) 		1-47471-247-1 01 1 1008-
65 BRACKET; FLEX HOSE
(B) 		1-47477-770-0 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-738-2 01 1 1008-
65 BRACKET; FLEX HOSE
(D) 		8-98162-737-2 01 1 1008-
66 BOLT; HOSE BRKT
M8X40 FLANGE 		0-28650-840-0 05 1 1008-
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1008-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1008-
98 TUBE; NYLON
(B) L=160 OD=12 		8-98054-251-0 01 1 1008-
98 TUBE; NYLON
(C) L=220 OD=12 		8-98054-252-0 01 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 1008-
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 1008-
122 CONNECTOR; FLEX HOSE
(A) M20 & PT3/8 		1-09660-731-1 01 1 1008-
122 CONNECTOR; FLEX HOSE
(B) R3/8 & RC1/4 & M20 3WAY 		1-09661-607-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-478-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-479-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(C) 		8-98161-476-0 01 1 1008-
122 CONNECTOR; FLEX HOSE
(D) 		8-98161-477-0 01 1 1008-
169 PIPE; AIR,MODULATOR TO FLEX HOSE
L=2987 		8-98172-001-0 01 1 1008-1504
169 PIPE; AIR,MODULATOR TO FLEX HOSE
L=2996 		8-98302-594-0 01 1 1505-
174 PIPE; AIR,RELAY VLV TO MODULATOR
(B) L=774 		8-98155-476-0 01 1 1008-
174 PIPE; AIR,RELAY VLV TO MODULATOR
(A) L=750 		8-98169-332-0 01 1 1008-
177 CONNECTOR
(B) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008-
177 CONNECTOR
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
178 UNION 1-09650-251-1 02 1 1008-
