◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#62058) — 228 parça
çizim 169909
434 337 337 232 231 330 334 330 232 231 343 343 297 372 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> 		1-47470-655-0 01 1 1008-
120 CONNECTOR; AIR PIPE
FULL TRAILER PIPING<Z25> EXC. BRAKE REGULATION ECE<NBE>,TRAILER BRAKE HAND CONTROL<NLG> 		8-98138-506-1 01 1 1008-
120 CONNECTOR; AIR PIPE
EXC. FULL TRAILER PIPING<Z25> 		1-47470-418-2 01 1 1008-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 1008-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 1008-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) 		1-09660-796-1 01 1 1008-
372 NUT
M8 FLANGE 		0-91180-108-0 02 1 1008-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1008-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-

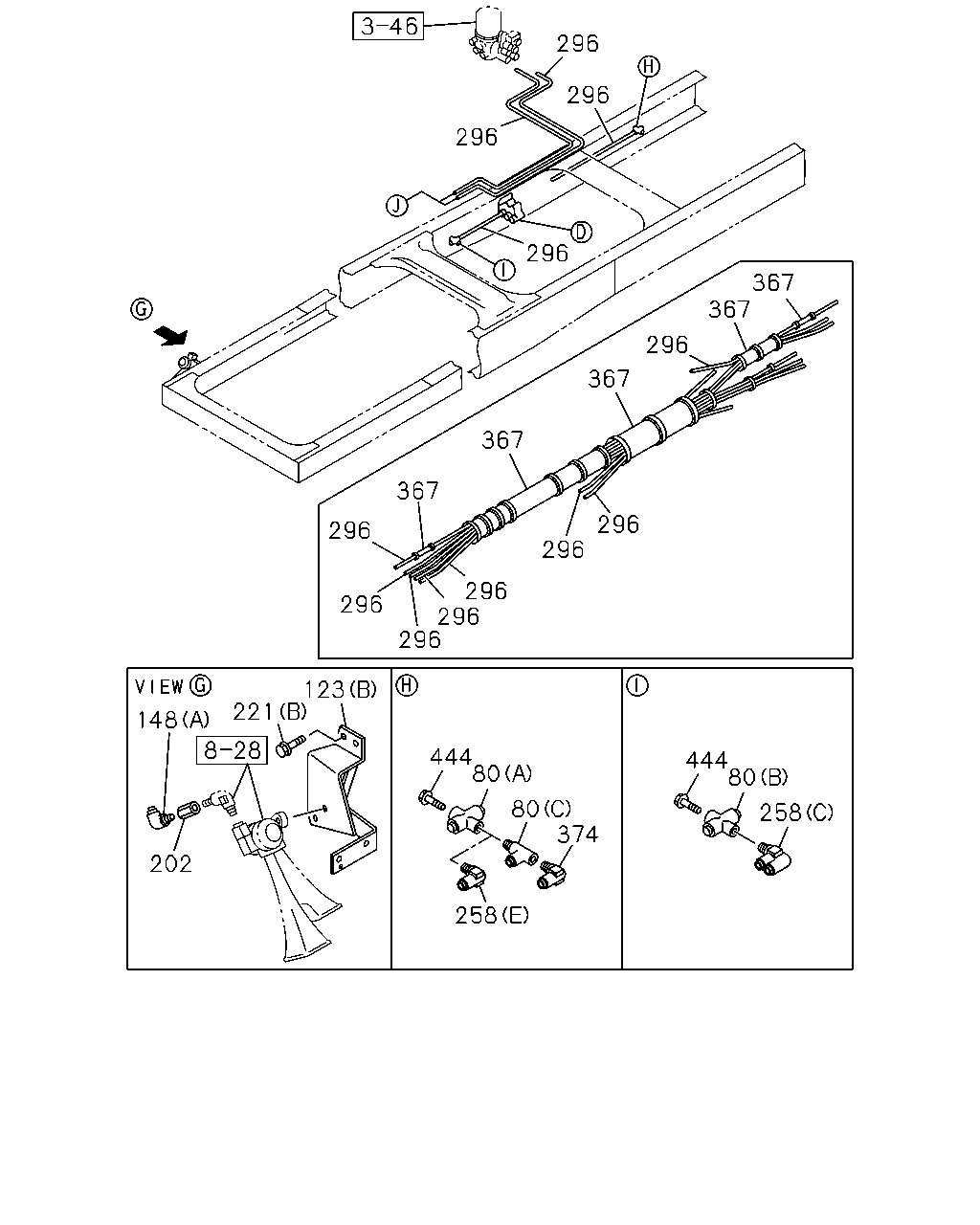

çizim 169914
296 296 296 296 367 367 296 367 367 367 296 296 296 296 296 296 296 123 221 148 444 80 444 80 80 374 258 202 258
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
(A) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1008-
80 UNION; 3 WAY
(B) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 1008-
80 UNION; 3 WAY
MJX16P M/T(Y3Z) (C) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1008-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1008-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
202 ADAPTER
M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 1008-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
221 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1008-
221 BOLT; BRKT
MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
374 CONNECTOR
MJX16P M/T(Y3Z) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
444 BOLT; UNION
M8X30 FLANGE 		0-28650-830-0 02 1 1008-

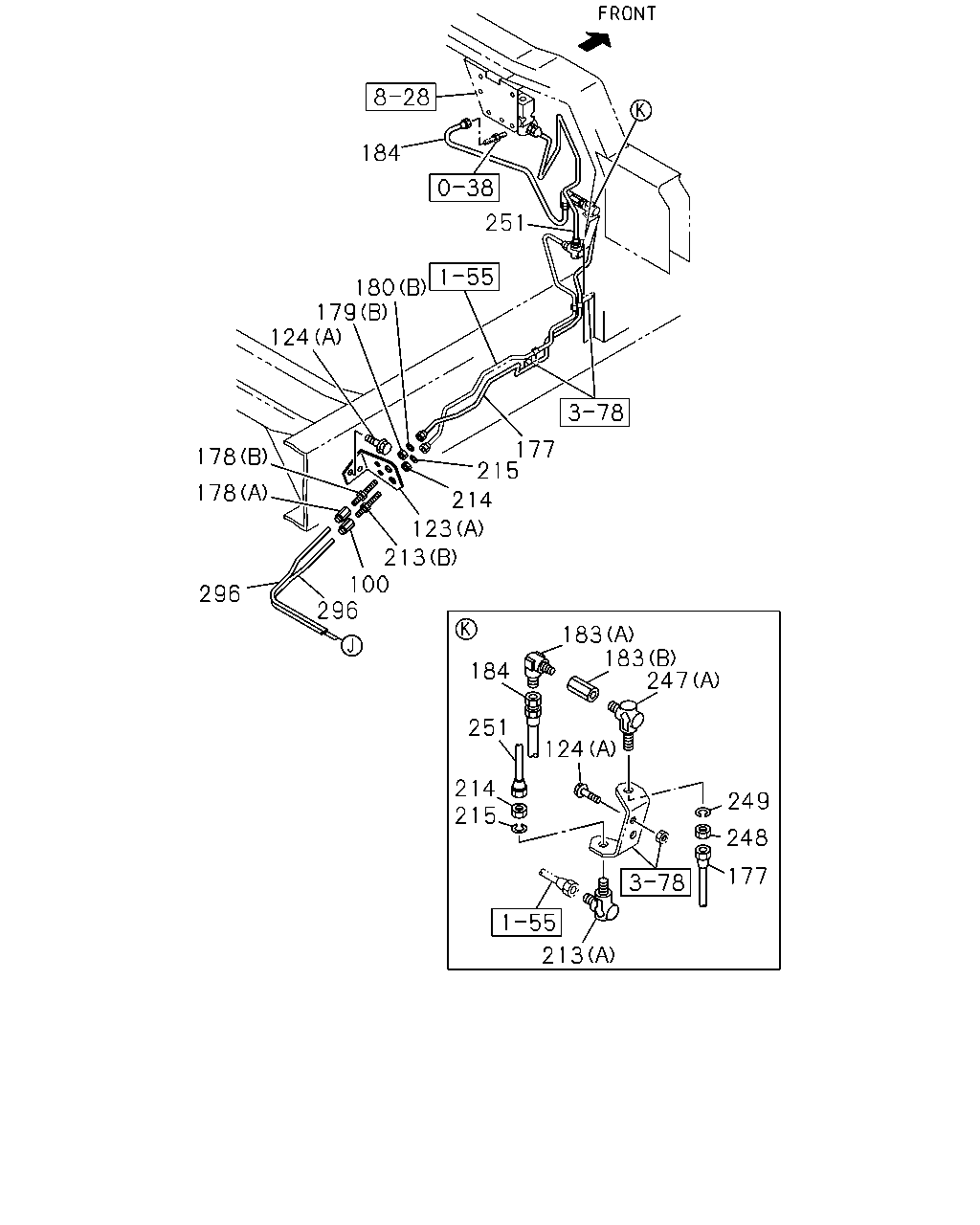

çizim 169917
184 251 180 179 124 177 215 178 178 214 123 213 100 296 296 183 183 247 184 251 124 214 215 249 248 177 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1008-
124 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
124 BOLT; BRKT
MIXER TRUCK<RA2> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
177 PIPE; AIR,UNION TO UNION
L=1003 SERVICED BY L=1100 		1-47428-815-0 01 1 1008-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1008-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1008-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1008-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1008-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1008-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (A) M12 & PT3/8 ELBOW 		1-09650-436-0 01 1 1008-
183 UNION; FLEX HOSE,GOV
EXC. MIXER TRUCK<RA2> (B) M12 & RC3/8 STRAIGHT 		1-09660-879-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1008-
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 1008-
213 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1008-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1008-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1008-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1008-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1008-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-

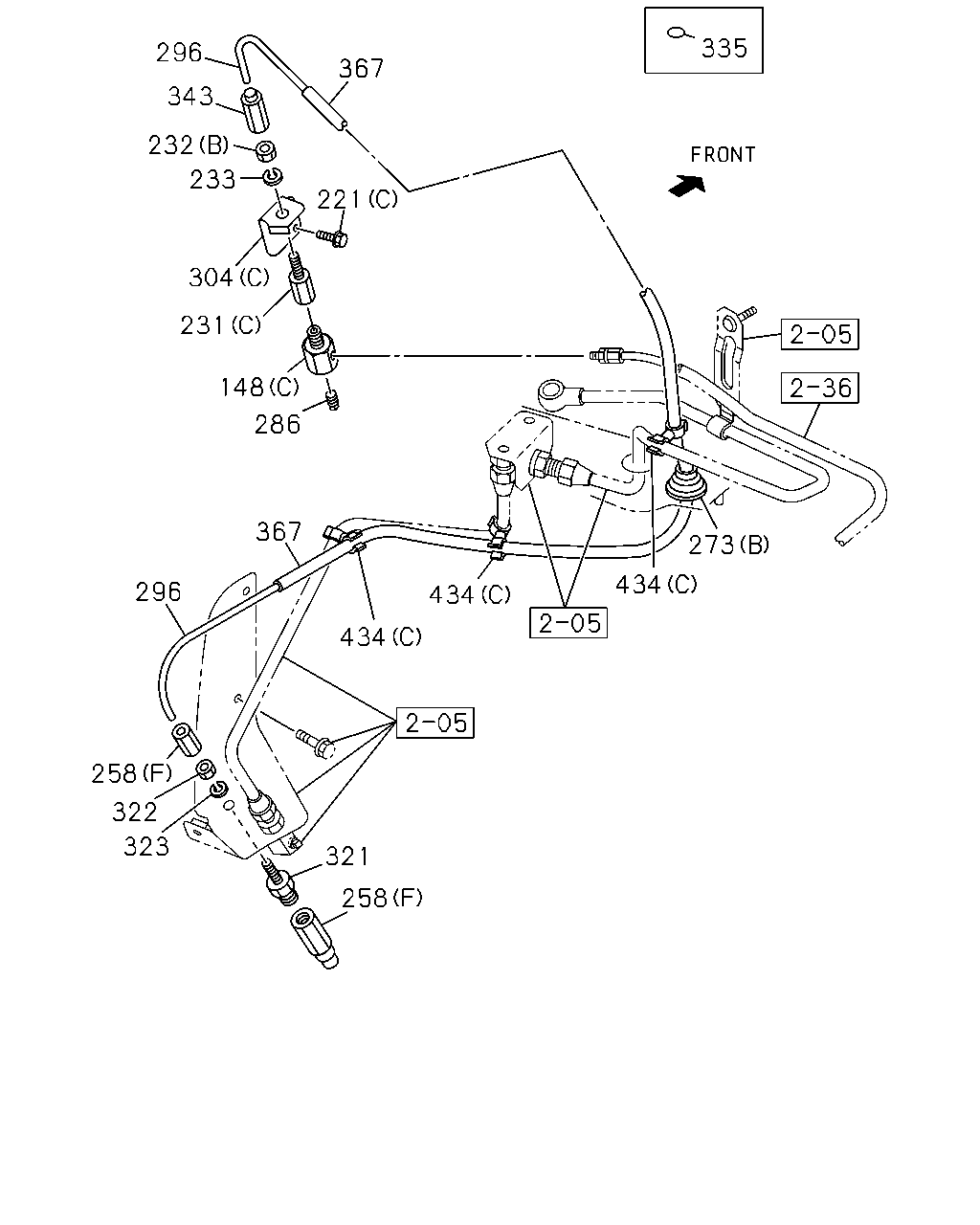

çizim 169924
335 296 367 343 232 233 221 304 231 148 286 367 273 434 296 434 434 258 322 323 321 258
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
221 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1008-
221 BOLT; BRKT
MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 1008-
231 UNION; AIR PIPE
(A) M10 STRAIGHT 		1-09654-361-0 01 1 1008-
231 UNION; AIR PIPE
MJX16P M/T(Y3Z) (C) PT1/8 & M10 STRAIGHT 		1-09656-713-2 01 1 1008-
232 NUT; UNION,AIR PIPE
(A) M10 		0-91110-510-0 01 1 1008-
232 NUT; UNION,AIR PIPE
MJX16P M/T(Y3Z) (B) M10 H=8 		1-09400-029-0 01 1 1008-
232 NUT; UNION,AIR PIPE
(B) M10 H=8 		1-09400-029-0 01 1 1008-
233 WASHER; LK,UNION,AIR PIPE
MJX16P M/T(Y3Z) ID=10.2 		0-91510-510-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008-
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1008-
286 PLUG; AIR PIPE 9-09204-510-0 01 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1008-
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008-
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008-
321 JOINT; FLEX HOSE
MJX16P M/T(Y3Z) M12 L=66.5 		0-92113-306-0 01 1 1008-
322 NUT; JOINT,FLEX HOSE
MJX16P M/T(Y3Z) M12 		9-09840-280-0 01 1 1008-
323 WASHER; LK,JOINT
MJX16P M/T(Y3Z) ID=12.2 		0-91510-512-0 01 1 1008-
335 SEAL; UNION
OD=30 BLACK 		1-76798-035-0 01 1 1008-
335 SEAL; UNION
MJT7S M/T(Y3E) OD=30 BLACK 		1-76798-035-0 01 1 1008-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 1008-
343 UNION; NYLON TUBE
MJX16P M/T(Y3Z) 		1-09660-796-1 01 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1008-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 1008-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1008-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-

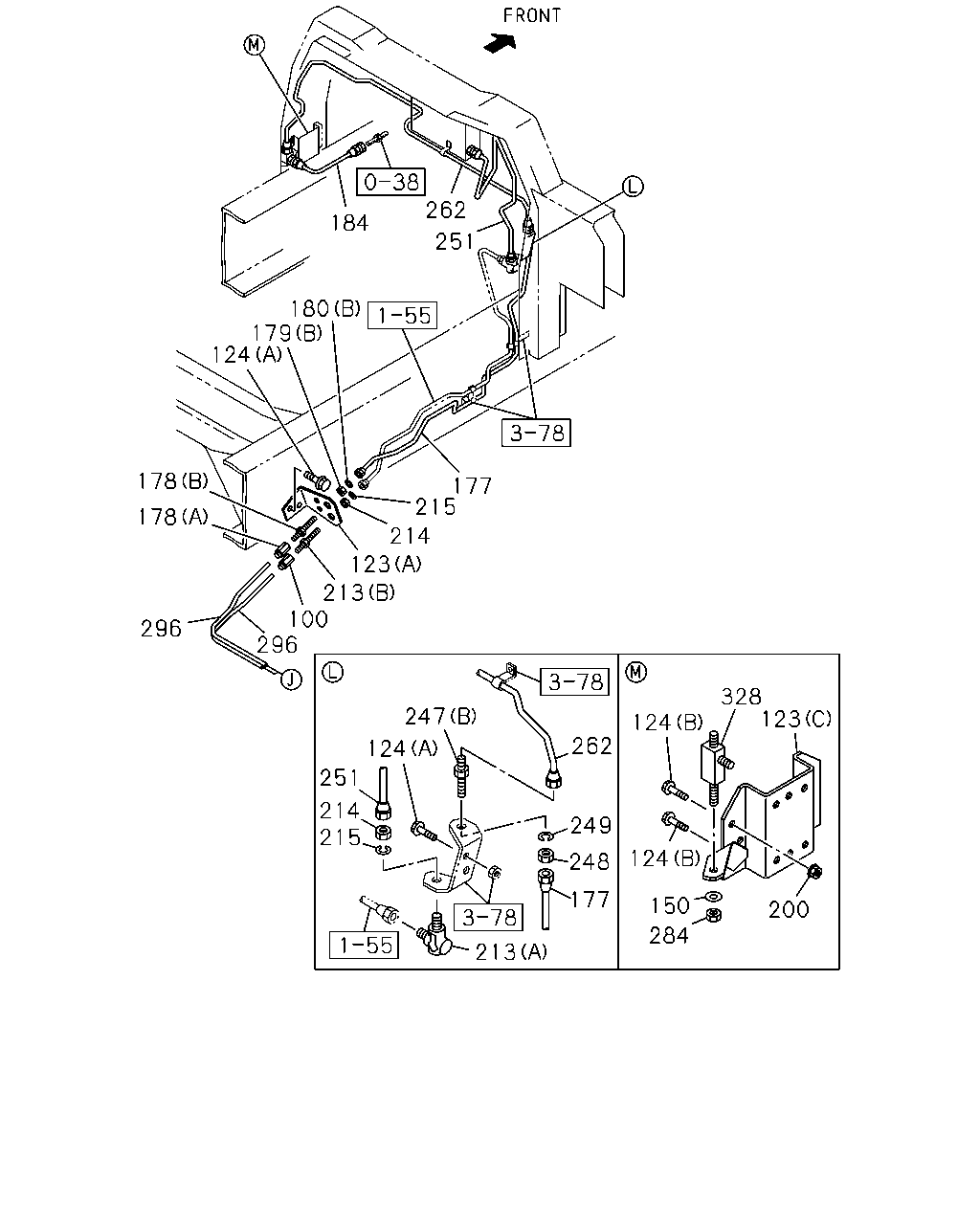

çizim 169927
262 184 251 180 179 124 178 177 215 178 214 123 213 100 296 296 328 123 247 124 262 124 251 214 215 249 124 248 177 150 200 284 213
BalonParca AdiParca NoAdetTipApplied Date
100 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
123 BRACKET; UNION
(A) 		1-47479-146-0 01 1 1008-
123 BRACKET; UNION
(B) 		1-53457-161-0 01 1 1008-
123 BRACKET; UNION
MIXER TRUCK<RA2> (C) 		1-82569-367-1 01 1 1008-
124 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
124 BOLT; BRKT
MIXER TRUCK<RA2> (B) M8X25 FLANGE 		0-28650-825-0 04 1 1008-
150 WASHER; LK,UNION
MIXER TRUCK<RA2> ID=12.2 		0-91510-512-0 01 1 1008-
177 PIPE; AIR,UNION TO UNION
L=1003 SERVICED BY L=1100 		1-47428-815-0 01 1 1008-
178 UNION; AIR PIPE
(B) M12 L=66.5 		0-92113-306-0 01 1 1008-
178 UNION; AIR PIPE
(A) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1008-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1008-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1008-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1008-
184 HOSE; FLEX,AIR GOV
MIXER TRUCK<RA2> L=370 		1-09363-771-0 01 1 1008-
184 HOSE; FLEX,AIR GOV
EXC. MIXER TRUCK<RA2> L=740 		1-09363-675-0 01 1 1008-
200 NUT; BRKT
MIXER TRUCK<RA2> M8 FLANGE 		0-91180-108-0 04 1 1008-
213 UNION; AIR PIPE
(A) M12 L=66.5 		0-92113-306-0 01 1 1008-
213 UNION; AIR PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 1008-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 02 1 1008-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 02 1 1008-
247 UNION; AIR PIPE
MIXER TRUCK<RA2> (B) M12 L=66.5 		0-92113-306-0 01 1 1008-
247 UNION; AIR PIPE
EXC. MIXER TRUCK<RA2> (A) M12 ELBOW 		0-92125-206-0 01 1 1008-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 1008-
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 1008-
251 PIPE; AIR,UNION TO MAG VLV
L=375 		1-49124-511-0 01 1 1008-
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		1-49124-942-0 01 1 1008-1107
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98196-478-0 01 1 1108-1311
262 PIPE; AIR,UNION TO FLEX
MIXER TRUCK<RA2> 		8-98130-033-0 01 1 1312-
284 NUT; UNION
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
328 UNION; AIR PIPE
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 1008-

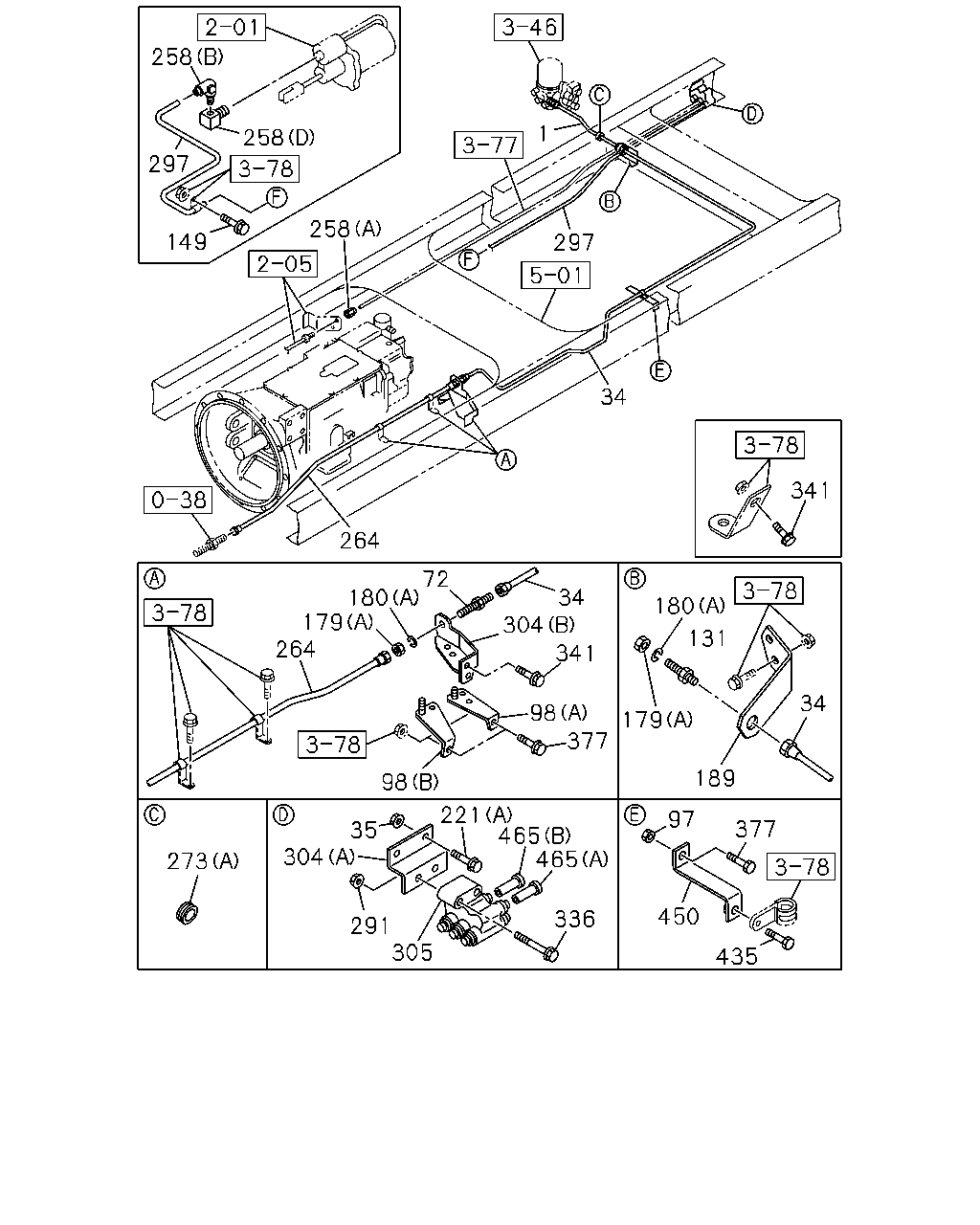

çizim 169929
258 1 258 297 258 149 297 34 341 264 72 34 304 180 179 264 180 131 341 34 98 377 179 189 98 221 465 465 97 377 35 304 273 450 336 291 305 435
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=880 		1-09363-920-0 01 1 1008-
34 PIPE; AIR
L=1217 		8-98043-255-0 01 1 1008-
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1008-
72 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1008-
97 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1008-
98 BRACKET; AIR PIPE
(B) 		1-47471-283-0 01 1 1008-
98 BRACKET; AIR PIPE
(A) 		1-47479-723-0 01 1 1008-
131 UNION; AIR PIPE
M22 & M30 STRAIGHT 		1-09664-237-1 01 1 1008-
149 BOLT; TUBE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1008-
179 NUT; UNION
(A) M22 		0-91111-522-0 02 1 1008-
179 NUT; UNION
(B) M12 		9-09840-280-0 01 1 1008-
180 WASHER; LK,UNION
(B) ID=12.2 		0-91510-512-0 01 1 1008-
180 WASHER; LK,UNION
(A) ID=22.5 		0-91510-522-0 02 1 1008-
189 BRACKET; FLEX HOSE 8-98144-753-0 01 1 1008-
221 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1008-
221 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1008-
221 BOLT; BRKT
MJX16P M/T(Y3Z) (C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1008-
258 CONNECTOR; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(C) DIN12X2 & PT3/8 DOUBLE ELBOW 		1-09661-026-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
(D) PT3/8 & PT3/8 		1-09661-303-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) (E) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1008-
258 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (F) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 1008-
264 HOSE; FLEX
L=1000 		1-09363-794-0 01 1 1008-
273 GROMMET
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008-
273 GROMMET
MJX16P M/T(Y3Z) (B) 		1-09332-102-0 01 1 1008-
291 NUT; UNION
M8 FLANGE 		0-91180-108-0 02 1 1008-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 1008-
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
304 BRACKET; UNION
(A) 		1-47479-603-0 01 1 1008-
304 BRACKET; UNION
(B) 		8-98171-684-0 01 1 1008-
304 BRACKET; UNION
MJX16P M/T(Y3Z) (C) 		1-71117-210-0 01 1 1008-
305 UNION ASM; NYLON TUBE 1-09661-613-1 01 1 1008-
336 BOLT; PIPE UNION
M8X70 FLANGE 		0-28050-870-0 02 1 1008-1008
336 BOLT; PIPE UNION
M8X60 FLANGE 		0-28050-860-0 02 1 1009-
341 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 03 1 1008-
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 03 1 1008-
435 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1008-
450 BRACKET; CLIP 1-46147-101-0 01 1 1008-
465 PLUG
(A) OD=6 L=27 		1-09661-615-0 01 1 1008-
465 PLUG
MJT7S M/T(Y3E) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-
465 PLUG
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) OD=6 L=27 		1-09661-615-0 01 1 1008-
465 PLUG
(B) OD=8 PLASTIC 		1-09661-616-0 01 1 1008-

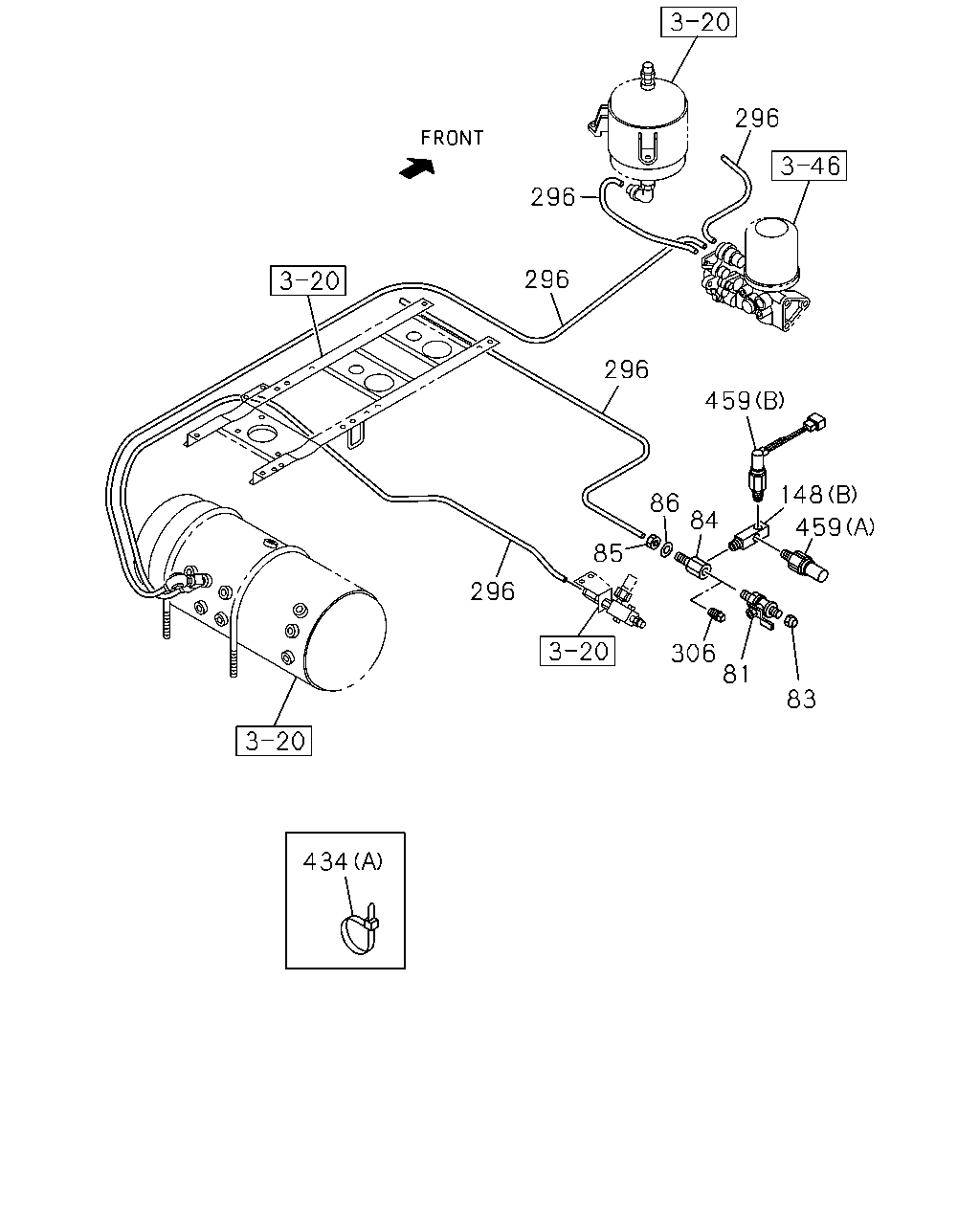

çizim 169947
296 296 296 296 459 148 86 84 459 85 296 306 81 83 434
BalonParca AdiParca NoAdetTipApplied Date
81 COCK; AIR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1008-
83 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1008-
84 UNION; NYLON TUBE 1-09661-092-0 01 1 1008-
85 NUT; UNION
M18 		0-91110-518-0 01 1 1008-
86 WASHER; LK,TUBE UNION
ID=18.2 		0-91510-518-0 01 1 1008-
148 CONNECTOR; UNION
(A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 1008-
148 CONNECTOR; UNION
(B) DIN14 & R1/4 & RC1/4 		1-09661-729-0 01 1 1008-
148 CONNECTOR; UNION
MJX16P M/T(Y3Z) (C) 		8-94338-417-0 01 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1008-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1008-
306 PLUG; NYLON TUBE
EXC. TIRE INFLATOR DEVICE<SG4> PT1/4 		9-99204-513-0 01 1 1008-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 1008-
434 CLIP
(B) ID=10 & 10 		1-09709-221-0 01 1 1008-
434 CLIP
MJX16P M/T(Y3Z) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 1008-
459 SWITCH; PRESS
(B) 		1-48340-058-2 01 1 1008-
459 SWITCH; PRESS
(A) THREAD R1/4 		1-80220-023-1 01 1 1008-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
