3-26 — TRAILER CONTROL (#62051) — 162 parça

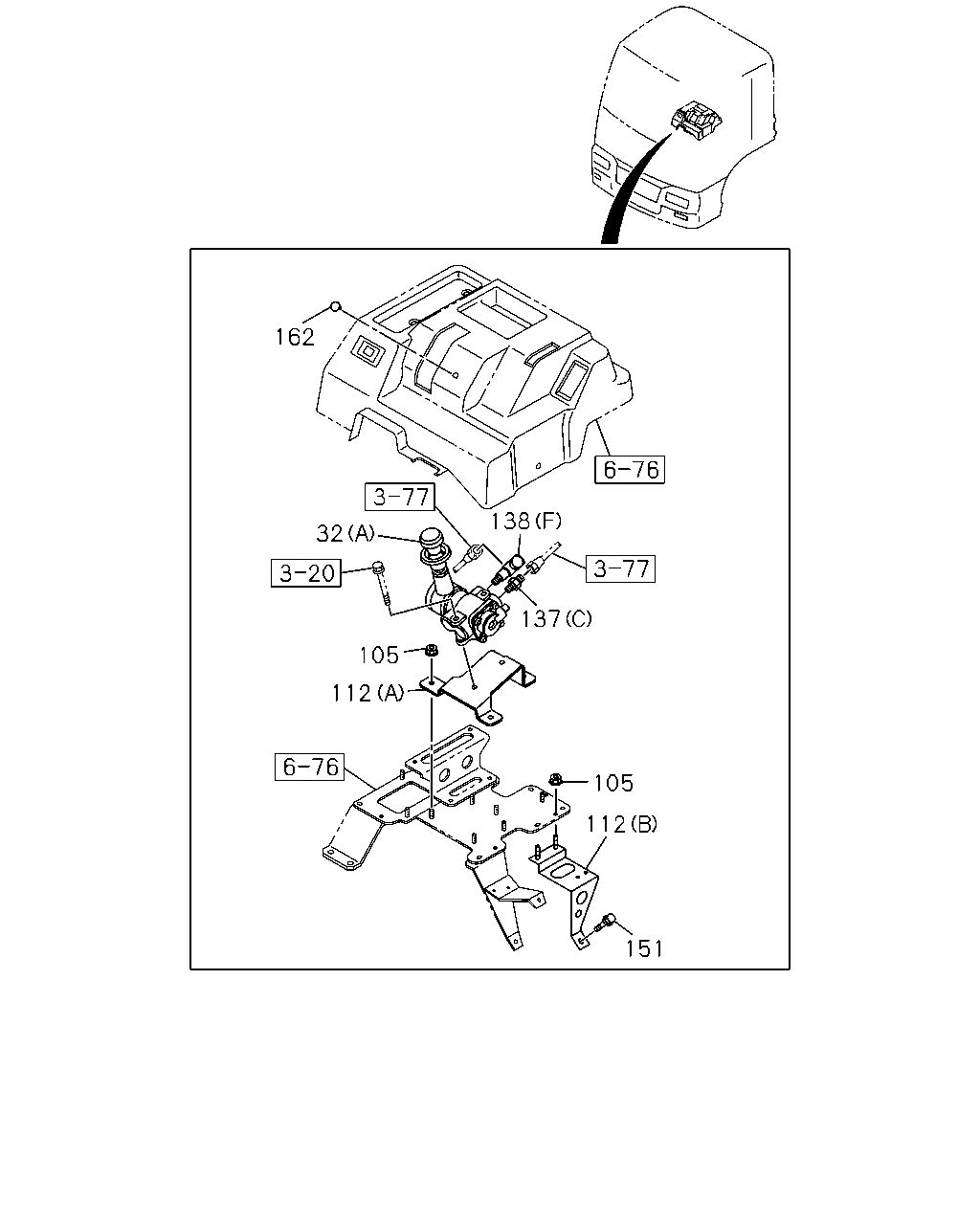

162 138 32 137 105 112 105 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1008-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1008-
105	NUT; BRKT BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M8 FLANGE	0-91180-108-0	02	1	1008-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-
105	NUT; BRKT BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1008-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1008-
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1008-
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1008-
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1008-
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1008-
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1008-
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1008-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1008-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1008-

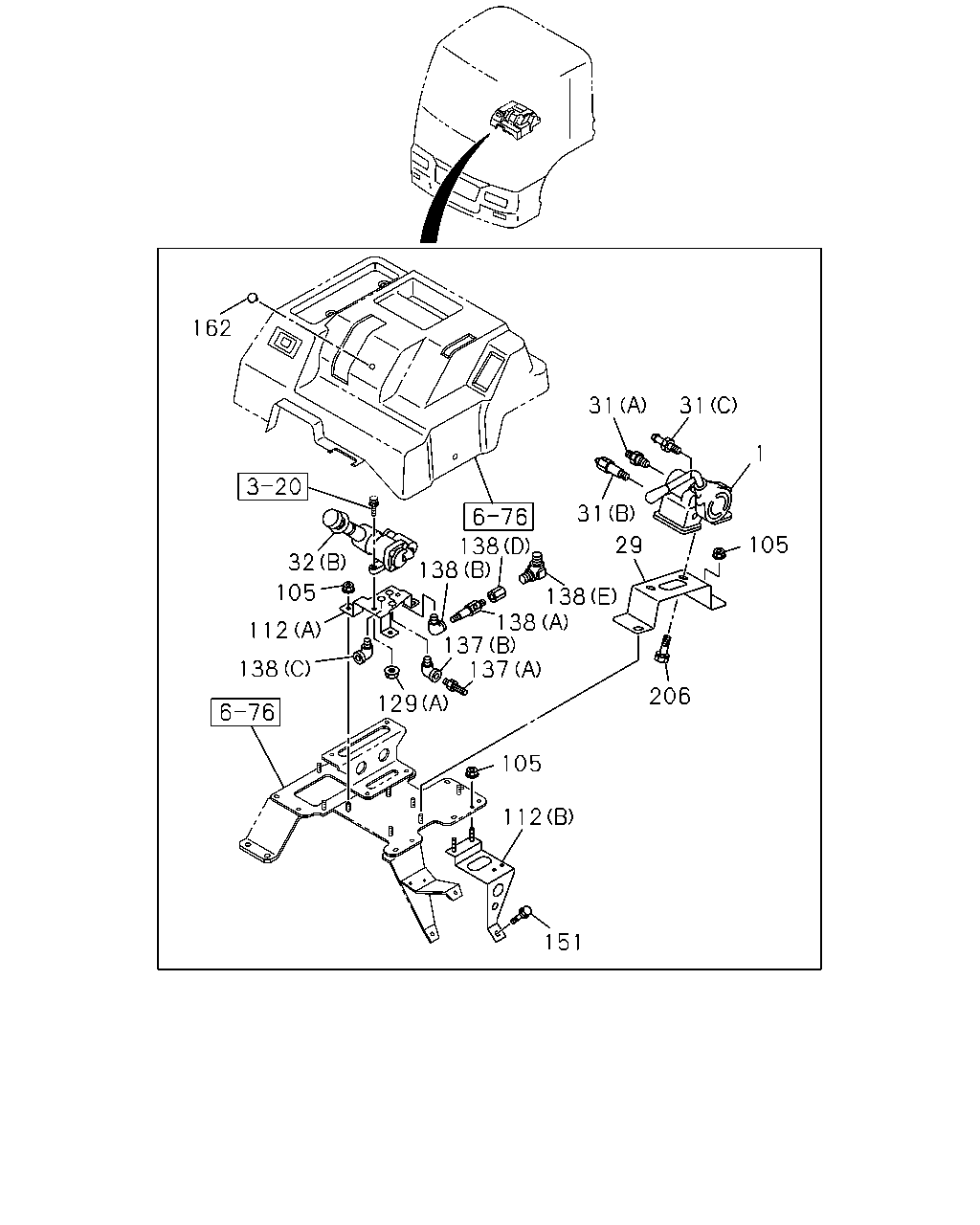

162 31 31 1 31 105 29 138 138 32 105 138 138 137 137 112 138 206 129 112 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48100-849-0	01	1	1008-
29	BRACKET; HAND BRK BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-79996-131-2	01	1	1008-
29	BRACKET; HAND BRK BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25>	1-79996-131-2	01	1	1008-
31	CONNECTOR; HAND BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (A) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1008-
31	CONNECTOR; HAND BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) M14	1-09656-391-2	01	1	1008-
31	CONNECTOR; HAND BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (C) L=45	8-94338-874-0	01	1	1008-
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1008-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1008-
105	NUT; BRKT BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M8 FLANGE	0-91180-108-0	02	1	1008-
105	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1008-
105	NUT; BRKT BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M8 FLANGE	0-91180-108-0	02	1	1008-
112	BRACKET; CONT VLV (B)	1-79996-113-2	01	1	1008-
112	BRACKET; CONT VLV FULL TRAILER PIPING<Z25> (A)	1-79996-112-2	01	1	1008-
112	BRACKET; CONT VLV EXC. FULL TRAILER PIPING<Z25> (A)	1-79996-378-1	01	1	1008-
129	NUT; VLV FULL TRAILER PIPING<Z25> (A) M8 FLANGE	0-91180-108-0	04	1	1008-
129	NUT; VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) M10 FLANGE	0-91180-110-0	02	1	1008-
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (A) PT1/4 & M16 STRAIGHT	1-09650-352-1	01	1	1008-
137	CONNECTOR; SUPPLY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1008-
137	CONNECTOR; SUPPLY EXC. FULL TRAILER PIPING<Z25> (C) M16 & PT1/4 STRAIGHT	0-92121-810-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (E) M14 & PT1/4 ELBOW	1-09650-432-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (A) M14	1-09656-391-2	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (B) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (D) M20 & RC1/4 STRAIGHT	1-09660-880-0	01	1	1008-
138	CONNECTOR; DELIVERY FULL TRAILER PIPING<Z25> (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1008-
138	CONNECTOR; DELIVERY EXC. FULL TRAILER PIPING<Z25> (F) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1008-
151	BOLT; VLV BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	1008-
162	SWITCH; PARKING BRK VLV	1-72447-390-0	01	1	1008-
206	BOLT; HAND BRK VALVE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG> M10X20 W/LK WASHER	0-50541-020-0	02	1	1008-

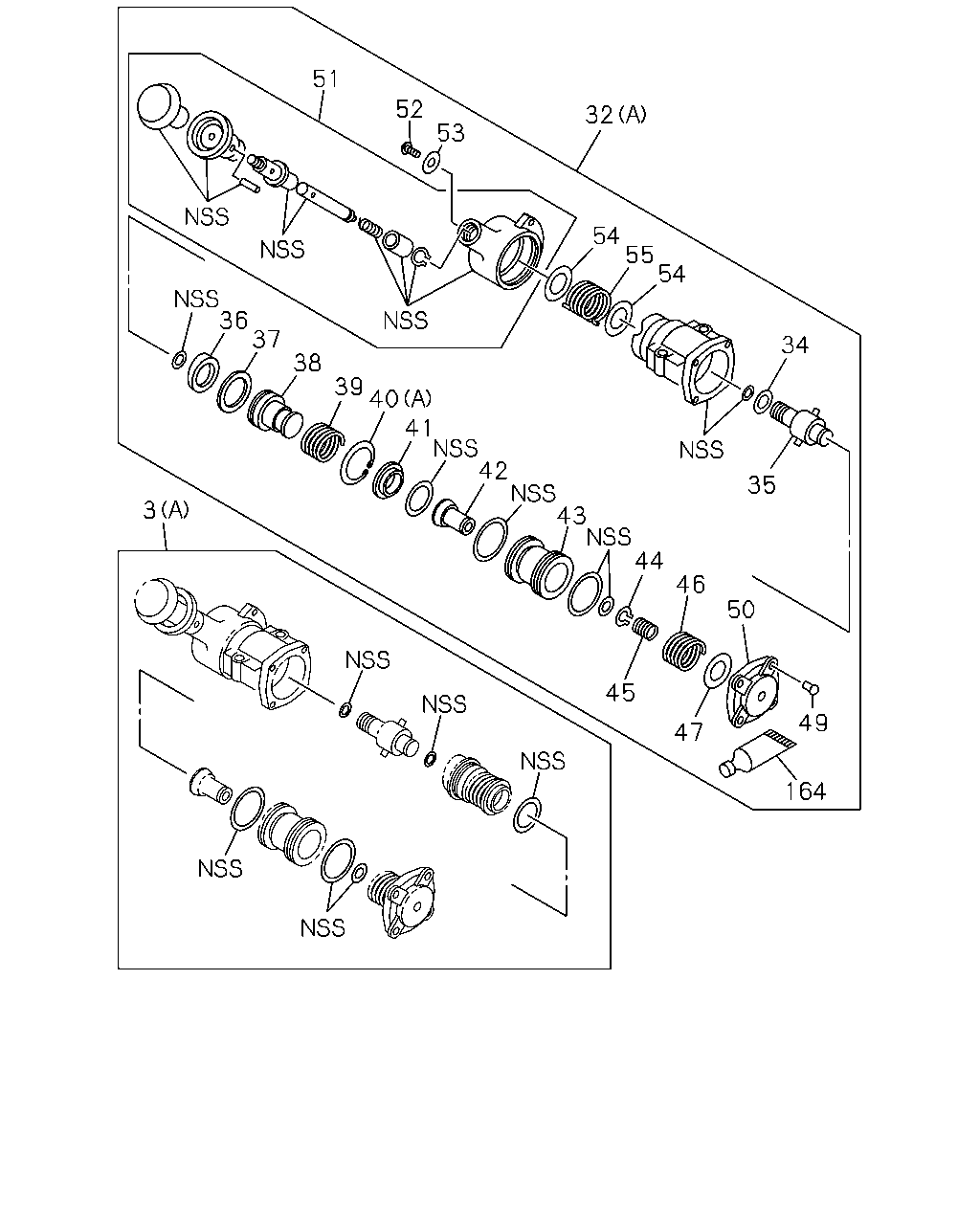

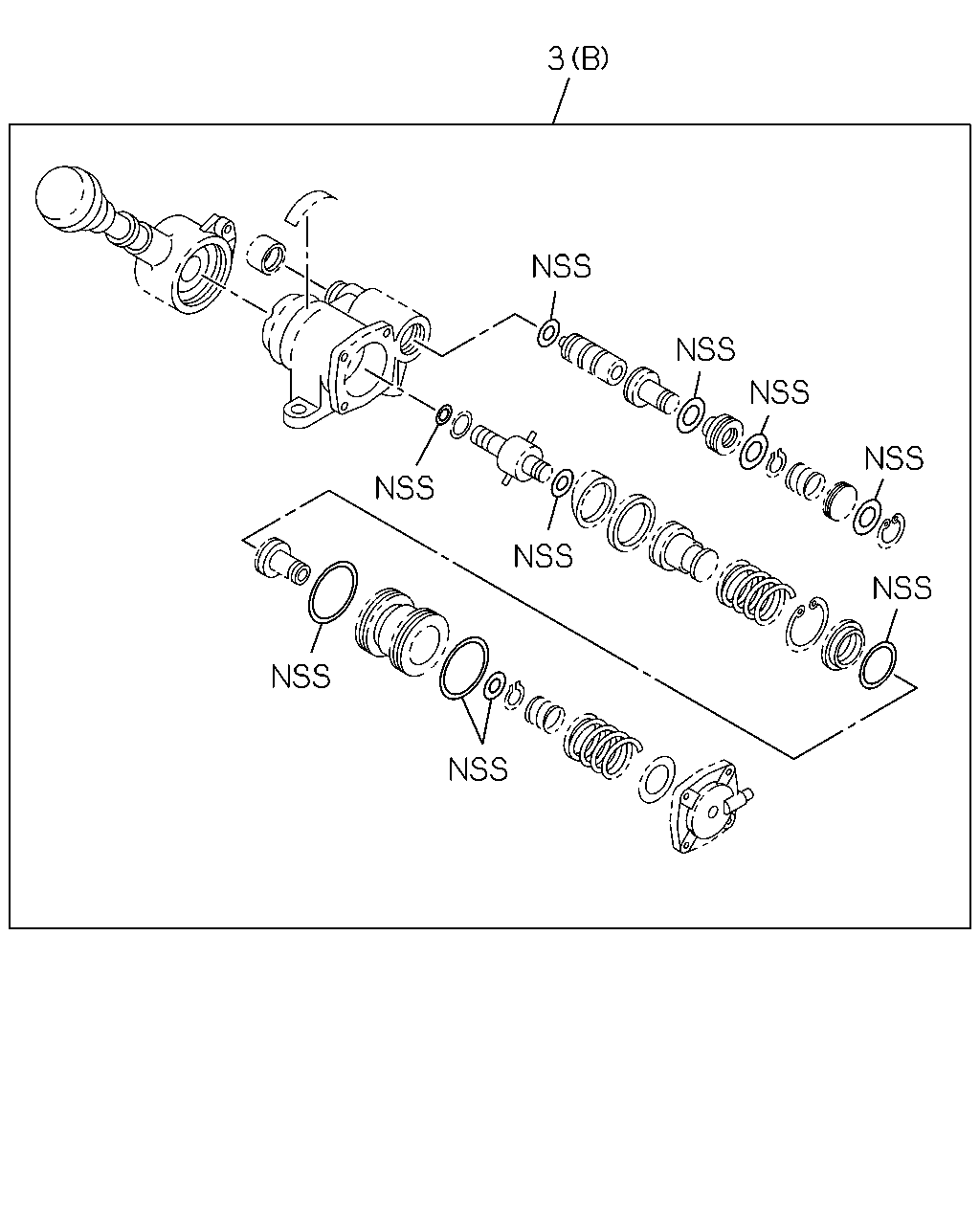

51 52 32 53 54 55 54 36 37 34 38 39 40 41 42 43 44 35 3 46 50 45 49 47 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1008-
3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1008-
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1008-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1008-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1008-
35	HOLDER; CAM	1-48469-054-0	01	1	1008-
36	RING; CAM	1-48469-056-0	01	1	1008-
37	GUIDE; CAM RING	1-48469-058-0	01	1	1008-
38	SEAT; EXH VLV	1-48469-057-0	01	1	1008-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1008-
40	RING; SNAP (A)	1-48469-067-0	01	1	1008-
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1008-
41	SEAT; FEED VLV	1-48469-066-0	01	1	1008-
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1008-
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1008-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1008-
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1008-
44	RING; SNAP,FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1008-
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1008-
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1008-
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1008-
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1008-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1008-
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1008-
49	SCREW; COVER EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1008-
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1008-
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1008-
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1008-
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1008-
52	SCREW; HANDLE	1-48469-062-0	01	1	1008-
53	WASHER; HANDLE	1-48469-061-0	01	1	1008-
54	SEAT; SPRING	1-48469-082-0	02	1	1008-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1008-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1008-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	REPAIR KIT; HAND BRK VLV FULL TRAILER PIPING<Z25> (B) W/GREASE	1-48469-083-0	01	1	1008-
	3	REPAIR KIT; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25> (A) W/GREASE	1-48469-096-0	01	1	1008-

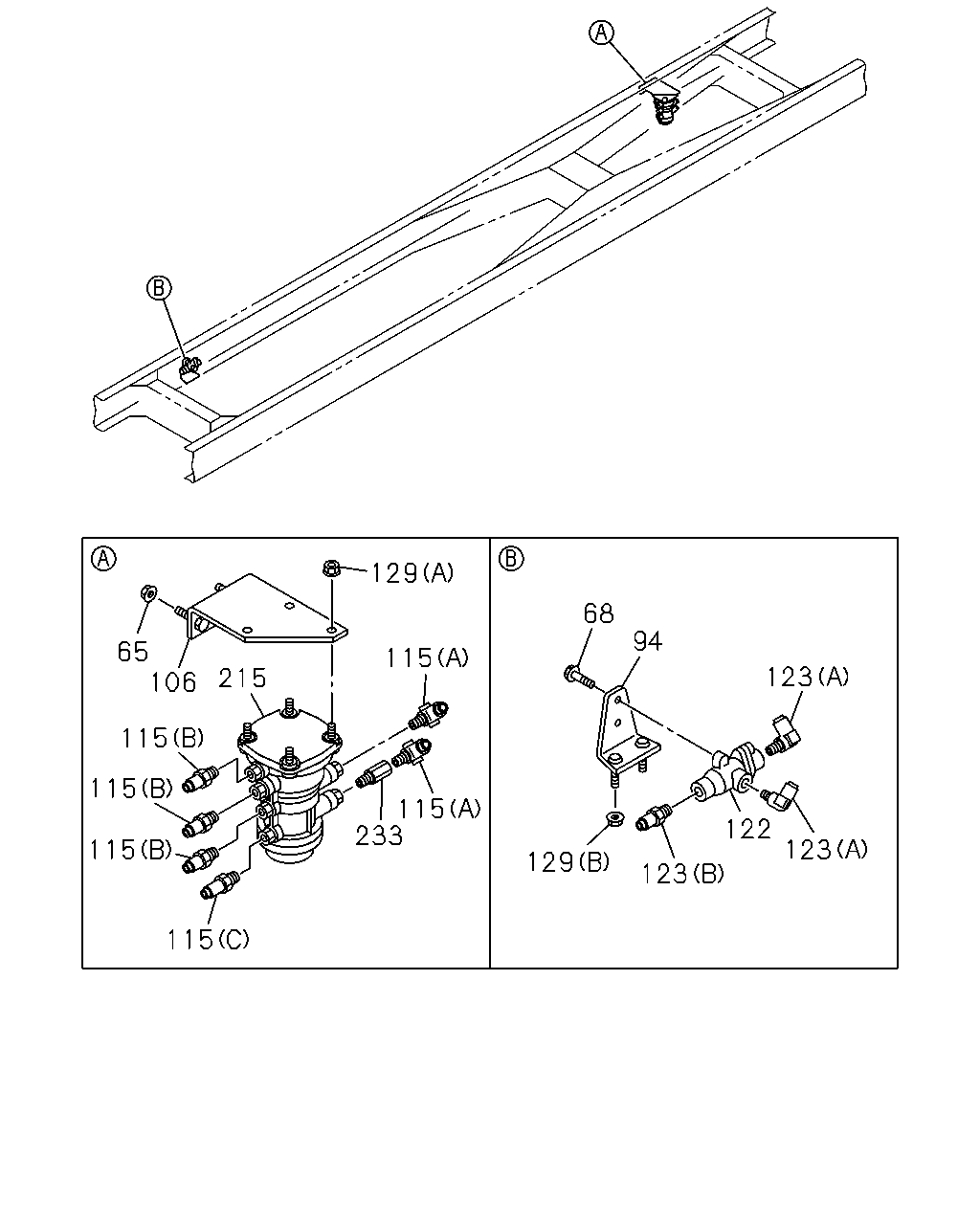

129 68 94 65 106 115 123 215 115 115 115 233 122 123 115 129 123 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	NUT; RELAY VLV FULL TRAILER PIPING<Z25> M10 FLANGE	0-91180-110-0	02	1	1008-
68	BOLT; DOUBLE CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M8X16 FLANGE	0-28050-816-0	02	1	1008-1404
68	BOLT; DOUBLE CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> M8X14 FLANGE	0-28080-814-0	02	1	1405-
94	BRACKET; CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25>	8-98153-162-0	01	1	1008-
106	BRACKET; VLV FULL TRAILER PIPING<Z25>	8-98142-101-1	01	1	1008-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1008-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	03	1	1008-
115	CONNECTOR; DUAL RELAY VLV FULL TRAILER PIPING<Z25> (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1008-
122	VALVE ASM; DOUBLE CHECK TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25>	1-48410-531-1	01	1	1008-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	1008-
123	CONNECTOR; DBL CHECK VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1008-
129	NUT; VLV FULL TRAILER PIPING<Z25> (A) M8 FLANGE	0-91180-108-0	04	1	1008-
129	NUT; VLV TRAILER BRAKE HAND CONTROL<NLG> FULL TRAILER PIPING<Z25> (B) M10 FLANGE	0-91180-110-0	02	1	1008-
215	VALVE; TRAILER CONT FULL TRAILER PIPING<Z25>	8-98091-694-0	01	1	1008-
233	ADAPTER; VLV FULL TRAILER PIPING<Z25> PT3/8	1-48319-058-0	01	1	1008-

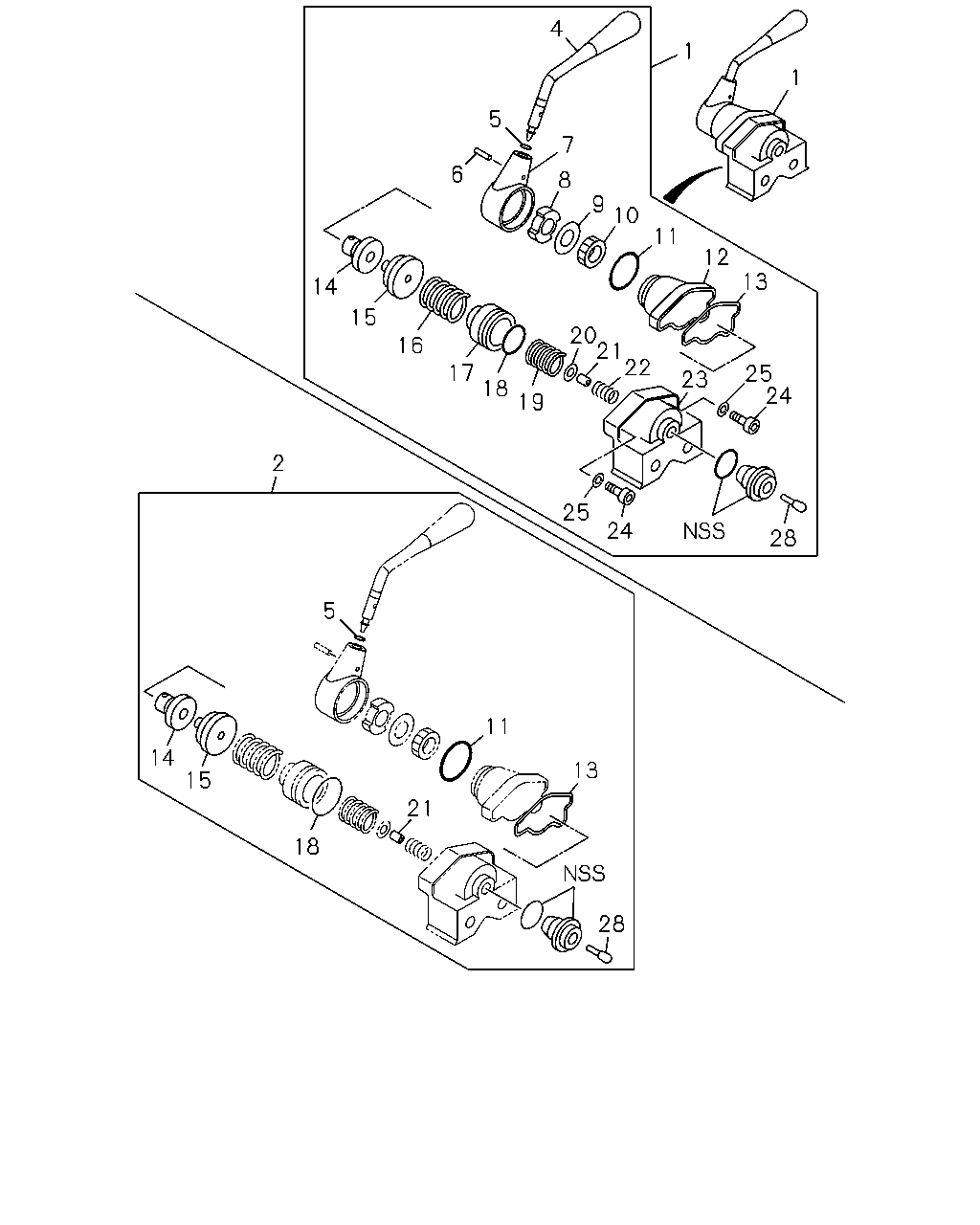

4 1 1 5 7 6 8 9 10 11 12 13 14 15 20 21 22 16 23 17 25 24 18 19 2 25 24 28 5 11 14 13 15 21 18 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; HAND BRK BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48100-849-0	01	1	1008-
2	REPAIR KIT; HAND BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-85576-180-0	01	1	1008-
4	HANDLE ASM; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-517-0	01	1	1008-
5	GASKET; HANDLE BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-128-0	01	1	1008-
6	PIN; SPR BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-143-0	01	1	1008-
7	HEAD; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-131-1	01	1	1008-
8	STOPPER; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-136-0	01	1	1008-
9	WASHER; LK,ADJ BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-123-0	01	1	1008-
10	RING; ADJ BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-122-0	01	1	1008-
11	GASKET; HD TO COVER BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-130-0	01	1	1008-
12	COVER; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-097-1	01	1	1008-
13	GASKET; BODY TO COVER BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48119-120-0	01	1	1008-
14	FOLLOWER; CAM BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-109-0	01	1	1008-
15	CAM; FOLLOWER BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-110-0	01	1	1008-
16	SPRING; GRUDUATING BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-101-0	01	1	1008-
17	PISTON; SPR BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-095-0	01	1	1008-
18	GASKET; BODY BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-096-0	01	1	1008-
19	SPRING; PISTON BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-094-0	01	1	1008-
20	GUIDE; VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-090-0	01	1	1008-
21	VALVE; IN & EXH BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48121-017-0	01	1	1008-
22	SPRING; VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48123-024-0	01	1	1008-
23	BODY; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48111-060-1	01	1	1008-
24	BOLT; EXH VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-092-0	02	1	1008-
25	WASHER; LK,EXH VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-093-0	02	1	1008-
28	STEM ASM; BRK VLV BRAKE REGULATION ECE<NBE> TRAILER BRAKE HAND CONTROL<NLG>	1-48129-089-0	01	1	1008-

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	180	REPAIR KIT; RELAY VLV FULL TRAILER PIPING<Z25>	1-85576-449-0	01	1	1008-

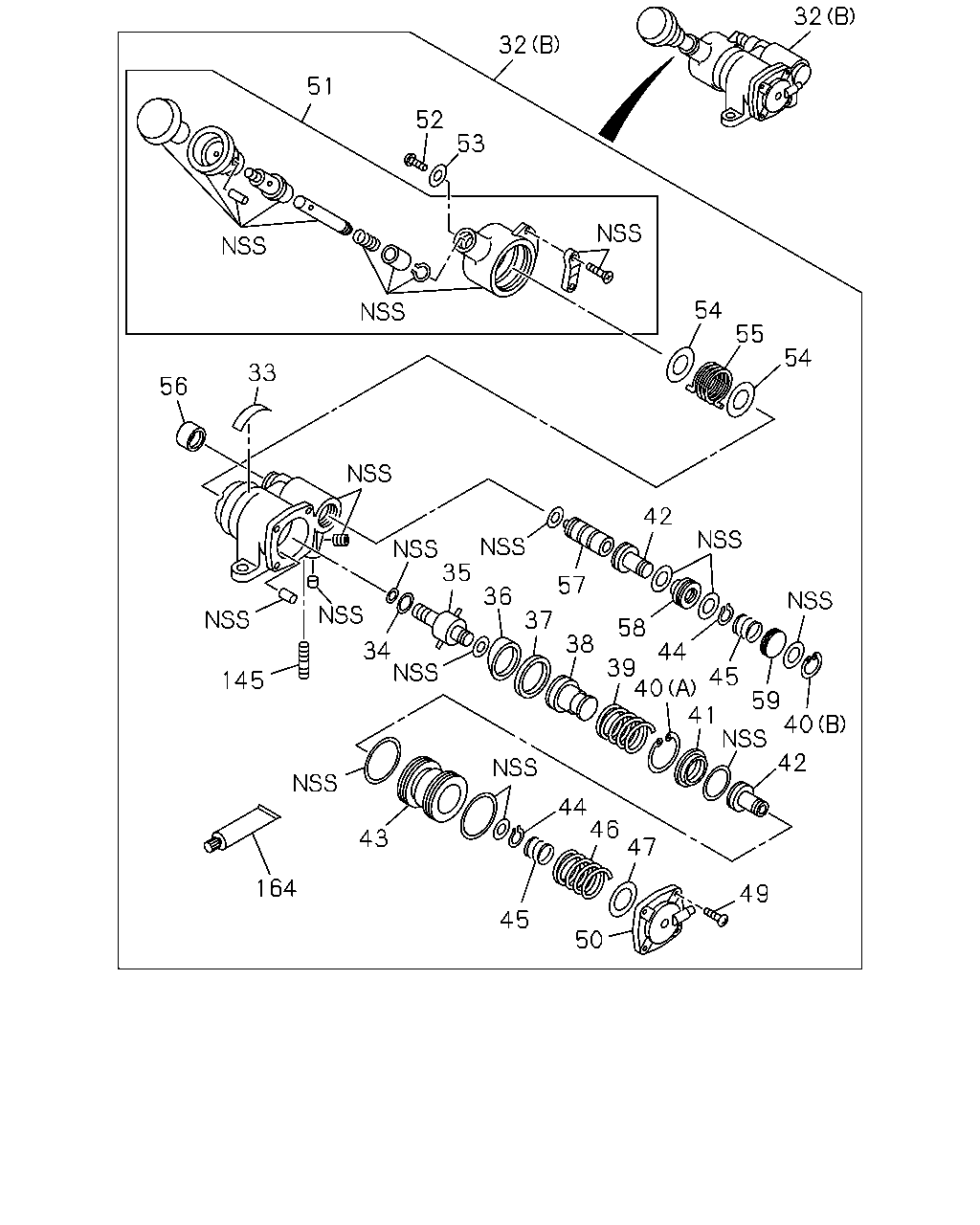

32 32 51 52 53 54 55 54 33 56 42 35 57 36 37 58 38 34 44 39 40 45 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT FULL TRAILER PIPING<Z25> (B)	1-48460-316-0	01	1	1008-
32	VALVE; BRK,HAND CONT EXC. FULL TRAILER PIPING<Z25> (A)	1-48460-356-0	01	1	1008-
33	PLATE; CAUTION FULL TRAILER PIPING<Z25>	1-48469-121-0	01	1	1008-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1008-
35	HOLDER; CAM	1-48469-054-0	01	1	1008-
36	RING; CAM	1-48469-056-0	01	1	1008-
37	GUIDE; CAM RING	1-48469-058-0	01	1	1008-
38	SEAT; EXH VLV	1-48469-057-0	01	1	1008-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1008-
40	RING; SNAP (A)	1-48469-067-0	01	1	1008-
40	RING; SNAP FULL TRAILER PIPING<Z25> (B)	1-48469-079-0	01	1	1008-
41	SEAT; FEED VLV	1-48469-066-0	01	1	1008-
42	VALVE; FEED FULL TRAILER PIPING<Z25>	1-48469-065-0	02	1	1008-
42	VALVE; FEED EXC. FULL TRAILER PIPING<Z25>	1-48469-065-0	01	1	1008-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1008-
44	RING; SNAP,FEED VLV FULL TRAILER PIPING<Z25>	1-48469-068-0	02	1	1008-
44	RING; SNAP,FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-068-0	01	1	1008-
45	SPRING; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-070-0	02	1	1008-
45	SPRING; FEED VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-070-0	01	1	1008-
46	SPRING; MAIN,PISTON FULL TRAILER PIPING<Z25>	1-48469-119-0	01	1	1008-
46	SPRING; MAIN,PISTON EXC. FULL TRAILER PIPING<Z25>	1-48469-089-0	01	1	1008-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1008-
49	SCREW; COVER FULL TRAILER PIPING<Z25>	1-48469-120-0	04	1	1008-
49	SCREW; COVER EXC. FULL TRAILER PIPING<Z25>	1-48469-118-0	04	1	1008-
50	COVER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-073-0	01	1	1008-
50	COVER; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-222-0	01	1	1008-
51	HANDLE ASM; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-060-0	01	1	1008-
51	HANDLE ASM; HAND BRK VLV EXC. FULL TRAILER PIPING<Z25>	1-48469-122-0	01	1	1008-
52	SCREW; HANDLE	1-48469-062-0	01	1	1008-
53	WASHER; HANDLE	1-48469-061-0	01	1	1008-
54	SEAT; SPRING	1-48469-082-0	02	1	1008-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1008-
56	BOOT; PLUNGER FULL TRAILER PIPING<Z25>	1-48469-080-0	01	1	1008-
57	PLUNGER; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-076-0	01	1	1008-
58	HOLDER; FEED VLV FULL TRAILER PIPING<Z25>	1-48469-077-0	01	1	1008-
59	HOLDER; SPRING FULL TRAILER PIPING<Z25>	1-48469-078-0	01	1	1008-
145	STUD; HAND BRK VLV FULL TRAILER PIPING<Z25>	1-48469-069-0	01	1	1008-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
