8-21 — METER ASM (#6205) — 98 parça

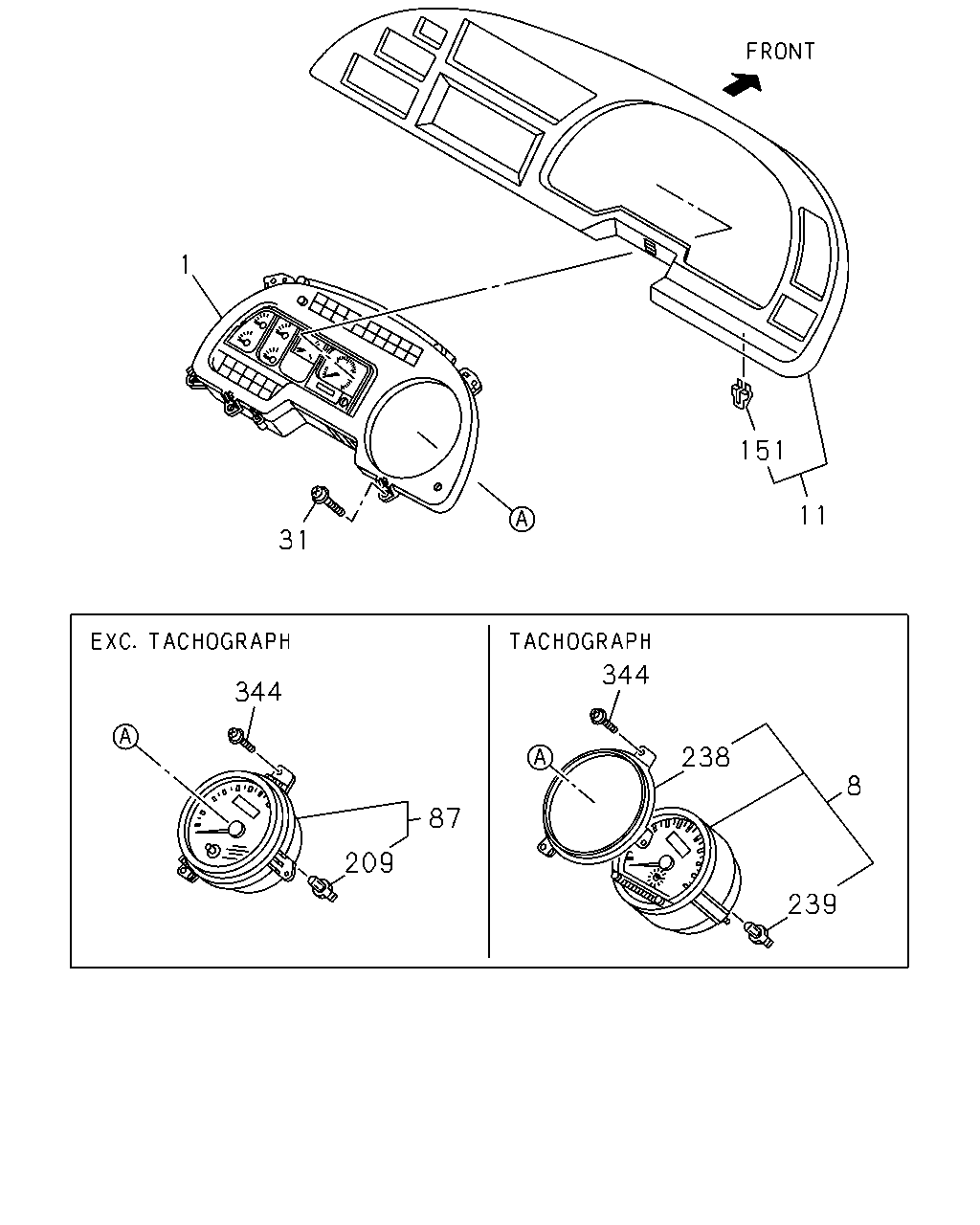

çizim 37643
1 151 11 31 344 344 238 8 87 209 239
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83115-215-1 01 1 9905-9910
1 METER COMPL; CLUSTER 1-83115-693-0 01 1 9911-0004
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(RR3) 		1-83115-693-0 01 1 0005-0104
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(RR3) 		1-83115-846-3 01 1 0105-0301
1 METER COMPL; CLUSTER 1-83115-846-3 01 1 0302-
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83115-685-0 01 1 0005-0104
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83115-842-3 01 1 0105-0301
8 TACHOGRAPH; CLUSTER METER
ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-859-0 01 1 9905-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4> 		1-83120-858-0 01 1 9905-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H<SM8> 		1-83120-847-0 01 1 9905-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		1-83120-849-0 01 1 9905-
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 9905-
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 9905-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905-0604
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-
87 SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83120-844-0 01 1 9905-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 9905-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>,TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>,ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 3W GREEN SOCKET 		1-82194-061-0 01 1 9905-
238 PANEL; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 		1-83129-311-0 01 1 9905-
239 BULB; TACHOGRAPH
TACHOGRAPH ELECTRICAL W/TACHOMETER 15-7 120KM<PN4>, ELECTRICAL TACHOGRAPH 140KM/H W/TACHOMETER<YK2> 24V 1.4W 		5-82194-034-0 03 1 9905-
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H<SM8>,TACHOGRAPH 140KM/H<WC7> 24V 1.4W 		1-82194-101-0 03 1 9905-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 9905-0604
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-

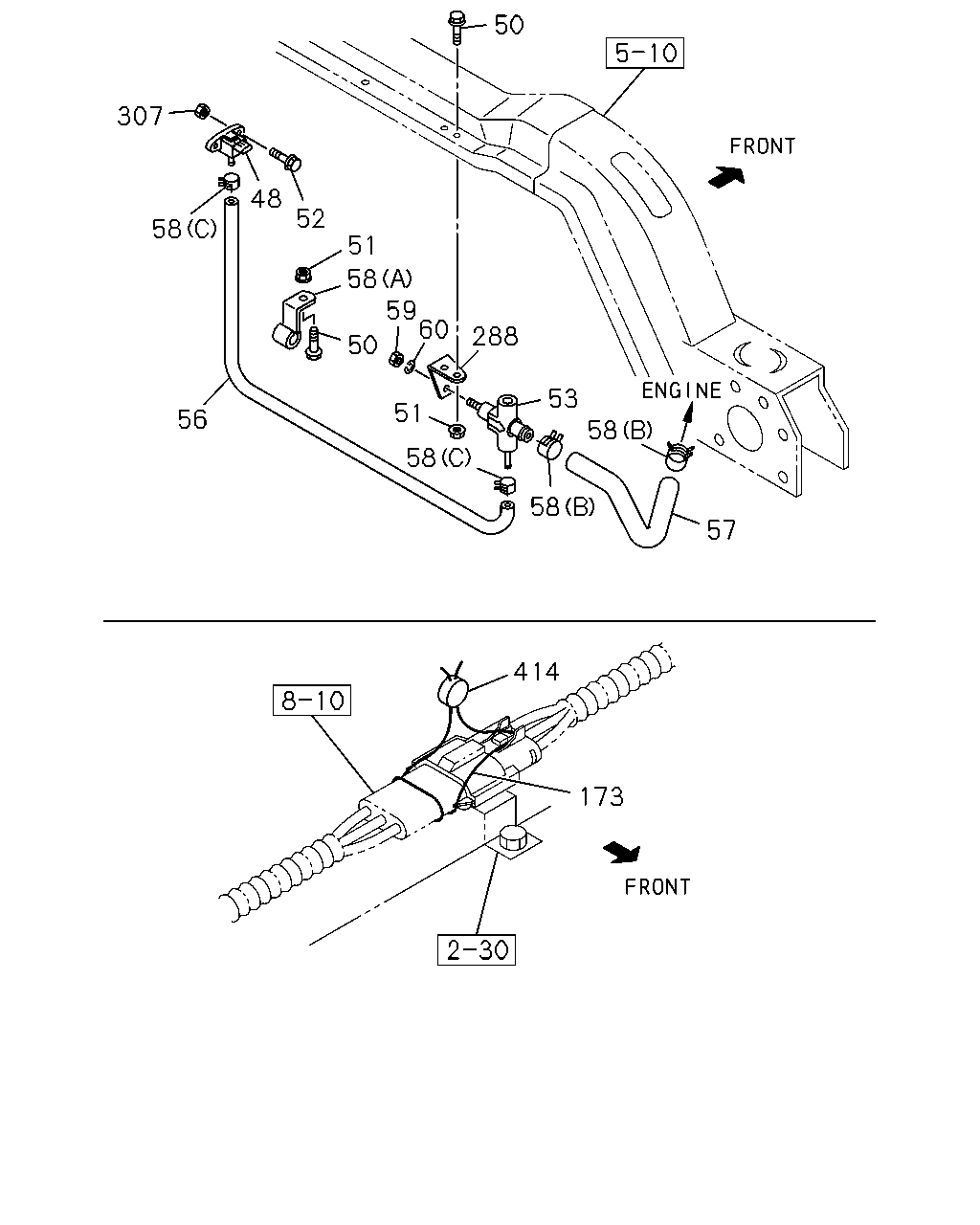

çizim 38015
50 307 48 52 58 51 58 59 60 50 288 53 58 51 56 58 58 57 414 173
BalonParca AdiParca NoAdetTipApplied Date
48 SENSOR; BOOST 1-81531-011-0 01 1 9905-0104
48 SENSOR; BOOST 1-80220-018-0 01 1 0105-0301
50 BOLT; FIX
M8X25 FLANGE 		0-28680-825-0 03 1 9905-0301
51 NUT; FIX
M8 FLANGE 		0-91150-108-0 03 1 9905-0301
52 BOLT; SENSOR
M6X16 FLANGE 		0-28680-616-0 02 1 9905-0301
53 UNION; BOOST UNIT 1-09661-017-0 01 1 9905-0301
56 HOSE; NIPPLE TO SENSOR
L=560 SERVICED BY L=3000 		0-04740-300-0 01 1 9905-0301
57 HOSE; BOOST 1-83159-017-0 01 1 9905-0301
58 CLIP; HOSE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9905-0301
58 CLIP; HOSE
(B) ID=20.8 		8-94125-862-1 02 1 9905-0301
58 CLIP; HOSE
(C) ID=7.8 		8-94246-958-0 02 1 9905-0301
59 NUT; UNION
M10 		9-09111-410-0 01 1 9905-0301
60 WASHER; LK,UNION
ID=10.2 		9-09150-510-0 01 1 9905-0301
173 WIRE; LEAD 9-81325-446-0 01 1 9905-0004
173 WIRE; LEAD
SPEED LIMITER<RF9> 		9-81325-446-0 01 1 0005-0301
173 WIRE; LEAD 9-81325-446-0 01 1 0302-
288 BRACKET 1-47477-469-0 01 1 9905-0301
307 NUT
M6 		9-09110-406-0 02 1 9905-0301
414 SEAL; LEAD 1-15739-002-0 01 1 9905-0004
414 SEAL; LEAD
SPEED LIMITER<RF9> 		1-15739-002-0 01 1 0005-0301
414 SEAL; LEAD 1-15739-002-0 01 1 0302-0407
414 SEAL; LEAD 1-15739-008-0 01 1 0408-

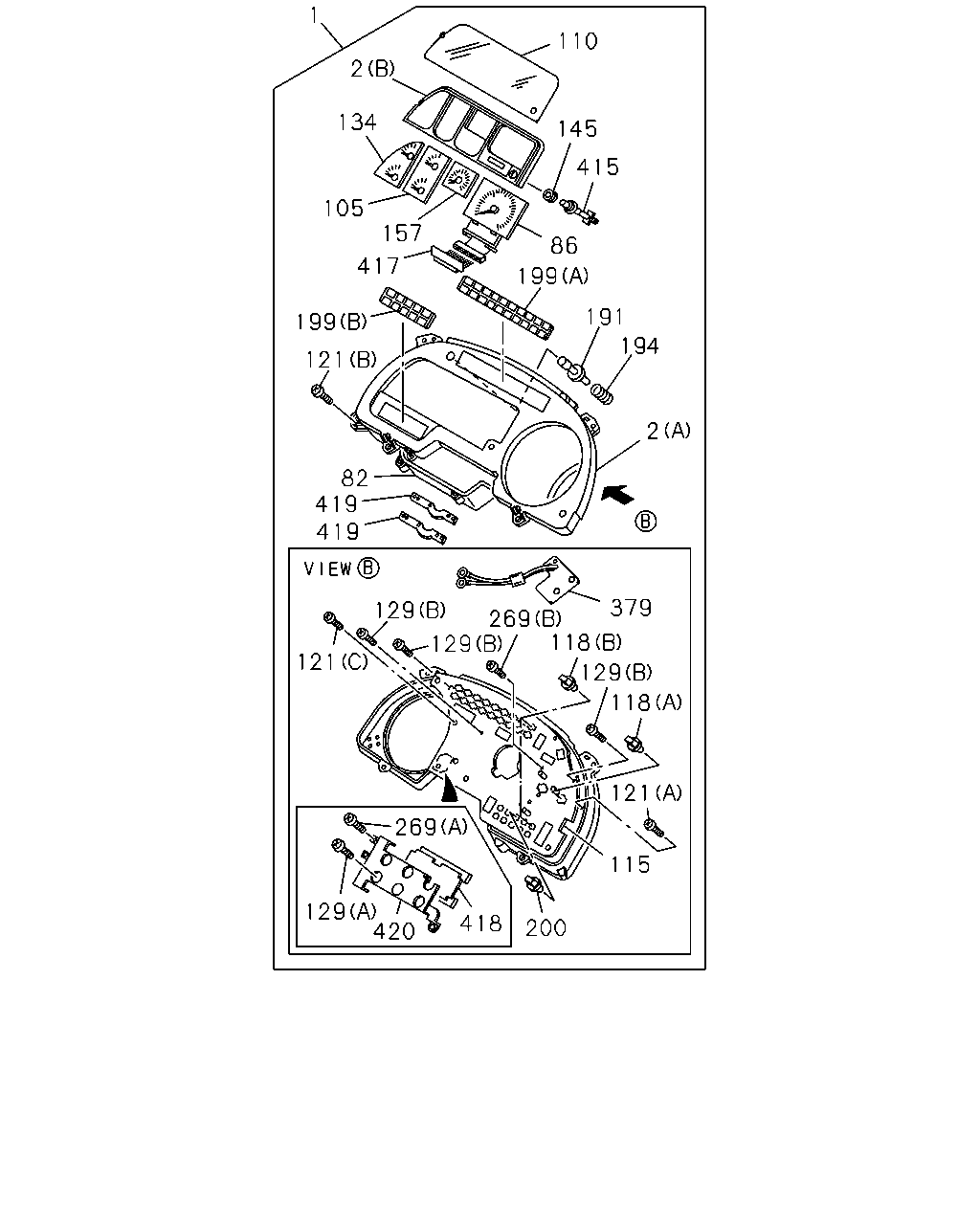

çizim 100265
1 110 2 134 145 415 105 157 86 417 199 191 199 194 121 2 82 419 419 379 129 269 129 118 121 129 118 121 269 115 129 420 418 200
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83115-215-1 01 1 9905-9910
1 METER COMPL; CLUSTER 1-83115-693-0 01 1 9911-0004
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(RR3) 		1-83115-693-0 01 1 0005-0104
1 METER COMPL; CLUSTER
AUSTRALIA EQUIPMENT(RR3) 		1-83115-846-3 01 1 0105-0301
1 METER COMPL; CLUSTER 1-83115-846-3 01 1 0302-
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83115-685-0 01 1 0005-0104
1 METER COMPL; CLUSTER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83115-842-3 01 1 0105-0301
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 9905-
2 PANEL; CLUSTER
(B) 		1-83119-652-0 01 1 9905-
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 9905-
86 TACHOMETER; CLUSTER METER 1-83120-879-0 01 1 9905-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 9905-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 9905-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-373-0 01 1 9905-0004
115 CIRCUIT; PRINTED,CLUSTER METER
AUSTRALIA EQUIPMENT(RR3) 		1-83189-373-0 01 1 0005-0104
115 CIRCUIT; PRINTED,CLUSTER METER
AUSTRALIA EQUIPMENT(RR3) 		1-83189-439-0 01 1 0105-0301
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-439-0 01 1 0302-
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83189-372-0 01 1 0005-0104
115 CIRCUIT; PRINTED,CLUSTER METER
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-83189-438-0 01 1 0105-0301
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 9905-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 29 1 9905-0004
118 BULB; CLUSTER METER
AUSTRALIA EQUIPMENT(RR3) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 29 1 0005-0104
118 BULB; CLUSTER METER
AUSTRALIA EQUIPMENT(RR3) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 28 1 0105-0301
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 28 1 0302-
118 BULB; CLUSTER METER
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 28 1 0005-0104
118 BULB; CLUSTER METER
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0105-0301
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 9905-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 9905-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 9905-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 9905-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 9905-
134 GAUGE; OIL PRESSURE & VOLTAGE 1-83180-283-0 01 1 9905-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 9905-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-214-0 01 1 9905-9910
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-235-0 01 1 9911-0109
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-261-0 01 1 0110-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 9905-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 9905-
199 LENS; WARNING LAMP
(A) 		1-83119-683-0 01 1 9905-0104
199 LENS; WARNING LAMP
(A) 		1-83119-795-1 01 1 0105-
199 LENS; WARNING LAMP
(B) 		1-83119-684-0 01 1 9905-0104
199 LENS; WARNING LAMP
(B) 		1-83119-796-0 01 1 0105-
200 BULB; WARNING LAMP
AUTO CRUISE WO/RESUME<NKB> 24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0106-0301
200 BULB; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0302-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 9905-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 05 1 9905-
379 CIRCUIT; DROP 1-83189-369-0 01 1 9905-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 9905-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 9905-
418 CIRCUIT; CONTROL,METER 1-83189-376-0 01 1 9905-0104
418 CIRCUIT; CONTROL,METER 1-83189-399-0 01 1 0105-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 9905-
420 HEAT SINK; METER 1-83119-679-0 01 1 9905-
