◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶
2-85 — POWER TAKE OFF CONTROL (#62044) — 31 parça

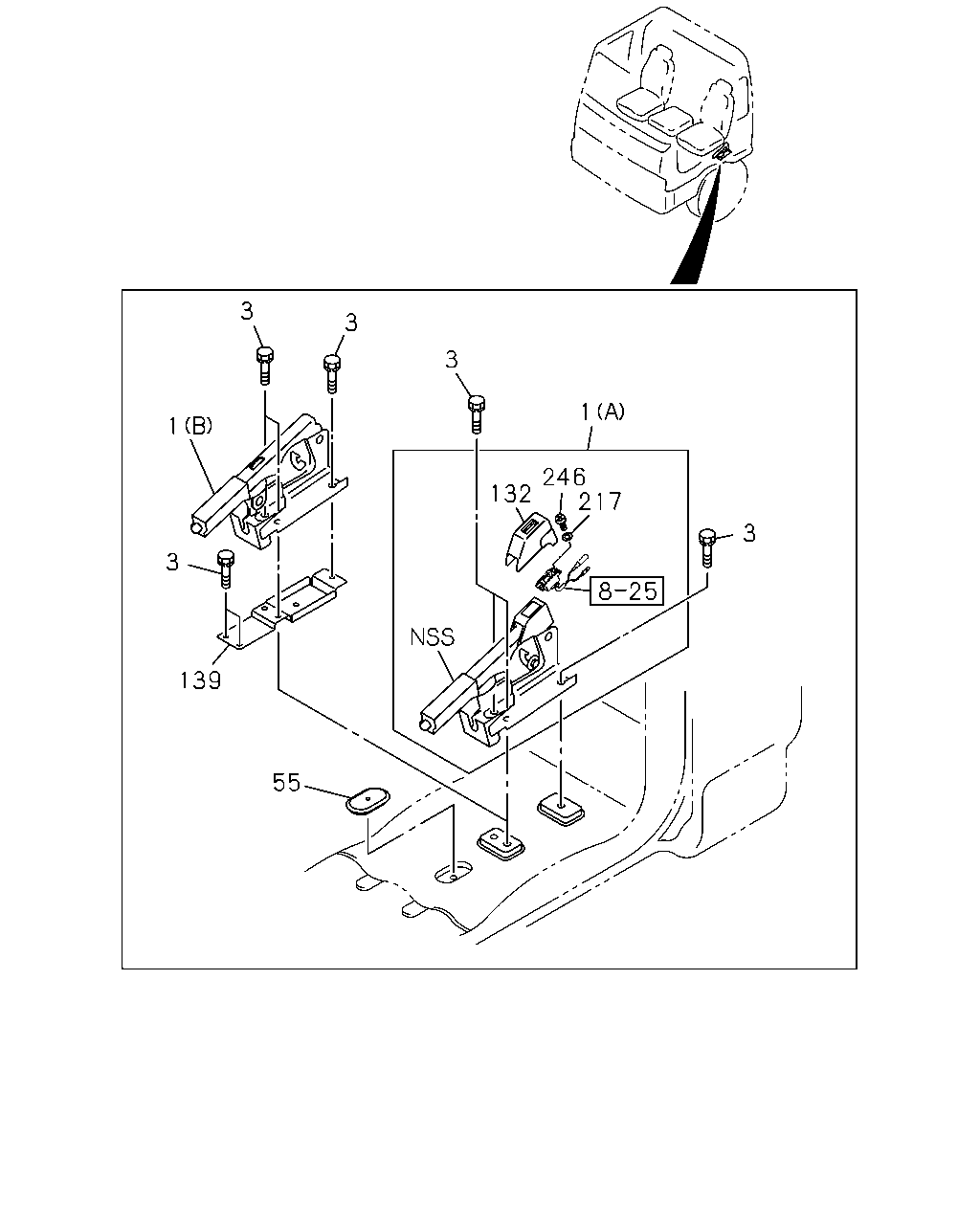

çizim 169876
3 3 3 1 1 246 217 132 3 3 139 55
BalonParca AdiParca NoAdetTipApplied Date
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (A) 		1-79996-244-0 01 1 1008-
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (B) 		1-79907-045-1 01 1 1008-
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 1008-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 1008-
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 1008-
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 1008-
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 1008-
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 1008-
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71240-408-0 02 1 1008-

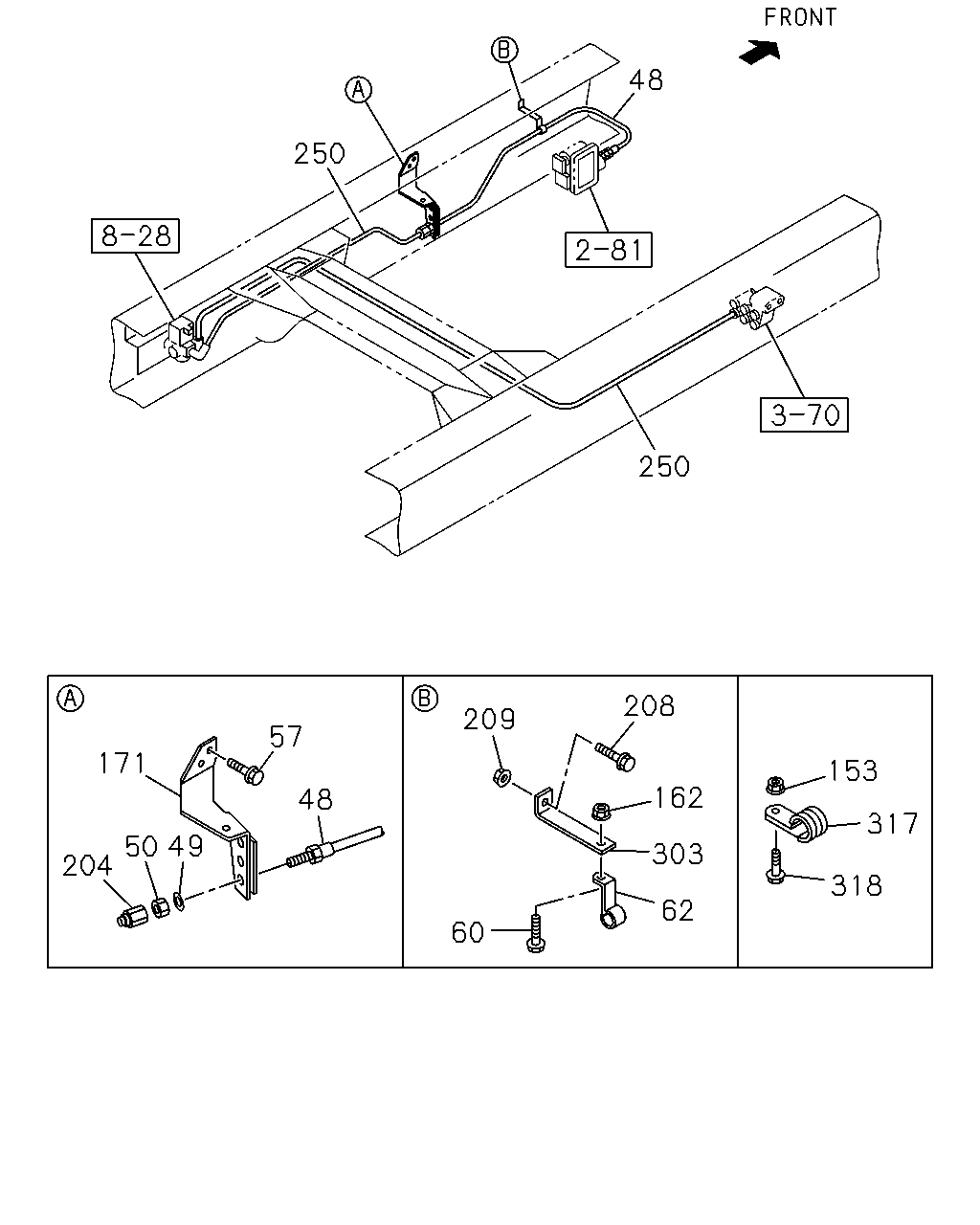

çizim 169877
48 250 250 208 209 57 171 153 162 48 317 204 303 318 62 60 50 49
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) L=380 		1-09363-884-0 01 1 1008-
48 HOSE; FLEX,PTO
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=760 		1-09363-715-0 01 1 1008-
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		9-09150-512-0 01 1 1008-1008
49 WASHER; LK,FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=12.2 		0-91510-812-0 01 1 1009-
50 NUT; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 		9-09840-280-0 01 1 1008-
57 BOLT; BRKT
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 02 1 1008-
60 BOLT; CLIP FIX
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE 		0-28650-820-0 01 1 1008-
62 CLIP; PIPE,AIR
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15 L=22 H=30 		1-09701-215-1 01 1 1008-
153 NUT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 01 1 1008-
162 NUT; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-
171 BRACKET; FLEX HOSE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) 		8-98171-734-0 01 1 1008-
204 CONNECTOR; NYLON TUBE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
204 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1008-
208 BOLT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE 		0-28650-835-0 01 1 1008-
209 NUT; BRKT,AIR PIPE
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE 		0-91180-108-0 01 1 1008-
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1008-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 1008-
250 TUBE; NYLON
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1008-
250 TUBE; NYLON
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1008-
303 BRACKET; CLIP
MJT7S M/T(Y3E) TRANSMISSION SIDE PTO WO/LEVER(SH5) L=95 		1-82699-085-0 01 1 1008-
317 CLIP; NYLON TUBE
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) ID=11 L=16 		0-95235-025-0 01 1 1008-
318 BOLT; CLIP
MJX16P M/T(Y3Z) TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X25 FLANGE 		0-28650-825-0 01 1 1008-
