◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#62039) — 39 parça

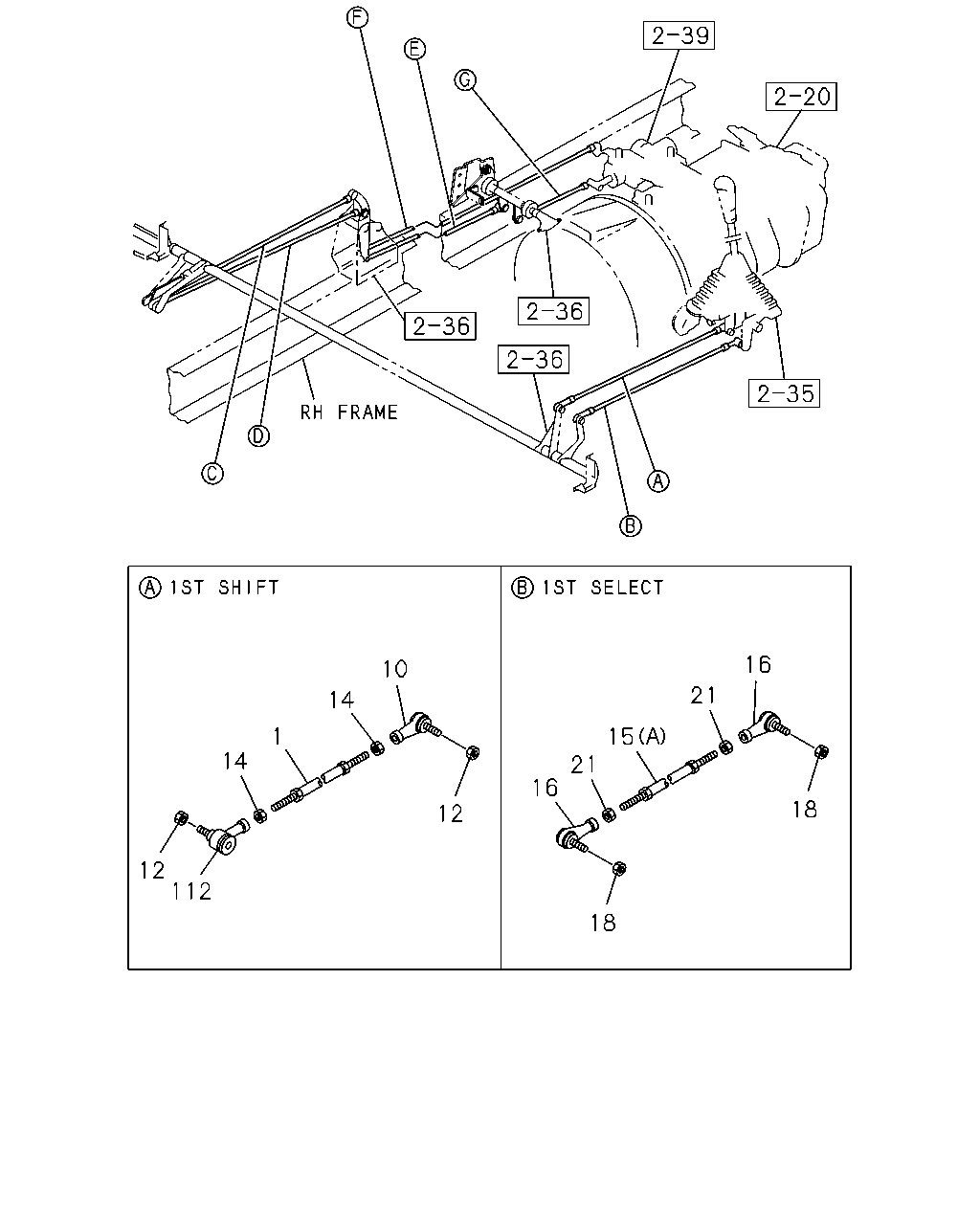

çizim 169867
16 10 21 14 1 15 14 21 16 18 12 12 112 18
BalonParca AdiParca NoAdetTipApplied Date
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 1008-
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 1008-
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 1008-
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 1008-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 1008-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 1008-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 1008-
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 1008-
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 1008-
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		0-91111-508-0 02 1 1008-
112 JOINT; RUBBER 1-33670-413-1 01 1 1008-
112 JOINT; RUBBER 1-33670-413-1 01 1 1008-
çizim 169881
22 25 24 112 15 25 22 15 22 28 25 28 24 36 44 35 32 5 38 38 44 36 32 35 30 30 6 45 47 49 8 47 49 45 25
BalonParca AdiParca NoAdetTipApplied Date
5 ROD; LINK,3RD SHIFT
MIXER TRUCK<RA2> L=1190 		1-33652-922-0 01 1 1008-
5 ROD; LINK,3RD SHIFT
EXC. MIXER TRUCK<RA2> L=1120 		1-33652-603-0 01 1 1008-
6 ROD; LINK,3RD SELECT
MJT7S M/T(Y3E) MIXER TRUCK<RA2> L=1722 		1-33662-003-2 01 1 1008-
6 ROD; LINK,3RD SELECT
MJT7S M/T(Y3E) EXC. MIXER TRUCK<RA2> L=1652 		1-33652-935-2 01 1 1008-
6 ROD; LINK,3RD SELECT
MJX16P M/T(Y3Z) L=1692 		1-33662-004-2 01 1 1008-
8 ROD; LINK,4TH SHIFT
MJT7S M/T(Y3E) L=370 		1-33652-654-1 01 1 1008-
8 ROD; LINK,4TH SHIFT
MJX16P M/T(Y3Z) L=410 		1-33652-947-0 01 1 1008-
15 ROD; LINK 1ST SHIFT
(A) L=556 		1-33652-744-0 01 1 1008-
15 ROD; LINK 1ST SHIFT
(B) L=474 		1-33652-803-2 01 1 1008-
15 ROD; LINK 1ST SHIFT
(C) L=446 		1-33652-998-2 01 1 1008-
22 JOINT; BALL,SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 1008-
22 JOINT; BALL,SCREW,LINK ROD
(A) 		1-09760-125-0 01 1 1008-
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 1008-
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) M10 		0-91111-510-0 02 1 1008-
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) M12 		0-91111-512-0 02 1 1008-
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 1008-
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 1008-
32 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 1008-
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 1008-
36 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 1008-
38 NUT; 3RD LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 1008-
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		0-91111-510-0 02 1 1008-
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 1008-
47 NUT; 4TH LINK ROD
M10 FLANGE 		1-09440-061-0 02 1 1008-
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		0-91111-512-0 02 1 1008-
112 JOINT; RUBBER 1-33670-413-1 01 1 1008-
112 JOINT; RUBBER 1-33670-413-1 01 1 1008-
