2-07 — CLUTCH BOOSTER; MINIPACK (#62030) — 128 parça

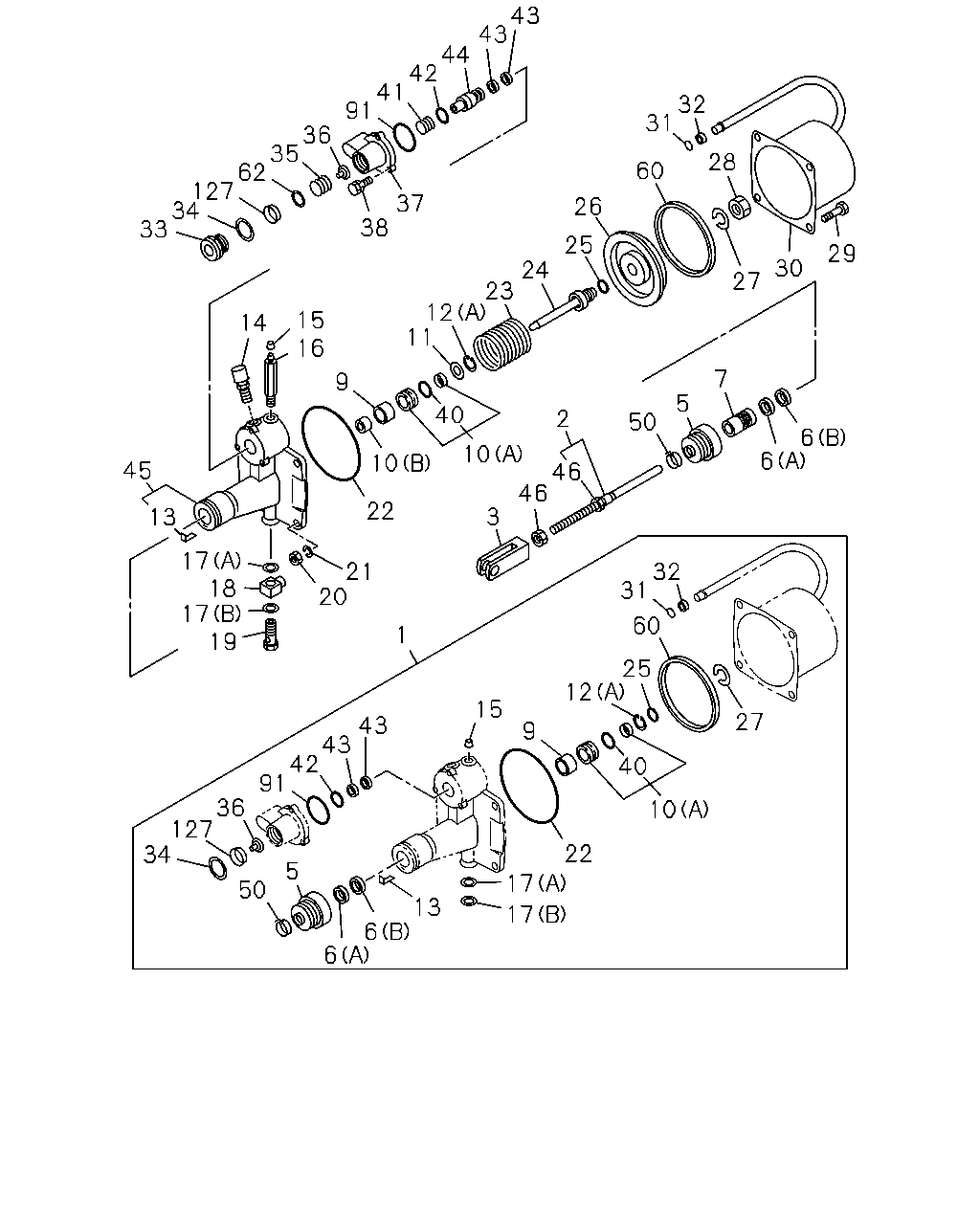

çizim 169844
43 43 44 42 41 91 32 31 36 35 62 127 34 33 28 60 37 38 26 25 29 30 24 23 27 12 11 15 16 14 7 9 5 40 2 50 6 10 6 10 45 46 46 22 3 13 17 18 17 19 21 20 32 31 60 1 25 12 15 27 43 43 42 91 9 40 36 127 34 10 22 17 5 50 13 6 17 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1008- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1008- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1008- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1008- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1008- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1008- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1008- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1008- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1008- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1008- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1008- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1008- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1008- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1008- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1008- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1008- ●
13 PIN; SPR 1-31829-109-0 01 1 1008- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1008- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1008- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1008- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1008- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1008- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1008- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1008- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1008- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1008- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1008- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1008- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1008- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1008- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1008- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1008- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1008- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1008- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1008- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1008- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1008- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1008- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1008- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1008- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1008- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1008- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1008- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1008- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1008- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1008- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1008- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1008- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1008- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1008- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1008- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1008- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1008- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1008- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1008- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1008- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1008- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1008- ● ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1008- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1008- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1008- ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1008- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1008- ● ●
127 FILTER; POPPET 1-31829-488-0 01 1 1008- ●

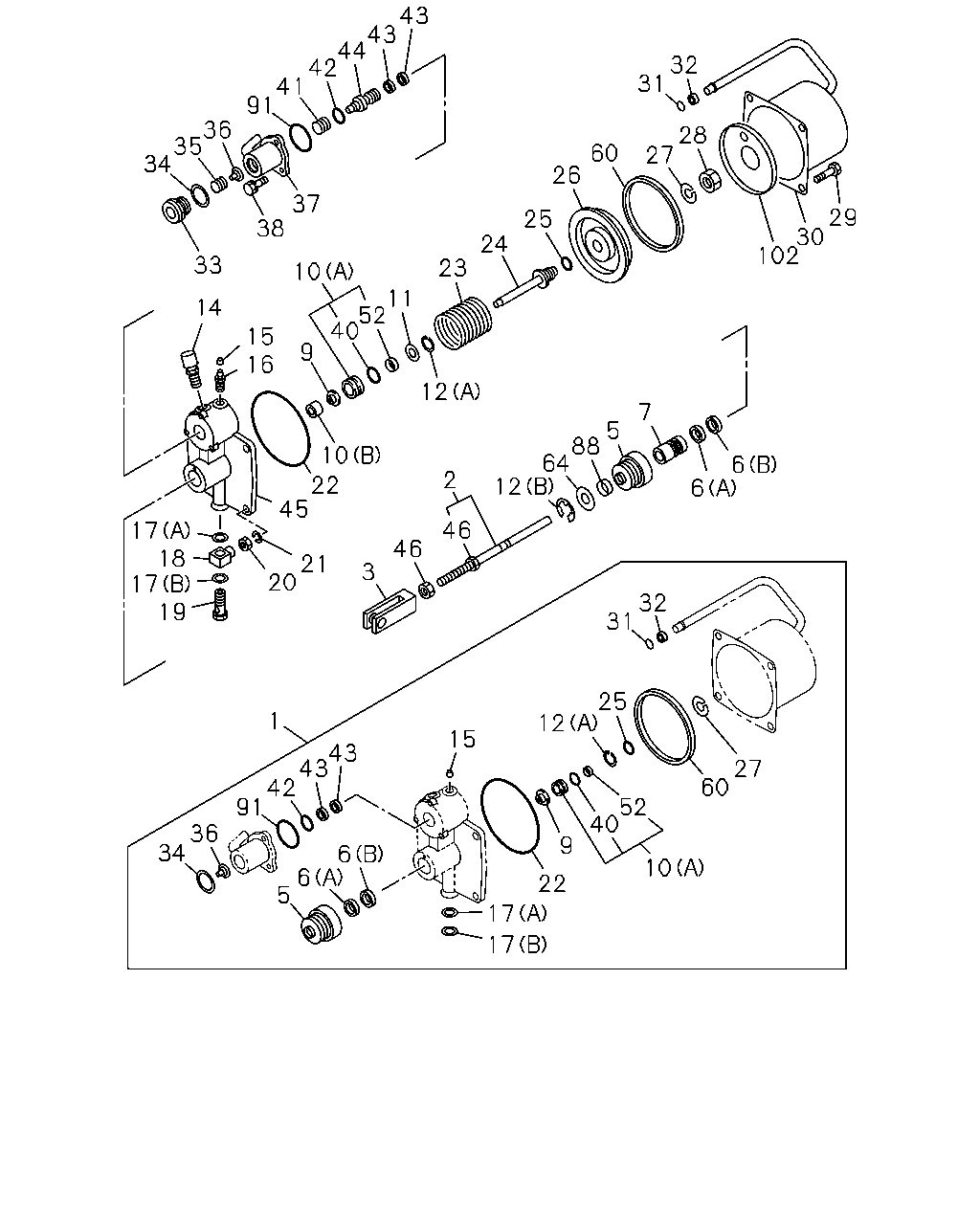

çizim 169845
43 43 44 42 41 91 32 31 36 35 34 28 27 60 26 37 38 29 30 102 25 24 33 23 10 11 52 40 14 15 16 9 12 7 5 88 64 12 10 6 2 22 45 6 46 17 18 17 19 46 21 20 3 32 31 25 1 12 15 43 43 42 91 27 60 52 40 36 34 9 6 10 6 5 22 17 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-501-0 01 1 1008- ●
1 REPAIR KIT; CLU BOOSTER 1-31829-560-0 01 1 1008- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1008- ●
2 ROD; PUSH,CLU BOOSTER 1-31824-227-0 01 1 1008- ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-287-0 01 1 1008- ● ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1008- ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-555-0 01 1 1008- ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1008- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1008- ● ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1008- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-251-0 01 1 1008- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-285-0 01 1 1008- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-428-0 01 1 1008- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1008- ● ●
12 RING; RET,CLU BOOSTER
(A) 		1-31829-142-0 01 1 1008- ● ●
12 RING; RET,CLU BOOSTER
(B) 		8-94415-036-0 01 1 1008- ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1008- ●
14 COVER; EXH,CLU BOOSTER 1-31829-366-0 01 1 1008- ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1008- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1008- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1008- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1008- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1008- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1008- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1008- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1008- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-31829-281-0 01 1 1008- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-350-0 01 1 1008- ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-554-0 01 1 1008- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-158-0 01 1 1008- ●
24 ROD; PUSH,CLU BOOSTER 1-31824-224-0 01 1 1008- ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-31829-277-0 01 1 1008- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-072-0 01 1 1008- ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-050-0 01 1 1008- ●
27 SPRING; CLU BOOSTER 1-31829-291-0 01 1 1008- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 1-31829-290-0 01 1 1008- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1008- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-117-0 01 1 1008- ●
30 SHELL; CYL,CLU BOOSTER 1-31811-128-0 01 1 1008- ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1008- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1008- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-448-0 01 1 1008- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1008- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1008- ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-451-0 01 1 1008- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1008- ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-452-0 01 1 1008- ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1008- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1008- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1008- ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-458-0 01 1 1008- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-148-0 01 1 1008- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1008- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-058-0 01 1 1008- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-067-0 01 1 1008- ●
45 PLATE; END,CLU BOOSTER 1-31811-133-0 01 1 1008- ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1008- ● ●
52 SEAL; OIL,END PLATE,CLU BOOSTER 1-47819-027-0 01 1 1008- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-454-0 01 1 1008- ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-292-0 01 1 1008- ●
64 WASHER; PUSH ROD
ID=10.5 OD=22 		9-09164-610-0 01 1 1008- ●
88 CLAMP; HOSE,CLU BOOSTER 1-31829-063-0 01 1 1008- ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1008- ● ●
102 PLATE; BOOSTER 1-31829-559-0 01 1 1008- ●
