◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#6203) — 1131 parça
çizim 37746
5 178 530 510 530 178 178 178 178 178 530 1 185 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0302-
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0212-0603
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (C) ID=38.1 L=25 		1-09337-052-0 01 1 0604-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 9905-
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0309-0602
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0603-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 9905-0602
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0603-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 01 1 9905-0602
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0603-
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 9905-0007
178 GROMMET; HARNESS
(C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0008-0106
178 GROMMET; HARNESS
INSPECTION LAMP<T95> (C) ID=19 OD=23 T=18 		9-09956-130-1 01 1 0107-0301
178 GROMMET; HARNESS
(D) ID=15 OD=20 T=26 		1-09332-132-0 01 1 9905-
178 GROMMET; HARNESS
(F) ID=32 OD=40 T=18 		1-09891-003-0 02 1 9905-
178 GROMMET; HARNESS
(E) 		1-82699-891-0 01 1 9905-
185 SLEEVE; RUBBER
ID=6 L=30 		5-09360-352-0 01 1 0005-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 02 1 9905-0301
510 GROMMET; SCREW
ENGINE CONTROL U2(Q3U) D=9.7X9.7 L=8 		8-94222-314-0 01 1 0302-0602
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0603-
510 GROMMET; SCREW
EXC. ENGINE CONTROL U2(Q3U) D=9.7X9.7 L=8 		8-94222-314-0 02 1 0302-0602
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 06 1 9905-0101
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 04 1 0102-0104
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 07 1 0102-0207
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 08 1 0208-0301
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 03 1 0302-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> (A) 180X40 		1-72498-019-0 02 1 0102-0104
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> (A) 180X40 		1-72498-019-0 01 1 0105-0301
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 06 1 0302-0602
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 08 1 0603-
530 SEAL; HARNESS
ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> (A) 180X40 		1-72498-019-0 01 1 0009-0104
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 04 1 0105-0301
530 SEAL; HARNESS
(B) 		1-76770-007-0 01 1 0302-0310
530 SEAL; HARNESS
(C) 		1-76770-009-1 01 1 0311-0402
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> (A) 100X40 		1-72498-022-0 01 1 9905-0011
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 01 1 0012-0104
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> (A) 100X40 		1-72498-022-0 01 1 0012-0104
530 SEAL; HARNESS
EXC. HIGH ROOF<S2F> (A) 100X40 		1-72498-022-1 01 1 0105-
530 SEAL; HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> (A) 180X40 		1-72498-019-0 03 1 0102-0104
530 SEAL; HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. REMOTE CONT DOOR LOCK<SLG> (A) 180X40 		1-72498-019-0 03 1 0105-0301
530 SEAL; HARNESS
REMOTE CONT DOOR LOCK<SLG> (A) 180X40 		1-72498-019-0 03 1 0105-0301
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-0 08 1 0302-0602
530 SEAL; HARNESS
(A) 180X40 		1-72498-019-1 06 1 0603-
530 SEAL; HARNESS
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) 100X40 		1-72498-022-0 03 1 0206-0301
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 03 1 0302-0310
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-0 02 1 0311-0602
530 SEAL; HARNESS
(A) 100X40 		1-72498-022-1 02 1 0603-

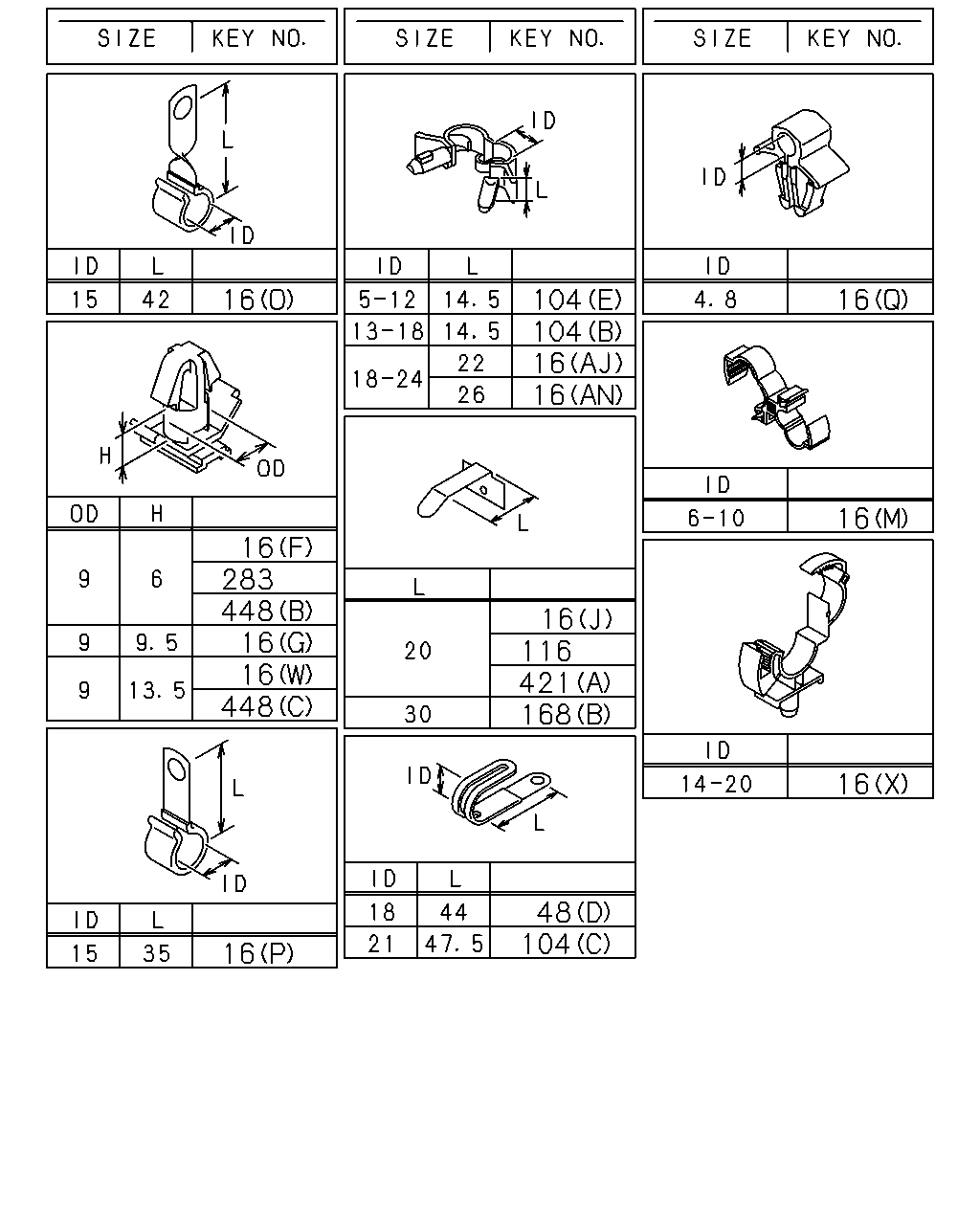

çizim 38017
16 104 104 16 16 16 16 16 283 448 16 16 448 16 116 421 168 16 48 104 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AJ) ID=18-24 L=22 		1-09709-295-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AN) ID=18-24 L=26 		1-09709-296-0 01 1 0706-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
EXC. INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9905-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 06 1 9905-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9905-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09700-583-1 01 1 9905-0104
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0105-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0112
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AD) ID=21 L=24 		8-94176-807-1 01 1 0110-0301
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0302-0606
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 02 1 0607-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9905-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 9905-0104
16 CLIP; HARNESS
(S) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0302-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9905-0104
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9905-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0505-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0008-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-0301
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9905-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0706-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (O) ID=15 L=42 		1-09700-479-0 02 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9905-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-0001
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
(N) 		8-94403-348-0 01 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9905-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(U) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9905-0606
16 CLIP; HARNESS
(V) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9905-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0302-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0105-0106

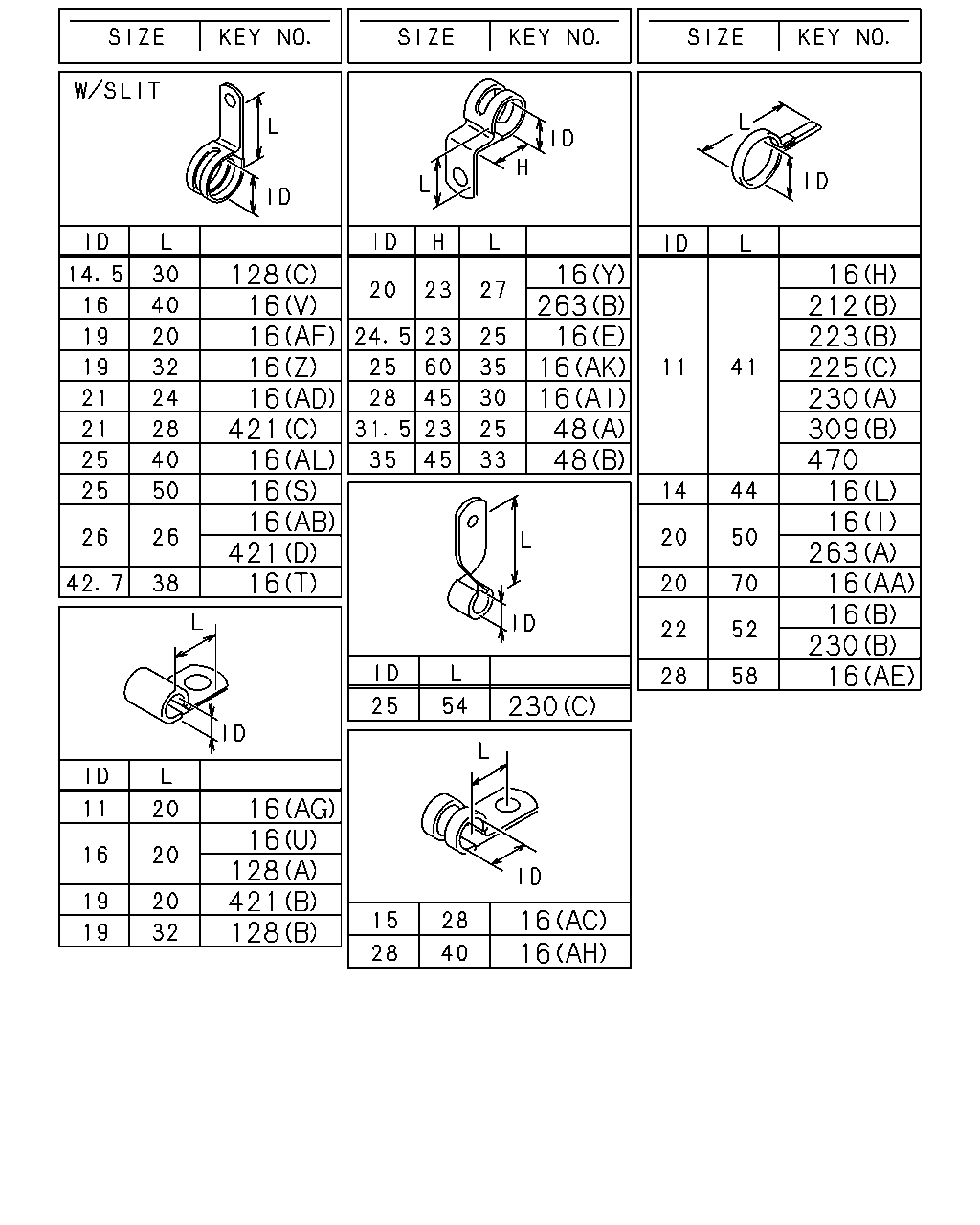

16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 17 1 9905-0007
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0008-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0603-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(AH) ID=28 L=40 		1-09701-261-0 01 1 0302-0303
16 CLIP; HARNESS
(AK) ID=25 H=60 L=35 		1-09701-103-0 01 1 0304-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9905-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0302-0602
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-0106
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(AE) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0301
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (L) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
(AN) L=250 		1-09707-126-0 01 1 0302-0304
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0305-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0603-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-0301
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0302-0303
16 CLIP; HARNESS
(AL) ID=25 L=40 		1-09700-215-1 01 1 0304-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (W) OD=9 H=13.5 		1-09709-180-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-0104
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0602
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9905-0007
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) (G) OD=9 H=9.5 		1-09709-179-0 01 1 0008-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9905-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 9905-0005
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 9905-0301
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0505-0602
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 9905-0301
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-94225-185-0 01 1 9905-0801
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-97367-985-1 01 1 0802-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0603-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 9905-0602
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 03 1 0603-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 9905-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 9905-0602
104 CLIP; HEADLAMP HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 02 1 0603-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-0009
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0010-0112
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 03 1 9905-0104
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 0105-0112
116 CLIP; ROOF HARNESS
LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 08 1 0201-0301
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 12 1 0302-1409
116 CLIP; ROOF HARNESS
HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 13 1 1410-
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 05 1 0201-1409
116 CLIP; ROOF HARNESS
EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE 		1-09987-246-2 06 1 1410-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 9905-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0102-
283 CLIP; SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 9905-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 12 1 9905-0101
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 9905-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-0301
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0302-
421 CLIP; FLOOR HARNESS
EXC. ENGINE CONTROL U2(Q3U) (C) ID=21 L=28 		1-09700-673-1 02 1 0302-0602
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-0104
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-0104
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. REMOTE CONT DOOR LOCK<SLG>,ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
REMOTE CONT DOOR LOCK<SLG> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> EXC. REMOTE CONT DOOR LOCK<SLG> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
ENGINE CONTROL U2(Q3U) (D) ID=26 L=26 		1-09701-236-0 01 1 0302-0602
421 CLIP; FLOOR HARNESS
(D) ID=26 L=26 		1-09701-236-0 01 1 0603-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0008-
448 CLIP; AIR SUSP HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
(C) OD=9 H=13.5 		1-09709-180-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 9905-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 9905-0106
çizim 38047
16 448 81 16 148 462 168
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AJ) ID=18-24 L=22 		1-09709-295-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AN) ID=18-24 L=26 		1-09709-296-0 01 1 0706-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
EXC. INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9905-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 06 1 9905-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9905-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09700-583-1 01 1 9905-0104
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0105-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0112
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AD) ID=21 L=24 		8-94176-807-1 01 1 0110-0301
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0302-0606
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 02 1 0607-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9905-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 9905-0104
16 CLIP; HARNESS
(S) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0302-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9905-0104
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9905-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0505-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0008-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-0301
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9905-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0706-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (O) ID=15 L=42 		1-09700-479-0 02 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9905-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-0001
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
(N) 		8-94403-348-0 01 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9905-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(U) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9905-0606
16 CLIP; HARNESS
(V) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9905-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0302-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 17 1 9905-0007
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0008-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0603-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(AH) ID=28 L=40 		1-09701-261-0 01 1 0302-0303
16 CLIP; HARNESS
(AK) ID=25 H=60 L=35 		1-09701-103-0 01 1 0304-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9905-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0302-0602
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-0106
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(AE) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0301
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (L) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
(AN) L=250 		1-09707-126-0 01 1 0302-0304
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0305-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0603-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-0301
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0302-0303
16 CLIP; HARNESS
(AL) ID=25 L=40 		1-09700-215-1 01 1 0304-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (W) OD=9 H=13.5 		1-09709-180-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-0104
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0602
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9905-0007
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) (G) OD=9 H=9.5 		1-09709-179-0 01 1 0008-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9905-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 9905-9907
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 9908-0602
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0603-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 9905-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 9905-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0102-
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0008-
448 CLIP; AIR SUSP HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
(C) OD=9 H=13.5 		1-09709-180-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 9905-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 9905-0106
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0301-
çizim 38277
119 64 524 54 219 294 340 219 255 423 133
BalonParca AdiParca NoAdetTipApplied Date
54 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0602
54 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 9905-0301
64 SCREW; CLIP
ENGINE CONTROL U2(Q3U) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0302-0602
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0603-
64 SCREW; CLIP
EXC. ENGINE CONTROL U2(Q3U) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 02 1 0302-0602
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0105-0602
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0603-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 9905-0104
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0107-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 0111-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9905-9908
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 9909-0104
219 NUT
(A) M8 FLANGE 		0-91150-108-0 09 1 0105-0207
219 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
219 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9905-9907
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-0104
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-0104
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 9908-0104
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0105-0106
219 NUT
6WG1 TC-N(71L) (A) M8 FLANGE 		0-91150-108-0 01 1 0107-0201
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0201
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0201
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0107-0201
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0202-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0202-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0202-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0202-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0202-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 01 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(B) M10 FLANGE 		0-91250-210-0 01 1 9905-0110
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0208-0301
219 NUT
(A) M8 FLANGE 		0-91150-108-0 04 1 0302-0602
219 NUT
(A) M8 FLANGE 		0-91150-108-0 07 1 0603-0603
219 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0603-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 9905-0104
255 SCREW; TAP CLIP
EXC. AUSTRALIA EQUIPMENT(RR3) M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0105-0301
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-9908
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 9909-0105
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0106-0301
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0302-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 9905-9907
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106-0301
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0302-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9905-0211
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0212-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 02 1 9905-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 9905-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-

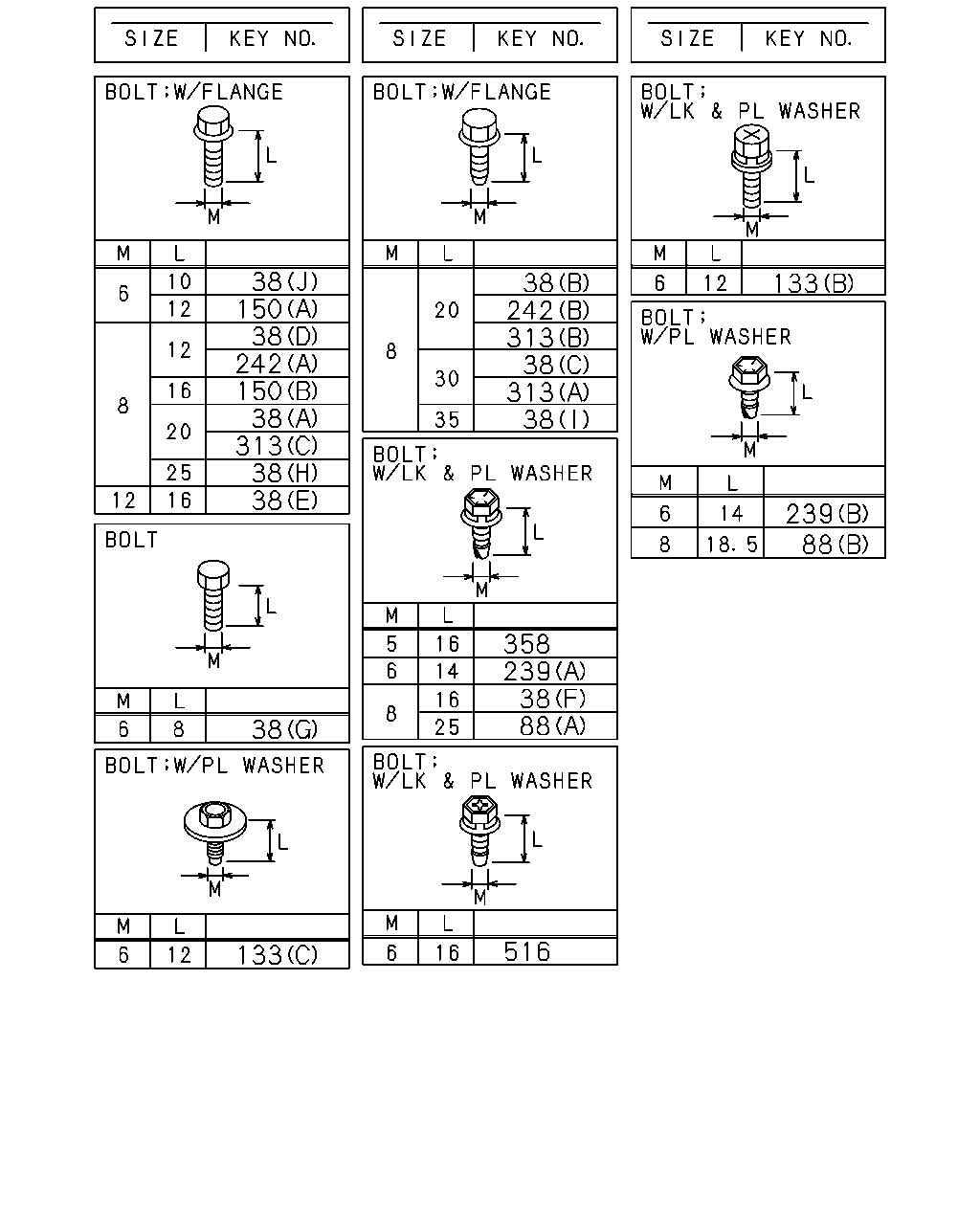

çizim 38638
38 150 38 242 150 38 313 38 38 38 242 313 38 313 38 133 239 88 358 239 38 88 38 516 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(G) M6X8 		0-20800-608-0 01 1 9905-0701
38 BOLT; CLIP,HARNESS
(J) M6X10 FLANGE 		0-28050-610-0 01 1 0702-
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28080-812-0 01 1 9905-0512
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0602
38 BOLT; CLIP,HARNESS
(D) M8X12 FLANGE 		0-28050-812-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28080-820-0 01 1 9905-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 07 1 9905-9907
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 06 1 9908-0005
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0201-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0302-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9908
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9908
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9908
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9909-0005
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0006-0106
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
6WG1 TC-N(71L) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0107
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0107-0201
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0202-0301
38 BOLT; CLIP,HARNESS
6WG1 TC-N(71L) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0202-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0302-0403
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 09 1 9905-0207
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0208-0301
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 07 1 0302-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-0602
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0603-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0108
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0109-0301
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0403
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0404-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		1-09044-079-0 01 1 9905-1105
38 BOLT; CLIP,HARNESS
(E) M12X16 FLANGE 		0-28051-216-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(F) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9905-
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 02 1 0107-0112
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0201-0301
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28680-835-0 01 1 0302-0512
38 BOLT; CLIP,HARNESS
(I) M8X35 FLANGE 		0-28650-835-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28080-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28050-825-0 01 1 0601-0602
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28050-825-0 01 1 0603-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 07 1 0208-0301
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 03 1 0302-0403
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0404-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 07 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 9905-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-0106
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0107-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-0210
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28080-612-0 02 1 0302-0512
150 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 02 1 0601-
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28080-816-0 07 1 0302-0512
150 BOLT; CLIP
(B) M8X16 FLANGE 		0-28050-816-0 07 1 0601-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9905-0104
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 9905-0104
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0105-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28080-812-0 01 1 9905-0512
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0601-0602
242 BOLT; BRKT,HARNESS
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0603-
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0301
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0301
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28680-820-0 04 1 0302-0512
242 BOLT; BRKT,HARNESS
(B) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9905-9907
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0104
313 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 9908-0104
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0301
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0302-0512
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9905-9908
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9905-9908
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9905-9908
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 9909-0105
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0106-0301
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0302-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 9905-0104
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28080-820-0 02 1 0105-0512
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0601-0602
313 BOLT; BRKT
(C) M8X20 FLANGE 		0-28050-820-0 02 1 0603-
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0106-0301
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 01 1 0302-0512
313 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0105-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
çizim 100259
128 16 16 16 16 421 16 16 16 421 16 16 263 16 16 16 48 48 16 212 223 225 230 309 470 16 16 263 16 16 230 16 230 16 16 128 421 128 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AJ) ID=18-24 L=22 		1-09709-295-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AN) ID=18-24 L=26 		1-09709-296-0 01 1 0706-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
EXC. INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9905-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 06 1 9905-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9905-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09700-583-1 01 1 9905-0104
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0105-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0112
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AD) ID=21 L=24 		8-94176-807-1 01 1 0110-0301
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0302-0606
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 02 1 0607-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9905-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 9905-0104
16 CLIP; HARNESS
(S) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0302-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9905-0104
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9905-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0505-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0008-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-0301
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9905-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0706-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (O) ID=15 L=42 		1-09700-479-0 02 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9905-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-0001
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
(N) 		8-94403-348-0 01 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9905-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(U) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9905-0606
16 CLIP; HARNESS
(V) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9905-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0302-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 17 1 9905-0007
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0008-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0603-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(AH) ID=28 L=40 		1-09701-261-0 01 1 0302-0303
16 CLIP; HARNESS
(AK) ID=25 H=60 L=35 		1-09701-103-0 01 1 0304-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9905-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0302-0602
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-0106
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(AE) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0301
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (L) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
(AN) L=250 		1-09707-126-0 01 1 0302-0304
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0305-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0603-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-0301
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0302-0303
16 CLIP; HARNESS
(AL) ID=25 L=40 		1-09700-215-1 01 1 0304-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (W) OD=9 H=13.5 		1-09709-180-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-0104
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0602
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9905-0007
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) (G) OD=9 H=9.5 		1-09709-179-0 01 1 0008-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9905-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 9905-0005
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 9905-0301
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0505-0602
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 9905-0301
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-94225-185-0 01 1 9905-0801
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-97367-985-1 01 1 0802-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0603-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 9905-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=19 L=32 		9-09525-862-0 01 1 9905-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(C) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0105-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 9905-0104
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (A) L=180 		1-09707-162-1 01 1 0112-0201
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (C) L=700 		1-09707-190-0 02 1 0202-0301
223 CLIP; AIR TANK HARNESS
(C) L=700 		1-09707-190-0 02 1 0302-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (D) L=140 		5-09707-031-1 02 1 0202-0301
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 02 1 0302-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 9905-0007
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 02 1 0008-0304
225 CLIP; AIR TANK HARNESS
(D) L=350 		1-09707-183-0 02 1 0305-0602
225 CLIP; AIR TANK HARNESS
(D) L=350 		1-09707-183-0 02 1 0603-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 9905-0104
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 04 1 0112-
225 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0008-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0008-0104
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-0111
230 CLIP; C/MBR HARNESS
(C) ID=25 L=54 		1-09700-392-0 01 1 9905-0602
230 CLIP; C/MBR HARNESS
(C) ID=25 L=54 		1-09700-392-1 01 1 0603-
230 CLIP; C/MBR HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9905-0602
230 CLIP; C/MBR HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0603-
230 CLIP; C/MBR HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 9905-0602
230 CLIP; C/MBR HARNESS
(B) ID=22 L=52 		9-09917-431-0 02 1 0603-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
(B) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
(A) ID=20 L=50 		9-09917-430-0 01 1 9905-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 9905-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0202-0301
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0302-
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 12 1 9905-0101
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 01 1 0102-0207
421 CLIP; FLOOR HARNESS
(B) ID=19 L=20 		9-09525-832-0 02 1 9905-0105
421 CLIP; FLOOR HARNESS
(C) ID=21 L=28 		1-09700-673-1 02 1 0106-0301
421 CLIP; FLOOR HARNESS
(A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0302-
421 CLIP; FLOOR HARNESS
EXC. ENGINE CONTROL U2(Q3U) (C) ID=21 L=28 		1-09700-673-1 02 1 0302-0602
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-0104
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0102-0104
421 CLIP; FLOOR HARNESS
LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. REMOTE CONT DOOR LOCK<SLG>,ELEC OUTLET 12V<TAW> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
REMOTE CONT DOOR LOCK<SLG> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
ELEC OUTLET 12V<TAW> EXC. REMOTE CONT DOOR LOCK<SLG> (A) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0105-0301
421 CLIP; FLOOR HARNESS
ENGINE CONTROL U2(Q3U) (D) ID=26 L=26 		1-09701-236-0 01 1 0302-0602
421 CLIP; FLOOR HARNESS
(D) ID=26 L=26 		1-09701-236-0 01 1 0603-
470 CLIP; HARNESS,LICENSE LAMP
ID=11 L=41 		1-09700-403-0 01 1 9905-
çizim 100260
16 81 104 142 171 194 206 212 223 227 16 81 104 111 142 194 218 341 346 16 225 16 48 194 16 48 171 194 225 223 16 51 142 162 194 205 208 223 225 305 309 448
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AJ) ID=18-24 L=22 		1-09709-295-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (AN) ID=18-24 L=26 		1-09709-296-0 01 1 0706-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
EXC. INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 03 1 0302-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 08 1 9905-0001
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0002-
16 CLIP; HARNESS
(O) ID=15 L=42 		1-09700-479-0 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0302-
16 CLIP; HARNESS
(AA) ID=20 L=70 		1-09700-485-0 06 1 9905-
16 CLIP; HARNESS
(P) ID=15 L=35 		1-09700-507-0 01 1 9905-
16 CLIP; HARNESS
(T) ID=42.7 L=38 		1-09700-583-1 01 1 9905-0104
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0105-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0302-
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 9905-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0105-0112
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0201-0301
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0302-0606
16 CLIP; HARNESS
(AB) ID=26 L=26 		1-09701-236-0 01 1 0607-
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0006-0104
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0105-0109
16 CLIP; HARNESS
(AD) ID=21 L=24 		8-94176-807-1 01 1 0110-0301
16 CLIP; HARNESS
(AF) ID=19 L=20 		9-09525-836-0 02 1 0302-0606
16 CLIP; HARNESS
(AF) ID=19 L=20 		0-95235-836-0 02 1 0607-
16 CLIP; HARNESS
(Q) ID=4.8 		1-09701-218-0 01 1 9905-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 9905-0104
16 CLIP; HARNESS
(S) ID=25 L=50 		1-09701-019-0 02 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 02 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (H) ID=11 L=41 		1-09700-403-0 02 1 0302-
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 02 1 9905-0104
16 CLIP; HARNESS
(Z) ID=19 L=32 		1-09701-235-0 01 1 0105-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 02 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0212-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0603-
16 CLIP; HARNESS
(R) L=300 		1-09707-001-1 03 1 9905-0504
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0505-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 03 1 0603-
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 03 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 01 1 0105-0106
16 CLIP; HARNESS
(AC) ID=15 L=28 		1-09701-216-0 01 1 0107-
16 CLIP; HARNESS
(K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 9905-0104
16 CLIP; HARNESS
(A) L=180 		1-09707-162-1 02 1 0105-
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 9905-0007
16 CLIP; HARNESS
(K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) W/SPONGE RUBBER 		1-09709-150-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-032-0 01 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-032-0 01 1 0607-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0302-
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 9905-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0105-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 02 1 0107-0301
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 0302-
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 9905-0007
16 CLIP; HARNESS
(W) OD=9 H=13.5 		1-09709-180-0 01 1 0008-0104
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 06 1 0105-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 05 1 0107-0301
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0302-
16 CLIP; HARNESS
(M) ID=6-10 & 6-10 		1-09709-192-1 01 1 9905-0106
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0107-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (F) OD=9 H=6 		1-09709-178-0 01 1 0302-0705
16 CLIP; HARNESS
INSPECTION LAMP<T95> (G) OD=9 H=9.5 		1-09709-179-0 01 1 0706-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 0105-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 02 1 9905-0104
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (O) ID=15 L=42 		1-09700-479-0 02 1 0105-0301
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 03 1 0302-
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 9905-9907
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 01 1 9908-0001
16 CLIP; HARNESS
(D) L=140 		5-09707-031-1 02 1 0002-
16 CLIP; HARNESS
(N) 		8-94403-348-0 01 1 9905-0005
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0006-0104
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 0105-0112
16 CLIP; HARNESS
(X) ID=14-20 		8-97061-603-0 03 1 9905-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 03 1 0302-
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9905-9908
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 01 1 9909-0205
16 CLIP; HARNESS
(U) ID=16 L=20 		9-09525-535-0 02 1 0206-0606
16 CLIP; HARNESS
(U) ID=16 L=20 		0-95235-535-0 02 1 0607-
16 CLIP; HARNESS
(V) ID=16 L=40 		9-09525-576-0 01 1 9905-0606
16 CLIP; HARNESS
(V) ID=16 L=40 		0-95235-576-0 01 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 04 1 9905-0001
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 03 1 0002-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 0107-0301
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 03 1 0302-0606
16 CLIP; HARNESS
(E) ID=24.5 H=23 L=25 		1-09700-862-0 04 1 0607-
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(L) ID=14 L=44 		9-09917-427-0 01 1 9905-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0107-0109
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0110-0211
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 04 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0105-0106
16 CLIP; HARNESS
INSPECTION LAMP<T95> (A) L=180 		1-09707-162-1 01 1 0107-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 17 1 9905-0007
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0008-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0302-0602
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 23 1 0603-
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 9905-0104
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
6WG1 TC-N(71L) (I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 03 1 0105-0106
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(I) ID=20 L=50 		9-09917-430-0 01 1 0107-0301
16 CLIP; HARNESS
(AH) ID=28 L=40 		1-09701-261-0 01 1 0302-0303
16 CLIP; HARNESS
(AK) ID=25 H=60 L=35 		1-09701-103-0 01 1 0304-
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 03 1 9905-0106
16 CLIP; HARNESS
(B) ID=22 L=52 		9-09917-431-0 05 1 0107-0301
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0302-0602
16 CLIP; HARNESS
(F) OD=9 H=6 		1-09709-178-0 04 1 0603-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 07 1 0002-0106
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 04 1 0107-
16 CLIP; HARNESS
(AE) ID=28 L=58 		1-09700-400-0 01 1 0111-
16 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 0111-0211
16 CLIP; HARNESS
(Y) ID=20 H=23 L=27 		1-09700-861-0 01 1 0212-0301
16 CLIP; HARNESS
FULL FLOATING CAB(W16) (L) ID=14 L=44 		9-09917-427-0 05 1 0302-
16 CLIP; HARNESS
(AN) L=250 		1-09707-126-0 01 1 0302-0304
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0305-0602
16 CLIP; HARNESS
(AM) L=350 		1-09707-183-0 01 1 0603-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (K) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0105-0301
16 CLIP; HARNESS
(AI) ID=28 H=45 L=30 		1-09700-948-0 01 1 0302-0303
16 CLIP; HARNESS
(AL) ID=25 L=40 		1-09700-215-1 01 1 0304-
16 CLIP; HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) (W) OD=9 H=13.5 		1-09709-180-0 01 1 0105-0301
16 CLIP; HARNESS
(AG) ID=11 L=20 		9-09525-035-0 02 1 0302-0606
16 CLIP; HARNESS
(AG) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
EXC. FULL FLOATING CAB(W16) (H) ID=11 L=41 		1-09700-403-0 05 1 0302-
16 CLIP; HARNESS
HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 02 1 9905-0104
16 CLIP; HARNESS
(T) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0105-0402
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-0602
16 CLIP; HARNESS
(T) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0603-
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (G) OD=9 H=9.5 		1-09709-179-0 01 1 9905-0007
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> EXC. AUSTRALIA EQUIPMENT(RR3) (G) OD=9 H=9.5 		1-09709-179-0 01 1 0008-0301
16 CLIP; HARNESS
INSPECTION LAMP<T95> (I) ID=20 L=50 		9-09917-430-0 02 1 0302-
16 CLIP; HARNESS
SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (J) L=20 SET=10 PIECE 		1-09987-246-2 04 1 9905-
48 CLIP; FRAME HARNESS
(B) ID=35 H=45 L=33 		1-09700-947-0 01 1 9905-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 04 1 9905-0005
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0105-0111
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0603-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9905-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 01 1 0105-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 01 1 9905-0301
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 07 1 0302-0504
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0505-0602
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 07 1 0603-
48 CLIP; FRAME HARNESS
(C) L=300 		1-09707-001-1 06 1 9905-0301
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-94225-185-0 01 1 9905-0801
48 CLIP; FRAME HARNESS
(D) ID=18 L=44 		8-97367-985-1 01 1 0802-
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0006-0104
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0112-0301
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 0302-0602
48 CLIP; FRAME HARNESS
(A) ID=31.5 H=23 L=25 		1-09701-017-0 03 1 0603-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) L=180 		1-09707-162-1 01 1 9905-
81 CLIP; HARNESS
(C) L=250 		5-09707-030-1 01 1 9905-
81 CLIP; HARNESS
(B) L=140 		5-09707-031-1 02 1 9905-
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 06 1 9905-9907
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 9908-0602
81 CLIP; HARNESS
(A) ID=7-10 		8-94472-578-0 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(D) L=250 		5-09707-030-1 02 1 0603-
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 9905-0602
104 CLIP; HEADLAMP HARNESS
(B) ID=13-18 L=14.5 		1-09709-290-0 03 1 0603-
104 CLIP; HEADLAMP HARNESS
(A) L=140 		5-09707-031-1 02 1 9905-
104 CLIP; HEADLAMP HARNESS
(C) ID=21 L=47.5 		8-94178-108-0 02 1 9905-0602
104 CLIP; HEADLAMP HARNESS
(E) ID=5-12 L=14.5 		1-09987-221-0 02 1 0603-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 9905-
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 9905-0301
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0302-0403
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 02 1 0404-0407
142 CLIP; HARNESS,ENG
(A) L=180 		1-09707-162-1 01 1 0408-1207
142 CLIP; HARNESS,ENG
(A) L=180 		8-98216-427-0 01 1 1208-
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 01 1 0111-0301
142 CLIP; HARNESS,ENG
(B) L=140 		5-09707-031-1 03 1 0302-1205
142 CLIP; HARNESS,ENG
(B) L=140 		8-98216-431-0 03 1 1206-
142 CLIP; HARNESS,ENG
(C) L=250 		5-09707-030-1 01 1 0302-1205
142 CLIP; HARNESS,ENG
(C) L=250 		8-98216-430-0 01 1 1206-
162 CLIP; SW HARNESS
L=180 		1-09707-162-1 01 1 9905-
171 CLIP; STARTER HARNESS
(A) L=350 		1-09707-183-0 01 1 0603-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 05 1 9905-
194 CLIP; BAND
(E) L=250 		5-09707-030-1 01 1 0607-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 9905-0504
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0505-0602
194 CLIP; BAND
(D) L=350 		1-09707-183-0 01 1 0603-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 02 1 9905-0104
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0105-0301
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0105-0301
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0302-0602
194 CLIP; BAND
ENGINE CONTROL U2(Q3U) (C) L=140 		5-09707-031-1 01 1 0302-0602
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0603-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 0603-
194 CLIP; BAND
(C) L=140 		5-09707-031-1 01 1 9905-0301
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0302-0602
194 CLIP; BAND
(B) L=180 		1-09707-162-1 01 1 0603-
205 CLIP; BACK LAMP HARNESS
L=180 		1-09707-162-1 01 1 9905-0007
205 CLIP; BACK LAMP HARNESS
EXC. AUSTRALIA EQUIPMENT(RR3) L=180 		1-09707-162-1 01 1 0008-0301
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 9905-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0112-
212 CLIP; HORN HARNESS
(A) L=140 		5-09707-031-1 01 1 0105-0206
212 CLIP; HORN HARNESS
FULL FLOATING CAB(W16) (A) L=140 		5-09707-031-1 01 1 0207-
212 CLIP; HORN HARNESS
EXC. FULL FLOATING CAB(W16) (B) ID=11 L=41 		1-09700-403-0 01 1 0207-
218 CLIP; BAND,RR COMB
AUSTRALIA EQUIPMENT(RR3) L=250 		5-09707-030-1 02 1 0208-0208
223 CLIP; AIR TANK HARNESS
(B) ID=11 L=41 		1-09700-403-0 02 1 0112-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> (A) L=180 		1-09707-162-1 01 1 9905-0104
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (A) L=180 		1-09707-162-1 01 1 0112-0201
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (C) L=700 		1-09707-190-0 02 1 0202-0301
223 CLIP; AIR TANK HARNESS
(C) L=700 		1-09707-190-0 02 1 0302-
223 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. AUTO DRAIN<J78> (D) L=140 		5-09707-031-1 02 1 0202-0301
223 CLIP; AIR TANK HARNESS
(D) L=140 		5-09707-031-1 02 1 0302-
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 01 1 9905-0007
225 CLIP; AIR TANK HARNESS
(A) L=250 		1-09707-126-0 02 1 0008-0304
225 CLIP; AIR TANK HARNESS
(D) L=350 		1-09707-183-0 02 1 0305-0602
225 CLIP; AIR TANK HARNESS
(D) L=350 		1-09707-183-0 02 1 0603-
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 9905-0104
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0105-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 04 1 0112-
225 CLIP; AIR TANK HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 0008-0111
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 01 1 0008-0104
225 CLIP; AIR TANK HARNESS
(B) L=180 		1-09707-162-1 03 1 0105-0111
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 9905-0004
227 CLIP; FOG LAMP HARNESS
FOG LAMP<T96> L=140 		5-09707-031-1 02 1 0005-0301
227 CLIP; FOG LAMP HARNESS
L=140 		5-09707-031-1 02 1 0302-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 9905-
309 CLIP; HARNESS,HAND BRAKE CABLE
(A) L=180 		1-09707-162-1 01 1 9905-
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0202-0301
309 CLIP; HARNESS,HAND BRAKE CABLE
(B) ID=11 L=41 		1-09700-403-0 01 1 0302-
341 CLIP; BAND,STARTER RELAY
L=250 		5-09707-030-1 03 1 9905-
346 CLIP; BAND FRAME HARNESS
L=250 		5-09707-030-1 01 1 0212-0301
448 CLIP; AIR SUSP HARNESS
(A) L=180 		1-09707-162-1 05 1 0008-
448 CLIP; AIR SUSP HARNESS
(D) W/SPONGE RUBBER 		1-09709-150-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
(C) OD=9 H=13.5 		1-09709-180-0 01 1 0008-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (A) L=180 		1-09707-162-1 01 1 9905-
448 CLIP; AIR SUSP HARNESS
FULL FLOATING CAB(W16) (B) OD=9 H=6 		1-09709-178-0 01 1 9905-0106
çizim 100441
312 312 312 312 53 334 375 342 312 312 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS 1-81582-005-1 01 1 0302-
312 BRACKET; CLIP HARNESS
(D) 		1-47477-156-2 01 1 9905-0104
312 BRACKET; CLIP HARNESS
(D) 		1-47478-769-0 01 1 0105-
312 BRACKET; CLIP HARNESS
(B) L=60 H=30 		1-47477-716-1 01 1 9905-0602
312 BRACKET; CLIP HARNESS
(B) L=60 H=30 		1-47477-716-1 01 1 0603-
312 BRACKET; CLIP HARNESS
(E) 		1-82699-199-0 01 1 9905-
312 BRACKET; CLIP HARNESS
(F) 		1-82699-239-0 01 1 9905-9907
312 BRACKET; CLIP HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (F) 		1-82699-239-0 01 1 9908-
312 BRACKET; CLIP HARNESS
(A) L=120 		1-82699-465-0 01 1 9905-0007
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82699-970-0 01 1 0008-0104
312 BRACKET; CLIP HARNESS
(G) 		1-82698-358-0 01 1 0105-0105
312 BRACKET; CLIP HARNESS
(G) 		1-82698-358-0 02 1 0106-
312 BRACKET; CLIP HARNESS
(C) L=120 H=35 		1-82699-970-0 01 1 9905-9908
334 BRACKET 1-53458-362-0 01 1 9905-
342 BRACKET; HARNESS CAB MTG 1-82699-625-0 01 1 9905-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
