◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#62027) — 88 parça

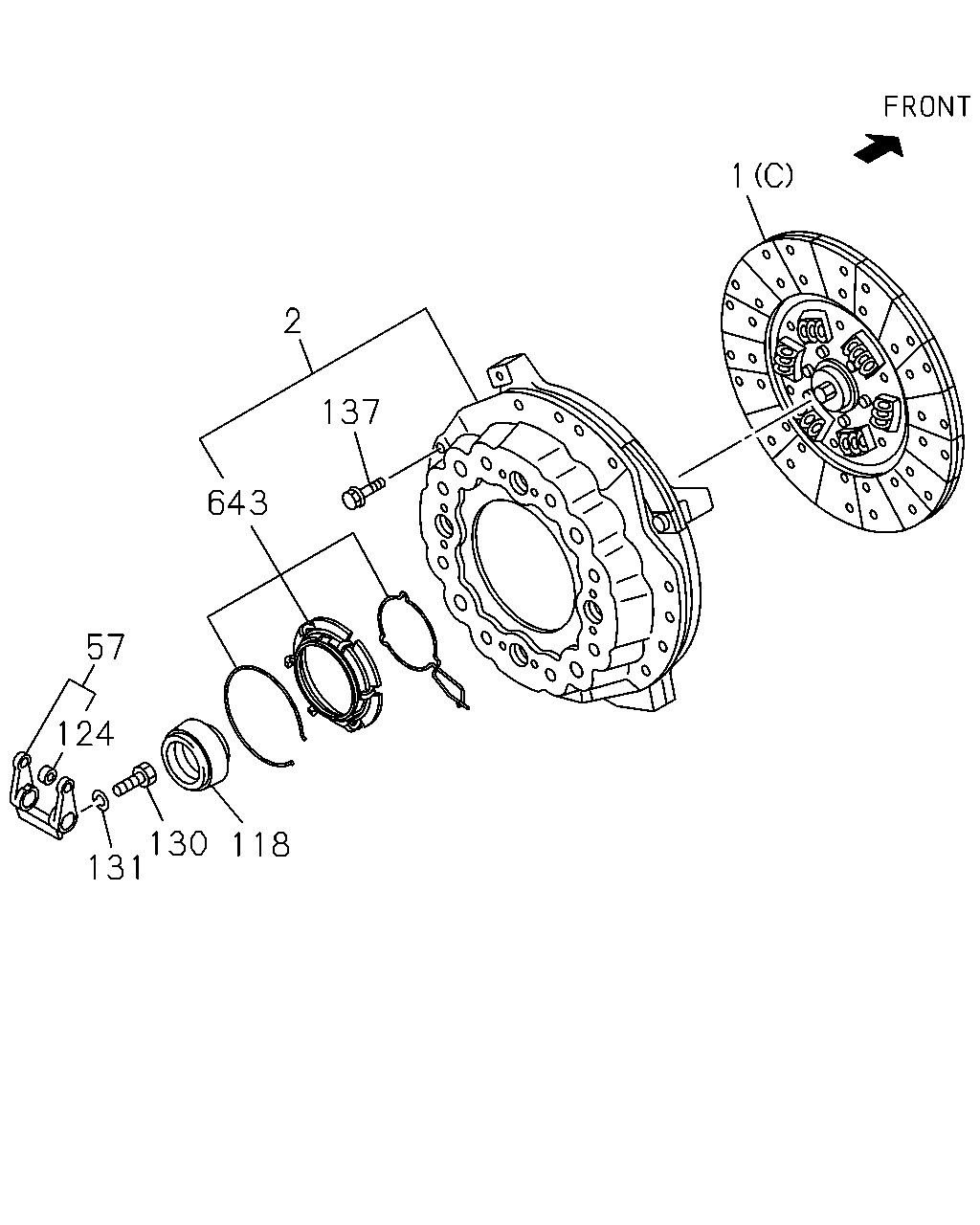

çizim 169836
2 643 137 1 57 124 131 130 118
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
CLUTCH CERAMETALIX FACED DISC<WY5> (B) 17" 		1-31260-029-0 01 1 1008- ●
1 DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17" 		1-31240-980-0 01 1 1008- ●
1 DISC; CLUTCH
(C) 15.5" 		1-31240-976-0 01 1 1008- ●
1 DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS 		1-87610-141-0 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-445-0 01 1 1008-1404 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-463-0 01 1 1405- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-415-0 01 1 1008- ●
57 FORK; SHIFT,CLU 1-31340-062-0 01 1 1008- ●
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 1008- ●
118 BEARING; CLU RELEASE 1-31310-021-0 01 1 1008-1306 ●
118 BEARING; CLU RELEASE 1-31310-028-0 01 1 1307- ●
124 BEARING; CAM,SHIFT FORK 1-31349-011-1 02 1 1008- ●
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 1008- ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1008- ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1008- ● ●
137 BOLT; CLU COVER
M12X30 FLANGE 		0-28751-230-0 12 1 1008- ●
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 1008- ●
643 REPAIR KIT; CLUTCH 8-98207-785-0 01 1 1008- ●

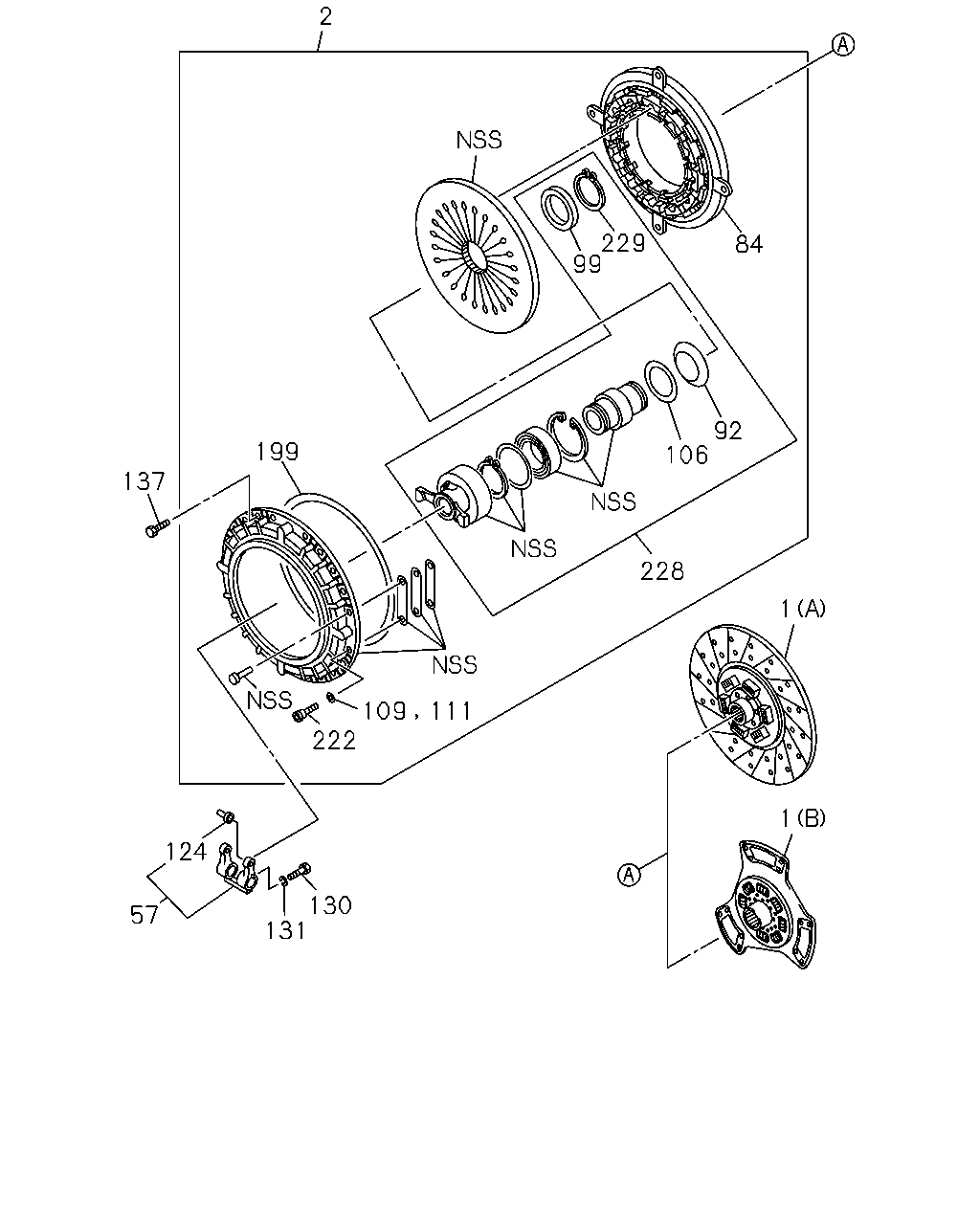

çizim 169840
2 229 99 84 92 106 228 1 1 130 131 57 124 137 199 222 109 111
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
CLUTCH CERAMETALIX FACED DISC<WY5> (B) 17" 		1-31260-029-0 01 1 1008- ●
1 DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) 17" 		1-31240-980-0 01 1 1008- ●
1 DISC; CLUTCH
(C) 15.5" 		1-31240-976-0 01 1 1008- ●
1 DISC; CLUTCH
EXC. CLUTCH CERAMETALIX FACED DISC<WY5> (A) BEST VALUE PARTS 		1-87610-141-0 01 1 1008- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-445-0 01 1 1008-1404 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-463-0 01 1 1405- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-415-0 01 1 1008- ●
57 FORK; SHIFT,CLU 1-31340-062-0 01 1 1008- ●
57 FORK; SHIFT,CLU 1-31340-066-1 01 1 1008- ●
84 PLATE; PRESSURE 1-31221-141-0 01 1 1008- ●
92 SPRING; CLU 1-31239-052-0 01 1 1008- ●
99 PLATE; RELEASE LEVER 1-31239-065-0 01 1 1008- ●
106 PLATE; LK,LEVER SUPPORT 1-31239-042-0 01 1 1008- ●
109 WASHER; LK,STRAP
ID=13 		1-31239-038-0 04 1 1405- ●
111 WASHER; PL,STRAP
ID=13 		1-31239-038-0 04 1 1008-1404 ●
124 BEARING; CAM,SHIFT FORK 1-31349-011-1 02 1 1008- ●
124 BEARING; CAM,SHIFT FORK 1-31349-060-1 02 1 1008- ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 1008- ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 1008- ● ●
137 BOLT; CLU COVER
M12X30 FLANGE 		0-28751-230-0 12 1 1008- ●
137 BOLT; CLU COVER
M10X110 FLANGE 		0-28156-011-0 12 1 1008- ●
199 RING; WIRE,DIAPH,CLU 1-31239-036-0 01 1 1008- ●
222 BOLT; STRAP 1-31239-066-0 04 1 1008- ●
228 BEARING; RELEASE 1-31310-023-0 01 1 1008-1404 ●
228 BEARING; RELEASE 1-31310-029-0 01 1 1405- ●
229 RING 1-31239-064-0 01 1 1008- ●

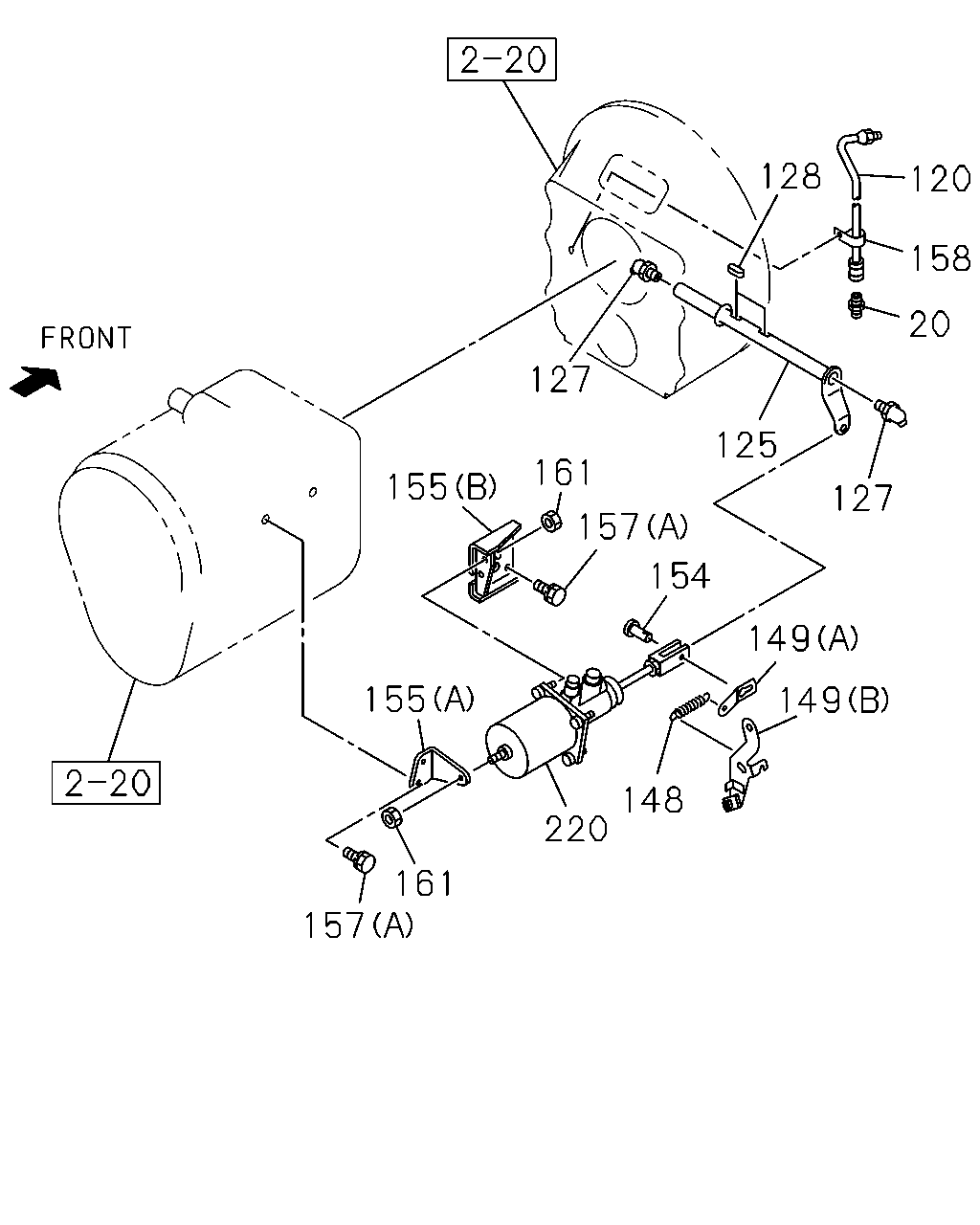

çizim 170201
128 120 158 20 127 125 161 155 127 157 154 149 155 149 148 220 161 157
BalonParca AdiParca NoAdetTipApplied Date A B
20 NIPPLE; GREASE
PT1/8 STRAIGHT 		0-90301-410-0 01 1 1008- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=500 		1-09364-651-0 01 1 1008- ●
125 SHAFT; CLU 1-31342-290-1 01 1 1008-1308 ●
125 SHAFT; CLU 8-98242-405-0 01 1 1309- ●
125 SHAFT; CLU 1-31342-324-0 01 1 1008- ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1008- ● ●
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 1008- ● ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 1008- ●
149 EYE; SPRING,RETURN SPRING
(A) 		1-31426-052-0 01 1 1008- ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-056-0 01 1 1008- ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1008- ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 1008- ●
155 BRACKET; MINIPACK
(A) 		1-31429-350-0 01 1 1008- ●
155 BRACKET; MINIPACK
(B) 		1-31429-391-0 01 1 1008- ●
155 BRACKET; MINIPACK
(C) 		1-31429-456-0 01 1 1008- ●
155 BRACKET; MINIPACK
(D) 		1-31429-457-0 01 1 1008- ●
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28151-025-0 03 1 1008- ●
157 BOLT; BRKT
(C) M10X25 FLANGE 		0-28751-025-0 01 1 1008- ●
157 BOLT; BRKT
(B) M10X30 FLANGE 		0-28751-030-0 02 1 1008- ●
158 CLIP; FLEX HOSE 9-09917-576-0 01 1 1008- ●
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1008- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-474-1 01 1 1008- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-500-0 01 1 1008- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-092-0 01 1 1008- ●

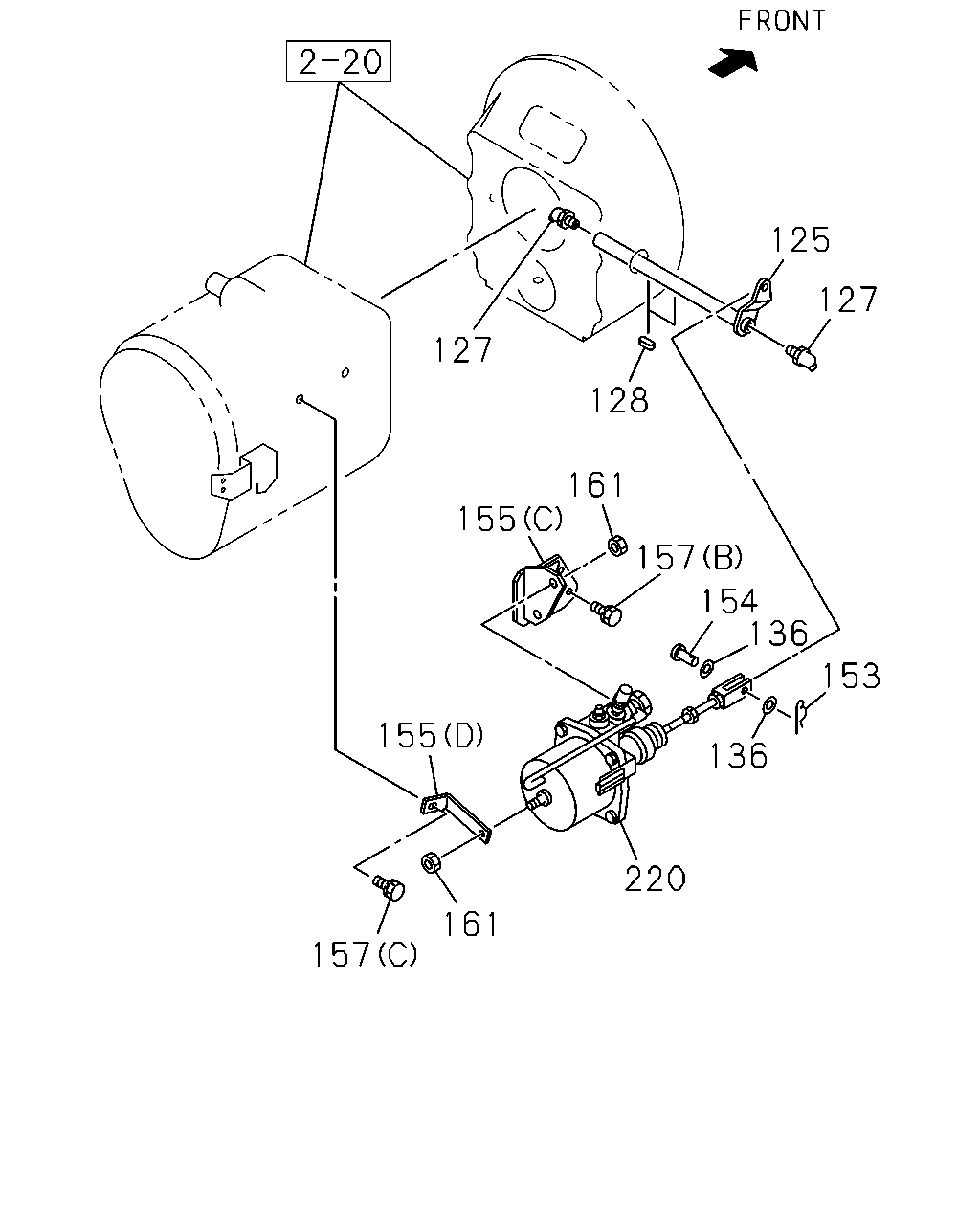

çizim 170202
125 127 127 128 161 155 157 154 136 153 155 136 220 161 157
BalonParca AdiParca NoAdetTipApplied Date A B
125 SHAFT; CLU 1-31342-290-1 01 1 1008-1308 ●
125 SHAFT; CLU 8-98242-405-0 01 1 1309- ●
125 SHAFT; CLU 1-31342-324-0 01 1 1008- ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 1008- ● ●
128 KEY; FEATHER,CLU SHAFT 1-09735-045-0 02 1 1008- ● ●
136 WASHER; PL
ID=15 		0-91610-514-0 02 1 1008- ●
153 PIN; SPLIT,CLU SHAFT 1-09747-009-0 01 1 1008- ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 1008- ●
154 PIN; JAW JOINT
L=35 		1-31424-003-0 01 1 1008- ●
155 BRACKET; MINIPACK
(A) 		1-31429-350-0 01 1 1008- ●
155 BRACKET; MINIPACK
(B) 		1-31429-391-0 01 1 1008- ●
155 BRACKET; MINIPACK
(C) 		1-31429-456-0 01 1 1008- ●
155 BRACKET; MINIPACK
(D) 		1-31429-457-0 01 1 1008- ●
157 BOLT; BRKT
(A) M10X25 FLANGE 		0-28151-025-0 03 1 1008- ●
157 BOLT; BRKT
(C) M10X25 FLANGE 		0-28751-025-0 01 1 1008- ●
157 BOLT; BRKT
(B) M10X30 FLANGE 		0-28751-030-0 02 1 1008- ●
161 NUT; BRKT
M10 FLANGE 		0-91180-210-0 03 1 1008- ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-474-1 01 1 1008- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-500-0 01 1 1008- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS 		1-87610-092-0 01 1 1008- ●
