Sayfa 1-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYH ▶ 11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶

1-50 — EXHAUST PIPE AND SILENCER (#62025) — 157 parça

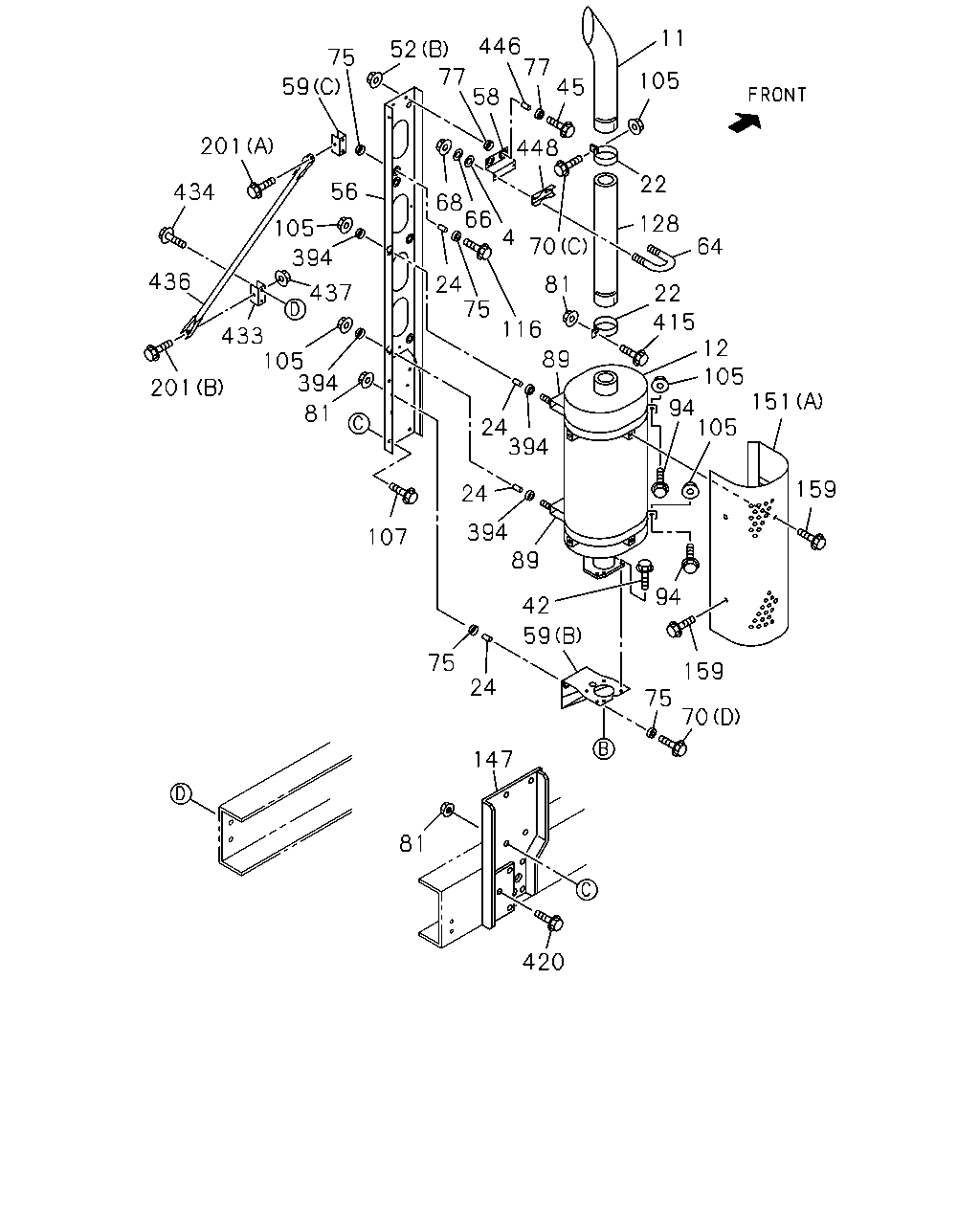

11 446 77 45 52 77 58 75 105 59 201 448 68 22 56 434 128 105 4 70 64 394 436 81 24 75 437 22 415 116 433 105 394 12 105 151 89 201 94 105 81 24 394 24 159 394 89 107 94 42 59 75 159 24 75 70 147 81 420 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	WASHER; PL,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.4 OD=22	0-91610-708-0	02	1	1008-
11	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-979-1	01	1	1008-
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1008-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97632-553-0	01	1	1008-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-
22	CLAMP; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22133-266-1	01	1	1008-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-
45	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	01	1	1008-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-
52	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91180-108-0	02	1	1008-
52	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-
56	BRACKET; CLAMP,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-335-0	01	1	1008-
58	BRACKET; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22131-799-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-550-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-
64	U-BOLT; EXH PIPE,RR SILENCER SINGLE VERTICAL<N28>	1-22113-097-0	01	1	1008-
66	WASHER; LK,U BOLT SILENCER SINGLE VERTICAL<N28> ID=8.2	0-91510-508-0	02	1	1008-
68	NUT; U BOLT SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
77	RUBBER; CUSHION,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	02	1	1008-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	12	1	1008-
89	CLAMP; EXH SILENCER,RR SILENCER SINGLE VERTICAL<N28>	1-22133-270-0	02	1	1008-
94	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	02	1	1008-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	09	1	1008-
116	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-
128	PIPE; EXH,RR SILENCER SINGLE VERTICAL<N28>	1-22123-087-1	01	1	1008-
147	BRACKET; VERTICAL PIPE SILENCER SINGLE VERTICAL<N28>	8-97632-348-1	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97641-322-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-323-0	01	1	1208-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (A) M10X25 FLANGE	0-28051-025-0	02	1	1008-
201	BOLT; STAY SILENCER SINGLE VERTICAL<N28> (B) M10X90 FLANGE	0-28051-090-0	01	1	1008-
394	RUBBER; SUPPORT,CLAMP SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	08	1	1008-
415	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M10X40 FLANGE	0-28051-040-0	01	1	1008-
420	BOLT; BRKT,VERTICAL PIPE SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	0-28061-235-0	04	1	1008-
433	BRACKET; STAY,EXH PIPE SILENCER SINGLE VERTICAL<N28>	8-97639-111-0	01	1	1008-
434	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X30 FLANGE	0-28051-030-0	02	1	1008-
436	STAY; SUPPORT,EXH SILENCER SINGLE VERTICAL<N28>	8-97616-276-0	02	1	1008-
437	NUT; STAY SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1008-
446	PIECE; DIST,EXH PIPE,RR SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	02	1	1008-
448	PIECE; DIST,U-BOLT SILENCER SINGLE VERTICAL<N28>	1-22113-095-0	01	1	1008-

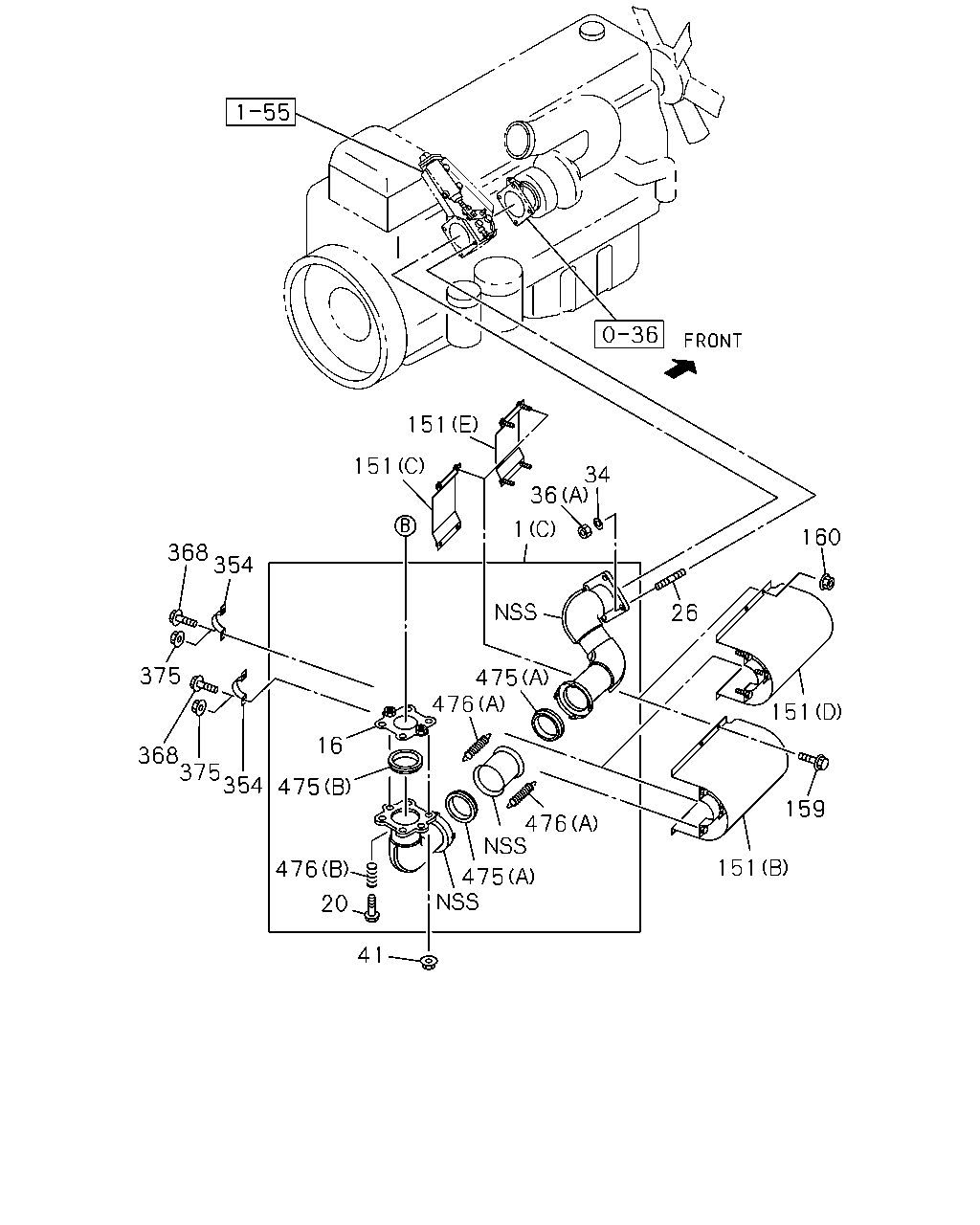

151 151 368 354 375 368 375 354 475 16 476 20 36 1 476 475 476 475 41 34 26 160 151 159 151

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97636-102-1	01	1	1008-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22124-032-0	01	1	1008-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97635-956-1	01	1	1008-
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1008-
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	1008-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X49.8	8-97039-586-0	02	1	1008-
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-22159-334-0	01	1	1008-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (B)	8-97632-332-1	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (D)	8-97641-322-0	01	1	1208-
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (C)	8-97632-334-0	01	1	1008-1207
151	PROTECTOR; HEAT,EXH PIPE SILENCER SINGLE VERTICAL<N28> (E)	8-97641-323-0	01	1	1208-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-
354	CLAMP; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28>	8-97632-333-0	02	1	1008-
368	BOLT; CLAMP SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28050-830-0	04	1	1008-1207
375	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-

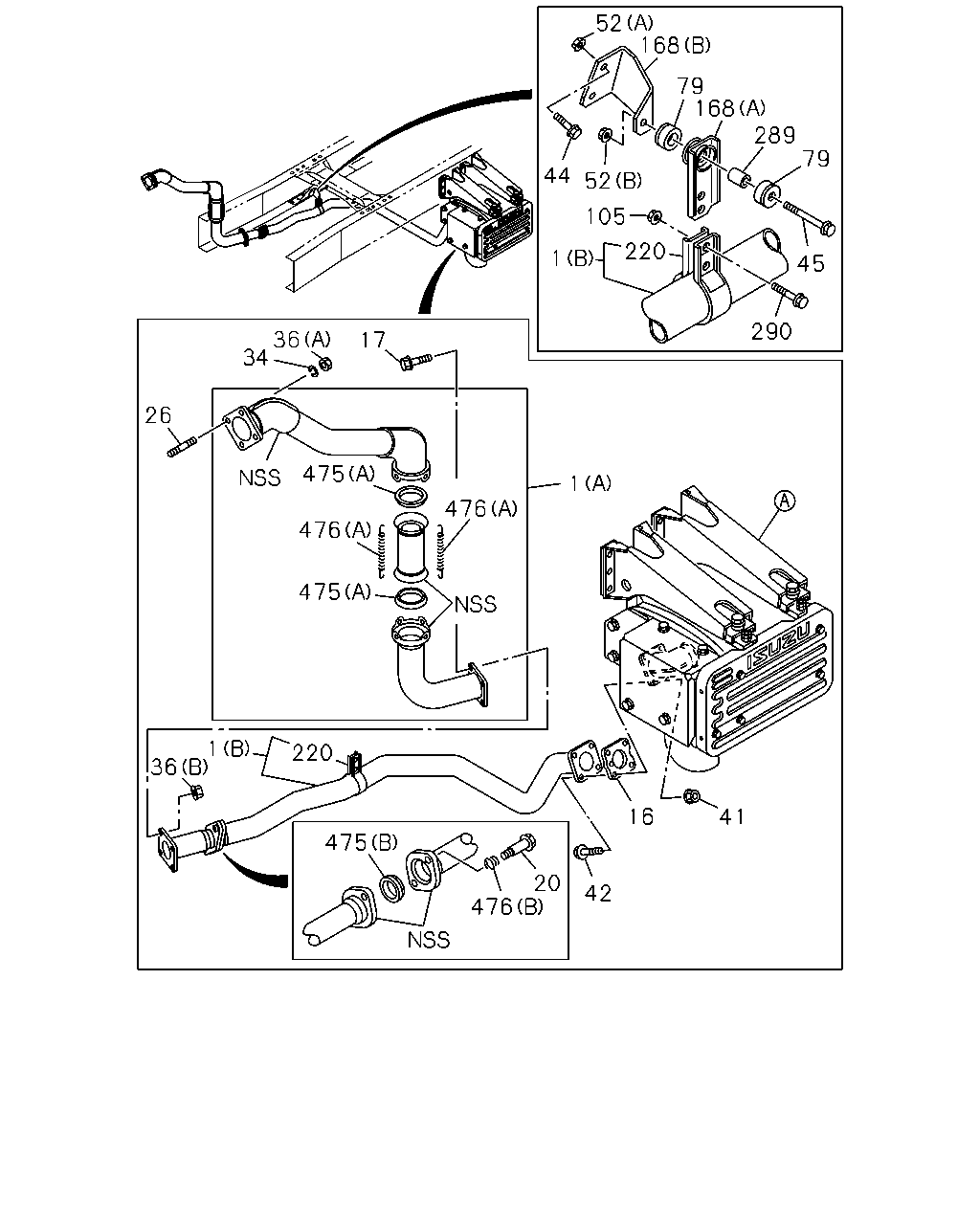

52 168 79 168 289 79 44 52 105 220 1 45 290 36 34 17 26 475 1 476 476 475 1 36 220 16 41 475 20 476 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH SILENCER SINGLE VERTICAL<N28> (C)	8-97636-102-1	01	1	1008-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22124-032-0	01	1	1008-
1	PIPE; EXH EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97635-956-1	01	1	1008-
16	FLANGE; EXH PIPE SILENCER SINGLE VERTICAL<N28>	1-22115-148-1	01	1	1008-
17	BOLT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
20	BOLT; FLANGE,EXH PIPE SILENCER SINGLE VERTICAL<N28> M10X51.4	8-94436-943-0	02	1	1008-
20	BOLT; FLANGE,EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> M10X49.8	8-97039-586-0	02	1	1008-
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97617-265-0	04	1	1008-1402
26	STUD; EXH MANIF SILENCER SINGLE VERTICAL<N28> M12X125 L=145	8-97648-063-0	04	1	1403-
26	STUD; EXH MANIF EXC. SILENCER SINGLE VERTICAL<N28> M12X140 L=160	1-09302-163-0	04	1	1008-
34	WASHER; EXH PIPE ID=13 OD=26	1-09556-020-0	04	1	1008-
36	NUT; EXH PIPE (A) M12	1-09400-131-0	04	1	1008-
36	NUT; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> (B) M12	0-91110-512-0	04	1	1008-
41	NUT; EXH PIPE TO EXH SILENCER M12	0-91110-512-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER SILENCER SINGLE VERTICAL<N28> M12X35 FLANGE	1-09000-653-0	04	1	1008-
42	BOLT; EXH PIPE TO EXH SILENCER EXC. SILENCER SINGLE VERTICAL<N28> M12X25 FLANGE	1-09000-604-0	04	1	1008-
44	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M8X30 FLANGE	0-28050-830-0	02	1	1008-
45	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	02	1	1008-
45	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10X50 FLANGE	0-28051-050-0	01	1	1008-
52	NUT; BRKT SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	02	1	1008-
52	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M8 FLANGE	0-91180-108-0	02	1	1008-
52	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10 FLANGE	0-91180-210-0	01	1	1008-
79	SUPPORT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	02	1	1008-
105	NUT; CLAMP SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	07	1	1008-
105	NUT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8	0-91110-508-0	02	1	1008-
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22131-780-0	01	1	1008-
168	BRACKET; EXH PIPE,FRT EXC. SILENCER SINGLE VERTICAL<N28> (B)	1-22134-213-0	01	1	1008-
220	CLAMP; EXH PIPE EXC. SILENCER SINGLE VERTICAL<N28> D=101.4	1-22133-170-1	01	1	1008-
289	COLLAR; DIST,SUPPORT RUBBER EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	01	1	1008-
290	BOLT; CLAMP EXC. SILENCER SINGLE VERTICAL<N28> M8X40 FLANGE	0-28650-840-0	02	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE (B) OD=112	1-22119-294-1	01	1	1008-
475	BEARING; SEAL,VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A) OD=122	1-22119-297-1	02	1	1008-
476	SPRING; VIBNON,EXH PIPE (B)	8-94141-851-0	02	1	1008-
476	SPRING; VIBNON,EXH PIPE SILENCER SINGLE VERTICAL<N28> (A)	1-09583-298-0	04	1	1008-

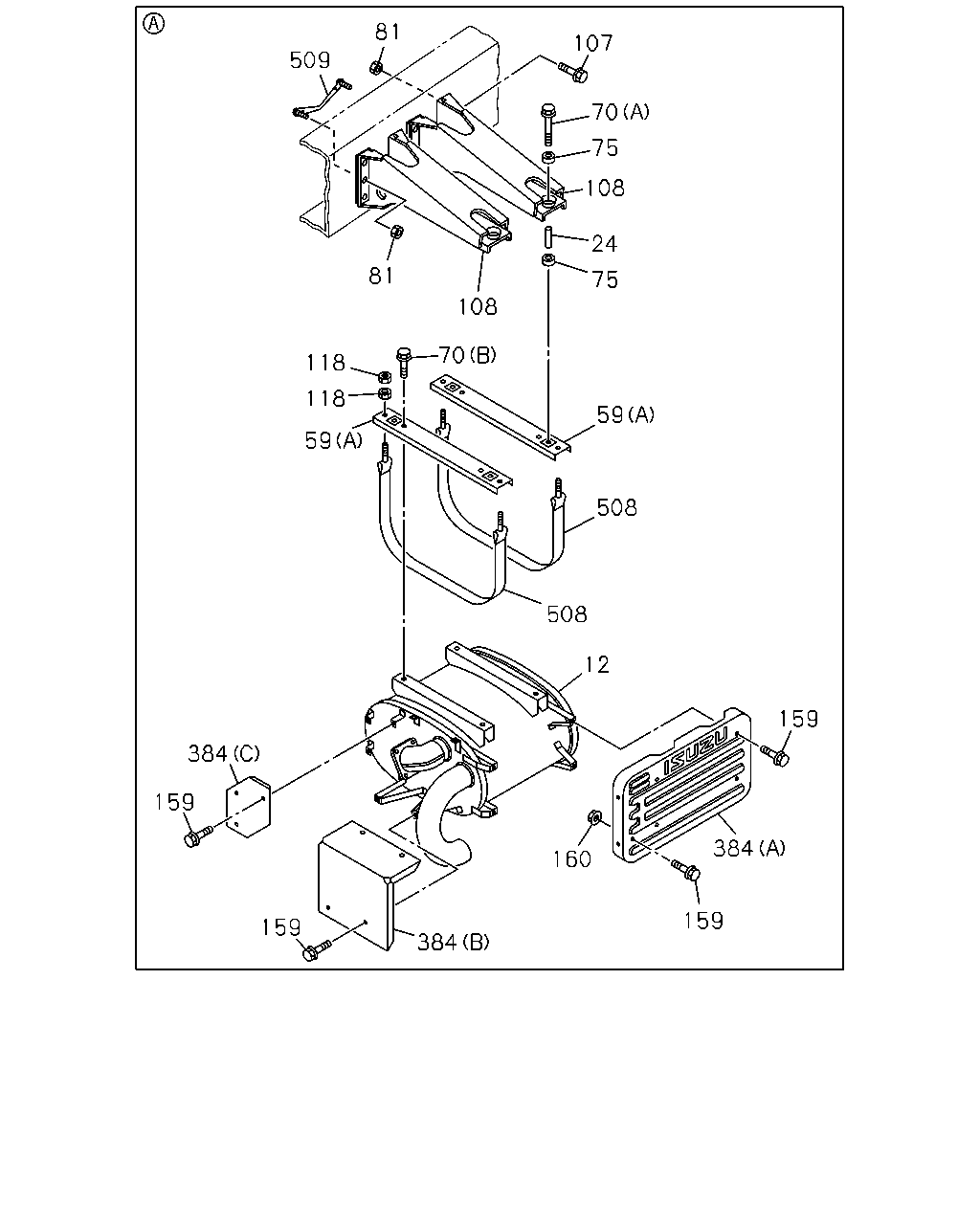

81 107 509 70 75 108 24 81 75 108 70 118 118 59 59 508 508 12 159 384 159 384 160 159 159 384

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH SILENCER SINGLE VERTICAL<N28>	8-97634-120-1	01	1	1008-
12	SILENCER ASM; EXH EXC. SILENCER SINGLE VERTICAL<N28>	8-97632-553-0	01	1	1008-
24	COLLAR; DIST,CLAMP SILENCER SINGLE VERTICAL<N28> L=25	1-14234-083-0	10	1	1008-
24	COLLAR; DIST,CLAMP EXC. SILENCER SINGLE VERTICAL<N28> L=22	9-22159-024-0	04	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (B)	1-22151-768-1	01	1	1008-
59	BRACKET; EXH SILENCER,FRT SILENCER SINGLE VERTICAL<N28> (C)	8-97632-550-0	01	1	1008-
59	BRACKET; EXH SILENCER,FRT EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22134-147-1	02	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (C) M10X40 FLANGE	0-28051-040-0	01	1	1008-
70	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> (D) M10X60 FLANGE	0-28051-060-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (B) M10X35 FLANGE	0-28051-035-0	04	1	1008-
70	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> (A) M10X50 FLANGE	0-28051-050-0	04	1	1008-
75	RUBBER; SUPPORT,BRKT OD=40	1-22159-094-0	08	1	1008-
75	RUBBER; SUPPORT,BRKT SILENCER SINGLE VERTICAL<N28> OD=40	1-22159-094-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	01	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M10 FLANGE	0-91180-210-0	04	1	1008-
81	NUT; BRKT SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	02	1	1008-
81	NUT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12 FLANGE	0-91180-212-0	12	1	1008-
107	BOLT; BRKT SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	04	1	1008-
107	BOLT; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X45 FLANGE	0-28051-245-0	09	1	1008-
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR EXC. SILENCER SINGLE VERTICAL<N28>	1-22134-148-3	02	1	1008-
118	NUT; SILENCER MTG BRKT EXC. SILENCER SINGLE VERTICAL<N28> M10	0-91110-510-0	08	1	1008-
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X20 FLANGE	0-28050-820-0	04	1	1008-1207
159	BOLT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8X25 W/LK&PL WASHER	1-09030-027-0	06	1	1008-
159	BOLT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8X22 W/LK&PL WASHER	1-09030-042-0	12	1	1008-
160	NUT; HEAT PROTECTOR SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	04	1	1208-
160	NUT; HEAT PROTECTOR EXC. SILENCER SINGLE VERTICAL<N28> M8 FLANGE	0-91180-108-0	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (B)	8-97611-403-0	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (A)	1-22119-556-0	01	1	1008-
384	PROTECTOR; HEAT SILENCER MTG EXC. SILENCER SINGLE VERTICAL<N28> (C)	8-97638-724-0	01	1	1008-
508	BAND; EXHAUST SILENCER EXC. SILENCER SINGLE VERTICAL<N28>	1-22159-384-0	02	1	1008-
509	STUD; BRKT EXC. SILENCER SINGLE VERTICAL<N28> M12X40 L=56	1-09300-123-0	03	1	1008-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
