Isuzu WW
▶
TRUCKS
▶
CYH
▶
11322 - CYH LHD MIDDLE EAST EURO2 WITH 3STEPS
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶

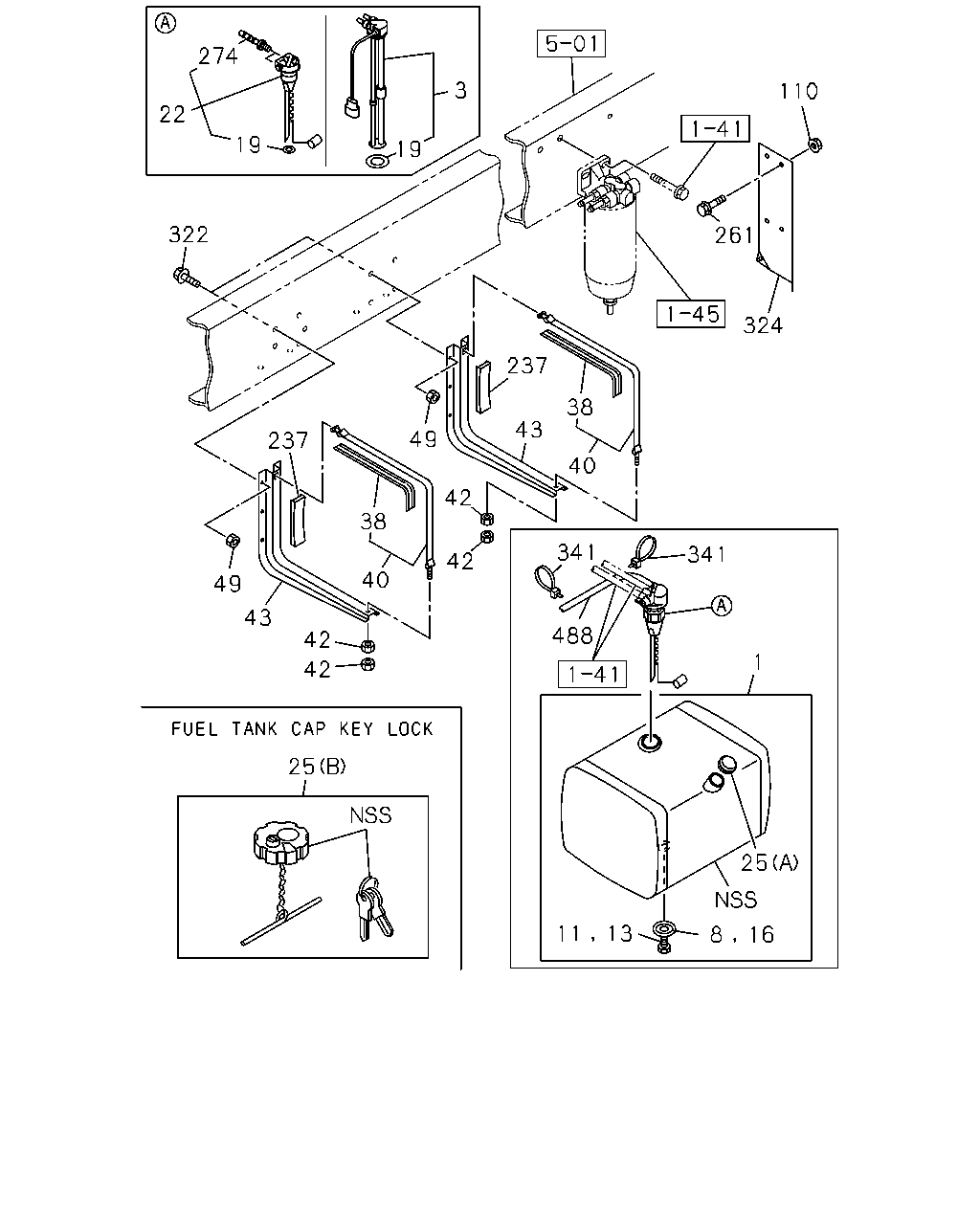

1-40 — FUEL TANK
(#62022) — 26 parça
274
22
3
19
19
322
237
38
49
237
43
38
40
341
42
42
40
42
42
43
49
488
341
1
261
324
110
25
13
11
8
16
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
1050X680X625 400L
1-87412-050-4
01
1
1008-
3
UNIT; FUEL TANK,SUB
8-98217-749-0
01
1
1305-
8
GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6
8-98030-453-0
01
1
1305-
11
PLUG; DRAIN,FUEL TANK
M18X12
0-92002-418-0
01
1
1305-
13
PLUG; SCREW,SUB TANK JOINT
M18X12
0-92002-418-0
01
1
1008-1304
16
GASKET; PLUG
ID=18.2 T=1.6
8-98030-453-0
01
1
1008-1304
19
GASKET; FUEL TANK UNIT
ID=58
1-83149-005-0
01
1
1008-1304
19
GASKET; FUEL TANK UNIT
ID=54.5
8-98299-580-0
01
1
1305-
22
UNIT; FUEL TANK
1-83141-132-0
01
1
1008-1304
25
CAP; FILLER,FUEL TANK
(B)
8-98108-595-0
01
1
1008-
25
CAP; FILLER,FUEL TANK
(A)
8-98115-780-0
01
1
1008-1109
25
CAP; FILLER,FUEL TANK
(A)
8-98182-306-0
01
1
1110-
38
INSULATION; SUPPORT BELT
L=1156
1-22553-039-1
02
1
1008-
40
BELT; SUPPORT,FUEL TANK
L=1210
1-22550-261-0
02
1
1008-1110
40
BELT; SUPPORT,FUEL TANK
L=1210
8-98202-448-0
02
1
1111-
42
NUT; SUPPORT BELT
M10
0-91110-510-0
04
1
1008-
43
BRACKET; FUEL TANK
1-53461-525-1
02
1
1008-
49
NUT; BRKT
M12
0-91110-512-0
12
1
1008-1008
110
NUT; PROTECTOR
WHEEL BASE 6500MM(65W) M8 FLANGE
0-91180-108-0
02
1
1008-
237
GASKET; BRKT TO FUEL TANK
1-22553-037-1
04
1
1008-
261
BOLT; PROTECTOR
WHEEL BASE 6500MM(65W) M8X20 FLANGE
0-28650-820-0
02
1
1008-
274
CONNECTOR; ELBOW,FUEL TANK PIPE
1-83149-006-0
02
1
1008-1304
322
BOLT; BRKT FIX
M12X40 FLANGE
0-28051-240-0
12
1
1008-
324
PROTECTOR; FUEL SEDIMENTER
WHEEL BASE 6500MM(65W)
1-47471-216-0
01
1
1008-
341
CLIP; BAND,RUBBER HOSE
L=350
1-09707-183-0
02
1
1008-
488
HOSE; RUBBER
8-98134-936-0
01
1
1008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
