Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#6202) — 257 parça

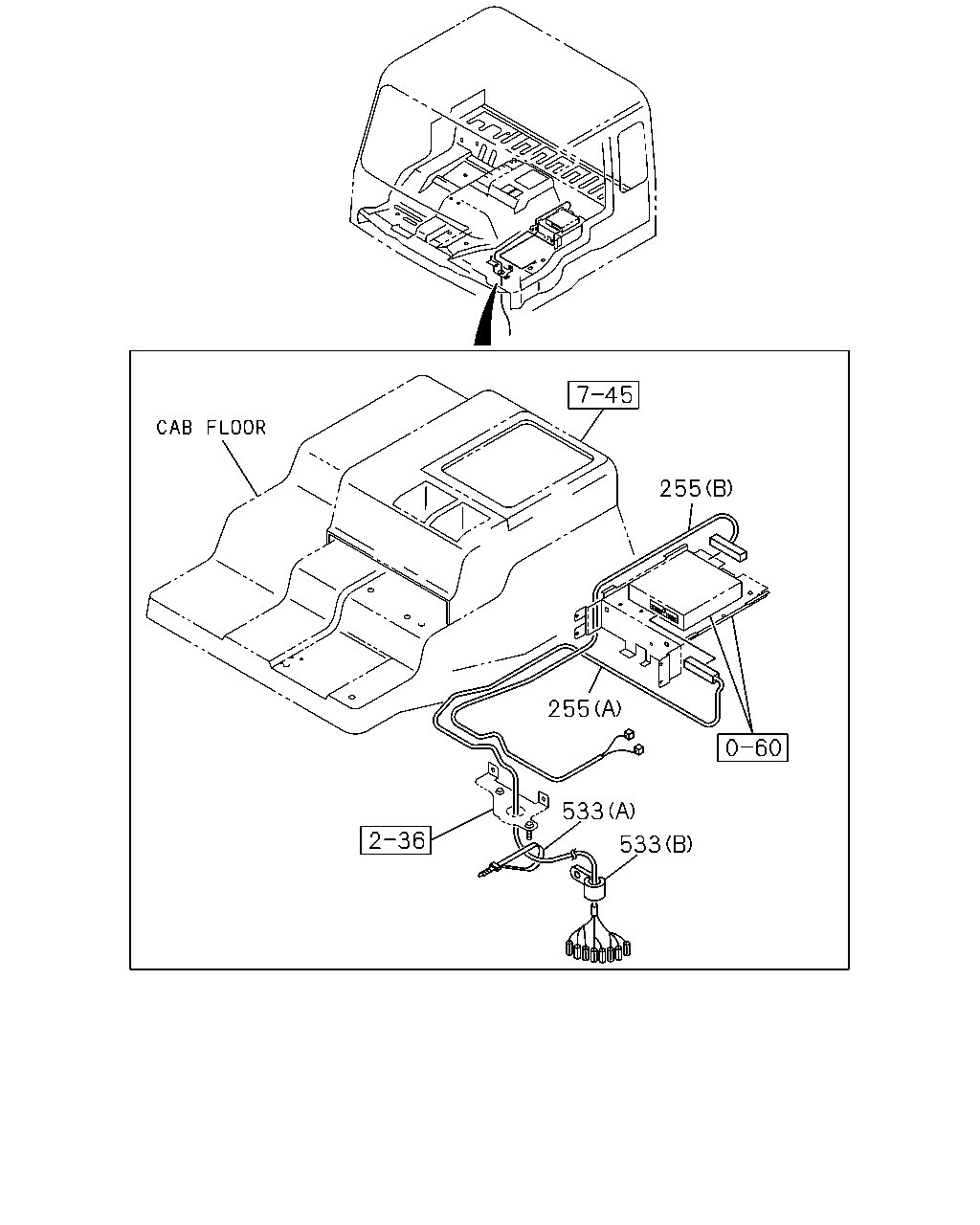

255 255 533 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
255	HARNESS; ELEC GOV (A)	1-82628-065-2	01	1	9905-0101
255	HARNESS; ELEC GOV (A)	1-82660-209-0	01	1	0102-0104
255	HARNESS; ELEC GOV (A)	1-82660-373-2	01	1	0105-0301
255	HARNESS; ELEC GOV (B)	1-82628-093-1	01	1	9905-0101
255	HARNESS; ELEC GOV (B)	1-82660-220-0	01	1	0102-0104
255	HARNESS; ELEC GOV (B)	1-82660-380-0	01	1	0105-0301
255	HARNESS; ELEC GOV (A)	1-82661-626-3	01	1	0302-
533	CLIP (B) ID=19 L=32	1-09701-235-0	01	1	9905-0109
533	CLIP (B) ID=21 L=24	8-94176-807-1	01	1	0110-0301
533	CLIP (B) ID=26 L=26	1-09701-236-0	01	1	0302-
533	CLIP (A) L=250	5-09707-030-1	03	1	9905-0205
533	CLIP (A) L=180	1-09707-162-1	03	1	0206-

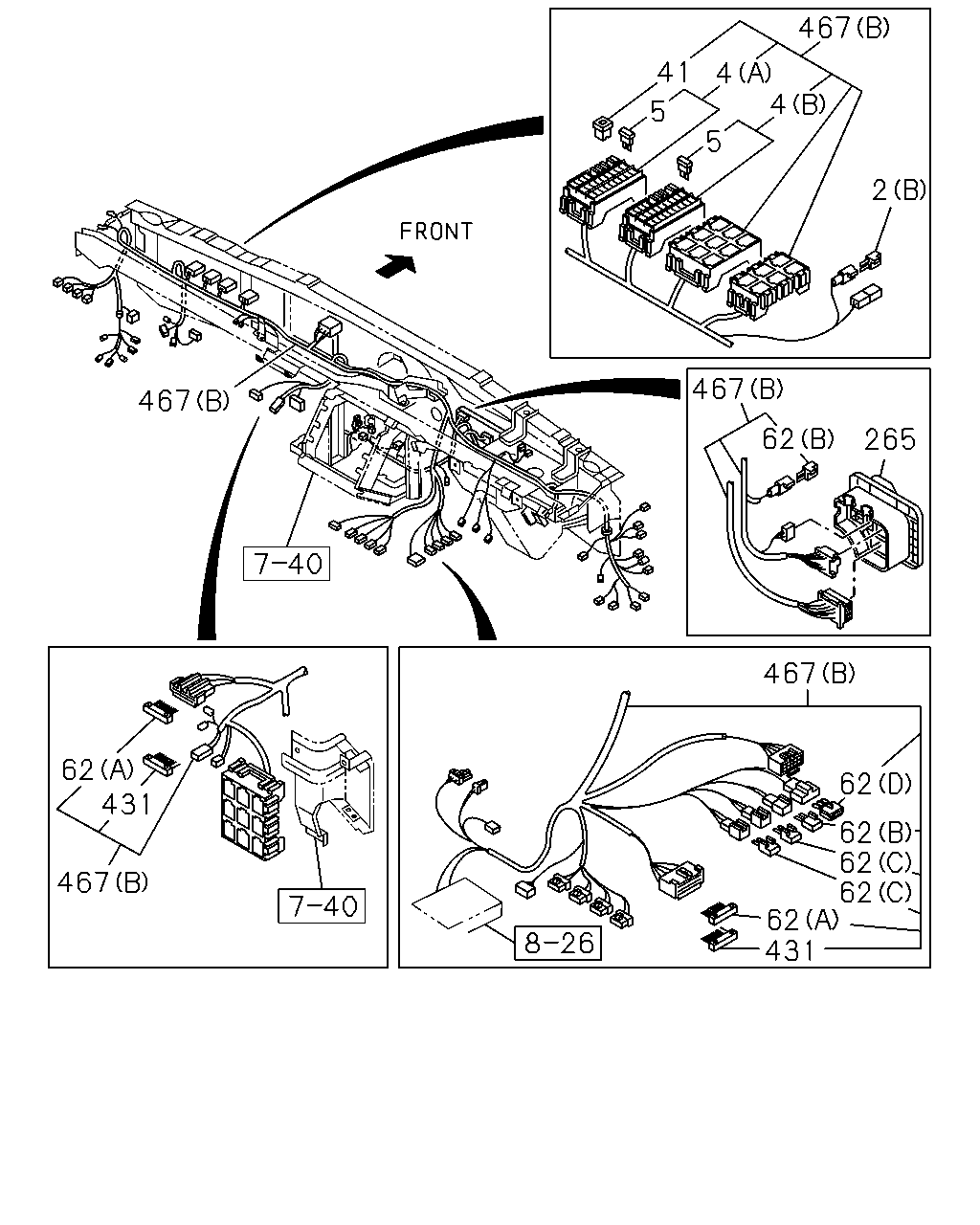

467 41 4 4 5 5 2 467 467 62 265 467 62 431 62 62 62 62 467 62 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0603-
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	01	1	9905-0301
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0105-
4	BOX ASM; FUSE,HARNESS (B) 15AX22	1-82510-394-0	01	1	9905-0004
4	BOX ASM; FUSE,HARNESS AUSTRALIA EQUIPMENT(RR3) (B) 15AX22	1-82510-394-0	01	1	0005-0101
4	BOX ASM; FUSE,HARNESS (A) 7.5AX21	1-82510-420-0	01	1	9905-0104
4	BOX ASM; FUSE,HARNESS (A) 7.5AX22 10AX4	1-82510-435-0	01	1	0105-0301
4	BOX ASM; FUSE,HARNESS (B) 15AX24 25AX2	1-82510-601-0	01	1	0302-
4	BOX ASM; FUSE,HARNESS NEW ZEALAND EQUIPMENT(PK5) (B) 15AX23	1-82510-414-0	01	1	0005-0101
4	BOX ASM; FUSE,HARNESS (B) 15AX23	1-82510-414-0	01	1	0102-0301
4	BOX ASM; FUSE,HARNESS (A) 7.5AX24	1-82510-412-0	01	1	0302-
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	22	1	9905-0004
5	FUSE; FACIA HARNESS NEW ZEALAND EQUIPMENT(PK5) 15A BLUE	5-82516-003-0	23	1	0005-0101
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	23	1	0102-0301
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	24	1	0302-
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	21	1	9905-0104
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	22	1	0105-0301
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	24	1	0302-
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	0302-
5	FUSE; FACIA HARNESS AUSTRALIA EQUIPMENT(RR3) 15A BLUE	5-82516-003-0	22	1	0005-0101
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	9905-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	9905-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	02	1	9905-0101
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	03	1	0102-0301
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	05	1	0302-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	9905-0101
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0102-0104
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	06	1	0105-0301
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	05	1	0302-0402
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0403-
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0302-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	9905-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0005-
467	HARNESS; FACIA (A) UPPER	1-82628-111-3	01	1	9905-9909
467	HARNESS; FACIA (A) UPPER	1-82629-327-0	01	1	9910-0104
467	HARNESS; FACIA (A) UPPER	1-82629-926-2	01	1	0105-0602
467	HARNESS; FACIA (A) UPPER	1-82662-855-0	01	1	0603-
467	HARNESS; FACIA (B) LOWER	1-82628-164-2	01	1	9905-9909
467	HARNESS; FACIA (B) LOWER	1-82629-335-0	01	1	9910-0004
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82629-335-0	01	1	0005-0101
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-292-0	01	1	0102-0104
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) CORNERING LAMP<TDS> (B) LOWER	1-82629-334-0	01	1	0005-0101
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) CORNERING LAMP<TDS> (B) LOWER	1-82660-291-0	01	1	0102-0104
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) (B) LOWER	1-82660-430-1	01	1	0105-0301
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82629-669-0	01	1	0005-0101
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82660-294-0	01	1	0102-0104
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82660-431-1	01	1	0105-0301
467	HARNESS; FACIA (B) LOWER	1-82661-625-2	01	1	0302-0602
467	HARNESS; FACIA (B) LOWER	1-82662-858-1	01	1	0603-
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82629-670-0	01	1	0005-0101
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-295-0	01	1	0102-0104
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-432-1	01	1	0105-0301

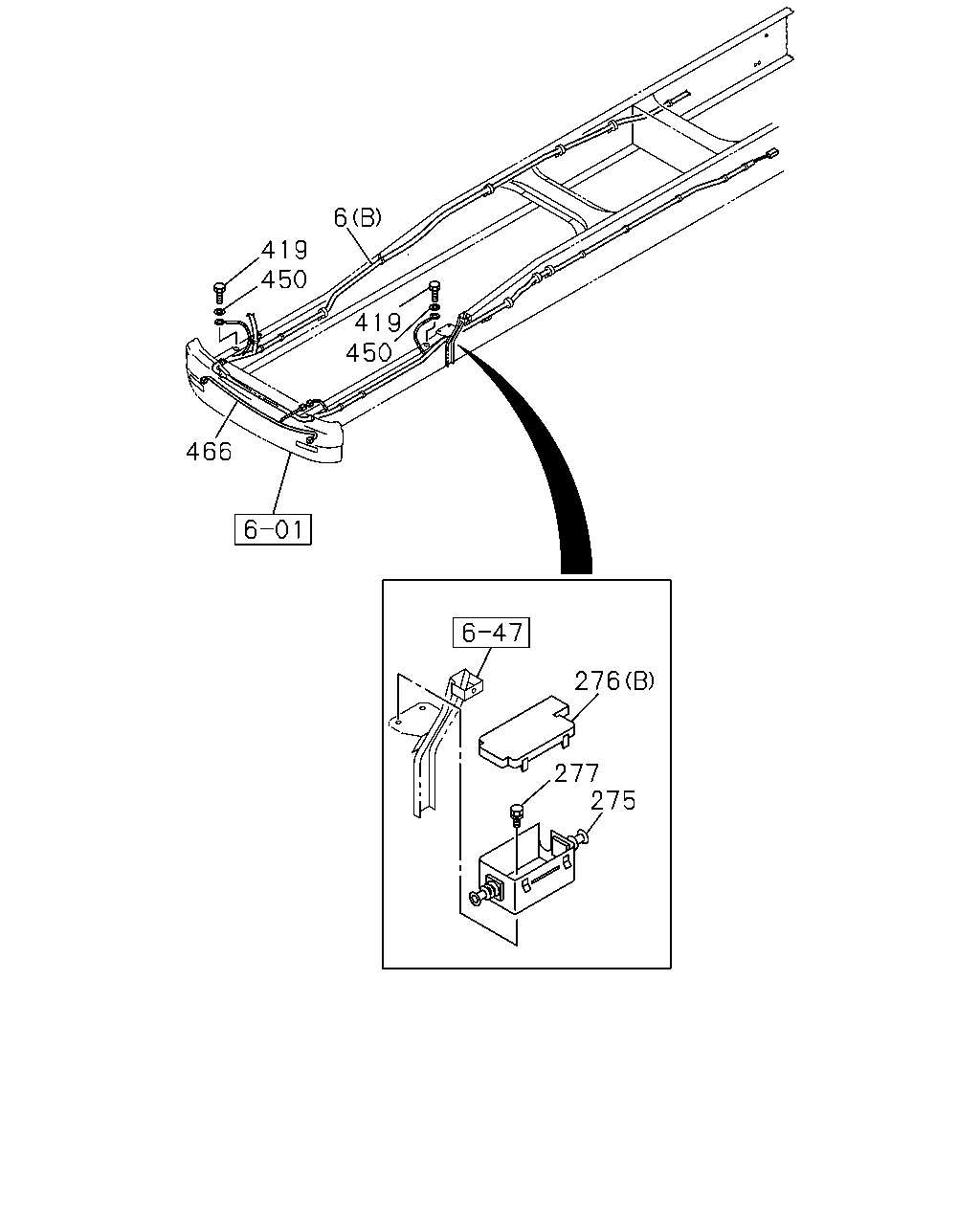

6 419 450 419 450 466 276 277 275

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82671-688-0	01	1	9905-9905
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82672-438-1	01	1	9905-0104
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82674-824-1	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82676-662-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82678-241-0	01	1	0603-
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82674-746-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82671-687-0	01	1	9905-9905
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82672-437-1	01	1	9905-0104
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-823-1	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82676-661-1	01	1	0302-0602
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-745-3	01	1	0105-0301
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82673-532-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82674-748-3	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82676-664-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82678-243-0	01	1	0603-
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82673-531-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-747-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82676-663-1	01	1	0302-0602
275	BOX ASM; FRAME HARNESS	1-82699-474-2	01	1	9905-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	9905-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	9905-
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9905-0301
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	9905-0301
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0302-
419	BOLT; CAB EARTH M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	9905-
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	9905-
466	HARNESS; BUMPER	1-82639-281-0	01	1	9905-0602

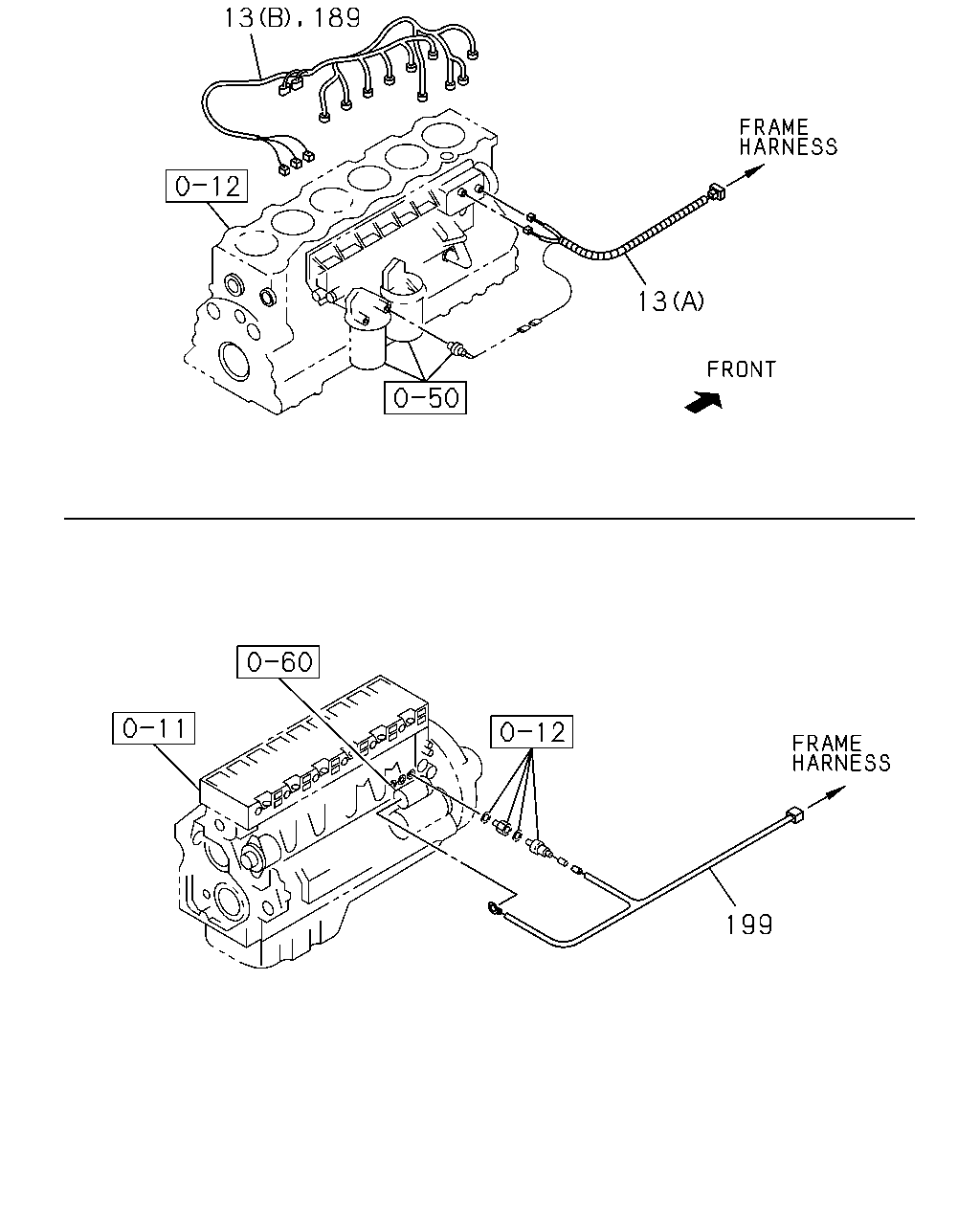

13 189 13 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	1-82641-217-1	01	1	0603-
13	HARNESS; ENG (A)	1-82640-553-4	01	1	9905-
189	HARNESS; EXT	1-82641-217-1	01	1	0302-0602
199	HARNESS; STARTER	1-82640-734-1	01	1	9905-

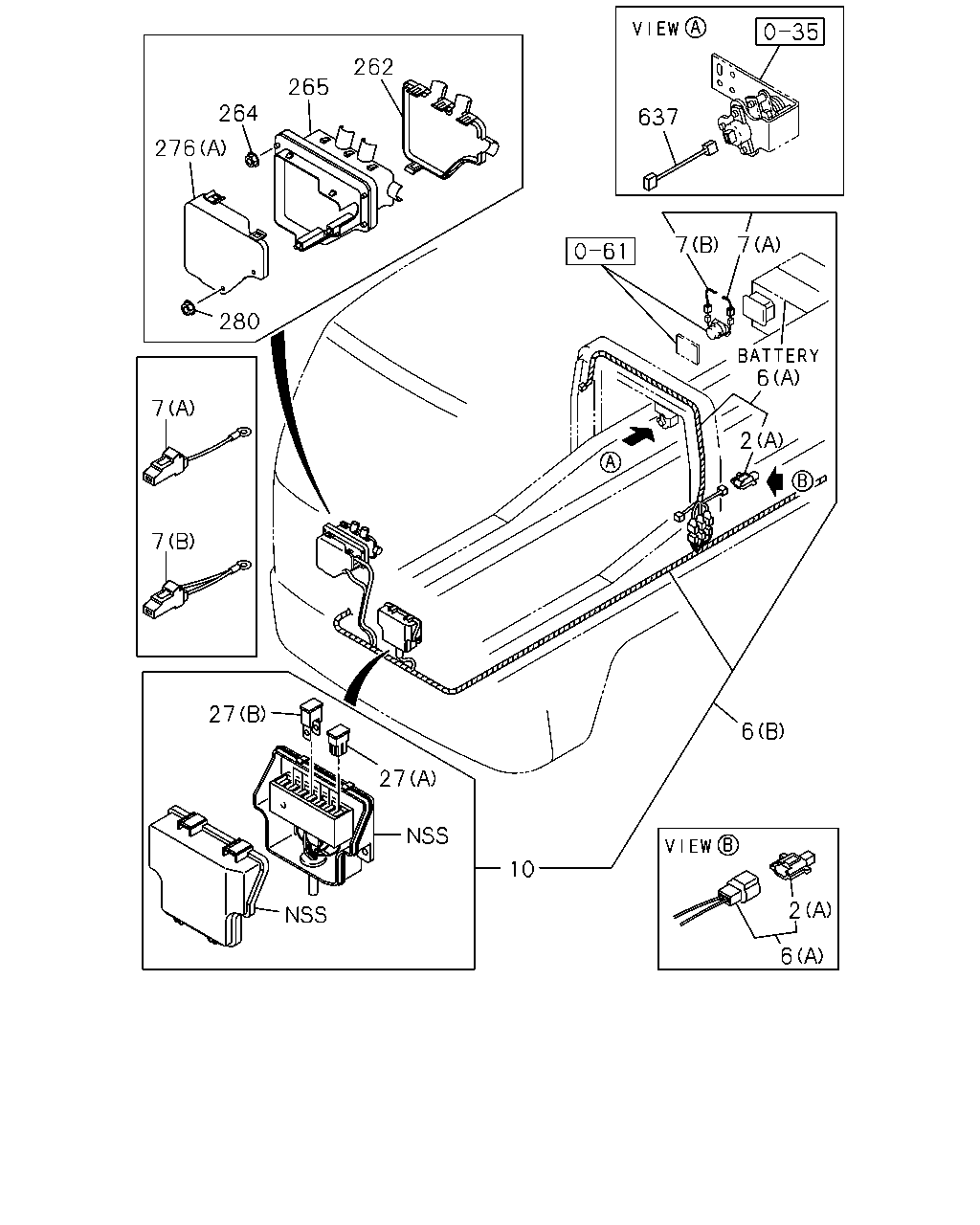

262 265 264 637 276 7 7 280 6 7 2 7 27 6 27 10 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0603-
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	01	1	9905-0301
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0105-
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82671-688-0	01	1	9905-9905
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82672-438-1	01	1	9905-0104
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82674-824-1	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82676-662-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82678-241-0	01	1	0603-
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82674-746-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82671-687-0	01	1	9905-9905
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82672-437-1	01	1	9905-0104
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-823-1	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82676-661-1	01	1	0302-0602
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-745-3	01	1	0105-0301
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82673-532-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82674-748-3	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82676-664-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82678-243-0	01	1	0603-
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82673-531-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-747-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82676-663-1	01	1	0302-0602
7	LINK ASM; FUSIBLE (A) 60A BLUE	1-82659-119-0	01	1	9905-0602
7	LINK ASM; FUSIBLE FULL FLOATING CAB(W16) (A) 60A BLUE	1-82659-119-0	01	1	0603-
7	LINK ASM; FUSIBLE (B) 60A WHITE	1-82659-169-0	01	1	9905-0602
7	LINK ASM; FUSIBLE FULL FLOATING CAB(W16) (B) 60A WHITE	1-82659-169-0	01	1	0603-
10	BOX; FUSE,HARNESS	1-82510-466-0	01	1	9905-9905
10	BOX; FUSE,HARNESS	1-82510-467-0	01	1	9906-0602
10	BOX; FUSE,HARNESS FULL FLOATING CAB(W16)	1-82510-467-0	01	1	0603-
27	FUSE UNIT (A) 40A GREEN	8-94468-662-0	05	1	9905-0602
27	FUSE UNIT FULL FLOATING CAB(W16) (A) 40A GREEN	8-94468-662-0	05	1	0603-
27	FUSE UNIT (B) 80A BLACK	8-94468-671-0	01	1	9905-0602
27	FUSE UNIT FULL FLOATING CAB(W16) (B) 80A BLACK	8-94468-671-0	01	1	0603-
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	9905-
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	9905-
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	9905-
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	9905-
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	9905-
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9905-
637	HARNESS; EXT,S/SENSOR PTO CONTROL OPERATION CAB BACK<TBZ>	1-82675-934-0	01	1	0207-

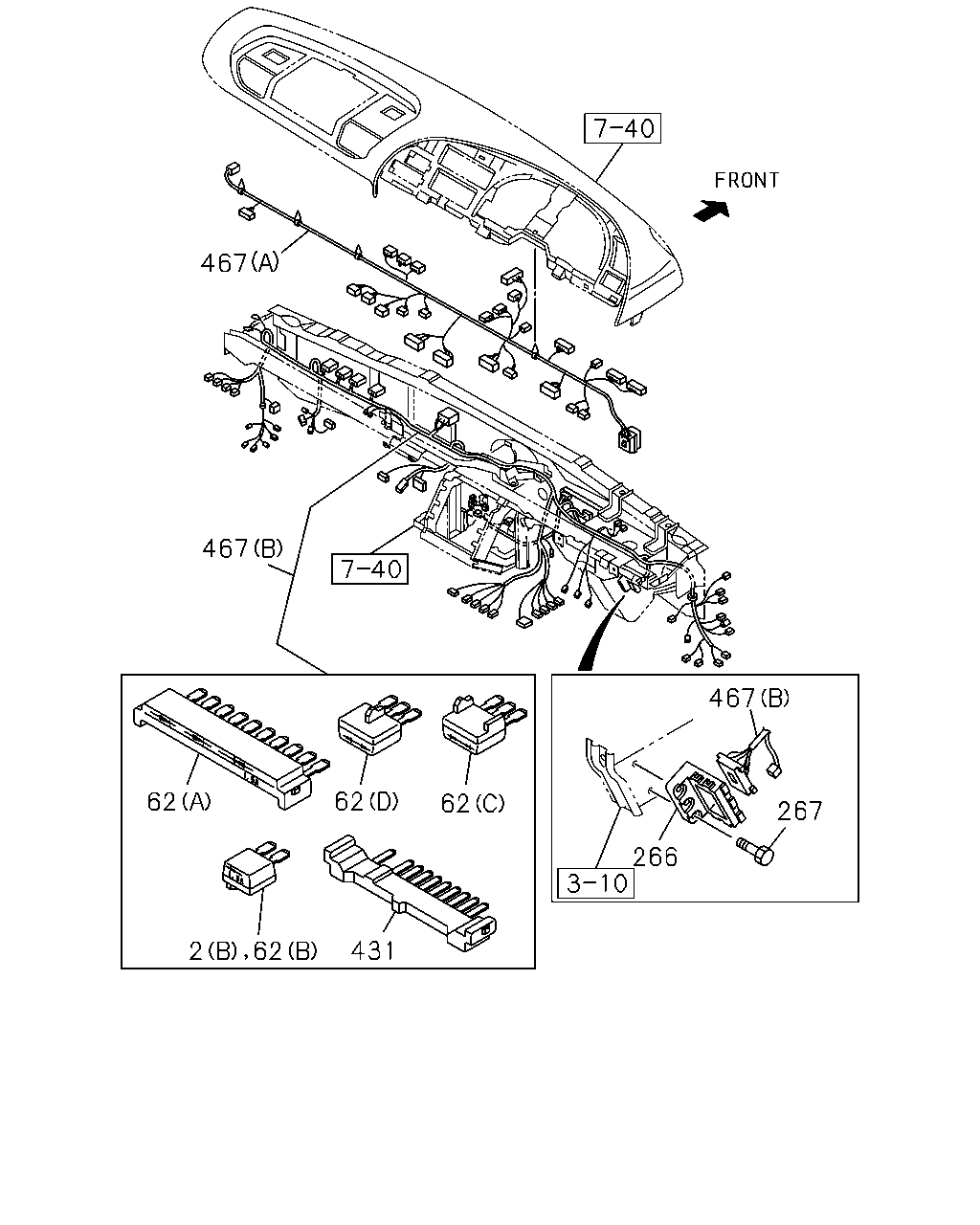

467 467 467 62 62 62 267 266 431 62 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS FULL FLOATING CAB(W16) (A) GRAY 2P-1.3A	1-81514-015-0	01	1	0603-
2	DIODE; CABLE HARNESS (A) GRAY 2P-1.3A	1-81514-015-0	01	1	9905-0301
2	DIODE; CABLE HARNESS BRAKE REGULATION HONG KONG<TCZ> (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0105-
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	9905-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	02	1	9905-0101
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	03	1	0102-0301
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	05	1	0302-
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	9905-0101
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0102-0104
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	06	1	0105-0301
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	05	1	0302-0402
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	03	1	0403-
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0302-
266	BRACKET; CONN BOX	1-82699-580-0	01	1	9905-
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	9905-
431	CONNECTOR; JOINT 10P BROWN	1-82699-601-0	02	1	0005-
467	HARNESS; FACIA (A) UPPER	1-82628-111-3	01	1	9905-9909
467	HARNESS; FACIA (A) UPPER	1-82629-327-0	01	1	9910-0104
467	HARNESS; FACIA (A) UPPER	1-82629-926-2	01	1	0105-0602
467	HARNESS; FACIA (A) UPPER	1-82662-855-0	01	1	0603-
467	HARNESS; FACIA (B) LOWER	1-82628-164-2	01	1	9905-9909
467	HARNESS; FACIA (B) LOWER	1-82629-335-0	01	1	9910-0004
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82629-335-0	01	1	0005-0101
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-292-0	01	1	0102-0104
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) CORNERING LAMP<TDS> (B) LOWER	1-82629-334-0	01	1	0005-0101
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) CORNERING LAMP<TDS> (B) LOWER	1-82660-291-0	01	1	0102-0104
467	HARNESS; FACIA AUSTRALIA EQUIPMENT(RR3) (B) LOWER	1-82660-430-1	01	1	0105-0301
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82629-669-0	01	1	0005-0101
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82660-294-0	01	1	0102-0104
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) CORNERING LAMP<TDS> (B) LOWER	1-82660-431-1	01	1	0105-0301
467	HARNESS; FACIA (B) LOWER	1-82661-625-2	01	1	0302-0602
467	HARNESS; FACIA (B) LOWER	1-82662-858-1	01	1	0603-
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82629-670-0	01	1	0005-0101
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-295-0	01	1	0102-0104
467	HARNESS; FACIA NEW ZEALAND EQUIPMENT(PK5) EXC. CORNERING LAMP<TDS> (B) LOWER	1-82660-432-1	01	1	0105-0301

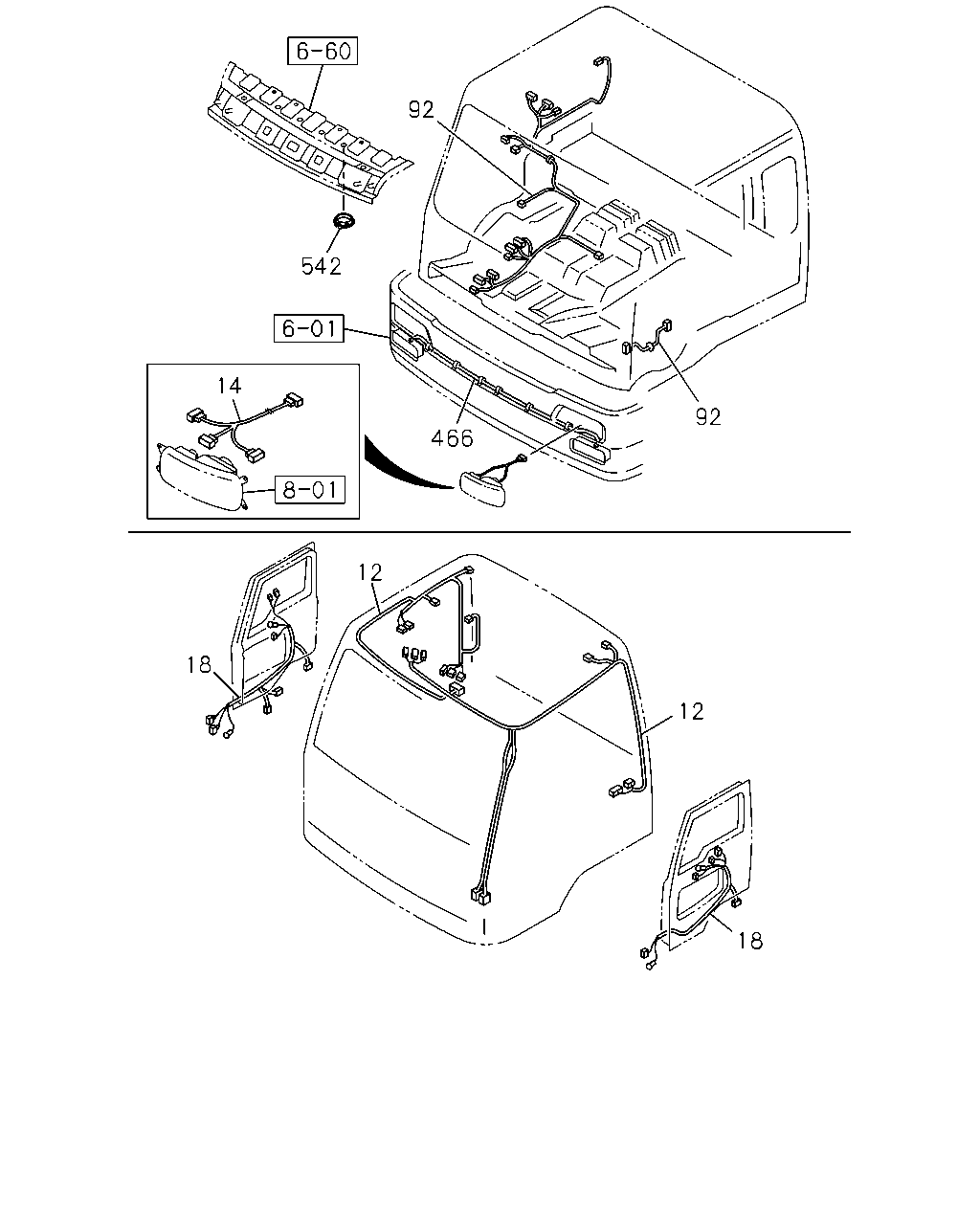

92 542 14 92 466 12 18 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF AUTO ROUND CURTAIN<TAR> DRIVER SIDE	1-82628-105-0	01	1	9905-0104
12	HARNESS; ROOF AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE	1-82628-097-3	01	1	9905-0004
12	HARNESS; ROOF AUTO ROUND CURTAIN<TAR> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F> PASSENGER SIDE	1-82628-097-3	01	1	0005-0104
12	HARNESS; ROOF EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F> PASSENGER SIDE	1-82629-918-2	01	1	0105-0301
12	HARNESS; ROOF EXC. HIGH ROOF<S2F> PASSENGER SIDE	1-82629-918-2	01	1	0302-
12	HARNESS; ROOF HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82628-101-3	01	1	9905-0004
12	HARNESS; ROOF HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> PASSENGER SIDE	1-82628-101-3	01	1	0005-0104
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93> PASSENGER SIDE	1-82629-922-2	01	1	0105-0301
12	HARNESS; ROOF HIGH ROOF<S2F> PASSENGER SIDE	1-82629-922-2	01	1	0302-
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82628-103-3	01	1	9905-0004
12	HARNESS; ROOF LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> HIGH ROOF<S2F> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82628-103-3	01	1	0005-0104
12	HARNESS; ROOF HIGH ROOF<S2F> EXC. LAMPS FOUR ROOF MARKER<PJ5>,AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE	1-82628-104-2	01	1	0005-0104
12	HARNESS; ROOF EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82628-099-2	01	1	9905-0004
12	HARNESS; ROOF LAMPS FOUR ROOF MARKER<PJ5>,LAMPS TWO ROOF MARKER<TEC> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82628-099-2	01	1	0005-0104
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> PASSENGER SIDE	1-82629-312-0	01	1	0005-0104
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> EXC. HIGH ROOF<S2F> PASSENGER SIDE	1-82629-919-2	01	1	0105-0301
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82629-314-0	01	1	0005-0104
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> HIGH ROOF<S2F> PASSENGER SIDE	1-82629-923-2	01	1	0105-0301
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> LAMPS FOUR ROOF MARKER<PJ5> HIGH ROOF<S2F> EXC. AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82629-315-0	01	1	0005-0104
12	HARNESS; ROOF LAMP-ROOM OPERATION W/CONSOLE<C93> LAMPS FOUR ROOF MARKER<PJ5> EXC. HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> PASSENGER SIDE	1-82629-313-0	01	1	0005-0104
12	HARNESS; ROOF EXC. LAMPS FOUR ROOF MARKER<PJ5>,HIGH ROOF<S2F>, AUTO ROUND CURTAIN<TAR>,LAMPS TWO ROOF MARKER<TEC> PASSENGER SIDE	1-82628-100-1	01	1	0005-0104
12	HARNESS; ROOF SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. AUTO ROUND CURTAIN<TAR> DRIVER SIDE	1-82628-107-0	01	1	9905-0104
12	HARNESS; ROOF SPEAKER SYSTEM 4 SPEAKER<NBV> DRIVER SIDE	1-82628-107-0	01	1	0105-
14	HARNESS; HEADLAMP	1-82671-664-2	02	1	9905-0004
14	HARNESS; HEADLAMP FOG LAMP<T96>	1-82671-664-2	02	1	0005-0301
14	HARNESS; HEADLAMP	1-82671-664-2	02	1	0302-0602
14	HARNESS; HEADLAMP	1-82677-628-3	02	1	0603-
14	HARNESS; HEADLAMP EXC. FOG LAMP<T96>	1-82670-022-1	02	1	0005-0301
18	HARNESS; DOOR PASSENGER SIDE	1-82628-669-0	01	1	9905-
18	HARNESS; DOOR DRIVER SIDE	1-82628-670-0	01	1	9905-0104
18	HARNESS; DOOR NEW ZEALAND EQUIPMENT(PK5) DRIVER SIDE	1-82628-670-0	01	1	0105-0301
18	HARNESS; DOOR AUSTRALIA EQUIPMENT(RR3) EXC. REMOTE CONT DOOR LOCK<SLG> DRIVER SIDE	1-82628-670-0	01	1	0105-0301
18	HARNESS; DOOR AUSTRALIA EQUIPMENT(RR3) REMOTE CONT DOOR LOCK<SLG> DRIVER SIDE	1-82660-370-0	01	1	0105-0301
18	HARNESS; DOOR DRIVER SIDE	1-82660-370-1	01	1	0302-
92	HARNESS; FLOOR AUTO ROUND CURTAIN<TAR>	1-82628-593-1	01	1	9905-0004
92	HARNESS; FLOOR AUSTRALIA EQUIPMENT(RR3) AUTO ROUND CURTAIN<TAR>	1-82628-593-1	01	1	0005-0104
92	HARNESS; FLOOR ELEC OUTLET 12V<TAW> EXC. ISRINGHAUSEN SEAT(SJA)	1-82660-387-1	01	1	0105-0301
92	HARNESS; FLOOR EXC. AUTO ROUND CURTAIN<TAR>	1-82628-594-1	01	1	9905-0004
92	HARNESS; FLOOR AUSTRALIA EQUIPMENT(RR3) EXC. AUTO ROUND CURTAIN<TAR>	1-82628-594-1	01	1	0005-0104
92	HARNESS; FLOOR EXC. ISRINGHAUSEN SEAT(SJA),ELEC OUTLET 12V<TAW>	1-82660-386-1	01	1	0105-0301
92	HARNESS; FLOOR LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82625-261-5	01	1	0005-0104
92	HARNESS; FLOOR LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82625-261-5	01	1	0105-0301
92	HARNESS; FLOOR REMOTE CONT DOOR LOCK<SLG> EXC. LAMP-ROOM OPERATION W/CONSOLE<C93>	1-82625-261-5	01	1	0105-0301
92	HARNESS; FLOOR	1-82625-261-5	01	1	0302-
92	HARNESS; FLOOR NEW ZEALAND EQUIPMENT(PK5) AUTO ROUND CURTAIN<TAR>	1-82629-672-0	01	1	0005-0104
92	HARNESS; FLOOR ISRINGHAUSEN SEAT(SJA) ELEC OUTLET 12V<TAW>	1-82660-389-1	01	1	0105-0301
92	HARNESS; FLOOR	1-82660-392-3	01	1	0302-
92	HARNESS; FLOOR NEW ZEALAND EQUIPMENT(PK5) EXC. AUTO ROUND CURTAIN<TAR>	1-82629-673-0	01	1	0005-0104
92	HARNESS; FLOOR ISRINGHAUSEN SEAT(SJA) EXC. ELEC OUTLET 12V<TAW>	1-82660-388-1	01	1	0105-0301
466	HARNESS; BUMPER	1-82639-281-0	01	1	9905-0602
542	GROMMET; HARNESS HIGH ROOF<S2F> ID=36	8-94178-685-0	03	1	9905-

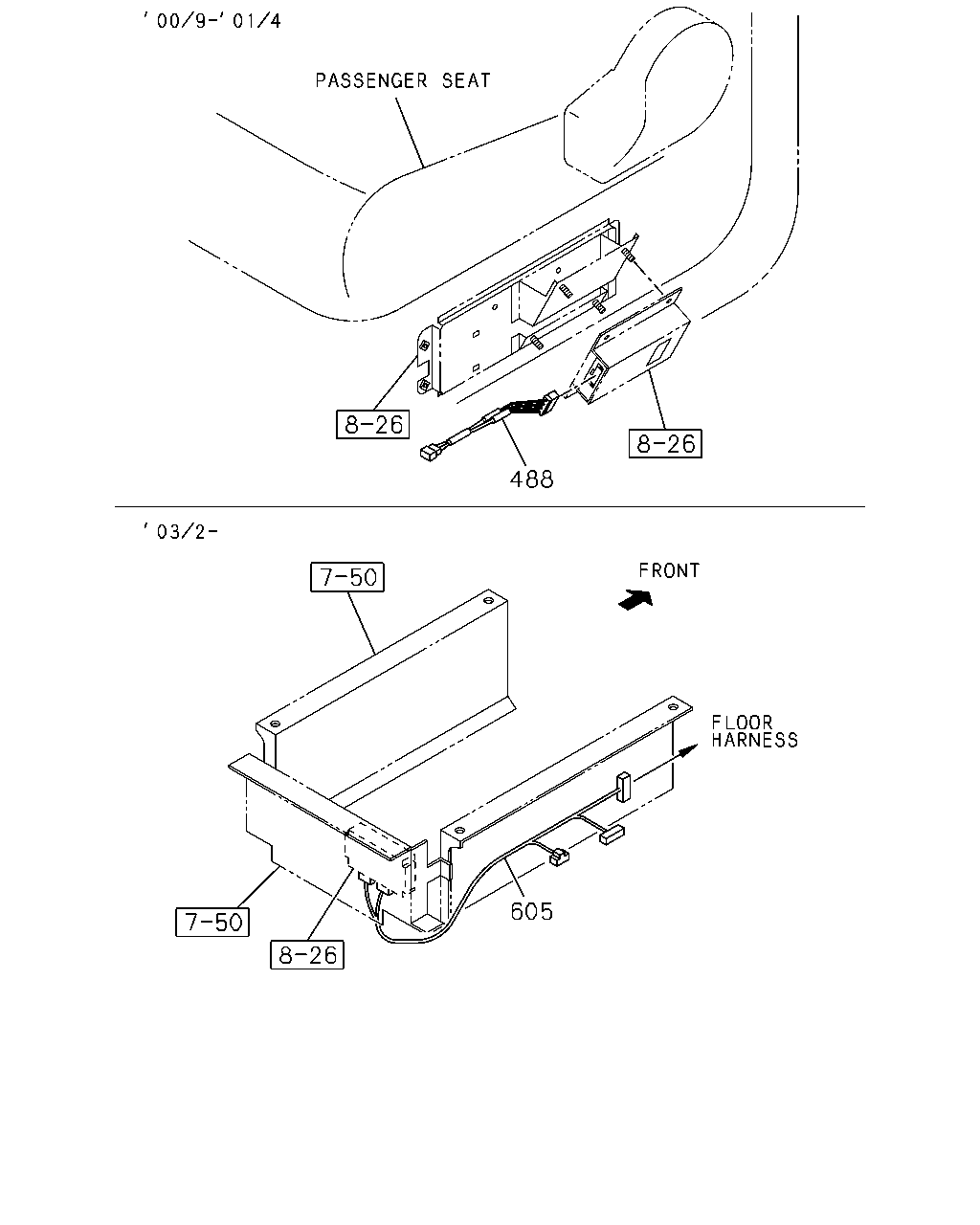

488 605

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
488	HARNESS; EXT,CONVERTER ELEC OUTLET 12V<TAW> EXC. NIKKO<Y70> W/FUSE 12V 6.3A	1-82628-954-0	01	1	0009-0104
605	HARNESS; SEAT	1-82661-627-0	01	1	0302-0604
605	HARNESS; SEAT	1-82662-917-0	01	1	0605-

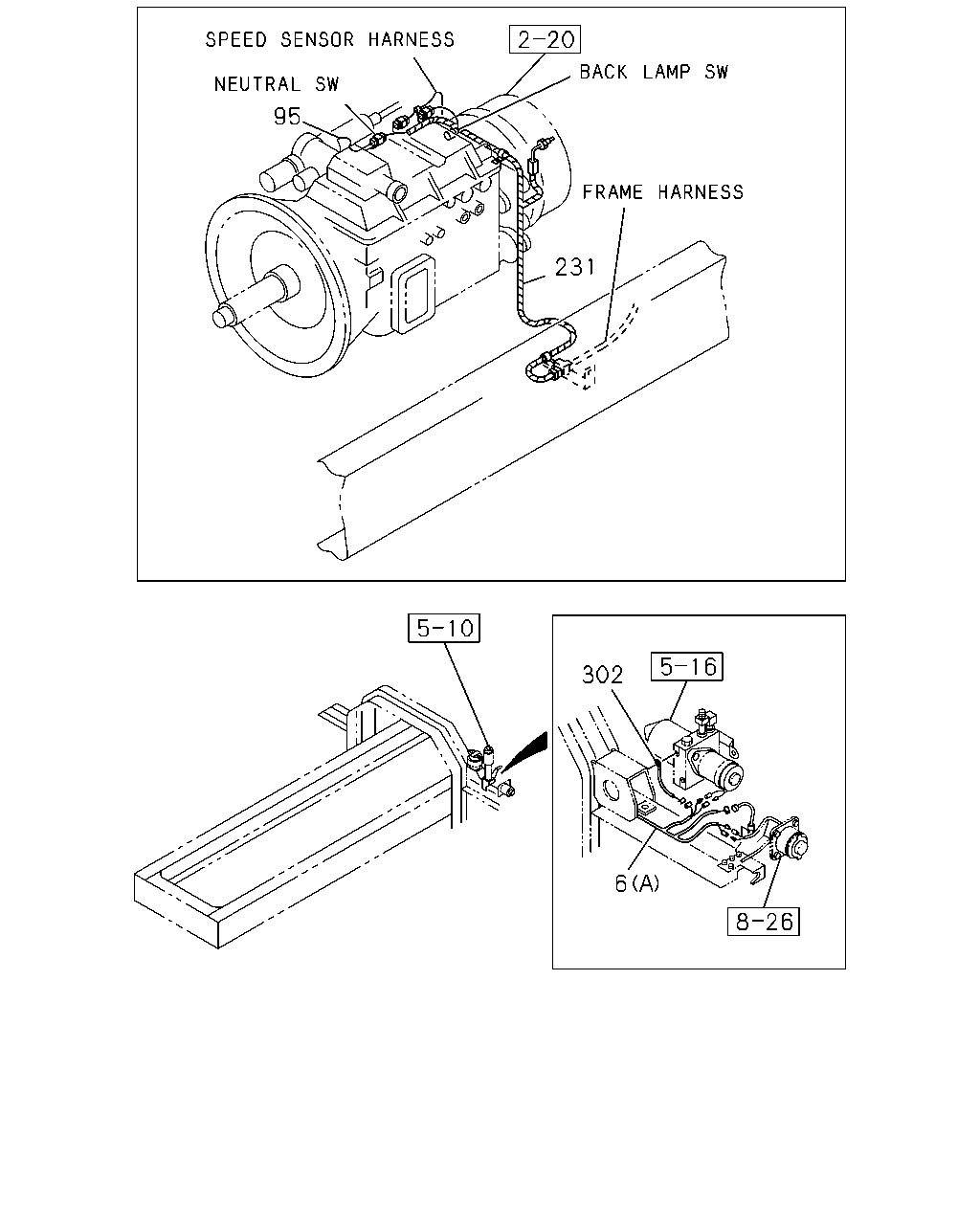

95 231 302 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82671-688-0	01	1	9905-9905
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82672-438-1	01	1	9905-0104
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82674-824-1	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82676-662-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82678-241-0	01	1	0603-
6	HARNESS; FRAME FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82671-720-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) FULL FLOATING CAB(W16) (B) FRAME	1-82674-746-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82671-687-0	01	1	9905-9905
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82672-437-1	01	1	9905-0104
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82674-823-1	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82676-661-1	01	1	0302-0602
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-2	01	1	9905-0004
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82671-719-3	01	1	0005-0104
6	HARNESS; FRAME AUSTRALIA EQUIPMENT(RR3) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-745-3	01	1	0105-0301
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82673-532-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) FULL FLOATING CAB(W16) (B) FRAME	1-82674-748-3	01	1	0105-0301
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82676-664-1	01	1	0302-0602
6	HARNESS; FRAME FULL FLOATING CAB(W16) (A) MEMBER	1-82678-243-0	01	1	0603-
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82673-531-1	01	1	0005-0104
6	HARNESS; FRAME NEW ZEALAND EQUIPMENT(PK5) EXC. FULL FLOATING CAB(W16) (B) FRAME	1-82674-747-3	01	1	0105-0301
6	HARNESS; FRAME EXC. FULL FLOATING CAB(W16) (A) MEMBER	1-82676-663-1	01	1	0302-0602
95	HARNESS; NEUTRAL SW	1-82639-626-0	01	1	9905-
231	HARNESS; TRANS	1-82638-903-3	01	1	9905-0104
231	HARNESS; TRANS	1-82674-853-1	01	1	0105-
302	HARNESS; POWER CAB TILT	1-82639-938-0	01	1	9905-0104

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
