0-65 — STARTER (#62012) — 70 parça

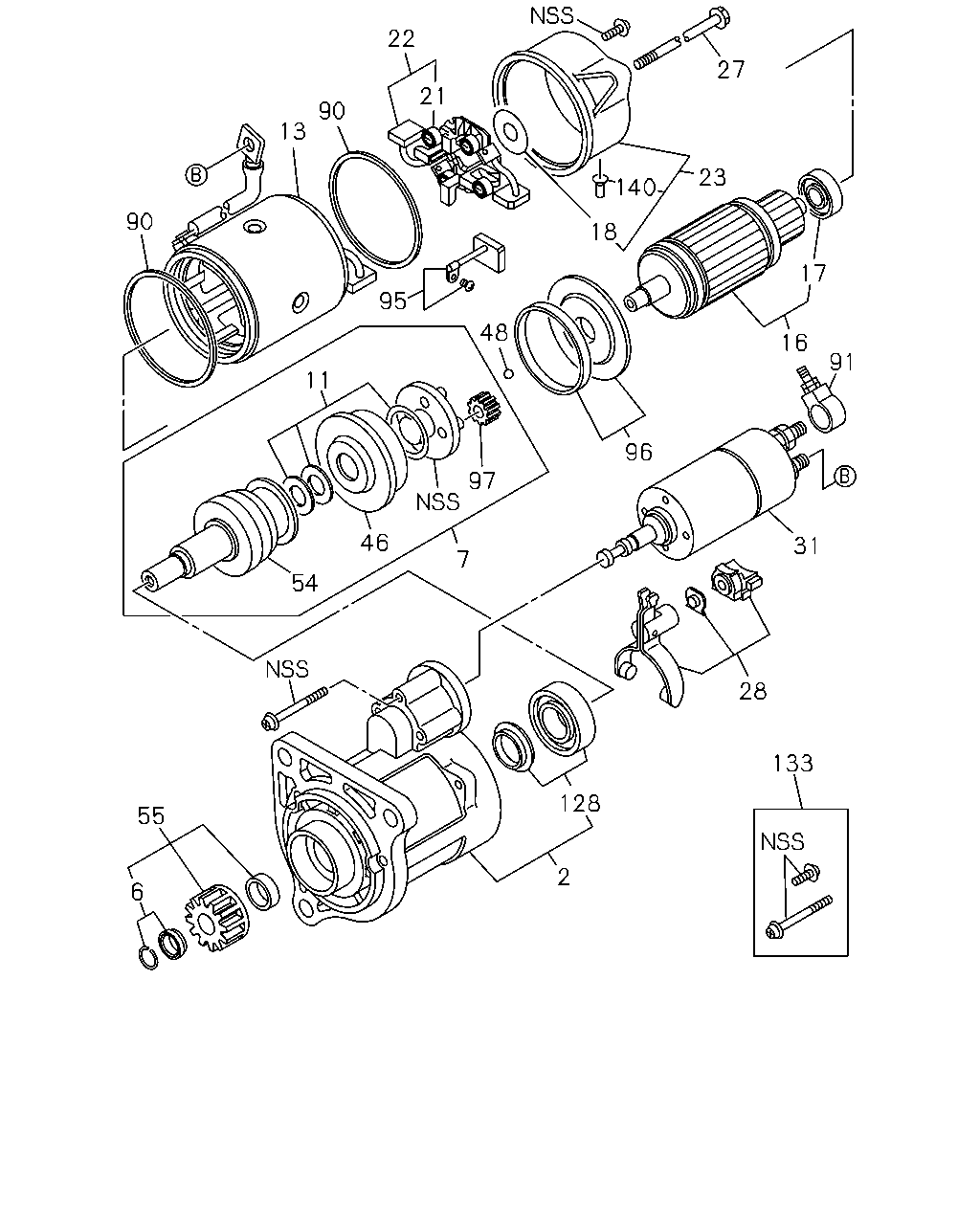

27 22 21 90 13 90 23 140 18 17 16 91 31 96 48 95 11 97 46 7 54 55 6 2 133 28 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97380-508-4	1-81123-065-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97380-509-4	1-81123-069-1	01	1	-1304
2	CASE; PINION,STARTER ASM PART: B = 8-97380-509-4	8-98238-471-0	01	1	1305-
6	STOPPER; PINION STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-781-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97380-508-4	8-97381-362-1	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97380-509-4	8-97381-363-1	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-952-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-98237-580-0	01	1	1305-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81115-233-0	01	1	-1304
23	COVER; RR COVER STARTER ASM PART: A = 8-97380-508-4	8-98237-570-0	01	1	1305-
23	COVER; RR COVER STARTER ASM PART: B = 8-97380-509-4	8-98238-473-0	01	1	1305-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-97381-364-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-784-0	01	1	-1209
55	PINION; CLU,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-98222-732-0	01	1	1210-
90	GASKET; ARMATURE ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-827-0	02	1	-
91	COVER; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-786-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81116-067-0	01	1	-
96	GASKET; FRT CASE ASM PART: A = 8-97380-508-4	1-81129-796-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 8-97380-509-4	1-81129-796-0	01	1	-1304
96	GASKET; FRT CASE ASM PART: B = 8-97380-509-4	8-98238-472-0	01	1	1305-
97	GEAR; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81123-056-0	04	1	-
128	BEARING; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-780-0	01	1	-
133	SCREW SET; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-787-0	01	1	-
140	GROMMET; RR COVER ASM PART: A = 8-97380-508-4	8-97376-389-0	01	1	-
140	GROMMET; RR COVER ASM PART: B = 8-97380-509-4	8-97376-389-0	01	1	-1304

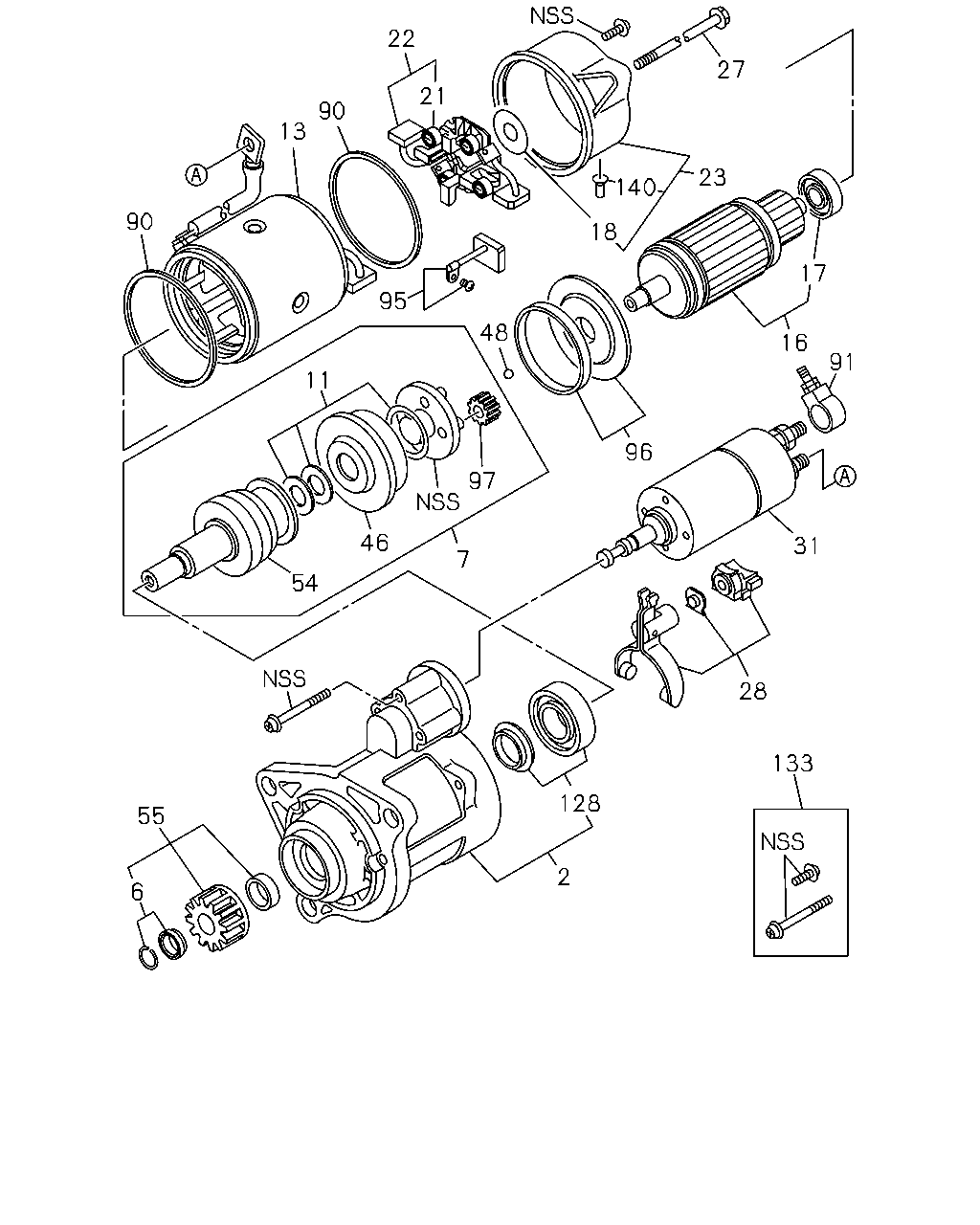

90 13 90 22 21 95 18 23 27 17 16 96 91 31 28 133 128 2 55 46 54 7 97 48 11 140 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-97380-508-4	1-81123-065-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97380-509-4	1-81123-069-1	01	1	-1304
2	CASE; PINION,STARTER ASM PART: B = 8-97380-509-4	8-98238-471-0	01	1	1305-
6	STOPPER; PINION STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-785-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-794-0	01	1	-
11	WASHER; GEAR SHAFT STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-781-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-97380-508-4	8-97381-362-1	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97380-509-4	8-97381-363-1	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81121-067-0	01	1	-
17	BEARING; ARMATURE,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-952-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-98237-580-0	01	1	1305-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-828-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81121-071-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81115-233-0	01	1	-1304
23	COVER; RR COVER STARTER ASM PART: A = 8-97380-508-4	8-98237-570-0	01	1	1305-
23	COVER; RR COVER STARTER ASM PART: B = 8-97380-509-4	8-98238-473-0	01	1	1305-
27	BOLT; THROUGH,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-769-0	01	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-783-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-97381-364-0	01	1	-
46	GEAR; CLU STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81123-061-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-97116-515-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-782-0	01	1	-
55	PINION; CLU,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-784-0	01	1	-1209
55	PINION; CLU,STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	8-98222-732-0	01	1	1210-
90	GASKET; ARMATURE ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-827-0	02	1	-
91	COVER; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-786-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81116-067-0	01	1	-
96	GASKET; FRT CASE ASM PART: A = 8-97380-508-4	1-81129-796-0	01	1	-
96	GASKET; FRT CASE ASM PART: B = 8-97380-509-4	1-81129-796-0	01	1	-1304
96	GASKET; FRT CASE ASM PART: B = 8-97380-509-4	8-98238-472-0	01	1	1305-
97	GEAR; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81123-056-0	04	1	-
128	BEARING; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-780-0	01	1	-
133	SCREW SET; STARTER ASM PART: A = 8-97380-508-4, B = 8-97380-509-4	1-81129-787-0	01	1	-
140	GROMMET; RR COVER ASM PART: A = 8-97380-508-4	8-97376-389-0	01	1	-
140	GROMMET; RR COVER ASM PART: B = 8-97380-509-4	8-97376-389-0	01	1	-1304

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
