Isuzu WW
▶
TRUCKS
▶
FVR
▶
11239 - FVR-LHD(EUROPE)EURO5
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

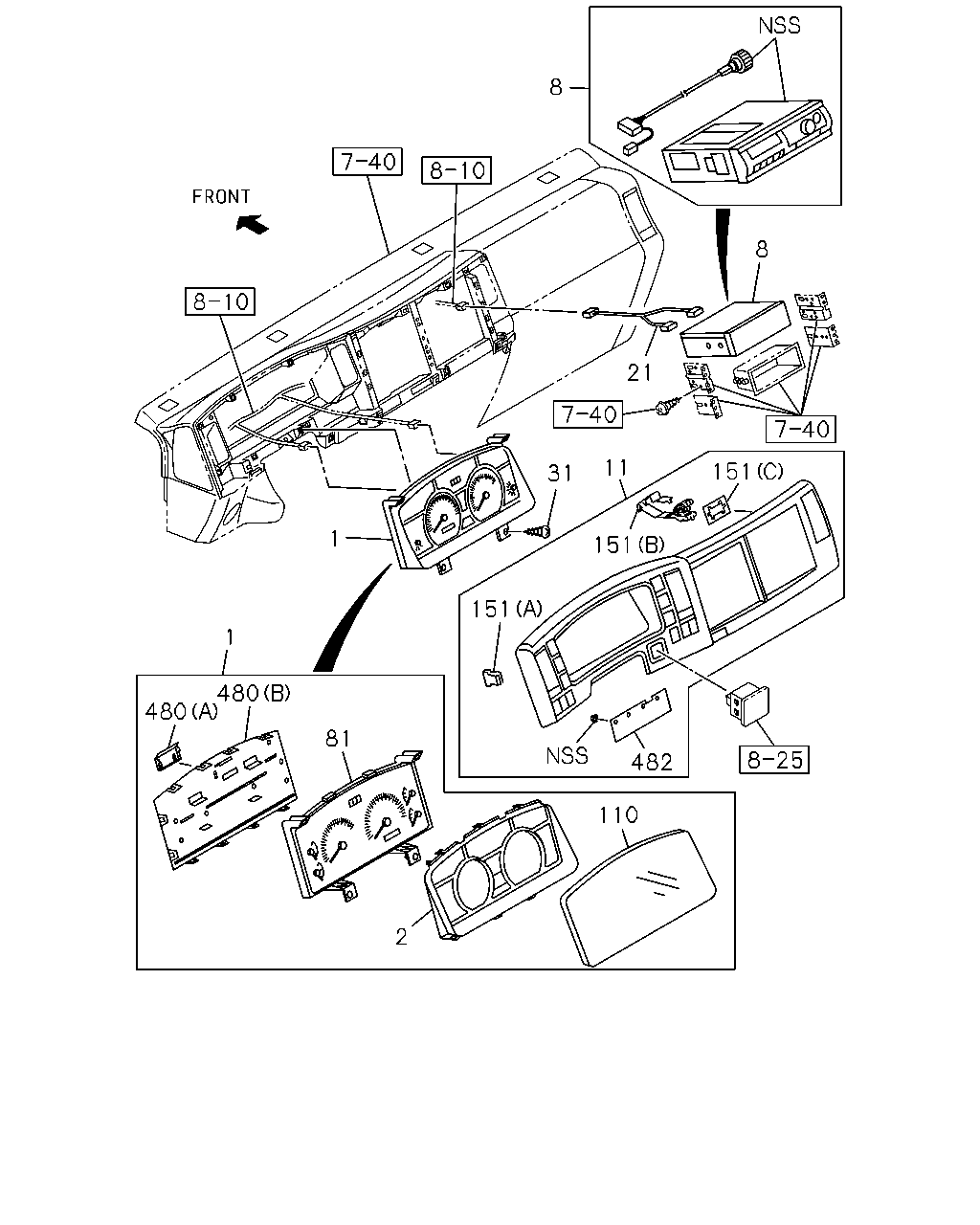

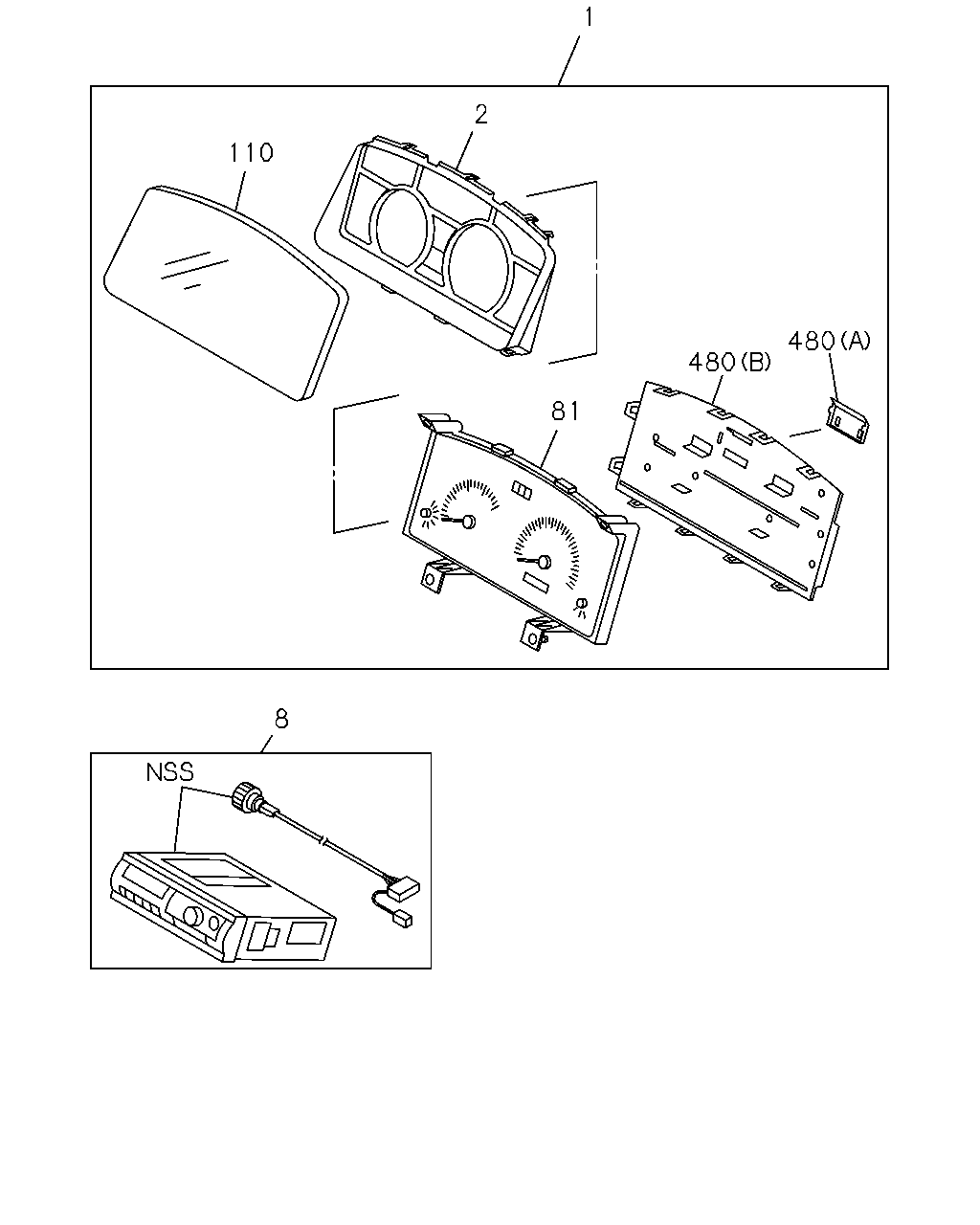

8-21 - METER ASM
▶
8-21 — METER ASM
(#62009) — 33 parça
◀
[821A01] (22 parça)
[821A02] (11 parça)
▶
8
8
21
11
151
31
1
151
151
1
480
480
81
482
110
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98064-916-6
01
1
0906-1103
1
METER COMPL; CLUSTER
8-98182-220-1
01
1
1104-
2
PANEL; CLUSTER
8-98054-432-0
01
1
0906-
8
TACHOGRAPH; CLUSTER METER
8-98113-386-0
01
1
0906-1008
8
TACHOGRAPH; CLUSTER METER
8-98178-335-0
01
1
1009-1107
8
TACHOGRAPH; CLUSTER METER
8-98197-456-0
01
1
1108-
11
CLUSTER ASM; METER
ECE R29<EFE> DARK GRAY
8-97418-531-1
01
1
1004-
11
CLUSTER ASM; METER
DARK GRAY
8-97414-682-3
01
1
0906-1003
11
CLUSTER ASM; METER
EXC. ECE R29<EFE> DARK GRAY
8-97414-682-3
01
1
1004-
21
HARNESS; TACHOGRAPH
8-98099-111-0
01
1
0906-
31
SCREW; METER,INST PANEL
M5X16 TAPPING
0-72180-516-0
04
1
0906-
81
METER SUB ASM
8-98079-688-0
01
1
0906-1103
81
METER SUB ASM
8-98182-228-0
01
1
1104-
110
GLASS; CLUSTER METER
8-98054-642-0
01
1
0906-
151
CLIP; METER CLUSTER
EXC. ECE R29<EFE> (A)
8-98021-271-0
13
1
1004-
151
CLIP; METER CLUSTER
(A)
8-98021-271-0
13
1
0906-1003
151
CLIP; METER CLUSTER
ECE R29<EFE> (A)
8-98021-271-0
12
1
1004-
151
CLIP; METER CLUSTER
ECE R29<EFE> (B)
8-98152-030-0
01
1
1004-
151
CLIP; METER CLUSTER
ECE R29<EFE> (C)
8-98152-031-0
01
1
1004-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
0906-
480
COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
0906-
482
SEAL; CLUSTER METER
8-98116-843-0
01
1
0906-
1
2
110
480
480
81
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
8-98064-916-6
01
1
0906-1103
1
METER COMPL; CLUSTER
8-98182-220-1
01
1
1104-
2
PANEL; CLUSTER
8-98054-432-0
01
1
0906-
8
TACHOGRAPH; CLUSTER METER
8-98113-386-0
01
1
0906-1008
8
TACHOGRAPH; CLUSTER METER
8-98178-335-0
01
1
1009-1107
8
TACHOGRAPH; CLUSTER METER
8-98197-456-0
01
1
1108-
81
METER SUB ASM
8-98079-688-0
01
1
0906-1103
81
METER SUB ASM
8-98182-228-0
01
1
1104-
110
GLASS; CLUSTER METER
8-98054-642-0
01
1
0906-
480
COVER; METER
(B) BLACK
8-98054-433-0
01
1
0906-
480
COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION
8-98054-881-0
01
1
0906-
