8-15 — FIXING PARTS; WIRING HARNESS (#62007) — 401 parça

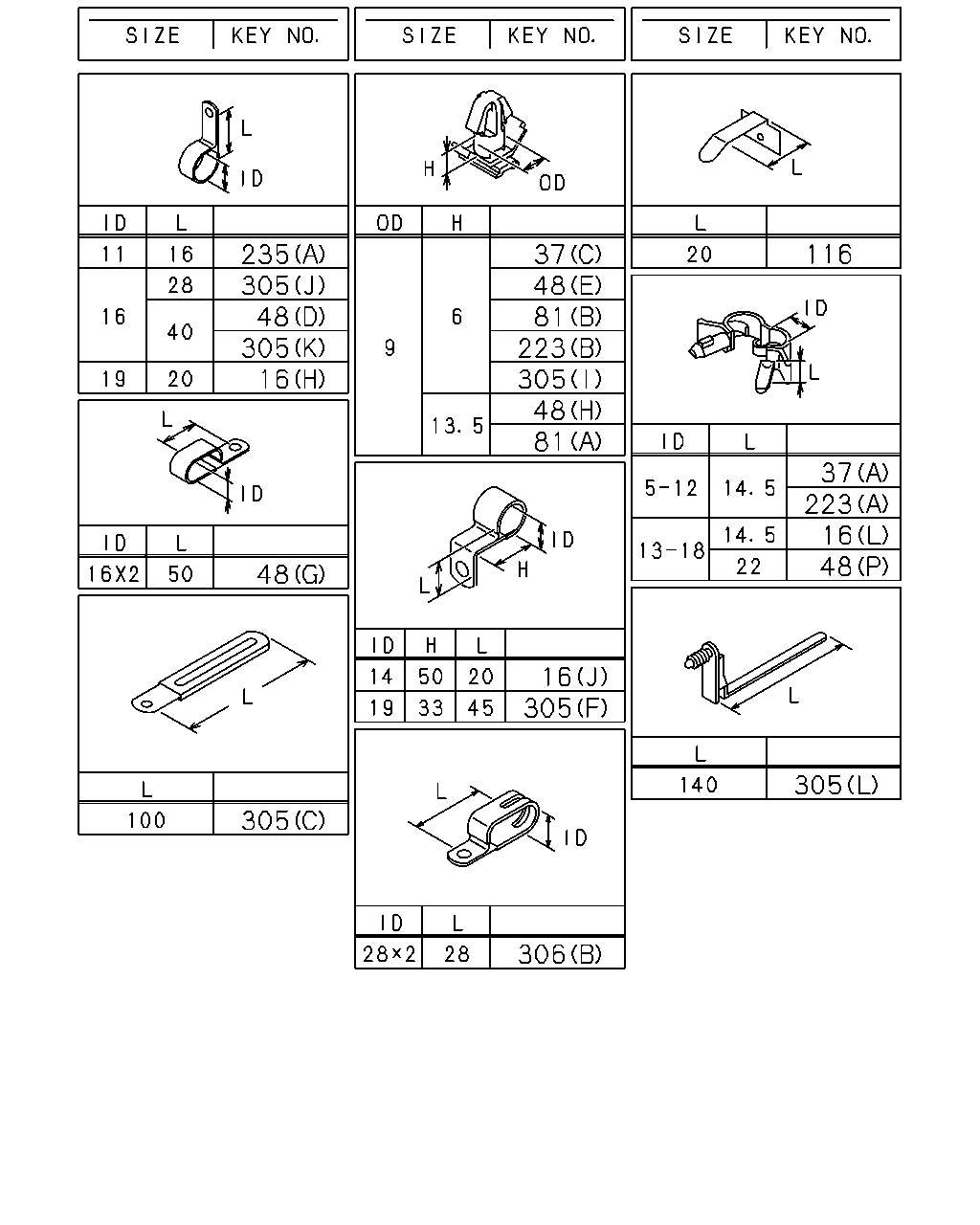

çizim 166200
235 305 48 305 16 37 48 81 223 305 48 81 116 37 223 16 48 48 16 305 305 305 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (M) ID=11 L=41 		1-09700-403-0 03 1 1103-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 02 1 0906-
16 CLIP; HARNESS
(J) ID=14 H=50 L=20 		1-09700-843-0 02 1 0906-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0906-
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0906-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0906-
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0906-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 0906-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0906-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-
37 CLIP; HARNESS,POWER TILT
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0906-
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 0906-
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 0906-
37 CLIP; HARNESS,POWER TILT
(C) OD=9 H=6 		8-97368-793-0 02 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1012-1102
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0906-
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0906-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0906-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0906-
48 CLIP; FRAME HARNESS
(P) ID=13-18 L=22 		1-09709-292-0 01 1 0906-1005
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1006-
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 02 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 09 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (F) L=250 		5-09707-030-1 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 0906-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 0906-1011
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 05 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 13 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 09 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 08 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 06 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 04 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75 		1-09701-275-0 02 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 08 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 07 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 24 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 0906-
81 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (A) OD=9 H=13.5 		1-09709-180-0 01 1 1011-1102
81 CLIP; HARNESS
FULLER FSO5206B OD M/T(Y4V) (B) OD=9 H=6 		1-09709-178-0 01 1 1006-1011
81 CLIP; HARNESS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (B) OD=9 H=6 		1-09709-178-0 01 1 1012-1102
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0906-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0906-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 0906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0906-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0906-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0906-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0906-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906-
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0906-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906-

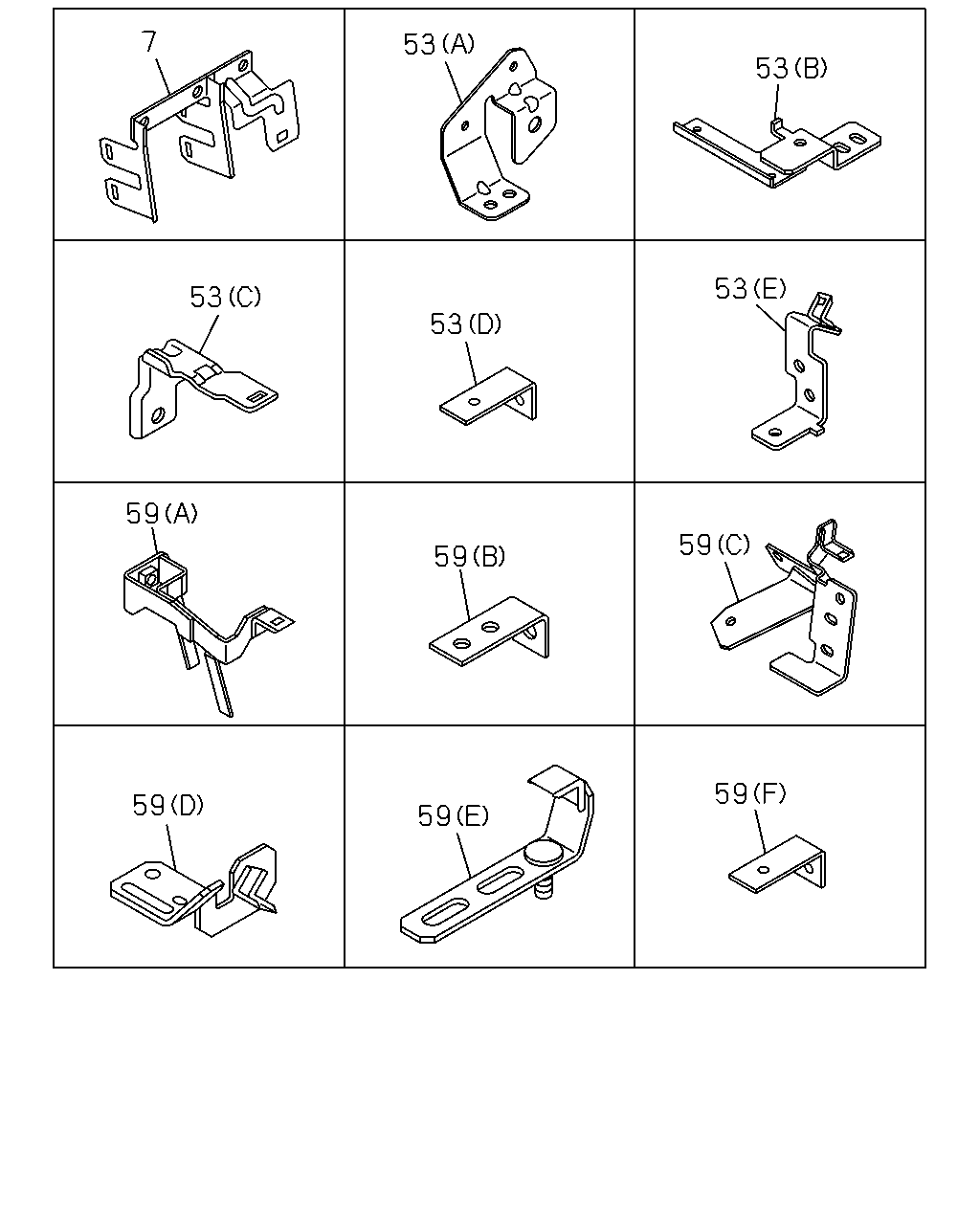

çizim 166203
7 53 53 53 53 53 59 59 59 59 59 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 0906-
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-97620-485-0 01 1 0906-1011
53 BRACKET; HARNESS
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (B) 		8-97620-485-0 01 1 1012-
53 BRACKET; HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (B) 		8-97620-485-0 01 1 1012-
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) 		8-97620-485-0 01 1 1012-
53 BRACKET; HARNESS
(C) 		8-98052-458-0 01 1 0906-
53 BRACKET; HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) 		8-98129-543-0 01 1 0906-1011
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		8-98129-543-0 01 1 0906-1011
53 BRACKET; HARNESS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (E) 		8-98129-543-0 01 1 1012-
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		8-98129-543-0 01 1 1012-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A) 		8-98084-699-0 01 1 0906-
53 BRACKET; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (D) L=95 		1-82699-085-0 04 1 0906-
59 BRACKET; FRAME HARNESS
(F) L=75 		1-47478-323-0 01 1 0906-
59 BRACKET; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) 		8-97609-264-2 01 1 0906-1011
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1012-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0906-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0906-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 0906-
59 BRACKET; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) 		1-21464-170-2 01 1 0906-

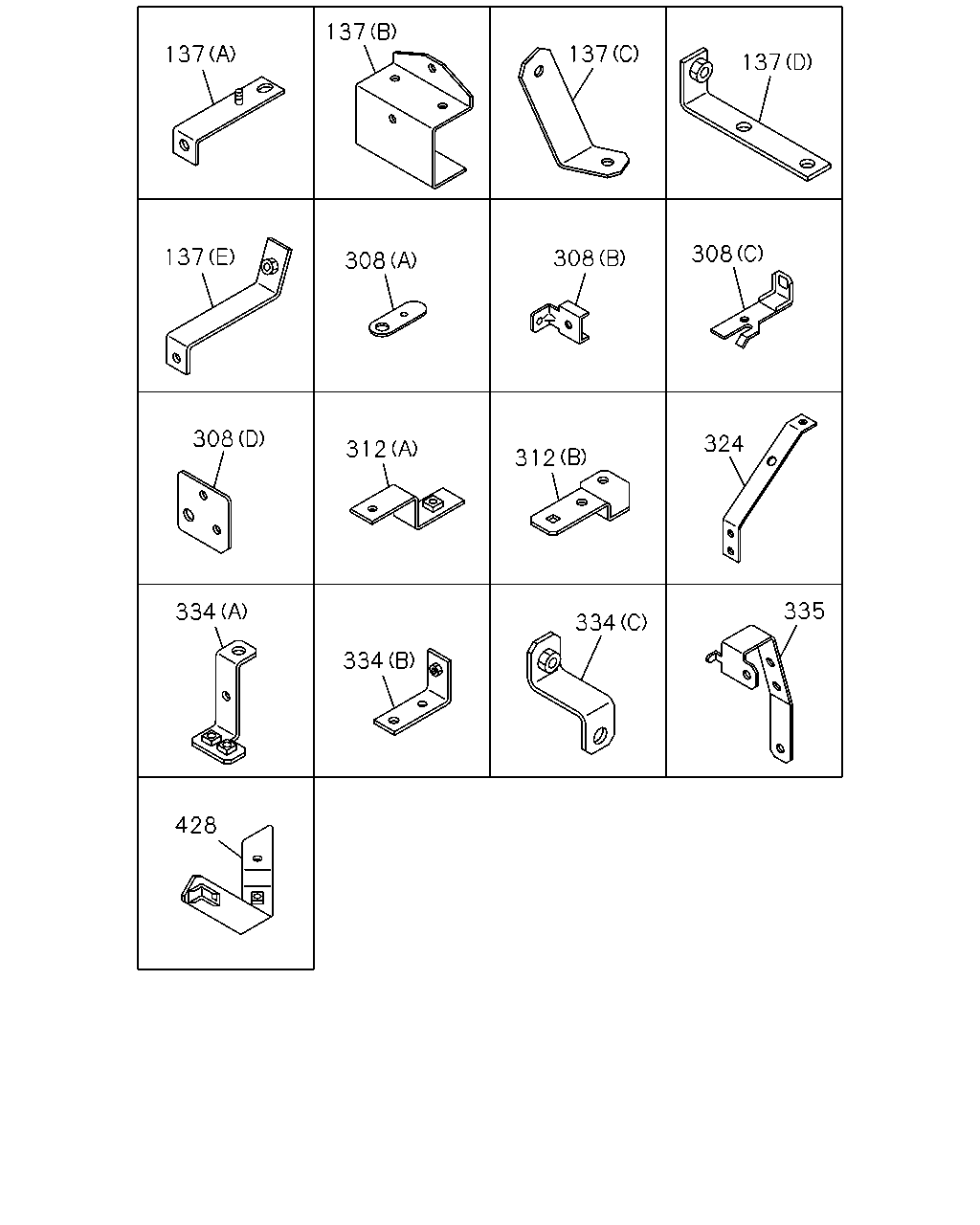

çizim 166216
137 137 137 137 308 137 308 308 308 324 312 335 334 334 334 428 312
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(D) 		1-82698-140-0 01 1 0906-
137 BRACKET; HARNESS CLAMP
(E) 		1-82698-233-0 01 1 0906-
137 BRACKET; HARNESS CLAMP
(B) 		8-97609-797-1 02 1 0906-
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0906-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 0906-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0906-1010
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0906-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0906-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0906-
312 BRACKET; CLIP HARNESS
(A) 		8-97609-110-1 01 1 0906-
312 BRACKET; CLIP HARNESS
(B) 		8-97620-519-0 01 1 0906-
324 BRACKET; CLIP 1-47479-430-0 02 1 0906-
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (C) 		1-47475-868-0 02 1 0906-
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (B) 		1-47477-698-0 02 1 0906-
334 BRACKET
FULLER FSO5206B OD M/T(Y4V) (A) 		1-82699-639-1 01 1 0906-
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0906-
428 BRACKET 8-97620-514-0 01 1 0906-

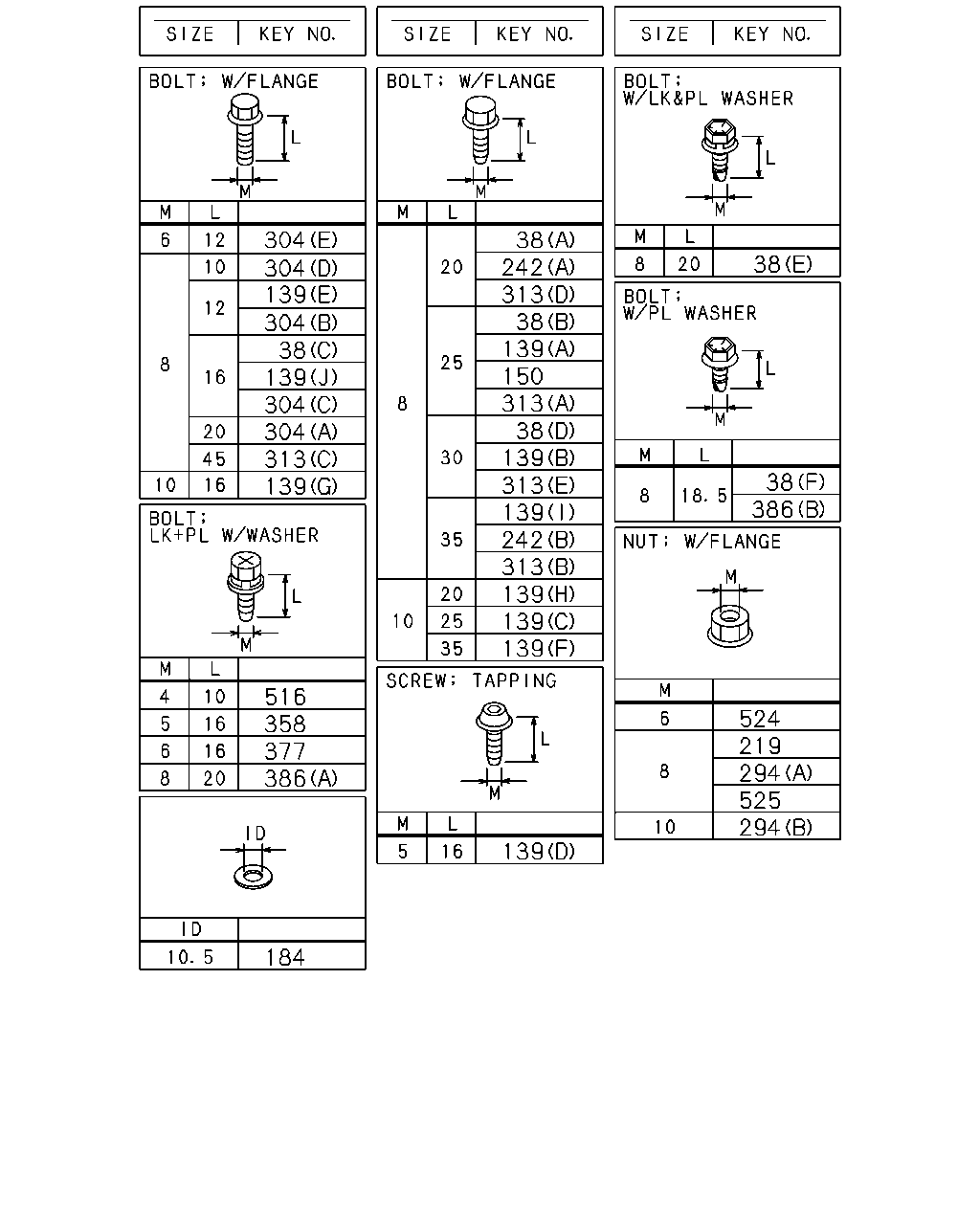

çizim 166220
304 304 139 304 38 139 304 304 313 139 38 242 313 38 139 150 313 38 139 313 139 242 313 139 139 139 38 38 386 516 358 377 386 524 219 294 525 294 139 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0906-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0906-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0906-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0906-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
38 BOLT; CLIP,HARNESS
FULLER FSO5206B OD M/T(Y4V) (C) M8X16 FLANGE 		0-28050-816-0 03 1 0906-
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0906-
139 BOLT; BRKT
(J) M8X16 FLANGE 		0-28050-816-0 02 1 0906-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0906-1004
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 1005-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 05 1 0906-1004
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1005-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1005-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0906-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906-1005
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0906-1005
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 02 1 1006-
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (G) M10X16 FLANGE 		0-28051-016-0 03 1 0906-
139 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V) (H) M10X20 FLANGE 		0-28751-020-0 01 1 0906-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (D) M5X16 TAPPING 		0-72180-516-0 01 1 0906-
139 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (I) M8X35 FLANGE 		0-28650-835-0 01 1 0906-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0906-
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0906-1004
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1005-1005
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 1005-1005
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 1006-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0906-
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE 		0-28650-835-0 01 1 0906-1011
242 BOLT; BRKT,HARNESS
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1012-
242 BOLT; BRKT,HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (B) M8X35 FLANGE 		0-28650-835-0 01 1 1012-
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X35 FLANGE 		0-28650-835-0 01 1 1012-
242 BOLT; BRKT,HARNESS
FULLER FSO5206B OD M/T(Y4V) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1011
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0906-1011
242 BOLT; BRKT,HARNESS
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) M8X20 FLANGE 		0-28650-820-0 01 1 1012-
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE 		0-28650-820-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0906-1004
294 NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE 		0-91180-108-0 01 1 0906-1004
294 NUT
FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 0906-1004
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0906-1004
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1005-1011
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1005-1011
294 NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE 		0-91180-108-0 01 1 1005-1011
294 NUT
FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 1005-1011
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 1005-1011
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) (A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8 FLANGE 		0-91180-108-0 01 1 1012-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906-1004
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906-1004
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1005-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0906-
294 NUT
FULLER FSO5206B OD M/T(Y4V) (B) M10 FLANGE 		0-91180-210-0 01 1 0906-
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE 		0-91180-108-0 04 1 0906-1004
294 NUT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE 		0-91180-108-0 04 1 1005-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 04 1 1005-
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0906-
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0906-1010
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 0906-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0906-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0906-
313 BOLT; BRKT
(C) M8X45 FLANGE 		0-28050-845-0 01 1 0906-
313 BOLT; BRKT
(D) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0906-
313 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) M8X30 FLANGE 		0-28650-830-0 04 1 0906-
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0906-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0906-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0906-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0906-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0906-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0906-

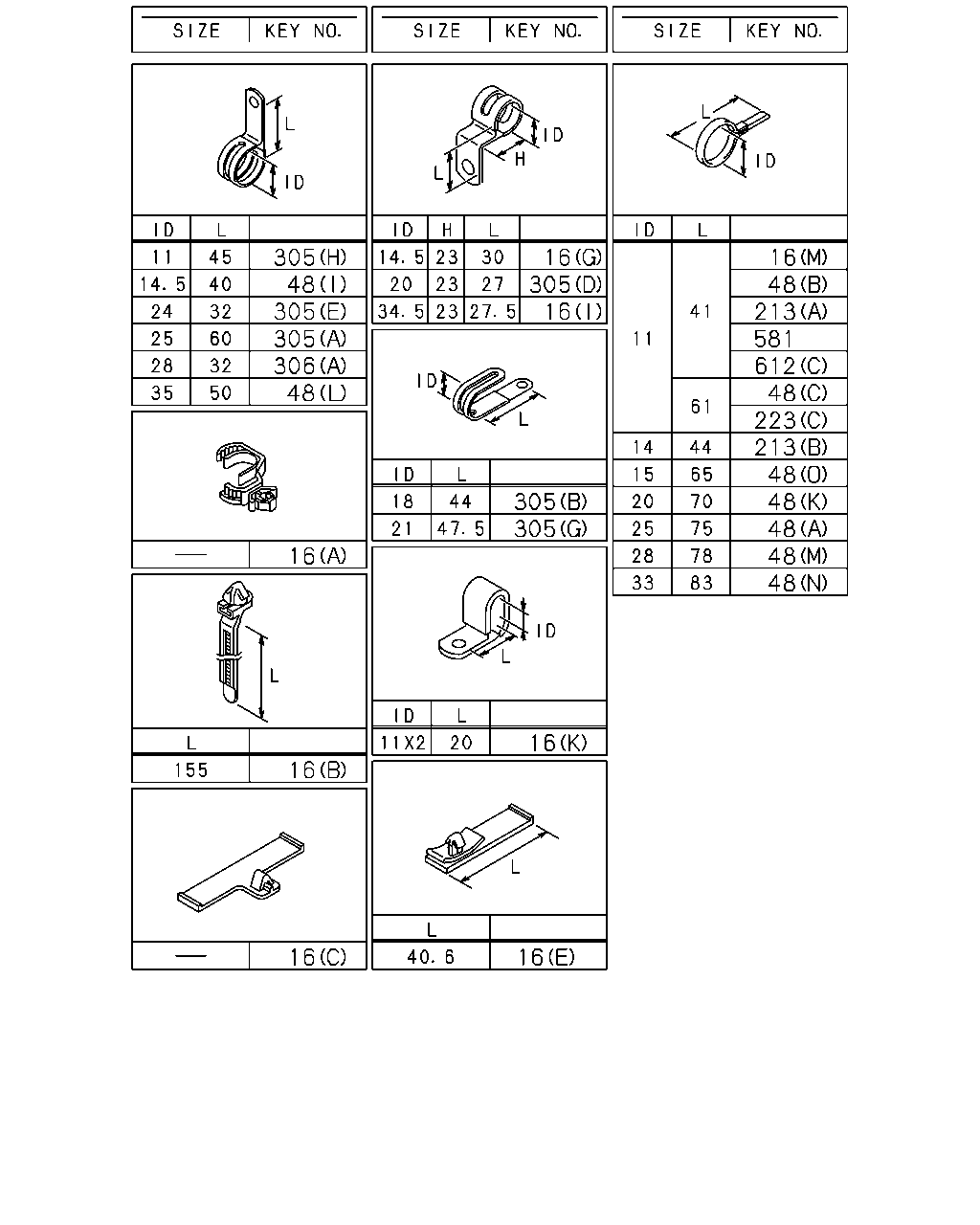

çizim 166236
305 48 305 305 306 48 16 305 16 16 48 213 581 612 48 223 213 48 48 48 48 48 305 305 16 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (M) ID=11 L=41 		1-09700-403-0 03 1 1103-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 02 1 0906-
16 CLIP; HARNESS
(J) ID=14 H=50 L=20 		1-09700-843-0 02 1 0906-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0906-
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0906-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0906-
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0906-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 0906-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0906-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1012-1102
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0906-
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0906-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0906-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0906-
48 CLIP; FRAME HARNESS
(P) ID=13-18 L=22 		1-09709-292-0 01 1 0906-1005
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1006-
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 02 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 09 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (F) L=250 		5-09707-030-1 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 0906-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 0906-1011
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 05 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 13 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 09 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 08 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 06 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 04 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75 		1-09701-275-0 02 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 08 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 07 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 24 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 0906-
213 CLIP; END CROSS HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0906-
213 CLIP; END CROSS HARNESS
(B) ID=14 L=44 		9-09917-427-0 07 1 0906-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0906-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0906-
223 CLIP; AIR TANK HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 0906-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0906-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0906-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 0906-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0906-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0906-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 0906-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 0906-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 0906-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 0906-
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 0906-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0906-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 0906-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0906-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0906-
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ID=11 L=41 		1-09700-403-0 08 1 0906-1102
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 1103-
581 CLIP; HARNESS,REAR SUSP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ID=11 L=41 		1-09700-403-0 11 1 0906-1102
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 07 1 1103-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=41 		1-09700-403-0 02 1 1012-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) L=135 		1-09987-143-1 02 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) L=135 		1-09987-143-1 02 1 1012-
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0906-1008
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41 		1-09700-403-0 01 1 1009-1011
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=41 		1-09700-403-0 01 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41 		1-09700-403-0 01 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) L=135 		1-09987-143-1 02 1 0906-1011
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 1012-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (A) L=135 		1-09987-143-1 01 1 1012-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906-

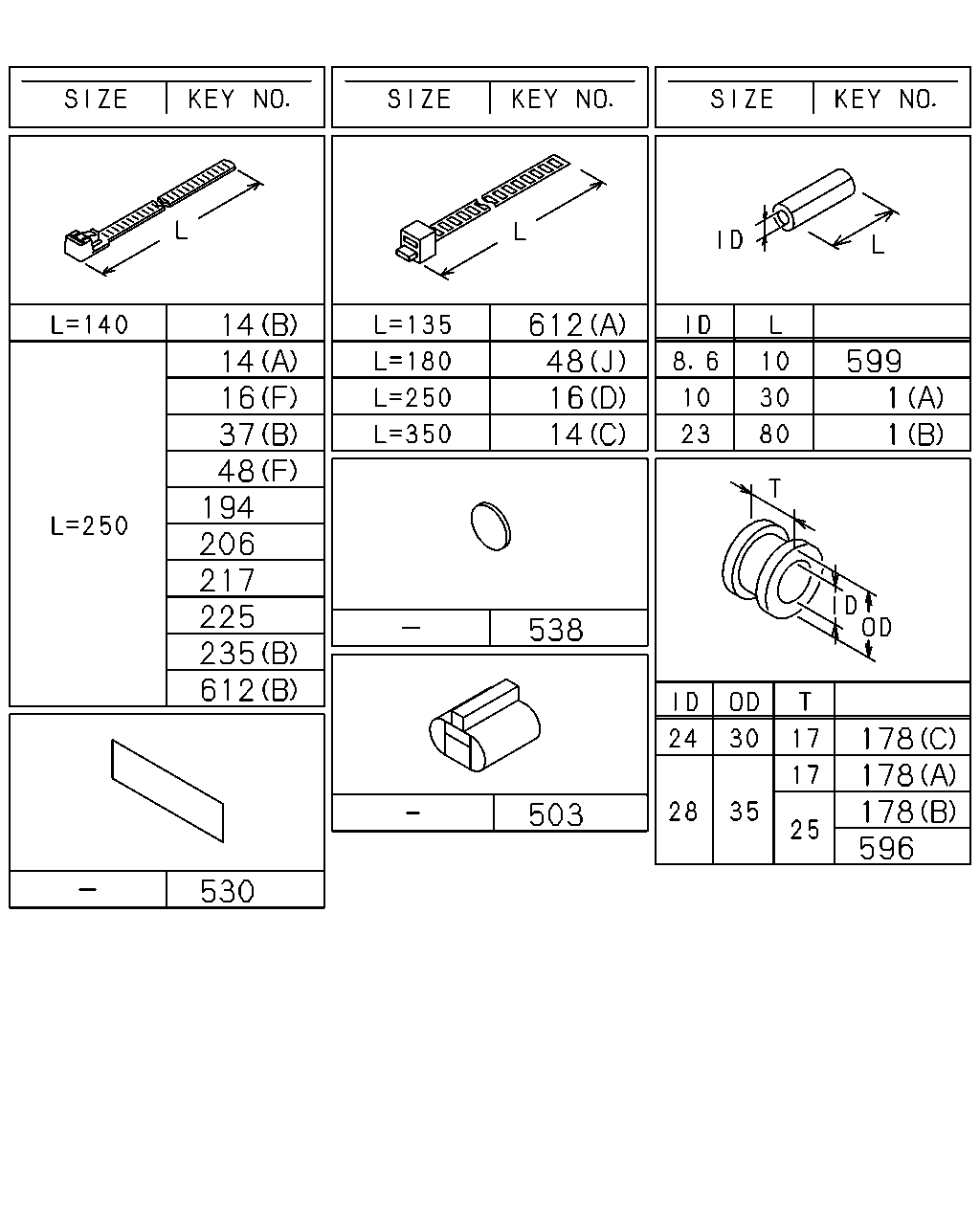

çizim 166242
14 14 16 37 48 194 206 217 225 235 612 612 48 16 14 599 1 1 538 178 178 178 596 503 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0906-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0906-
14 CLIP; BAND,HARNESS
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (A) L=250 		5-09707-030-1 01 1 1012-1112
14 CLIP; BAND,HARNESS
WHEEL BASE 5500MM(55W) (A) L=250 		5-09707-030-1 01 1 1201-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 0906-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 0906-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 30 1 0906-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 0906-1109
16 CLIP; HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (M) ID=11 L=41 		1-09700-403-0 03 1 1103-
16 CLIP; HARNESS
(H) ID=19 L=20 		0-95235-836-0 02 1 0906-
16 CLIP; HARNESS
(J) ID=14 H=50 L=20 		1-09700-843-0 02 1 0906-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0906-
16 CLIP; HARNESS
(K) ID=22X11 L=20 		1-09700-871-0 02 1 0906-
16 CLIP; HARNESS
(I) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 01 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 02 1 0906-
16 CLIP; HARNESS
(D) L=250 		1-09707-126-0 06 1 0906-
16 CLIP; HARNESS
(L) ID=13-18 L=14.5 		1-09709-290-0 02 1 0906-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 0906-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0906-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0906-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 0906-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 0906-
37 CLIP; HARNESS,POWER TILT
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0906-
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 0906-
37 CLIP; HARNESS,POWER TILT
(B) L=250 		5-09707-030-1 01 1 0906-
37 CLIP; HARNESS,POWER TILT
(C) OD=9 H=6 		8-97368-793-0 02 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1012-1102
48 CLIP; FRAME HARNESS
DIFF LOCK<C3N> (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 1103-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 0906-
48 CLIP; FRAME HARNESS
(M) ID=28 L=78 		1-09700-858-0 02 1 0906-
48 CLIP; FRAME HARNESS
(L) ID=35 L=50 		1-09701-214-0 01 1 0906-
48 CLIP; FRAME HARNESS
(N) ID=33 L=83 		1-09701-291-0 03 1 0906-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 0906-
48 CLIP; FRAME HARNESS
(P) ID=13-18 L=22 		1-09709-292-0 01 1 0906-1005
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W),WHEEL BASE 5500MM(55W), WHEELBASE 6000MM(60W) (P) ID=13-18 L=22 		1-09709-292-0 01 1 1006-
48 CLIP; FRAME HARNESS
(F) L=250 		5-09707-030-1 02 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (D) ID=16 L=40 		0-95235-576-0 03 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (J) L=180 		1-09707-162-1 01 1 0906-
48 CLIP; FRAME HARNESS
FULLER FSO5206B OD M/T(Y4V) (E) OD=9 H=6 		1-09709-178-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 09 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (F) L=250 		5-09707-030-1 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) ID=11 L=41 		1-09700-403-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (O) ID=15 L=65 		1-09700-466-0 01 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 01 1 0906-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 0906-1011
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 03 1 1012-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W) VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61 		1-09700-484-0 02 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 05 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 4600MM(46W) (K) ID=20 L=70 		1-09700-485-0 13 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 09 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (C) ID=11 L=61 		1-09700-484-0 08 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 21 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (O) ID=15 L=65 		1-09700-466-0 06 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 04 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=25 L=75 		1-09701-275-0 02 1 0906-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 08 1 0906-1102
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (C) ID=11 L=61 		1-09700-484-0 07 1 1103-
48 CLIP; FRAME HARNESS
WHEEL BASE 6000MM(60W) (K) ID=20 L=70 		1-09700-485-0 24 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 0906-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 0906-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 1008-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0906-0907
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0908-1007
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0908-1007
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0908-1007
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1008-
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0906-0907
178 GROMMET; HARNESS
WHEEL BASE 5500MM(55W) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0906-
178 GROMMET; HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) (C) ID=24 OD=30 T=17 		9-09956-092-1 02 1 0906-
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0906-
194 CLIP; BAND
L=250 		5-09707-030-1 03 1 0906-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0906-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0906-1012
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1101-
217 CLIP; RR BODY HARNESS
EXC. REVERSING WARNING BUZZER<YM9> L=250 		5-09707-030-1 01 1 0906-
225 CLIP; AIR TANK HARNESS
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=250 		5-09707-030-1 06 1 0906-
225 CLIP; AIR TANK HARNESS
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=250 		5-09707-030-1 01 1 0906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=11 L=16 		0-95235-025-0 02 1 0906-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0906-
503 CONNECTOR
HEATER & DEFROSTER(C41) 		1-82690-668-0 01 1 0906-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0906-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0906-1305
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0906-
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0906-1011
596 GROMMET
MZW6P M/T(RSZ) VIN MODEL YEAR 2011<VZB> ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-1012
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-1012
596 GROMMET
6HK1-TCC ENG(81L) MZW6P M/T(RSZ) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-
596 GROMMET
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) ID=28 OD=35 T=25 		1-09332-011-1 01 1 1012-
599 TUBE; DISTANCE
ID=8.5 L=10 		5-13642-077-0 04 1 0906-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) ID=11 L=41 		1-09700-403-0 02 1 1012-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W) (C) L=135 		1-09987-143-1 02 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) L=135 		1-09987-143-1 02 1 1012-
612 CLIP; HARNESS DPD
(C) ID=11 L=41 		1-09700-403-0 01 1 0906-1008
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41 		1-09700-403-0 01 1 1009-1011
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) ID=11 L=41 		1-09700-403-0 01 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) ID=11 L=41 		1-09700-403-0 01 1 1012-
612 CLIP; HARNESS DPD
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) L=135 		1-09987-143-1 02 1 0906-1011
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) (A) L=135 		1-09987-143-1 01 1 1012-
612 CLIP; HARNESS DPD
MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W), WHEELBASE 6000MM(60W) VIN MODEL YEAR 2011<VZB> (A) L=135 		1-09987-143-1 01 1 1012-
612 CLIP; HARNESS DPD
(B) L=250 		5-09707-030-1 01 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
