Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#62006) — 304 parça

1 2 2 314 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-068-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-068-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-069-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-069-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-108-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-108-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-109-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-109-0	01	1	1204-
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-081-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-876-0	01	1	1110-1203
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-080-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-875-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-086-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-086-4	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-085-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-085-4	01	1	1110-1203
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0906-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	01	1	0906-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0906-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-

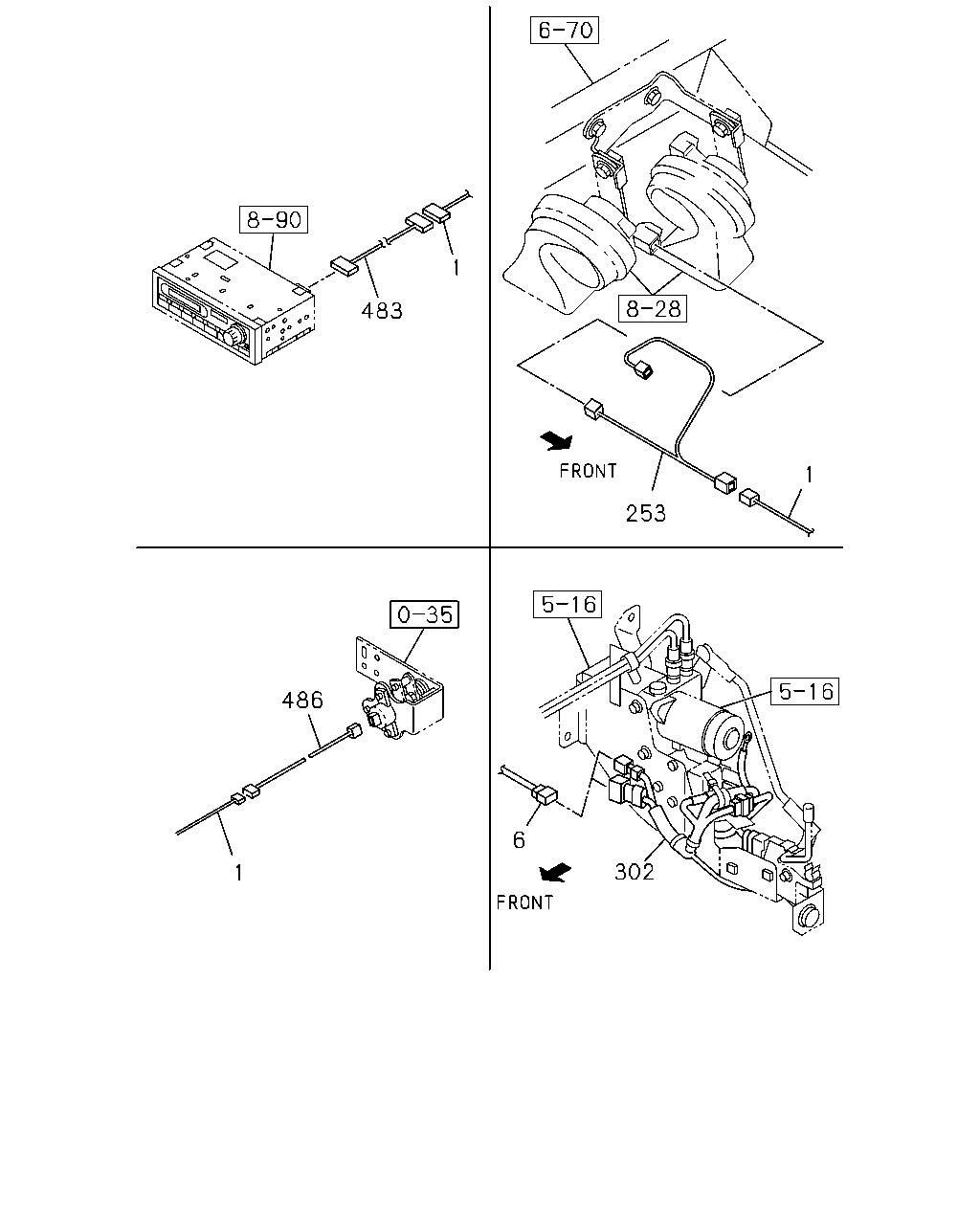

1 483 1 253 486 6 302 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-068-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-068-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-069-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-069-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-108-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-108-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-109-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-109-0	01	1	1204-
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-081-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-876-0	01	1	1110-1203
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-080-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-875-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-086-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-086-4	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-085-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-085-4	01	1	1110-1203
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0906-
302	HARNESS; POWER CAB TILT	8-97620-490-1	01	1	0906-
483	HARNESS; EXT,RADIO	8-98116-875-0	01	1	0906-
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	0906-1011
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1012-

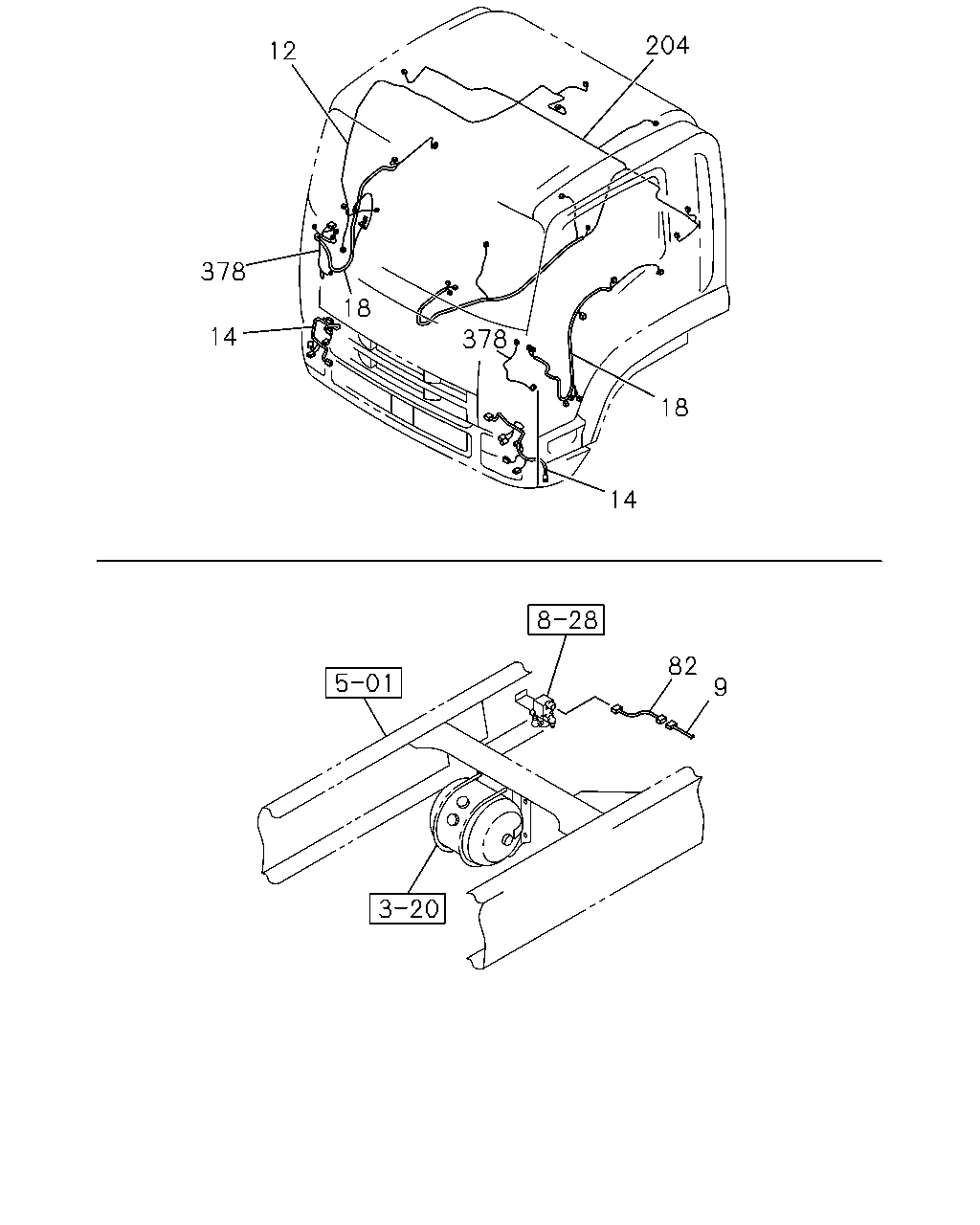

204 12 378 18 14 378 18 14 82 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1012-1112
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1201-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W)	8-98120-245-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98120-246-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	0906-1010
9	HARNESS; FRAME,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	1011-1112
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98120-249-4	01	1	0906-
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98079-074-2	01	1	0906-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98085-336-1	01	1	0906-
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	0906-1306
14	HARNESS; HEADLAMP	8-94270-986-0	02	1	1307-
18	HARNESS; DOOR	8-98080-127-3	01	1	0906-1202
18	HARNESS; DOOR	8-98080-127-3	01	1	1203-
18	HARNESS; DOOR	8-98080-128-3	01	1	0906-1202
18	HARNESS; DOOR	8-98080-128-3	01	1	1203-
82	HARNESS; DIFF LOCK DIFF LOCK<C3N>	8-98122-238-0	01	1	0906-
204	HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5)	8-98085-307-1	01	1	1008-1008
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5)	8-98085-309-2	01	1	0906-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3)	8-98085-308-1	01	1	0906-
378	HARNESS; EXT,MIRROR	8-98056-541-0	02	1	0906-1009
378	HARNESS; EXT,MIRROR	8-98125-653-0	02	1	1010-

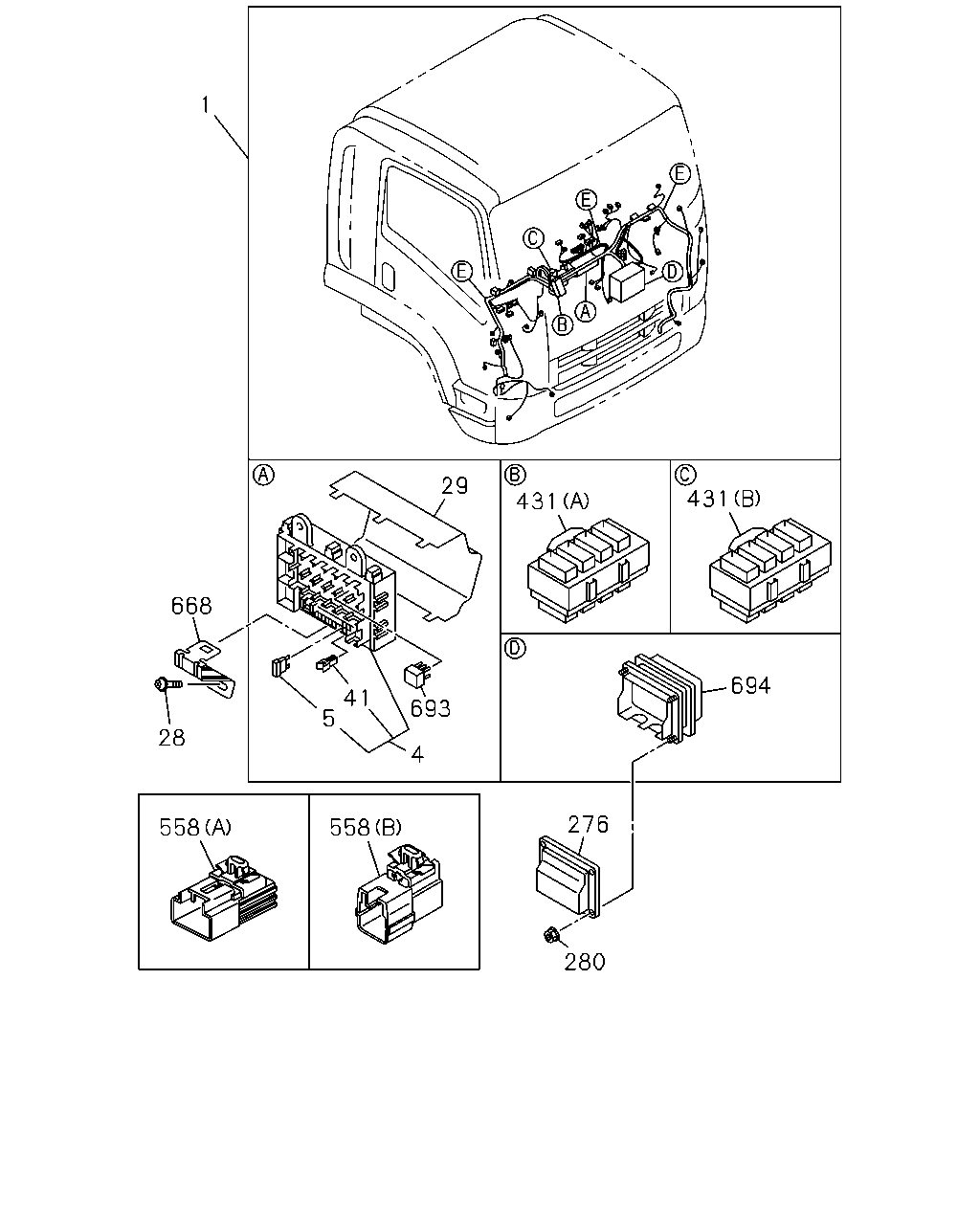

1 431 431 29 668 694 41 5 693 28 4 276 558 558 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-068-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-068-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-069-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-069-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-108-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-108-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-109-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-109-0	01	1	1204-
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-081-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-876-0	01	1	1110-1203
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-080-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-875-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-086-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-086-4	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-085-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-085-4	01	1	1110-1203

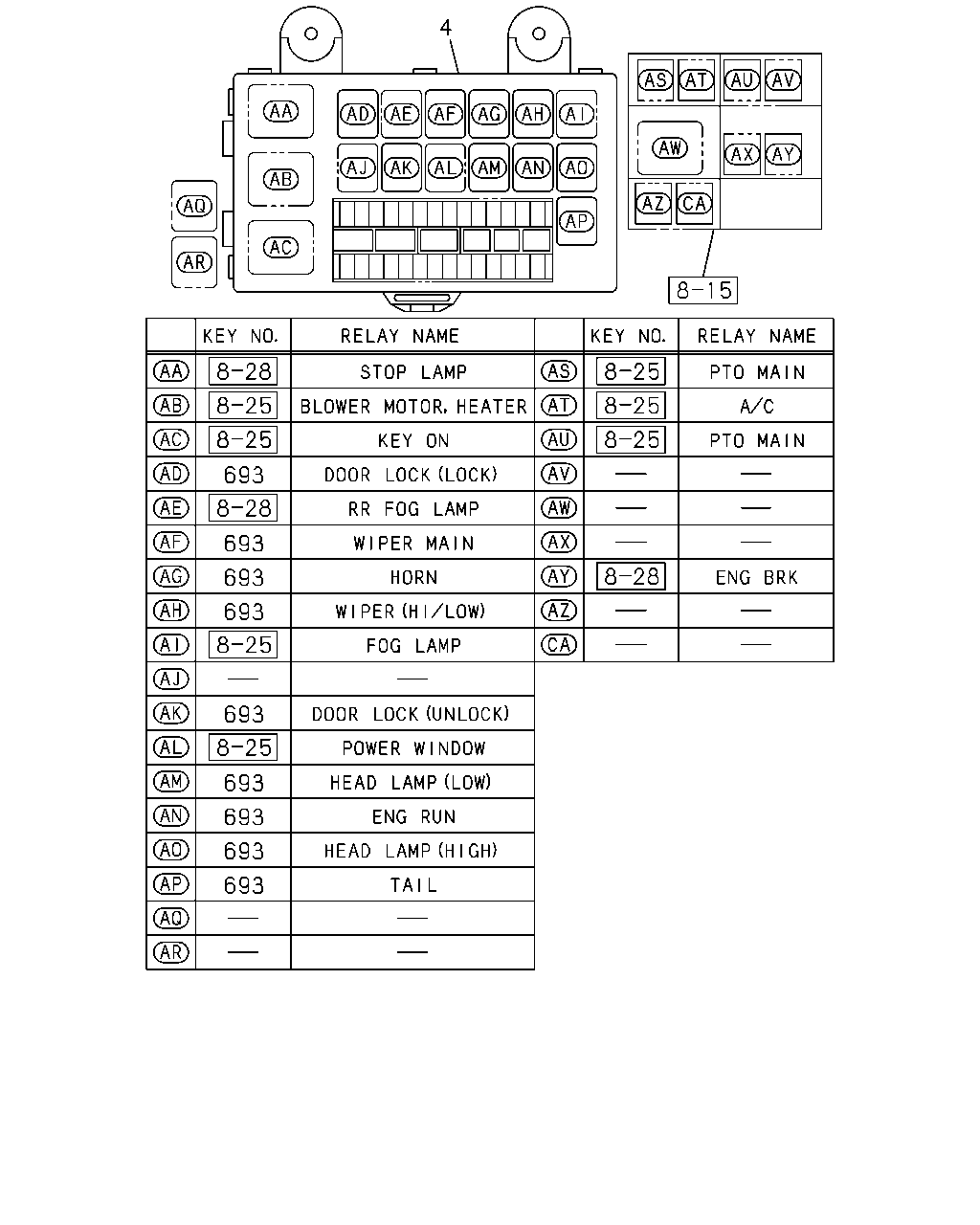

4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0906-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0906-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0906-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	0906-
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	0906-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0906-
41	PULLER; FUSE	8-98054-260-0	01	1	0906-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0906-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0906-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (A)	8-98108-678-0	01	1	0906-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B)	8-98108-679-0	01	1	0906-
668	BRACKET; HARNESS	8-98095-653-2	01	1	0906-
693	RELAY; FUSE BOX 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0906-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	0906-

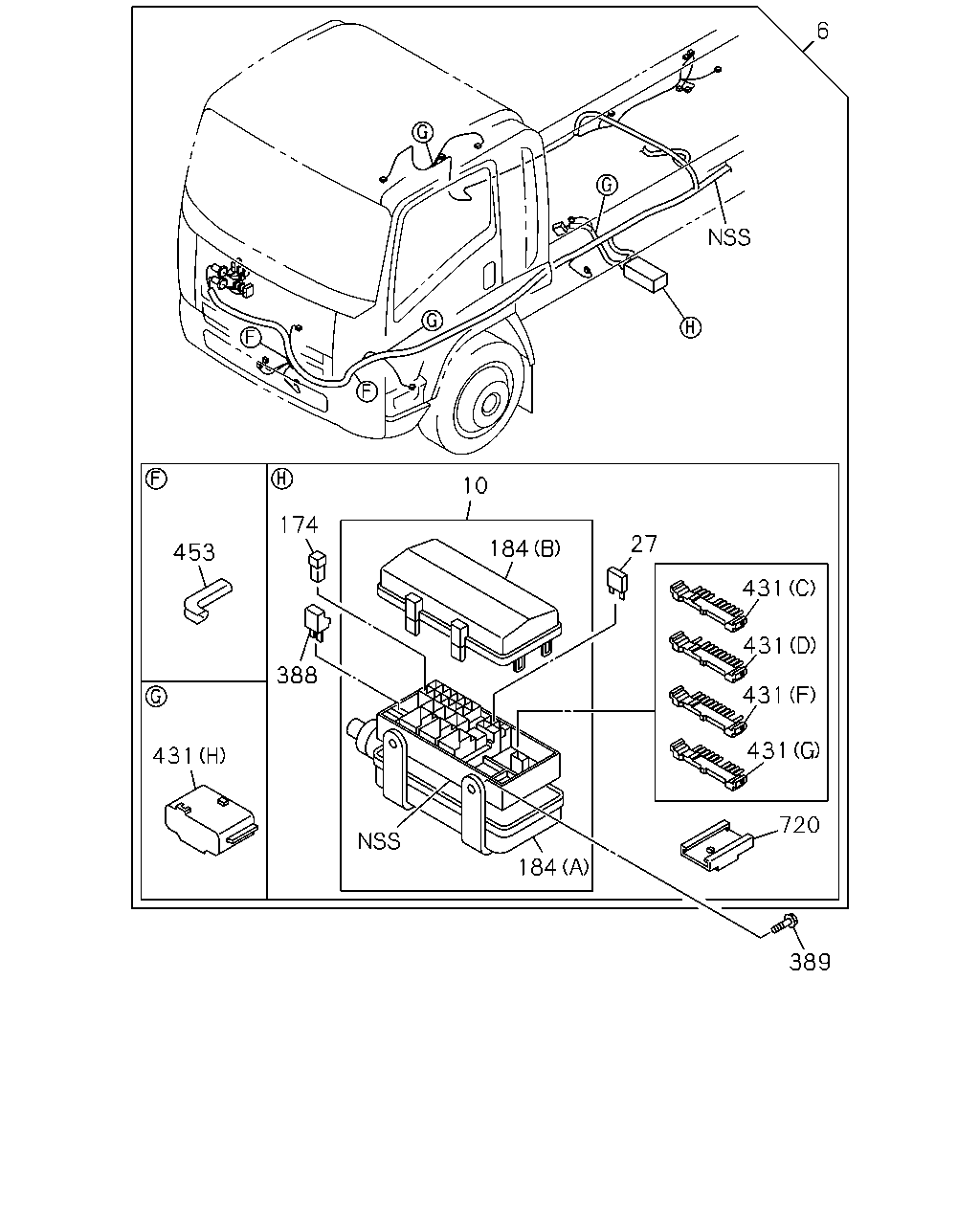

6 10 174 27 184 453 431 431 388 431 431 431 720 184 389

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0906-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0906-
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	0906-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	0906-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0906-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0906-1106
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0906-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-0	01	1	0906-
388	DIODE; RELAY BOX BLACK 4P-1.5A	8-94381-730-0	02	1	0906-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0906-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0906-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0906-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	0906-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	09	1	0906-
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	01	1	0906-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0906-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0906-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0906-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0906-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	0906-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0906-

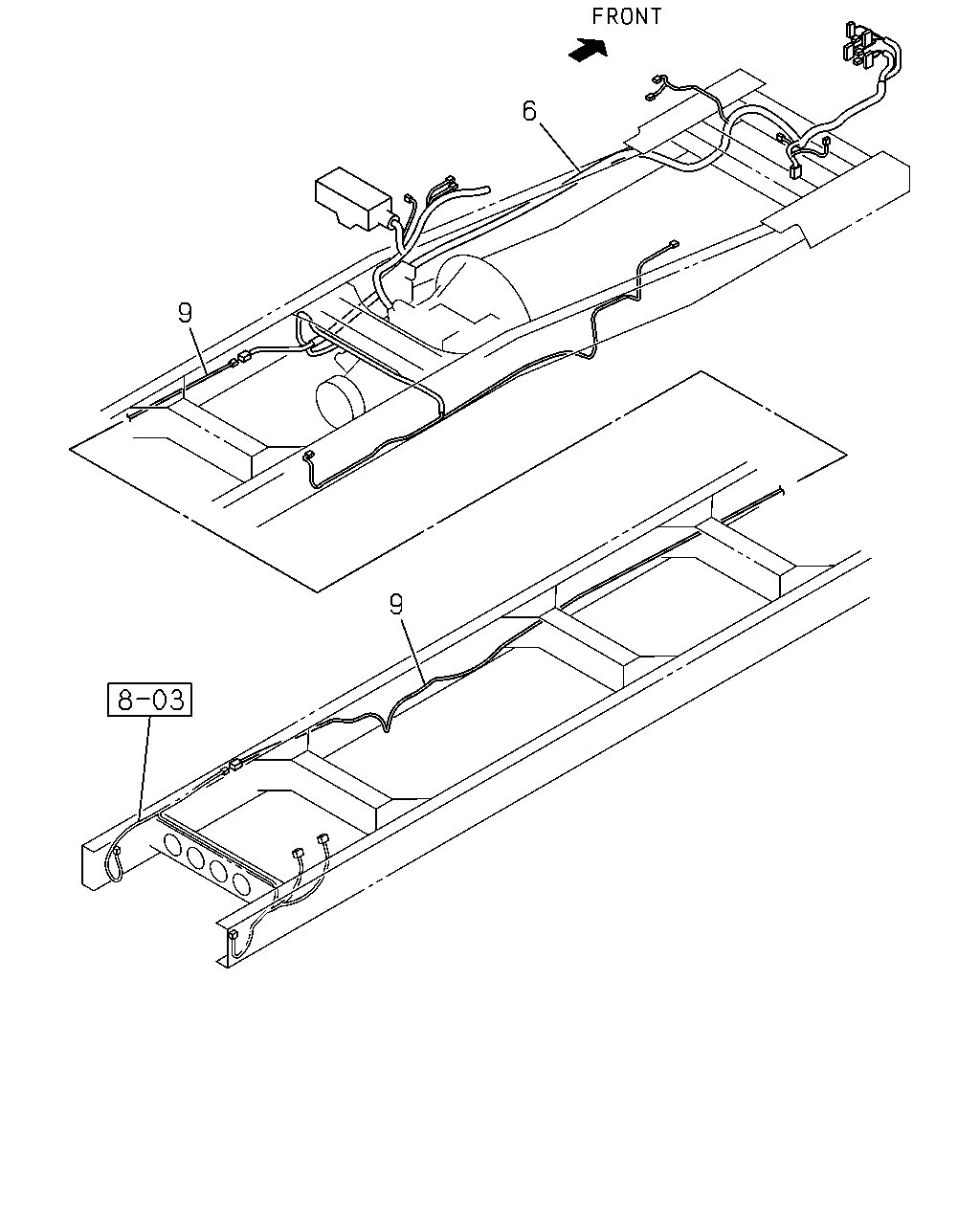

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
9	HARNESS; FRAME,RR MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1012-1112
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1201-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W)	8-98120-245-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98120-246-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	0906-1010
9	HARNESS; FRAME,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	1011-1112
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98120-249-4	01	1	0906-

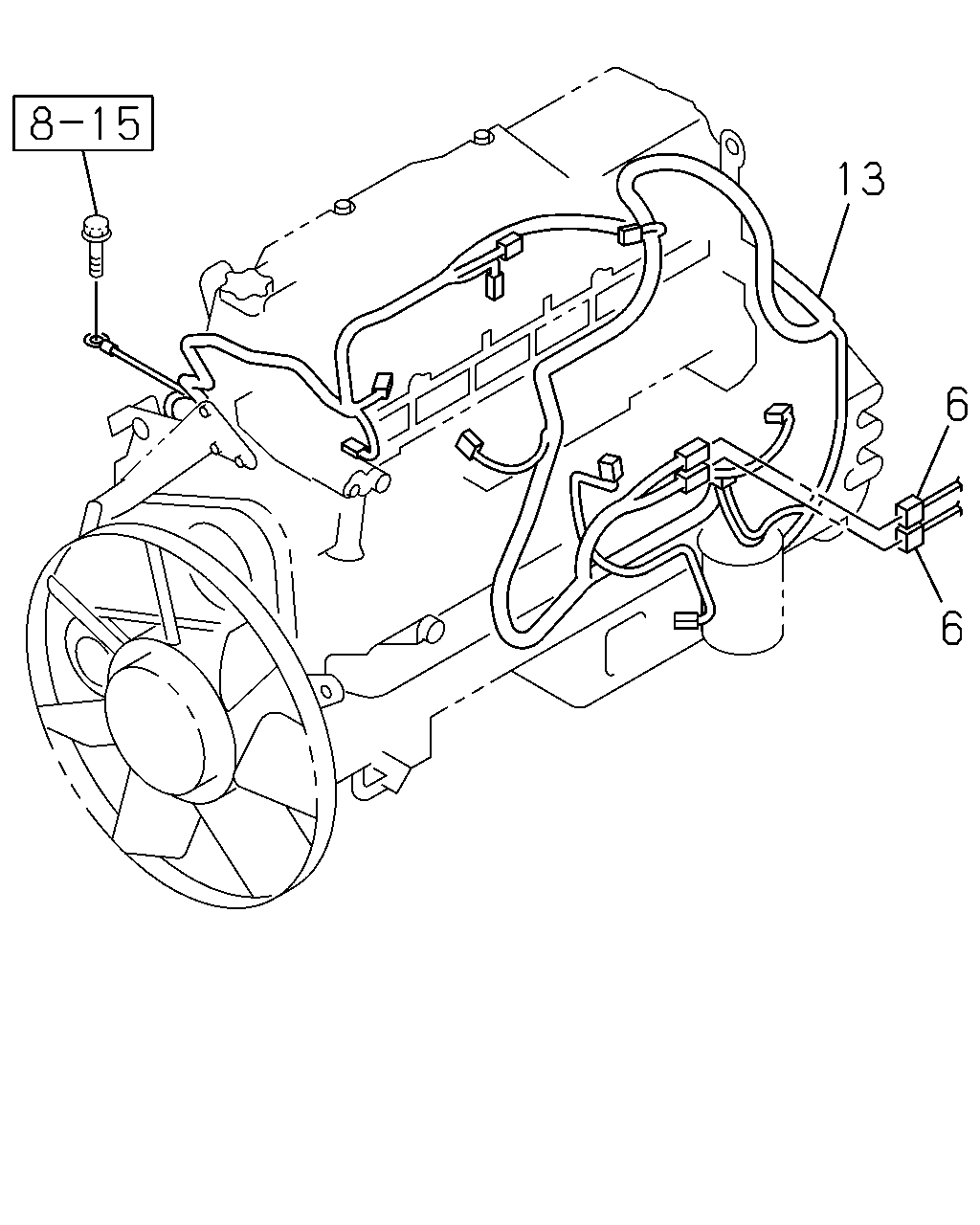

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98088-068-1	01	1	0906-1010
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98177-208-1	01	1	1011-
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98088-069-1	01	1	0906-1010
13	HARNESS; ENG GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)	8-98177-209-1	01	1	1011-

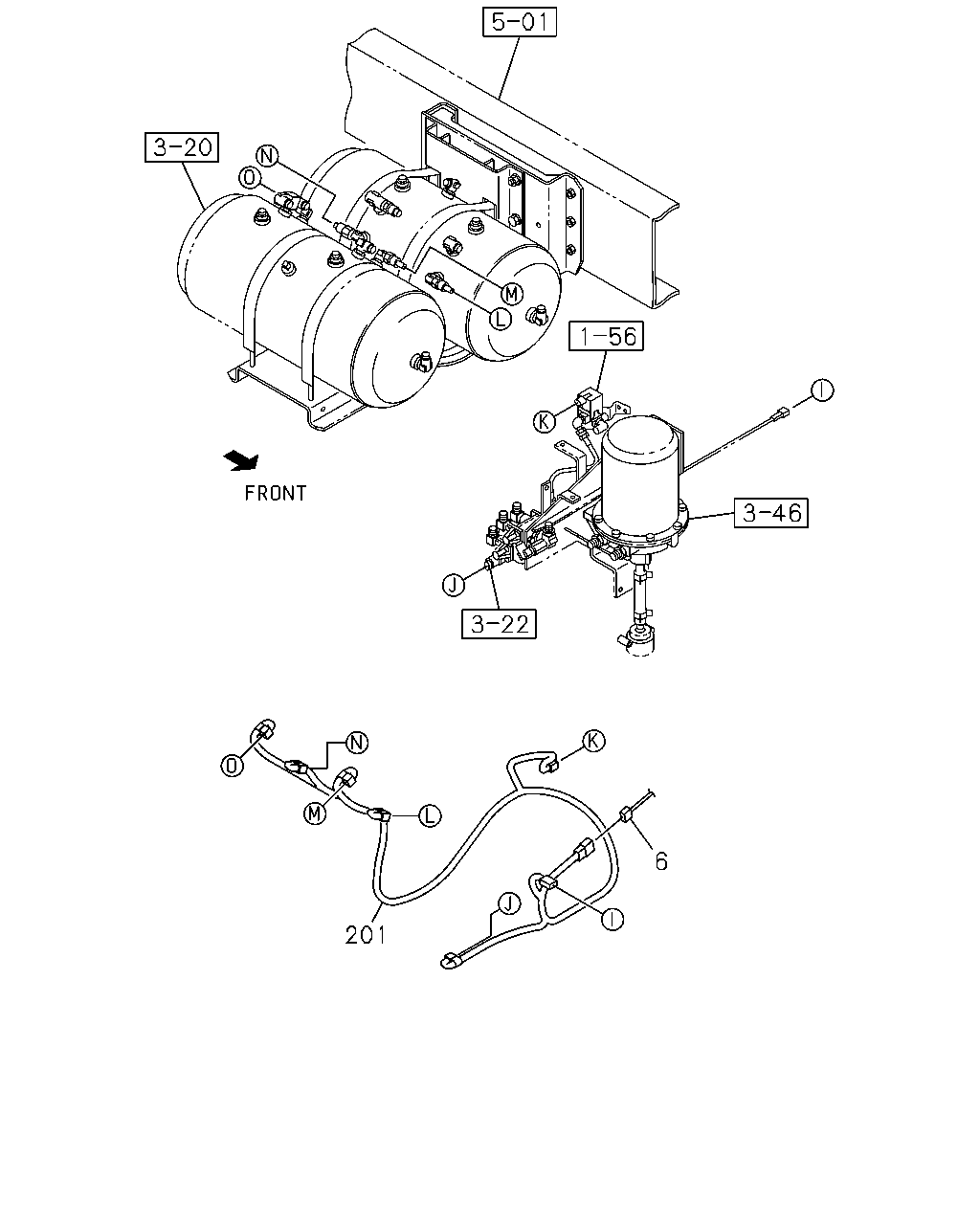

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
201	HARNESS; AIR TANK WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98069-170-1	01	1	0906-

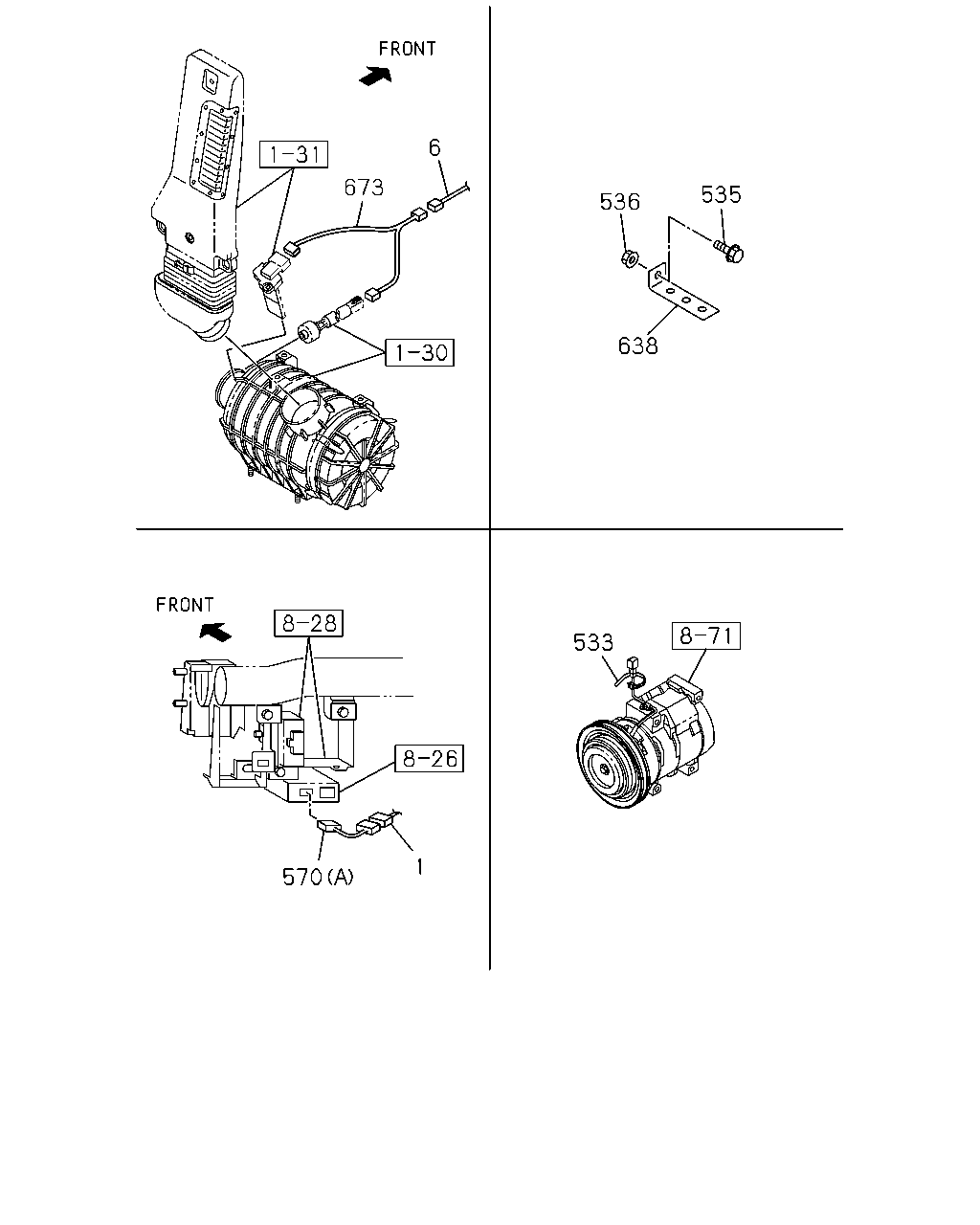

6 673 535 536 638 533 1 570

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-068-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-068-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-069-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-069-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-108-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-108-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-109-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-109-0	01	1	1204-
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-081-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-876-0	01	1	1110-1203
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-080-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-875-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-086-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-086-4	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-085-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-085-4	01	1	1110-1203
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
533	CLIP L=180	1-09707-162-1	01	1	0906-1206
533	CLIP AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1207-
535	BOLT; BRKT FIX M8X35 FLANGE	0-28650-835-0	01	1	0906-
536	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	01	1	0906-
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) (A)	8-98058-327-1	01	1	1012-1109
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	0906-1009
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	1010-1109
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (A)	8-98091-562-0	01	1	1010-1109
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	1110-
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (C)	8-98123-975-0	01	1	0906-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	1-82659-230-0	01	1	0906-1004
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1005-
638	BRACKET; SPD SENSOR	1-82698-167-0	01	1	0906-
673	HARNESS; EXT,SENSOR	8-98130-430-1	01	1	0906-

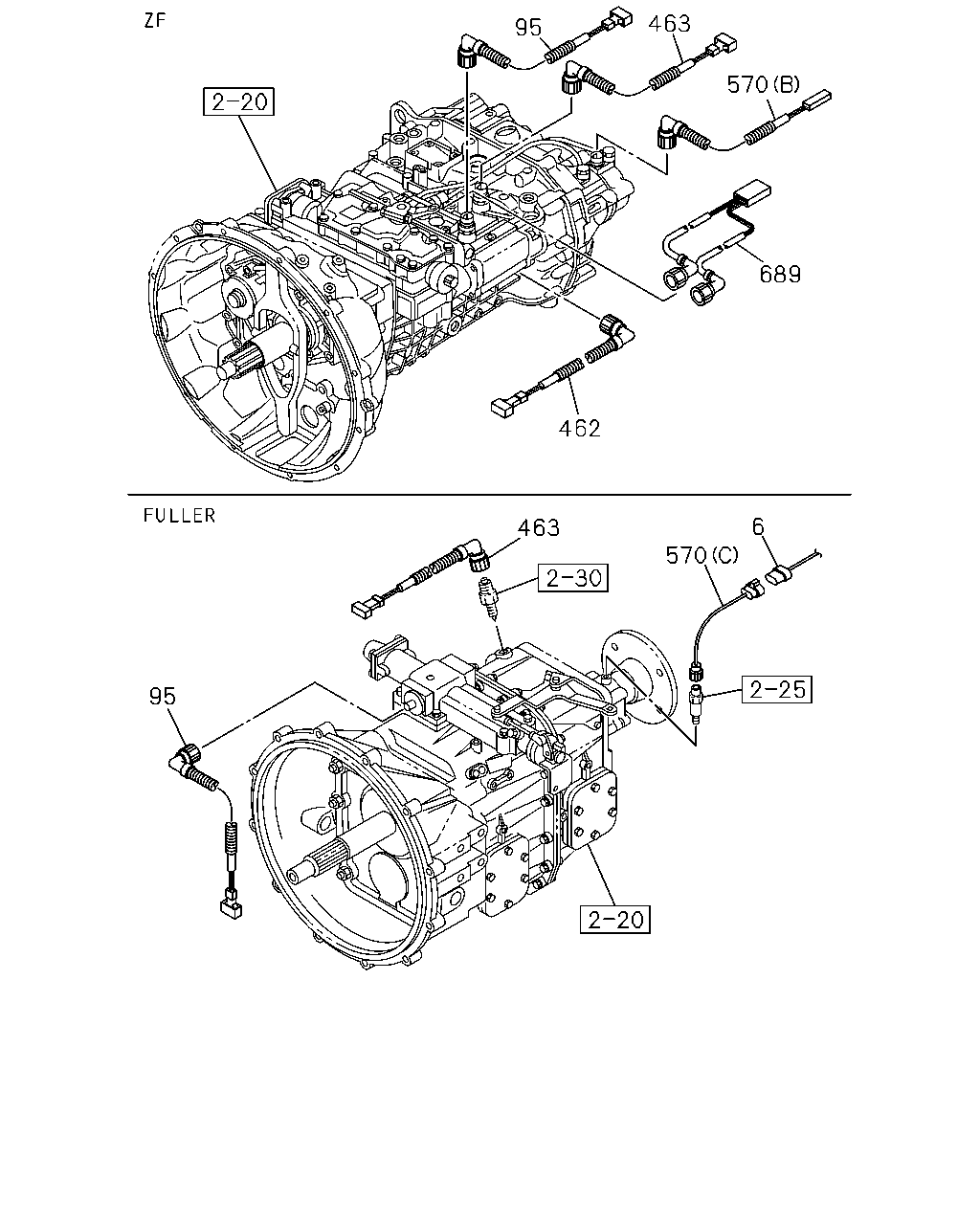

463 95 570 689 462 6 463 570 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
95	HARNESS; NEUTRAL SW FULLER FSO5206B OD M/T(Y4V)	1-82676-207-0	01	1	0906-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) RED	8-98145-854-0	01	1	0906-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	0906-
463	HARNESS; SW,BACK UP FULLER FSO5206B OD M/T(Y4V)	1-82676-207-0	01	1	0906-
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	0906-
570	HARNESS; SPEED SENSOR MZW6P M/T(RSZ) (A)	8-98058-327-1	01	1	1012-1109
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	0906-1009
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	1010-1109
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (A)	8-98091-562-0	01	1	1010-1109
570	HARNESS; SPEED SENSOR (A)	8-98091-562-0	01	1	1110-
570	HARNESS; SPEED SENSOR FULLER FSO5206B OD M/T(Y4V) (C)	8-98123-975-0	01	1	0906-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	1-82659-230-0	01	1	0906-1004
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1005-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E)	1-82659-229-1	01	1	0906-1101
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E)	8-98148-603-0	01	1	1102-

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0906-
	693	RELAY; FUSE BOX 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0906-

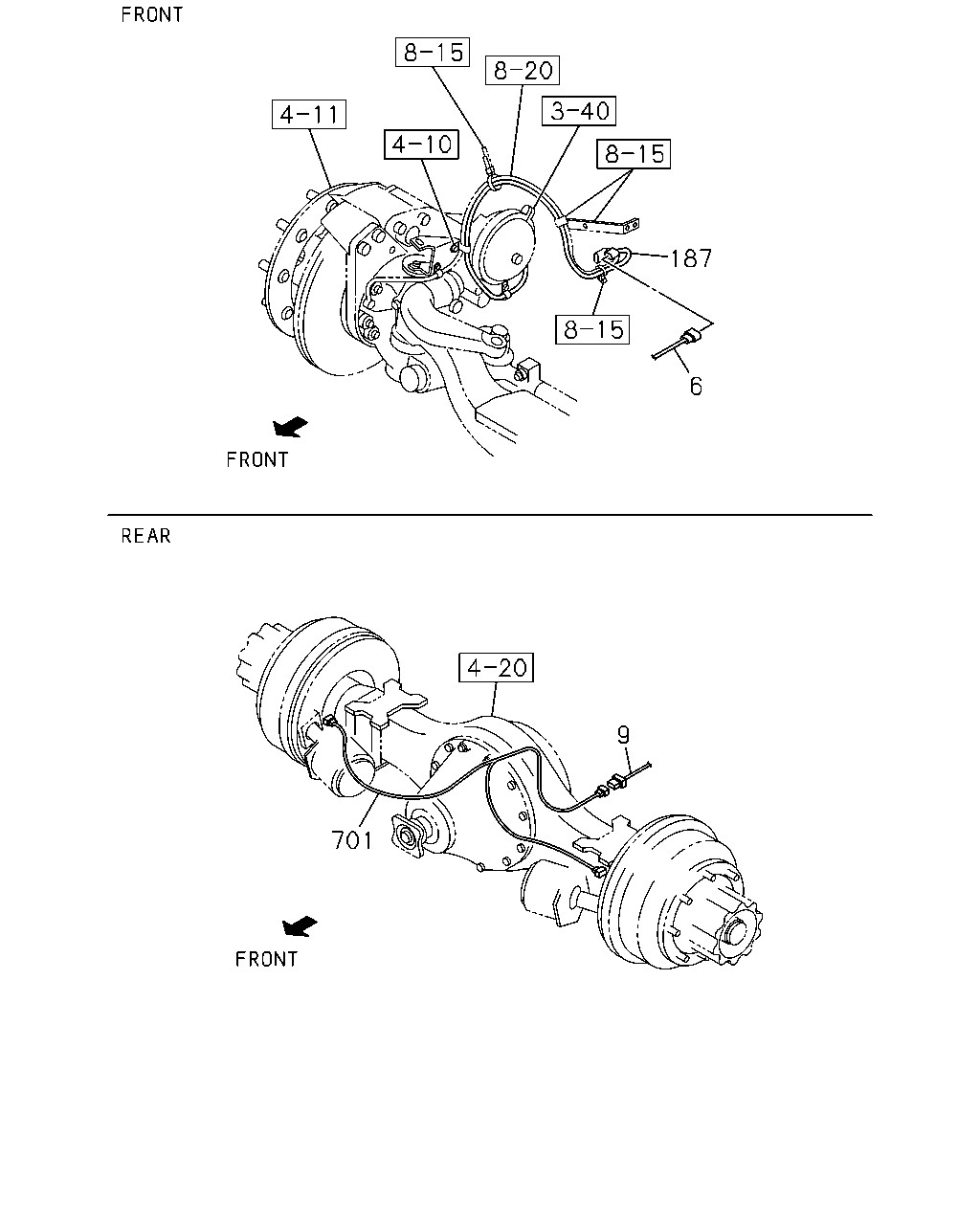

187 6 9 701

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
9	HARNESS; FRAME,RR MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1012-1112
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98183-682-0	01	1	1201-
9	HARNESS; FRAME,RR WHEEL BASE 3900MM(39W)	8-98120-245-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 4600MM(46W)	8-98120-246-4	01	1	0906-
9	HARNESS; FRAME,RR WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	0906-1010
9	HARNESS; FRAME,RR FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W)	8-98120-248-4	01	1	1011-1112
9	HARNESS; FRAME,RR WHEEL BASE 6000MM(60W)	8-98120-249-4	01	1	0906-
187	HARNESS; AXLE	8-98091-216-0	02	1	0906-
701	HARNESS; RR AXLE	8-98118-498-0	01	1	0906-

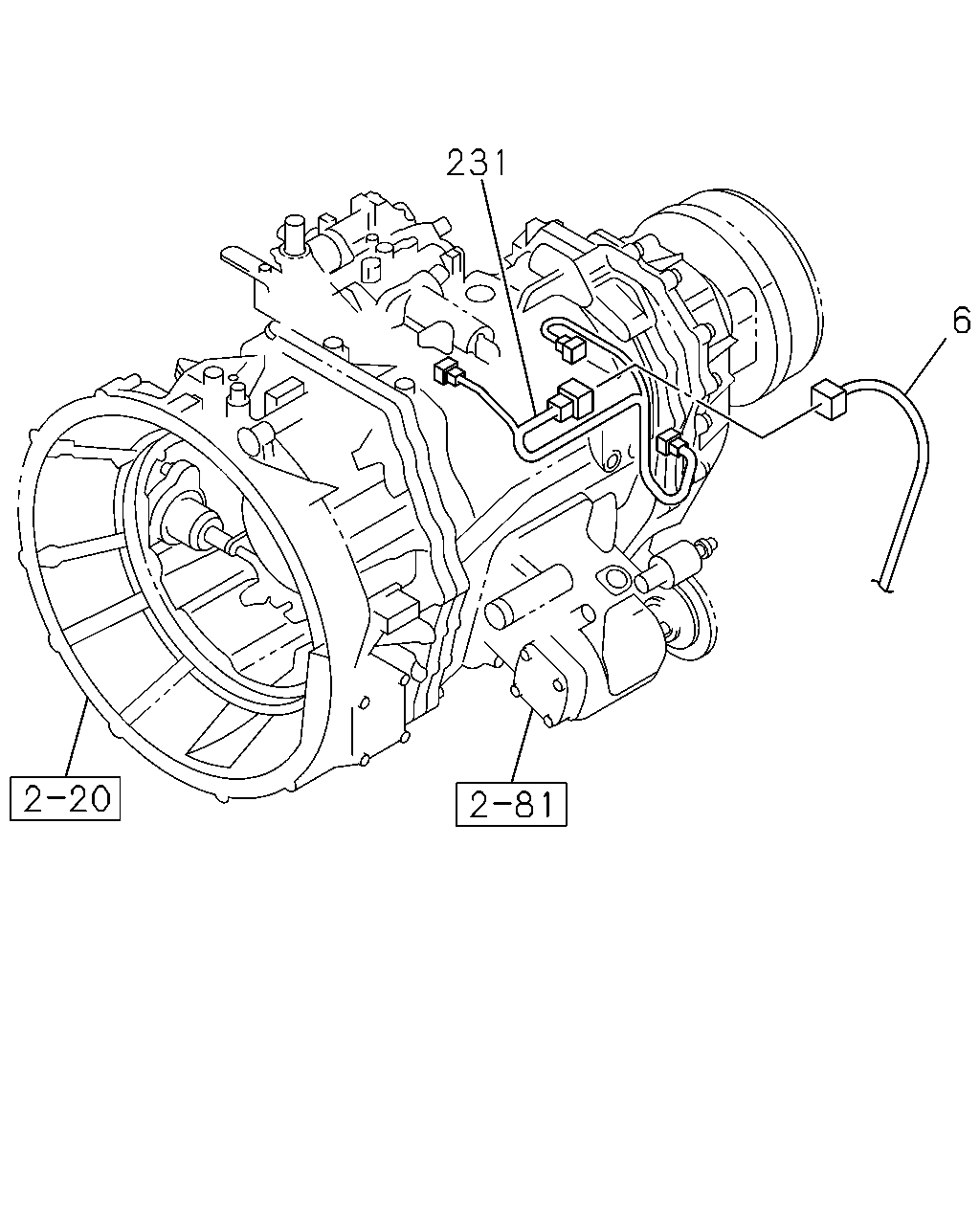

231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 3900MM(39W)	8-98174-003-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 4600MM(46W)	8-98174-006-0	01	1	1012-
6	HARNESS; FRAME MZW6P M/T(RSZ) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98174-004-0	01	1	1012-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-360-4	01	1	0906-
6	HARNESS; FRAME FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-362-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W)	8-98123-359-4	01	1	0906-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W)	8-98123-361-4	01	1	0906-
231	HARNESS; TRANS MZW6P M/T(RSZ)	8-97618-932-2	01	1	1012-

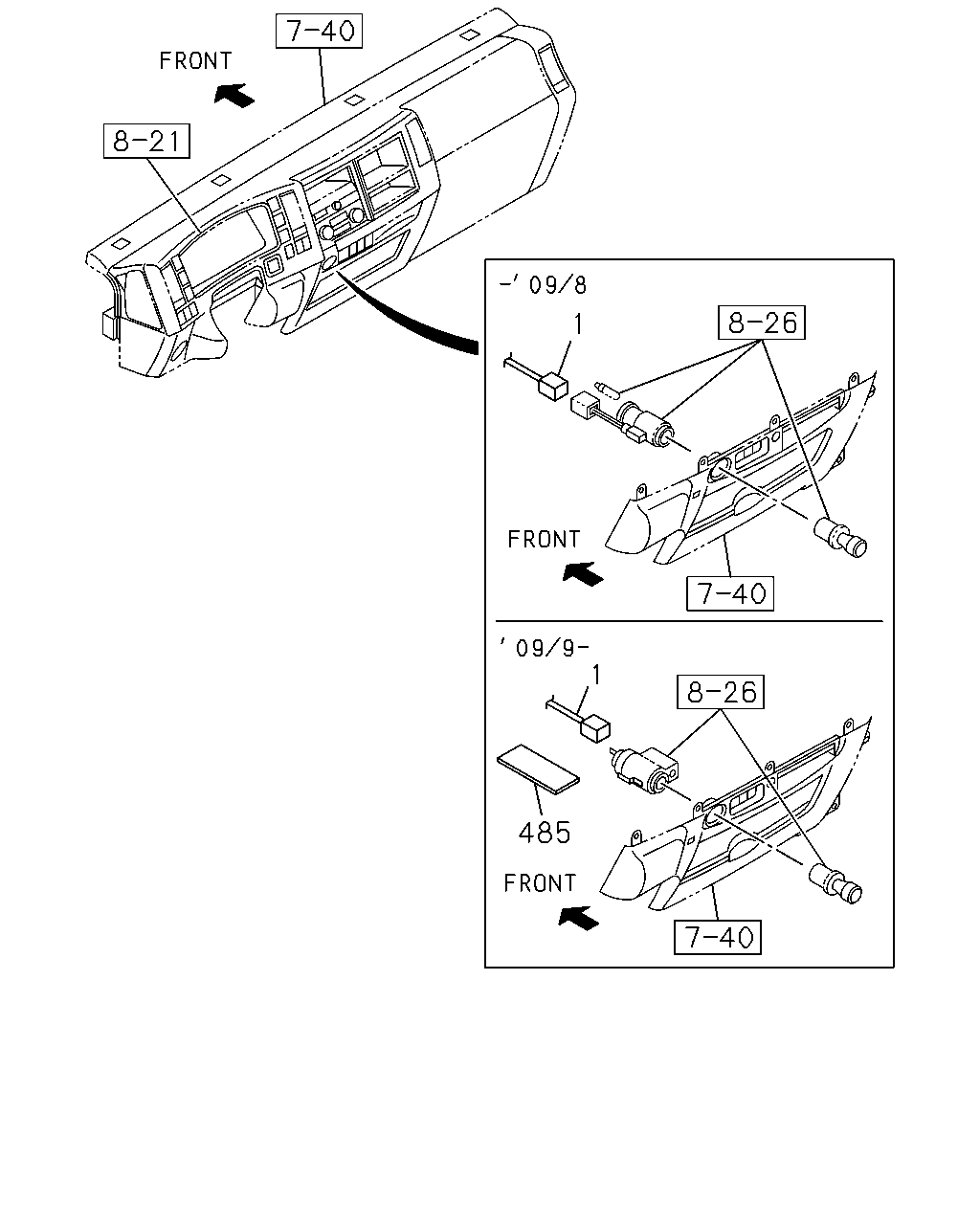

1 1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-068-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-068-0	01	1	1204-
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98189-069-0	01	1	1110-1203
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98189-069-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-108-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-108-0	01	1	1204-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF>	8-98188-109-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98188-109-0	01	1	1204-
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-081-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-876-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-876-0	01	1	1110-1203
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-080-3	01	1	0906-0906
1	HARNESS; CAB FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	0907-1011
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98151-875-0	01	1	1012-1109
1	HARNESS; CAB MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98151-875-0	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-086-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-086-4	01	1	1110-1203
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98085-085-4	01	1	0906-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. IN HOUSE PRODUCTION<TKF>	8-98085-085-4	01	1	1110-1203
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
