◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#6200) — 250 parça

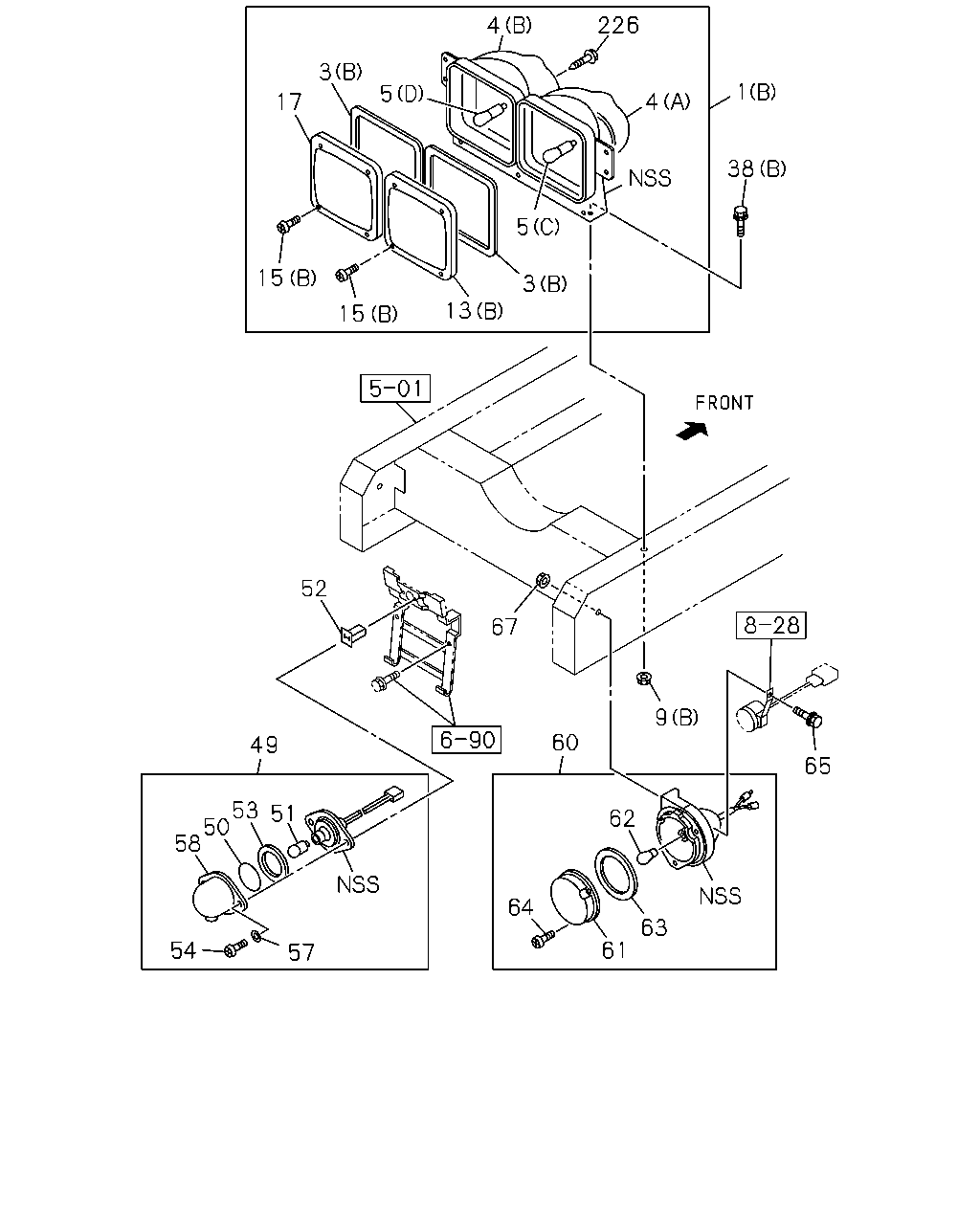

çizim 37819
226 4 3 5 17 4 5 52 67 9 60 49 65 53 50 58 51 62 64 63 61 54 57 15 15 13 3 38 1
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(A) 		1-82230-135-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82230-135-2 01 1 0005-0301
1 LAMP ASM; RR COMB
(A) 		1-82230-135-2 01 1 0302-0602
1 LAMP ASM; RR COMB
(A) 		8-97213-369-0 01 1 0603-0712
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 0801-
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82230-160-2 01 1 0005-0301
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82230-159-2 01 1 0005-0301
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 0005-0301
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 0302-0602
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		8-97213-370-0 01 1 0603-0712
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-209-0 01 1 0801-
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 0005-0301
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 0302-0602
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		8-97213-368-0 01 1 0603-0712
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-207-0 01 1 0801-
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 02 1 9905-0004
3 GASKET; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94257-505-0 01 1 0005-0301
3 GASKET; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94257-505-0 01 1 0005-0301
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 02 1 0302-0602
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 01 1 0603-
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 01 1 0603-
3 GASKET; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82236-003-0 04 1 0005-0301
4 COVER; RR,RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		1-82239-033-0 02 1 0005-0301
4 COVER; RR,RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82239-034-0 02 1 0005-0301
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-94125-956-0 04 1 9905-0004
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 21W 		8-94125-956-0 02 1 0005-0301
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 21W 		8-94125-956-0 02 1 0005-0301
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-94125-956-0 04 1 0302-0602
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0603-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0603-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-94125-957-0 02 1 9905-0004
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21/5W 		8-94125-957-0 01 1 0005-0301
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21/5W 		8-94125-957-0 01 1 0005-0301
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-94125-957-0 02 1 0302-0602
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0603-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0603-
5 BULB; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 24V 21W 		1-82194-036-0 02 1 0005-0301
5 BULB; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (D) 24V 21/5W 		1-82194-038-0 02 1 0005-0301
9 NUT; LAMP,RR COMB
(A) M6 		9-09110-406-0 04 1 9905-0004
9 NUT; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) M6 		9-09110-406-0 04 1 0005-0301
9 NUT; LAMP,RR COMB
(A) M6 		9-09110-406-0 04 1 0302-0512
9 NUT; LAMP,RR COMB
(A) M6 		0-91110-506-0 04 1 0601-
9 NUT; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8 FLANGE 		0-91150-108-0 02 1 0005-0301
13 LENS; TURN SIGNAL
(A) 		1-82235-015-0 01 1 9905-0004
13 LENS; TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82235-015-0 01 1 0005-0301
13 LENS; TURN SIGNAL
(A) 		1-82235-015-0 01 1 0302-0602
13 LENS; TURN SIGNAL
(A) 		8-94174-639-0 01 1 0603-
13 LENS; TURN SIGNAL
(A) 		1-82235-014-0 01 1 9905-0004
13 LENS; TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82235-014-0 01 1 0005-0301
13 LENS; TURN SIGNAL
(A) 		1-82235-014-0 01 1 0302-0602
13 LENS; TURN SIGNAL
(A) 		8-94174-638-0 01 1 0603-
13 LENS; TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82235-016-0 02 1 0005-0301
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 9905-0004
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0005-0301
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0005-0301
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0302-0602
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-
15 SCREW; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82239-019-0 16 1 0005-0301
17 LENS; STOP,RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82235-002-0 02 1 0005-0301
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 9905-0004
38 BOLT; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 0005-0301
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 0302-0512
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0601-
38 BOLT; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 0005-0104
38 BOLT; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0105-0301
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 9905-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9905-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 9905-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9905-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9905-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9905-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9905-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9905-
60 LAMP; BACKUP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82130-016-1 01 1 0005-0301
61 LENS; BACKUP LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82135-003-0 01 1 0005-0301
62 BULB; BACKUP LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 24V 25W 		9-82691-347-0 01 1 0005-0301
63 GASKET; BACKUP LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82136-002-0 01 1 0005-0301
64 SCREW; BACKUP LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82139-002-0 03 1 0005-0301
65 BOLT; LAMP,BACKUP
EXC. AUSTRALIA EQUIPMENT(RR3) M10X35 W/LK&PL WASHER 		0-50141-035-0 02 1 0005-0301
67 NUT; FLANGE
EXC. AUSTRALIA EQUIPMENT(RR3) M10 FLANGE 		0-91150-210-0 02 1 0005-0301
226 SCREW; PROTECTOR
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-82239-032-0 08 1 0005-0301

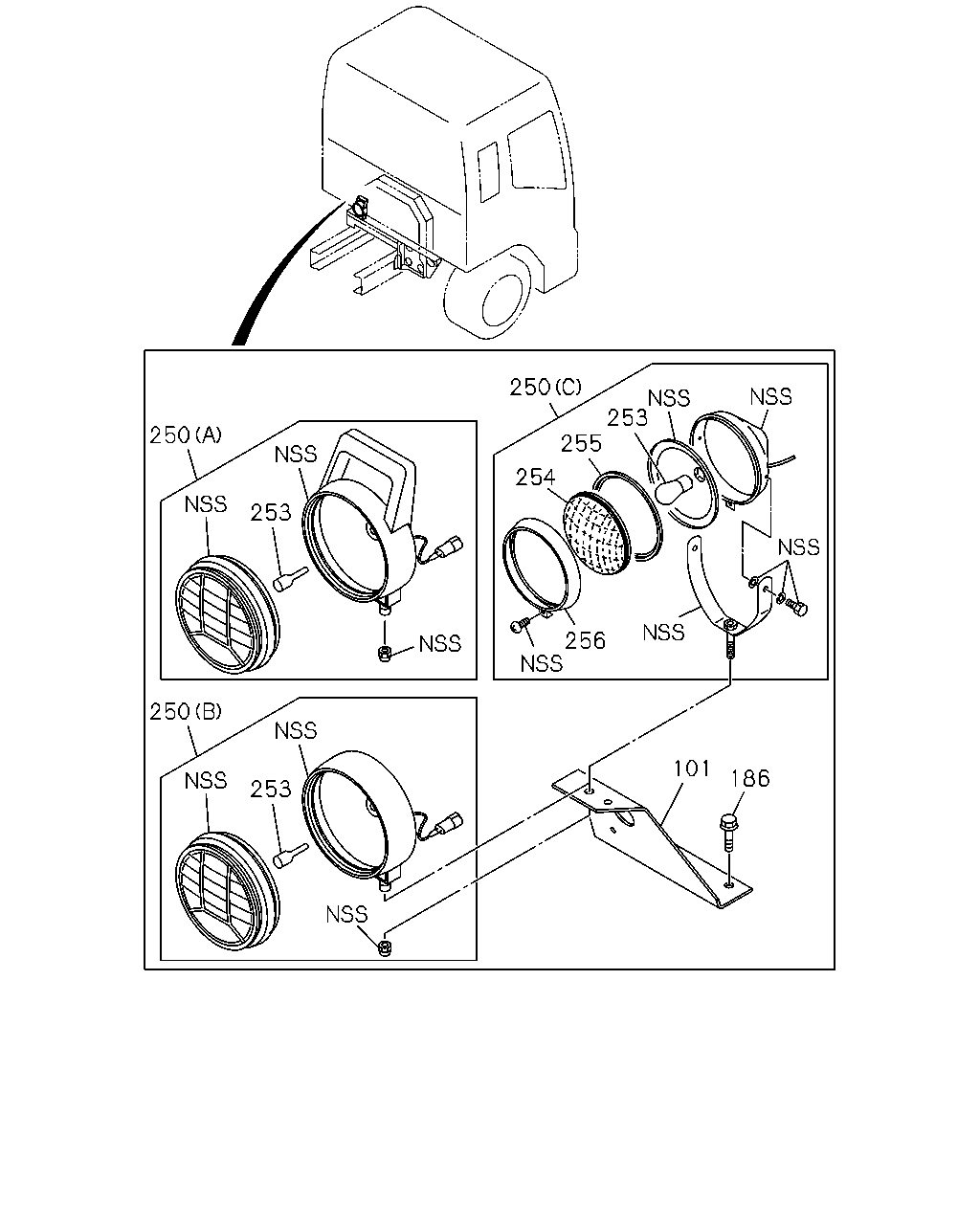

çizim 37887
250 253 255 250 254 253 256 250 101 186 253
BalonParca AdiParca NoAdetTipApplied Date
101 BRACKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-53497-700-2 01 1 0302-0508
101 BRACKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		1-53497-716-0 01 1 0509-
186 BOLT; BRKT
INSPECTION LAMP<T95> M10X30 FLANGE 		0-28681-030-0 02 1 0302-0512
186 BOLT; BRKT
INSPECTION LAMP<T95> M10X30 FLANGE 		0-28651-030-0 02 1 0601-
250 LAMP ASM; SEARCH LIGHT
(A) 		1-82180-013-0 01 1 9905-9906
250 LAMP ASM; SEARCH LIGHT
(B) 		1-82180-014-0 01 1 9907-0104
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> (B) 		1-82180-014-0 01 1 0105-0508
250 LAMP ASM; SEARCH LIGHT
INSPECTION LAMP<T95> (C) 		1-82180-012-0 01 1 0509-
253 BULB; SEARCH LIGHT
24V 70W 		1-82194-087-0 01 1 9905-0104
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 24V 70W 		1-82194-087-0 01 1 0105-0508
253 BULB; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82691-605-0 01 1 0509-
254 LENS; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-207-0 01 1 0509-
255 GASKET; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-706-0 01 1 0509-
256 RIM; SEARCH LIGHT
INSPECTION LAMP<T95> 		9-82681-402-0 01 1 0509-

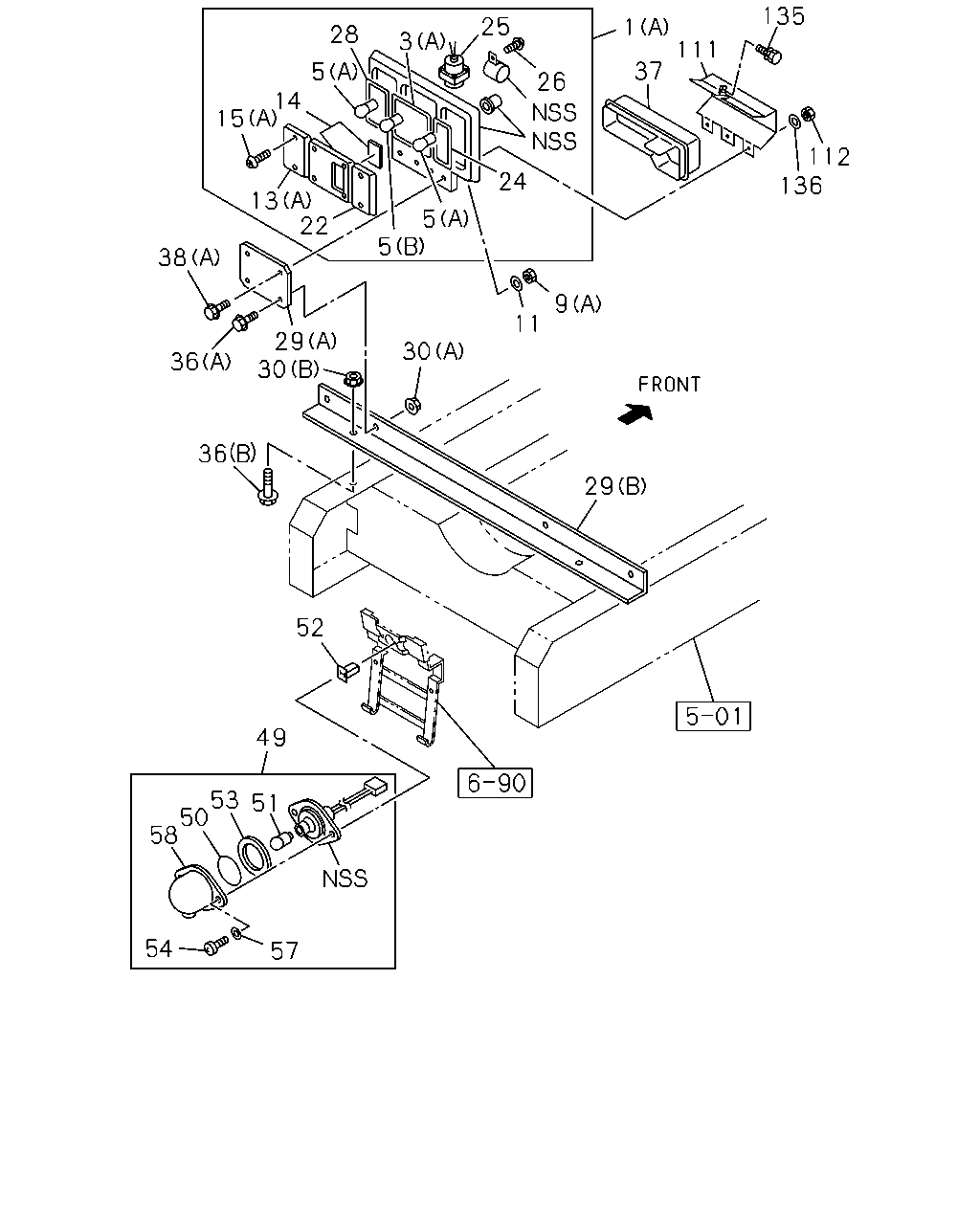

çizim 100264
135 25 1 111 28 3 37 5 26 14 15 112 136 24 13 22 5 5 38 11 29 30 30 36 36 29 52 49 53 50 58 51 54 57
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(A) 		1-82230-135-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82230-135-2 01 1 0005-0301
1 LAMP ASM; RR COMB
(A) 		1-82230-135-2 01 1 0302-0602
1 LAMP ASM; RR COMB
(A) 		8-97213-369-0 01 1 0603-0712
1 LAMP ASM; RR COMB
(A) 		1-82230-208-0 01 1 0801-
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82230-160-2 01 1 0005-0301
1 LAMP ASM; RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82230-159-2 01 1 0005-0301
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 0005-0301
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-132-2 01 1 0302-0602
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		8-97213-370-0 01 1 0603-0712
1 LAMP ASM; RR COMB
REVERSING WARNING BUZZER<YM9> (A) 		1-82230-209-0 01 1 0801-
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 9905-0004
1 LAMP ASM; RR COMB
AUSTRALIA EQUIPMENT(RR3) EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 0005-0301
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-134-2 01 1 0302-0602
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		8-97213-368-0 01 1 0603-0712
1 LAMP ASM; RR COMB
EXC. REVERSING WARNING BUZZER<YM9> (A) 		1-82230-207-0 01 1 0801-
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 02 1 9905-0004
3 GASKET; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94257-505-0 01 1 0005-0301
3 GASKET; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 		8-94257-505-0 01 1 0005-0301
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 02 1 0302-0602
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 01 1 0603-
3 GASKET; RR COMB LAMP
(A) 		8-94257-505-0 01 1 0603-
3 GASKET; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82236-003-0 04 1 0005-0301
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-94125-956-0 04 1 9905-0004
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 21W 		8-94125-956-0 02 1 0005-0301
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) 24V 21W 		8-94125-956-0 02 1 0005-0301
5 BULB; RR COMB LAMP
(A) 24V 21W 		8-94125-956-0 04 1 0302-0602
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0603-
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-036-0 02 1 0603-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-94125-957-0 02 1 9905-0004
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21/5W 		8-94125-957-0 01 1 0005-0301
5 BULB; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (B) 24V 21/5W 		8-94125-957-0 01 1 0005-0301
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		8-94125-957-0 02 1 0302-0602
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0603-
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-038-0 01 1 0603-
5 BULB; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (C) 24V 21W 		1-82194-036-0 02 1 0005-0301
5 BULB; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (D) 24V 21/5W 		1-82194-038-0 02 1 0005-0301
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 04 1 9905-0004
11 WASHER; PL,LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) ID=6.4 OD=18 		9-09160-706-0 04 1 0005-0301
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		9-09160-706-0 04 1 0302-0605
11 WASHER; PL,LAMP,RR COMB
ID=6.4 OD=18 		0-91610-706-0 04 1 0606-
13 LENS; TURN SIGNAL
(A) 		1-82235-015-0 01 1 9905-0004
13 LENS; TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82235-015-0 01 1 0005-0301
13 LENS; TURN SIGNAL
(A) 		1-82235-015-0 01 1 0302-0602
13 LENS; TURN SIGNAL
(A) 		8-94174-639-0 01 1 0603-
13 LENS; TURN SIGNAL
(A) 		1-82235-014-0 01 1 9905-0004
13 LENS; TURN SIGNAL
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82235-014-0 01 1 0005-0301
13 LENS; TURN SIGNAL
(A) 		1-82235-014-0 01 1 0302-0602
13 LENS; TURN SIGNAL
(A) 		8-94174-638-0 01 1 0603-
13 LENS; TURN SIGNAL
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82235-016-0 02 1 0005-0301
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-511-0 01 1 9905-0004
14 LENS; TAIL & STOP,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-511-0 01 1 0005-0301
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-511-0 01 1 0302-0602
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0603-
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-510-0 01 1 9905-0004
14 LENS; TAIL & STOP,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-510-0 01 1 0005-0301
14 LENS; TAIL & STOP,RR COMB LAMP 8-94257-510-0 01 1 0302-0602
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0603-
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 9905-0004
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0005-0301
15 SCREW; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) (A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0005-0301
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0302-0602
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-
15 SCREW; RR COMB LAMP
(A) M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0603-
15 SCREW; RR COMB LAMP
EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		1-82239-019-0 16 1 0005-0301
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-0 02 1 9905-0004
22 LENS; BACKUP,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-512-0 01 1 0005-0301
22 LENS; BACKUP,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-512-0 01 1 0005-0301
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-0 02 1 0302-0602
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0603-
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0603-
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 9905-0004
24 GASKET; BACK,LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-506-0 01 1 0005-0301
24 GASKET; BACK,LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-506-0 01 1 0005-0301
24 GASKET; BACK,LAMP 8-94257-506-0 02 1 0302-0602
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0603-
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0603-
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 9905-0004
25 HORN ASM; BACK
AUSTRALIA EQUIPMENT(RR3) REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0005-0301
25 HORN ASM; BACK
REVERSING WARNING BUZZER<YM9> 		8-94257-518-0 01 1 0302-
26 SCREW; BACK HORN 1-82239-031-0 01 1 9905-0004
26 SCREW; BACK HORN
AUSTRALIA EQUIPMENT(RR3) 		1-82239-031-0 01 1 0005-0104
26 SCREW; BACK HORN
AUSTRALIA EQUIPMENT(RR3) M4X12 TAPPING 		9-07076-412-0 01 1 0105-0301
26 SCREW; BACK HORN
M4X12 TAPPING 		9-07076-412-0 01 1 0302-0602
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0603-
26 SCREW; BACK HORN
AUSTRALIA EQUIPMENT(RR3) REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 02 1 0105-0301
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X14 TAPPING 		9-07076-414-0 02 1 0302-0602
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0603-
26 SCREW; BACK HORN
REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 02 1 9905-0004
26 SCREW; BACK HORN
AUSTRALIA EQUIPMENT(RR3) REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 02 1 0005-0104
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 9905-0004
26 SCREW; BACK HORN
AUSTRALIA EQUIPMENT(RR3) EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 0005-0301
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X10 TAPPING 		9-07076-410-0 01 1 0302-0602
26 SCREW; BACK HORN
EXC. REVERSING WARNING BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0603-
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 9905-0004
28 GASKET; TURN,LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-507-0 01 1 0005-0301
28 GASKET; TURN,LAMP
AUSTRALIA EQUIPMENT(RR3) 		8-94257-507-0 01 1 0005-0301
28 GASKET; TURN,LAMP 8-94257-507-0 02 1 0302-0602
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0603-
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0603-
29 BRACKET; LAMP,RR COMB
(B) 		1-82237-037-3 01 1 9905-0004
29 BRACKET; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (B) 		1-82237-037-3 01 1 0005-0207
29 BRACKET; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (B) 		1-53178-016-0 01 1 0208-0301
29 BRACKET; LAMP,RR COMB
(B) 		1-53178-016-1 01 1 0302-0602
29 BRACKET; LAMP,RR COMB
(B) 		1-53487-021-1 01 1 0603-
29 BRACKET; LAMP,RR COMB
(A) 		1-82237-050-1 02 1 9905-0004
29 BRACKET; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) 		1-82237-050-1 02 1 0005-0207
30 NUT; BRKT,RR COMB
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-9911
30 NUT; BRKT,RR COMB
(A) M8 FLANGE 		0-91150-108-0 04 1 9912-0004
30 NUT; BRKT,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) M8 FLANGE 		0-91150-108-0 04 1 0005-0207
30 NUT; BRKT,RR COMB
(B) M10 FLANGE 		0-91150-210-0 02 1 9905-0004
30 NUT; BRKT,RR COMB
AUSTRALIA EQUIPMENT(RR3) (B) M10 FLANGE 		0-91150-210-0 02 1 0005-0301
30 NUT; BRKT,RR COMB
(B) M10 FLANGE 		0-91150-210-0 02 1 0302-0602
30 NUT; BRKT,RR COMB
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
36 BOLT; BRKT,RR COMB
(A) M8X25 FLANGE 		0-28680-825-0 02 1 9905-9911
36 BOLT; BRKT,RR COMB
(A) M8X25 FLANGE 		0-28680-825-0 04 1 9912-0004
36 BOLT; BRKT,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0207
36 BOLT; BRKT,RR COMB
(B) M10X40 FLANGE 		0-28681-040-0 02 1 9905-0004
36 BOLT; BRKT,RR COMB
AUSTRALIA EQUIPMENT(RR3) (B) M10X40 FLANGE 		0-28681-040-0 02 1 0005-0301
36 BOLT; BRKT,RR COMB
(B) M10X40 FLANGE 		0-28681-040-0 02 1 0302-0512
36 BOLT; BRKT,RR COMB
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0601-
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 9905-0004
37 COVER; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		1-82239-008-0 01 1 0005-0301
37 COVER; RR COMB LAMP 1-82239-008-0 01 1 0302-
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 9905-0004
37 COVER; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		1-82239-007-0 01 1 0005-0301
37 COVER; RR COMB LAMP 1-82239-007-0 01 1 0302-
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 9905-0004
38 BOLT; LAMP,RR COMB
AUSTRALIA EQUIPMENT(RR3) (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 0005-0301
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50140-630-0 04 1 0302-0512
38 BOLT; LAMP,RR COMB
(A) M6X30 W/LK&PL WASHER 		0-50640-630-0 04 1 0601-
38 BOLT; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X35 W/LK&PL WASHER 		1-09030-073-0 02 1 0005-0104
38 BOLT; LAMP,RR COMB
EXC. AUSTRALIA EQUIPMENT(RR3) (B) M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0105-0301
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-1 01 1 9905-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9905-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 9905-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9905-
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9905-
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9905-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9905-
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9905-
111 PROTECTOR; RR COMB LAMP 1-82239-014-1 01 1 9905-0004
111 PROTECTOR; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		1-82239-014-1 01 1 0005-0104
111 PROTECTOR; RR COMB LAMP 1-82239-013-1 01 1 9905-0004
111 PROTECTOR; RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) 		1-82239-013-1 01 1 0005-0104
112 NUT; PROTECTOR,RR COMB LAMP
M6 		9-09110-406-0 04 1 9905-0004
112 NUT; PROTECTOR,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) M6 		9-09110-406-0 04 1 0005-0104
135 BOLT; PROTECTOR,RR COMB LAMP
M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9905-0004
135 BOLT; PROTECTOR,RR COMB LAMP
AUSTRALIA EQUIPMENT(RR3) M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0005-0104
136 WASHER; PL,PROTECTOR
ID=6.4 OD=18 		9-09160-706-0 04 1 9905-0004
136 WASHER; PL,PROTECTOR
AUSTRALIA EQUIPMENT(RR3) ID=6.4 OD=18 		9-09160-706-0 04 1 0005-0104
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
