Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#62) — 272 parça

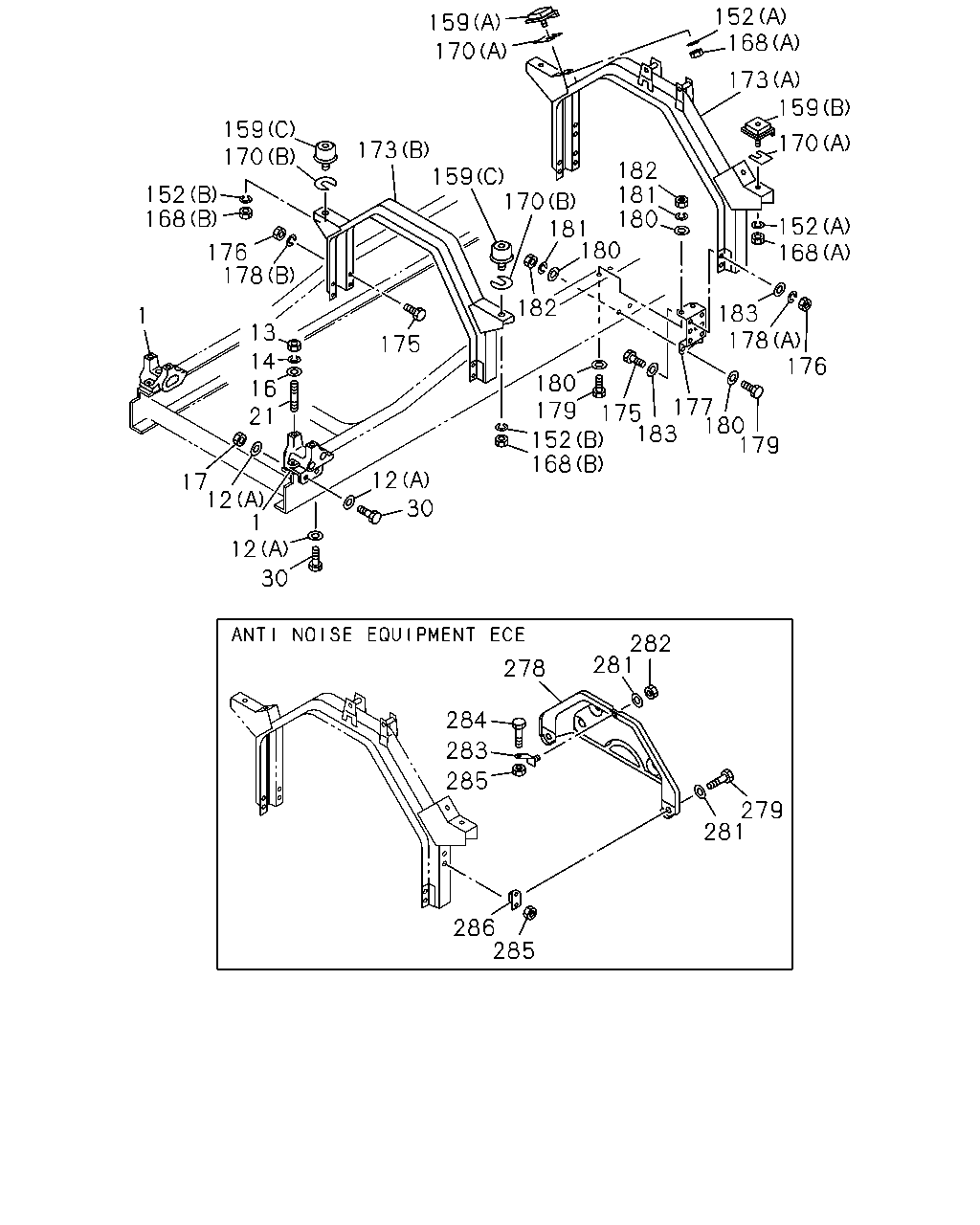

152 168 159 170 173 159 159 170 170 173 159 170 181 180 182 181 180 152 168 152 168 176 178 182 183 178 176 1 13 175 14 16 21 180 179 177 175 180 183 152 179 168 12 30 17 12 1 12 30 282 281 278 284 283 285 279 281 286 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-160-2	01	1	9202-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-159-2	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-115-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-114-3	01	1	9202-	●
1	BRACKET; CAB MTG	1-53453-084-5	01	1	9202-		●
1	BRACKET; CAB MTG	1-53453-083-5	01	1	9202-		●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9202-	●	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> M12	9-99110-512-0	04	1	9202-	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9202-		●
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.2	9-09150-612-0	04	1	9202-	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9202-		●
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.5	1-09503-171-0	04	1	9202-	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9202-		●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-09302-101-0	04	1	9202-	●
21	STUD; BRKT,CAB TILT	1-09302-101-0	04	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	08	1	9202-9204	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9205-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	06	1	9202-	●
30	BOLT; CAB FRT FOOT M14X40	9-92061-440-0	06	1	9202-		●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X60	9-92061-460-0	02	1	9202-	●
30	BOLT; CAB FRT FOOT M14X60	9-92061-460-0	02	1	9202-		●
152	WASHER; LK,CUSHION RUBBER (A) ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
152	WASHER; LK,CUSHION RUBBER (B) ID=12.2	9-09150-512-0	02	1	9202-9503		●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	9202-		●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12	9-99110-512-0	02	1	9202-9503		●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-112-0	02	1	9504-		●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	9202-	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	9202-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLOATING<SDK>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-537-2	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-540-2	01	1	9202-	●
173	MEMBER; CAB MTG RR (B)	1-53454-436-2	01	1	9202-		●
173	MEMBER; CAB MTG RR (A)	1-53454-459-5	01	1	9202-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9202-	●	●
175	BOLT; MEMBER TO FRAME M10X35	9-02061-035-0	08	1	9202-		●
176	NUT; MEMBER M12	9-99110-512-0	08	1	9202-		●
176	NUT; MEMBER HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9211-		●
177	BRACKET; MEMBER	1-53454-494-0	02	1	9202-		●
178	WASHER; LK,MEMBER (A) ID=12.2	9-09150-612-0	08	1	9202-	●	●
178	WASHER; LK,MEMBER (B) ID=10.2	9-09150-610-0	08	1	9202-		●
179	BOLT; BRKT M10X35	9-02061-035-0	08	1	9202-		●
180	WASHER; PL,BRKT TO FRAME	1-09503-222-0	16	1	9202-		●
181	WASHER; LK,BRKT TO FRAME ID=10.2	9-09150-610-0	08	1	9202-		●
182	NUT; BRKT M10	9-09110-510-0	08	1	9202-		●
183	WASHER; PL,MEMBER ID=12.5	1-09503-171-0	16	1	9202-		●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53191-890-2	01	1	9202-	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28210-825-0	02	1	9202-9204	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28280-825-0	02	1	9205-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	5-09440-005-0	01	1	9202-9312	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	9401-	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	9202-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8	9-09110-408-0	06	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	9202-	●	●

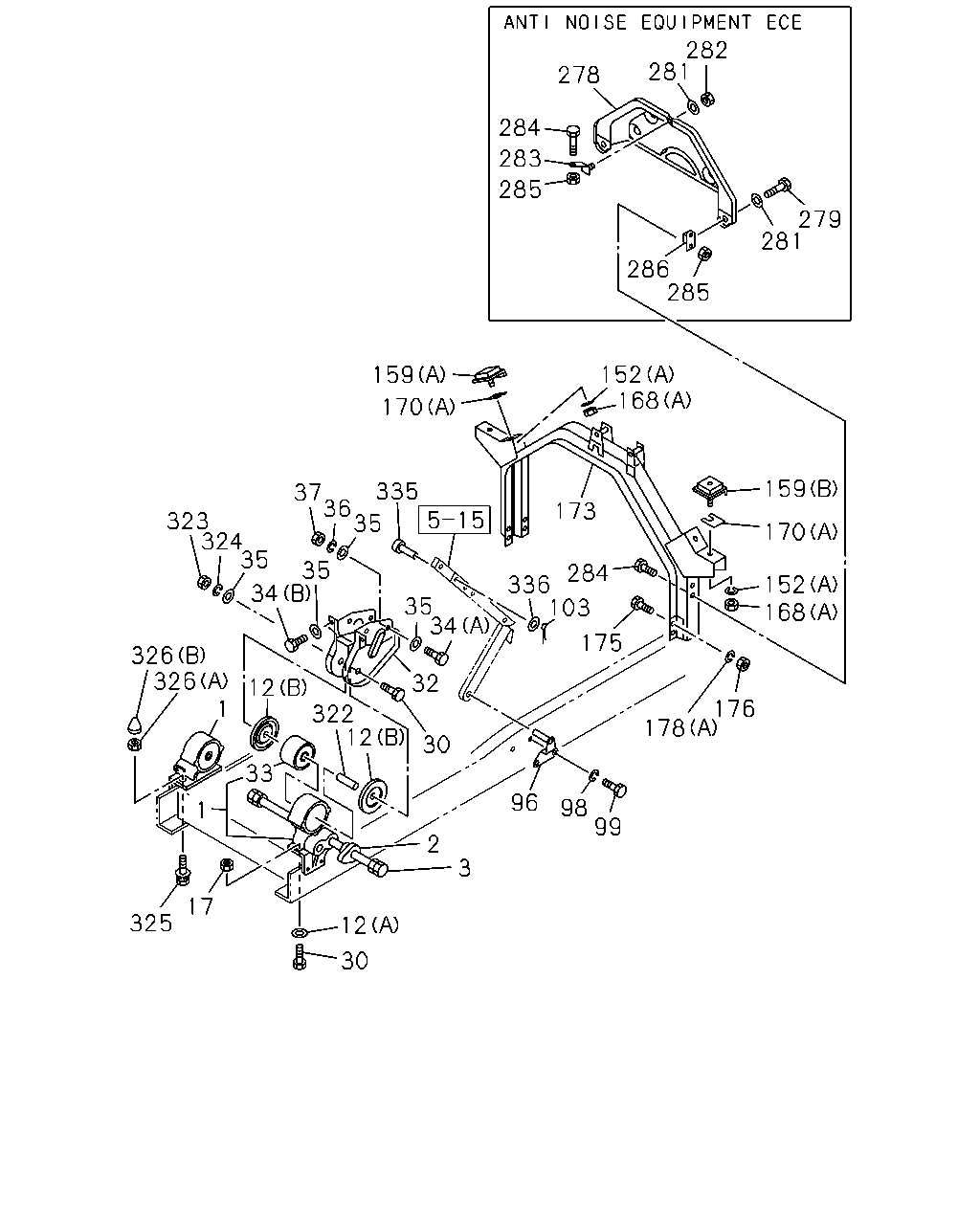

282 281 278 284 283 285 279 281 286 285 152 168 159 170 159 335 37 36 35 173 323 324 35 170 35 34 284 35 34 336 103 152 168 175 326 326 12 322 12 1 32 176 178 30 33 1 96 98 99 2 3 17 325 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-160-2	01	1	9202-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-159-2	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-115-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-114-3	01	1	9202-	●
1	BRACKET; CAB MTG	1-53453-084-5	01	1	9202-		●
1	BRACKET; CAB MTG	1-53453-083-5	01	1	9202-		●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9202-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	08	1	9202-9204	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9205-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	06	1	9202-	●
30	BOLT; CAB FRT FOOT M14X40	9-92061-440-0	06	1	9202-		●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X60	9-92061-460-0	02	1	9202-	●
30	BOLT; CAB FRT FOOT M14X60	9-92061-460-0	02	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9202-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●
99	BOLT; BRKT M10X25	9-02061-025-0	02	1	9202-9307	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●
152	WASHER; LK,CUSHION RUBBER (A) ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
152	WASHER; LK,CUSHION RUBBER (B) ID=12.2	9-09150-512-0	02	1	9202-9503		●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	9202-		●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12	9-99110-512-0	02	1	9202-9503		●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-112-0	02	1	9504-		●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	9202-	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	9202-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLOATING<SDK>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-537-2	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-540-2	01	1	9202-	●
173	MEMBER; CAB MTG RR (B)	1-53454-436-2	01	1	9202-		●
173	MEMBER; CAB MTG RR (A)	1-53454-459-5	01	1	9202-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9202-	●	●
175	BOLT; MEMBER TO FRAME M10X35	9-02061-035-0	08	1	9202-		●
176	NUT; MEMBER M12	9-99110-512-0	08	1	9202-		●
176	NUT; MEMBER HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M10	9-09110-510-0	04	1	9211-		●
178	WASHER; LK,MEMBER (A) ID=12.2	9-09150-612-0	08	1	9202-	●	●
178	WASHER; LK,MEMBER (B) ID=10.2	9-09150-610-0	08	1	9202-		●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53191-890-2	01	1	9202-	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28210-825-0	02	1	9202-9204	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28280-825-0	02	1	9205-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	5-09440-005-0	01	1	9202-9312	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	9401-	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	9202-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8	9-09110-408-0	06	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	9202-	●	●
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9202-	●
323	NUT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9202-	●
324	WASHER; LK CAB SUSPENSION SEMI FLOATING<SDK> ID=16.2	9-09150-816-0	02	1	9202-	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9202-9302	●
325	BOLT; GUIDE NUT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-	●
325	BOLT; GUIDE NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-	●
325	BOLT; GUIDE NUT HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9303-	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A)	9-99110-412-0	02	1	9202-9302	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●

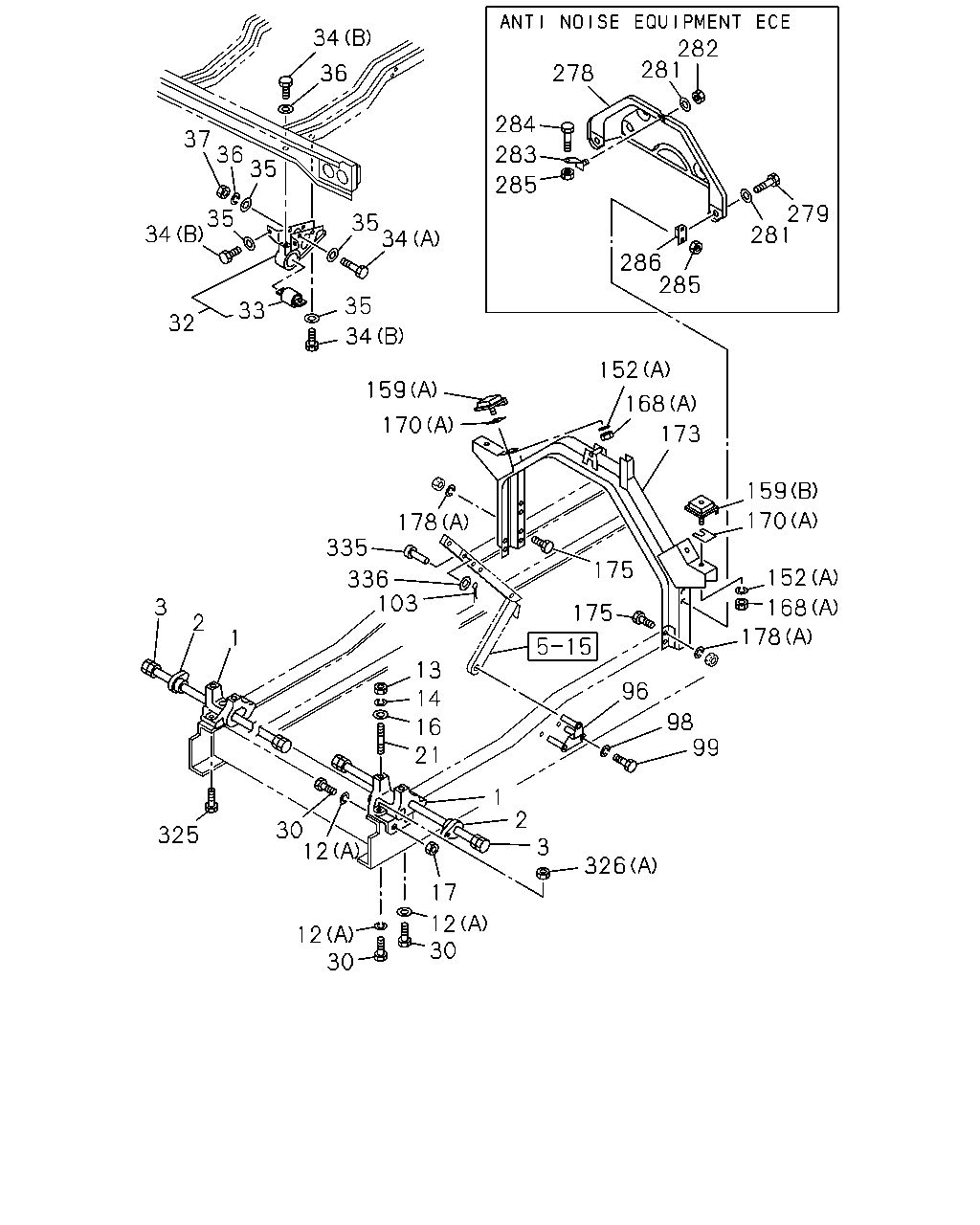

282 281 34 278 36 37 36 35 284 283 285 35 34 279 281 35 34 286 285 35 33 32 34 152 159 168 170 173 159 170 178 335 175 152 336 103 3 168 175 2 178 1 13 96 14 98 99 16 21 1 2 3 30 12 325 326 17 12 30 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-160-2	01	1	9202-	●
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-159-2	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-115-3	01	1	9202-	●
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-114-3	01	1	9202-	●
1	BRACKET; CAB MTG	1-53453-084-5	01	1	9202-		●
1	BRACKET; CAB MTG	1-53453-083-5	01	1	9202-		●
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9202-	●
3	TORSION BAR	1-09585-119-0	01	1	9202-	●
3	TORSION BAR	1-09585-118-0	01	1	9202-	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B)	1-53459-929-0	04	1	9202-9506	●
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-	●
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9202-	●	●
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> M12	9-99110-512-0	04	1	9202-	●
13	NUT; BUSHING TO STUD M12	9-99110-512-0	04	1	9202-		●
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.2	9-09150-612-0	04	1	9202-	●
14	WASHER; LK,STUD ID=12.2	9-09150-612-0	04	1	9202-		●
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.5	1-09503-171-0	04	1	9202-	●
16	WASHER; PL,STUD ID=12.5	1-09503-171-0	04	1	9202-		●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9202-	●	●
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-09302-101-0	04	1	9202-	●
21	STUD; BRKT,CAB TILT	1-09302-101-0	04	1	9202-		●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9202-	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	08	1	9202-9204	●
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9205-	●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	06	1	9202-	●
30	BOLT; CAB FRT FOOT M14X40	9-92061-440-0	06	1	9202-		●
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X60	9-92061-460-0	02	1	9202-	●
30	BOLT; CAB FRT FOOT M14X60	9-92061-460-0	02	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9202-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9202-	●
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9202-9307	●
99	BOLT; BRKT M10X25	9-02061-025-0	02	1	9202-9307	●
99	BOLT; BRKT M10X30 FLANGE	0-28091-030-0	02	1	9308-	●
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9202-	●
152	WASHER; LK,CUSHION RUBBER (A) ID=12.2	9-09150-512-0	04	1	9202-9503	●	●
152	WASHER; LK,CUSHION RUBBER (B) ID=12.2	9-09150-512-0	02	1	9202-9503		●
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9202-	●	●
159	RUBBER; CUSHION,CAB MTG (C)	9-54347-160-1	02	1	9202-		●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12	9-99110-512-0	04	1	9202-9503	●	●
168	NUT; CUSHION RUBBER,BODY MTG (A) M12 FLANGE	0-91150-112-0	04	1	9504-	●	●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12	9-99110-512-0	02	1	9202-9503		●
168	NUT; CUSHION RUBBER,BODY MTG (B) M12 FLANGE	0-91150-112-0	02	1	9504-		●
170	SHIM; CUSHION RUBBER (A) T=1.6	1-53459-621-0	AR	1	9202-	●	●
170	SHIM; CUSHION RUBBER (B) T=1.6	9-54347-136-1	AR	1	9202-		●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-454-6	01	1	9202-	●
173	MEMBER; CAB MTG RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLOATING<SDK>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-457-6	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-537-2	01	1	9202-	●
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-540-2	01	1	9202-	●
173	MEMBER; CAB MTG RR (B)	1-53454-436-2	01	1	9202-		●
173	MEMBER; CAB MTG RR (A)	1-53454-459-5	01	1	9202-		●
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9202-	●	●
175	BOLT; MEMBER TO FRAME M10X35	9-02061-035-0	08	1	9202-		●
178	WASHER; LK,MEMBER (A) ID=12.2	9-09150-612-0	08	1	9202-	●	●
178	WASHER; LK,MEMBER (B) ID=10.2	9-09150-610-0	08	1	9202-		●
278	COVER ANTI NOISE EQUIPMENT ECE<SLK>	1-53191-890-2	01	1	9202-	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28210-825-0	02	1	9202-9204	●	●
279	BOLT ANTI NOISE EQUIPMENT ECE<SLK> M8X25	0-28280-825-0	02	1	9205-	●	●
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> ID=8.4 OD=26	9-09164-808-0	03	1	9202-	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	5-09440-005-0	01	1	9202-9312	●	●
282	NUT; BACK COVER ANTI NOISE EQUIPMENT ECE<SLK> M8 FLANGE	0-91150-108-0	01	1	9401-	●	●
283	BRACKET; UPR ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-630-2	01	1	9202-	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28010-820-0	06	1	9202-9204	●	●
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8X20 FLANGE	0-28080-820-0	06	1	9205-	●	●
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT ECE<SLK> M8	9-09110-408-0	06	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-631-3	01	1	9202-	●	●
286	BRACKET; LOW ANTI NOISE EQUIPMENT ECE<SLK>	1-53459-632-3	01	1	9202-	●	●
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9202-9302	●
325	BOLT; GUIDE NUT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-	●
325	BOLT; GUIDE NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-	●
325	BOLT; GUIDE NUT HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9303-	●
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9202-	●
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A)	9-99110-412-0	02	1	9202-9302	●
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9202-	●
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9202-	●

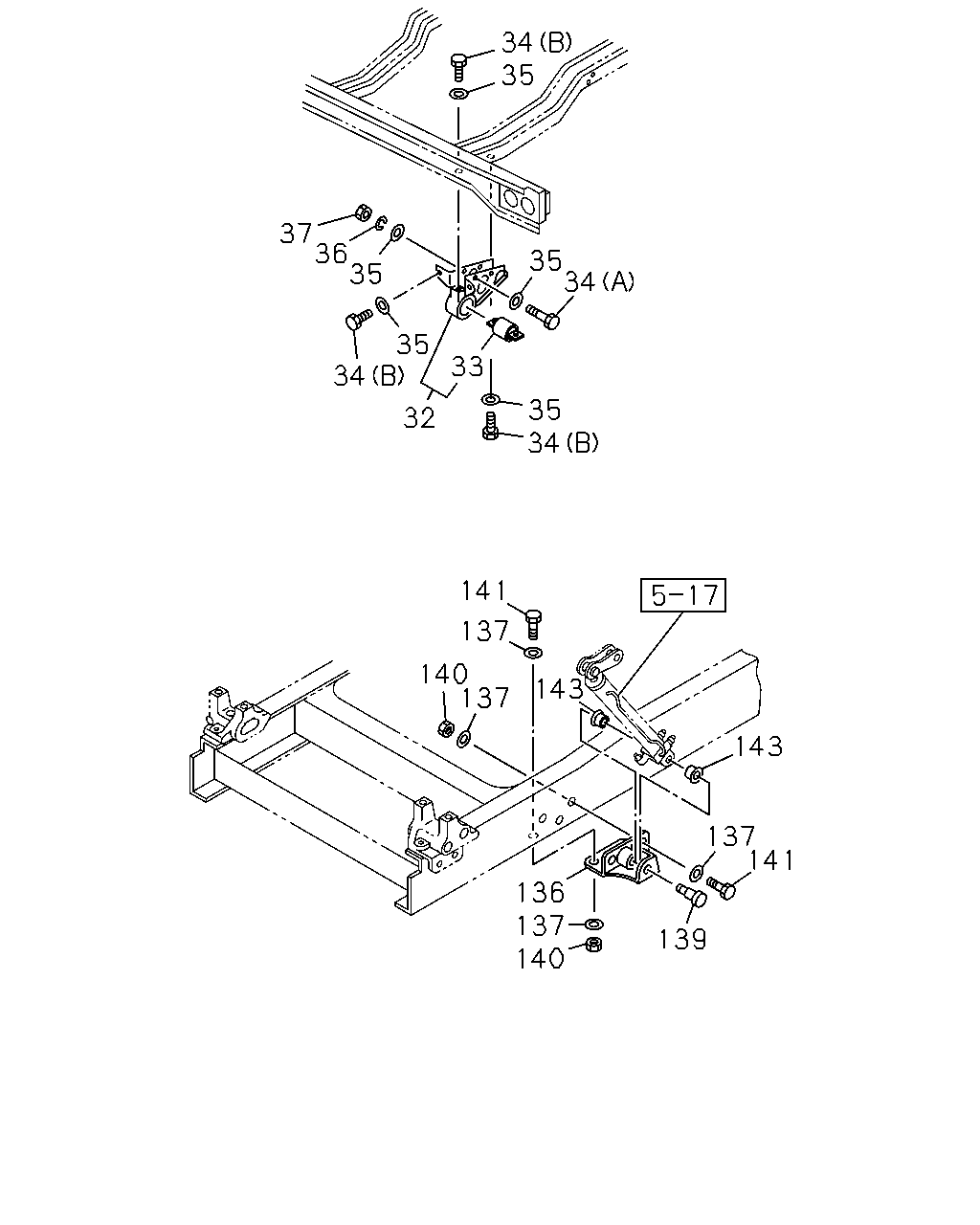

34 35 37 36 35 35 34 35 34 33 35 34 32 141 137 140 137 143 143 137 141 136 137 140 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-185-5	01	1	9202-		●
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9202-	●
32	BRACKET; CAB FRT MTG,CAB SIDE	1-62580-184-5	01	1	9202-		●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9202-	●
33	BUSHING; RUBBER,CAB MTG BRKT,FRT	1-53459-635-3	02	1	9202-		●
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9202-	●	●
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9202-	●	●
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9202-	●	●
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9202-	●	●
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9202-	●	●
136	BRACKET; OIL CYL	1-53459-568-2	01	1	9202-		●
136	BRACKET; OIL CYL	1-53459-569-2	01	1	9202-		●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	16	1	9202-		●
139	PIN; OIL CYL,LWR	1-53459-490-3	02	1	9202-		●
140	NUT; BRKT M14	9-99110-514-0	08	1	9202-		●
141	BOLT; BRKT M14X40	9-92061-440-0	07	1	9202-		●
141	BOLT; BRKT M14X45	9-92061-445-0	01	1	9202-		●
143	SPACER; OIL CYL,LWR	1-53459-491-2	04	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
