◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11239 - FVR-LHD(EUROPE)EURO5 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#61996) — 282 parça

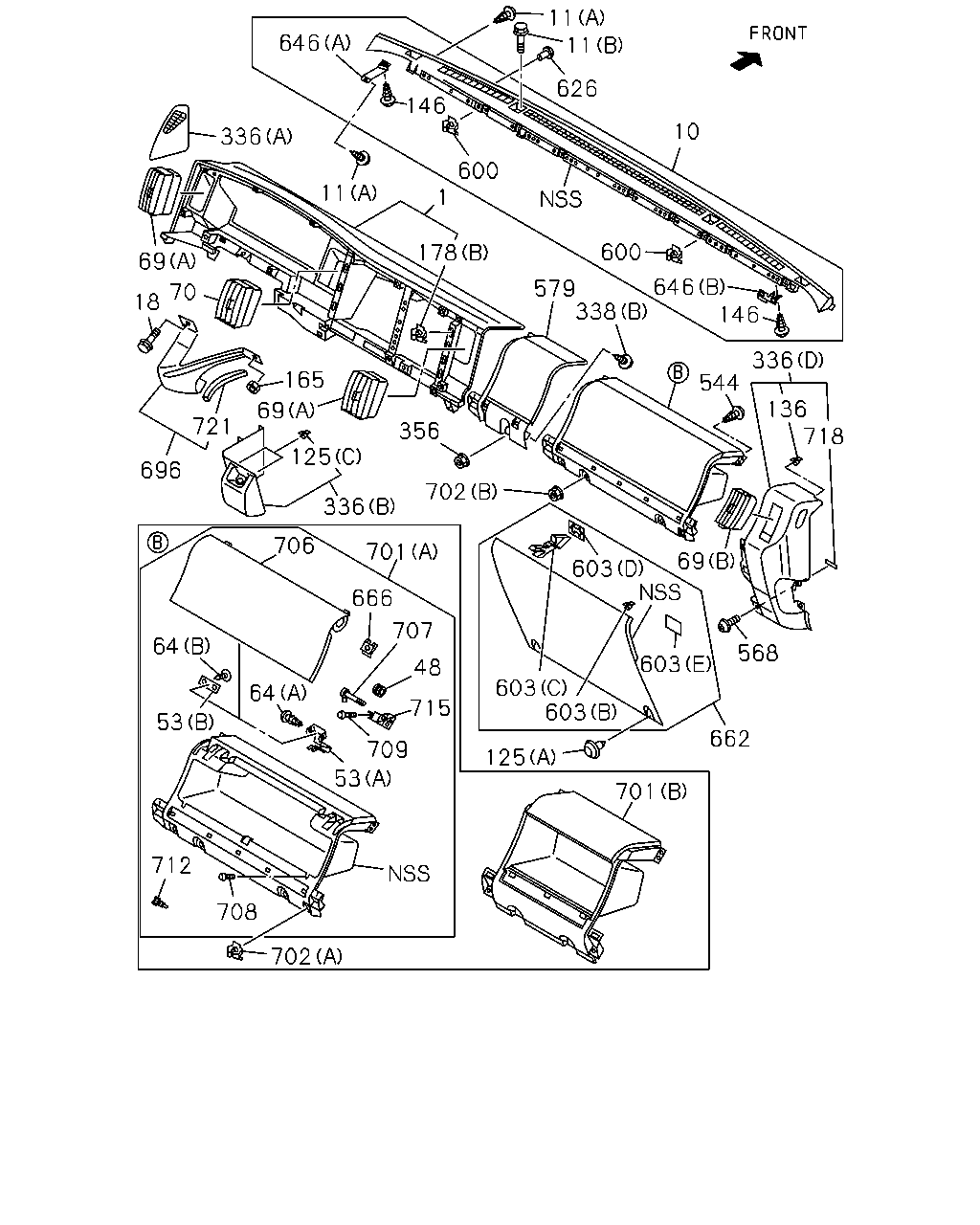

çizim 166195
646 146 626 11 11 10 600 600 336 11 178 1 579 338 544 718 136 336 146 646 69 568 662 603 603 603 701 125 702 708 712 53 64 64 53 715 707 48 666 701 706 336 125 69 165 70 18 721 696 702 356 603 69 709
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0906-
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0906-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-0 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0906-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0906-1101
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1102-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0906-1101
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1102-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0906-1101
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1102-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0906-1101
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1102-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0906-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0906-
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0906-
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0906-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0906-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0906-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0906-
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0906-
338 SCREW; COVER
(A) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0906-
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0906-
568 BOLT; COVER
ECE R29<EFE> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1008-
568 BOLT; COVER
M5X16 TAPPING 		0-72180-516-0 01 1 0906-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0906-
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (E) 		8-98167-222-0 02 1 1008-
603 CLIP; COVER
EXC. ECE R29<EFE> (B) 		8-98021-271-0 05 1 1008-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-1007
603 CLIP; COVER
ECE R29<EFE> (B) 		8-98021-271-0 04 1 1008-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0906-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0906-
662 COVER; LWR,INST PANEL
ECE R29<EFE> 		8-97422-093-2 01 1 1008-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-2 01 1 0906-1007
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-429-3 01 1 1008-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0906-1101
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1102-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0906-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1101
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1102-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0906-1101
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1102-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0906-1101
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1102-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0906-1101
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1102-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0906-1101
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1102-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0906-1101
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1102-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0906-1101
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1102-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0906-1101
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1102-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0906-1101
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1102-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER 8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0906-1109

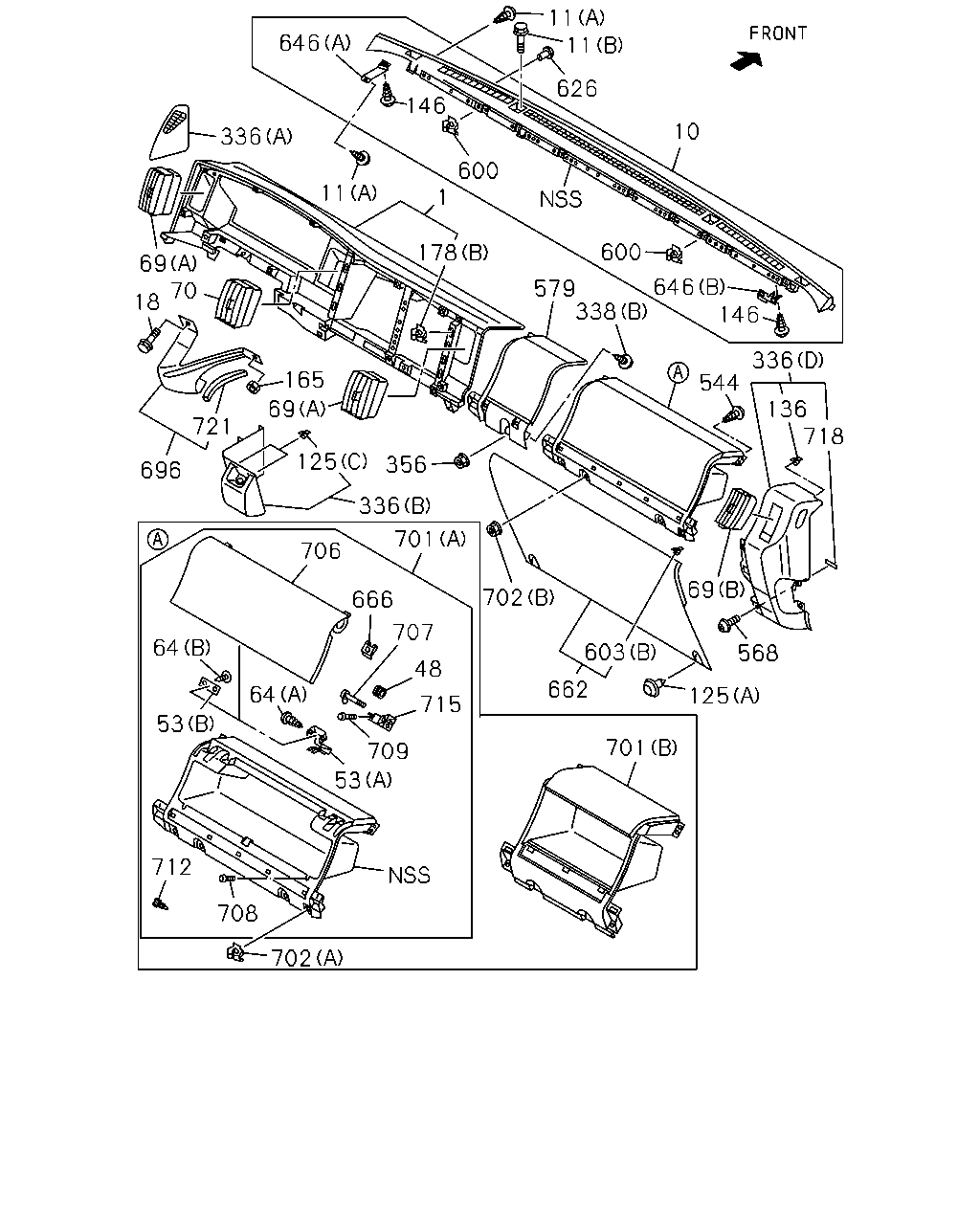

çizim 166209
11 11 626 10 600 646 146 336 136 718 544 338 579 178 1 600 646 146 336 11 69 70 18 721 69 165 125 356 336 701 702 603 662 701 125 568 69 706 666 707 48 715 709 53 64 64 53 712 708 702 696
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 0906-
10 PANEL ASM; GARNISH
GRAY 		8-97411-559-6 01 1 0906-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-0 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0906-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 0906-1101
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-986-0 01 1 1102-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 0906-1101
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-987-0 01 1 1102-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 0906-1101
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-913-0 01 1 1102-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 0906-1101
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98108-915-0 01 1 1102-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 0906-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 0906-
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0906-
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-
146 SCREW; TAP
M5X16 TAPPING 		0-72180-516-0 03 1 0906-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0906-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0906-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0906-
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0906-
338 SCREW; COVER
(A) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 0906-
544 SCREW; TRAY
M5X16 TAPPING 		0-72180-516-0 03 1 0906-
568 BOLT; COVER
ECE R29<EFE> M6X20 W/LK&PL WASHER 		8-98031-842-0 02 1 1008-
568 BOLT; COVER
M5X16 TAPPING 		0-72180-516-0 01 1 0906-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 0906-
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (E) 		8-98167-222-0 02 1 1008-
603 CLIP; COVER
EXC. ECE R29<EFE> (B) 		8-98021-271-0 05 1 1008-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-1007
603 CLIP; COVER
ECE R29<EFE> (B) 		8-98021-271-0 04 1 1008-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 0906-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 0906-
662 COVER; LWR,INST PANEL
ECE R29<EFE> 		8-97422-093-2 01 1 1008-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-2 01 1 0906-1007
662 COVER; LWR,INST PANEL
EXC. ECE R29<EFE> GRAY 		8-97407-429-3 01 1 1008-
666 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 0906-1101
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98038-450-0 04 1 1102-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 0906-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) (B) GRAY 		8-97417-196-1 01 1 0906-1101
701 TRAY; INST
AIR BAG DRIVER & PASSENGER(AK5) EXC. COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) GRAY 		8-97417-196-1 01 1 1102-
701 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-4 01 1 0906-1101
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97415-540-6 01 1 1102-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) GRAY 		8-97429-703-0 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-
706 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 0906-1101
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97415-541-0 01 1 1102-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 0906-1101
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98035-730-1 02 1 1102-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 0906-1101
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98010-867-1 02 1 1102-
709 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 0906-1101
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) M5X16 TAPPING 		0-71040-516-0 04 1 1102-
712 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 0906-1101
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98031-846-0 01 1 1102-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 0906-1101
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-928-0 01 1 1102-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 0906-1101
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-98034-929-0 01 1 1102-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> EXC. AIR BAG DRIVER & PASSENGER(AK5) 		8-97926-397-0 01 1 1312-
718 SEAL; COVER 8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 0906-1109

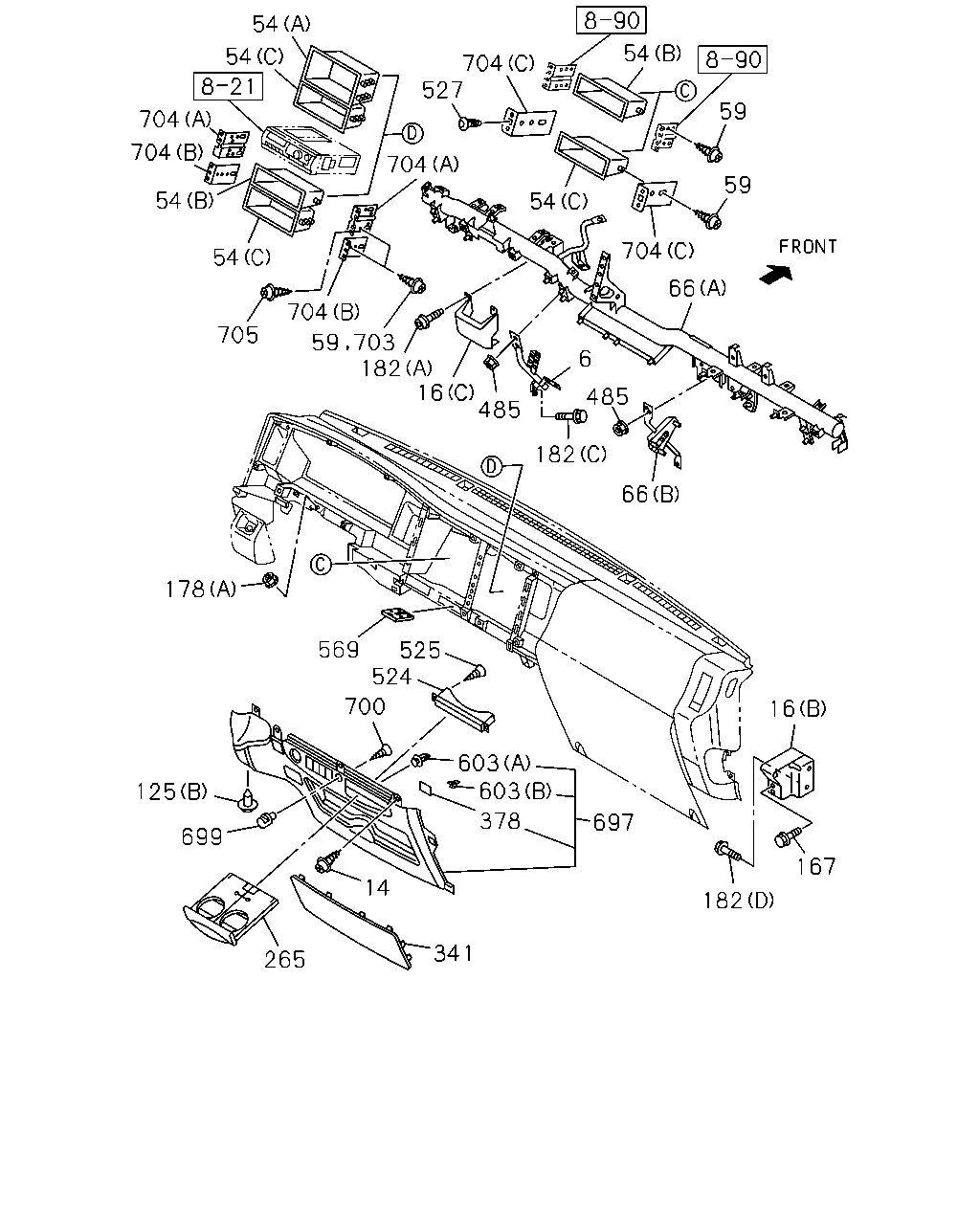

çizim 166221
54 54 704 704 54 54 705 704 59 703 182 16 485 182 66 485 6 66 704 54 704 527 704 54 59 59 178 125 699 265 341 14 378 603 603 700 524 525 569 697 182 167 16
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 0906-
14 SCREW; INST PNL
M5X16 TAPPING 		0-72180-516-0 04 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ECE R29<EFE> (D) 		8-98174-010-0 01 1 1008-1009
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ECE R29<EFE> (E) 		8-98180-279-1 01 1 1010-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-0 01 1 0906-1007
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ECE R29<EFE> (D) 		8-98017-529-1 01 1 1008-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-2 01 1 0906-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0906-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0906-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0906-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-420-7 01 1 0906-1406
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98241-975-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98069-419-7 01 1 0906-1406
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER(AK5) (A) 		8-98240-611-0 01 1 1407-
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-98082-466-1 01 1 0906-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) (B) 		8-97585-581-1 01 1 0906-
125 CLIP; INST PANEL
ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1004-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1003
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97408-063-0 02 1 1004-1007
125 CLIP; INST PANEL
EXC. ECE R29<EFE> (A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 0906-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0906-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0906-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0906-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0906-
525 SCREW; CUP STAND
M5X16 TAPPING 		0-72180-516-0 03 1 0906-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) DARK GRAY 		8-97098-326-0 01 1 0906-
569 HOLDER; CARD 8-97410-276-0 01 1 0906-
603 CLIP; COVER
ECE R29<EFE> (C) 		8-98152-030-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (D) 		8-98152-031-0 03 1 1008-
603 CLIP; COVER
ECE R29<EFE> (E) 		8-98167-222-0 02 1 1008-
603 CLIP; COVER
EXC. ECE R29<EFE> (B) 		8-98021-271-0 05 1 1008-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-1007
603 CLIP; COVER
ECE R29<EFE> (B) 		8-98021-271-0 04 1 1008-
697 PANEL; INST CENTER
GRAY 		8-97409-781-2 01 1 0906-1010
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0906-
700 BOLT; HOOK
M5X16 TAPPING 		0-72180-516-0 01 1 0906-
703 SCREW; CENTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0906-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0906-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0906-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) 		8-98107-549-0 02 1 0906-
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 08 1 0906-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0906-

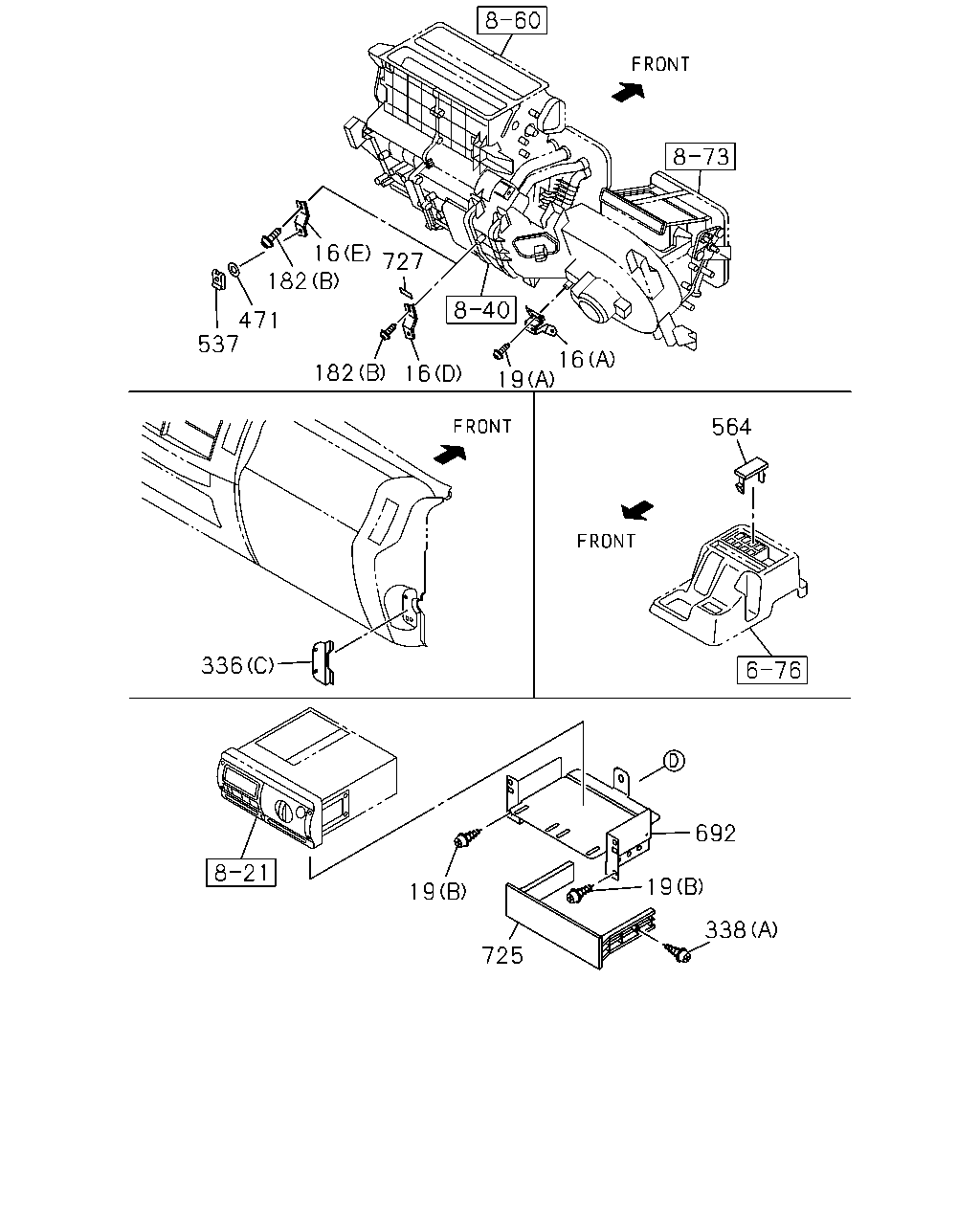

çizim 166296
16 182 471 537 182 727 16 19 16 336 564 19 725 338 19 692
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ECE R29<EFE> (D) 		8-98174-010-0 01 1 1008-1009
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ECE R29<EFE> (E) 		8-98180-279-1 01 1 1010-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-98017-529-0 01 1 0906-1007
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ECE R29<EFE> (D) 		8-98017-529-1 01 1 1008-
19 SCREW; BRKT
(B) M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0906-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) M5X16 TAPPING 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 0906-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 0906-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 0906-
338 SCREW; COVER
(B) M5X16 TAPPING 		0-72180-516-0 04 1 0906-
338 SCREW; COVER
(A) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0906-
471 WASHER; PL
ECE R29<EFE> 		8-98176-094-0 02 1 1008-1009
471 WASHER; PL
ECE R29<EFE> 		8-98179-641-0 02 1 1010-
537 NUT; BRKT
ECE R29<EFE> M6 		1-09984-182-0 02 1 1008-1009
564 COVER; SW 8-97043-732-1 06 1 0906-
692 BRACKET; TACHOGRAPH 8-98094-272-0 01 1 0906-
725 COVER; TACHOGRAPH
BLACK 		8-97407-896-1 01 1 0906-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) EXC. ECE R29<EFE> 		8-98186-934-0 01 1 1209-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
