6-47 — MUD GUARD AND INSULATOR (#61981) — 107 parça

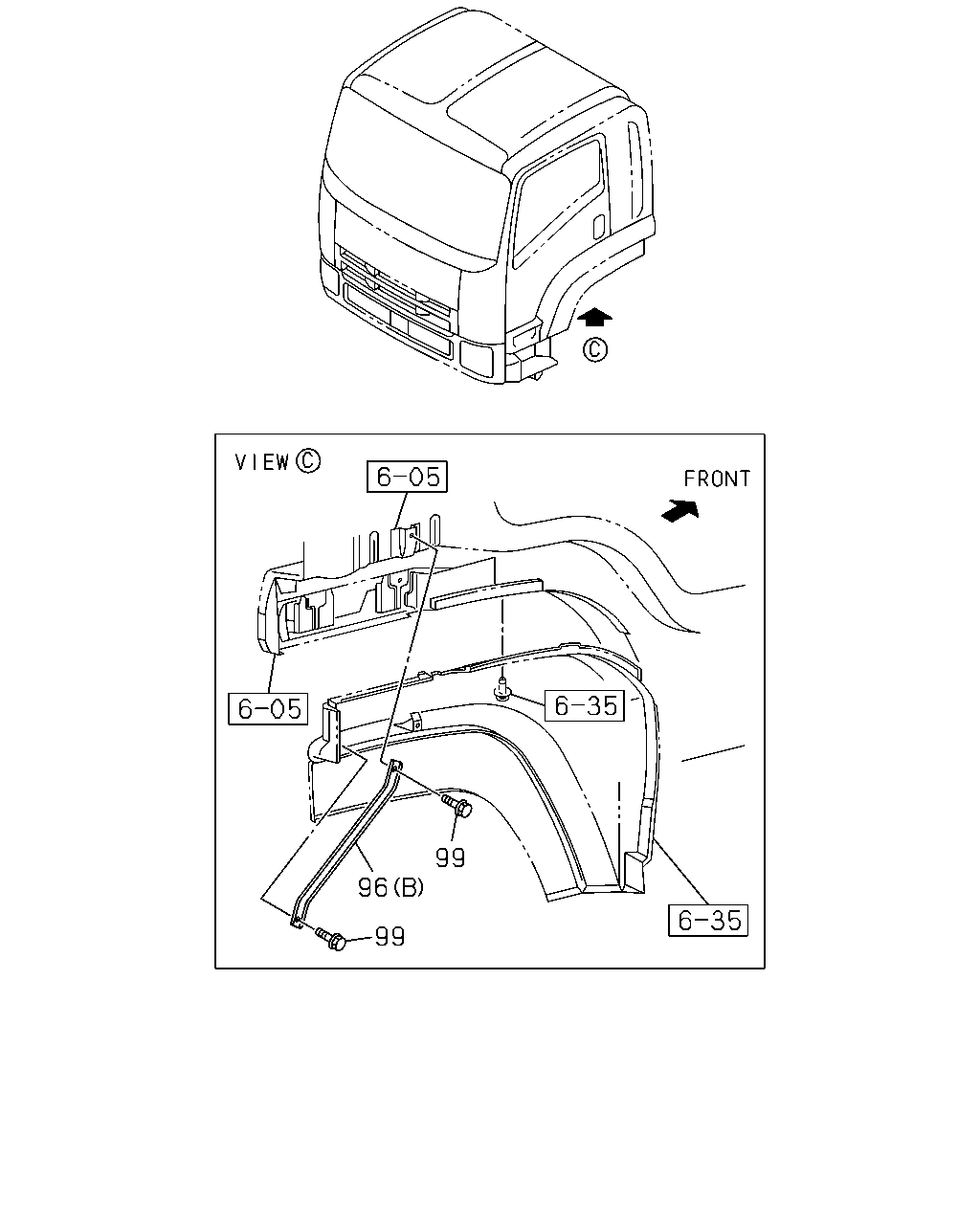

99 96 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
96	STAY; MUD GUARD (B)	8-98082-316-0	02	1	0906-
96	STAY; MUD GUARD (A)	8-98070-669-1	01	1	0906-
96	STAY; MUD GUARD (A)	8-98070-668-1	01	1	0906-
99	BOLT; STAY TO MUD GUARD M6X16 FLANGE	0-28650-616-0	04	1	0906-

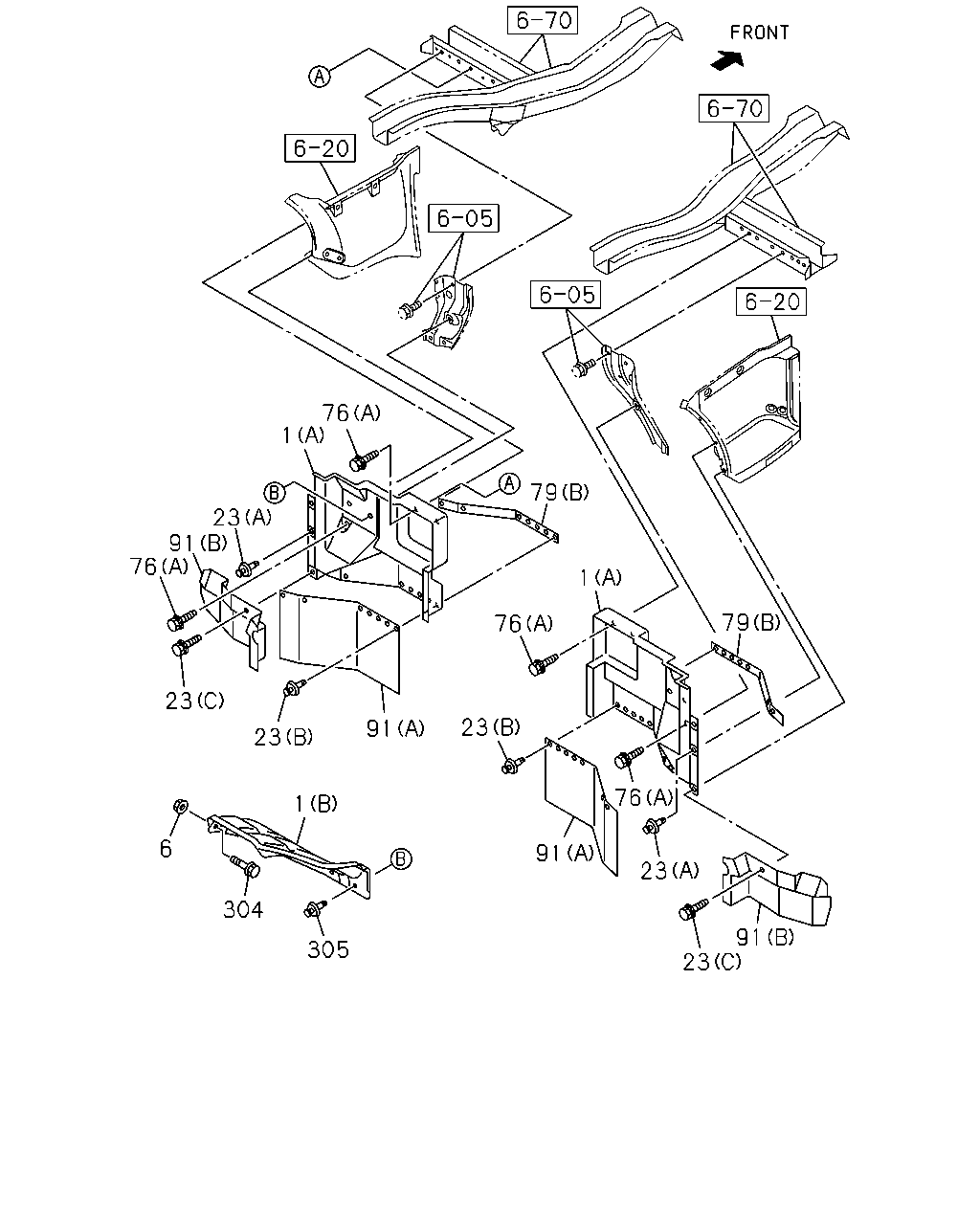

76 1 79 23 91 76 1 79 76 23 23 91 23 76 1 6 91 23 304 91 23 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT (A)	8-98039-851-1	01	1	0906-
1	GUARD; MUD,FRT (A)	8-98039-850-1	01	1	0906-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98076-272-0	01	1	0906-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0906-
23	FASTENER; MUD COVER (B)	1-09470-001-0	10	1	0906-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0906-
23	FASTENER; MUD COVER (C) M8X29.5 W/LK+PL WASHER	8-98073-082-0	02	1	0906-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1008-1211
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1212-
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0906-0908
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	0909-
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0906-
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	0906-
91	COVER; MUD,FRT (A)	8-98060-067-1	02	1	0906-
91	COVER; MUD,FRT (B)	8-98118-995-0	01	1	0906-
91	COVER; MUD,FRT (B)	8-98118-994-0	01	1	0906-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0906-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0906-

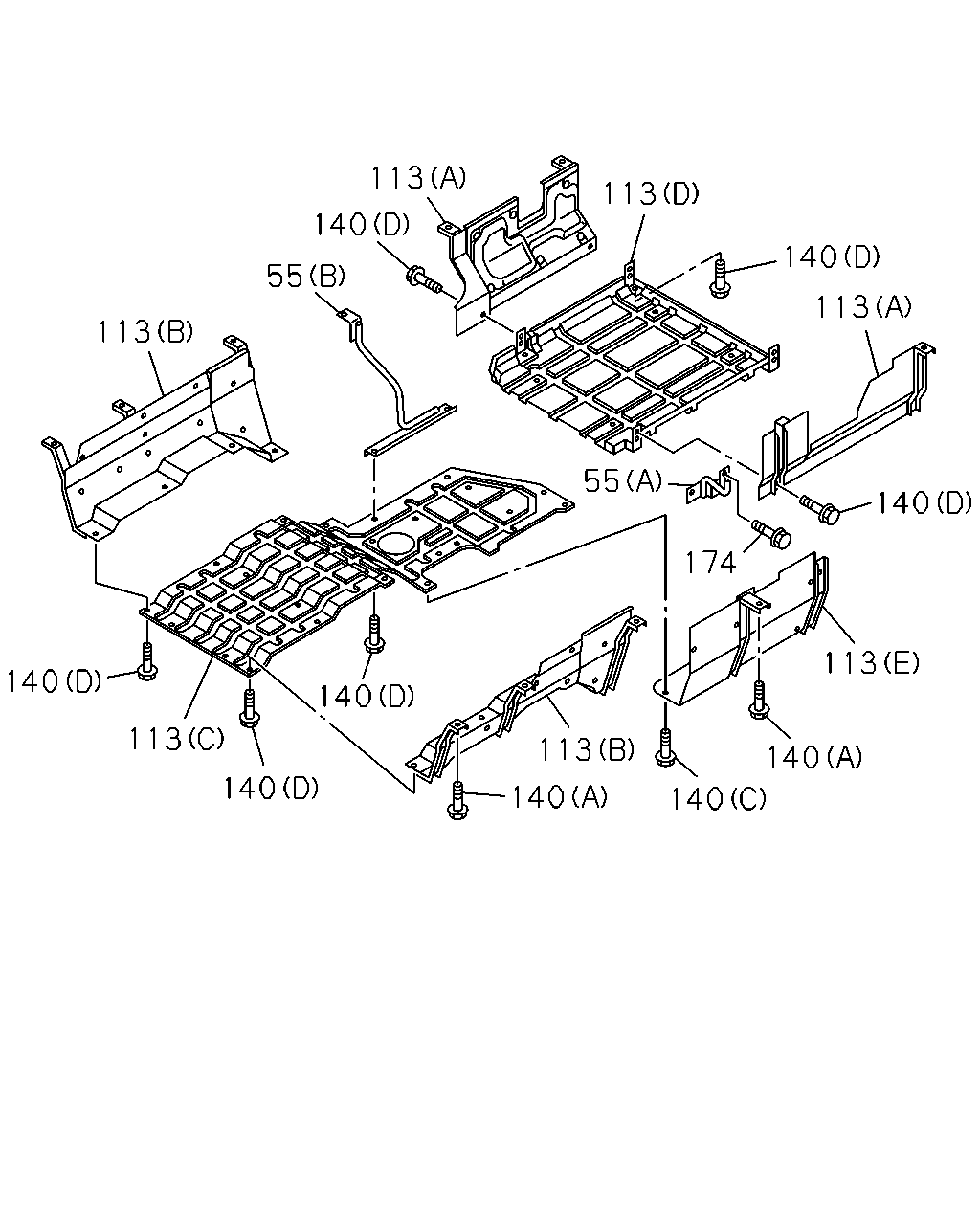

113 113 140 140 55 113 113 55 140 174 113 140 140 113 113 140 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98064-086-2	01	1	0906-
55	STAY; UNDER COVER,RR 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-98078-177-2	01	1	0906-
55	STAY; UNDER COVER,RR 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (A)	8-98078-177-2	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)	8-98017-762-1	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D)	8-98017-772-1	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (E)	8-98078-182-0	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-98078-185-3	01	1	0906-
113	PANEL; SIDE 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (A)	8-98078-185-3	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98114-851-0	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B)	8-98017-756-2	01	1	0906-
113	PANEL; SIDE 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)	8-98078-188-3	01	1	0906-
113	PANEL; SIDE 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (A)	8-98078-188-3	01	1	0906-
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-0907
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (D) M8X25 FLANGE	0-28050-825-0	01	1	0908-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0906-0907
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0908-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (A) M8X30 FLANGE	0-28050-830-0	03	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0906-
174	BOLT; STAY FIX 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28050-830-0	01	1	0906-
174	BOLT; STAY FIX 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28050-830-0	01	1	0906-

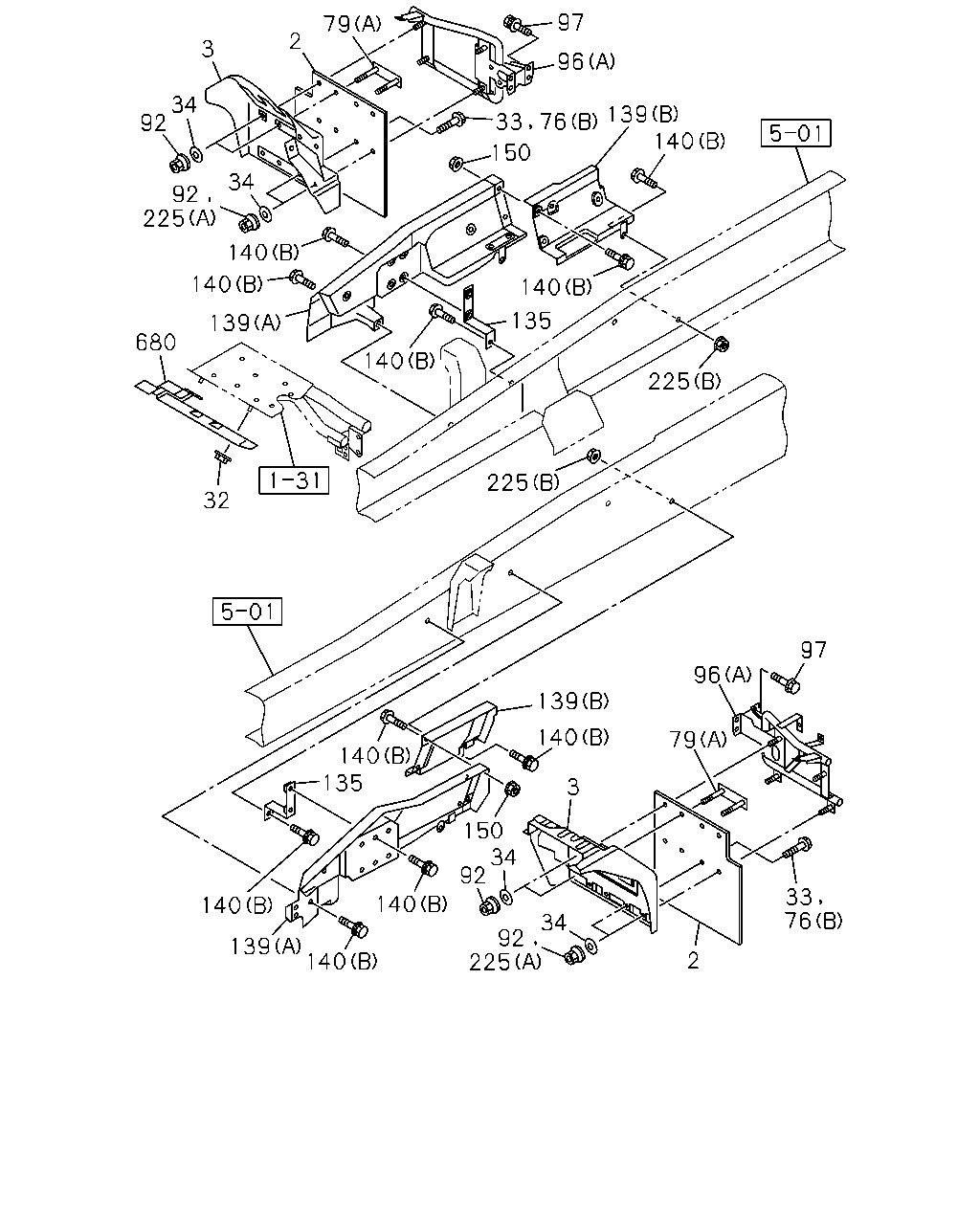

97 79 2 3 96 34 92 139 140 150 34 92 225 140 140 140 135 139 680 140 225 225 32 97 96 139 140 79 140 135 3 150 34 92 33 76 140 140 34 92 225 139 140 2 33 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98136-482-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98261-624-0	01	1	1405-
2	COVER; MUD,TIRE RR TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98136-481-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 11R22.5-148/145K RIB EEC(5K4),TIRE 295/80R22.5-152/148M RIB EEC(55P)	8-98261-623-0	01	1	1405-
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB EEC(5K5)	8-98081-676-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB EEC(5K5)	8-98261-622-0	01	1	1405-
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB EEC(5K5)	8-98081-675-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 12R22.5-152/148K RIB EEC(5K5)	8-98261-621-0	01	1	1405-
2	COVER; MUD,TIRE RR TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98070-671-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98261-626-0	01	1	1405-
2	COVER; MUD,TIRE RR TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98070-670-0	01	1	0906-1404
2	COVER; MUD,TIRE RR TIRE 275/70R22.5-148/145M RIB EEC(5L4)	8-98261-625-0	01	1	1405-
3	GUARD; MUD,RR	8-98070-666-3	01	1	0906-
3	GUARD; MUD,RR	8-98070-667-3	01	1	0906-
32	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0906-
33	BOLT; MUD COVER M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	0906-1007
34	WASHER; PL,MUD COVER ID=8.4 OD=26	0-91614-808-0	16	1	0906-
76	BOLT; MUD GUARD (B) M8X25 W/LK&PL WASHER	1-09030-093-0	04	1	1008-1211
76	BOLT; MUD GUARD (B) M8X30 W/LK&PL WASHER	1-09030-095-0	04	1	1212-
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0906-0908
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	06	1	0909-
79	RETAINER; MUD COVER (B)	8-98060-066-0	02	1	0906-
79	RETAINER; MUD COVER (A)	8-98083-606-1	04	1	0906-
92	NUT; MUD COVER M8 W/DISHED WASHER	8-97329-625-0	18	1	0906-1007
92	NUT; MUD COVER M8 W/DISHED WASHER	8-97329-625-0	16	1	1008-
96	STAY; MUD GUARD (B)	8-98082-316-0	02	1	0906-
96	STAY; MUD GUARD (A)	8-98070-669-1	01	1	0906-
96	STAY; MUD GUARD (A)	8-98070-668-1	01	1	0906-
97	BOLT; STAY TO FRAME M12X35 FLANGE	0-28051-235-0	08	1	0906-
135	BRACKET; SIDE PANEL	1-53457-191-0	02	1	0906-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0906-
139	PANEL; SIDE (A)	1-53194-620-5	01	1	0906-
139	PANEL; SIDE (B)	1-53194-590-0	01	1	0906-
139	PANEL; SIDE (A)	1-53194-619-4	01	1	0906-
140	BOLT; SIDE PANEL (B) M8X30 W/LK&PL WASHER	1-09030-095-0	16	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (D) M8X25 FLANGE	0-28050-825-0	02	1	0906-0907
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (D) M8X25 FLANGE	0-28050-825-0	01	1	0908-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C) M8X12 FLANGE	0-28050-812-0	02	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	01	1	0906-0907
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	02	1	0908-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X25 FLANGE	0-28050-825-0	04	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	08	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A) M8X30 FLANGE	0-28050-830-0	03	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCC ENG(81L) FULLER FSO5206B OD M/T(Y4V) (A) M8X30 FLANGE	0-28050-830-0	03	1	0906-
140	BOLT; SIDE PANEL 6HK1-TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (D) M8X22 W/LK&PL WASHER	1-09030-084-0	12	1	0906-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0906-
225	NUT; MUD GUARD (A) M8 W/DISHED WASHER	8-97329-625-0	02	1	1008-
225	NUT; MUD GUARD (B) M8 FLANGE	0-91180-108-0	02	1	0906-
680	GUARD; MUD,UPPER	8-98121-838-0	01	1	0906-

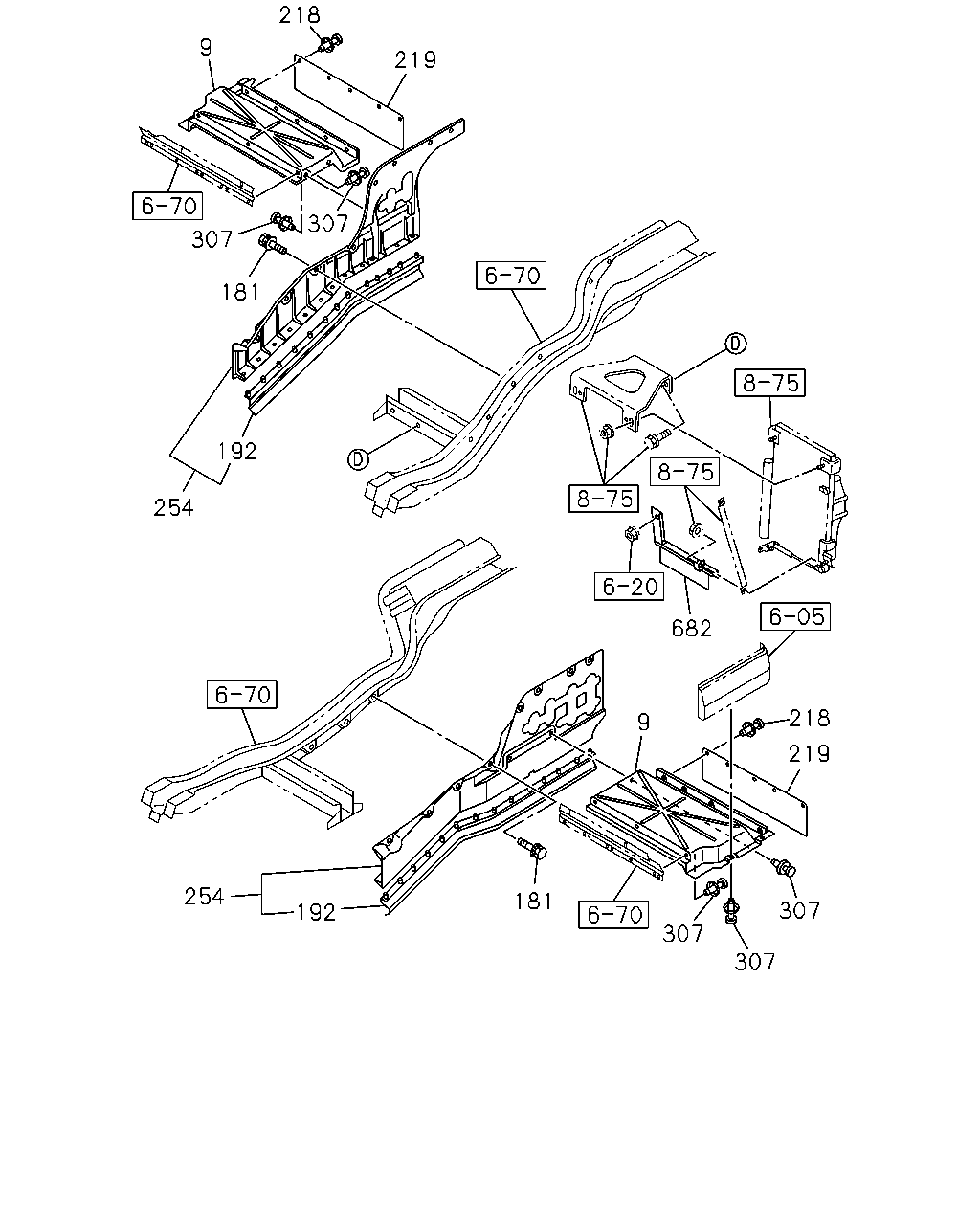

218 9 219 307 307 181 192 254 682 218 9 219 254 181 307 192 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-120-2	01	1	0906-
9	GUARD; SPLASH,WHEEL HOUSE	8-98040-119-2	01	1	0906-
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0906-
192	SEAL; MUD COVER	8-98069-361-0	01	1	0906-
192	SEAL; MUD COVER	8-98069-360-0	01	1	0906-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	10	1	0906-
219	FLAP; MUD GUARD	8-98041-151-1	02	1	0906-
254	COVER; MUD,VALANCE	8-98039-928-1	01	1	0906-
254	COVER; MUD,VALANCE	8-98039-927-3	01	1	0906-
307	RETAINER D8X13.5	1-09987-248-1	14	1	0906-
682	FLAP; CONDENSER AIR CONDITIONER MANUAL CONTROL(C60)	8-98090-119-0	01	1	1005-1101
