◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶
7-70 — SEPARATER AND BED (#6198) — 549 parça

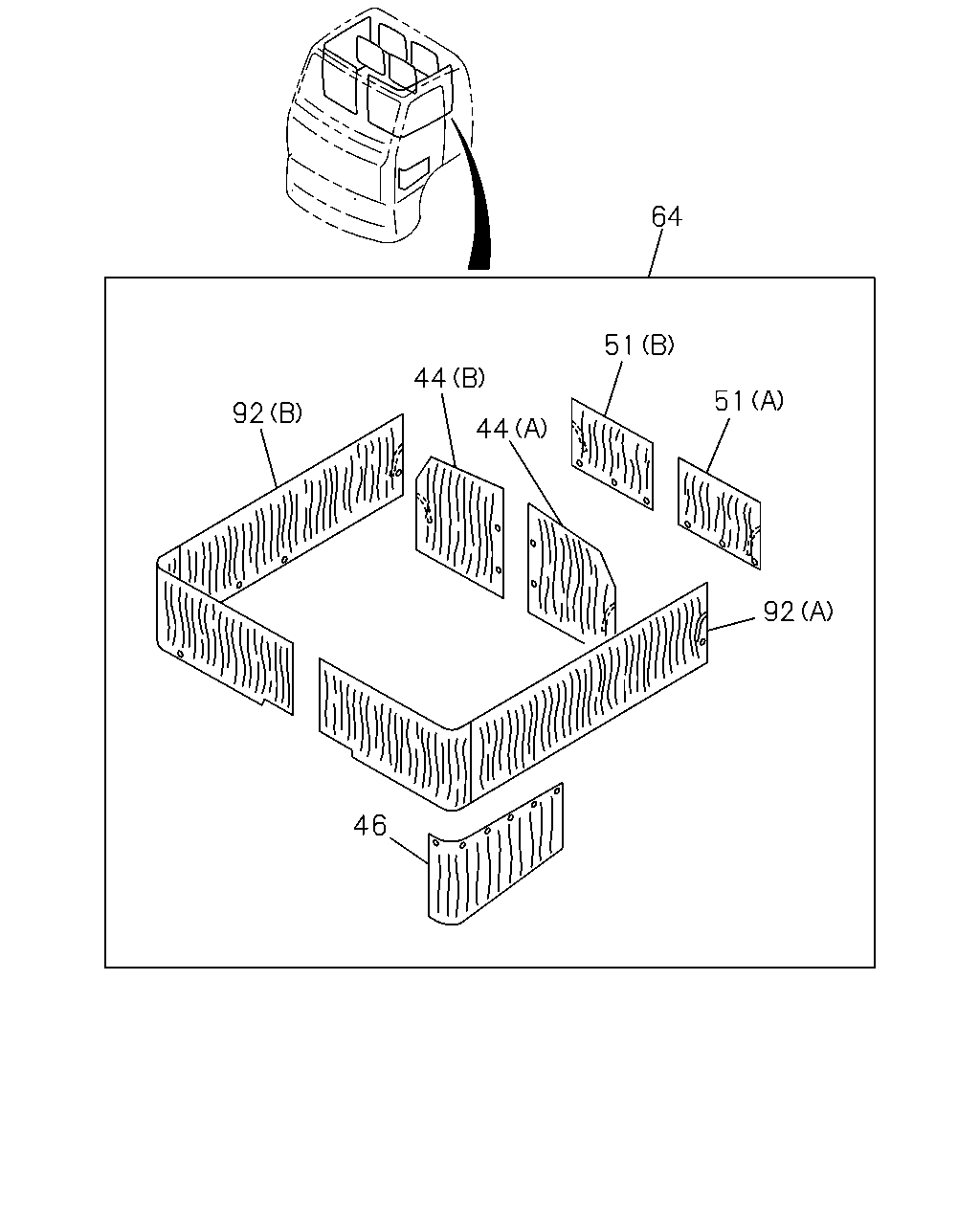

çizim 37596
64 51 44 51 92 44 92 46
BalonParca AdiParca NoAdetTipApplied Date
44 CURTAIN ASM; CABIN CENTER
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (A) 		1-73907-498-0 01 1 0103-0104
44 CURTAIN ASM; CABIN CENTER
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> (B) 		1-73907-497-0 01 1 9905-0104
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (A) 		1-73907-507-0 01 1 9905-0104
44 CURTAIN ASM; CABIN CENTER
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> (B) 		1-73907-506-0 01 1 9905-0104
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73907-505-0 01 1 9905-0102
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) 		1-73907-505-1 01 1 0103-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B) 		1-73907-504-0 01 1 9905-0102
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (B) 		1-73907-504-1 01 1 0103-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A) 		1-73907-481-1 01 1 9905-
44 CURTAIN ASM; CABIN CENTER
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (B) 		1-73907-480-1 01 1 9905-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> 		1-73907-426-0 01 1 0603-
46 CURTAIN ASM; DOOR
AUTO ROUND CURTAIN<TAR> 		1-73907-501-0 01 1 9905-
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-494-0 01 1 9905-0104
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-426-0 01 1 0105-0301
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> 		1-73907-494-0 01 1 0302-0602
46 CURTAIN ASM; DOOR
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-494-0 01 1 0603-
51 CURTAIN; BACK
AUTO ROUND CURTAIN<TAR> (A) 		1-73907-500-0 01 1 9905-0104
51 CURTAIN; BACK
AUTO ROUND CURTAIN<TAR> (B) 		1-73907-499-0 01 1 9905-0104
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-483-1 01 1 9905-
51 CURTAIN; BACK
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-482-1 01 1 9905-
64 CURTAIN KIT
AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-579-0 01 1 9905-0104
64 CURTAIN KIT
HIGH ROOF<S2F> AUTO ROUND CURTAIN<TAR> 		1-73907-580-0 01 1 9905-0104
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-578-0 01 1 9905-0301
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> HIGH ROOF<S2F> 		1-73907-502-1 01 1 0302-
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> 		1-73907-479-0 01 1 9905-0301
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> 		1-73907-492-1 01 1 0302-0602
64 CURTAIN KIT
WINDOW CURTAIN ROUND<BW4> EXC. HIGH ROOF<S2F> 		1-73907-479-1 01 1 0603-
92 CURTAIN ASM; ROUND
AUTO ROUND CURTAIN<TAR> (A) 		1-73907-496-0 01 1 9905-0104
92 CURTAIN ASM; ROUND
AUTO ROUND CURTAIN<TAR> (B) 		1-73907-495-0 01 1 9905-0104
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (A) 		1-73907-485-1 01 1 9905-
92 CURTAIN ASM; ROUND
WINDOW CURTAIN ROUND<BW4> (B) 		1-73907-484-1 01 1 9905-

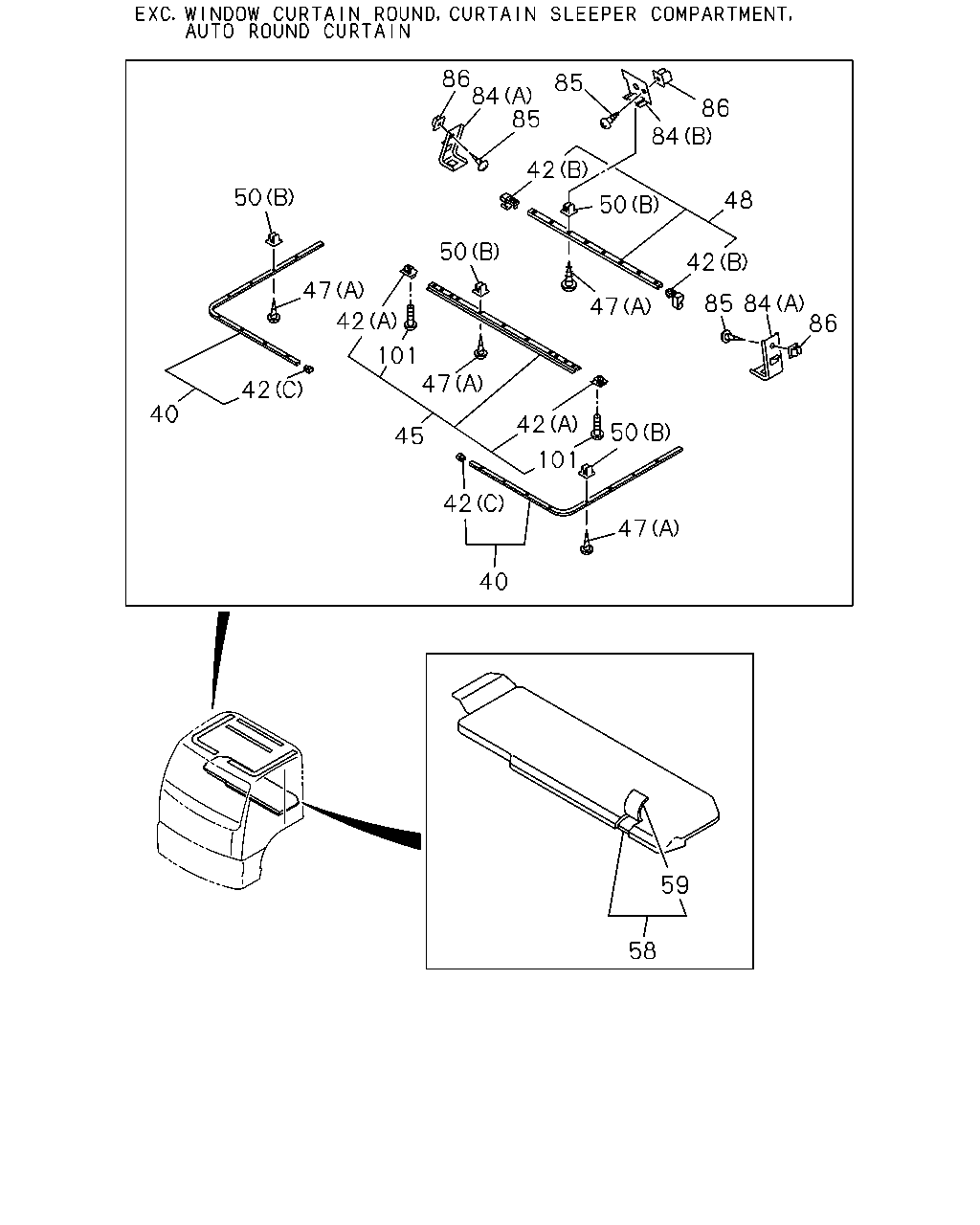

çizim 37767
86 84 85 85 86 84 42 50 48 50 50 42 47 85 84 86 47 42 101 47 42 40 42 50 45 101 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 9905-

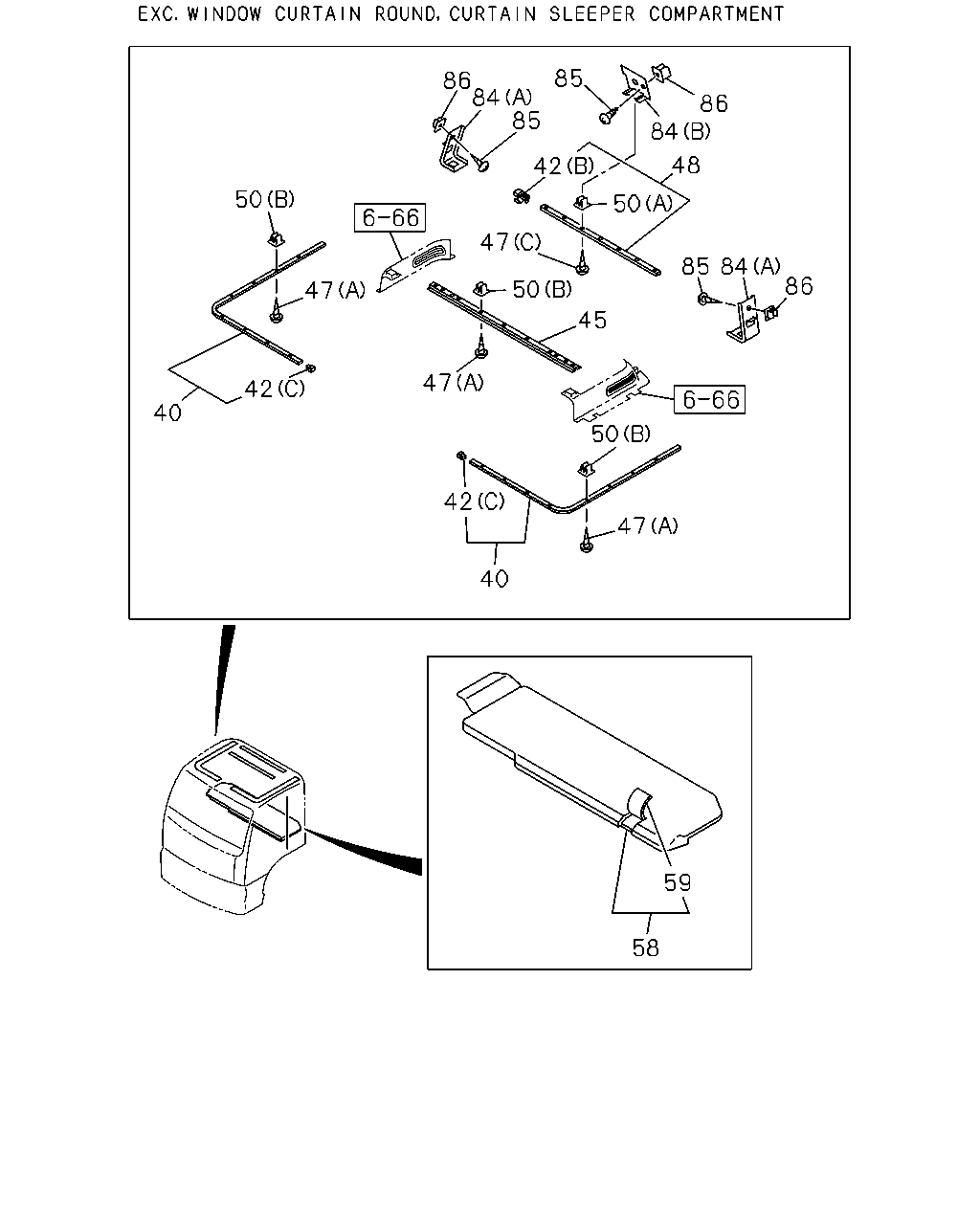

çizim 37791
85 86 84 85 86 84 48 42 50 50 47 85 84 86 50 47 45 47 42 40 50 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-

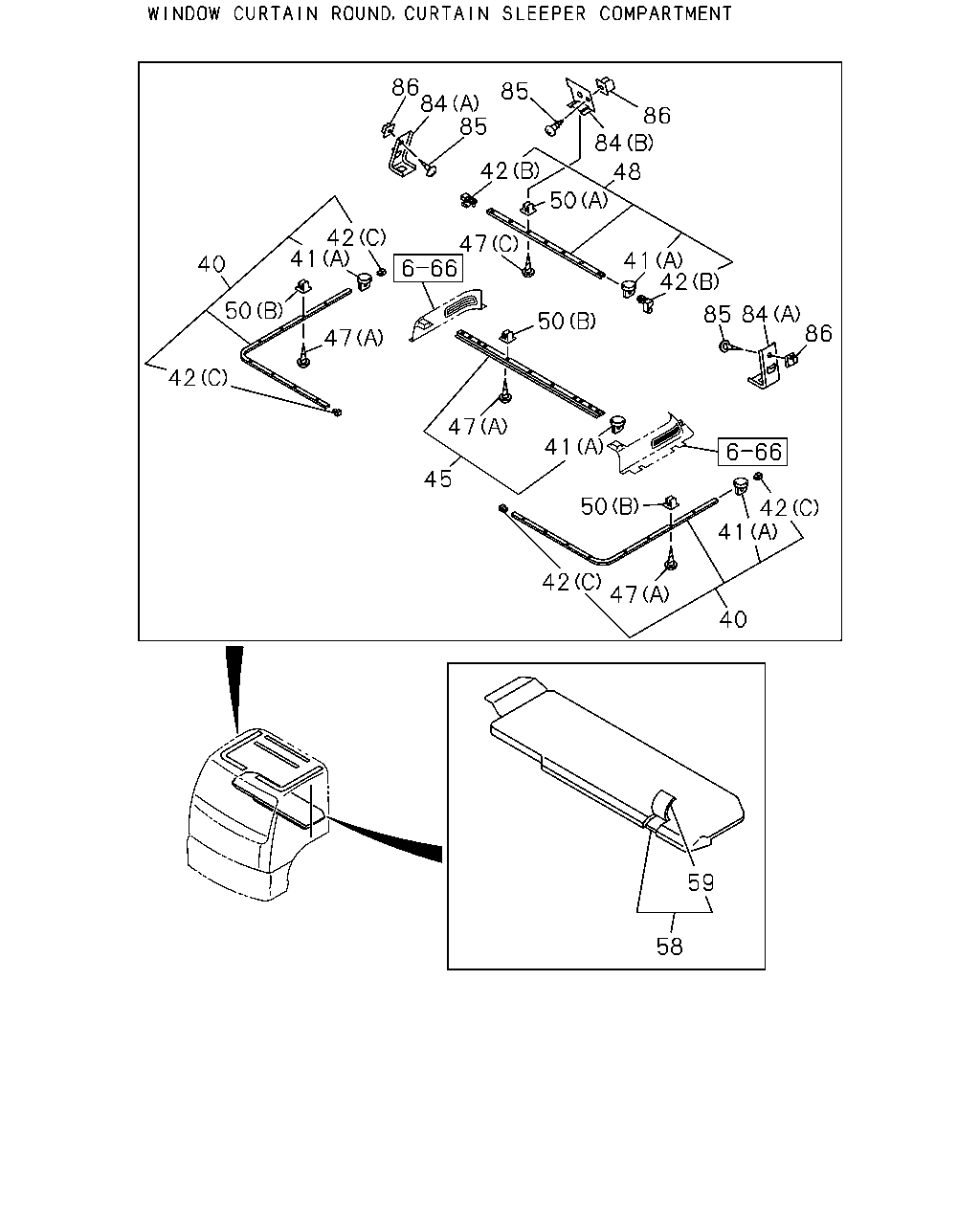

çizim 40277
86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 47 85 84 86 50 42 47 41 45 50 42 41 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 42 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) H=14.5 DARK GRAY 		1-73996-105-0 34 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 35 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 08 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 16 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 14 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-

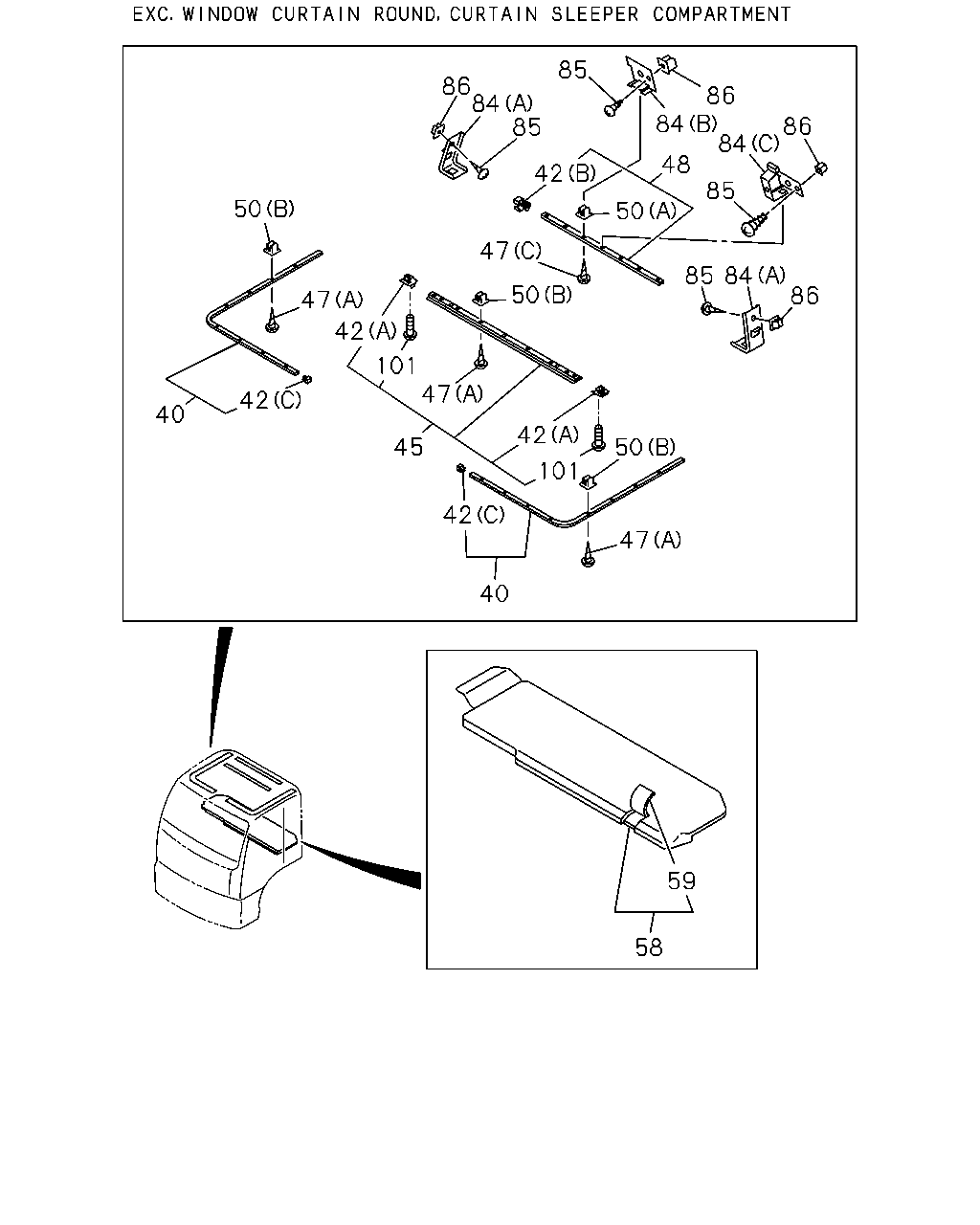

çizim 40608
85 86 84 85 86 84 86 84 48 42 85 50 50 47 85 84 86 50 47 42 101 47 42 40 42 45 50 101 42 47 40 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 9905-

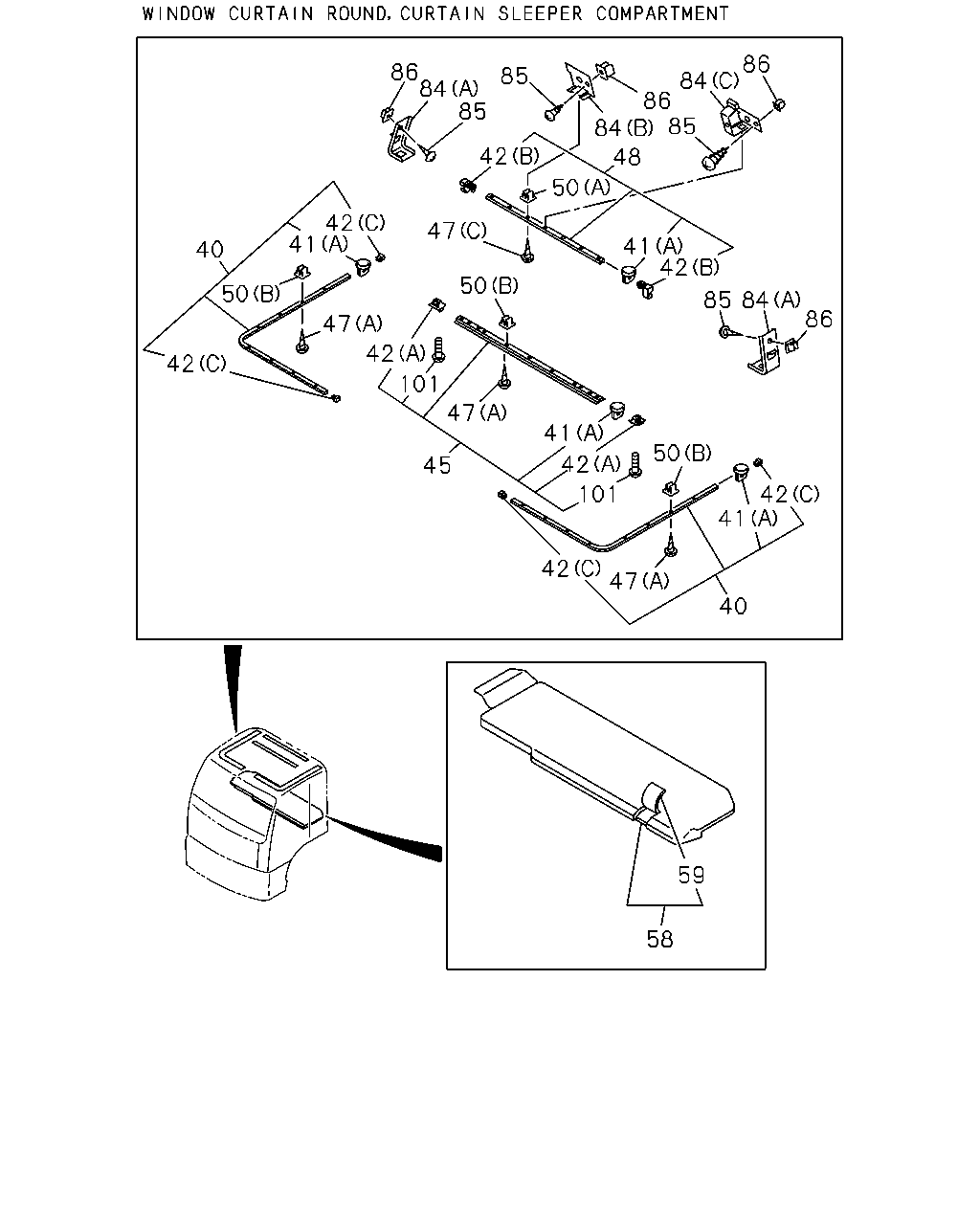

çizim 99895
86 84 86 86 84 85 85 42 48 50 42 41 47 41 42 40 50 50 47 85 84 86 42 42 101 47 41 50 42 45 42 41 101 42 47 40 59 58 84 85
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 42 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) H=14.5 DARK GRAY 		1-73996-105-0 34 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 35 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 08 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 16 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 14 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 9905-

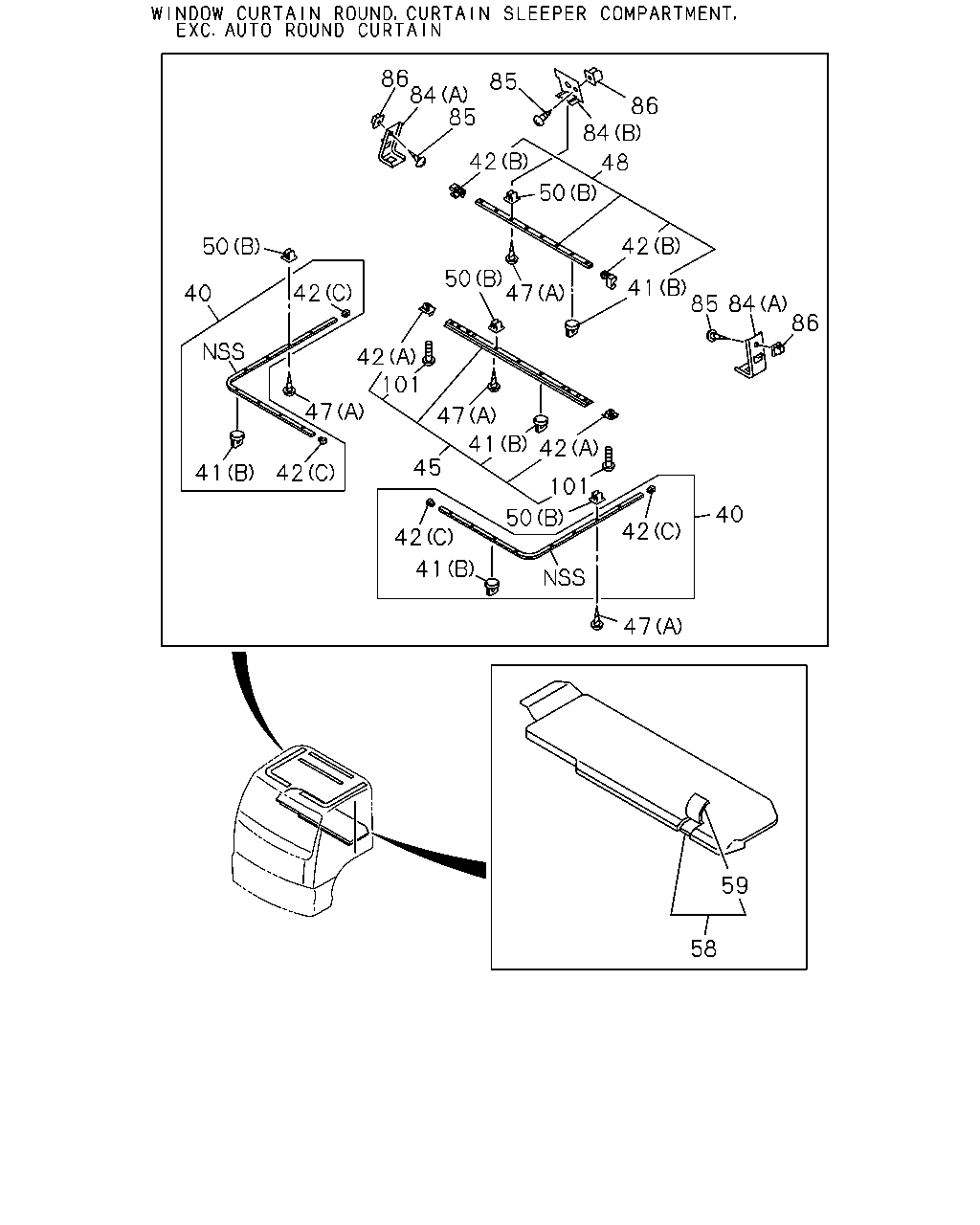

çizim 100202
86 84 85 85 86 84 42 48 50 42 50 50 47 41 85 42 40 84 86 42 101 47 47 41 42 45 41 42 101 40 50 42 42 41 47 59 58
BalonParca AdiParca NoAdetTipApplied Date
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-487-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-424-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-536-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
EXC. AUTO ROUND CURTAIN<TAR> 		1-73907-486-0 01 1 9905-0002
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73907-423-0 01 1 0003-0104
40 RAIL; CURTAIN,SIDE
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73907-535-1 01 1 0105-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-465-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-538-1 01 1 0302-
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-464-0 01 1 9905-0104
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-0 01 1 0105-0301
40 RAIL; CURTAIN,SIDE
WINDOW CURTAIN ROUND<BW4> 		1-73907-537-1 01 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 42 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) H=14.5 DARK GRAY 		1-73996-105-0 34 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 35 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 08 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 16 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 14 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 9905-

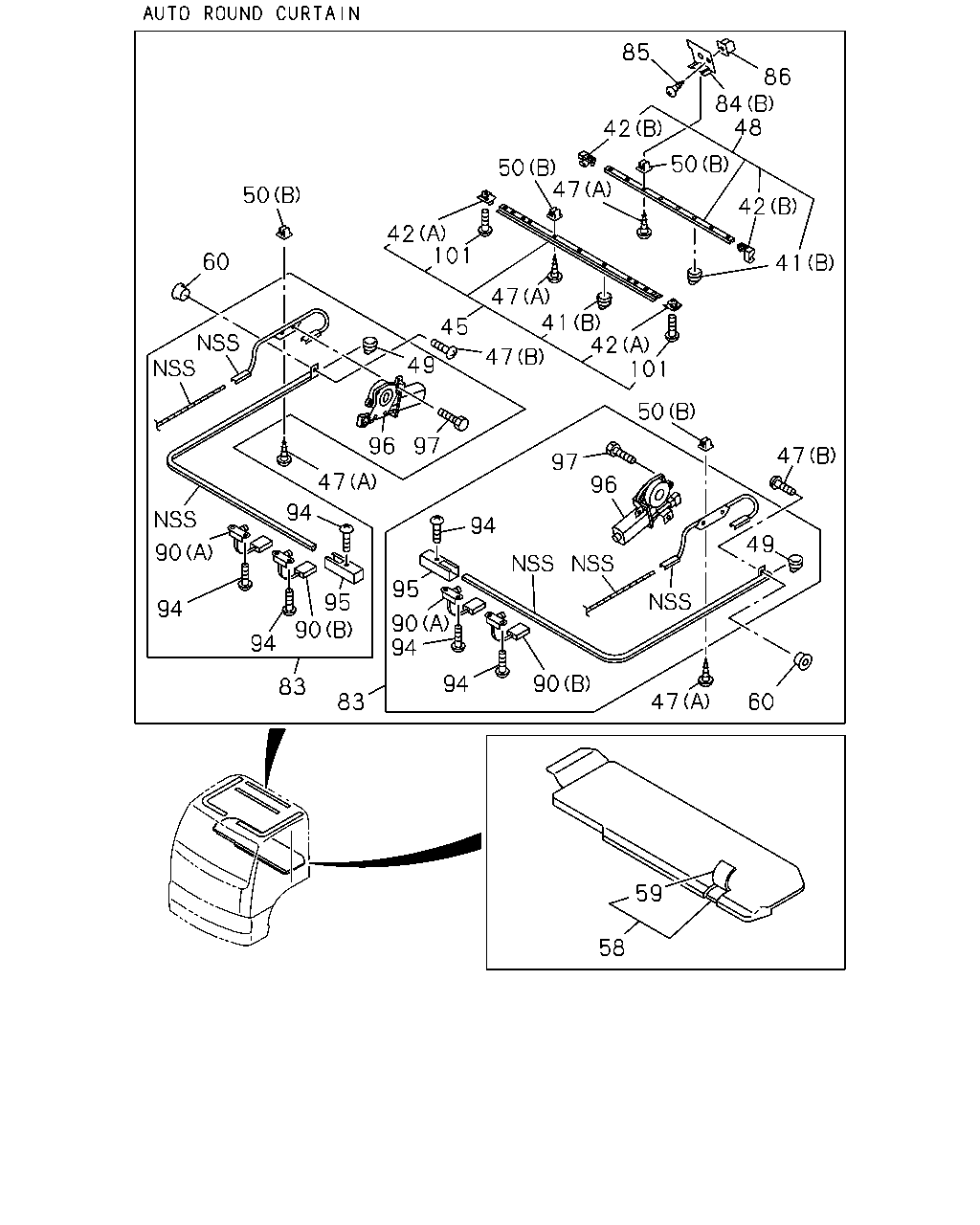

çizim 100263
85 86 84 48 42 50 50 47 50 42 42 101 60 41 47 41 42 101 45 47 49 50 96 97 47 97 47 96 94 94 49 90 95 95 90 94 90 94 94 94 90 83 83 47 60 59 58
BalonParca AdiParca NoAdetTipApplied Date
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 42 1 0302-
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) H=14.5 DARK GRAY 		1-73996-105-0 34 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (A) H=14.5 WHITE 		1-73996-398-0 35 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 08 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 16 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> (B) H=14.5 DARK GRAY 		1-73996-105-0 14 1 9905-0104
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0105-0301
41 HOOK; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A) H=14.5 WHITE 		1-73996-398-0 14 1 0302-
42 STOPPER; CURTAIN RAIL
(A) 		1-73907-403-1 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
HIGH ROOF<S2F> (A) 		1-73907-657-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
(B) 		1-73996-146-2 02 1 9905-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 02 1 0302-
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 02 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (C) 		1-73908-193-0 04 1 0003-0104
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0105-0301
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 04 1 0302-
42 STOPPER; CURTAIN RAIL
WINDOW CURTAIN ROUND<BW4> (C) 		1-73908-193-0 04 1 9905-0002
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (C) 		1-73996-393-0 02 1 0105-
42 STOPPER; CURTAIN RAIL
EXC. WINDOW CURTAIN ROUND<BW4> (B) 		1-73996-399-0 01 1 0105-
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> 		1-73907-460-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
HIGH ROOF<S2F> EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> 		1-73907-591-2 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> EXC. HIGH ROOF<S2F> 		1-73907-379-5 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> EXC. HIGH ROOF<S2F> 		1-73907-546-3 01 1 0105-
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,AUTO ROUND CURTAIN<TAR> HIGH ROOF<S2F> 		1-73907-380-6 01 1 9905-0104
45 RAIL; CURTAIN,FRT
WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> HIGH ROOF<S2F> 		1-73907-592-2 01 1 0105-
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F>,AUTO ROUND CURTAIN<TAR> 		1-73907-420-0 01 1 9905-0104
45 RAIL; CURTAIN,FRT
EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>,HIGH ROOF<S2F> 		1-73907-545-2 01 1 0105-
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 32 1 9905-0104
47 SCREW; CURTAIN RAIL
(A) M5X20 		5-09981-059-0 27 1 0105-
47 SCREW; CURTAIN RAIL
(C) M5X25 		5-09981-093-0 07 1 0105-
47 SCREW; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) M5X16 		9-93490-516-0 04 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-106-3 01 1 9905-0104
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-0 01 1 0105-0301
48 RAIL; CURTAIN,BACK
WINDOW CURTAIN ROUND<BW4> 		1-73996-386-1 01 1 0302-
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73996-279-0 01 1 9905-0008
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4>,AUTO ROUND CURTAIN<TAR> 		1-73908-111-0 01 1 0009-0104
48 RAIL; CURTAIN,BACK
EXC. WINDOW CURTAIN ROUND<BW4> 		1-73996-385-1 01 1 0105-
49 HOOK; CURTAIN
AUTO ROUND CURTAIN<TAR> H=14.5 DARK GRAY 		1-73996-105-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(A) D=8X8 L=13 M5 		1-09983-159-0 07 1 0105-
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 32 1 9905-0104
50 GROMMET; SCREW,CURTAIN RAIL
(B) D=8.6X7.7 L=7.5 		8-94279-078-0 27 1 0105-
58 BED; MAT 1-75117-942-2 01 1 9905-0003
58 BED; MAT 1-75117-999-0 01 1 0004-0004
58 BED; MAT 1-75117-999-0 01 1 0005-0104
58 BED; MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-018-0 01 1 0105-0301
58 BED; MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-018-3 01 1 0302-
58 BED; MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-112-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT 1-75117-944-1 01 1 9905-0003
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0004-0004
59 COVER ASM; TRIM,BED MAT 1-75127-088-0 01 1 0005-0104
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> AUSTRALIA EQUIPMENT(RR3) 		1-75127-132-0 01 1 0105-0301
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> 		1-75127-132-2 01 1 0302-
59 COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75127-130-0 01 1 0105-0301
60 HOLDER
AUTO ROUND CURTAIN<TAR> 		1-79198-011-0 04 1 9905-0104
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-289-5 01 1 9905-0104
83 RAIL; CURTAIN,AUTOMATIC
AUTO ROUND CURTAIN<TAR> 		1-73907-288-5 01 1 9905-0104
84 BRACKET; CURTAIN RAIL
(B) 		1-73998-987-4 07 1 9905-0104
84 BRACKET; CURTAIN RAIL
(A) 		1-73998-986-2 02 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73998-986-2 02 1 9905-0104
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (C) 		1-73907-661-0 01 1 0105-
84 BRACKET; CURTAIN RAIL
HIGH ROOF<S2F> (B) 		1-73998-987-4 06 1 0105-
84 BRACKET; CURTAIN RAIL
EXC. HIGH ROOF<S2F> (B) 		1-73998-987-4 07 1 0105-
85 SCREW; BRKT
M5X20 		5-09981-059-0 02 1 9905-
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 9905-0104
85 SCREW; BRKT
M5X20 		5-09981-059-0 07 1 0105-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 9905-0104
86 GROMMET; SCREW,BRKT
D=8.6X7.7 L=7.5 		8-94279-078-0 07 1 0105-
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (A) 		1-73996-224-2 02 1 9905-0104
90 SWITCH; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> (B) 		1-73996-225-2 02 1 9905-0104
94 FIXING PARTS; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-256-0 10 1 9905-0104
95 COVER; SWITCH,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-254-0 02 1 9905-0104
96 MOTOR ASM; CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> 		1-73996-255-0 02 1 9905-0104
97 SCREW; MOTOR,CURTAIN RAIL
AUTO ROUND CURTAIN<TAR> M6X25 W/LK WASHER 		9-03910-625-0 04 1 9905-0104
101 SCREW; STOPPER
HIGH ROOF<S2F> 		1-73907-400-0 02 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
