◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#6197) — 35 parça

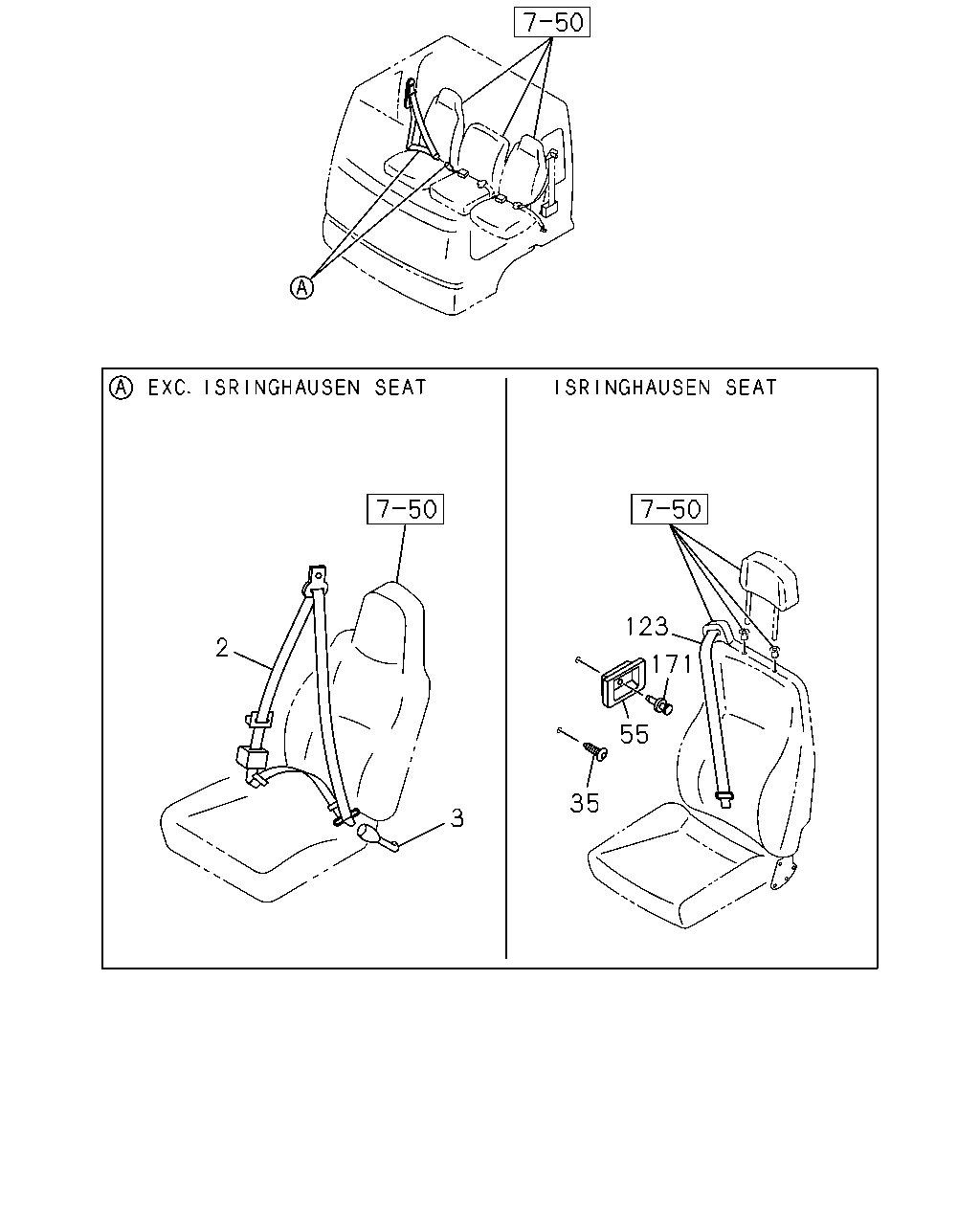

çizim 37766
123 2 171 55 35 3
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-938-1 01 1 0105-0301
3 BELT; SEAT,BUCKLE SIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75618-914-0 01 1 0105-0301
35 GROMMET; SEAT BELT ANCHOR
OD=22 		9-61168-535-0 01 1 1006-
55 GUIDE; SEAT BELT 1-75617-513-0 01 1 9905-0104
55 GUIDE; SEAT BELT
ISRINGHAUSEN SEAT(SJA) 		1-75617-556-0 01 1 0105-0301
55 GUIDE; SEAT BELT 1-75617-556-0 01 1 0302-
123 BELT ASM; SEAT 1-75617-570-0 01 1 9905-0104
123 BELT ASM; SEAT
ISRINGHAUSEN SEAT(SJA) 		1-75617-570-0 01 1 0105-0301
123 BELT ASM; SEAT 1-75617-570-0 01 1 0302-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9905-

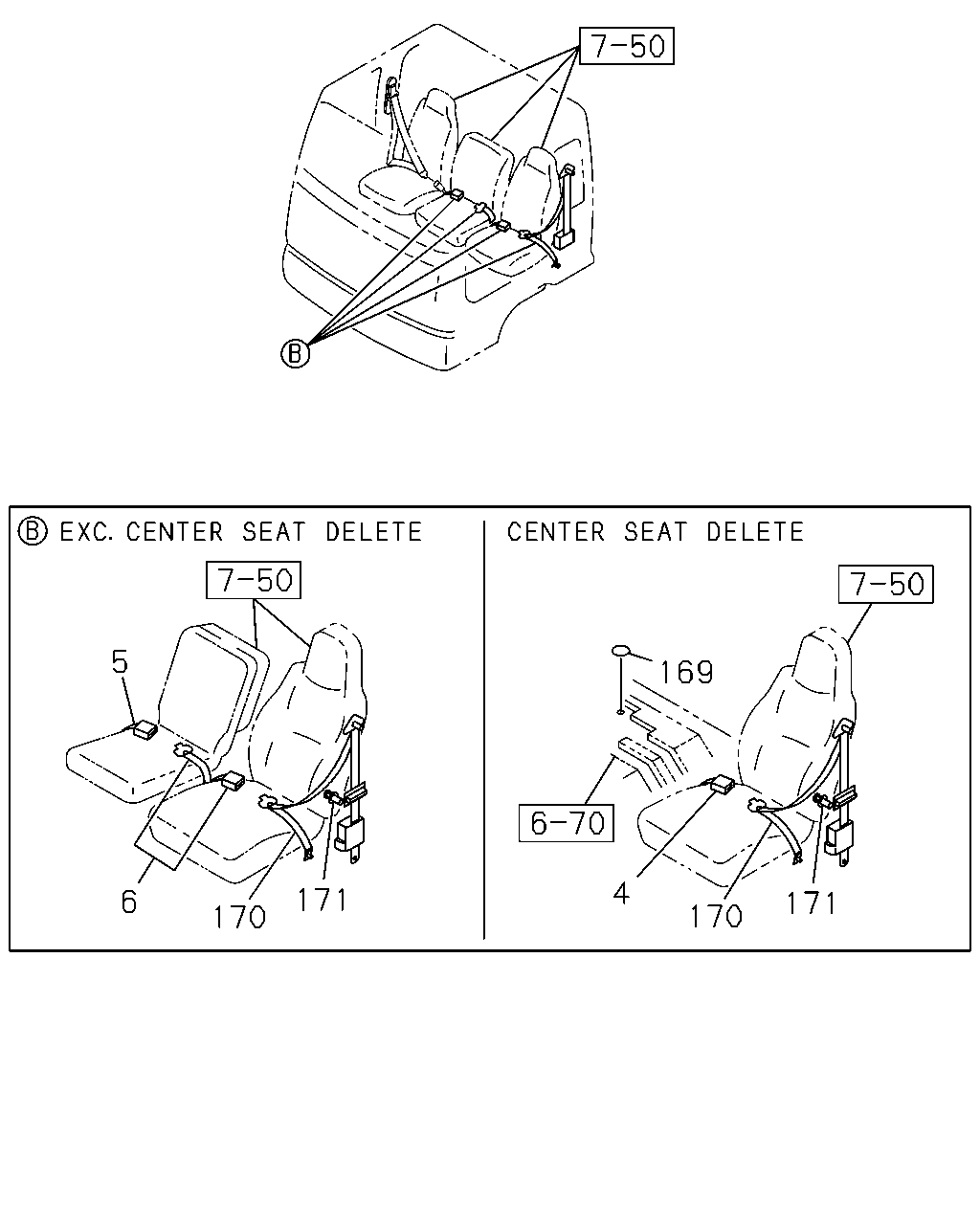

çizim 99900
5 169 4 171 6 171 170 170
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-566-0 01 1 9905-0012
4 BELT; PASSENGER SEAT,BUCKLE SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) CENTER SEAT DELETE(SP9) 		1-75618-752-0 01 1 0101-0104
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0105-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-739-0 01 1 9905-0104
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0105-1310
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-487-2 01 1 1311-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-567-0 01 1 9905-0012
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) 		1-75617-547-3 01 1 0105-0301
6 BELT; CENTER SEAT,TONGUE SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) EXC. CENTER SEAT DELETE(SP9) 		1-75618-798-1 01 1 0101-0104
6 BELT; CENTER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-1 01 1 0105-0301
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-3 01 1 0302-1310
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		8-98184-488-1 01 1 1311-
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 9905-0104
169 SEAL
ISRINGHAUSEN SEAT(SJA) OD=25 BLACK 		1-76798-019-0 02 1 0105-0301
169 SEAL
OD=25 BLACK 		1-76798-019-0 02 1 0302-1005
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 9905-1005
169 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1006-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 1006-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-565-0 01 1 9905-0012
170 BELT; PASSENGER SEAT,TONGUE SIDE
EXC. ISRINGHAUSEN SEAT(SJA) 		1-75617-550-2 01 1 0105-0301
170 BELT; PASSENGER SEAT,TONGUE SIDE
NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) 		1-75617-515-1 01 1 0101-0104
170 BELT; PASSENGER SEAT,TONGUE SIDE
ISRINGHAUSEN SEAT(SJA) 		1-75618-924-1 01 1 0105-0301
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-605-1 01 1 0302-1310
170 BELT; PASSENGER SEAT,TONGUE SIDE 8-98184-486-1 01 1 1311-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 9905-
