Isuzu WW
▶
TRUCKS
▶
FVR
▶
11239 - FVR-LHD(EUROPE)EURO5
▶
5 - Frame, Cab Mounting
▶
5-17 - CYLINDER; CAB TILT
▶
5-17 — CYLINDER; CAB TILT
(#61967) — 27 parça
◀

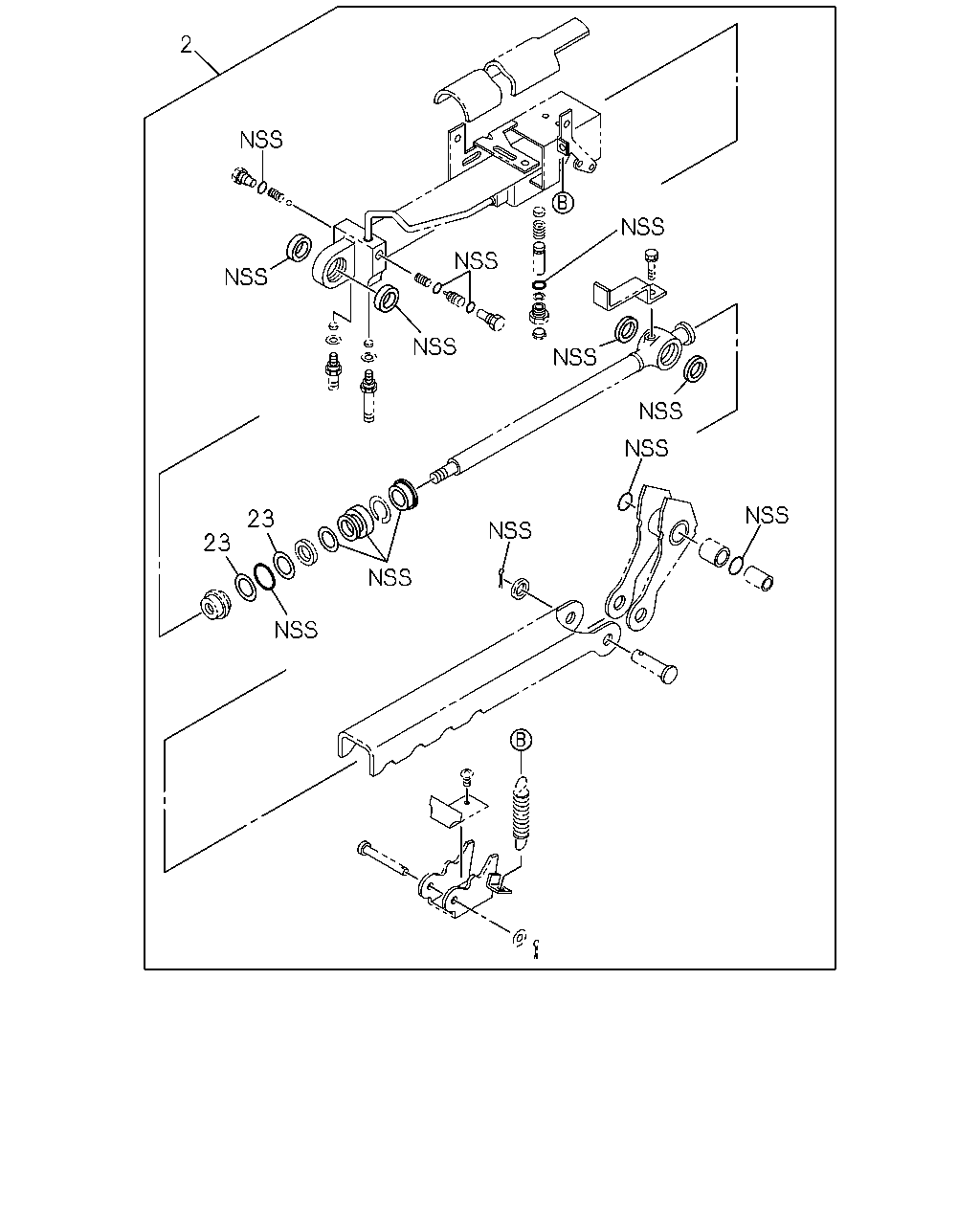

[517A] REPAIR KIT (2 parça)
[517A] FIXING (1 parça)
[517A] COMPONENT (24 parça)
▶
2
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; OIL CYL
1-85579-068-0
01
1
0906-
23
RING; SNAP
1-53457-048-0
02
1
0906-

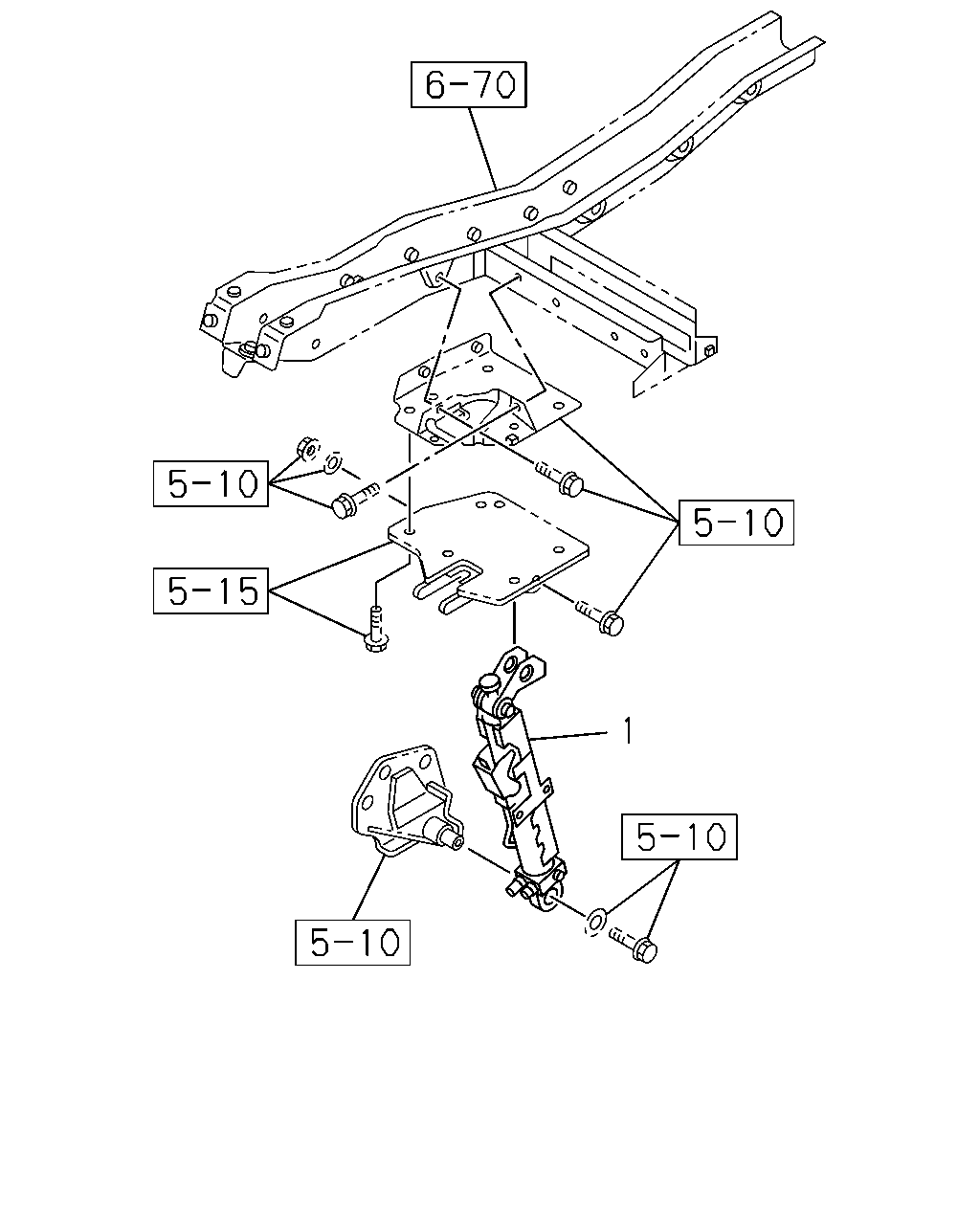

1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
8-98020-528-0
01
1
0906-

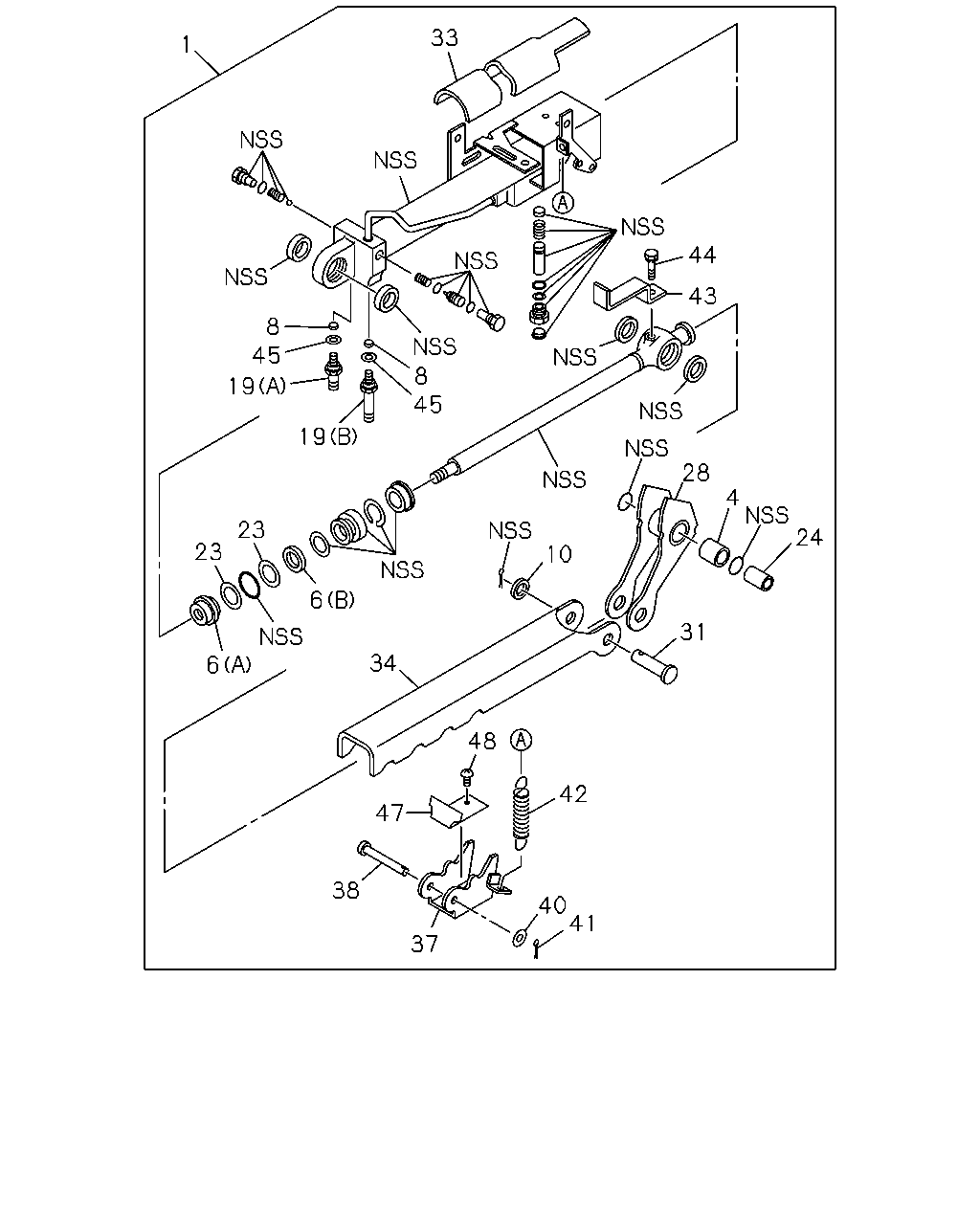

33
1
44
43
8
45
8
45
19
19
28
4
24
23
23
10
6
31
34
6
48
42
47
38
40
41
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER; OIL,CAB TILT
8-98020-528-0
01
1
0906-
4
BUSHING; OIL CYL
1-53458-405-0
01
1
0906-
6
PISTON; OIL CYL
(A)
8-98134-365-0
01
1
0906-
6
PISTON; OIL CYL
(B)
8-98134-367-0
01
1
0906-
8
FILTER; OIL CYL
1-53458-102-0
02
1
0906-
10
WASHER; OIL CYL
1-53458-401-0
01
1
0906-
19
NIPPLE; OIL CYL
(A)
1-53457-044-0
01
1
0906-
19
NIPPLE; OIL CYL
(B)
1-53457-045-0
01
1
0906-
23
RING; SNAP
1-53457-048-0
02
1
0906-
24
COLLAR; LEVER
1-53458-398-0
01
1
0906-
28
LEVER; OIL CYL
1-53458-583-0
01
1
0906-
31
PIN; OIL CYL
1-53457-172-0
01
1
0906-
33
COVER; CYL
1-53458-590-0
01
1
0906-
34
STOPPER; OIL CYL
1-53458-582-0
01
1
0906-
37
LEVER; STOPPER
1-53457-170-0
01
1
0906-
38
PIN; STOPPER
1-53458-550-0
01
1
0906-
40
WASHER; STOPPER PIN
1-53458-045-0
01
1
0906-
41
PIN; SPLIT
1-53458-545-0
01
1
0906-
42
SPRING; LOCK LEVER
1-53457-168-0
01
1
0906-
43
PLATE; SW
1-53457-167-0
01
1
0906-
44
BOLT; SW PLATE
M6X12
1-53458-542-0
01
1
0906-
45
GASKET; OIL CYL
1-53458-073-0
02
1
0906-
47
PLATE; THRUST,OIL CYL
1-53457-169-0
01
1
0906-
48
SCREW; OIL CYL
M5X8
1-53458-005-0
02
1
0906-
