5-16 — OIL PUMP; CAB TILT (#61966) — 56 parça

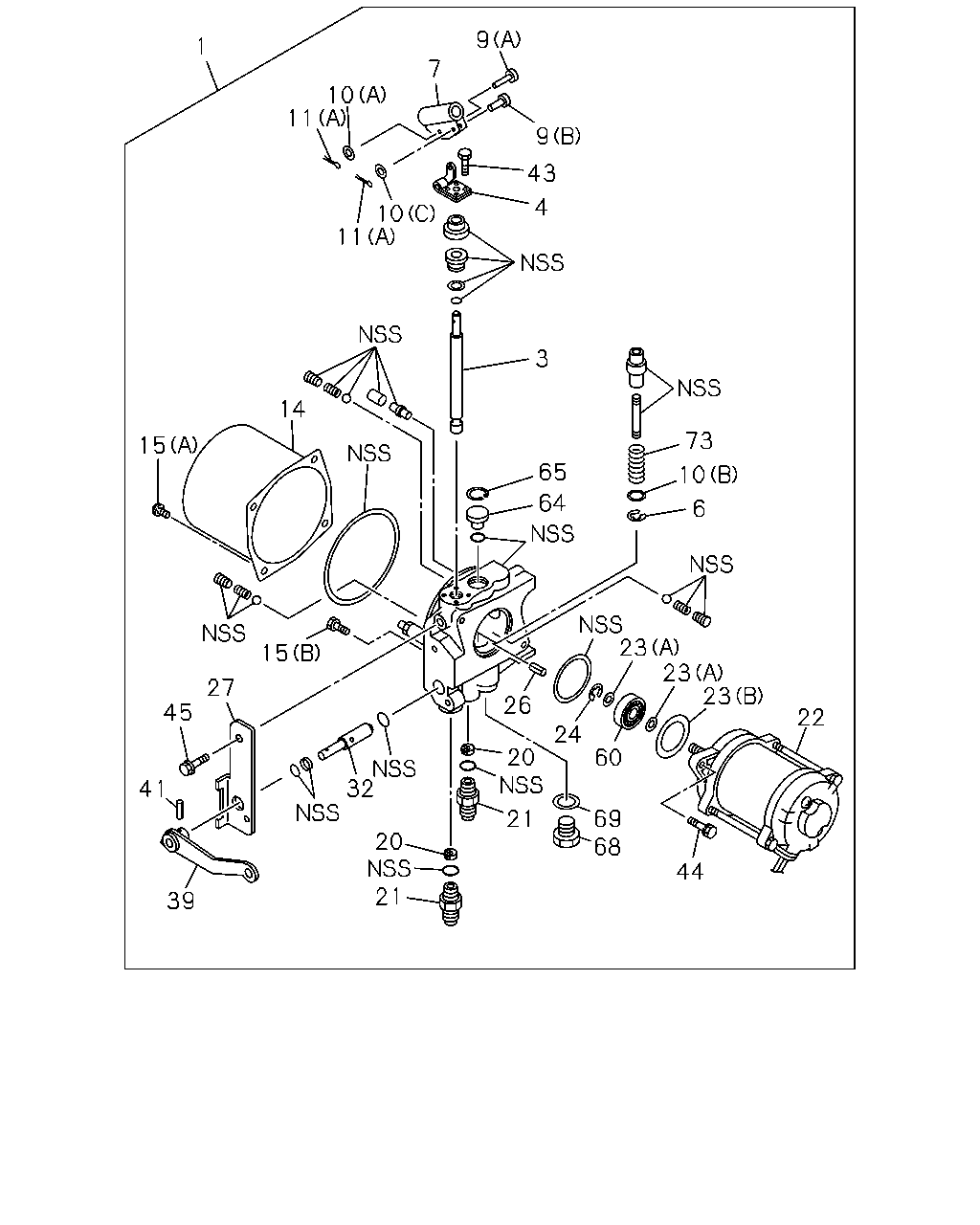

çizim 166128
9 1 7 10 11 9 43 4 10 11 3 14 73 15 65 10 64 6 23 23 23 15 27 26 45 22 24 20 60 32 41 21 69 68 20 21 44 39
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 8-98087-856-1 01 1 0906-
3 PISTON; MANUAL 1-53457-204-0 01 1 0906-
4 BRACKET; OIL PUMP 1-53457-205-0 01 1 0906-
6 RING; SNAP 1-53457-210-0 01 1 0906-
7 SOCKET; OIL PUMP 1-53457-207-0 01 1 0906-
9 PIN; OIL PUMP
(C) L=27.7 		1-09987-141-0 02 1 0906-
9 PIN; OIL PUMP
(A) 		1-53458-057-0 01 1 0906-
9 PIN; OIL PUMP
(B) 		1-53458-060-0 01 1 0906-
10 WASHER; OIL PUMP
(D) ID=8.4 OD=22 		0-91610-708-0 02 1 0906-
10 WASHER; OIL PUMP
(A) 		1-53457-208-0 01 1 0906-
10 WASHER; OIL PUMP
(B) 		1-53457-211-0 01 1 0906-
10 WASHER; OIL PUMP
(C) 		1-53458-013-0 01 1 0906-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0906-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 0906-
14 RESERVOIR; OIL PUMP 1-53457-213-0 01 1 0906-
15 BOLT; RESERVOIR
(A) M5X8 		1-53458-005-0 04 1 0906-
15 BOLT; RESERVOIR
(B) M5X8 		1-53458-433-0 02 1 0906-
20 FILTER; OIL PUMP 1-53457-081-0 02 1 0906-
21 CONNECTOR; OIL PUMP
M12 		1-53458-941-0 02 1 0906-
22 MOTOR; OIL PUMP 1-53457-080-0 01 1 0906-
23 WASHER; MOTOR
(A) 		1-53457-212-0 02 1 0906-
23 WASHER; MOTOR
(B) 		1-53458-018-0 01 1 0906-
24 RING; SNAP,MOTOR 1-53458-044-0 01 1 0906-
26 PIN; SPR,OIL PUMP 1-53458-038-0 01 1 0906-
27 COVER; OIL PUMP 1-53458-568-0 01 1 0906-
32 VALVE; OIL PUMP 1-53458-569-0 01 1 0906-
39 LEVER; OIL PUMP 1-53458-567-0 01 1 0906-
41 PIN; SPR,LEVER 1-53458-019-0 01 1 0906-
43 BOLT; LEVER
M5X16 		1-53457-206-0 03 1 0906-
44 BOLT; MOTOR
M6X20 		1-53458-007-0 02 1 0906-
45 BOLT; COVER
M6X8 		1-53458-004-0 02 1 0906-
60 BEARING; OIL PUMP 1-53458-423-0 01 1 0906-
64 SLEEVE; OIL PUMP 1-53458-572-0 01 1 0906-
65 RING; SNAP,SLEEVE 1-53458-570-0 01 1 0906-
68 PLUG; FILLER 1-53458-428-0 01 1 0906-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0906-
73 SPRING; PISTON 1-53458-040-0 01 1 0906-

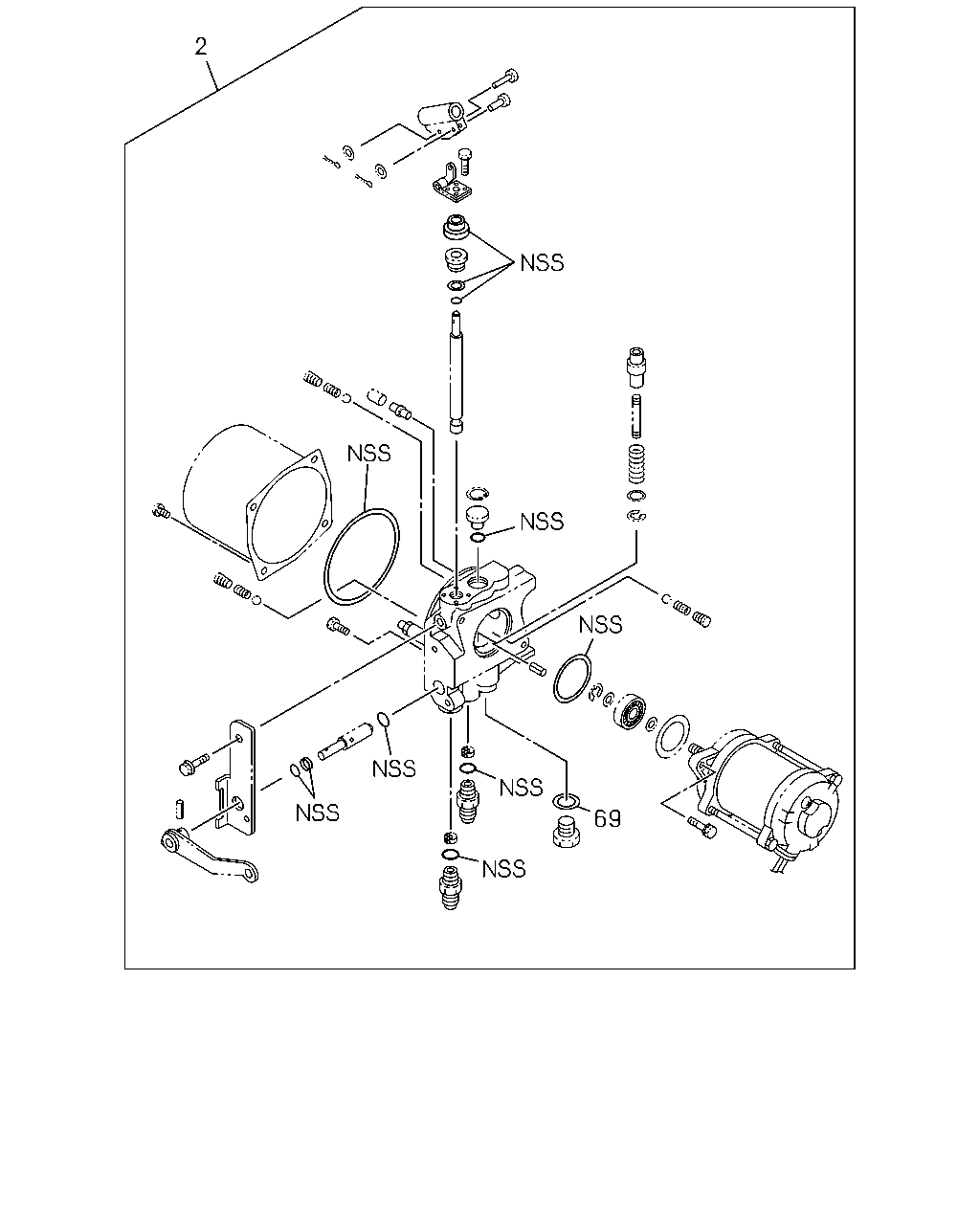

çizim 166175
2 69
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP 1-85579-069-0 01 1 0906-
69 GASKET; FILLER PLUG 1-53458-427-0 01 1 0906-

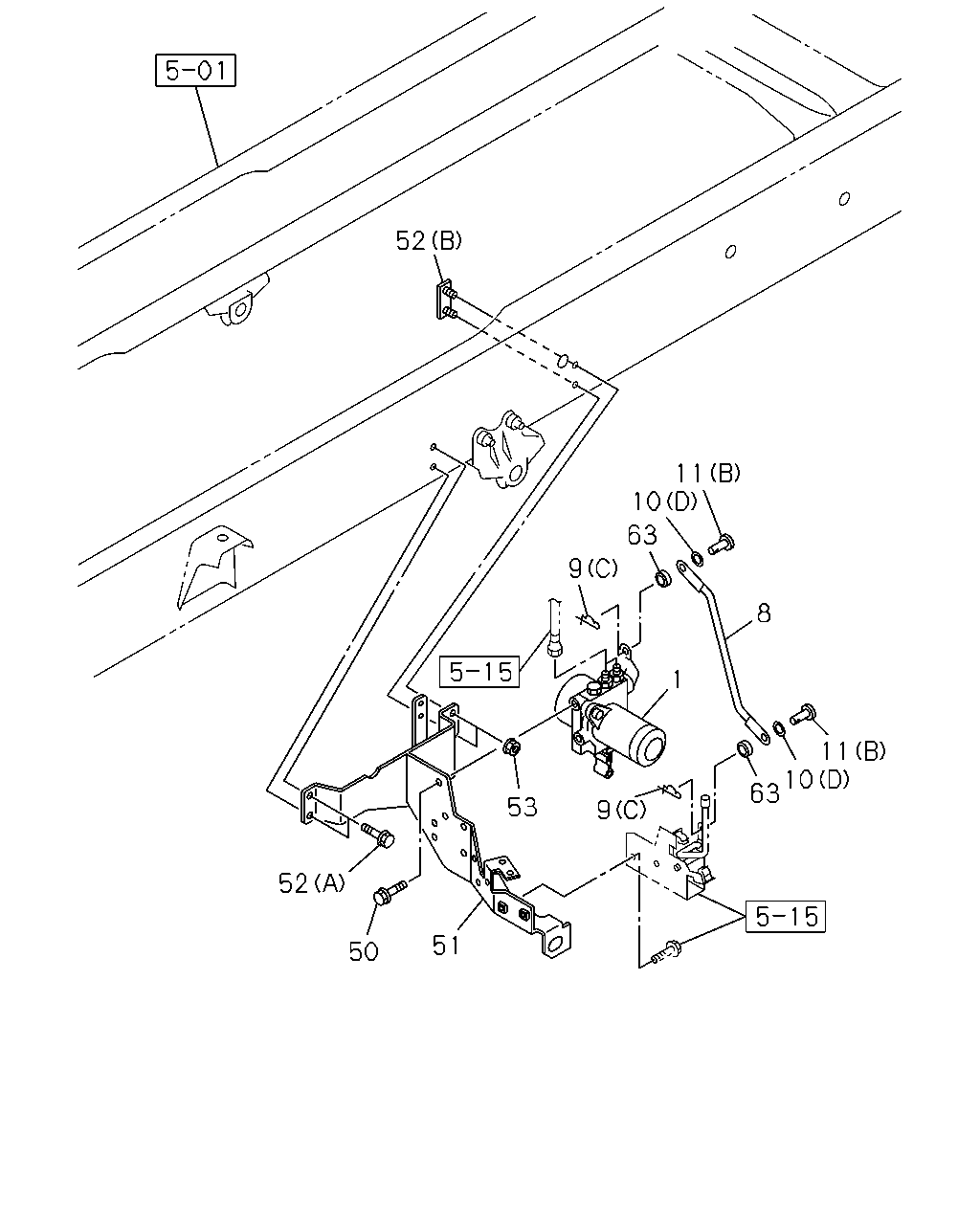

çizim 166181
52 11 10 63 9 8 1 11 10 63 53 9 52 51 50
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT 8-98087-856-1 01 1 0906-
8 LINK; OIL PUMP 8-98022-480-0 01 1 0906-
9 PIN; OIL PUMP
(C) L=27.7 		1-09987-141-0 02 1 0906-
9 PIN; OIL PUMP
(A) 		1-53458-057-0 01 1 0906-
9 PIN; OIL PUMP
(B) 		1-53458-060-0 01 1 0906-
10 WASHER; OIL PUMP
(D) ID=8.4 OD=22 		0-91610-708-0 02 1 0906-
10 WASHER; OIL PUMP
(A) 		1-53457-208-0 01 1 0906-
10 WASHER; OIL PUMP
(B) 		1-53457-211-0 01 1 0906-
10 WASHER; OIL PUMP
(C) 		1-53458-013-0 01 1 0906-
11 PIN; SPLIT,OIL PUMP
(B) OD=8 L=17 		0-82253-817-0 02 1 0906-
11 PIN; SPLIT,OIL PUMP
(A) 		1-53457-209-0 02 1 0906-
50 BOLT; OIL PUMP
M10X16 FLANGE 		0-28051-016-0 02 1 0906-
51 BRACKET; OIL PUMP 8-98022-422-3 01 1 0906-
52 BOLT; BRKT
(A) M10X40 FLANGE 		0-28651-040-0 02 1 0906-
52 BOLT; BRKT
(B) 		8-98087-304-0 01 1 0906-
53 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0906-
63 GROMMET
ID=10 OD=23 T=8 		1-09983-010-0 02 1 0906-
