Isuzu WW
▶
TRUCKS
▶
FVR
▶
11239 - FVR-LHD(EUROPE)EURO5
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#61963) — 44 parça
Tümü
A - WHEEL BASE 3900MM
B - WHEEL BASE 4600MM
C - WHEEL BASE 5500MM
D - WHEEL BASE 6000MM
◀

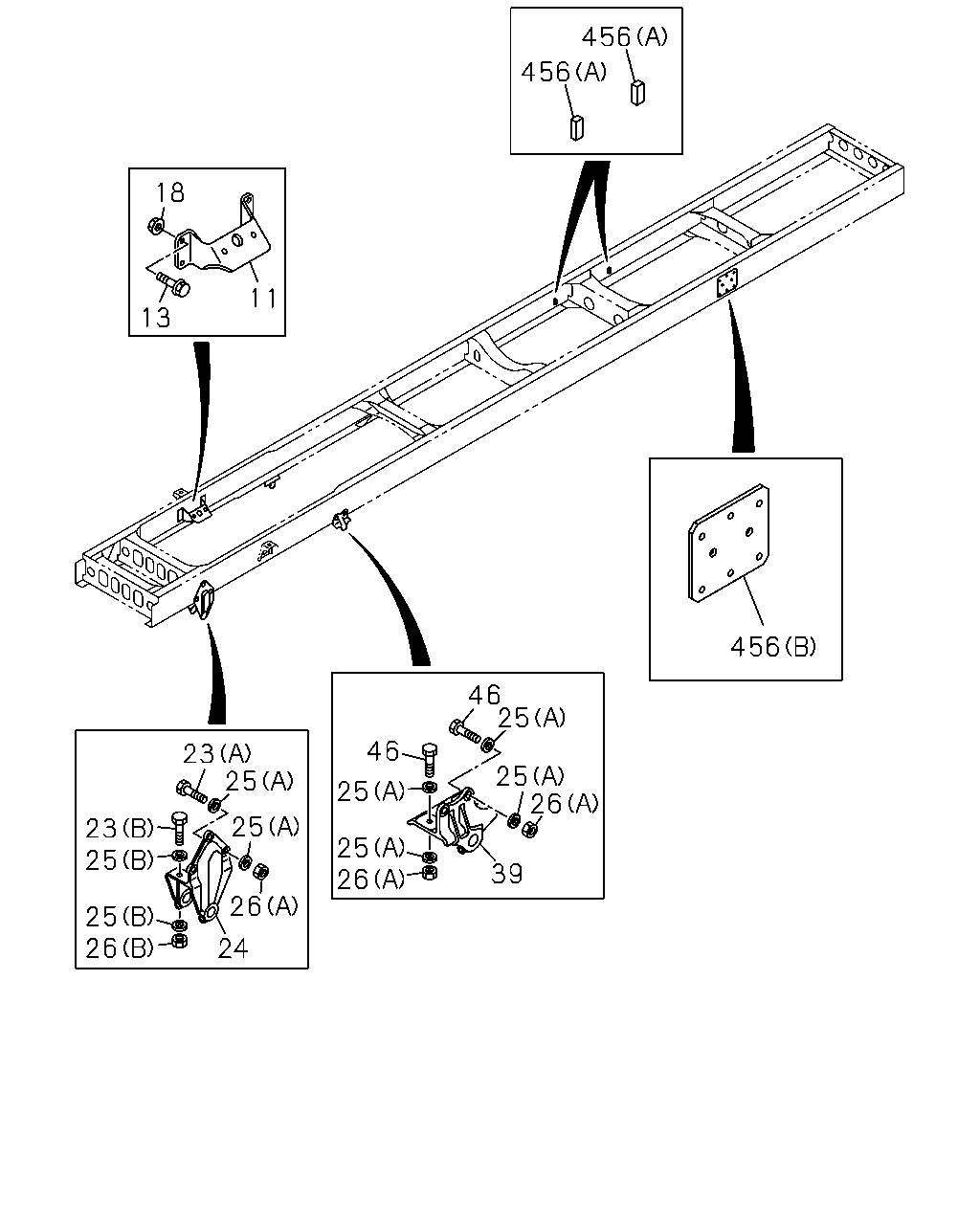

[501A] BRACKET AND OTHER PARTS (16 parça)

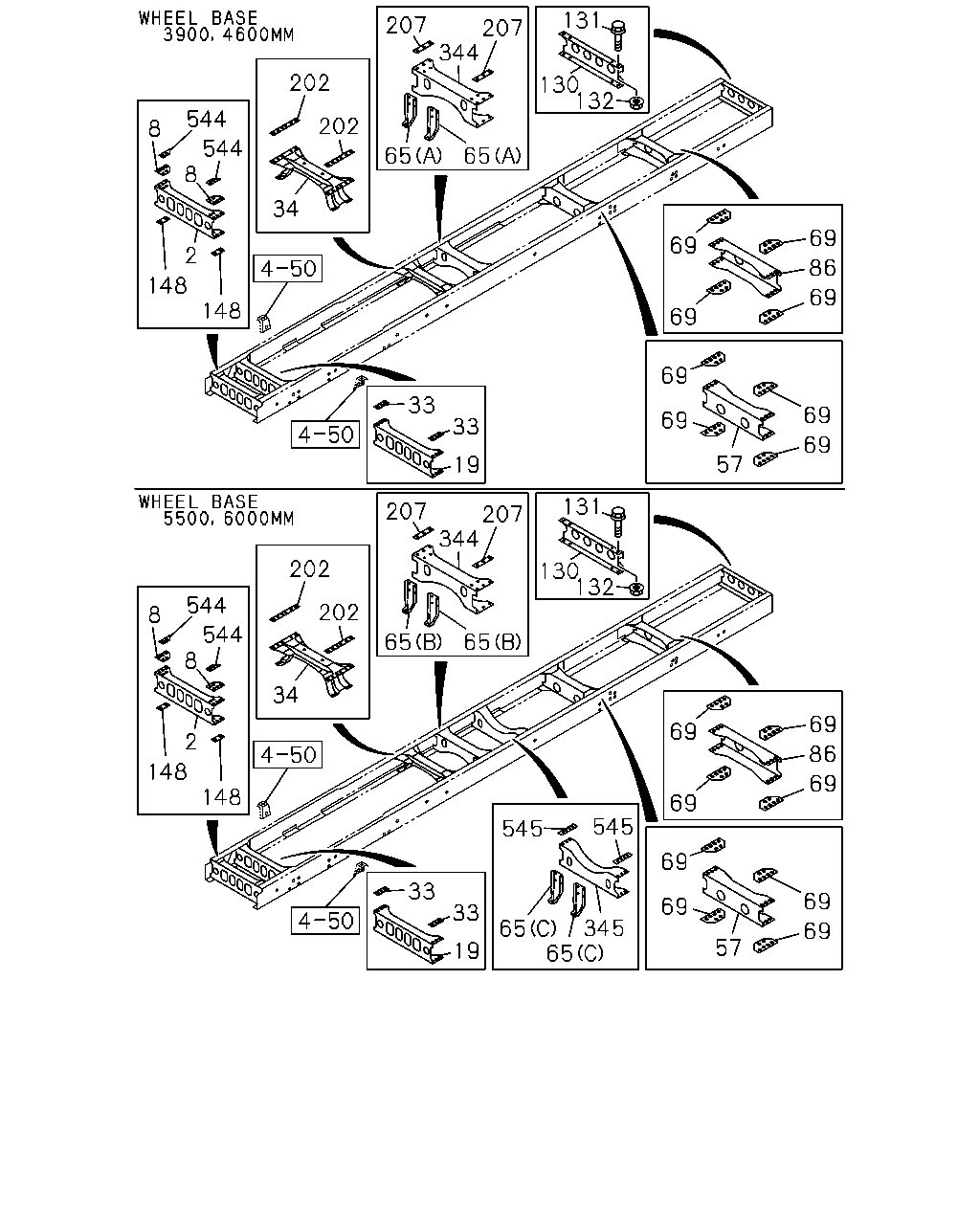

[501A] CROSS MEMBER (28 parça)
▶
456
456
18
11
13
456
46
25
46
23
25
25
25
26
25
23
25
25
26
39
26
25
26
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
11
BRACKET; ENG MTG
8-97619-550-0
02
1
0906-
●
●
●
●
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
0906-
●
●
●
●
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
0906-
●
●
●
●
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
06
1
0906-
●
●
●
●
23
BOLT; BRKT,SPR
(B) M16X60
0-20951-660-0
04
1
0906-
●
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-840-0
01
1
0906-
●
●
●
●
24
BRACKET; FRT SPR,FRT
8-98018-841-0
01
1
0906-
●
●
●
●
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
0906-
●
●
●
●
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
28
1
0906-
●
●
●
●
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
14
1
0906-
●
●
●
●
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
0906-
●
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-648-0
01
1
0906-
●
●
●
●
39
BRACKET; FRT SPR,RR
8-98043-649-0
01
1
0906-
●
●
●
●
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
08
1
0906-
●
●
●
●
456
PATCH; STOPPER
(A)
8-97623-275-0
04
1
0906-
●
●
●
●
456
PATCH; STOPPER
(B)
8-97620-579-0
01
1
0906-0910
●
●
131
207
207
344
130
132
202
544
202
8
544
8
65
65
34
69
69
2
86
148
69
148
69
69
33
69
69
33
69
57
19
131
207
207
344
130
132
202
544
202
8
544
8
65
65
34
69
69
2
86
148
69
148
69
545
545
69
33
69
69
33
65
69
57
19
65
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
MEMBER; CROSS,1ST
8-97610-852-6
01
1
0906-
●
●
●
●
8
GUSSET; 1ST C/MBR
8-97611-027-0
02
1
0906-
●
●
●
●
19
MEMBER; CROSS,2ND
8-97623-239-2
01
1
0906-
●
●
●
●
33
SPACER; 2ND C/MBR,UPR
8-97611-040-0
02
1
0906-
●
●
●
●
34
MEMBER; CROSS,3RD
8-97610-854-2
01
1
0906-
●
●
●
●
57
MEMBER; CROSS,RR SUSP FRT
8-97611-239-2
01
1
0906-
●
●
●
●
65
BRACKET; CENTER BRG
MZW6P M/T(RSZ) (A)
8-97614-126-0
02
1
1012-
●
65
BRACKET; CENTER BRG
MZW6P M/T(RSZ) (C)
8-97614-132-0
04
1
1012-
●
65
BRACKET; CENTER BRG
(A)
8-97612-486-0
02
1
0906-1011
●
65
BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (A)
8-97612-486-0
02
1
1012-
●
65
BRACKET; CENTER BRG
(A)
8-97614-139-0
02
1
0906-
●
65
BRACKET; CENTER BRG
(B)
8-97614-125-0
02
1
0906-
●
65
BRACKET; CENTER BRG
(C)
8-97614-150-0
02
1
0906-1011
●
●
65
BRACKET; CENTER BRG
(C)
8-97614-150-0
02
1
1012-
●
65
BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (C)
8-97614-150-0
02
1
1012-
●
65
BRACKET; CENTER BRG
(B)
8-97614-132-0
02
1
0906-
●
69
GUSSET; RR SUSP,UPR
8-97611-247-0
08
1
0906-
●
●
●
●
86
MEMBER; CROSS,RR SUSP RR
8-97611-239-2
01
1
0906-
●
●
●
●
130
MEMBER; CROSS,END
8-97610-869-1
01
1
0906-
●
●
●
●
131
BOLT; END C/MBR
M12X30 W/LK WASHER
0-50541-230-0
04
1
0906-
●
●
●
●
132
NUT; END C/MBR
M12
0-91110-512-0
04
1
0906-
●
●
●
●
148
SPACER; C/MBR
8-97611-039-0
02
1
0906-
●
●
●
●
202
SPACER; 3RD C/MBR
8-97610-872-0
02
1
0906-
●
●
●
●
207
SPACER; 4TH C/MBR
8-97611-244-0
02
1
0906-
●
●
●
●
344
MEMBER; CROSS,4TH
8-97611-238-1
01
1
0906-
●
●
●
●
345
MEMBER; CROSS,5TH
8-97611-238-1
01
1
0906-
●
●
544
PLATE; CAB FRT MTG
8-97615-598-0
02
1
0906-
●
●
●
●
545
SPACER; 5TH C/MBR
8-97611-245-0
02
1
0906-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
