Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#6196) — 522 parça

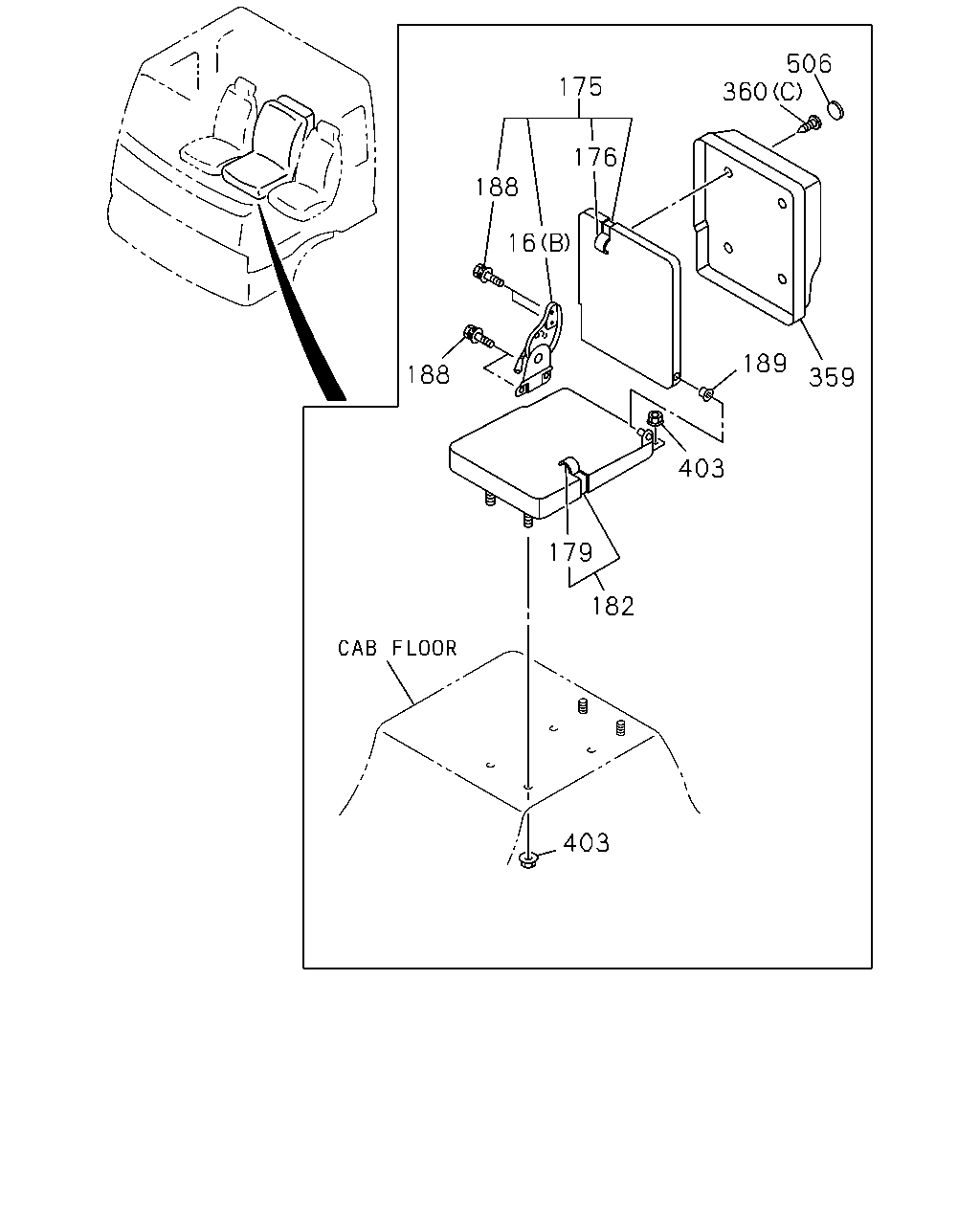

506 360 175 176 188 16 189 188 359 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING (A)	1-75417-602-0	01	1	9905-0104
16	ADJUSTER ASM; RECLINING ISRINGHAUSEN SEAT(SJA) (A)	1-75417-602-0	01	1	0105-0301
16	ADJUSTER ASM; RECLINING (A)	1-75417-602-0	01	1	0302-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (B)	1-75418-062-1	01	1	9905-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75027-864-0	01	1	9905-0003
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75207-257-0	01	1	0004-0104
175	BACK ASM; PASSENGER CENTER SEAT ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-857-0	01	1	0105-0301
175	BACK ASM; PASSENGER CENTER SEAT EXC. CENTER SEAT DELETE(SP9)	1-75026-857-4	01	1	0302-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-855-0	01	1	0105-0301
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75027-598-1	01	1	9905-0003
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75207-255-0	01	1	0004-0104
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-258-0	01	1	0105-0301
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75117-941-0	01	1	9905-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75127-077-0	01	1	0004-0104
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-711-0	01	1	0105-0301
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. CENTER SEAT DELETE(SP9)	1-75116-711-2	01	1	0302-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-651-0	01	1	0105-0301
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75116-884-0	01	1	9905-0003
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75127-075-0	01	1	0004-0104
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-078-0	01	1	0105-0301
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75117-934-0	01	1	9905-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75127-071-0	01	1	0004-0104
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75116-694-0	01	1	0105-0301
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. CENTER SEAT DELETE(SP9)	1-75116-694-2	01	1	0302-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75117-933-0	01	1	9905-0003
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75127-070-0	01	1	0004-0104
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-696-0	01	1	0105-0301
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75127-128-0	01	1	0105-0301
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75027-860-0	01	1	9905-0003
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75207-250-0	01	1	0004-0104
182	CUSHION ASM; CENTER SEAT ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9)	1-75026-843-0	01	1	0105-0301
182	CUSHION ASM; CENTER SEAT EXC. CENTER SEAT DELETE(SP9)	1-75026-843-4	01	1	0302-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-845-0	01	1	0105-0301
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75027-859-0	01	1	9905-0003
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75207-249-0	01	1	0004-0104
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9)	1-75207-306-0	01	1	0105-0301
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	9905-
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	9905-

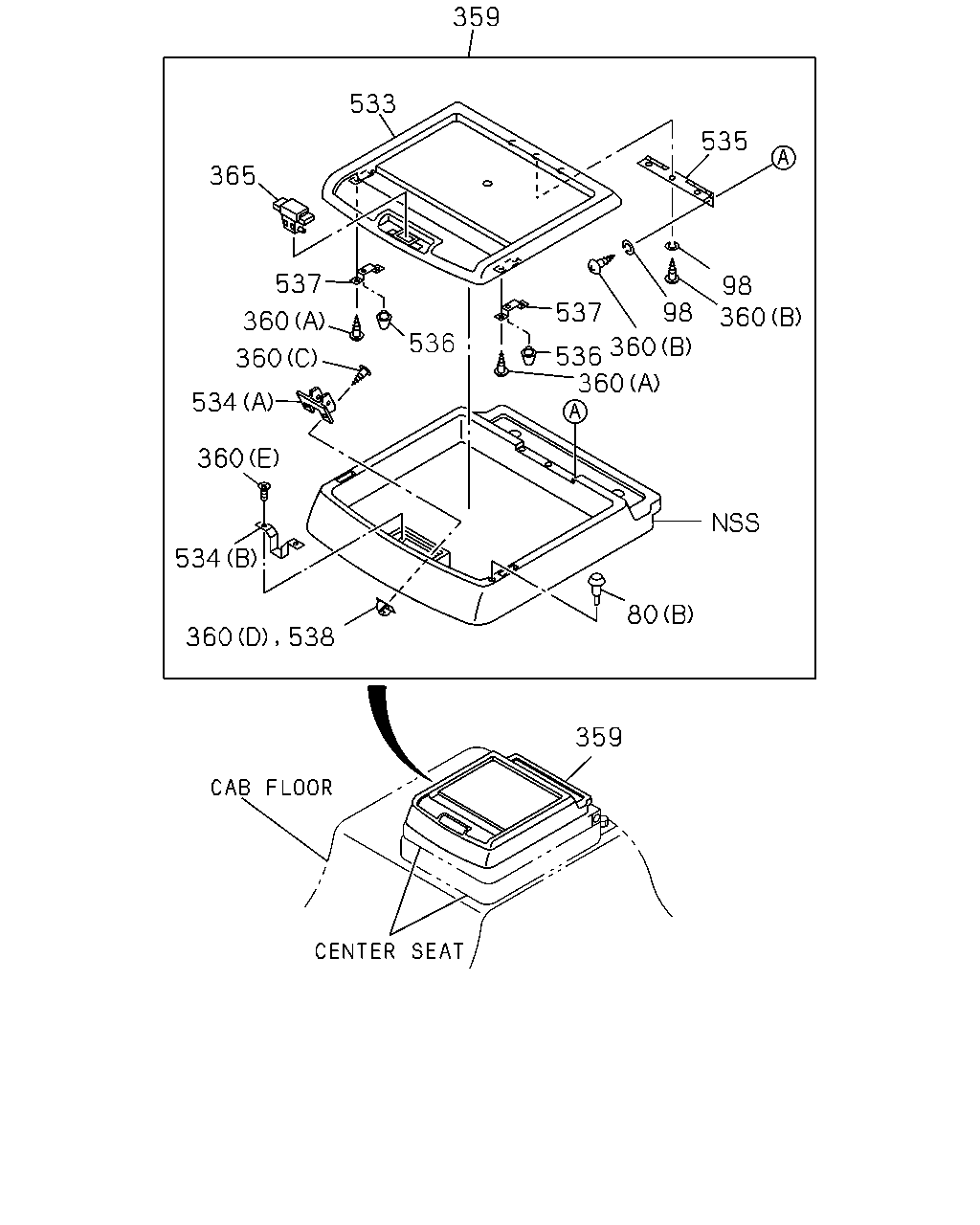

359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-157-2	01	1	9905-0104
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0105-1006
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	9905-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0211
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0301
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-1006
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0301
360	SCREW; PARCEL ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0301
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0301
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-504-1	04	1	9905-0206
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0207-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-0703
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-164-0	04	1	9905-0104
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-3	04	1	0105-1006
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-3	02	1	1007-

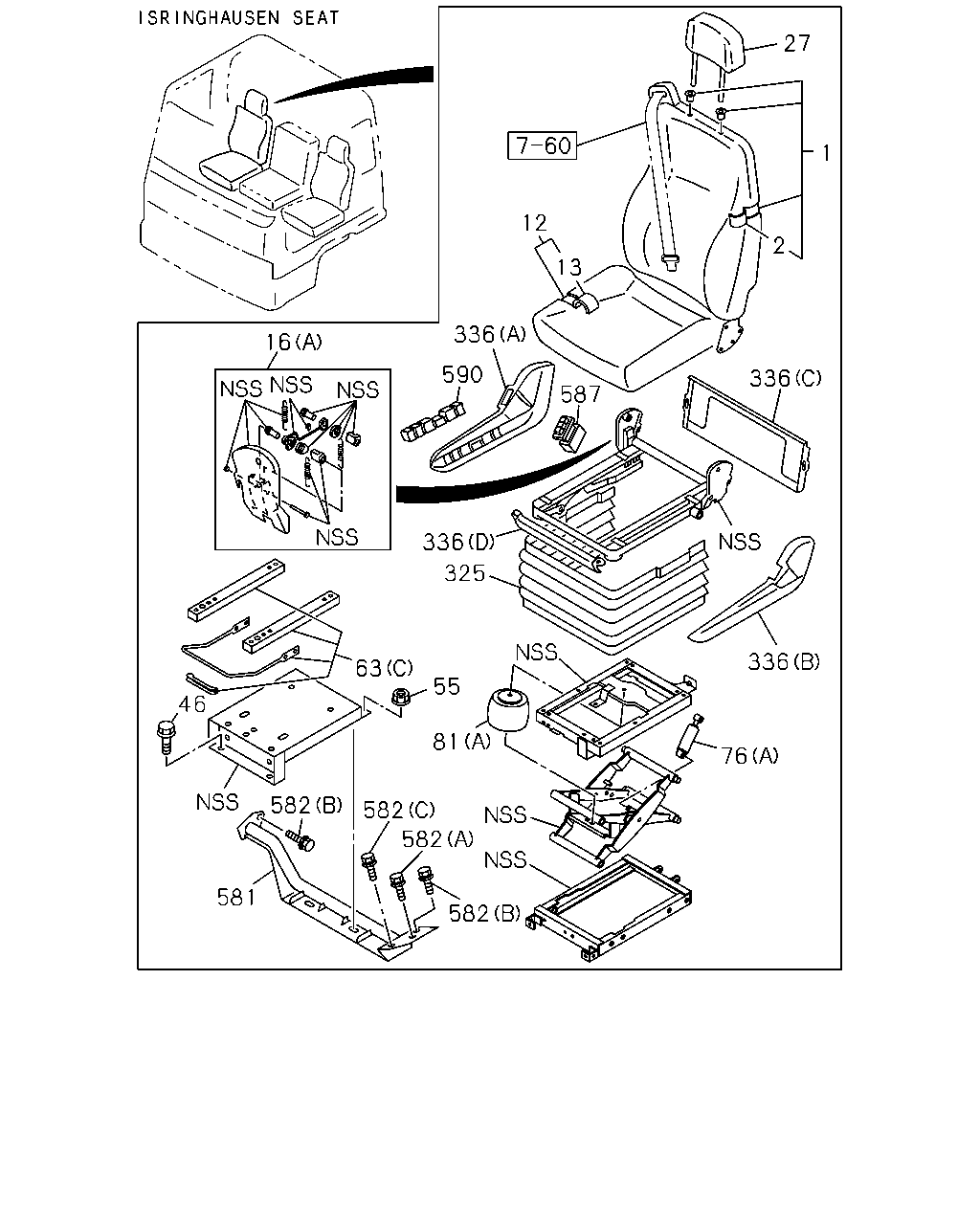

27 1 12 13 2 336 16 590 336 587 336 325 336 63 55 46 81 76 582 582 582 581 582

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	1-75027-941-0	01	1	9905-0104
1	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0105-0301
1	BACK ASM; SEAT	1-75027-941-0	01	1	0302-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-1	01	1	0105-0301
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-1	01	1	0105-0301
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-2	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK	1-75117-965-0	01	1	9905-0104
2	COVER; TRIM,FRT SEAT,BACK ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK	1-75117-965-0	01	1	0302-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-0	01	1	0105-0301
12	CUSHION; SEAT,FRT	1-75027-939-0	01	1	9905-0104
12	CUSHION; SEAT,FRT ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0105-0301
12	CUSHION; SEAT,FRT	1-75027-939-0	01	1	0302-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-1	01	1	0105-0301
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-153-1	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION	1-75117-964-0	01	1	9905-0104
13	COVER; TRIM,FRT SEAT,CUSHION ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION	1-75117-964-0	01	1	0302-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-0	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-101-0	01	1	0105-0301
16	ADJUSTER ASM; RECLINING (A)	1-75417-602-0	01	1	9905-0104
16	ADJUSTER ASM; RECLINING ISRINGHAUSEN SEAT(SJA) (A)	1-75417-602-0	01	1	0105-0301
16	ADJUSTER ASM; RECLINING (A)	1-75417-602-0	01	1	0302-
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9) (B)	1-75418-062-1	01	1	9905-
27	REST; HD,FRT SEAT	1-75657-029-0	01	1	9905-0104
27	REST; HD,FRT SEAT ISRINGHAUSEN SEAT(SJA)	1-75657-029-0	01	1	0105-0301
27	REST; HD,FRT SEAT	1-75657-029-0	01	1	0302-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
63	ADJUSTER; SEAT SLIDE (C)	1-75517-953-0	01	1	9905-0104
63	ADJUSTER; SEAT SLIDE ISRINGHAUSEN SEAT(SJA) (C)	1-75517-953-0	01	1	0105-0301
63	ADJUSTER; SEAT SLIDE (C)	1-75517-953-0	01	1	0302-
63	ADJUSTER; SEAT SLIDE EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-199-1	01	1	0105-0301
63	ADJUSTER; SEAT SLIDE EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-323-0	01	1	0105-0301
76	DAMPER; AIR SUSP (A)	1-75537-276-0	01	1	9905-0104
76	DAMPER; AIR SUSP ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-0301
76	DAMPER; AIR SUSP (A)	1-75537-276-0	01	1	0302-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-0301
81	SPRING; AIR (A)	1-75537-275-0	01	1	9905-0104
81	SPRING; AIR ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-0301
81	SPRING; AIR (A)	1-75537-275-0	01	1	0302-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-1	01	1	0105-0301
325	COVER; SUSPENSION DEVICE	1-75537-274-0	01	1	9905-0104
325	COVER; SUSPENSION DEVICE ISRINGHAUSEN SEAT(SJA)	1-75537-274-0	01	1	0105-0301
325	COVER; SUSPENSION DEVICE	1-75537-274-0	01	1	0302-
336	COVER; DRIVER SEAT (A)	1-72537-208-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-0301
336	COVER; DRIVER SEAT (A)	1-72537-208-0	01	1	0302-
336	COVER; DRIVER SEAT (B)	1-72537-210-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-0301
336	COVER; DRIVER SEAT (B)	1-72537-210-0	01	1	0302-
336	COVER; DRIVER SEAT (C)	1-72537-212-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-0301
336	COVER; DRIVER SEAT (C)	1-72537-212-0	01	1	0302-
336	COVER; DRIVER SEAT (D)	1-72537-213-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-0301
336	COVER; DRIVER SEAT (D)	1-72537-213-0	01	1	0302-
336	COVER; DRIVER SEAT EXC. ISRINGHAUSEN SEAT(SJA) (E)	1-75518-316-0	01	1	0105-0301
581	PIPE; SEAT	1-73907-605-2	01	1	9905-0104
581	PIPE; SEAT ISRINGHAUSEN SEAT(SJA)	1-73907-605-2	01	1	0105-0301
581	PIPE; SEAT	1-73907-605-2	01	1	0302-
582	BOLT; PIPE,SEAT (B)	1-09980-619-1	02	1	9905-0104
582	BOLT; PIPE,SEAT ISRINGHAUSEN SEAT(SJA) (B)	1-09980-619-1	02	1	0105-0301
582	BOLT; PIPE,SEAT (B)	1-09980-619-1	02	1	0302-
582	BOLT; PIPE,SEAT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9905-0104
582	BOLT; PIPE,SEAT ISRINGHAUSEN SEAT(SJA) (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-0301
582	BOLT; PIPE,SEAT (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0302-0904
582	BOLT; PIPE,SEAT (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
582	BOLT; PIPE,SEAT (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	9905-0104
582	BOLT; PIPE,SEAT ISRINGHAUSEN SEAT(SJA) (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0105-0301
582	BOLT; PIPE,SEAT (C) M8X30 W/LK&PL WASHER	8-94279-210-0	01	1	0302-
587	VALVE; LUMBAR SUPPORT	1-75197-007-0	01	1	9905-0104
587	VALVE; LUMBAR SUPPORT ISRINGHAUSEN SEAT(SJA)	1-75197-007-0	01	1	0105-0301
587	VALVE; LUMBAR SUPPORT	1-75197-007-0	01	1	0302-
590	KNOB KIT; DRIVER SEAT	1-75417-600-0	01	1	9905-0104
590	KNOB KIT; DRIVER SEAT ISRINGHAUSEN SEAT(SJA)	1-75417-600-0	01	1	0105-0301
590	KNOB KIT; DRIVER SEAT	1-75417-600-0	01	1	0302-

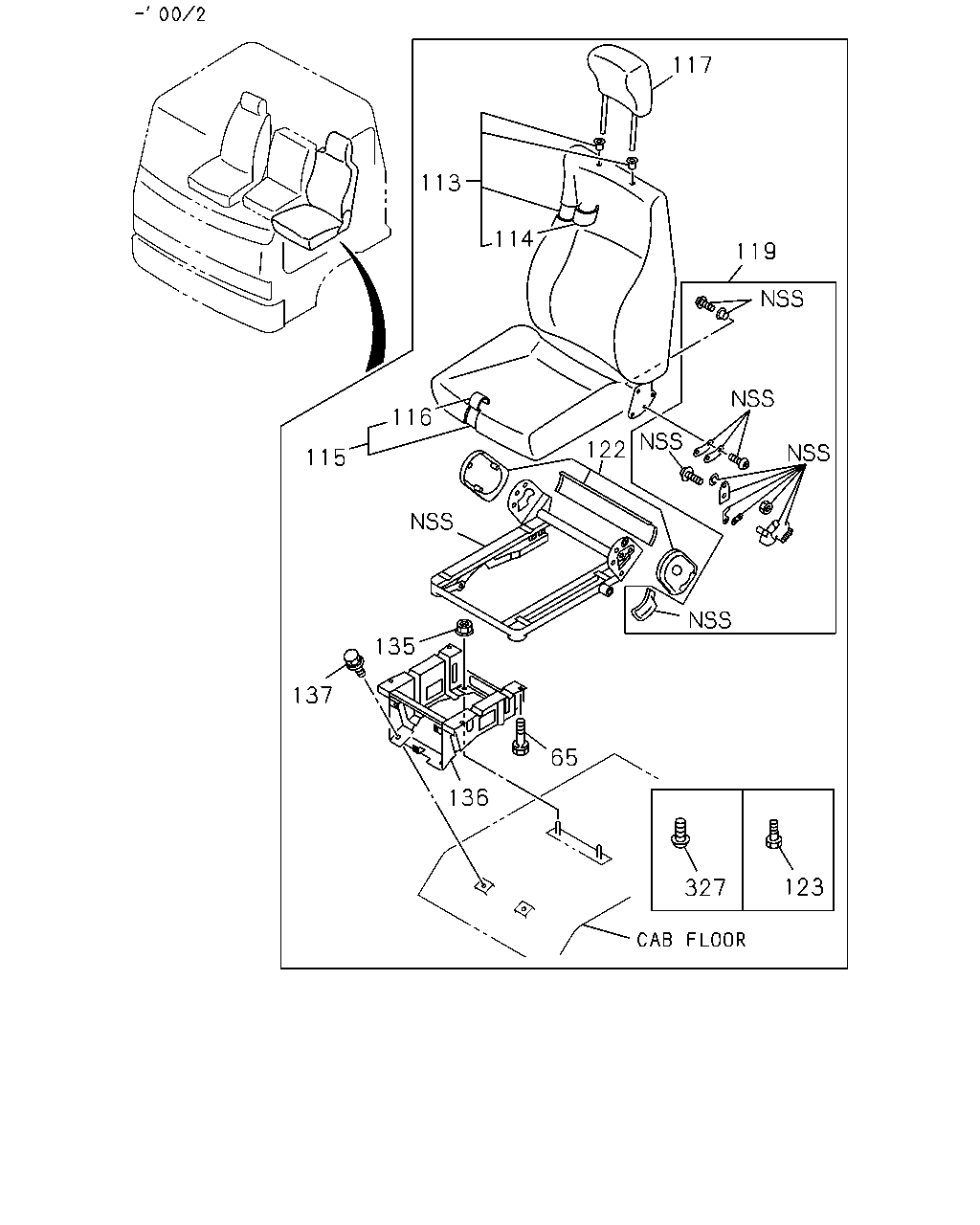

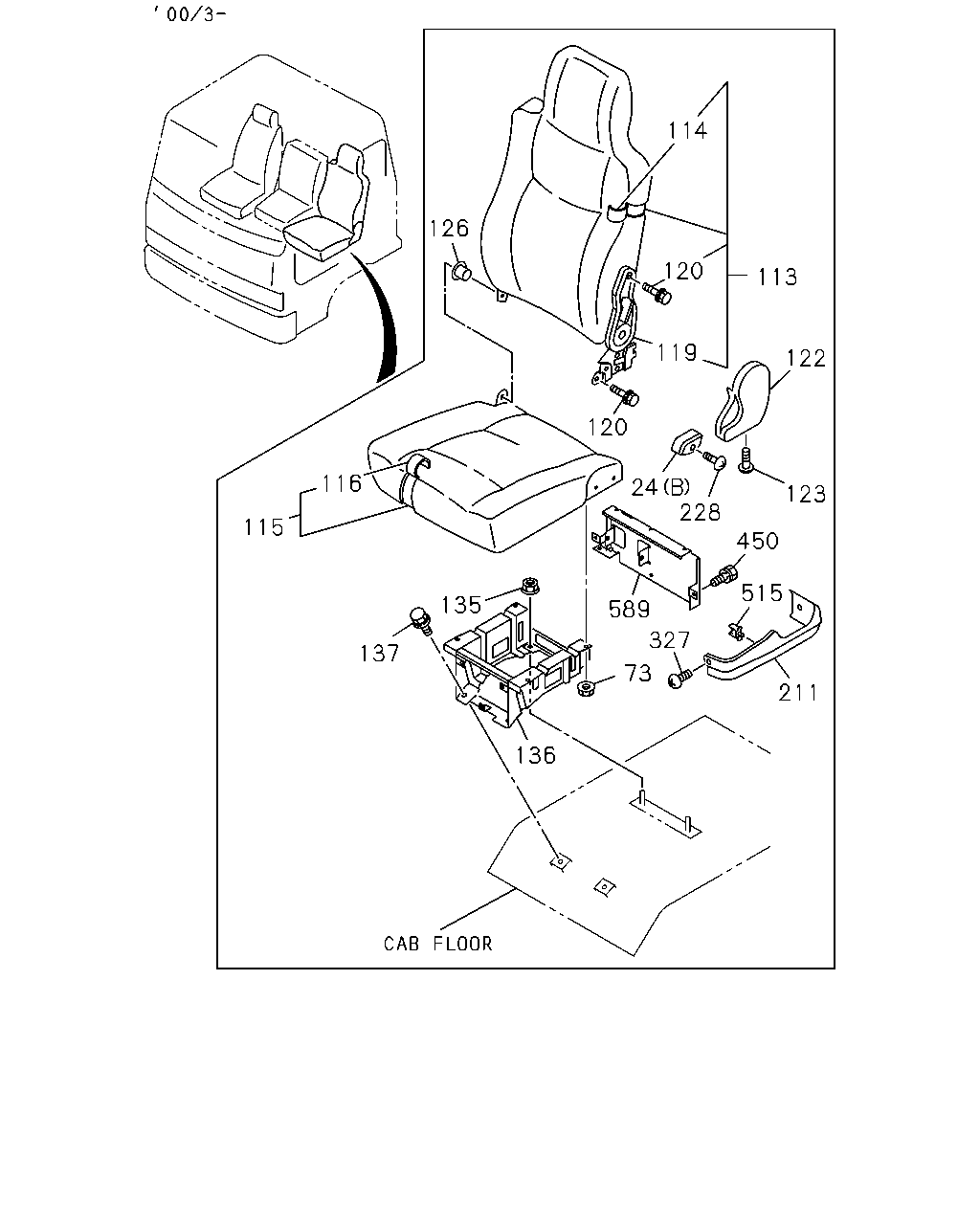

114 126 120 113 119 122 120 116 24 228 123 115 450 515 135 589 327 137 73 211 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0003-0004
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0104
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0106-0301
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT EXC. ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0105-0301
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	0003-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0104
73	NUT; ADJ,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	12	1	0105-0301
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
113	BACK ASM; SEAT	1-75026-267-0	01	1	9905-0002
113	BACK ASM; SEAT	1-75026-390-0	01	1	0003-0003
113	BACK ASM; SEAT	1-75026-796-0	01	1	0004-0104
113	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75026-796-0	01	1	0105-0105
113	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75208-191-1	01	1	0106-0301
113	BACK ASM; SEAT	1-75208-191-4	01	1	0302-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-302-2	01	1	0105-0301
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75026-735-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75208-074-1	01	1	0106-0301
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-228-0	01	1	0105-0105
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-549-0	01	1	0106-0301
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-464-0	01	1	9905-0002
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-409-0	01	1	0003-0003
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-0	01	1	0004-0104
114	COVER; TRIM,PASSENGER SEAT,BACK ISRINGHAUSEN SEAT(SJA)	1-75116-709-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-2	01	1	0302-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-126-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75116-592-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-059-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT	1-75026-268-0	01	1	9905-0002
115	CUSHION ASM; PASSENGER SEAT	1-75026-388-0	01	1	0003-0003
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-0	01	1	0004-0005
115	CUSHION ASM; PASSENGER SEAT	1-75026-784-0	01	1	0006-0104
115	CUSHION ASM; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75026-784-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-299-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75026-782-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-2	01	1	0302-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-215-1	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-465-0	01	1	9905-0002
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-478-0	01	1	0003-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-0	01	1	0004-0005
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-691-0	01	1	0006-0104
116	COVER; TRIM,PASSENGER SEAT,CUSHION ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75116-691-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-123-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75116-589-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-2	01	1	0302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-093-0	01	1	0105-0301
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-603-0	01	1	9905-0002
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0105-0301
120	BOLT; RECLINING ADJ M8X18	8-94279-109-1	01	1	0003-0003
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0004-0104
120	BOLT; RECLINING ADJ EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0105-0301
120	BOLT; RECLINING ADJ ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0105-0301
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	02	1	0302-
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	04	1	0105-0301
122	COVER; ADJ,RECLINING	1-75418-063-0	01	1	9905-0002
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0003-0004
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0104
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0106-0301
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0302-
122	COVER; ADJ,RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75418-050-0	01	1	0105-0105
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75417-598-0	01	1	0105-0301
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0003-0004
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0104
123	SCREW; COVER,RECLINING EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0301
123	SCREW; COVER,RECLINING ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0301
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M6X12	9-03490-612-0	01	1	0105-0301
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0003-0004
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0005-0104
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0105-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9905-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75558-550-3	01	1	9905-9905
136	STAND; PASSENGER SEAT	1-75557-485-0	01	1	9906-0002
136	STAND; PASSENGER SEAT	1-75558-585-0	01	1	0003-0004
136	STAND; PASSENGER SEAT	1-75558-585-0	01	1	0005-0005
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0006-0104
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75558-550-4	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75558-585-0	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75558-601-1	01	1	0106-0301
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	0302-1305
136	STAND; PASSENGER SEAT	8-98242-298-0	01	1	1306-
136	STAND; PASSENGER SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-75558-602-0	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75558-602-1	01	1	0106-0301
136	STAND; PASSENGER SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-75558-602-1	01	1	0106-0301
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
211	COVER; FRT SEAT	1-72538-274-0	01	1	0006-0104
211	COVER; FRT SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-72538-274-0	01	1	0105-0301
211	COVER; FRT SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-72538-274-0	01	1	0105-0301
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0003-0004
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0104
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0301
228	SCREW; KNOB EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-0301
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0301
327	CLIP; COVER	1-09987-273-0	02	1	0006-0104
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	01	1	0105-0301
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0301-0301
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0301
450	BOLT; BRKT ENGINE CONTROL U2(Q3U) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0302-0602
450	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0603-0703
450	BOLT; BRKT M6X16	0-52000-616-0	03	1	0704-
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0006-0104
515	CLIP; PIPE ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG> BLACK	8-94227-248-1	01	1	0105-0301
515	CLIP; PIPE EXC. ISRINGHAUSEN SEAT(SJA) BLACK	8-94227-248-1	01	1	0105-0301
589	BRACKET; SEAT STAND ENGINE CONTROL U2(Q3U)	1-75557-469-3	01	1	0302-0602
589	BRACKET; SEAT STAND	1-75557-469-3	01	1	0603-

117 113 114 119 116 122 115 135 137 65 136 123 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	SCREW; ADJ TO SEAT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9905-0002
113	BACK ASM; SEAT	1-75026-267-0	01	1	9905-0002
113	BACK ASM; SEAT	1-75026-390-0	01	1	0003-0003
113	BACK ASM; SEAT	1-75026-796-0	01	1	0004-0104
113	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75026-796-0	01	1	0105-0105
113	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75208-191-1	01	1	0106-0301
113	BACK ASM; SEAT	1-75208-191-4	01	1	0302-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-302-2	01	1	0105-0301
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75026-735-0	01	1	0105-0105
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75208-074-1	01	1	0106-0301
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-228-0	01	1	0105-0105
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-549-0	01	1	0106-0301
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-464-0	01	1	9905-0002
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-409-0	01	1	0003-0003
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-0	01	1	0004-0104
114	COVER; TRIM,PASSENGER SEAT,BACK ISRINGHAUSEN SEAT(SJA)	1-75116-709-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-709-2	01	1	0302-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-126-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75116-592-0	01	1	0105-0301
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-059-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT	1-75026-268-0	01	1	9905-0002
115	CUSHION ASM; PASSENGER SEAT	1-75026-388-0	01	1	0003-0003
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-0	01	1	0004-0005
115	CUSHION ASM; PASSENGER SEAT	1-75026-784-0	01	1	0006-0104
115	CUSHION ASM; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75026-784-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-299-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75026-782-0	01	1	0105-0301
115	CUSHION ASM; PASSENGER SEAT	1-75026-782-2	01	1	0302-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-215-1	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-465-0	01	1	9905-0002
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-478-0	01	1	0003-0003
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-0	01	1	0004-0005
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-691-0	01	1	0006-0104
116	COVER; TRIM,PASSENGER SEAT,CUSHION ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75116-691-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-123-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75116-589-0	01	1	0105-0301
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-589-2	01	1	0302-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-093-0	01	1	0105-0301
117	REST; HD	1-75658-052-0	01	1	9905-0002
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-603-0	01	1	9905-0002
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75417-597-0	01	1	0105-0301
122	COVER; ADJ,RECLINING	1-75418-063-0	01	1	9905-0002
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0003-0004
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0005-0104
122	COVER; ADJ,RECLINING FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97859-018-0	01	1	0105-0105
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0106-0301
122	COVER; ADJ,RECLINING DARK GRAY	8-97859-018-0	01	1	0302-
122	COVER; ADJ,RECLINING EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-75418-050-0	01	1	0105-0105
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75417-598-0	01	1	0105-0301
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0003-0004
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0005-0104
123	SCREW; COVER,RECLINING EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0301
123	SCREW; COVER,RECLINING ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0301
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0302-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA) M6X12	9-03490-612-0	01	1	0105-0301
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	9905-0703
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT	1-75558-550-3	01	1	9905-9905
136	STAND; PASSENGER SEAT	1-75557-485-0	01	1	9906-0002
136	STAND; PASSENGER SEAT	1-75558-585-0	01	1	0003-0004
136	STAND; PASSENGER SEAT	1-75558-585-0	01	1	0005-0005
136	STAND; PASSENGER SEAT	1-75558-550-4	01	1	0006-0104
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75558-550-4	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75558-585-0	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) REMOTE CONT DOOR LOCK<SLG>	1-75558-601-1	01	1	0106-0301
136	STAND; PASSENGER SEAT	1-75558-601-3	01	1	0302-1305
136	STAND; PASSENGER SEAT	8-98242-298-0	01	1	1306-
136	STAND; PASSENGER SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-75558-602-0	01	1	0105-0105
136	STAND; PASSENGER SEAT ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-75558-602-1	01	1	0106-0301
136	STAND; PASSENGER SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-75558-602-1	01	1	0106-0301
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0301
327	CLIP; COVER	1-09987-273-0	02	1	0006-0104
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	01	1	0105-0301
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0301-0301
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0301

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 534 80 359 538 360

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0105-0301
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	9905-0211
98	WASHER; HINGE EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0301
98	WASHER; HINGE ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0212-0301
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0302-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-157-2	01	1	9905-0104
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-4	01	1	0105-1006
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	8-98145-114-0	01	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	9905-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1006
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (E) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	9905-0612
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	9905-0211
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	0212-0301
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0302-1006
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1007-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0105-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0301
360	SCREW; PARCEL ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0212-0301
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (C) M5X20	9-09829-324-1	02	1	0212-0301
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	9905-
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-194-2	01	1	9905-0104
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-1	01	1	0105-1006
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	8-98145-118-0	01	1	1007-
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9) (A)	1-72538-181-0	01	1	9905-1006
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-190-0	01	1	1007-
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	9905-
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	9905-1006
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	9905-1006
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-1006
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	9905-0104

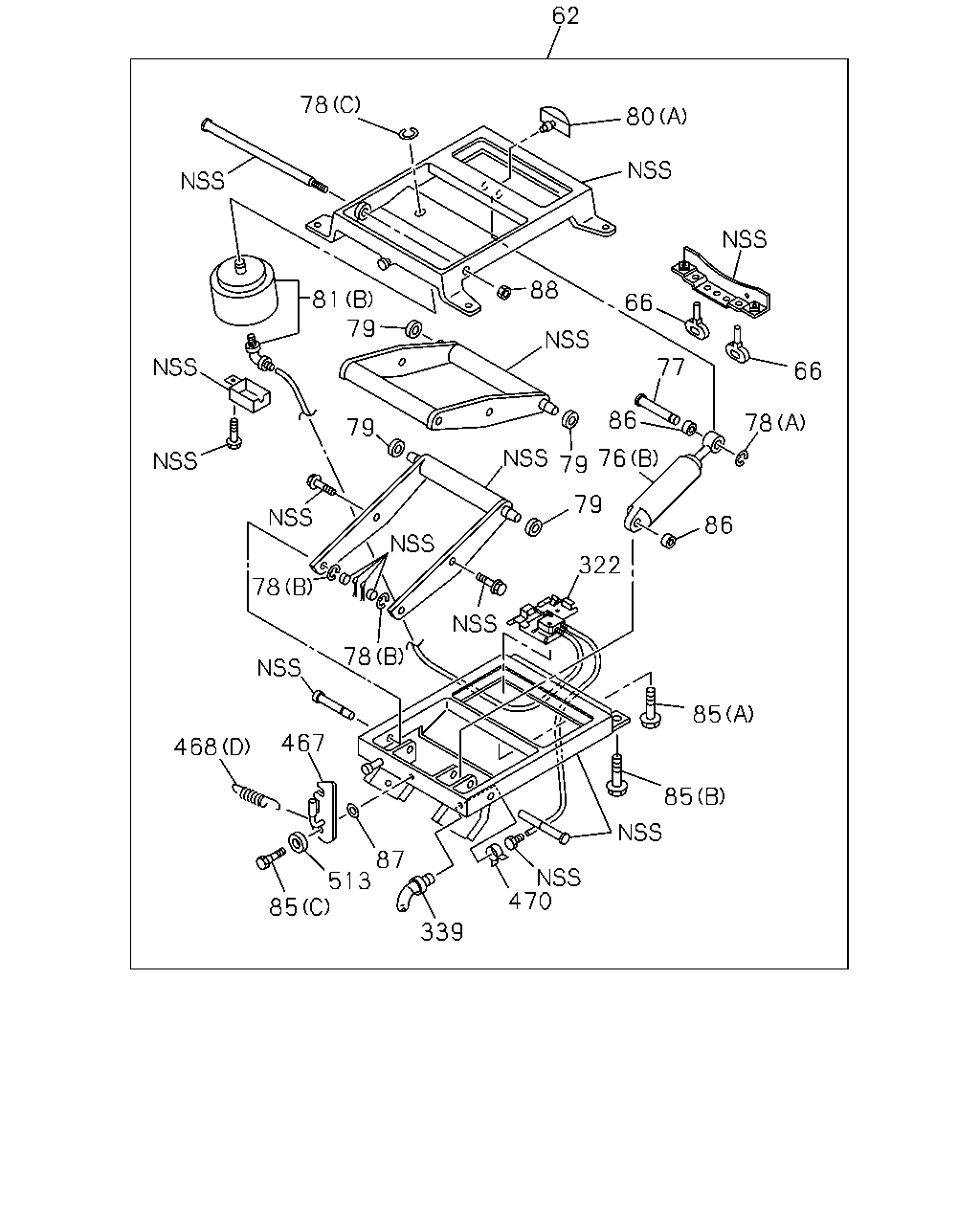

62 80 78 81 79 79 78 78 467 468 85 513 87 339 470 85 85 322 86 78 66 66 77 86 76 79 79 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-4	01	1	0105-0301
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0105-0301
76	DAMPER; AIR SUSP (A)	1-75537-276-0	01	1	9905-0104
76	DAMPER; AIR SUSP ISRINGHAUSEN SEAT(SJA) (A)	1-75537-276-0	01	1	0105-0301
76	DAMPER; AIR SUSP (A)	1-75537-276-0	01	1	0302-
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75537-230-2	01	1	0105-0301
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0105-0301
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0105-0301
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0105-0301
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0105-0301
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0105-0301
80	RUBBER; STOPPER EXC. CENTER SEAT DELETE(SP9) (B)	1-72538-187-0	02	1	1007-
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-09987-123-0	01	1	0105-0301
81	SPRING; AIR (A)	1-75537-275-0	01	1	9905-0104
81	SPRING; AIR ISRINGHAUSEN SEAT(SJA) (A)	1-75537-275-0	01	1	0105-0301
81	SPRING; AIR (A)	1-75537-275-0	01	1	0302-
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75538-151-1	01	1	0105-0301
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0105-0301
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0105-0301
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0105-0301
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0105-0301
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0105-0301
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0105-0301
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0105-0301
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-1	01	1	0105-0301
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0105-0301
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-0301
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0105-0301
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0105-0301

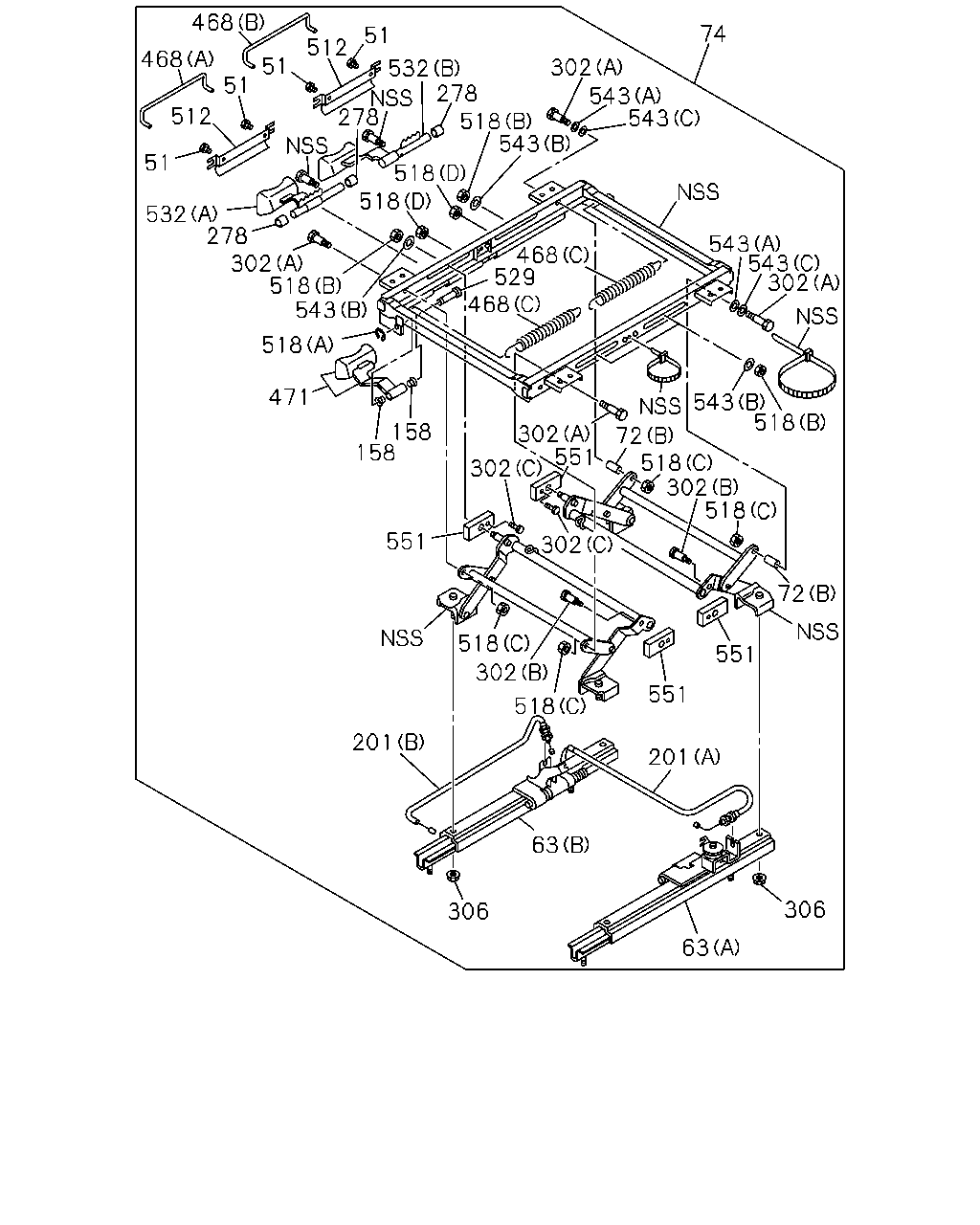

468 74 51 512 468 51 302 532 278 518 543 51 543 543 278 512 51 518 518 532 278 302 518 543 543 543 302 468 529 468 518 471 543 518 551 518 302 302 158 158 551 302 72 518 551 302 551 518 201 201 63 306 306 63 72 302 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-325-0	04	1	0105-0301
63	ADJUSTER; SEAT SLIDE (C)	1-75517-953-0	01	1	9905-0104
63	ADJUSTER; SEAT SLIDE ISRINGHAUSEN SEAT(SJA) (C)	1-75517-953-0	01	1	0105-0301
63	ADJUSTER; SEAT SLIDE (C)	1-75517-953-0	01	1	0302-
63	ADJUSTER; SEAT SLIDE EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-199-1	01	1	0105-0301
63	ADJUSTER; SEAT SLIDE EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-323-0	01	1	0105-0301
72	SPACER; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75517-911-0	02	1	0105-0301
72	SPACER; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-334-0	02	1	0105-0301
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA)	1-75517-959-0	01	1	0105-0301
158	BUSHING; LINK ARM EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-209-0	02	1	0105-0301
201	CABLE; ADJ EXC. ISRINGHAUSEN SEAT(SJA) (A) L=667	1-75518-288-0	01	1	0105-0301
201	CABLE; ADJ EXC. ISRINGHAUSEN SEAT(SJA) (B) L=605	1-75518-289-1	01	1	0105-0301
278	COLLAR; FRT SEAT EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-244-0	03	1	0105-0301
302	BOLT; ADJ,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA) (C)	1-75518-266-1	02	1	0105-0301
302	BOLT; ADJ,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-270-0	04	1	0105-0301
302	BOLT; ADJ,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-336-0	02	1	0105-0301
306	NUT; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	06	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-206-0	01	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-207-0	01	1	0105-0301
468	SPRING; RETURN EXC. ISRINGHAUSEN SEAT(SJA) (C)	1-75518-208-0	02	1	0105-0301
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0105-0301
471	LEVER; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-291-0	01	1	0105-0301
512	COVER; LEVER EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-243-1	02	1	0105-0301
518	NUT; TILT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-263-0	01	1	0105-0301
518	NUT; TILT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (C) M8	1-75518-264-0	04	1	0105-0301
518	NUT; TILT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (D) M6 LOCK NUT	5-09984-020-0	02	1	0105-0301
518	NUT; TILT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (B) M8 FLANGE	8-94152-886-0	04	1	0105-0301
529	PIN; LINK EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-262-0	01	1	0105-0301
532	LEVER ASM; TILT EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-203-0	01	1	0105-0301
532	LEVER ASM; TILT EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-204-1	01	1	0105-0301
543	WASHER; HEIGHT ADJUSTER EXC. ISRINGHAUSEN SEAT(SJA) (C)	1-75518-335-0	02	1	0105-0301
543	WASHER; HEIGHT ADJUSTER EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75518-337-0	02	1	0105-0301
543	WASHER; HEIGHT ADJUSTER EXC. ISRINGHAUSEN SEAT(SJA) (B) ID=6.4	9-09160-506-0	04	1	0105-0301
551	SLIDER; HEIGHT ADJ EXC. ISRINGHAUSEN SEAT(SJA)	1-75518-265-0	04	1	0105-0301

1 1 101 101 24 228 2 24 228 321 39 40 18 321 18 2 17 19 17 19 30 39 13 13 99 12 99 72 12 72 72 336 72 327 73 74 73 74 336 91 73 327 91 73 55 62 55 46 46 42 73 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	1-75027-941-0	01	1	9905-0104
1	BACK ASM; SEAT ISRINGHAUSEN SEAT(SJA)	1-75027-941-0	01	1	0105-0301
1	BACK ASM; SEAT	1-75027-941-0	01	1	0302-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-293-1	01	1	0105-0301
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-294-1	01	1	0105-0301
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-292-2	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK	1-75117-965-0	01	1	9905-0104
2	COVER; TRIM,FRT SEAT,BACK ISRINGHAUSEN SEAT(SJA)	1-75117-965-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK	1-75117-965-0	01	1	0302-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-118-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-119-0	01	1	0105-0301
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-045-0	01	1	0105-0301
12	CUSHION; SEAT,FRT	1-75027-939-0	01	1	9905-0104
12	CUSHION; SEAT,FRT ISRINGHAUSEN SEAT(SJA)	1-75027-939-0	01	1	0105-0301
12	CUSHION; SEAT,FRT	1-75027-939-0	01	1	0302-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75207-154-1	01	1	0105-0301
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75207-153-1	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION	1-75117-964-0	01	1	9905-0104
13	COVER; TRIM,FRT SEAT,CUSHION ISRINGHAUSEN SEAT(SJA)	1-75117-964-0	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION	1-75117-964-0	01	1	0302-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTI USED(WX9)	1-75127-102-0	01	1	0105-0301
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-75127-101-0	01	1	0105-0301
17	BOLT; RECLINING EXC. ISRINGHAUSEN SEAT(SJA) M8X20	8-97255-906-0	02	1	0105-0301
18	COVER; RECLINING EXC. ISRINGHAUSEN SEAT(SJA) DARK GRAY	8-97867-020-0	01	1	0105-0301
19	SCREW; COVER EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0105-0301
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0003-0004
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0005-0104
24	KNOB; RECLINING,FRT,SEAT FABRIC SEAT W/RECLINING(SFQ) EXC. ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT ISRINGHAUSEN SEAT(SJA) (B) DARK GRAY	8-97859-019-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0106-0301
24	KNOB; RECLINING,FRT,SEAT (B) DARK GRAY	8-97859-019-0	01	1	0302-
24	KNOB; RECLINING,FRT,SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) (B)	1-75418-059-0	01	1	0105-0105
24	KNOB; RECLINING,FRT,SEAT EXC. ISRINGHAUSEN SEAT(SJA) (A) DARK GRAY	8-97867-021-0	01	1	0105-0301
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-121-0	01	1	0105-0301
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0105-0301
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0105-0301
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0105-0301
42	STAND; DRIVER SEAT EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-0	01	1	0105-0301
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	9905-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	9905-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-4	01	1	0105-0301
72	SPACER; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (A)	1-75517-911-0	02	1	0105-0301
72	SPACER; SEAT ADJ EXC. ISRINGHAUSEN SEAT(SJA) (B)	1-75518-334-0	02	1	0105-0301
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	8-94279-518-0	04	1	0003-0003
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0004-0104
73	NUT; ADJ,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA) M8 FLANGE	1-75538-207-0	12	1	0105-0301
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0105-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. ISRINGHAUSEN SEAT(SJA)	1-75517-959-0	01	1	0105-0301
91	SCREW; SEAT ADJ COVER EXC. ISRINGHAUSEN SEAT(SJA) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0105-0301
99	BUSHING; SEAT BACK EXC. ISRINGHAUSEN SEAT(SJA)	8-97854-087-0	01	1	0105-0301
101	LEVER ASM; LUMBAR EXC. ISRINGHAUSEN SEAT(SJA)	5-75190-138-0	01	1	0105-0301
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0003-0004
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0005-0104
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0105-0301
228	SCREW; KNOB EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0105-0301
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0302-
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0105-0301
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0105-0301
327	CLIP; COVER PASSENGER SEAT MULTI USED(WX9) EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-249-0	02	1	0301-0301
327	CLIP; COVER	1-09987-273-0	02	1	0006-0104
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	01	1	0105-0301
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA)	1-09987-273-0	02	1	0105-0212
327	CLIP; COVER ISRINGHAUSEN SEAT(SJA) EXC. REMOTE CONT DOOR LOCK<SLG>	1-09987-273-0	02	1	0301-0301
327	CLIP; COVER EXC. ISRINGHAUSEN SEAT(SJA),PASSENGER SEAT MULTI USED(WX9)	1-09987-273-0	02	1	0301-0301
336	COVER; DRIVER SEAT (A)	1-72537-208-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (A)	1-72537-208-0	01	1	0105-0301
336	COVER; DRIVER SEAT (A)	1-72537-208-0	01	1	0302-
336	COVER; DRIVER SEAT (B)	1-72537-210-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (B)	1-72537-210-0	01	1	0105-0301
336	COVER; DRIVER SEAT (B)	1-72537-210-0	01	1	0302-
336	COVER; DRIVER SEAT (C)	1-72537-212-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (C)	1-72537-212-0	01	1	0105-0301
336	COVER; DRIVER SEAT (C)	1-72537-212-0	01	1	0302-
336	COVER; DRIVER SEAT (D)	1-72537-213-0	01	1	9905-0104
336	COVER; DRIVER SEAT ISRINGHAUSEN SEAT(SJA) (D)	1-72537-213-0	01	1	0105-0301
336	COVER; DRIVER SEAT (D)	1-72537-213-0	01	1	0302-
336	COVER; DRIVER SEAT EXC. ISRINGHAUSEN SEAT(SJA) (E)	1-75518-316-0	01	1	0105-0301

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
