◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11239 - FVR-LHD(EUROPE)EURO5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#61942) — 199 parça

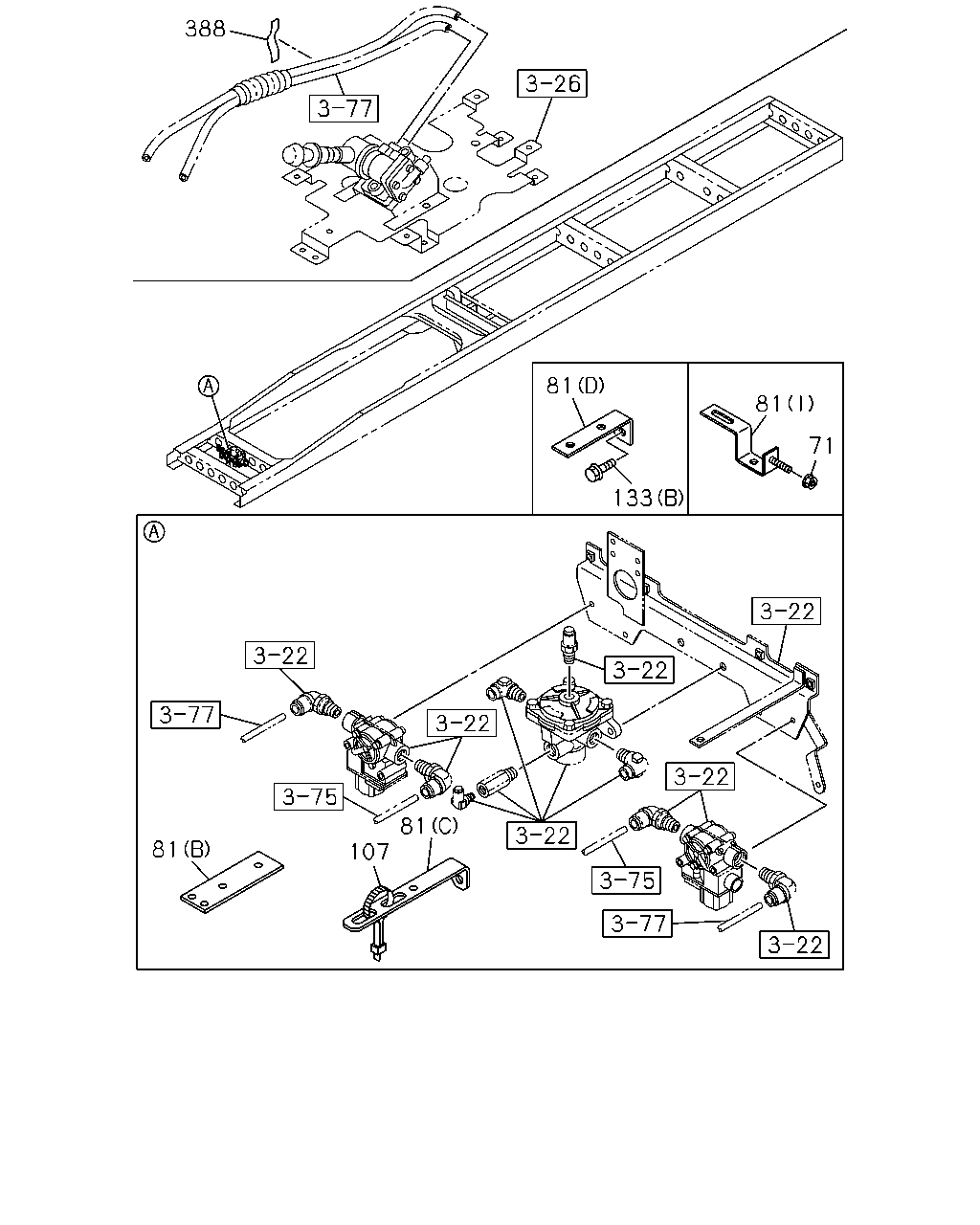

çizim 166093
388 81 81 71 133 81 81 107
BalonParca AdiParca NoAdetTipApplied Date
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-0906
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0906-
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0906-
71 NUT; BRKT
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (M) 		8-98182-760-0 01 1 1108-
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (I) 		8-98129-212-0 03 1 1012-1012
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 03 1 1101-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 02 1 1108-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (J) 		8-98169-434-0 01 1 1012-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (N) 		8-98182-331-0 01 1 1108-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0906-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0906-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0906-
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (I) 		8-98129-212-0 04 1 0906-1012
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (K) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0906-0906
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0906-
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0906-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 31 1 0907-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) L=350 		1-09707-183-0 36 1 0907-
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 17 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 38 1 0907-
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 38 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 33 1 0907-
133 BOLT; BRKT
MZW6P M/T(RSZ) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1012-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0906-0906
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0907-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907-
388 SEAL
100X40 		1-72498-022-1 03 1 0906-

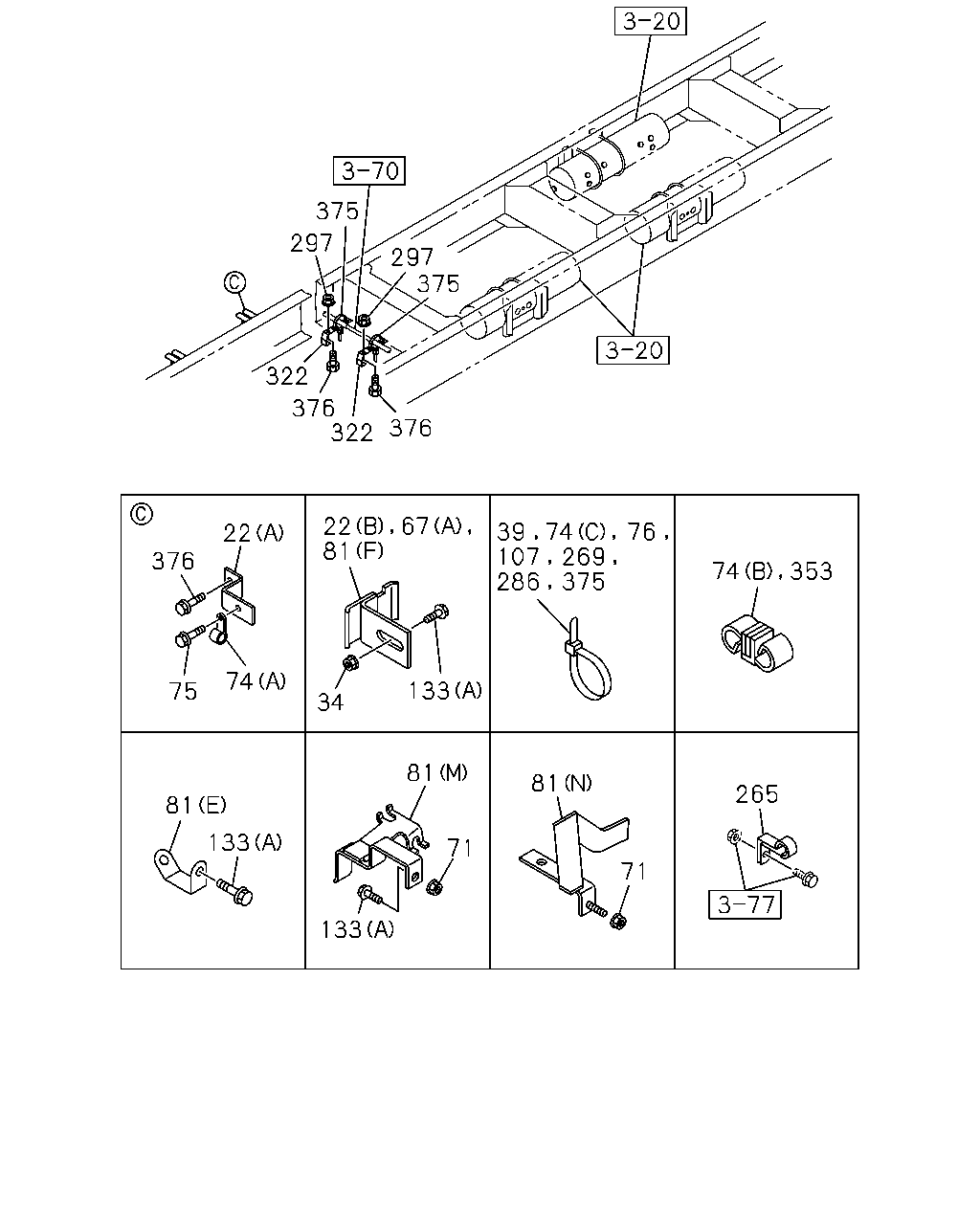

çizim 166103
375 297 297 375 322 376 322 376 81 76 22 376 74 133 75 34 81 81 265 81 133 71 71 133 22 67 39 74 107 269 286 375 74 353
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) 		1-47475-881-0 01 1 0906-
22 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) 		1-47479-693-0 01 1 0906-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-0906
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0906-
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0906-
39 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 12 1 0906-
67 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0906-0906
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0906-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-0906
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0906-
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0906-
71 NUT; BRKT
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 11 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 03 1 0907-1005
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1006-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0907-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 01 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 03 1 0906-0906
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 09 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=16 L=28 		1-09700-872-0 01 1 0906-
75 BOLT; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0906-
76 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 05 1 0906-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (M) 		8-98182-760-0 01 1 1108-
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (I) 		8-98129-212-0 03 1 1012-1012
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 03 1 1101-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 02 1 1108-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (J) 		8-98169-434-0 01 1 1012-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (N) 		8-98182-331-0 01 1 1108-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0906-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0906-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0906-
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (I) 		8-98129-212-0 04 1 0906-1012
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (K) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0906-0906
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0906-
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0906-
107 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) L=350 		1-09707-183-0 31 1 0907-
107 CLIP; NYLON TUBE
L=350 		1-09707-183-0 05 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) L=350 		1-09707-183-0 36 1 0907-
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 17 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 38 1 0907-
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 38 1 0906-0906
107 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 33 1 0907-
133 BOLT; BRKT
MZW6P M/T(RSZ) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1012-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0906-0906
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0907-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907-
265 CLIP; NYLON TUBE
ID=21 H=25.5 L=26 		8-94176-806-0 01 1 0906-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0906-0906
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0906-0906
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0907-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0907-
286 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0906-
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 02 1 0906-
297 NUT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0906-
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) 		1-47479-598-0 02 1 0906-
322 BRACKET; CLIP
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) 		1-47479-598-0 01 1 0906-
353 CLIP; AIR PIPE
ID=18 & 18 		8-94323-068-0 02 1 0906-
375 CLIP; AIR PIPE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 03 1 0906-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 03 1 0906-
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 01 1 0906-0906
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 01 1 0907-1005
375 CLIP; AIR PIPE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 01 1 0907-1005
375 CLIP; AIR PIPE
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) ASSISTOR SHIFT CONTROL<WX8> L=350 		1-09707-183-0 01 1 1006-
375 CLIP; AIR PIPE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) L=350 		1-09707-183-0 01 1 1006-
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0906-0906
376 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8X30 FLANGE 		0-28650-830-0 02 1 0906-
376 BOLT; BRKT
ZF9S1110 M/T(Y5E) WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X30 FLANGE 		0-28650-830-0 01 1 0906-

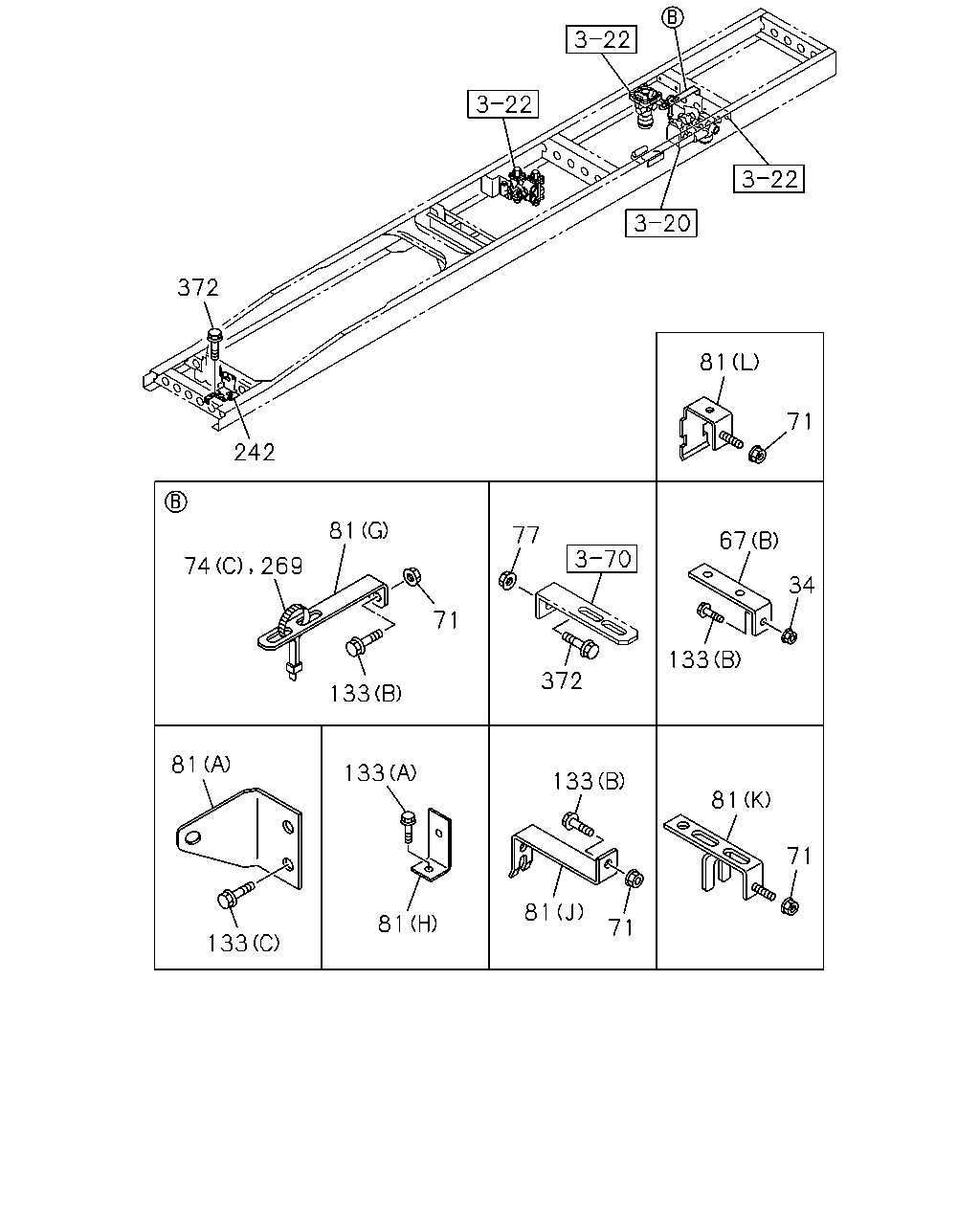

çizim 166107
372 81 71 242 81 77 67 34 71 133 372 133 81 133 133 81 71 81 81 71 133 74 269
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-0906
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0906-
34 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0906-
67 BRACKET; CLIP
(B) L=60 H=30 		1-47477-716-1 01 1 0906-0906
67 BRACKET; CLIP
(A) 		1-47479-693-0 01 1 0906-
71 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1106-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0906-0906
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0906-
71 NUT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) M8 FLANGE 		0-91180-108-0 01 1 0906-
71 NUT; BRKT
WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0906-
71 NUT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 02 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 11 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W) (C) L=350 		1-09707-183-0 05 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 03 1 0907-1005
74 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 03 1 1006-
74 CLIP; NYLON TUBE
WHEEL BASE 6000MM(60W) (C) L=350 		1-09707-183-0 06 1 0907-
74 CLIP; NYLON TUBE
(B) ID=12 & 15 		1-09709-281-1 01 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 01 1 0906-
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) L=350 		1-09707-183-0 03 1 0906-0906
74 CLIP; NYLON TUBE
WHEEL BASE 3900MM(39W) (C) L=350 		1-09707-183-0 09 1 0907-
74 CLIP; NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) ID=16 L=28 		1-09700-872-0 01 1 0906-
77 NUT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8 FLANGE 		0-91180-108-0 01 1 0906-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (M) 		8-98182-760-0 01 1 1108-
81 BRACKET; CLIP
(L) 		8-98186-380-0 01 1 1106-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (I) 		8-98129-212-0 03 1 1012-1012
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 03 1 1101-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (K) 		8-98177-873-0 02 1 1108-
81 BRACKET; CLIP
MZW6P M/T(RSZ) (J) 		8-98169-434-0 01 1 1012-1107
81 BRACKET; CLIP
MZW6P M/T(RSZ) (N) 		8-98182-331-0 01 1 1108-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(G) L=150 H=30 		1-47477-629-2 01 1 0906-
81 BRACKET; CLIP
(C) L=100 H=30 		1-47477-645-2 01 1 0906-
81 BRACKET; CLIP
(D) L=60 H=30 		1-47477-716-1 02 1 0906-
81 BRACKET; CLIP
(B) 		8-98031-420-2 01 1 0906-
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (I) 		8-98129-212-0 04 1 0906-1012
81 BRACKET; CLIP
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (K) 		8-98177-873-0 04 1 1101-
81 BRACKET; CLIP
(H) L=65 B=25 		8-98135-584-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (F) 		1-47479-693-0 01 1 0906-
81 BRACKET; CLIP
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (E) 		8-98117-686-0 01 1 0906-0906
81 BRACKET; CLIP
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (F) 		1-47479-693-0 02 1 0906-
81 BRACKET; CLIP
WHEEL BASE 6000MM(60W) (A) 		1-47476-699-2 01 1 0906-
133 BOLT; BRKT
MZW6P M/T(RSZ) (B) M8X30 FLANGE 		0-28650-830-0 03 1 1012-
133 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 6000MM(60W) (C) M8X20 FLANGE 		0-28650-820-0 02 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0906-
133 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X25 FLANGE 		0-28650-825-0 02 1 0906-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 04 1 0906-0906
133 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 02 1 0907-
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0906-0906
133 BOLT; BRKT
FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0907-
242 BRACKET; PIPE CLIP 8-98074-610-0 01 1 0906-0912
242 BRACKET; PIPE CLIP 8-98158-605-0 01 1 1001-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0906-0906
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0906-0906
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) L=350 		1-09707-183-0 01 1 0907-
269 CLIP; BAND,NYLON TUBE
L=350 		1-09707-183-0 01 1 0907-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0906-
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X20 FLANGE 		0-28650-820-0 01 1 0906-0906
372 BOLT; CLIP BRKT
WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) M8X25 FLANGE 		0-28650-825-0 01 1 0907-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
