Sayfa 7-43 - Isuzu EPC

7-43 — SUN VISOR AND ASSIST GRIP (#6194) — 278 parça

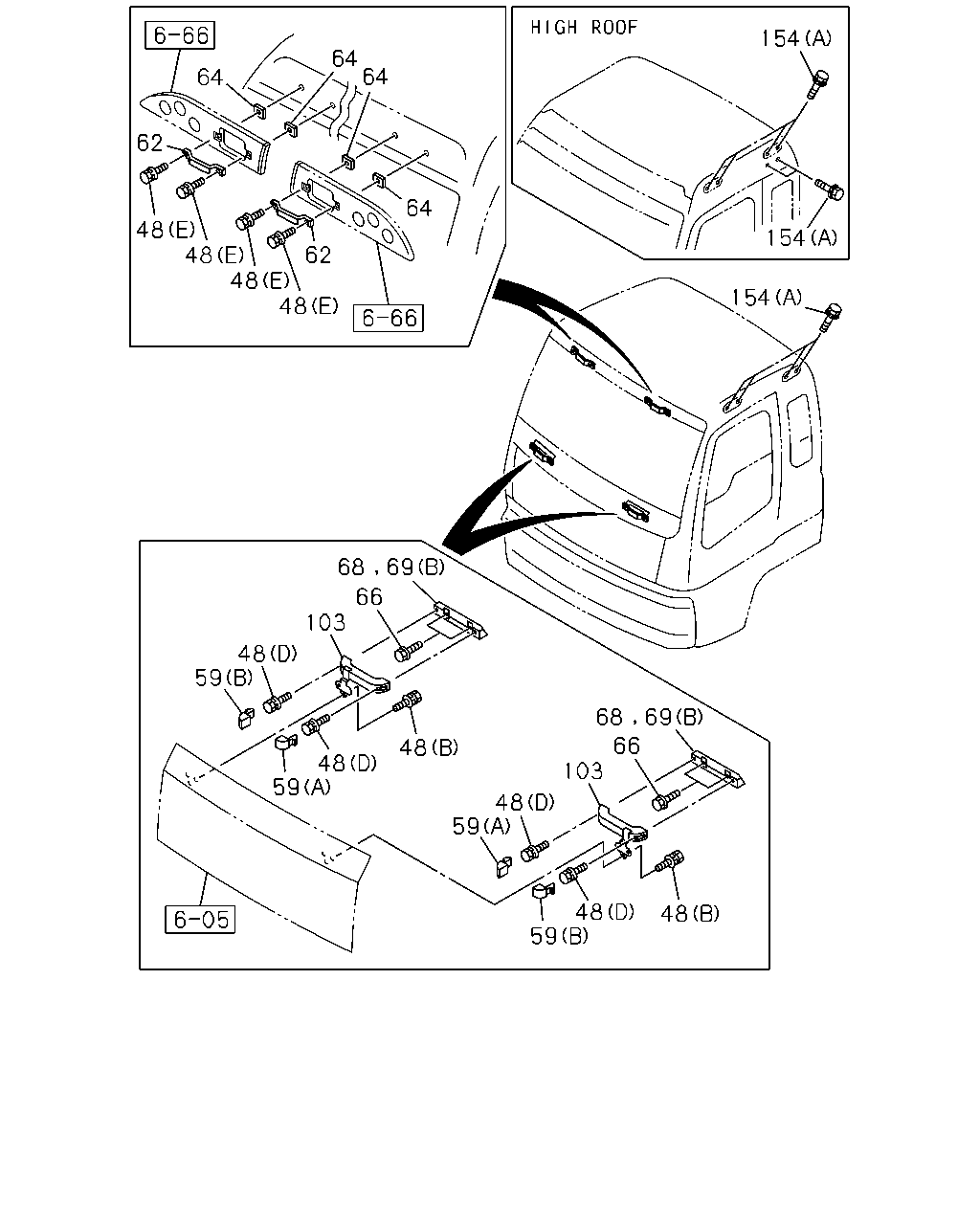

154 64 64 64 62 64 154 48 48 48 48 62 154 68 69 66 103 48 59 68 69 66 48 48 59 103 48 59 48 59 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9905-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9905-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9905-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9905-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9905-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9905-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9905-0104
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	9905-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	9905-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9905-
68	BRACKET; ASSIST GRIP,FRT PANEL	1-65580-203-0	02	1	9905-0009
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9905-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	9905-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	9905-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9905-0104
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-

18 12 154 158 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B) CENTER	1-72447-657-2	01	1	9905-0104
1	BOARD; HEADER SHELF (B) CENTER	1-72447-758-3	01	1	0105-0602
1	BOARD; HEADER SHELF (B) CENTER	1-72447-968-0	01	1	0603-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0104
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (D)	1-72447-886-7	01	1	0105-0602
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9905-0104
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0104
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0602
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-0602
18	SUPPORT; HEADER SHELF CENTER (C)	1-72447-739-0	01	1	9905-0104
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9905-0104
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-0602
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0603-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

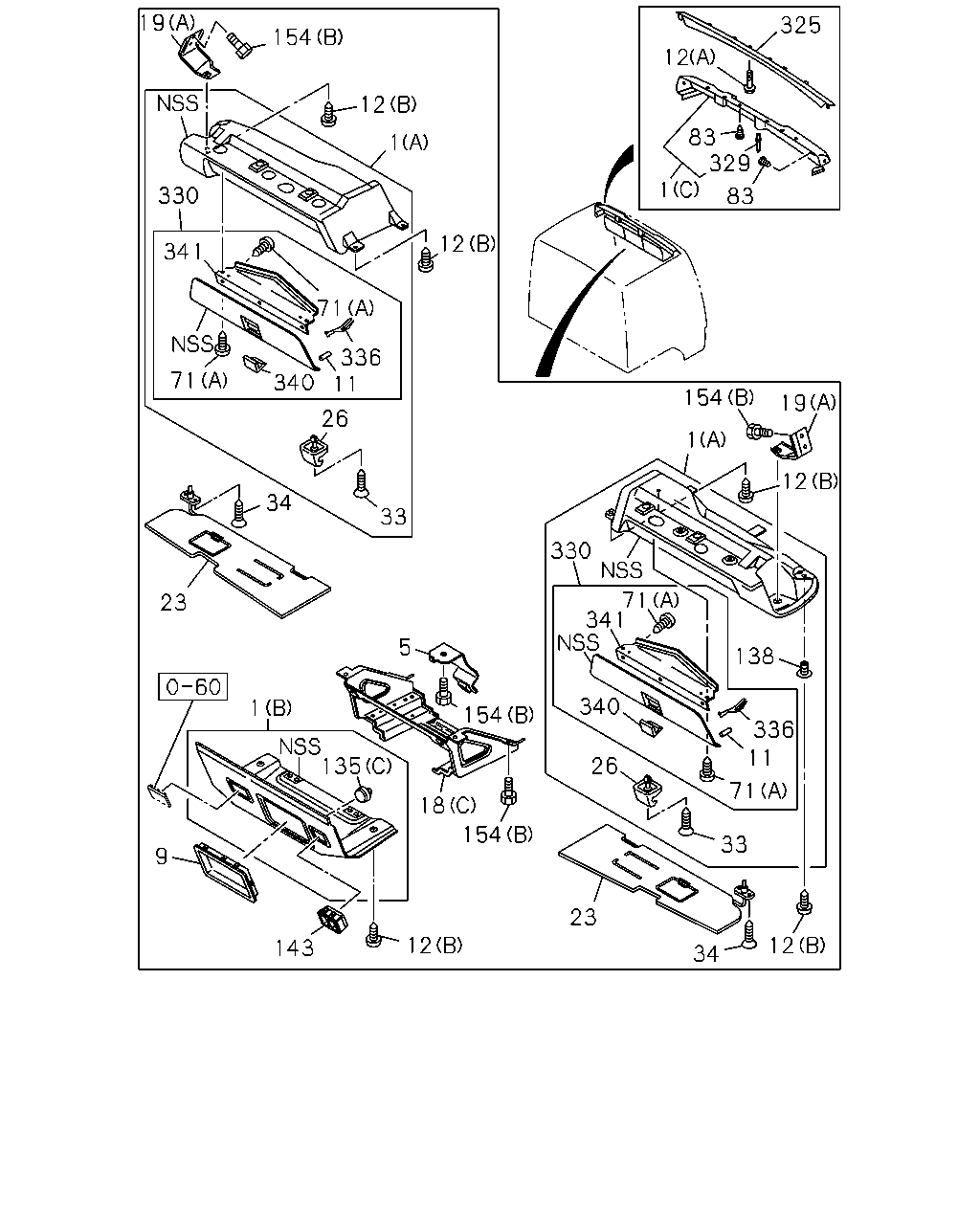

19 325 154 12 12 83 329 1 1 330 83 12 341 71 336 11 71 340 154 26 1 12 34 33 330 71 341 23 5 138 340 1 154 336 135 11 26 71 18 154 33 9 23 12 12 143 34 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B) CENTER	1-72447-657-2	01	1	9905-0104
1	BOARD; HEADER SHELF (B) CENTER	1-72447-758-3	01	1	0105-0602
1	BOARD; HEADER SHELF (B) CENTER	1-72447-968-0	01	1	0603-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0104
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (D)	1-72447-886-7	01	1	0105-0602
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9905-0001
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-0104
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-0602
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-0104
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-0602
9	COVER; HOLE,HEADER SHELF CENTER	1-72447-663-2	01	1	9905-0104
11	CAP; HEADER SHELF	8-94270-538-0	04	1	9905-0104
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9905-0104
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0104
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0602
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-0602
18	SUPPORT; HEADER SHELF CENTER (C)	1-72447-739-0	01	1	9905-0104
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	9905-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	9905-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
23	SUN VISOR	1-73138-150-1	01	1	9905-0104
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR	1-73138-148-1	01	1	9905-0104
23	SUN VISOR	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9905-0104
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9905-0104
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9905-0702
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9905-
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9905-0104
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9905-0104
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-0002
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0003-0104
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0301
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0301
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0302-
71	SCREW EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0301
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0302-
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-0104
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-0602
135	CLIP; HEADER SHELF (C) OD=7.9 BLACK	8-94279-974-1	04	1	9905-0104
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-0602
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-0602
138	NUT; BRKT,HEADER SHELF	1-09984-166-0	04	1	9905-0104
143	BEZEL	1-72448-411-0	01	1	9905-0104
143	BEZEL	1-72447-768-2	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9905-0104
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
325	RAIL ASM HIGH ROOF<S2F>	1-72447-636-4	01	1	0002-0104
329	RIVET HIGH ROOF<S2F>	1-09987-128-0	09	1	0002-0104
330	LID; HEADER SHELF	1-72448-360-3	02	1	9905-0104
336	STAY; LID	1-72448-379-3	04	1	9905-0104
340	LOCK; HEADER SHELF	1-72448-376-0	02	1	9905-0104
341	HINGE; LID,HEADER SHELF	1-72448-403-1	02	1	9905-0104

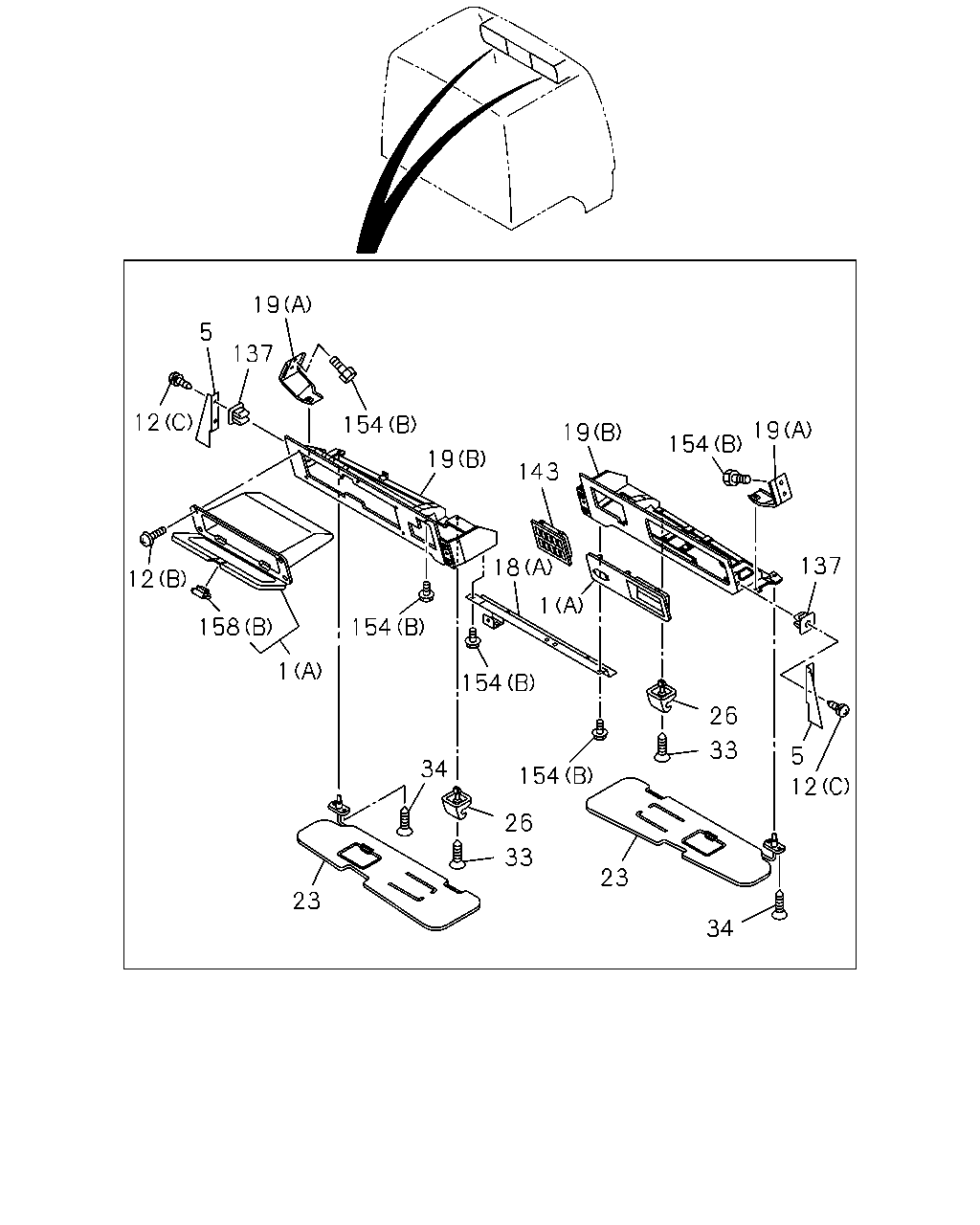

19 5 137 12 154 19 19 154 19 143 18 137 12 1 158 154 1 154 26 33 5 34 154 12 26 33 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B) CENTER	1-72447-657-2	01	1	9905-0104
1	BOARD; HEADER SHELF (B) CENTER	1-72447-758-3	01	1	0105-0602
1	BOARD; HEADER SHELF (B) CENTER	1-72447-968-0	01	1	0603-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0104
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (D)	1-72447-886-7	01	1	0105-0602
5	BRACKET; HEADER SHELF FRAME	1-72447-677-2	01	1	9905-0001
5	BRACKET; HEADER SHELF FRAME EXC. HIGH ROOF<S2F>	1-72447-677-2	01	1	0002-0104
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-933-0	01	1	0105-0602
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-679-2	01	1	0002-0104
5	BRACKET; HEADER SHELF FRAME HIGH ROOF<S2F>	1-72447-932-0	01	1	0105-0602
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9905-0104
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0104
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0602
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-0602
18	SUPPORT; HEADER SHELF CENTER (C)	1-72447-739-0	01	1	9905-0104
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0105-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-877-2	01	1	0105-0909
18	SUPPORT; HEADER SHELF CENTER (A)	8-98118-217-1	01	1	0910-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	9905-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	9905-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-879-7	01	1	0105-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0105-
23	SUN VISOR	1-73138-150-1	01	1	9905-0104
23	SUN VISOR	1-73138-157-1	01	1	0105-
23	SUN VISOR	1-73138-148-1	01	1	9905-0104
23	SUN VISOR	1-73138-156-1	01	1	0105-
26	HOLDER; SUN VISOR	1-73138-142-0	02	1	9905-0104
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0105-
33	SCREW; HOLDER,SUN VISOR M4X16 TAPPING OVAL-HEAD	0-70580-416-0	02	1	9905-0104
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0105-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	9905-0702
137	GROMMET; SCREW,HEADER SHELF HIGH ROOF<S2F> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0105-0602
143	BEZEL	1-72448-411-0	01	1	9905-0104
143	BEZEL	1-72447-768-2	01	1	0105-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	9905-0104
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0105-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> EXC. HIGH ROOF<S2F> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT EXC. HIGH ROOF<S2F>,GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	08	1	9905-
154	BOLT; SUPPORT HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	12	1	9905-
158	LOCK; HEADER SHELF (A)	1-72538-180-0	01	1	0105-0602
158	LOCK; HEADER SHELF (A)	1-72538-312-0	01	1	0603-
158	LOCK; HEADER SHELF (B)	1-72448-376-0	01	1	0105-

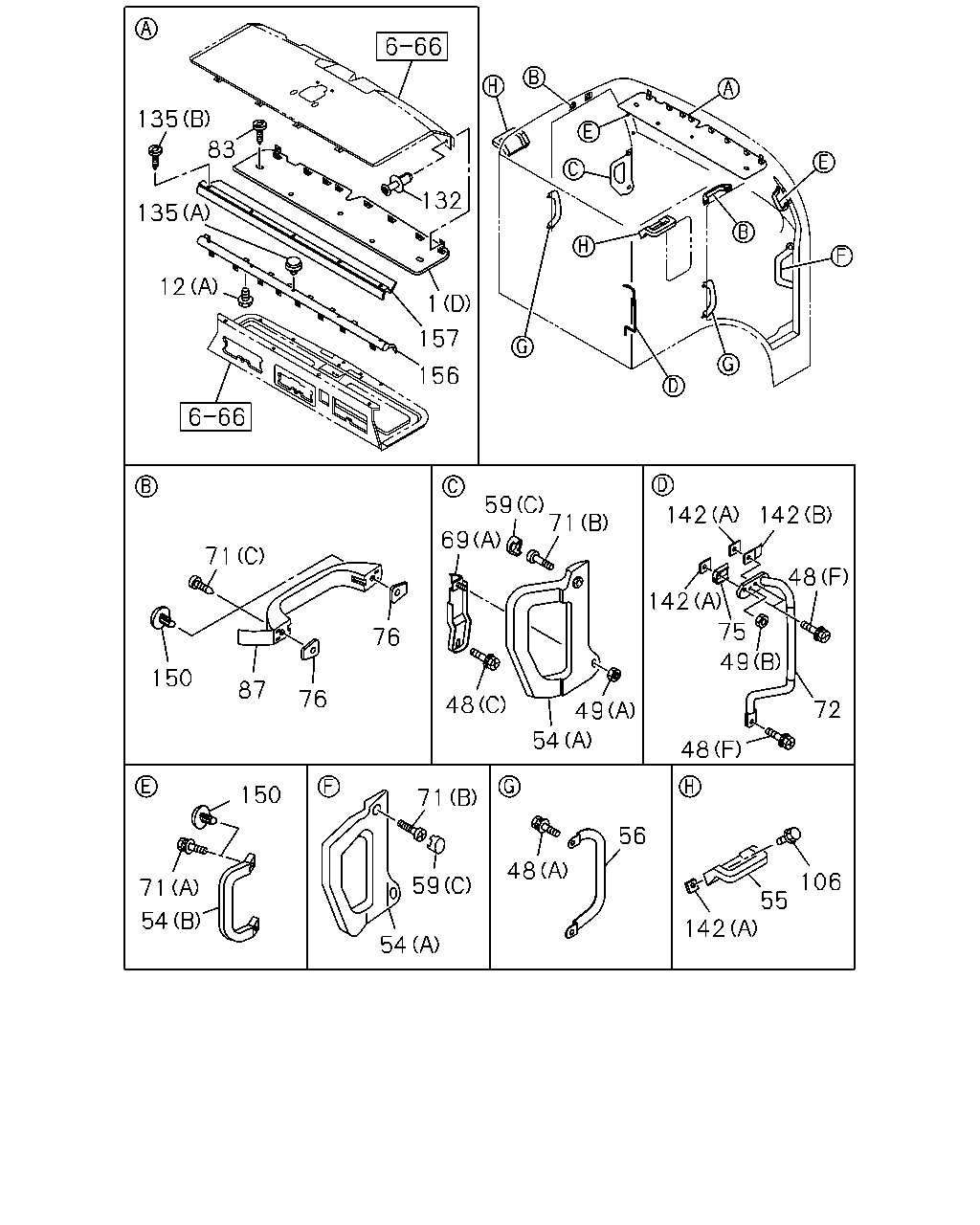

135 83 132 135 12 1 157 156 59 71 142 142 69 71 48 142 75 76 49 150 87 76 48 72 49 54 48 150 71 56 48 106 59 71 55 54 142 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF (B) CENTER	1-72447-657-2	01	1	9905-0104
1	BOARD; HEADER SHELF (B) CENTER	1-72447-758-3	01	1	0105-0602
1	BOARD; HEADER SHELF (B) CENTER	1-72447-968-0	01	1	0603-
1	BOARD; HEADER SHELF (A)	1-72448-597-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-761-6	01	1	0105-
1	BOARD; HEADER SHELF (A)	1-72448-596-2	01	1	9905-0104
1	BOARD; HEADER SHELF (A)	1-72447-876-4	01	1	0105-
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (C)	1-72447-586-3	01	1	0002-0104
1	BOARD; HEADER SHELF HIGH ROOF<S2F> (D)	1-72447-886-7	01	1	0105-0602
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	12	1	9905-0104
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0105-0301
12	SCREW; HEADER SHELF (B) M6X24 W/LK&PL WASHER	8-94279-404-0	08	1	0302-
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	09	1	0002-0104
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	07	1	0105-0602
12	SCREW; HEADER SHELF HIGH ROOF<S2F> (C) M5X20	5-09981-059-0	04	1	0105-0602
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	9905-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	9905-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	9905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9905-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	9905-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	01	1	0905-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	9905-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	01	1	9905-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	01	1	0603-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	9905-0808
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-067-0	01	1	9905-0104
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-066-0	01	1	9905-0104
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0105-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	9905-0002
54	GRIP; ASSIST,QUARTER SIDE (B)	1-73618-185-0	02	1	0003-0104
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0301
54	GRIP; ASSIST,QUARTER SIDE NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-0	02	1	0105-0301
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0302-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (B)	1-73618-185-0	01	1	0105-0301
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0302-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	9905-
56	GRIP; ASSIST,SIDE SILL	1-73617-062-5	02	1	9905-0402
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0403-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	9905-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	9905-
59	COVER; ASSIST GRIP (C)	1-73617-069-0	02	1	9905-0104
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0105-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	9905-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0010-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0010-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	03	1	9905-
71	SCREW (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	9905-0104
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	04	1	0105-0310
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0311-
71	SCREW (A) M5X14 W/PL WASHER	5-09981-050-0	06	1	9905-0104
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER	1-09981-422-0	02	1	0105-0310
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0311-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	9905-0002
71	SCREW (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0003-0104
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0301
71	SCREW NEW ZEALAND EQUIPMENT(PK5) EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0105-0301
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0302-
71	SCREW EXC. ASSIST GRIP A POST<NBK>,NEW ZEALAND EQUIPMENT(PK5) (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0105-0301
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0302-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0603-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	9905-0104
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-540-0	01	1	0105-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	9905-0602
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	9905-0002
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0003-0104
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0105-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> EXC. HIGH ROOF<S2F> OD=13 T=4.5	8-94230-464-1	02	1	0105-
76	SPACER; ASSIST GRIP EXC. HIGH ROOF<S2F>	1-73618-180-0	02	1	0105-
83	PLUG HIGH ROOF<S2F> D6X23 DARK GRAY	1-09987-238-0	05	1	0002-0104
83	PLUG HIGH ROOF<S2F> D6X23 LIGHT GRAY	1-73318-629-0	03	1	0105-0602
87	GRIP; ASSIST,CANT RAIL SIDE	1-73618-170-0	02	1	9905-0104
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0105-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0105-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	9905-
132	FASTENER; BOARD,HEADER SHELF HIGH ROOF<S2F> D8X13.5	1-09987-276-0	08	1	0105-0602
135	CLIP; HEADER SHELF (C) OD=7.9 BLACK	8-94279-974-1	04	1	9905-0104
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (A) D8X13.5	1-09987-248-1	01	1	0105-0602
135	CLIP; HEADER SHELF HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY	1-73318-629-0	05	1	0105-0602
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-0	01	1	9905-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (B)	1-71997-691-1	02	1	0003-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	07	1	9905-0002
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0003-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0105-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0105-
156	PIPE; HEADER SHELF HIGH ROOF<S2F>	1-72447-864-2	01	1	0105-0602
157	FINISHER; PIPE HIGH ROOF<S2F>	1-72447-885-4	01	1	0105-0602

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
