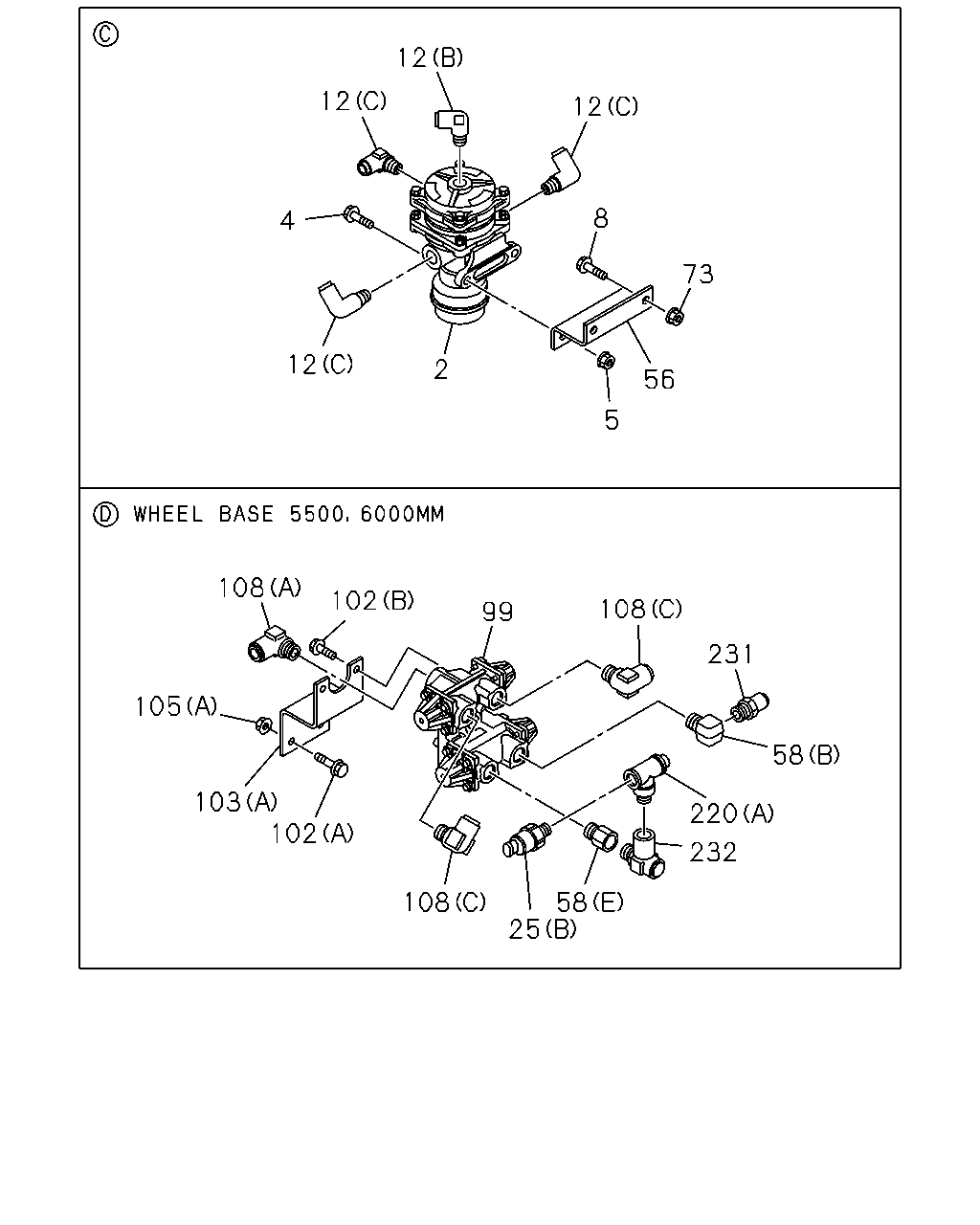

3-22 — AIR CONTROL PARTS (#61931) — 152 parça

10 58 213 10 74 63 65 25 6 1 62 58 213 134 213 213 58 10 58 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0906-
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0906-1408
6	BOLT; VLV M8X85	1-09044-074-0	04	1	1409-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	0906-
10	CONNECTOR (A) PT1/4 2WAY	1-09660-693-0	01	1	0906-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0906-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	0906-
25	SWITCH; PRESSURE (A)	8-98010-856-1	01	1	0906-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) PT3/8	1-09664-210-0	01	1	0906-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	0906-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	0906-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	0906-
74	CONNECTOR; 3WAY	1-09661-536-0	01	1	0906-
134	PLUG; RELAY VALVE	1-09661-502-0	01	1	0906-
213	GASKET ID=22.5	9-09571-422-0	04	1	0906-

12 12 12 8 4 73 12 2 56 5 108 102 108 99 231 105 58 103 102 220 232 108 58 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0906-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0906-
8	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
12	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0906-
12	CONNECTOR; RELAY VLV (A)	1-09661-207-0	01	1	0906-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	0906-
25	SWITCH; PRESSURE (A)	8-98010-856-1	01	1	0906-
56	BRACKET; RELAY VLV	1-47478-233-0	01	1	0906-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) PT3/8	1-09664-210-0	01	1	0906-
73	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0906-
99	VALVE; PROTECTION	1-48110-290-2	01	1	0906-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0906-
102	BOLT; PROTECTION VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M10X35 FLANGE	0-28651-035-0	02	1	0906-
102	BOLT; PROTECTION VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	8-98119-704-0	01	1	0906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	8-98090-802-0	01	1	0906-
105	NUT; BRKT,VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	02	1	0906-
105	NUT; BRKT,VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91180-108-0	02	1	0906-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	1-09656-708-0	01	1	0906-1101
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	8-98166-127-0	01	1	1102-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C)	8-98031-238-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-09660-988-1	01	1	0906-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0906-
232	VALVE; CHECK	8-98032-527-0	01	1	0906-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

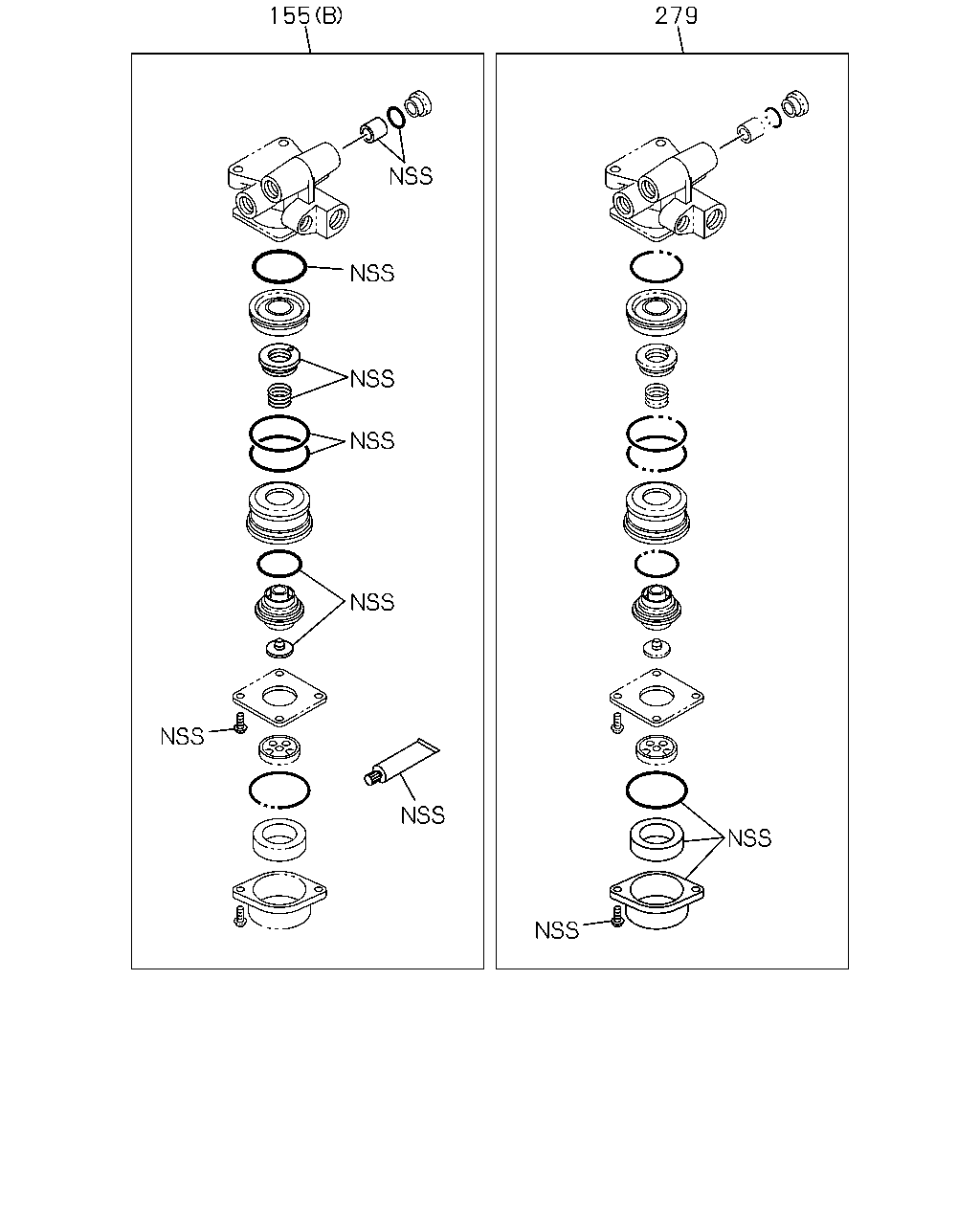

155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0906-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0906-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0906-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0906-

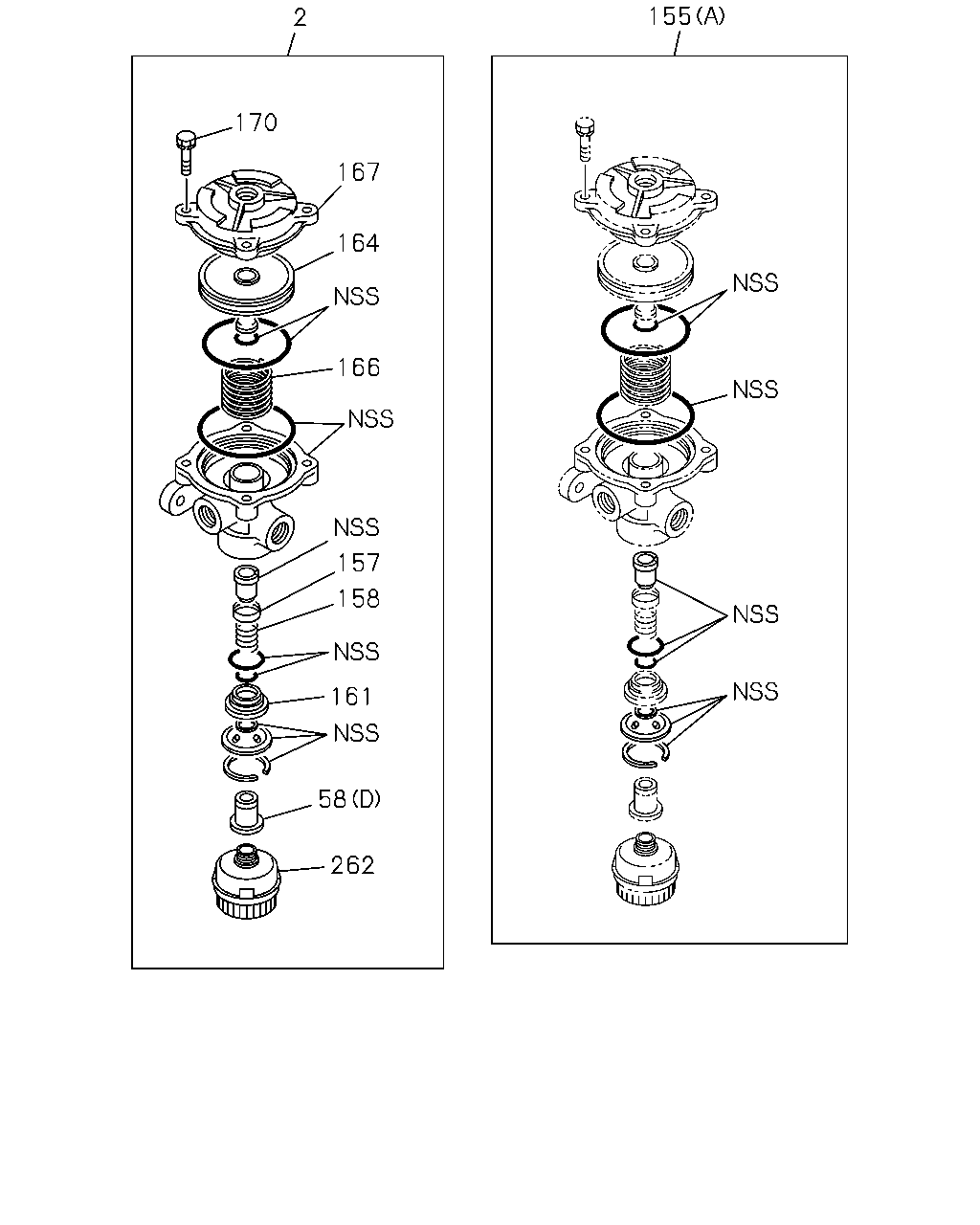

155 2 170 167 164 166 157 158 161 58 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) PT3/8	1-09664-210-0	01	1	0906-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0906-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-294-0	01	1	0906-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0906-
157	RETAINER; VALVE	1-48213-002-0	01	1	0906-
157	RETAINER; VALVE	1-48213-002-0	01	1	0906-
158	SPRING; VALVE	1-47819-089-0	01	1	0906-
158	SPRING; VALVE	1-47819-089-0	01	1	0906-
161	GUIDE; VALVE	1-48129-014-0	01	1	0906-
161	GUIDE; VALVE	1-48129-014-0	01	1	0906-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0906-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0906-
166	SPRING; PISTON	1-47819-090-0	01	1	0906-
166	SPRING; PISTON	1-47819-090-0	01	1	0906-
167	COVER; VALVE	1-48219-070-0	01	1	0906-
167	COVER; VALVE	1-48219-070-0	01	1	0906-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0906-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0906-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0906-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0906-

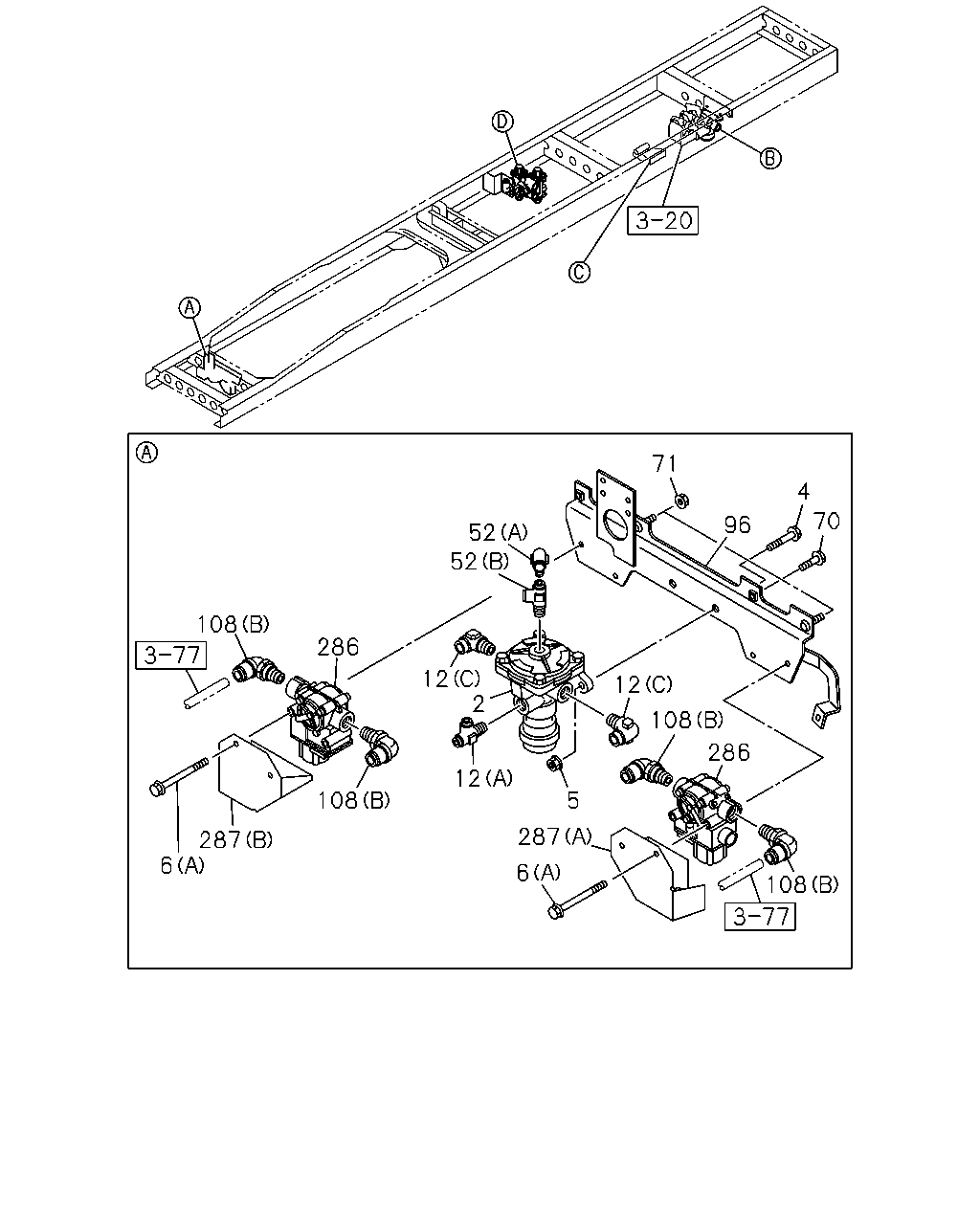

71 4 70 96 52 52 108 286 12 2 12 108 286 12 5 108 287 287 6 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
2	VALVE; RELAY	1-48210-997-0	01	1	0906-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0906-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0906-
5	NUT M10 FLANGE	0-91180-210-0	02	1	0906-
6	BOLT; VLV (A) M8X80 FLANGE	0-28050-880-0	04	1	0906-1408
6	BOLT; VLV M8X85	1-09044-074-0	04	1	1409-
6	BOLT; VLV (B) M8X35 FLANGE	0-28650-835-0	02	1	0906-
12	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0906-
12	CONNECTOR; RELAY VLV (A)	1-09661-207-0	01	1	0906-
52	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0906-
52	CONNECTOR; RELAY VLV (B)	1-09661-271-0	01	1	0906-
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	0906-
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	0906-
96	BRACKET	8-98094-851-2	01	1	0906-1408
96	BRACKET	8-98273-968-0	01	1	1409-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0906-
286	MODULATOR; FRT	1-48240-115-0	02	1	0906-1408
286	MODULATOR; FRT	8-98215-454-0	02	1	1409-
287	COVER; MODULATOR (A)	1-47479-611-1	01	1	0906-1408
287	COVER; MODULATOR (A)	8-98273-494-0	01	1	1409-
287	COVER; MODULATOR (B)	8-98073-401-0	01	1	0906-1408
287	COVER; MODULATOR (B)	8-98273-493-0	01	1	1409-

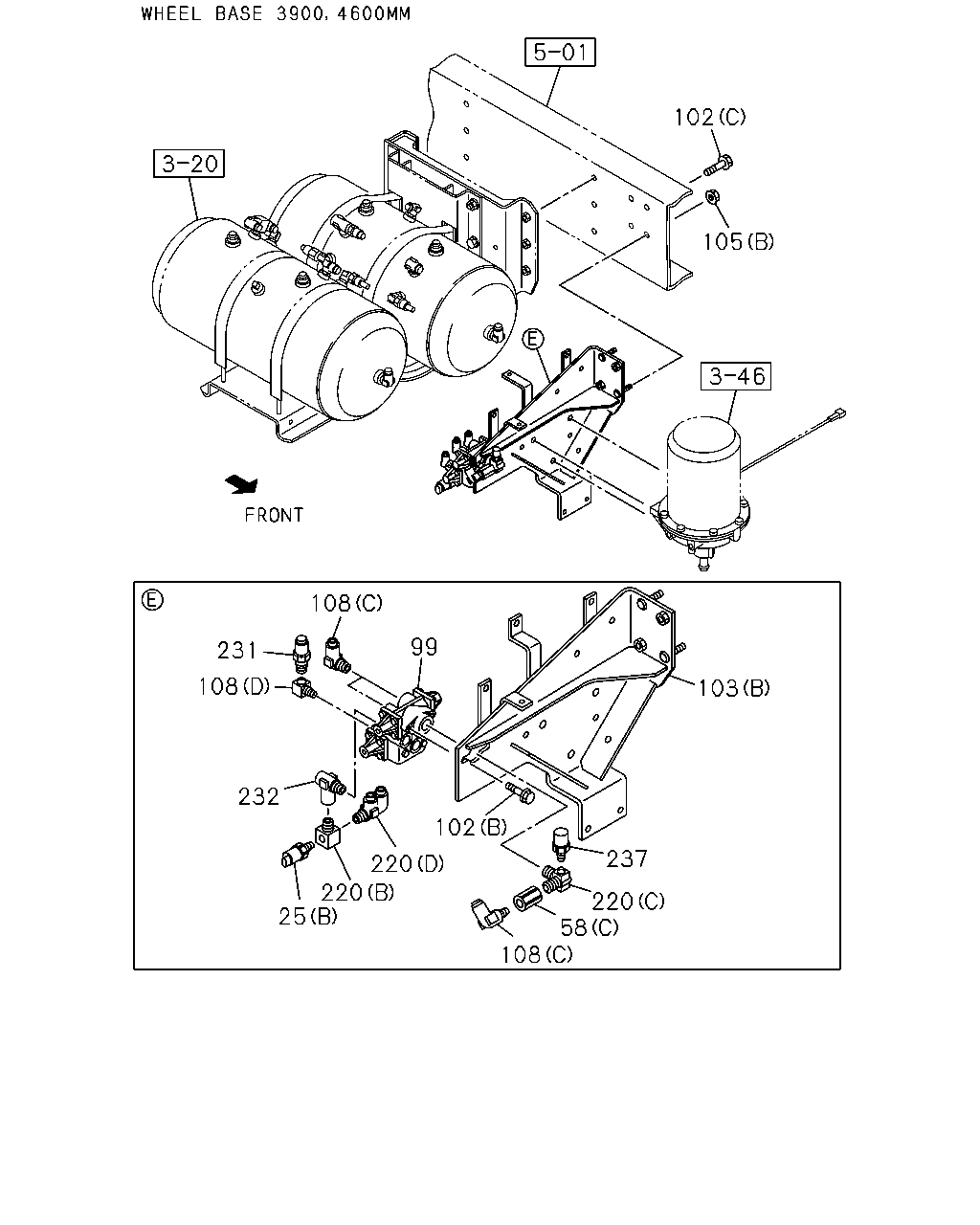

102 105 108 99 231 108 103 232 102 237 220 220 25 220 58 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	0906-
25	SWITCH; PRESSURE (A)	8-98010-856-1	01	1	0906-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER (D)	1-48219-154-0	01	1	0906-
58	ADAPTER WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (B) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
58	ADAPTER WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (E) PT3/8	1-09664-210-0	01	1	0906-
99	VALVE; PROTECTION	1-48110-290-2	01	1	0906-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	0906-
102	BOLT; PROTECTION VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) M10X35 FLANGE	0-28651-035-0	02	1	0906-
102	BOLT; PROTECTION VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8X30 FLANGE	0-28650-830-0	02	1	0906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	8-98119-704-0	01	1	0906-
103	BRACKET; PROTECTION VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	8-98090-802-0	01	1	0906-
105	NUT; BRKT,VALVE WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	02	1	0906-
105	NUT; BRKT,VALVE WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) M8 FLANGE	0-91180-108-0	02	1	0906-
108	CONNECTOR; ELBOW (B) DIN12 & M22 ELBOW	1-09661-497-0	04	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) PT3/8 ELBOW	1-09660-696-0	01	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0906-
108	CONNECTOR; ELBOW WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	1-09656-708-0	01	1	0906-1101
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (B)	8-98166-127-0	01	1	1102-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (D) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 3900MM(39W),WHEEL BASE 4600MM(46W) (C)	8-98031-238-0	01	1	0906-
220	CONNECTOR; 3WAY WHEEL BASE 5500MM(55W),WHEEL BASE 6000MM(60W) (A)	1-09660-988-1	01	1	0906-
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0906-
232	VALVE; CHECK	8-98032-527-0	01	1	0906-
237	VALVE; SAFETY	1-48320-012-2	01	1	0906-
