◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#6192) — 147 parça

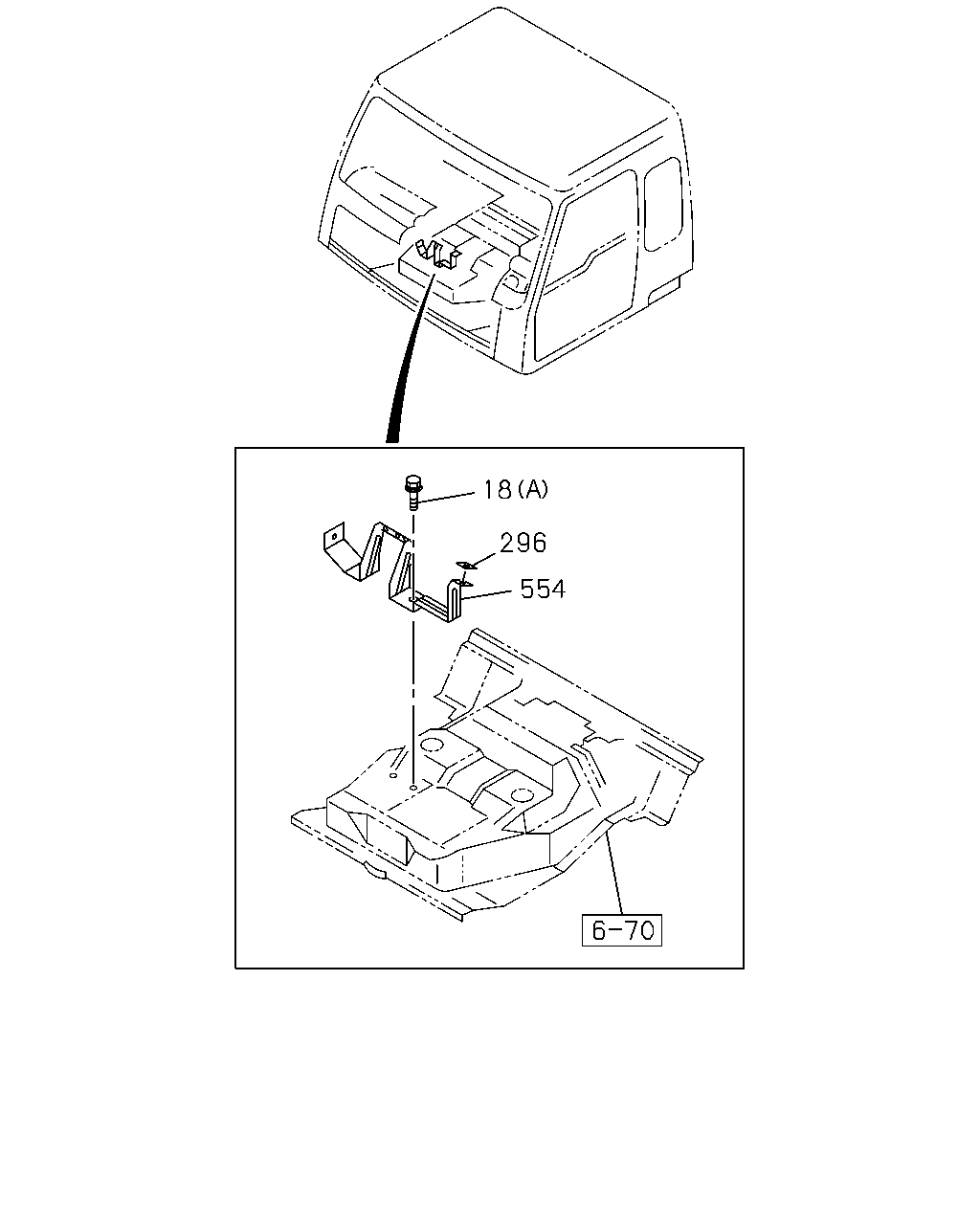

çizim 100198
18 296 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9905-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9905-
296 SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9) 		8-97856-616-0 01 1 9906-
554 BRACKET; CENTER BEZEL 1-65671-535-2 01 1 9905-

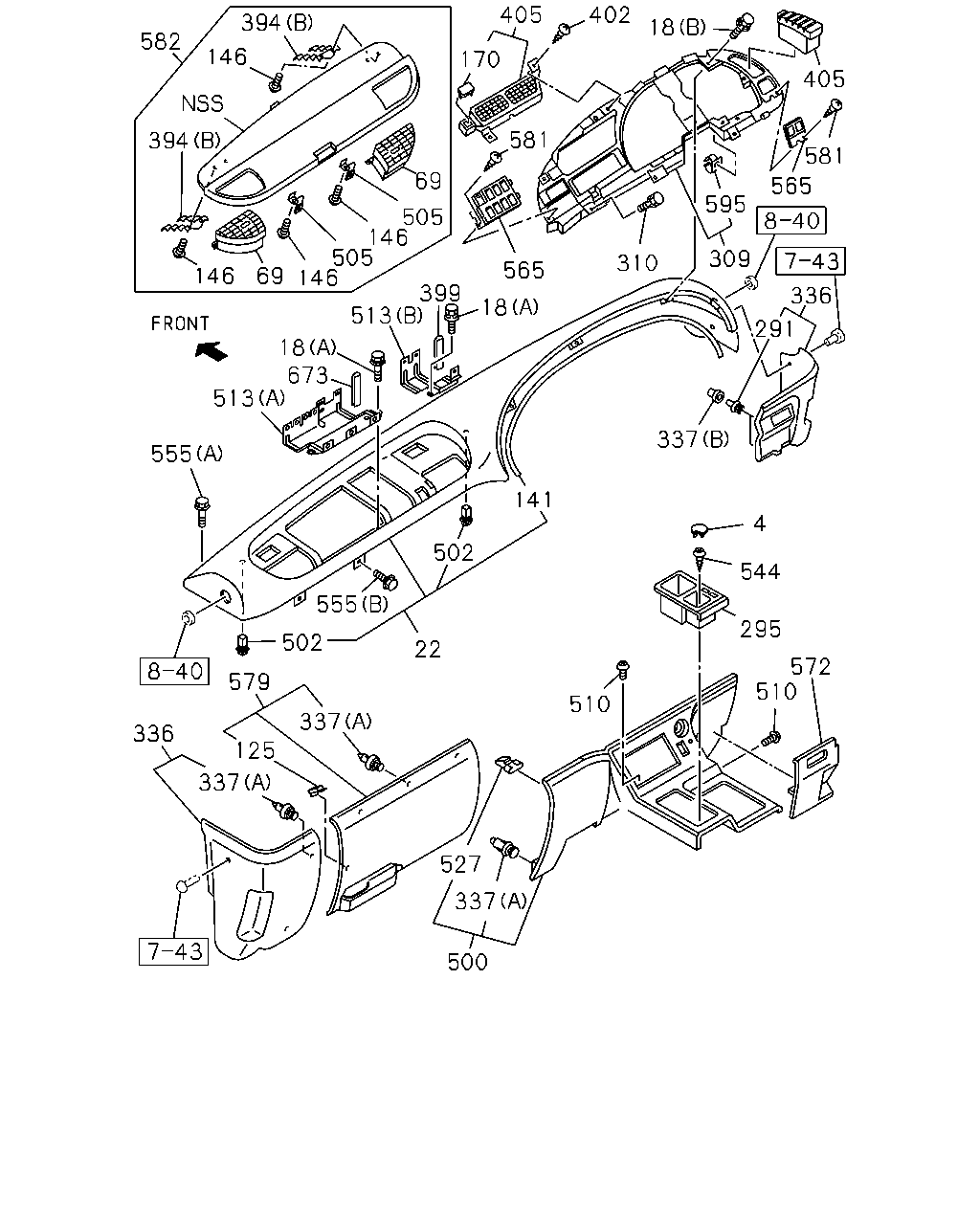

çizim 100199
405 402 394 18 582 146 170 405 581 581 394 69 565 595 505 146 505 146 309 10 565 69 146 399 513 336 18 291 18 673 513 337 555 141 4 502 544 555 295 502 22 572 510 579 510 337 336 125 337 527 337 500
BalonParca AdiParca NoAdetTipApplied Date
4 COVER; INST PNL 1-72537-106-0 01 1 9905-
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 9905-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 9905-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 9905-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9905-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9905-
22 PAD; INST 1-72317-344-0 01 1 9905-0104
22 PAD; INST 1-72317-347-2 01 1 0105-0710
22 PAD; INST 1-72317-372-1 01 1 0711-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 9905-0104
69 GRILLE; SIDE,AIR OUTLET 1-76367-070-0 01 1 0105-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 9905-0104
69 GRILLE; SIDE,AIR OUTLET 1-76367-069-0 01 1 0105-
125 CLIP; INST PANEL 8-97217-066-0 01 1 9905-0301
125 CLIP; INST PANEL 8-97217-066-0 11 1 0302-0309
125 CLIP; INST PANEL 8-97217-066-0 19 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 11 1 0406-
125 CLIP; INST PANEL 8-97217-066-0 10 1 9905-0301
141 PROTECTOR; EDGE 1-72318-430-0 01 1 9905-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 9905-
170 COVER; HOLE 1-76367-068-0 01 1 9905-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 0603-
291 FASTENER; INST CLUSTER 1-72438-137-0 03 1 9905-0602
295 TRAY; CTR CLUSTER 1-72437-543-1 01 1 9905-
309 PANEL; SW,INST 1-72418-009-6 01 1 9905-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 9905-0104
336 COVER; INST PANEL SIDE 1-72437-624-0 01 1 0105-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 9905-0104
336 COVER; INST PANEL SIDE 1-72437-622-0 01 1 0105-
337 FASTENER; COVER
(A) 		1-72438-124-2 12 1 0603-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 9905-
337 FASTENER; COVER
(A) 		1-72438-124-2 10 1 9905-0602
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 9905-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9905-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9905-
399 FINISHER; HARNESS
L=30 		8-94273-221-0 01 1 0006-0009
399 FINISHER; HARNESS
L=50 		8-94270-377-1 01 1 0010-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9905-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT 1-76367-062-2 01 1 9905-
405 GRILLE ASM; METER VENT 1-76367-059-3 01 1 9905-
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-545-8 01 1 9905-0104
500 CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9) 		1-72437-619-0 01 1 0105-
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-590-1 01 1 9905-0104
500 CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9) 		1-72437-648-0 01 1 0105-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 9905-
505 LOCK; LID 1-72558-024-2 02 1 9905-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 9905-
513 BRACKET; RELAY
(B) 		1-73907-327-3 01 1 9905-
513 BRACKET; RELAY
(A) 		1-73908-009-9 01 1 9905-0205
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0206-
527 CLIP; INST CLUSTER 8-97217-066-0 04 1 9905-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 9905-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9905-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
565 BEZEL; SW PANEL 1-72418-010-2 01 1 9905-
565 BEZEL; SW PANEL 1-72418-011-3 01 1 9905-
572 COVER; INSPECTION 1-72437-633-0 01 1 9905-0104
572 COVER; INSPECTION 1-72437-634-0 01 1 0105-
579 COVER; INST PNL 1-72437-542-3 01 1 9905-0104
579 COVER; INST PNL 1-72437-626-0 01 1 0105-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 9905-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72547-115-8 01 1 9905-0104
582 LID; FUSE & RELAY 1-72547-124-0 01 1 0105-
595 NUT; HOOK 1-72418-013-0 11 1 9905-
673 FINISHER; BRKT,RELAY
L=30 		8-94273-221-0 01 1 0006-0009
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0010-

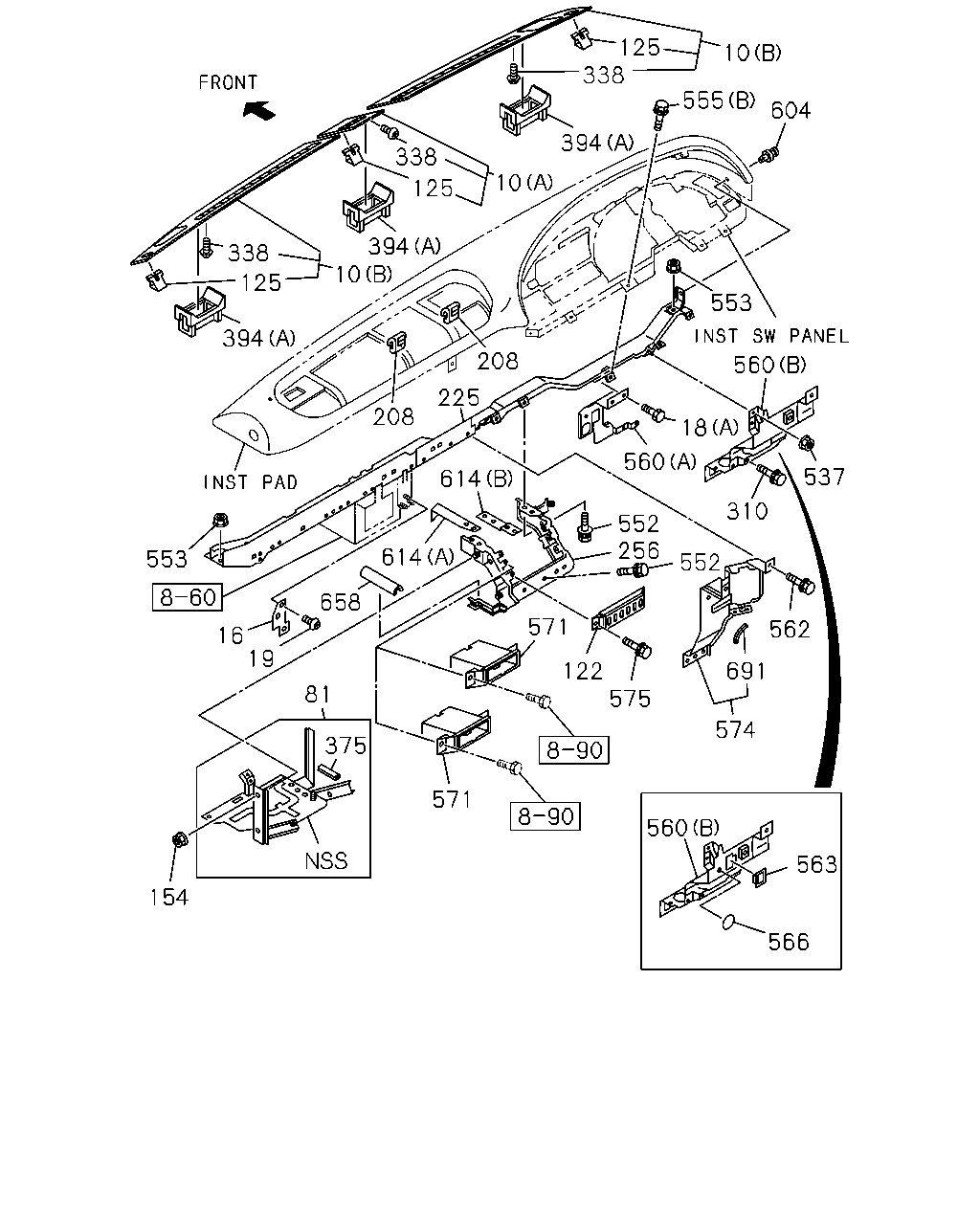

çizim 100317
125 338 10 555 604 394 338 10 125 338 394 10 125 553 394 208 560 225 208 18 614 560 537 310 552 256 614 553 552 658 571 562 16 19 691 122 575 81 574 375 571 560 563 154 566
BalonParca AdiParca NoAdetTipApplied Date
10 PANEL ASM; GARNISH
(A) CENTER 		1-72437-540-6 01 1 9905-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-601-6 01 1 9905-
10 PANEL ASM; GARNISH
(B) W/SPEAKER NET 		1-72437-600-7 01 1 9905-
16 BRACKET; INST PNL 1-73908-023-2 01 1 9905-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0301
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 11 1 0302-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9905-0301
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 9905-
19 SCREW; BRKT
M5X14 		8-94279-325-0 02 1 9905-
81 BRACKET; ELEC CONT UNIT 1-73907-276-9 01 1 9905-0003
81 BRACKET; ELEC CONT UNIT 1-73907-655-3 01 1 0004-0104
81 BRACKET; ELEC CONT UNIT 1-73907-649-2 01 1 0105-0110
81 BRACKET; ELEC CONT UNIT 1-73907-548-7 01 1 0111-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 9905-
125 CLIP; INST PANEL 8-97217-066-0 01 1 9905-0301
125 CLIP; INST PANEL 8-97217-066-0 11 1 0302-0309
125 CLIP; INST PANEL 8-97217-066-0 19 1 0310-0405
125 CLIP; INST PANEL 8-97217-066-0 11 1 0406-
125 CLIP; INST PANEL 8-97217-066-0 10 1 9905-0301
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 9905-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 9905-
225 FRAME; FACIA 1-65671-725-8 01 1 9905-
256 BEZEL ASM; CENTER 1-65671-523-7 01 1 9905-0104
256 BEZEL ASM; CENTER
COOL & HOT BOX<TMU> 		1-65671-523-8 01 1 0105-0210
256 BEZEL ASM; CENTER 1-65671-523-9 01 1 0211-0710
256 BEZEL ASM; CENTER 1-65671-832-0 01 1 0711-0812
256 BEZEL ASM; CENTER 1-65671-828-2 01 1 0901-
256 BEZEL ASM; CENTER
EXC. COOL & HOT BOX<TMU> 		1-65671-765-1 01 1 0105-0210
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 9905-
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 9905-0208
338 SCREW; COVER
M5X14 		8-94148-576-1 12 1 0209-0309
338 SCREW; COVER
M5X14 		8-94279-325-0 22 1 0310-0405
338 SCREW; COVER
M5X14 		8-94279-325-0 12 1 0406-0801
338 SCREW; COVER
M5X14 		8-94279-325-0 17 1 0802-
375 FINISHER; BRKT,CONT UNIT
L=80 		5-71997-133-0 01 1 0403-0602
375 FINISHER; BRKT,CONT UNIT
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0603-
394 HOLDER; PANEL
(A) 		1-72438-066-0 08 1 9905-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 9905-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 9905-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 9905-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 9905-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 9905-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
560 BRACKET
(A) 		1-65680-976-3 01 1 9905-
560 BRACKET
(B) 		1-65671-760-4 01 1 9905-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-
563 BEZEL; BRKT 1-72448-410-3 01 1 9905-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 9905-0505
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0506-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0506-
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0302-0505
571 BEZEL; POCKET 1-72438-151-3 01 1 9905-
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 9905-
574 PANEL; RELAY BOX 1-73907-365-9 01 1 9905-1005
574 PANEL; RELAY BOX 8-98170-460-0 01 1 1006-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-
604 CLIP; INST PAD 1-09983-123-0 01 1 9905-
614 BRACKET; HARNESS
(A) 		1-65671-745-1 01 1 9905-
614 BRACKET; HARNESS
(B) 		1-65671-746-1 01 1 9905-
658 FINISHER; BEZEL
L=80 SERVICED BY L=90 		1-71997-795-0 01 1 0807-
691 FINISHER; HARNESS PROTECTOR
L=50 		8-94270-377-1 01 1 1006-
