7-40 — INSTRUMENT PANEL AND BOX (#61919) — 133 parça

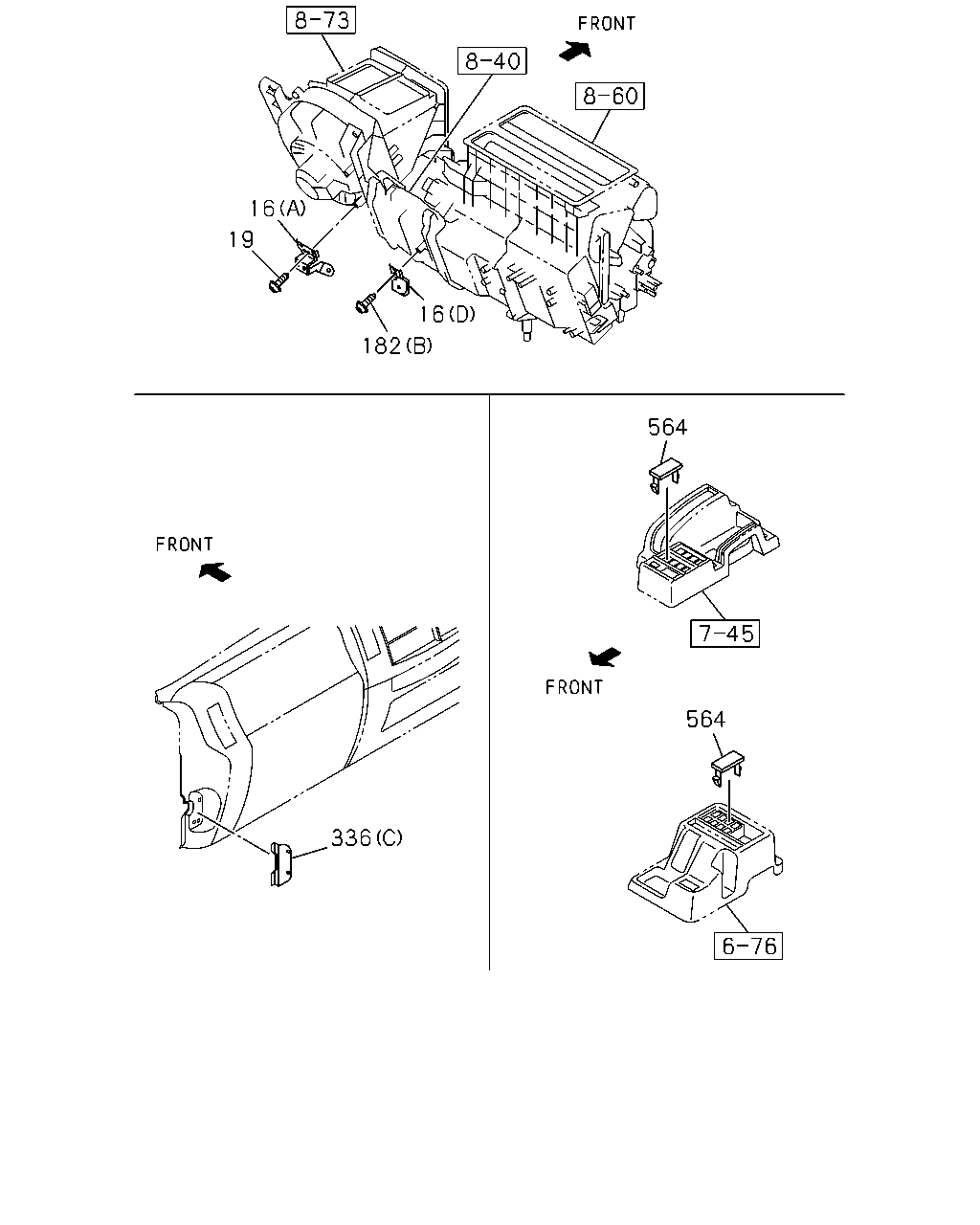

çizim 163595
16 19 16 182 564 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0906-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
19 SCREW; BRKT
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
564 COVER; SW 8-97043-732-1 06 1 0906-

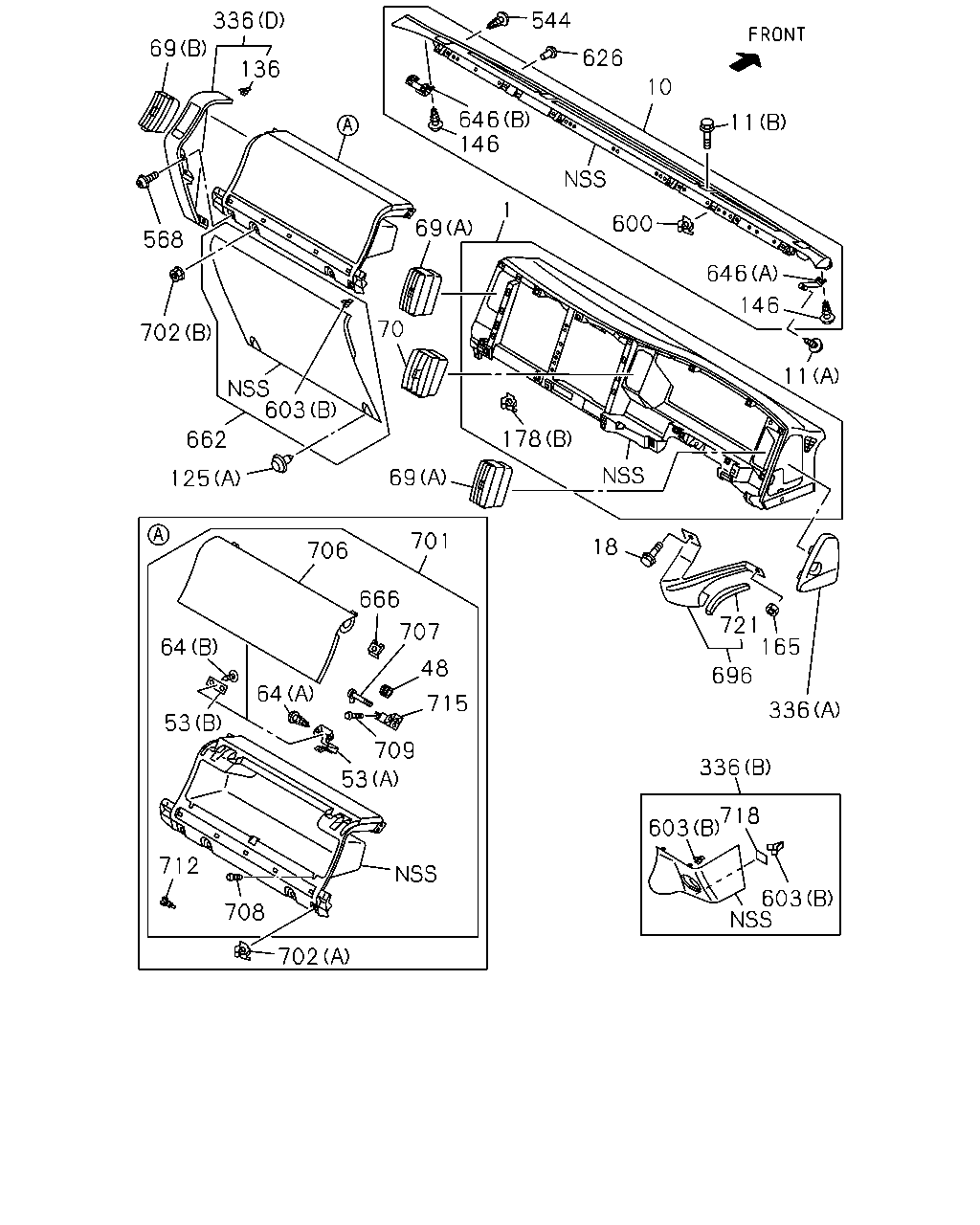

çizim 163601
336 136 69 568 702 662 125 603 69 70 69 1 146 646 544 10 626 11 600 646 11 146 178 18 721 165 696 336 336 718 603 603 701 706 666 707 48 715 709 53 64 64 53 702 708 712
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97407-418-8 01 1 0906-
10 PANEL ASM; GARNISH
GRAY 		8-97414-685-0 01 1 0906-1008
10 PANEL ASM; GARNISH
GRAY 		8-97422-095-1 01 1 1009-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0906-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0906-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 0906-
48 SPRING; GLOVE BOX LID 8-98034-986-0 01 1 0906-1311
48 SPRING; GLOVE BOX LID 8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID 8-98034-987-0 01 1 0906-1311
48 SPRING; GLOVE BOX LID 8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID 8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
(A) 		8-98108-913-0 01 1 0906-1405
53 STRIKER; GLOVE BOX
(B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
(A) 		8-98108-915-0 01 1 0906-1405
64 SCREW; STRIKER
(B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 0906-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0906-
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 0906-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
136 CLIP; INST COVER 8-98076-254-0 02 1 0906-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97407-420-1 01 1 0906-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97407-425-5 01 1 0906-1012
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97422-653-1 01 1 1101-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97407-427-4 01 1 0906-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97409-491-1 01 1 0906-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
600 NUT; PANEL 8-98037-629-0 02 1 0906-1008
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0906-
646 BRACKET; GARNISH PANEL
(A) 		8-98051-490-2 01 1 0906-
646 BRACKET; GARNISH PANEL
(B) 		8-98051-492-2 01 1 0906-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 0906-
666 INSERT; INST PANEL 8-98038-450-0 04 1 0906-1311
666 INSERT; INST PANEL
M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98066-085-1 01 1 0906-
701 TRAY; INST
GRAY 		8-97415-540-6 01 1 0906-1405
701 TRAY; INST
GRAY 		8-97429-703-1 01 1 1406-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 0906-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 0906-
706 LID; TRAY INST
GRAY 		8-97415-541-0 01 1 0906-1405
706 LID; TRAY INST
GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0906-1311
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0906-
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0906-
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0906-
715 SUPPORT; TRAY,HINGE 8-98034-928-0 01 1 0906-1311
715 SUPPORT; TRAY,HINGE 8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE 8-98034-929-0 01 1 0906-1311
715 SUPPORT; TRAY,HINGE 8-97926-397-0 01 1 1312-
718 SEAL; COVER
7X31 		8-98061-777-0 01 1 0906-
721 FINISHER; BRKT,KNEE
L=140 		8-97892-742-0 01 1 0906-

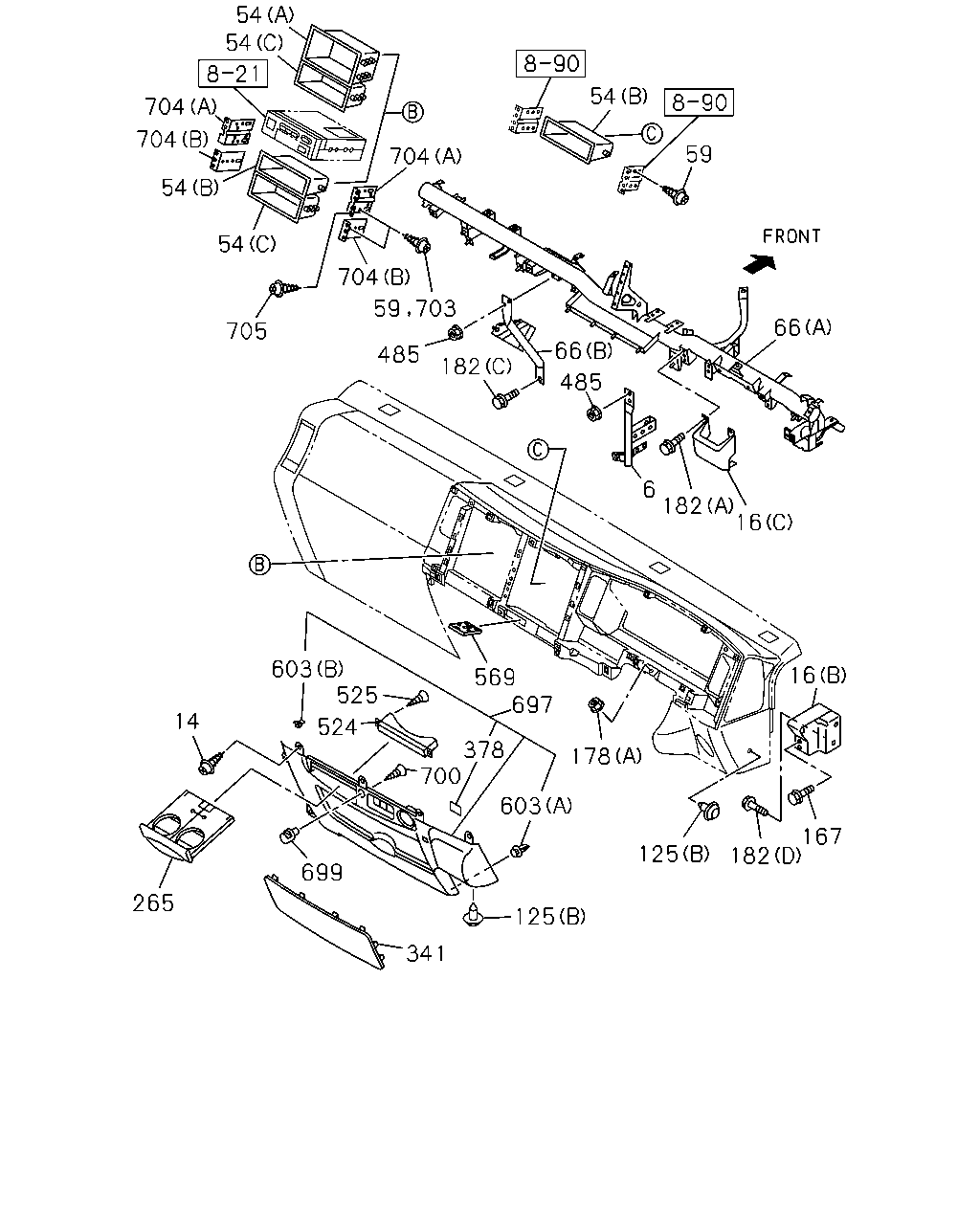

çizim 163628
54 54 704 704 54 54 705 704 704 59 703 485 182 66 485 6 182 16 66 59 54 16 167 182 125 178 697 569 603 525 524 14 265 699 341 125 603 378 700
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98088-312-0 01 1 0906-1109
6 SUPPORT; INST PANEL 8-98196-255-0 01 1 1110-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0906-
16 BRACKET; INST PNL
(A) 		8-97585-612-2 01 1 0906-
16 BRACKET; INST PNL
(D) 		8-98010-154-0 01 1 0906-
16 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 0906-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 0906-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 0906-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 0906-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 0906-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0906-
66 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER(AJ3) (B) 		8-98151-167-0 01 1 0910-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-580-2 01 1 0906-0909
66 REINFORCEMENT; INST PANEL
AIR BAG DRIVER(AJ3) (B) 		8-97585-580-2 01 1 0910-
66 REINFORCEMENT; INST PANEL
(A) 		8-98009-970-9 01 1 0906-1111
66 REINFORCEMENT; INST PANEL
(A) 		8-98170-401-0 01 1 1112-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-605-0 01 1 1407-
125 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 0906-1007
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1008-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 0906-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0906-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 0906-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 0906-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 0906-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 0906-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 0906-
265 HOLDER; CUP
GRAY 		8-97407-897-2 01 1 0906-0909
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 0910-
341 LID; FUSE BOX
GRAY 		8-97407-419-3 01 1 0906-1010
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1011-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1011-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0906-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 0906-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0906-
569 HOLDER; CARD 8-97410-276-1 01 1 0906-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 04 1 0906-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 0906-
697 PANEL; INST CENTER
GRAY 		8-97413-127-0 01 1 0906-1010
697 PANEL; INST CENTER
GRAY 		8-97422-207-1 01 1 1011-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0906-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0906-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0906-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0906-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0906-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 0906-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
