◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11232 - FRR RHD EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#61907) — 64 parça

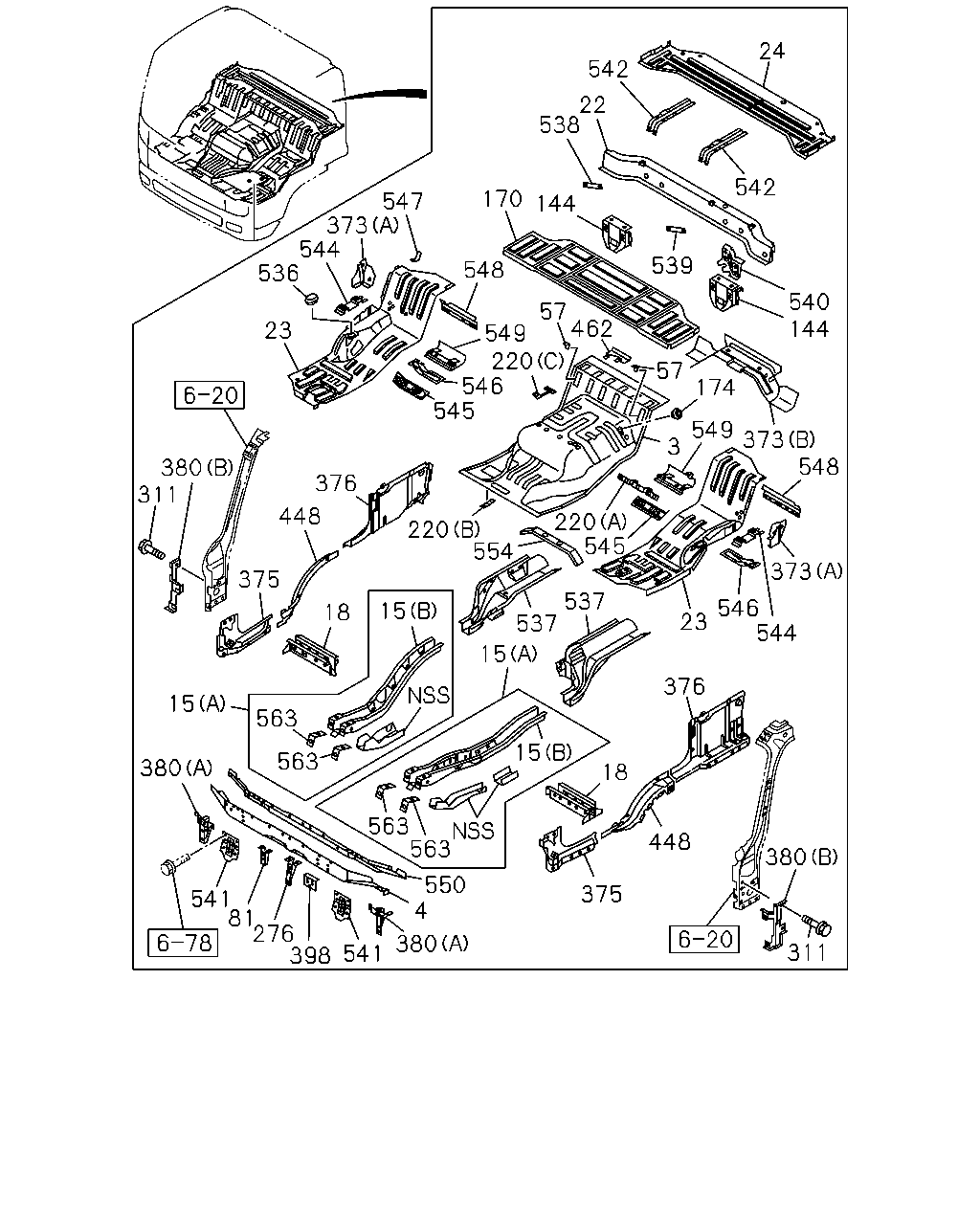

çizim 163709
24 542 22 538 542 170 547 373 544 536 144 539 548 540 144 57 462 23 549 220 546 545 57 174 549 373 548 3 380 311 376 448 220 545 220 554 373 375 537 537 546 544 15 18 23 15 376 15 563 563 15 380 18 563 563 448 380 550 4 375 541 81 276 398 380 311 541
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98032-904-9 01 1 0906-1004
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-036-0 01 1 1005-1005
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-036-0 01 1 1006-
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98041-872-9 01 1 0906-1004
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98167-037-0 01 1 1005-
4 FRAME; FLOOR,FRT 8-98073-692-1 01 1 0906-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 0906-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 0906-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 0906-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 0906-
18 FRAME; FLOOR,CENTER SIDE 8-97584-397-5 01 1 0906-
18 FRAME; FLOOR,CENTER SIDE 8-97584-420-4 01 1 0906-
22 FRAME; FLOOR REAR 8-97584-430-5 01 1 0906-
23 PANEL; FLOOR,SIDE 8-97584-371-7 01 1 0906-
23 PANEL; FLOOR,SIDE 8-98073-690-1 01 1 0906-
24 PANEL; BED PAN 8-97584-377-6 01 1 0906-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 0906-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 0906-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 0906-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 0906-
170 EXTENSION; RR FLOOR 8-97589-205-4 01 1 0906-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 0906-
220 PATCH
(A) 		8-97588-840-4 01 1 0906-
220 PATCH
(B) 		8-97589-603-3 01 1 0906-
220 PATCH
(C) 		8-97589-627-2 01 1 0906-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 0906-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 0906-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 0906-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 0906-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 0906-
375 CLOSING; PILLAR 8-98044-897-3 01 1 0906-
375 CLOSING; PILLAR 8-98044-898-3 01 1 0906-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 0906-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 0906-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 0906-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 0906-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 0906-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 0906-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 0906-
448 CLOSING; ROCKER 8-97589-551-2 01 1 0906-
448 CLOSING; ROCKER 8-97589-552-2 01 1 0906-
462 BRACKET; EXTINGUISHER 8-97585-688-1 01 1 0906-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 0906-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 0906-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 0906-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 0906-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 0906-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 0906-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 0906-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 0906-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 0906-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 0906-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 0906-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 0906-
546 REINFORCEMENT; FLOOR SIDE 8-97584-426-0 02 1 0906-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 0906-
548 BRACKET; MUD GUARD 8-97588-964-1 01 1 0906-
548 BRACKET; MUD GUARD 8-97588-965-1 01 1 0906-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 0906-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 0906-
550 CLOSING ASM; MTG,FRT 8-97584-458-4 01 1 0906-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 0906-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 0906-
