Sayfa 7-20 - Isuzu EPC

7-20 — MIRROR AND MIRROR STAY (#6190) — 268 parça

86 96 36 190 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM	1-73118-026-0	01	1	9905-0104
1	MIRROR; ROOM	1-73117-033-1	01	1	0105-
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9905-9906
2	SCREW; MIRROR TO BODY M6X20	1-09981-310-0	02	1	9907-
36	GROMMET; MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> M5 SCREW GROMMET	1-09983-131-0	03	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-732-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-733-0	01	1	9905-0301
96	CAP; MIRROR STAY HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA>	1-73317-324-0	03	1	9905-0301
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-0301
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-0301

13 132 134 133 30 134 135 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA>	1-71737-917-1	01	1	9905-0301
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9905-0301
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9905-0301
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	9905-0004
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-933-0	01	1	0005-0301
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	9905-0004
132	RING; MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-935-0	01	1	0005-0301
133	LENS; MIRROR,OUTSIDE MIR STAY O/S W/REMOTE<TBA>	1-71737-926-0	01	1	9905-0301
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	01	1	9905-0104
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	01	1	9905-0104
134	CLIP; MIRROR LENS MIR STAY O/S W/REMOTE<TBA>	1-71737-936-0	02	1	0105-0301
135	LENS; MIRROR,SIDE UNDER MIR STAY O/S W/REMOTE<TBA>	1-71737-929-0	01	1	9905-0301

66 66 72 66 66 181 71 151 69 90 66 66 49 66 66 72 71 185 17 58 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	9905-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	0211-0301
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	0211-0301
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0302-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9905-0301
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0302-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71707-087-0	01	1	9905-0301
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-491-2	01	1	9905-0105
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9905-0301
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9905-0301
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9905-0104
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	0105-0105
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-0104
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0302-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	9905-0301
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9905-0104
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
69	NUT; CAP M8	1-09984-187-0	04	1	9905-9912
69	NUT; CAP M8	1-09984-187-0	02	1	0001-0301
69	NUT; CAP M8	1-09984-187-0	02	1	0001-0301
69	NUT; CAP M8	1-09984-187-0	04	1	0302-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0302-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	9905-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0302-
72	SHEET (A)	1-71798-487-3	02	1	9905-9912
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	02	1	0302-
72	SHEET (B)	1-71798-488-1	02	1	9905-9912
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	02	1	0302-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-0104
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9905-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9905-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9905-9912
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9905-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0302-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9905-9912
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0001-0301
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0001-0301
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0302-0512
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-

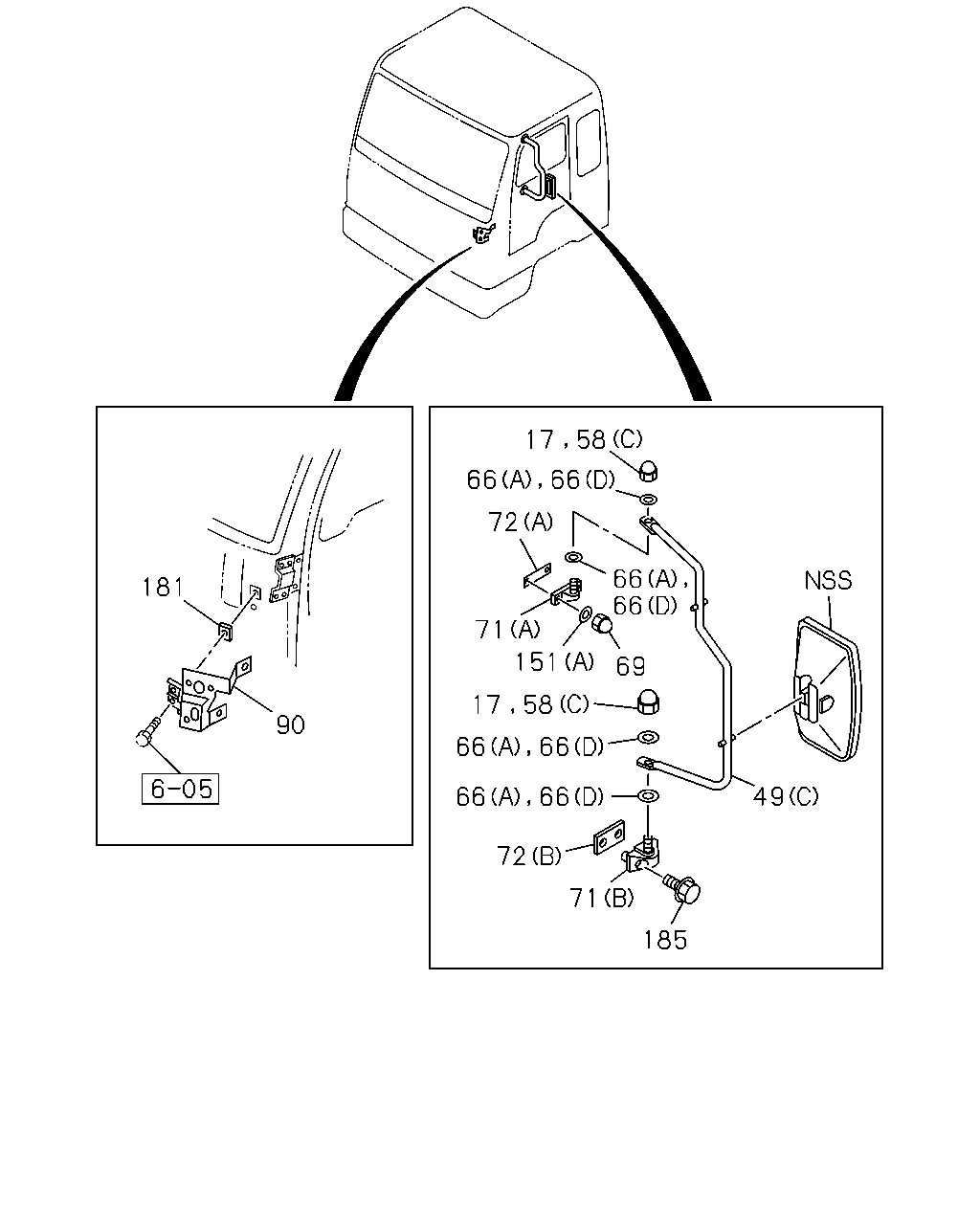

17 66 72 66 71 151 69 49 17 66 181 90 72 66 71 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	9905-
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	0211-0301
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	02	1	0211-0301
17	NUT; CAP,MIRROR STAY M10 CAP NUT	1-09984-134-0	04	1	0302-
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9905-0301
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0302-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71707-087-0	01	1	9905-0301
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-491-2	01	1	9905-0105
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0106-
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-0104
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0302-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	9905-0301
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9905-0104
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
69	NUT; CAP M8	1-09984-187-0	04	1	9905-9912
69	NUT; CAP M8	1-09984-187-0	02	1	0001-0301
69	NUT; CAP M8	1-09984-187-0	02	1	0001-0301
69	NUT; CAP M8	1-09984-187-0	04	1	0302-0809
69	NUT; CAP M8 CAP NUT	8-98059-914-0	04	1	0810-
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0302-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	9905-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0302-
72	SHEET (A)	1-71798-487-3	02	1	9905-9912
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	02	1	0302-
72	SHEET (B)	1-71798-488-1	02	1	9905-9912
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	02	1	0302-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-0104
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9905-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9905-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9905-9912
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9905-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0302-
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	9905-9912
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0001-0301
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	02	1	0001-0301
185	BOLT; BRKT M8X35 FLANGE	0-28690-835-0	04	1	0302-0512
185	BOLT; BRKT M8X35 FLANGE	0-28660-835-0	04	1	0601-0605
185	BOLT; BRKT M8X35 FLANGE	8-98046-876-0	04	1	0606-

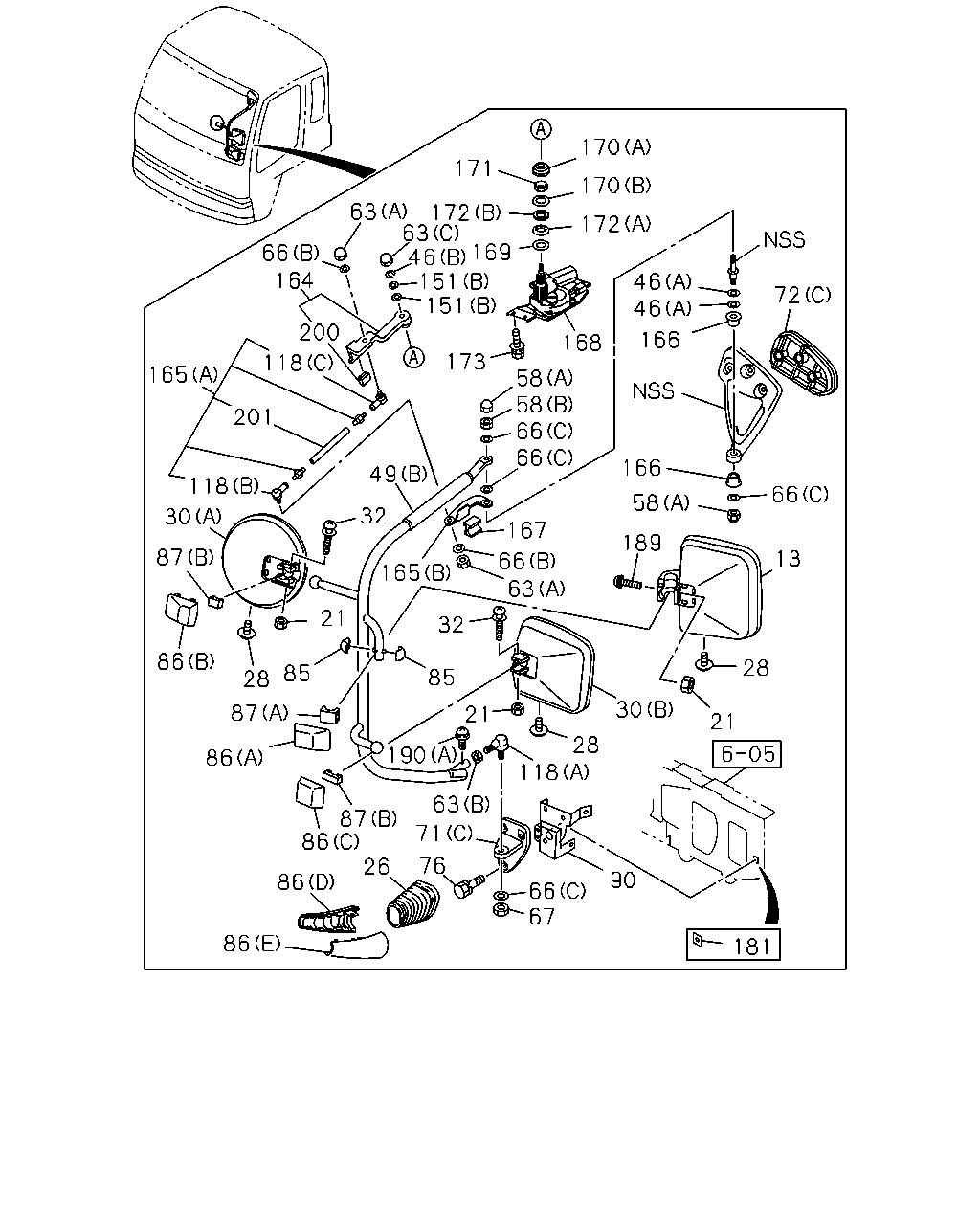

170 171 170 63 172 63 169 46 151 151 172 66 164 46 46 72 200 166 168 173 118 165 58 58 66 66 201 166 49 118 66 58 32 30 165 167 189 87 13 66 63 21 32 86 28 85 85 28 30 87 21 21 28 118 190 86 63 87 86 26 71 76 86 66 67 86 181 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW MIR STAY O/S W/REMOTE<TBA>	1-71737-917-1	01	1	9905-0301
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	02	1	9905-0104
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	06	1	0105-0301
21	NUT; MIRROR MIR STAY O/S W/REMOTE<TBA> M5	1-09984-124-0	04	1	9905-0104
26	COVER; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-316-2	01	1	9905-0301
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	02	1	9905-9910
28	GROMMET; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> BLACK	1-71737-678-0	01	1	9905-9910
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-853-0	01	1	9905-0301
30	MIRROR; UNDER MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-592-0	01	1	9905-0301
32	SCREW; UNDER MIRROR MIR STAY O/S W/REMOTE<TBA> M5X40 W/PL WASHER	1-71737-797-0	04	1	9905-0301
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=10	1-09985-180-0	01	1	9905-0206
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (B) ID=10	1-09985-345-0	01	1	0207-0301
46	WASHER; LK,STAY MIR STAY O/S W/REMOTE<TBA> (A) ID=16.7 OD=22.5 WAVE WASHER	9-61166-107-0	02	1	9905-0301
49	STAY; MIRROR SIDE (A)	1-71798-490-2	01	1	9905-0301
49	STAY; MIRROR SIDE (A)	1-71798-490-3	01	1	0302-
49	STAY; MIRROR SIDE MIR STAY O/S W/REMOTE<TBA> (B)	1-71707-087-0	01	1	9905-0301
49	STAY; MIRROR SIDE EXC. MIR STAY O/S W/REMOTE<TBA> (C)	1-71798-491-2	01	1	9905-0105
49	STAY; MIRROR SIDE (C)	1-71798-491-3	01	1	0106-
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (A) M12	1-09984-178-1	02	1	9905-0301
58	NUT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA> (B) M12	1-09984-184-1	01	1	9905-0301
58	NUT; MIRROR STAY EXC. MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	9905-0104
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-09984-134-0	02	1	0105-0105
58	NUT; MIRROR STAY EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09985-342-0	02	1	0105-0301
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-09984-183-0	01	1	9905-9910
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10	1-71798-833-0	01	1	9911-0206
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (C) M10 CAP NUT	1-71798-859-0	01	1	0207-0301
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (A) M8	1-71798-603-1	02	1	9905-0301
63	NUT; STAY MIR STAY O/S W/REMOTE<TBA> (B) M14	9-99110-414-0	01	1	9905-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9905-0104
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0105-0207
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0208-0210
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	0211-0301
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (B) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	9905-0301
66	WASHER; PL (A) ID=10.5 OD=26 T=2.6	1-09985-184-0	08	1	0302-
66	WASHER; PL MIR STAY O/S W/REMOTE<TBA> (C) ID=12.5	1-09985-334-0	04	1	9905-0301
66	WASHER; PL EXC. MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	9905-0104
66	WASHER; PL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3), MIR STAY O/S W/REMOTE<TBA> (D) ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0105-0105
67	NUT; STAY MIR STAY O/S W/REMOTE<TBA> M12	1-09984-178-1	01	1	9905-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	9905-9912
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	01	1	0001-0301
71	BRACKET; OUTSIDE MIRROR (B)	1-71798-486-2	02	1	0302-
71	BRACKET; OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C)	1-71797-809-2	01	1	9905-0301
71	BRACKET; OUTSIDE MIRROR (A)	1-71798-484-1	02	1	0302-
72	SHEET (A)	1-71798-487-3	02	1	9905-9912
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	01	1	0001-0301
72	SHEET (A)	1-71798-487-3	02	1	0302-
72	SHEET (B)	1-71798-488-1	02	1	9905-9912
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	01	1	0001-0301
72	SHEET (B)	1-71798-488-1	02	1	0302-
72	SHEET HIGH ROOF<S2F> (C)	1-71797-799-1	01	1	9905-0104
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 FLANGE	0-28680-840-0	03	1	9905-0009
76	BOLT; STAY BRKT MIR STAY O/S W/REMOTE<TBA> M8X40 W/LK&PL WASHER	0-50140-840-0	03	1	0010-0301
85	PIVOT; MAIN MIRROR MIR STAY O/S W/REMOTE<TBA> ID=22.2	1-71736-489-2	02	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (F)	1-73317-322-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (B) BLACK	1-71737-649-1	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (C) BLACK	1-71737-652-1	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (A) BLACK	1-71737-760-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (D)	1-71798-732-0	01	1	9905-0301
86	COVER; STAY,OUTSIDE MIRROR MIR STAY O/S W/REMOTE<TBA> (E)	1-71798-733-0	01	1	9905-0301
87	SPACER MIR STAY O/S W/REMOTE<TBA> (B)	1-71737-646-2	02	1	9905-0301
87	SPACER MIR STAY O/S W/REMOTE<TBA> (A)	1-71737-704-0	01	1	9905-0301
90	BRACKET; MIRROR STAY	1-71798-829-1	01	1	9905-
90	BRACKET; MIRROR STAY	1-71798-828-1	01	1	9905-0809
90	BRACKET; MIRROR STAY	1-71707-237-0	01	1	0810-
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (A)	1-71797-805-0	01	1	9905-0301
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (C) RH THREAD	1-71798-819-1	01	1	9905-0301
118	JOINT ASM; BALL MIR STAY O/S W/REMOTE<TBA> (B) LH THREAD	1-71798-820-1	01	1	9905-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9905-9912
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0001-0004
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	02	1	0005-0301
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	9905-9910
151	WASHER; PL,MIRROR MIR STAY O/S W/REMOTE<TBA> (B) ID=10.5 OD=26 T=2.6	1-09985-204-0	01	1	9911-0301
151	WASHER; PL,MIRROR (A) ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	0302-
164	STAY; ROOF MIR STAY O/S W/REMOTE<TBA>	1-71798-602-1	01	1	9905-0301
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (B)	1-71798-600-1	01	1	9905-0301
165	LINK; POWER MIRROR MIR STAY O/S W/REMOTE<TBA> (A)	1-71798-782-1	01	1	9905-0301
166	BUSHING; STAY MIR STAY O/S W/REMOTE<TBA>	1-09983-179-0	02	1	9905-0301
167	RUBBER; STOPPER MIR STAY O/S W/REMOTE<TBA>	1-71798-308-0	01	1	9905-0301
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-025-1	01	1	9905-9907
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-027-0	01	1	9908-0009
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0010-0202
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-035-0	01	1	0203-0204
168	POWER UNIT; MIRROR STAY MIR STAY O/S W/REMOTE<TBA>	1-86855-031-0	01	1	0205-0301
169	WASHER; PL,POWER UNIT MIR STAY O/S W/REMOTE<TBA> ID=26.2 OD=44 T=2	1-86855-011-1	01	1	9905-0301
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-86855-012-0	01	1	9905-0301
170	CAP; POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-014-1	01	1	9905-0301
171	NUT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M26	1-86855-013-1	01	1	9905-0301
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (A)	1-79928-003-1	01	1	9905-0301
172	SEAL; RUBBER,POWER UNIT MIR STAY O/S W/REMOTE<TBA> (B)	1-86855-015-0	01	1	9905-0301
173	BOLT; POWER UNIT MIR STAY O/S W/REMOTE<TBA> M6X16 W/LK&PL WASHER	1-09980-574-0	04	1	9905-0301
181	SEAL; BRKT 25X25	8-94272-533-0	02	1	9905-
189	SCREW; PIVOT MIR STAY O/S W/REMOTE<TBA> M5X50	1-09981-444-0	02	1	9905-0301
190	SCREW; COVER HIGH ROOF<S2F> MIR STAY O/S W/REMOTE<TBA> (B) M5X16 W/PL WASHER TAPPING	8-94279-123-0	03	1	9905-0301
190	SCREW; COVER MIR STAY O/S W/REMOTE<TBA> (A) M6X16 W/LK&PL WASHER	8-94279-402-0	01	1	9905-0301
200	STOPPER; STAY MIR STAY O/S W/REMOTE<TBA>	1-71798-597-0	01	1	9905-0301
201	ROD; MIRROR MIR STAY O/S W/REMOTE<TBA>	1-71798-821-0	01	1	9905-0301

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
