◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#619) — 23 parça

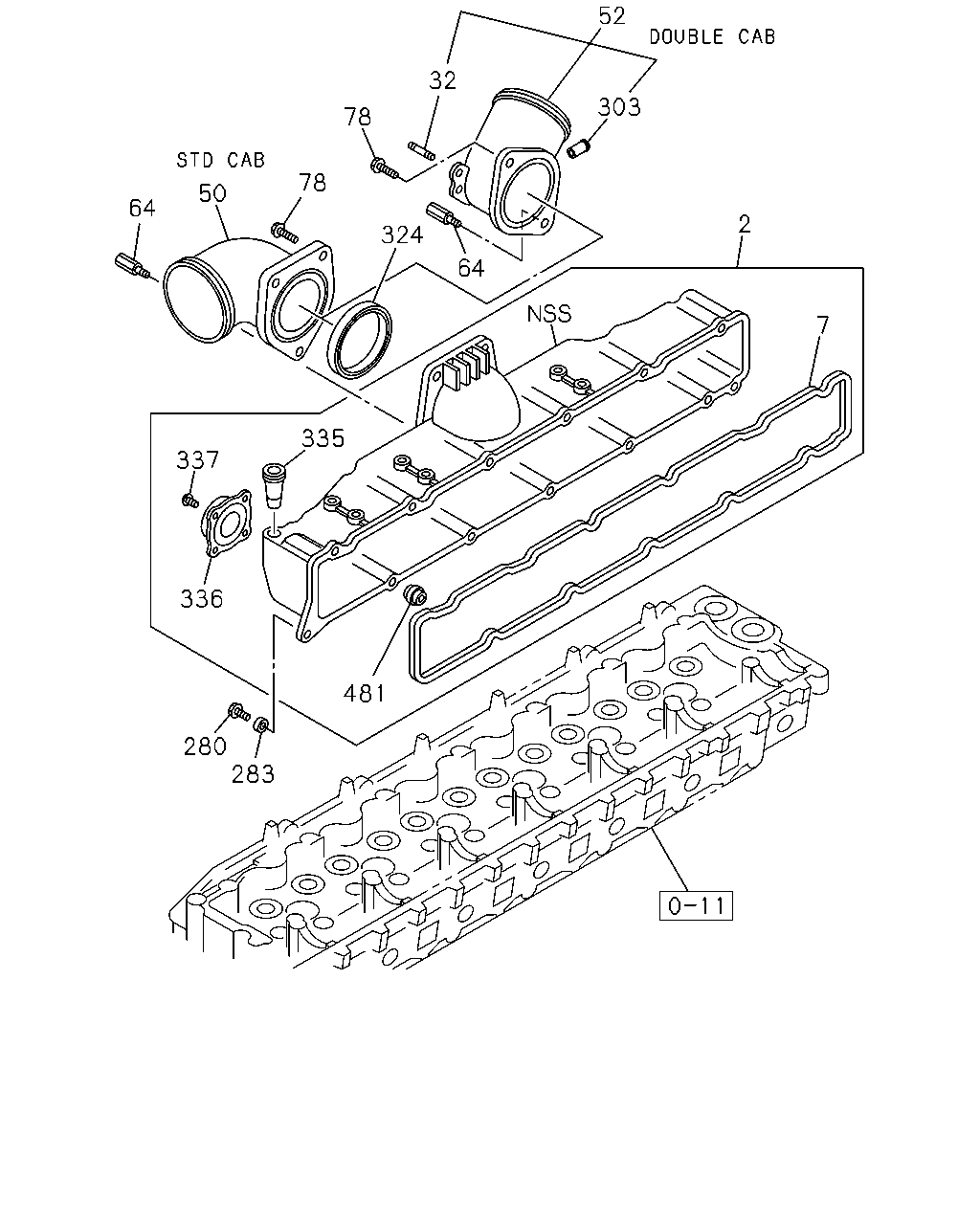

çizim 94498
52 32 303 78 78 50 64 2 324 64 7 335 337 336 481 280 283
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL 8-94396-348-0 01 1 9202-9210 ● ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9) 		8-94396-348-0 01 1 9211-9504 ● ●
2 COVER; INL
EXC. THAILAND EQUIPMENT(PM9) 		8-94395-959-0 01 1 9505- ● ●
2 COVER; INL
THAILAND EQUIPMENT(PM9) 		8-94394-860-0 01 1 9211-9504 ● ●
2 COVER; INL
THAILAND EQUIPMENT(PM9) 		8-94395-960-0 01 1 9505- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9202- ● ●
32 STUD; INL PIPE
DOUBLE CAB(FS**W*) M8X14 L=26 		9-04110-814-0 02 1 9202- ●
50 PIPE; INL
STD CAB(FS**M*) 		8-94397-063-2 01 1 9202- ●
50 PIPE; INL 8-94397-063-2 01 1 9202- ●
52 PIPE; INL
DOUBLE CAB(FS**W*) 		8-94396-622-0 01 1 9202- ●
64 STUD; INL PIPE
M10X25 L=75 		8-94397-086-0 01 1 9202- ● ●
78 BOLT; INL PIPE TO INL MANIF
STD CAB(FS**M*) M10X30 FLANGE 		0-28181-030-0 02 1 9202- ●
78 BOLT; INL PIPE TO INL MANIF
M10X30 FLANGE 		0-28181-030-0 02 1 9202- ●
78 BOLT; INL PIPE TO INL MANIF
DOUBLE CAB(FS**W*) M10X30 FLANGE 		0-28181-030-0 01 1 9202- ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9202- ● ●
283 RUBBER 8-94397-059-1 12 1 9202-9504 ● ●
303 PIPE; AIR
DOUBLE CAB(FS**W*) 		8-94256-799-1 01 1 9202- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94399-417-0 01 1 9202- ● ●
335 JOINT; BREATHER
EXC. THAILAND EQUIPMENT(PM9) 		8-94396-347-0 01 1 9202- ● ●
336 VALVE; VENTILATION
EXC. THAILAND EQUIPMENT(PM9) 		8-94396-346-0 01 1 9202- ● ●
337 BOLT; VENTILATION VLV
EXC. THAILAND EQUIPMENT(PM9) M4X8 W/LK WASHER 		9-03910-408-0 04 1 9202- ● ●
481 TUBE; DIST,INL COVER 8-94397-058-0 12 1 9202-9504 ● ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9505- ● ●
