◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11232 - FRR RHD EURO5 EXC.SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#61898) — 84 parça

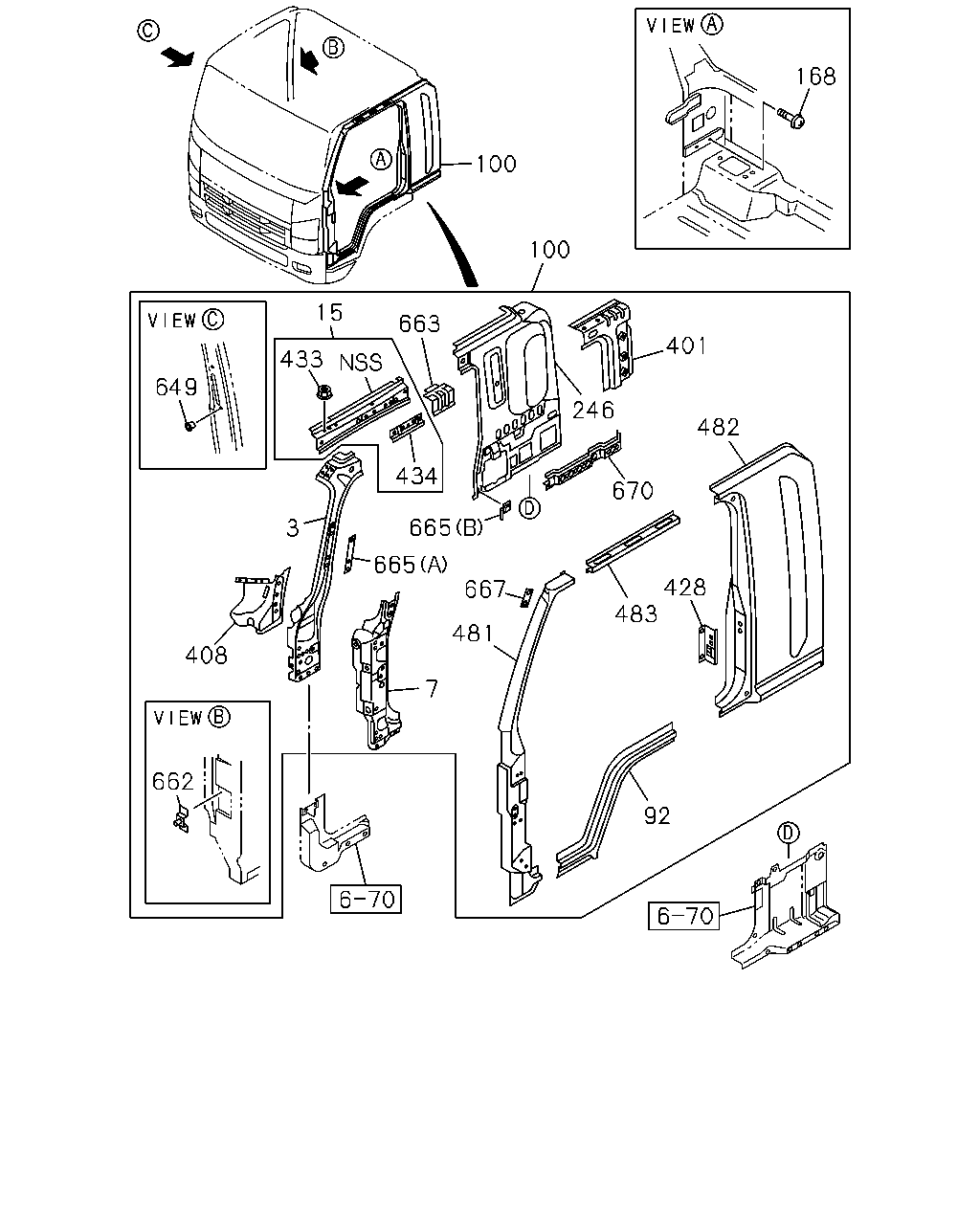

çizim 163761
168 100 100 15 663 401 433 649 246 482 434 670 665 3 665 428 483 667 481 408 7 662 92
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 0906-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 0906-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 0906-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 0906-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 0906-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 0906-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 0906-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-97586-071-6 01 1 1006-
100 PANEL ASM; BODY SIDE
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-063-5 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-97586-073-9 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-97586-065-6 01 1 0906-
100 PANEL ASM; BODY SIDE
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98044-544-5 01 1 0906-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-6 01 1 0906-1005
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-97586-079-7 01 1 1006-
100 PANEL ASM; BODY SIDE
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-97586-079-7 01 1 1006-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 0906-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 0906-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 0906-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 0906-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-194-2 01 1 0906-
408 GUSSET; PILLAR 8-97586-193-3 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 0906-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 0906-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 0906-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 0906-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, O/SIDE MIRROR UNDER VIEW<RR9> 		8-98072-714-1 01 1 1006-
481 PANEL; SIDE FRT PILLAR
LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98093-579-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-453-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98055-471-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB>, LAMPS TWO ROOF MARKER<TEC> 		8-98055-470-0 01 1 0906-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 0906-1005
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> LAMPS TWO ROOF MARKER<TEC> 		8-98092-915-0 01 1 1006-
481 PANEL; SIDE FRT PILLAR
O/SIDE MIRROR UNDER VIEW<RR9> LAMPS TWO ROOF MARKER<TEC> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98092-915-0 01 1 1006-
482 PANEL; SIDE RR PILLAR 8-98055-469-0 01 1 0906-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 0906-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 0906-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 0906-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 0906-
662 BRACKET; DUCT 8-97584-611-1 01 1 0906-
663 BRACKET; AIR 8-97585-208-2 01 1 0906-
663 BRACKET; AIR 8-97585-207-2 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 0906-
667 BRACKET; MIRROR 8-98109-948-0 01 1 0906-1005
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1006-
667 BRACKET; MIRROR
O/SIDE MIRROR UNDER VIEW<RR9> EXC. O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> 		8-98109-948-0 01 1 1006-
667 BRACKET; MIRROR
O/SIDE MIRROR RR VIEW,PILLAR MOUNTED<DNB> EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98109-948-0 02 1 0906-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 0906-

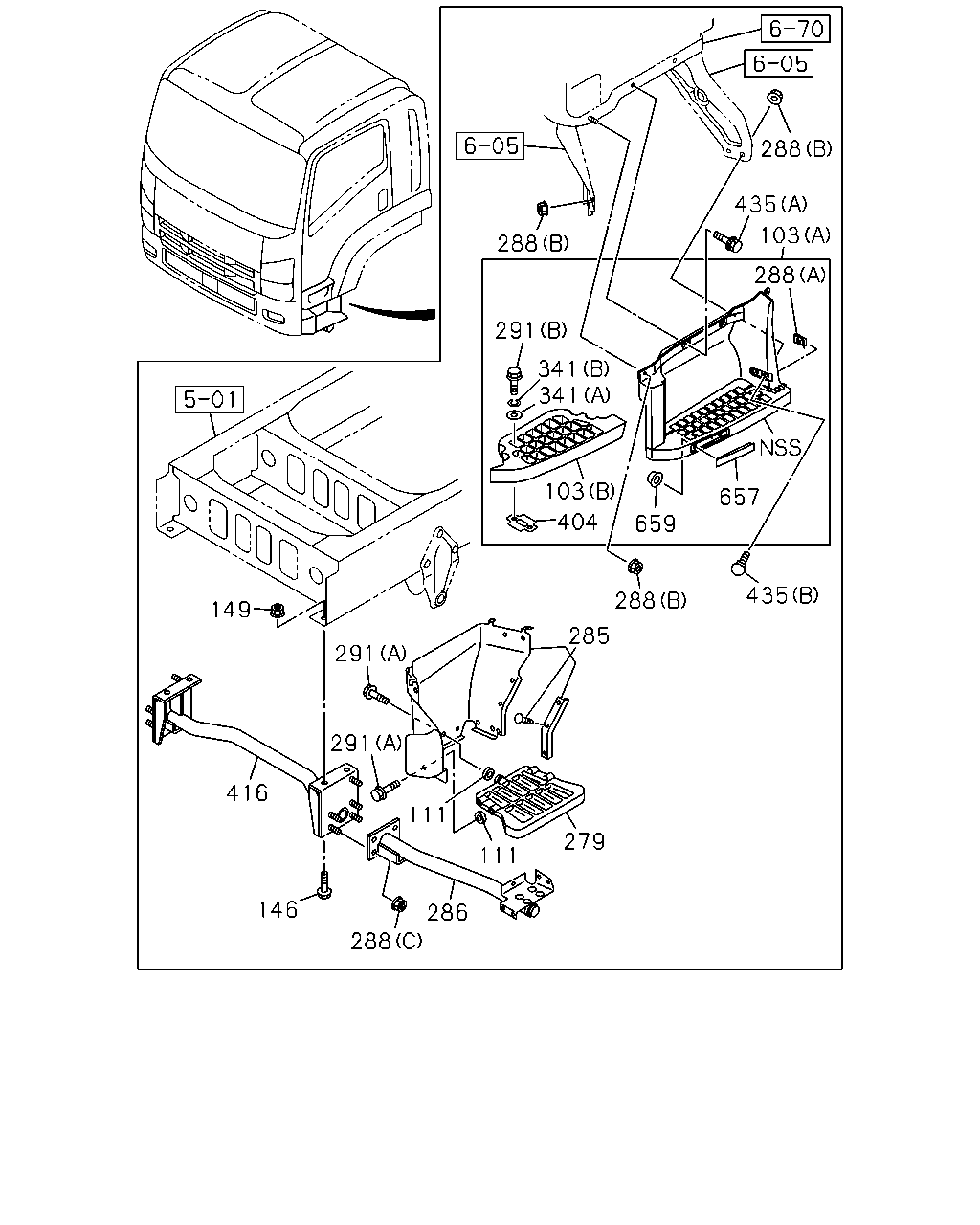

çizim 163769
288 435 103 288 288 291 341 341 103 657 404 659 435 288 149 285 291 291 416 111 279 111 146 286 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP
(A) 		8-98080-623-1 01 1 0906-
103 PLATE; STEP
(B) 		8-98080-628-0 01 1 0906-
103 PLATE; STEP
(A) 		8-98080-622-1 01 1 0906-
103 PLATE; STEP
(B) 		8-98080-627-0 01 1 0906-
111 COVER; 1ST STEP 1-71998-153-0 10 1 0906-
146 BOLT; STEP BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 0906-
149 NUT; STEP BRKT
M14 FLANGE 		0-91180-214-0 04 1 0906-
279 BOARD; STEP 1ST 1-71998-312-2 02 1 0906-
285 PLATE; STEP,1ST STEP 8-98135-441-0 01 1 0906-
285 PLATE; STEP,1ST STEP 8-98135-440-0 01 1 0906-
286 STEP ASM; 1ST 8-98135-438-0 01 1 0906-
286 STEP ASM; 1ST 8-98135-437-0 01 1 0906-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 0906-
288 NUT; STEP
(C) M12 FLANGE 		0-91180-212-0 08 1 0906-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 0906-
291 BOLT; STEP PLATE
(A) M8X16 FLANGE 		0-28050-816-0 14 1 0906-
291 BOLT; STEP PLATE
(B) 		8-98112-671-0 08 1 0906-1006
291 BOLT; STEP PLATE
(B) 		8-98165-009-0 08 1 1007-
341 WASHER; PL,STEP
(A) 		8-98112-672-1 08 1 0906-
341 WASHER; PL,STEP
(B) 		8-98112-673-1 08 1 0906-
404 BRACKET 8-98080-646-1 04 1 0906-
416 BRACKET; ASSIST STEP 8-98135-442-0 01 1 0906-
435 BOLT; RR STEP
(B) M8X16 		8-98049-538-1 08 1 0906-0907
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 0908-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 0906-
657 REFLECTOR; REFLEX
AMBER 		8-97378-910-0 02 1 0906-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 0906-
