◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#6189) — 85 parça

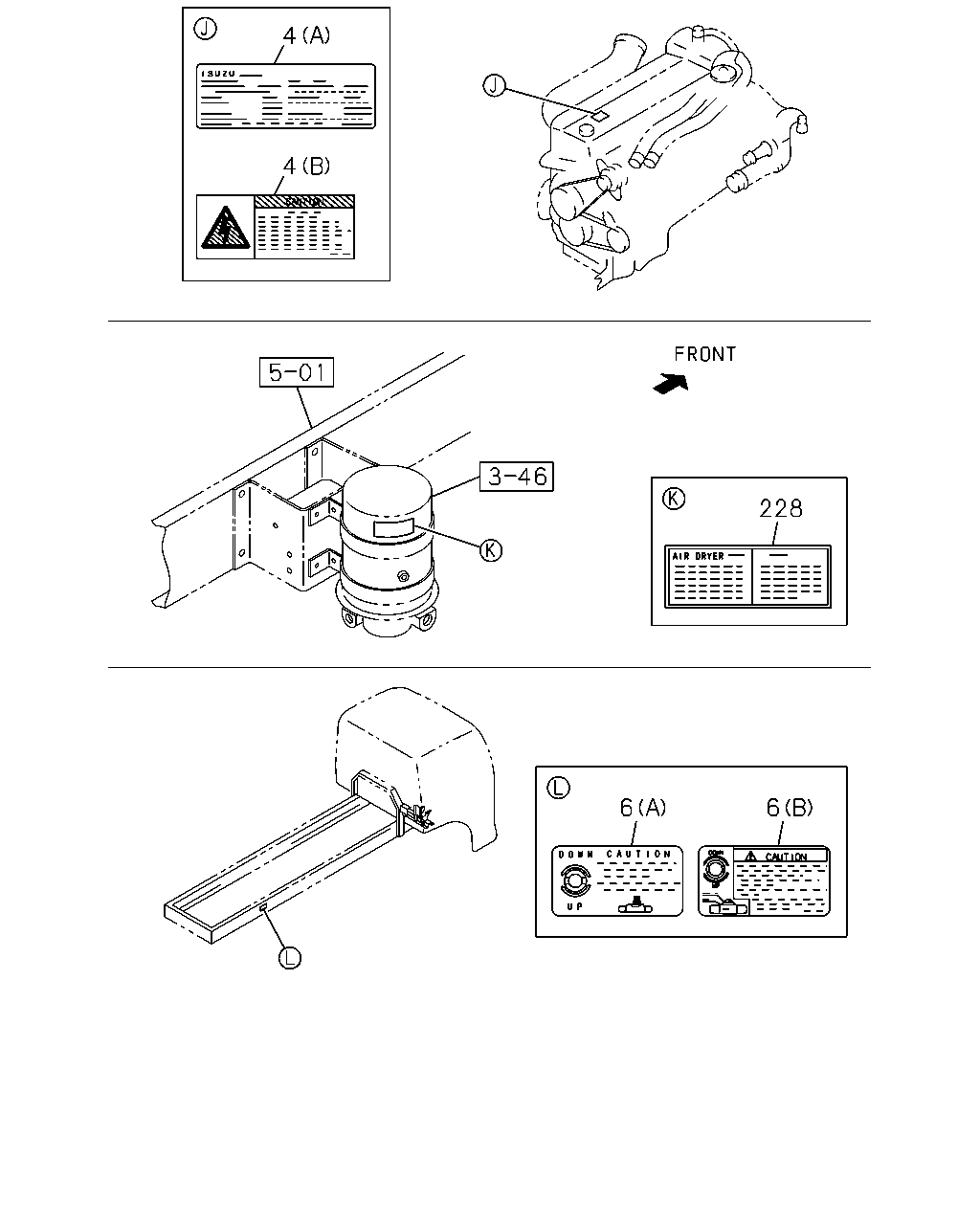

çizim 37625
4 4 228 6 6
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85886-890-0 01 1 9905-0301
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0302-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0302-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS PORTUGUESE<NAT> SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-045-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS CHINESE<SL7> (A) 		1-85883-113-0 01 1 0105-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0105-0112
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (A) 		1-53639-004-0 01 1 0201-0301
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		1-53639-004-0 01 1 0302-0708
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-98082-437-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> (A) 		1-53639-005-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 9905-0104
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85887-935-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> 		1-85887-935-0 01 1 0201-0301
228 PLATE; CAUTION,AIR DRYER 1-85887-935-0 01 1 0302-1001
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS ARABIAN<WJ7> 		1-85877-948-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS CHINESE<SL7> 		1-85887-934-0 01 1 0105-0301
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> CAUTIONS FRENCH<WJ8> 		1-85887-936-0 01 1 0105-0112
228 PLATE; CAUTION,AIR DRYER
CAUTIONS PORTUGUESE<NAT> AIR DRYER<PS7> 		1-85877-998-0 01 1 0105-0301

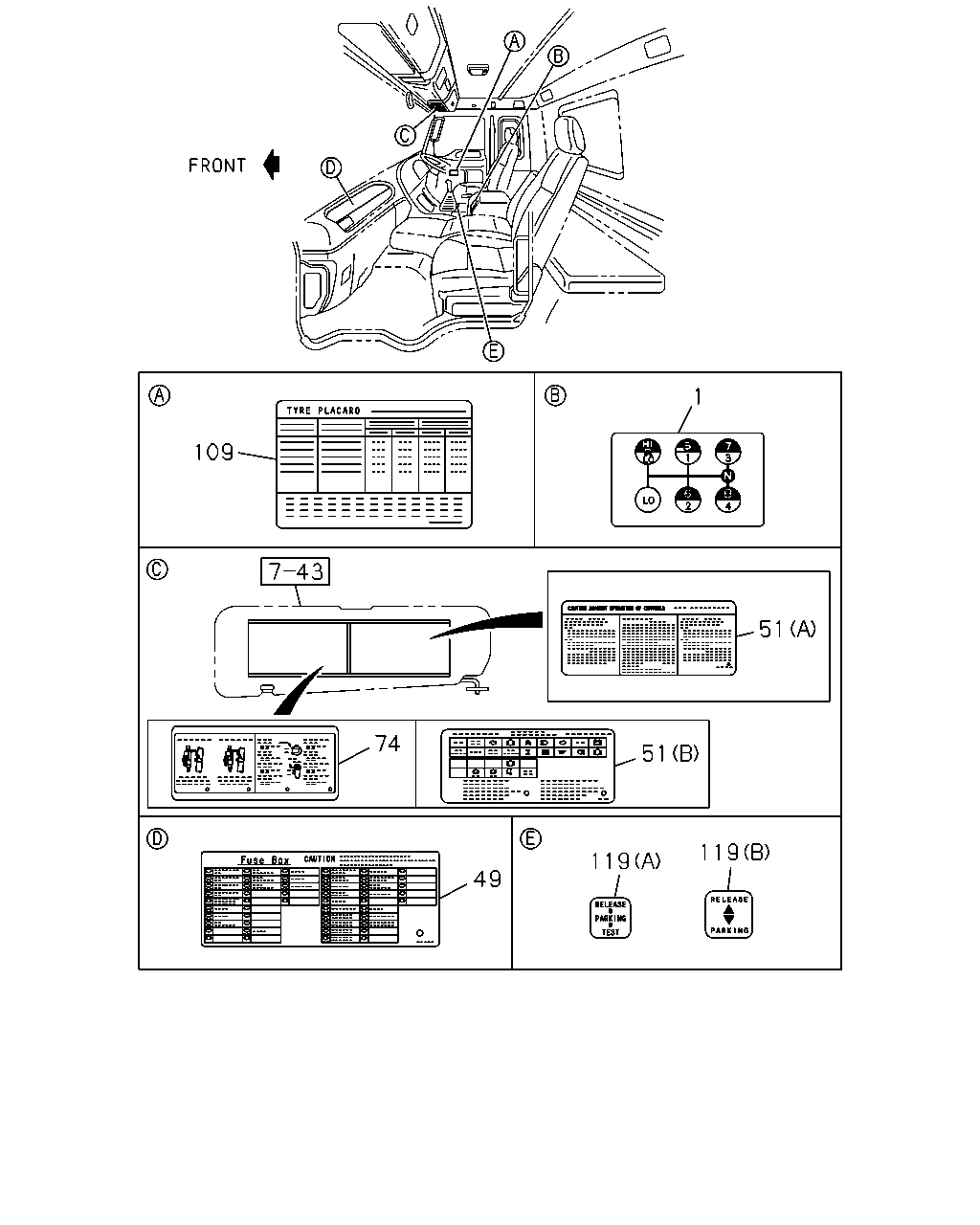

çizim 37994
1 109 51 74 51 119 119 49
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 9905-
49 PLATE; CAUTION,FUSE BOX 1-85878-067-4 01 1 9905-0104
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85878-327-0 01 1 0201-0301
49 PLATE; CAUTION,FUSE BOX 1-85878-393-0 01 1 0302-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85878-331-0 01 1 0105-0301
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-329-0 01 1 0105-0105
49 PLATE; CAUTION,FUSE BOX
CAUTIONS CHINESE<SL7> 		1-85878-359-0 01 1 0106-0301
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85878-330-0 01 1 0105-0112
49 PLATE; CAUTION,FUSE BOX
CAUTIONS PORTUGUESE<NAT> 		1-85878-332-0 01 1 0105-0301
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		1-85878-328-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 9905-0104
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-725-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (A) 		1-85880-725-0 01 1 0201-0301
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0302-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (B) 		1-85878-335-1 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-758-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (A) 		1-85880-727-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-334-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS CHINESE<SL7> (B) 		1-85878-334-1 01 1 0201-0301
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-726-0 01 1 0105-0112
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (B) 		1-85878-336-1 01 1 0105-0301
51 PLATE; CAUTION,WARNING
CAUTIONS PORTUGUESE<NAT> (A) 		1-85880-759-0 01 1 0105-0301
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85878-333-1 01 1 0105-0112
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7> (B) 		1-85878-333-1 01 1 0201-0301
51 PLATE; CAUTION,WARNING
(B) 		1-85878-333-1 01 1 0302-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-617-0 01 1 9905-0103
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 13(Y3R) COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-85881-617-0 01 1 0104-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 13(Y3R) CLUTCH BRAKE(BBG) 		1-85881-845-0 01 1 0104-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 13(Y3R) 		1-85881-845-0 01 1 0302-
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S) 		1-85881-786-0 01 1 9905-0103
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S) COUNTER SHAFT BRAKE MULTI DISC<BCP> 		1-85881-786-0 01 1 0104-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S) CLUTCH BRAKE(BBG) 		1-85881-846-0 01 1 0104-0301
74 PLATE; CAUTION,CHANGE LEV
TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO189 18(Y4W) 		1-85881-846-0 01 1 0302-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-799-0 01 1 9905-0004
109 PLATE; CAUTION,TIRE PLACARD
AUSTRALIA EQUIPMENT(RR3) 		1-85881-799-0 01 1 0005-0301
109 PLATE; CAUTION,TIRE PLACARD 1-85881-799-0 01 1 0302-0602
109 PLATE; CAUTION,TIRE PLACARD 1-85881-932-0 01 1 0603-
119 PLATE; CAUTION,HAND BRK LEVER
(B) 		1-85881-759-0 01 1 0603-
119 PLATE; CAUTION,HAND BRK LEVER
NEW ZEALAND EQUIPMENT(PK5) EXC. CAUTIONS PORTUGUESE<NAT> (A) 		1-85881-791-0 01 1 0105-0203

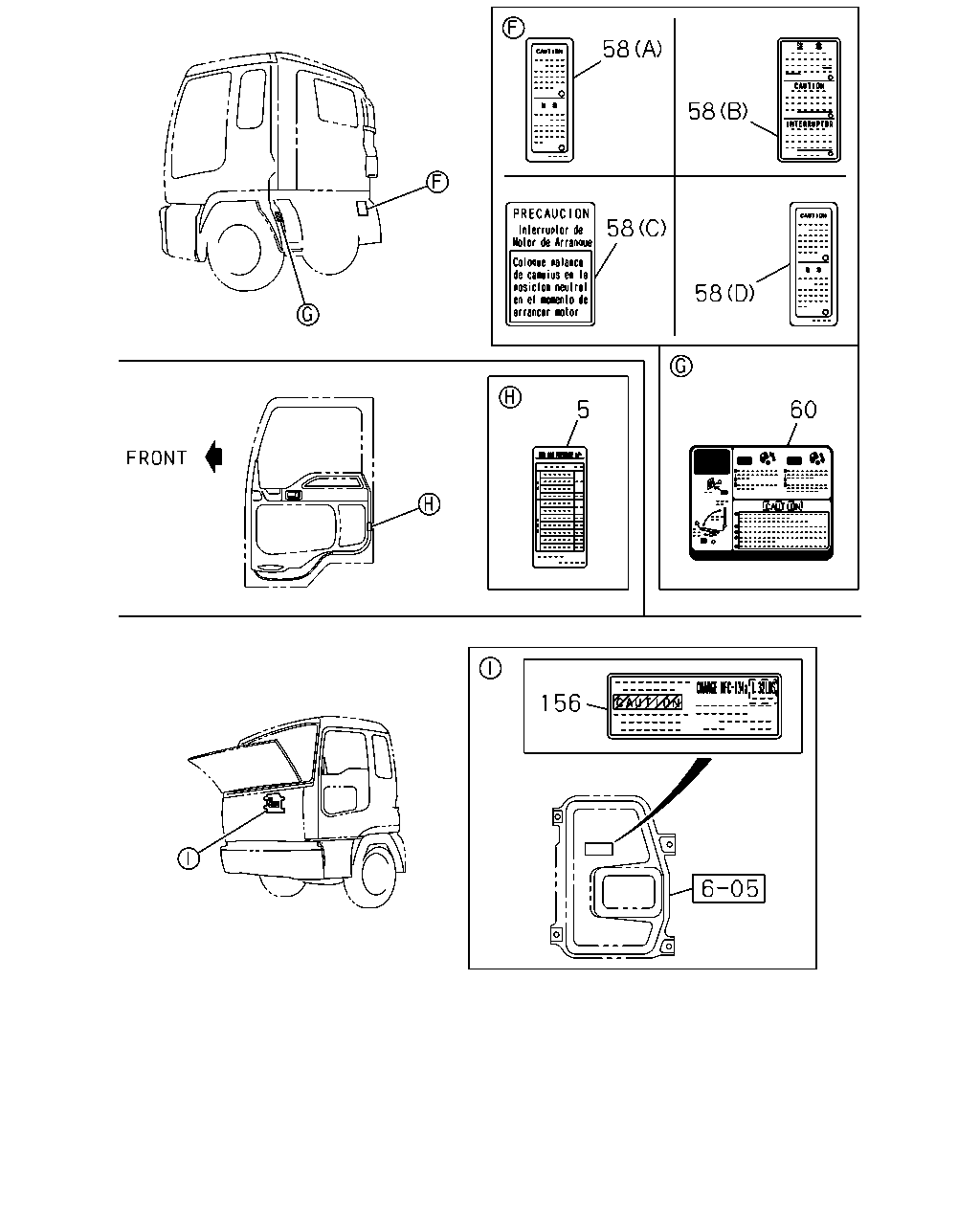

çizim 100197
58 58 58 58 5 60 156
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-85880-724-2 01 1 0005-0009
5 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-85880-763-0 01 1 0010-0104
5 LABEL; TIRE AIR PRESSURE
EXC. AUSTRALIA EQUIPMENT(RR3) 		1-85880-764-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
(B) 		1-85887-457-0 01 1 9905-0104
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> (B) 		1-85887-457-0 01 1 0201-0301
58 PLATE; CAUTION,ENG START
(B) 		1-85887-457-0 01 1 0302-
58 PLATE; CAUTION,ENG START
CAUTIONS ARABIAN<WJ7> (A) 		1-85887-537-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
CAUTIONS CHINESE<SL7> (D) 		1-85887-536-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
CAUTIONS FRENCH<WJ8> (A) 		1-85887-535-0 01 1 0105-0112
58 PLATE; CAUTION,ENG START
CAUTIONS PORTUGUESE<NAT> (A) 		1-85878-007-0 01 1 0105-0301
58 PLATE; CAUTION,ENG START
CAUTIONS SPANISH<YN1> (C) 		9-83999-419-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 9905-0104
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8>, CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS PORTUGUESE<NAT>,CAUTIONS CHINESE<SL7> ,CAUTIONS ARABIAN<WJ7>,CAUTIONS SPANISH<YN1> 		1-85883-174-0 01 1 0201-0301
60 PLATE; CAUTION,CAB TILT 1-85883-174-0 01 1 0302-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-181-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS CHINESE<SL7> 		1-85883-175-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-176-0 01 1 0105-0112
60 PLATE; CAUTION,CAB TILT
CAUTIONS PORTUGUESE<NAT> 		1-85883-182-0 01 1 0105-0301
60 PLATE; CAUTION,CAB TILT
CAUTIONS SPANISH<YN1> 		1-85883-177-0 01 1 0105-0301
156 PLATE; CAUTION,A/C
AIR CONDITIONER MANUAL CONTROL(C60) 		8-97105-399-0 01 1 9905-0104
çizim 100442
181 181 181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER
(C) 		1-85886-884-0 01 1 0302-0602
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0603-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
