Isuzu WW
▶
TRUCKS
▶
FRR
▶
11232 - FRR RHD EURO5 EXC.SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

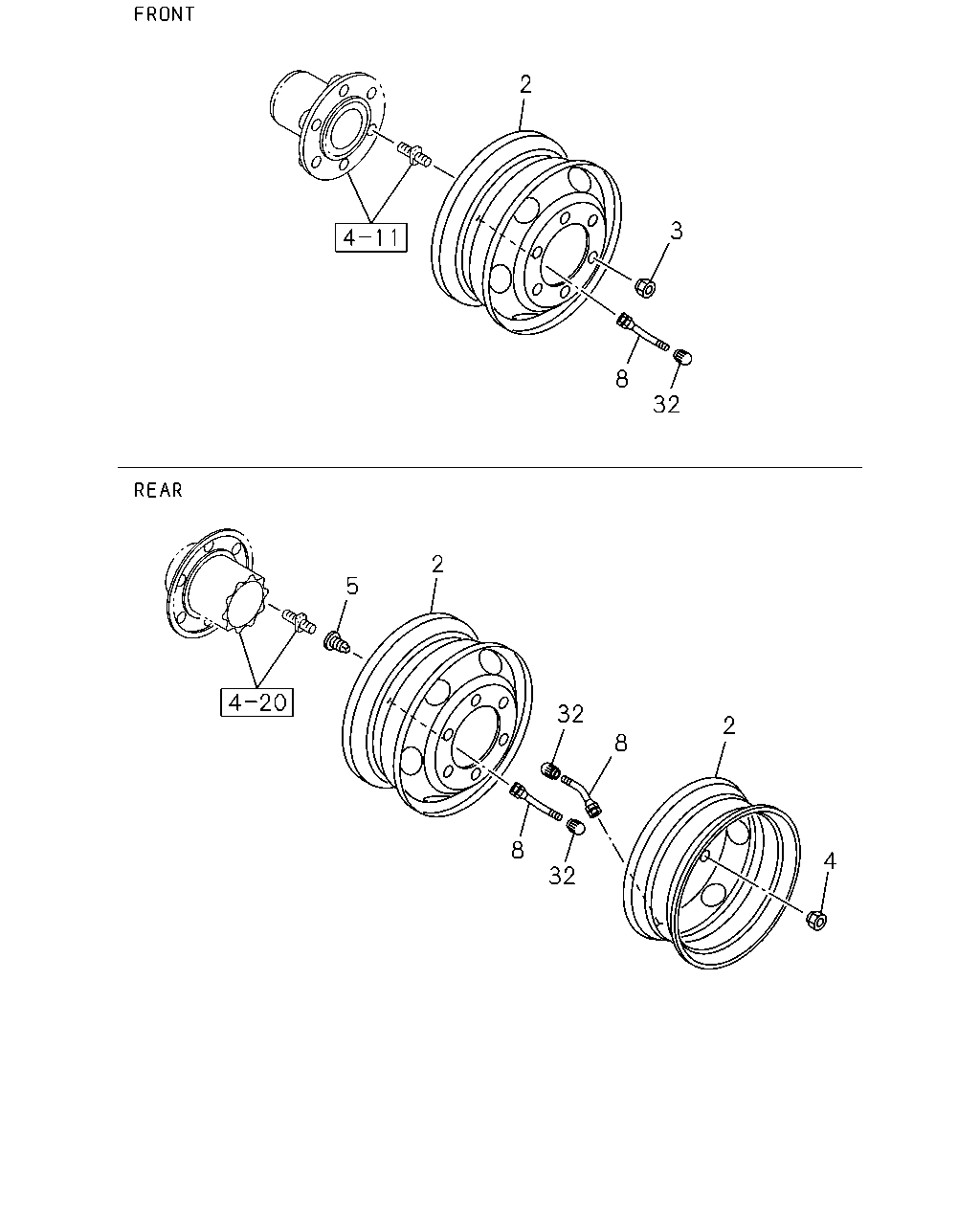

4-80 — ROAD WHEEL
(#61887) — 20 parça
2
3
8
32
2
5
32
2
8
8
4
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE
1-42350-767-0
01
1
1306-
2
WHEEL; DISC
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR
1-42350-767-0
06
1
1306-
2
WHEEL; DISC
FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
06
1
0906-1305
2
WHEEL; DISC
DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
06
1
1306-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
01
1
0906-1305
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) SPARE 17.5X6.00 OFFSET=135 SILVER 6-HOLE
1-42350-770-0
01
1
1306-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
0906-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
0906-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
0906-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
0906-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
0906-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
0906-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) SPARE
1-42370-007-1
01
1
1306-
8
VALVE; TIRE
DISC WHEEL 6STUD 6.75X17.5 137-10(SFC) FRONT,REAR
1-42370-007-1
06
1
1306-
8
VALVE; TIRE
FRONT,REAR
1-42370-019-3
06
1
0906-1305
8
VALVE; TIRE
DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) FRONT,REAR
1-42370-019-3
06
1
1306-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE
1-42370-019-3
01
1
0906-1305
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 6STUD 6.00X17.5 135-9(SBG) SPARE
1-42370-019-3
01
1
1306-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>
1-42374-001-0
07
1
0906-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>
1-42374-001-0
06
1
0906-1004
