◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11401 - FSS(RHD)EURO1 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#61862) — 82 parça

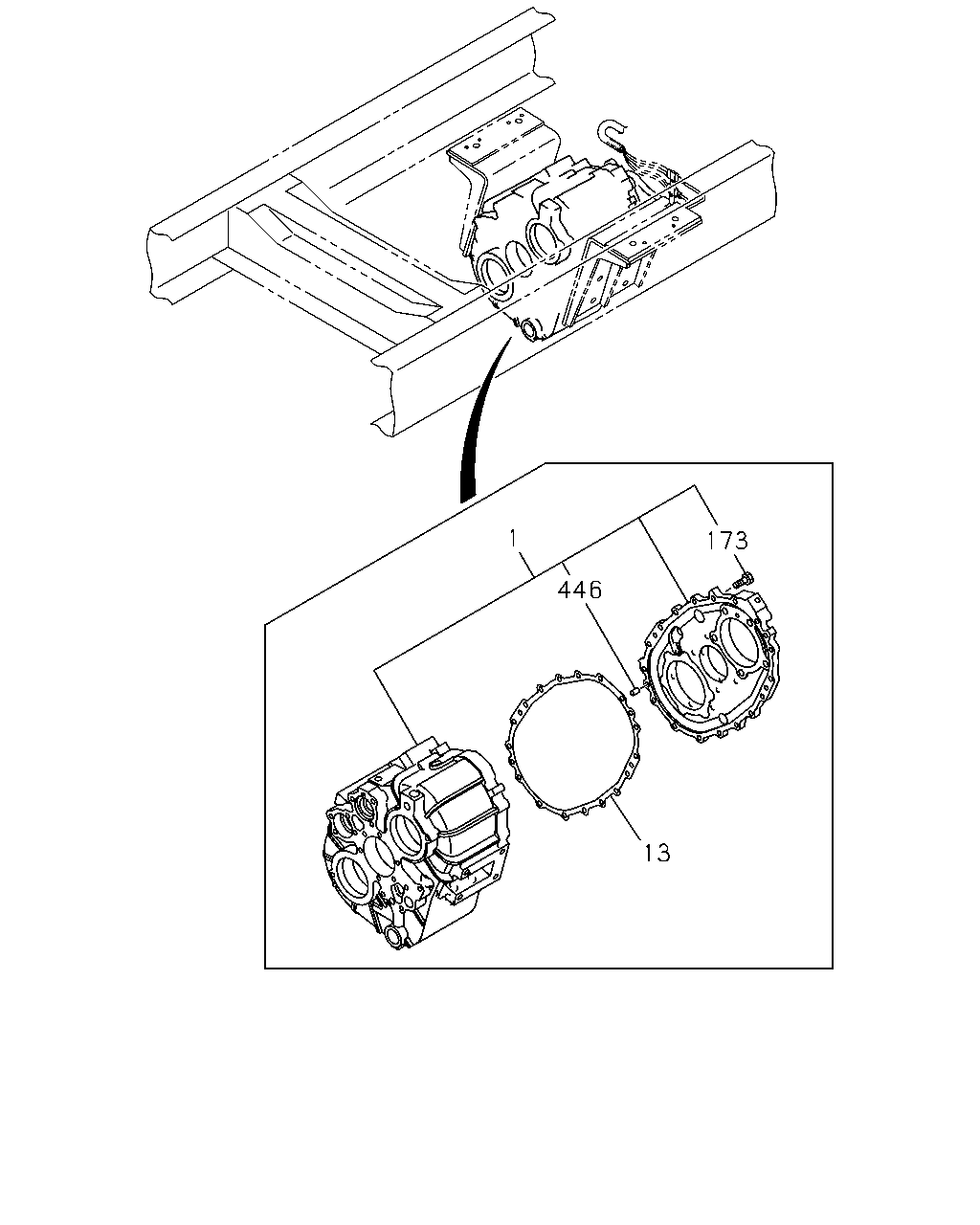

çizim 150456
1 173 446 13
BalonParca AdiParca NoAdetTipApplied Date
1 CASE; TRANSFER 1-36110-050-0 01 1 1112-
13 GASKET; COVER TO TRANSFER CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36132-003-0 01 1 1112-
173 BOLT; COVER
M10X30 W/LK WASHER 		0-50551-030-0 14 1 1112-
446 PIN; STRAIGHT 9-08161-016-0 02 1 1112-

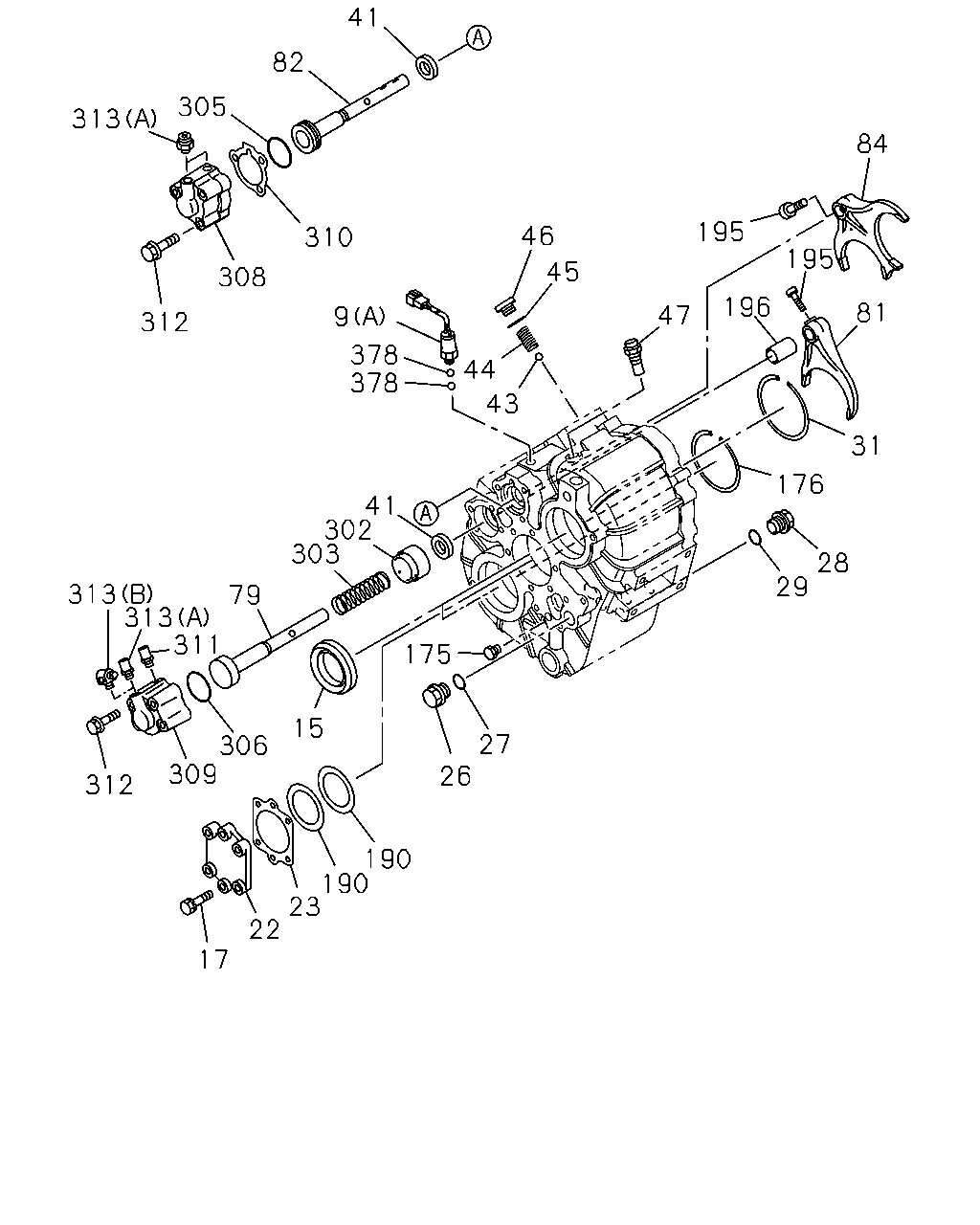

çizim 150459
41 82 305 313 84 195 46 310 195 45 196 81 47 312 378 378 44 43 31 176 41 302 303 28 29 313 313 311 79 175 15 27 26 306 309 312 190 190 23 22 17 308 9
BalonParca AdiParca NoAdetTipApplied Date
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1112-
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1112-
15 SEAL; OIL,INPUT & FRT OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-202-1 02 1 1112-
17 BOLT; BRG COVER
M10X28 		0-50551-028-0 06 1 1112-
22 COVER; BRG,IDLE SHAFT 1-36151-006-1 01 1 1112-
23 GASKET; BRG COVER
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36152-003-0 01 1 1112-
26 PLUG; FILLER,TRANSFER CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1112-
27 GASKET; FILLER PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1112-
28 PLUG; DRAIN,TRANSFER CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1112-
29 GASKET; DRAIN PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=26.8 		1-09623-058-0 01 1 1112-
31 RING; SNAP,INPUT 9-09950-184-0 01 1 1112-
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09625-377-0 02 1 1112-
43 BALL; LK,SHIFT ROD 9-00097-013-0 01 1 1112-
44 SPRING; COIL,LK 9-09940-323-0 01 1 1112-
45 GASKET; SEAT,PLUG
ALSO INCLUDED IN REPAIR KIT(T/F). ID=20.5 OD=28.0 		9-09571-420-0 01 1 1112-
46 SEAT; SPR 9-09862-175-0 01 1 1112-
47 BREATHER; TRANSFER CASE 9-36122-015-1 01 1 1112-
79 ROD; SHIFT,NEUTRAL & FRT DRIVE 1-36564-027-0 01 1 1112-
81 FORK; SHIFT,NEUTRAL & FRT DRIVE 1-36561-020-0 01 1 1112-
82 ROD; SHIFT,LOW & HIGH 1-36564-026-0 01 1 1112-
84 FORK; SHIFT,LOW & HIGH 1-36561-019-1 01 1 1112-
175 PLUG; LEVEL,TRANSFER CASE 9-09864-007-1 01 1 1112-
176 RING; SNAP,FRT OUTPUT 9-09950-089-0 01 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.10 		9-36153-020-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.12 		9-36153-021-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.14 		9-36153-022-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.16 		9-36153-023-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.18 		9-36153-024-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.20 		9-36153-025-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=0.50 		9-36153-026-0 AR 1 1112-
190 SHIM; BRG ADJ,IDLE SHAFT
T=1.00 		9-36153-027-0 AR 1 1112-
195 BOLT; SHIFT FORK
M12X20 		1-09052-039-0 02 1 1112-
196 COLLAR; DIST,SHIFT ROD 1-36577-004-0 01 1 1112-
302 SEAT; SPRING 1-36572-002-1 01 1 1112-
303 SPRING; NEUTRAL-FRONT 1-09580-489-0 01 1 1112-
305 GASKET; PISTON,LOW-HIGH
ALSO INCLUDED IN REPAIR KIT(T/F). ID=43.7 		9-09561-344-0 01 1 1112-
306 GASKET; PISTON,NEUTRAL-FRONT
ID=43.7 		9-09561-344-0 01 1 1112-
308 CYLINDER; AIR SHIFT,LOW-HIGH 1-36569-010-0 01 1 1112-
309 CYLINDER; AIR SHIFT,NEUTRAL-FRONT 1-36569-009-0 01 1 1112-
310 GASKET; AIR CYL 1-36579-001-0 01 1 1112-
311 BREATHER; AIR CYL 9-36122-013-0 01 1 1112-
312 BOLT; AIR CYL
M10X65 FLANGE 		8-94344-540-1 07 1 1112-
313 CONNECTOR; AIR CYL
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 1112-
313 CONNECTOR; AIR CYL
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1112-
378 BALL; CONT SWITCH 9-00097-013-0 02 1 1112-

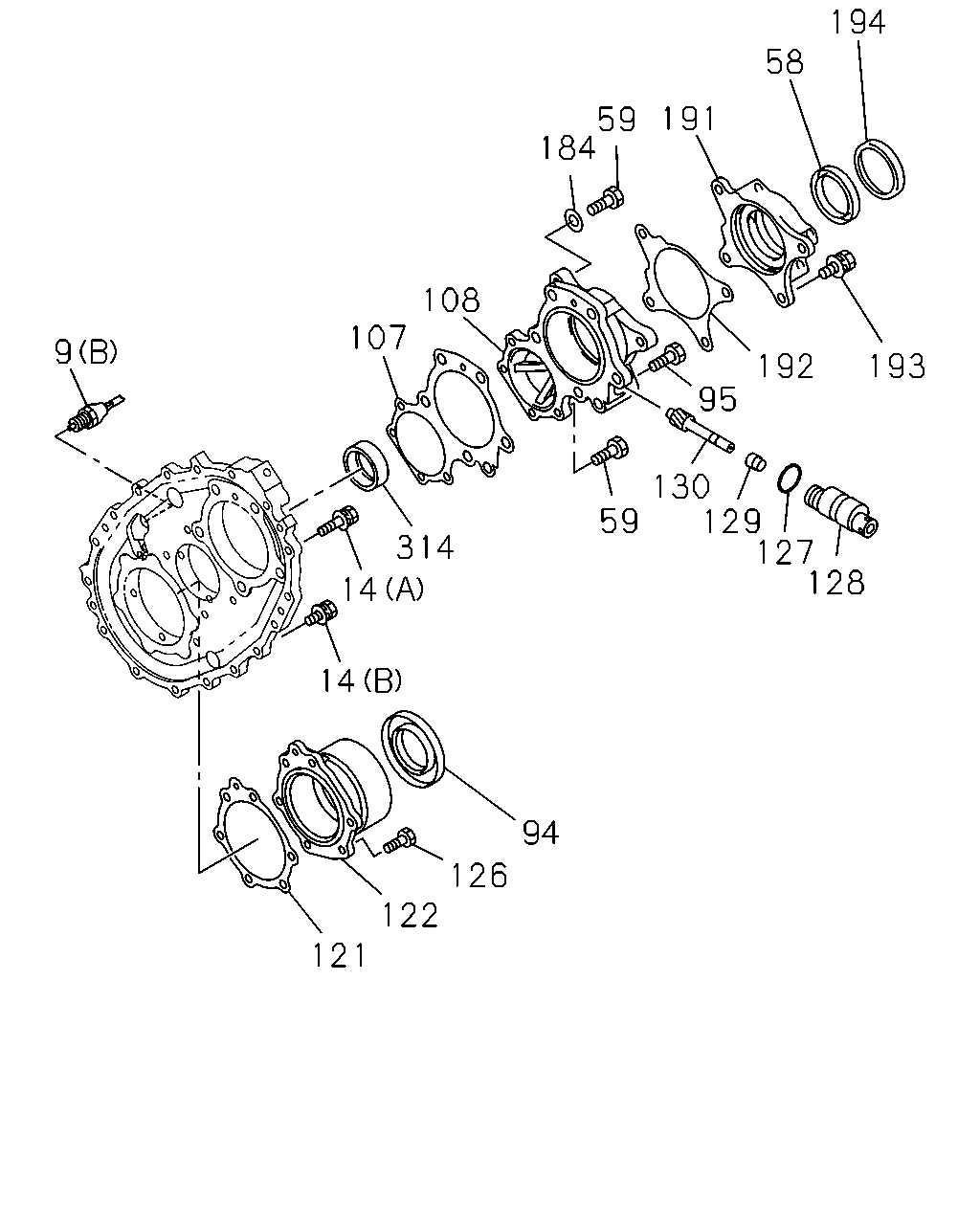

çizim 150462
194 58 191 59 184 108 107 9 192 193 95 130 129 127 128 59 314 14 14 94 126 122 121
BalonParca AdiParca NoAdetTipApplied Date
9 SWITCH; TRANSFER
(A) 		1-82340-534-0 01 1 1112-
9 SWITCH; TRANSFER
(B) 		1-82440-082-0 01 1 1112-
14 BOLT; COVER TO TRANSFER CASE
(A) M10X30 W/LK WASHER 		0-50551-030-0 01 1 1112-
14 BOLT; COVER TO TRANSFER CASE
(B) M10X45 W/LK WASHER 		0-50551-045-0 02 1 1112-
58 SEAL; OIL,RR UPR
NOK 		1-09625-173-0 01 1 1112-
59 BOLT; UPR COVER
M14X65 		0-16806-465-0 01 1 1112-
59 BOLT; UPR COVER
M14X40 		0-23851-440-0 04 1 1112-
59 BOLT; UPR COVER
M10X30 W/LK WASHER 		0-50551-030-0 04 1 1112-
94 SEAL; OIL,RR COVER,OUTPUT
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-484-1 01 1 1112-
95 SCREW; BUSHING,DRIVEN GEAR
M6X12.5 FLANGE 		8-98014-141-0 01 1 1112-
107 GASKET; COVER TO CASE
ALSO INCLUDED IN REPAIR KIT(T/F). 		9-36123-009-0 01 1 1112-
108 COVER; UPR,TRANSFER 1-36121-006-2 01 1 1112-
121 GASKET; RR COVER,LWR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-006-0 01 1 1112-
122 COVER; RR,OUTPUT 1-36121-005-0 01 1 1112-
126 BOLT; RR COVER
M10X25 W/LK WASHER 		0-50551-025-0 06 1 1112-
127 GASKET; BUSHING,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-09623-370-0 01 1 1112-
128 BUSHING; DRIVEN GEAR 1-33373-039-1 01 1 1112-
129 SEAL; OIL,DRIVEN GEAR
ALSO INCLUDED IN REPAIR KIT(T/F). NOK 		1-09625-510-0 01 1 1112-
130 GEAR; DRIVEN,SPD,TRANSFER
Z=12 		1-33372-074-5 01 1 1112-
184 WASHER; LK,UPR COVER
ID=14.2 		0-91510-514-0 05 1 1112-
191 RETAINER; OIL SEAL,RR UPR 1-36155-007-0 01 1 1112-
192 GASKET; RET,RR UPR
ALSO INCLUDED IN REPAIR KIT(T/F). 		1-36156-005-0 01 1 1112-
193 BOLT; RET
M12X28 		0-50051-228-0 04 1 1112-
194 COVER; OIL SEAL,RR UPR 1-33139-001-1 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.5 		1-36355-022-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.7 		1-36355-023-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=19.9 		1-36355-024-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.1 		1-36355-025-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.3 		1-36355-026-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.5 		1-36355-027-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.7 		1-36355-028-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=20.9 		1-36355-029-0 01 1 1112-
314 PIECE; DISTANCE,OUTPUT SHAFT
T=21.1 		1-36355-030-0 01 1 1112-
