6-87 — TRUNK ROOM PACKAGE AND REAR PARCEL (#6186) — 36 parça

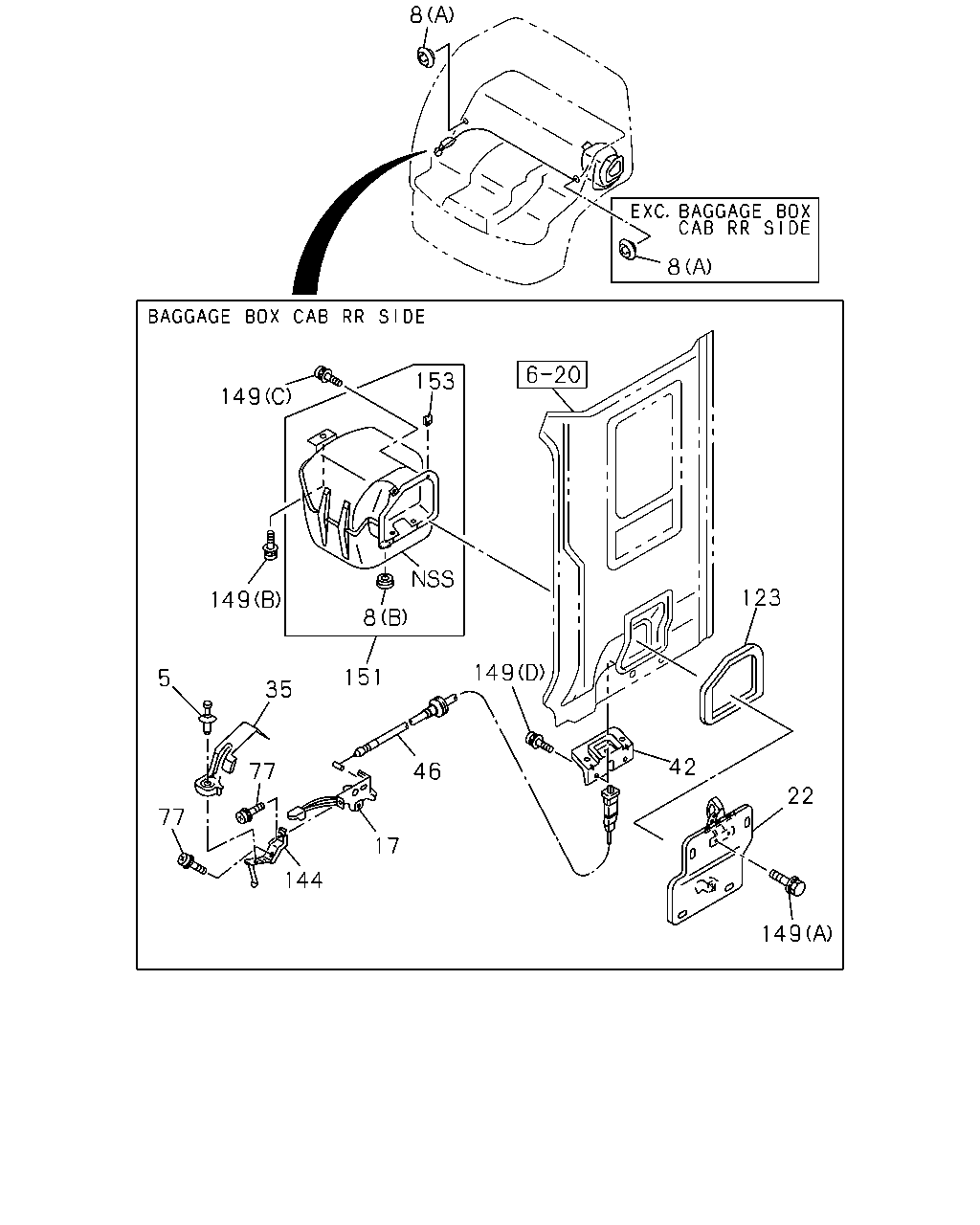

çizim 37988
8 8 153 149 123 149 8 149 151 5 35 42 46 77 22 77 17 144 149
BalonParca AdiParca NoAdetTipApplied Date
5 FASTENER
ID=6X6 OD=8 		1-09987-194-0 01 1 9905-0104
5 FASTENER
BAGGAGE BOX CAB RR SIDE<TBM> ID=6X6 OD=8 		1-09987-194-0 01 1 0105-
8 GROMMET; BOARD FIX
(A) OD=28 		8-94279-720-0 01 1 9905-0104
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 01 1 0105-
8 GROMMET; BOARD FIX
BAGGAGE BOX CAB RR SIDE<TBM> (B) OD=44 		8-94279-727-0 01 1 9905-
8 GROMMET; BOARD FIX
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (A) OD=28 		8-94279-720-0 02 1 0105-
17 KNOB; LUGGAGE SIDE 1-73328-018-0 01 1 9905-0104
17 KNOB; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73328-018-0 01 1 0105-
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 9905-
22 LID; LUGGAGE SIDE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71707-063-0 01 1 0411-
35 COVER; LUGGAGE 1-79517-005-1 01 1 9905-0104
35 COVER; LUGGAGE
BAGGAGE BOX CAB RR SIDE<TBM> 		1-79517-005-1 01 1 0105-
42 BRACKET ASM; HOOK 1-71797-068-1 01 1 9905-0104
42 BRACKET ASM; HOOK
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-068-1 01 1 0105-
46 LOCK; RR COMPT LID
L=2850 		1-79517-004-0 01 1 9905-9906
46 LOCK; RR COMPT LID
L=2842 		1-79517-008-0 01 1 9907-0104
46 LOCK; RR COMPT LID
BAGGAGE BOX CAB RR SIDE<TBM> L=2842 		1-79517-008-0 01 1 0105-
77 SCREW; BRKT
M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-9908
77 SCREW; BRKT
M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 9909-0104
77 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> M6X20 W/LK&PL WASHER 		8-94279-403-0 02 1 0105-
123 SEAL; REAR 1-71797-061-0 01 1 9905-0104
123 SEAL; REAR
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-061-1 01 1 0105-
144 BRACKET 1-73907-267-2 01 1 9905-0104
144 BRACKET
BAGGAGE BOX CAB RR SIDE<TBM> 		1-73907-267-2 01 1 0105-
149 SCREW; BRKT
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 9905-0104
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (A) M6X16 W/LK&PL WASHER 		8-94279-402-0 02 1 0105-
149 SCREW; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0104
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0105-0904
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (B) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
149 SCREW; BRKT
(C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 9905-0104
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (C) M6X20 W/LK&PL WASHER 		8-94279-403-0 04 1 0105-
149 SCREW; BRKT
(D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-0104
149 SCREW; BRKT
BAGGAGE BOX CAB RR SIDE<TBM> (D) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-
151 BOX ASM 1-71797-951-2 01 1 9905-0104
151 BOX ASM
BAGGAGE BOX CAB RR SIDE<TBM> 		1-71797-951-2 01 1 0105-
153 J-NUT
BAGGAGE BOX CAB RR SIDE<TBM> 		8-94279-056-0 02 1 9905-
