2-30 — GEAR SHIFTER AND QUADRANT BOX (#61856) — 138 parça

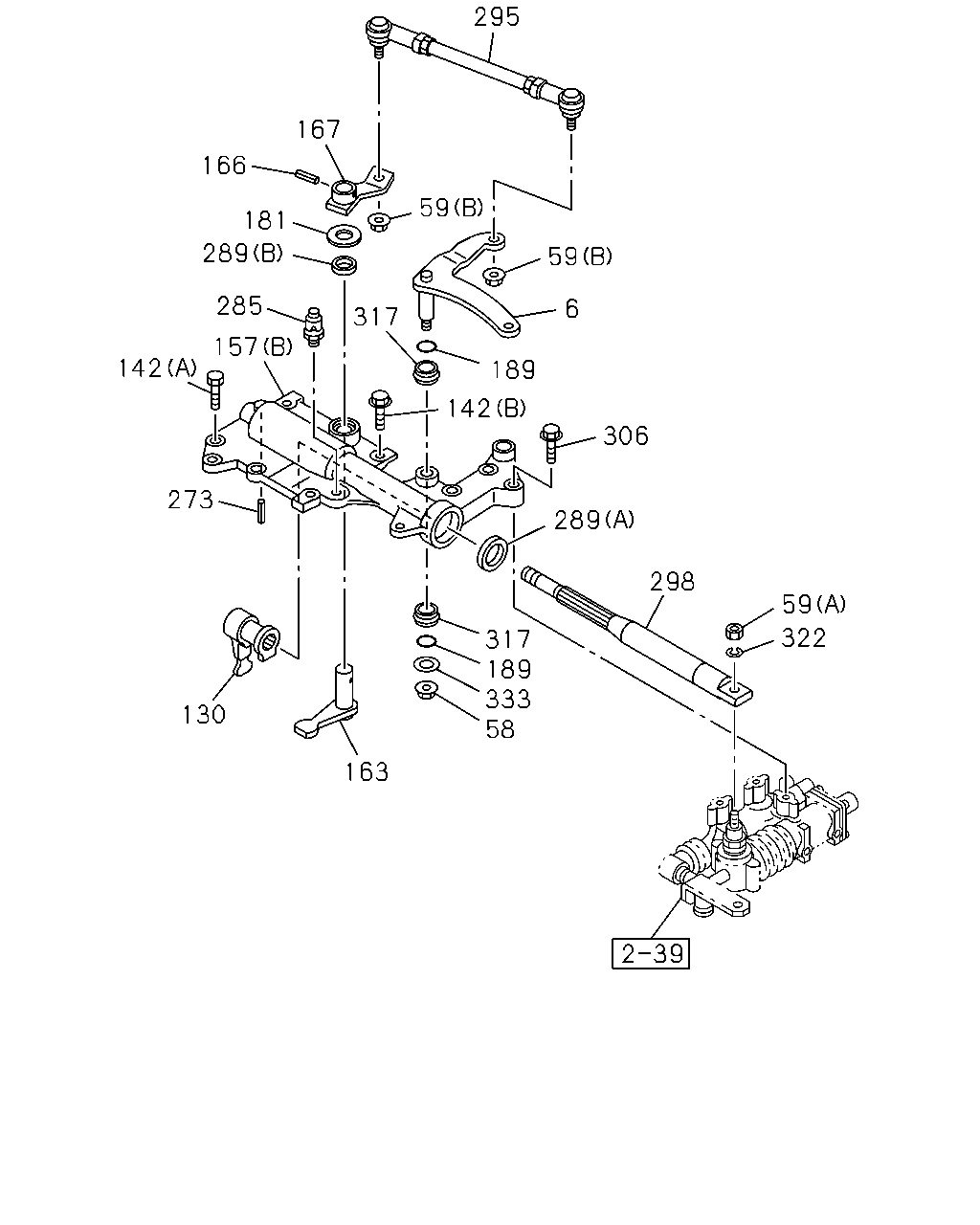

295 167 166 59 181 289 59 285 6 317 157 142 189 142 306 273 289 298 59 322 317 189 333 58 130 163

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY ASSISTOR SHIFT CONTROL<WX8>	1-33651-686-2	01	1	1112-
58	NUT ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91180-110-0	01	1	1112-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1112-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (B) M8 FLANGE	0-91180-108-0	02	1	1112-
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	1112-
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	1112-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1112-
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	12	1	1112-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	04	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	03	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1112-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	1112-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	1112-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	1112-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	1112-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	1112-
166	PIN; SPR,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8> L=25 OD=5	1-09748-032-0	01	1	1112-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	1112-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	1112-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	1112-
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	1112-
189	GASKET; SELECT LEVER,CONT BOX ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1112-
273	PIN; SPR,STOPPER ASSISTOR SHIFT CONTROL<WX8> L=30 OD=4	1-09748-031-0	01	1	1112-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	1112-
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	1112-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	1112-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	1112-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	1112-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1112-
317	BUSHING; LEVER	1-09330-119-0	02	1	1112-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1112-
333	WASHER; PL,LEVER ASSISTOR SHIFT CONTROL<WX8> ID=10.5	0-91610-710-0	01	1	1112-

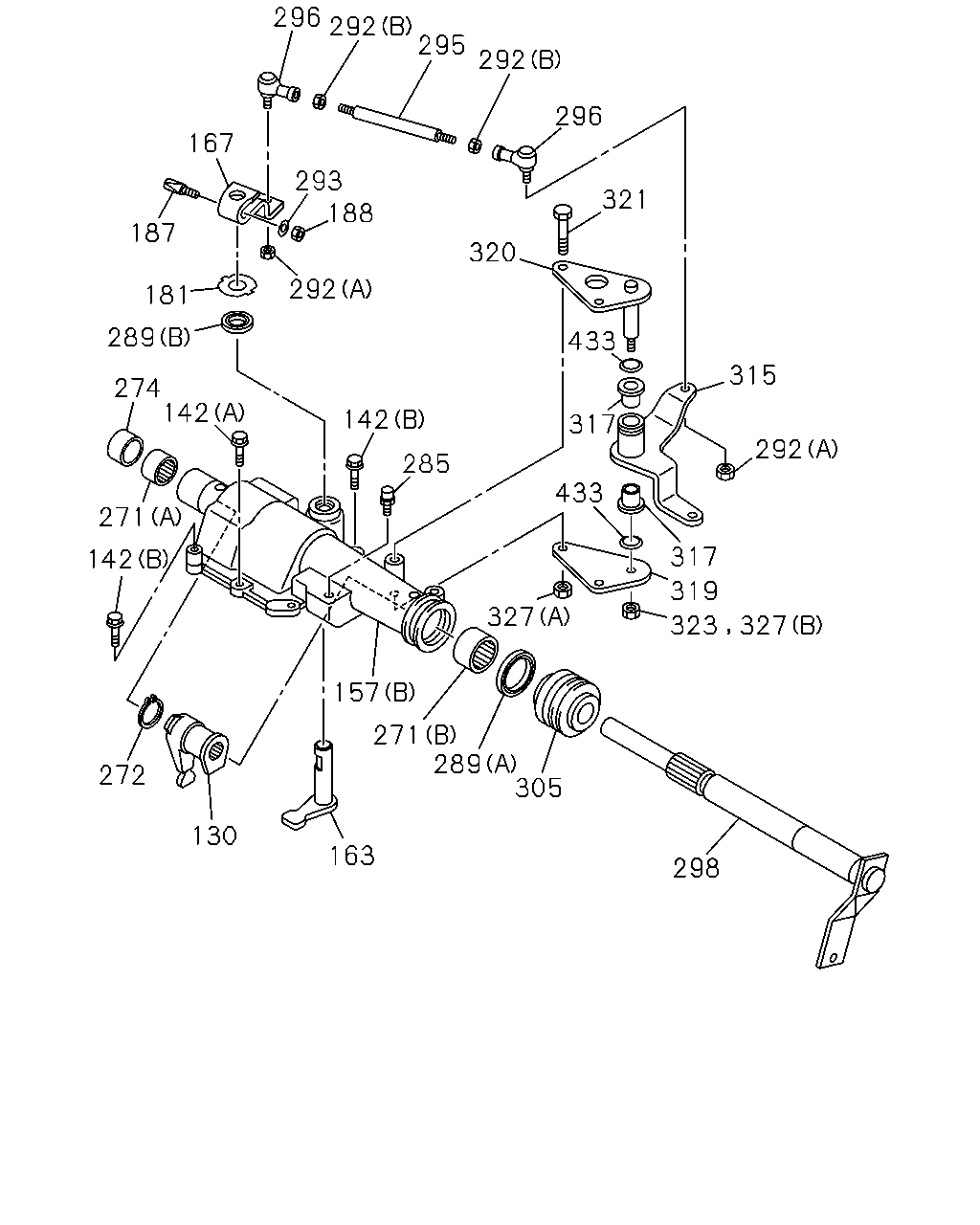

296 292 295 292 296 167 293 188 321 187 320 292 181 289 433 315 274 142 142 317 292 285 433 271 317 142 319 327 157 271 289 305 272 130 163 298 323 327

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-165-0	01	1	1112-
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-111-1	01	1	1112-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1112-
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	12	1	1112-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	04	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	03	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1112-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	1112-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	1112-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	1112-
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-153-0	01	1	1112-
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	1112-
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-159-0	01	1	1112-
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-064-1	01	1	1112-
181	WASHER; PL,SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-09503-280-0	01	1	1112-
181	WASHER; PL,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> OD=40	1-09532-008-0	01	1	1112-
187	BOLT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8X42	1-33659-045-0	01	1	1112-
188	NUT; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M8 FLANGE	1-09440-062-1	01	1	1112-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) ID=20 OD=23	1-33549-016-0	01	1	1112-
271	BUSHING; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) ID=28 OD=32	1-33549-104-0	01	1	1112-
272	RING; SNAP,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	1112-
274	COVER; SHAFT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	9-33545-017-1	01	1	1112-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (A)	1-09625-599-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). ASSISTOR SHIFT CONTROL<WX8> (B)	1-09625-600-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (B) OD=30	1-09625-386-0	01	1	1112-
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). EXC. ASSISTOR SHIFT CONTROL<WX8> (A) OD=41	1-09625-647-0	01	1	1112-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M8	0-91111-508-0	02	1	1112-
292	NUT; LINK ROD EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE	1-09440-062-1	02	1	1112-
293	WASHER; PL,TAPER BOLT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=8.4 OD=22	0-91610-708-0	01	1	1112-
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98023-095-0	01	1	1112-
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	1112-
296	ROD END EXC. ASSISTOR SHIFT CONTROL<WX8> L=45.5	1-09760-118-1	02	1	1112-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-163-0	01	1	1112-
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-189-0	01	1	1112-
305	BOOT; LEVER SHAFT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-028-0	01	1	1112-
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-704-0	01	1	1112-
317	BUSHING; LEVER	1-09330-119-0	02	1	1112-
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-515-0	01	1	1112-
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-474-0	01	1	1112-
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10X80	0-10856-080-0	02	1	1112-
323	NUT; LK,SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-110-0	01	1	1112-
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (B) M10 FLANGE	0-91180-110-0	01	1	1112-
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M10 FLANGE	0-91180-210-0	02	1	1112-
433	GASKET; BUSHING EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09623-594-0	02	1	1112-

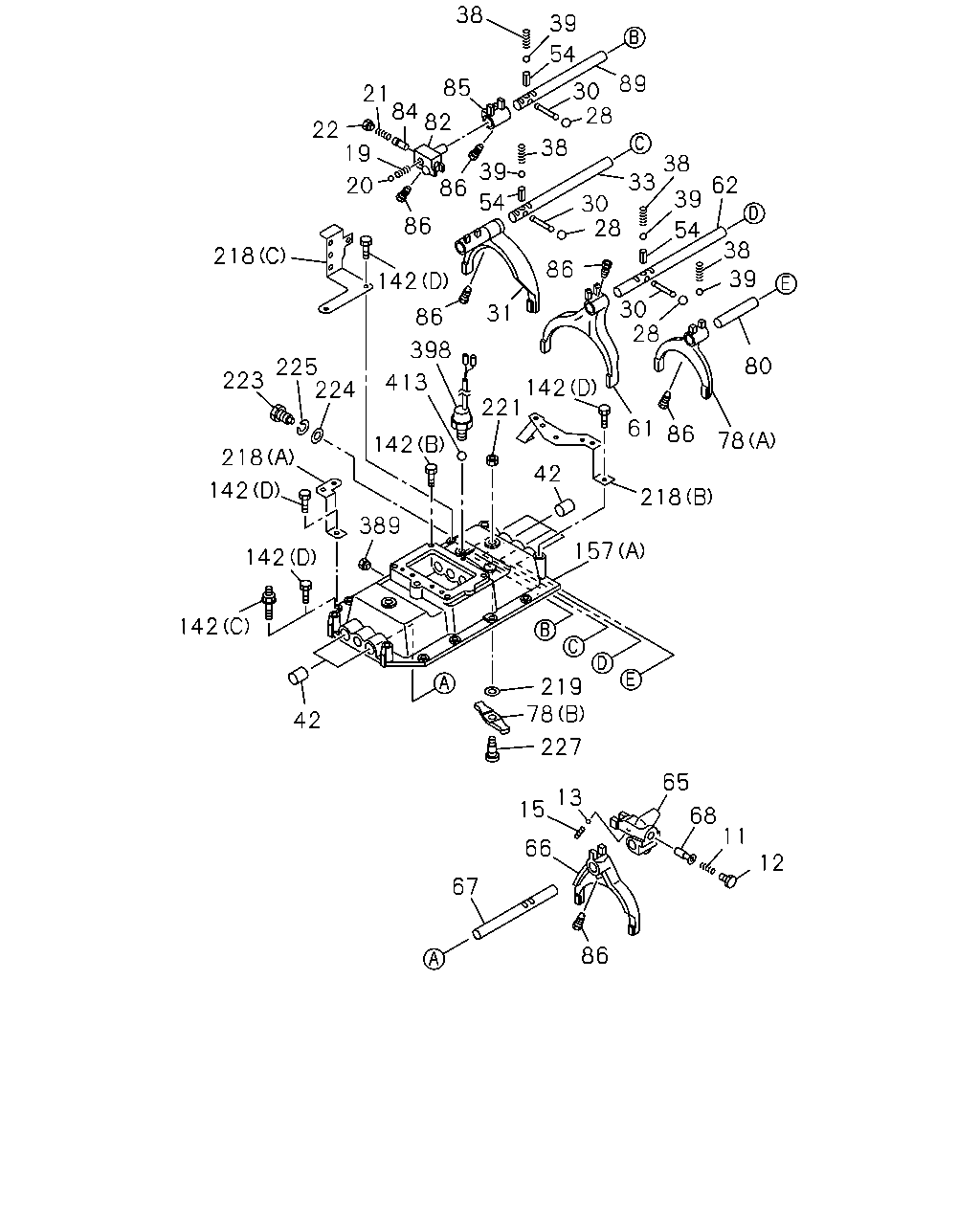

38 39 54 89 85 30 28 21 84 82 22 19 38 38 33 39 62 20 86 39 54 30 28 86 54 38 218 86 39 142 30 28 31 86 398 80 225 224 223 413 142 221 61 86 78 142 218 42 142 218 389 157 142 142 219 78 42 227 65 13 15 68 11 66 12 67 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	SPRING; RETURN,SHIFT SLEEVE	9-09941-160-0	01	1	1112-
12	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1112-
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	1112-
15	SPRING; LK,SHIFT SLEEVE	1-09580-442-0	01	1	1112-
19	SPRING; COIL COMP	1-09580-441-0	01	1	1112-
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	1112-
21	SPRING; COIL COMP SLEEVE	9-09941-160-0	01	1	1112-
22	CAP; RETURN SPR,SHIFT BLOCK	9-33516-060-1	01	1	1112-
28	BALL; INTER LK	9-00097-501-0	03	1	1112-
30	PIN; INTER LK	9-33534-003-0	03	1	1112-
31	ARM; SHIFT,LOW & 2ND	1-33511-439-1	01	1	1112-
33	ROD; SHIFT,LOW & 2ND	1-33531-253-1	01	1	1112-1202
33	ROD; SHIFT,LOW & 2ND	8-98207-578-0	01	1	1203-
38	SPRING; DETENT ASSISTOR SHIFT CONTROL<WX8>	1-09580-379-0	04	1	1112-
38	SPRING; DETENT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09580-419-0	04	1	1112-
39	BALL; DETENT	1-09843-012-0	04	1	1112-
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	06	1	1112-
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	1112-
61	ARM; SHIFT,3RD & 4TH	1-33511-490-1	01	1	1112-
62	ROD; SHIFT,3RD & 4TH	1-33531-254-1	01	1	1112-1202
62	ROD; SHIFT,3RD & 4TH	8-98207-586-0	01	1	1203-
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-513-0	01	1	1112-
66	ARM; SHIFT,5TH & 6TH	1-33511-488-1	01	1	1112-
67	ROD; SHIFT,5TH & 6TH L=278	1-33531-255-1	01	1	1112-1202
67	ROD; SHIFT,5TH & 6TH L=278	8-98207-589-0	01	1	1203-
68	SLEEVE; 5TH & 6TH	1-33516-025-0	01	1	1112-
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	1112-
78	ARM; SHIFT,REV (A)	1-33511-234-1	01	1	1112-
80	ROD; SHIFT,REV ARM	1-33531-234-1	01	1	1112-1202
80	ROD; SHIFT,REV ARM	8-98207-584-0	01	1	1203-
82	BLOCK; SHIFT,REV	1-33511-310-1	01	1	1112-
84	SLEEVE; REV	1-33516-025-0	01	1	1112-
85	BLOCK; SHIFT,REV RR	1-33511-201-3	01	1	1112-
86	SCREW; TAPER,ARM TO ROD M12X20	1-09052-039-0	07	1	1112-
89	ROD; SHIFT,REV	1-33531-252-1	01	1	1112-1202
89	ROD; SHIFT,REV	8-98207-582-0	01	1	1203-
142	BOLT; QUAD BOX (A) M10X28 FLANGE REAMER	8-97365-375-0	02	1	1112-
142	BOLT; QUAD BOX (B) M10X28 FLANGE	8-98044-944-0	12	1	1112-
142	BOLT; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	04	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (D) M10X60 FLANGE	0-28151-060-0	03	1	1112-
142	BOLT; QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M10X20,M10X60 L=90	1-09049-020-0	01	1	1112-
157	BOX; QUAD,TRANS (A)	1-33541-480-0	01	1	1112-
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-479-0	01	1	1112-
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-478-0	01	1	1112-
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-639-1	01	1	1112-
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-663-1	01	1	1112-
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-733-0	01	1	1112-
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	1112-
221	NUT; SPINDLE M12 FLANGE	0-91180-212-0	01	1	1112-
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	1112-
224	WASHER; PL,QUAD BOX ID=15	0-91610-514-0	01	1	1112-
225	WASHER; LK,QUAD BOX ID=14.2	0-91510-514-0	01	1	1112-
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	1112-
389	PLUG; QUAD BOX,NEUTRAL SW	8-94104-615-0	01	1	1112-
398	SWITCH; REV LAMP	8-98042-853-0	01	1	1112-1209
398	SWITCH; REV LAMP	8-98228-482-0	01	1	1210-
413	BALL; BACK SW	9-00097-013-0	01	1	1112-
