2-20 — MANUAL TRANSMISSION ASM AND CASE (#61853) — 37 parça

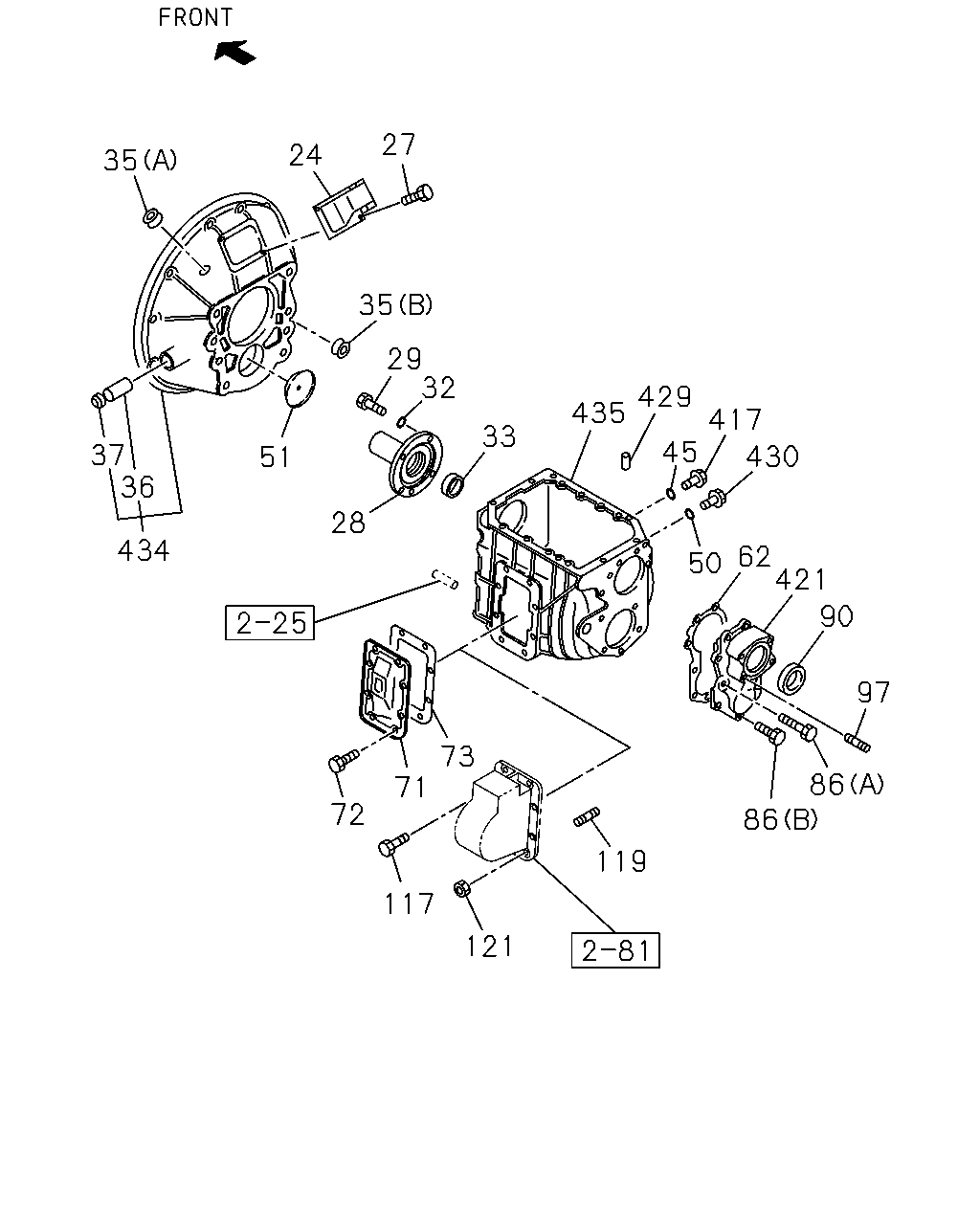

çizim 150450
27 24 35 35 29 32 429 435 417 45 33 37 36 430 51 28 434 62 421 50 90 97 73 86 86 71 72 119 117 121
BalonParca AdiParca NoAdetTipApplied Date
24 COVER; CHECK HOLE,DUST 1-31131-041-0 01 1 1112-1410
24 COVER; CHECK HOLE,DUST 8-98284-107-0 01 1 1411-
27 BOLT; COVER TO CLU HSG
M8X16 FLANGE 		0-28050-816-0 02 1 1112-
28 COVER; FRT,TRANS CASE 1-33121-108-1 01 1 1112-
29 BOLT; FRT COVER
M10X28 FLANGE REAMER 		8-97365-375-0 04 1 1112-
32 GASKET; BOLT,FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). ID=10 		1-09623-369-0 04 1 1112-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-497-0 01 1 1112-
35 GROMMET; CLU HSG
(B) OD=15 T=6.6 		8-97037-246-0 01 1 1112-
35 GROMMET; CLU HSG
(A) OD=31 		9-09575-796-0 01 1 1112-
36 BEARING; NEEDLE,CLU HSG
NTN 		1-09811-002-1 02 1 1112-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 1112-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1112-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 1112-
51 COVER; SEAL,COUNTER,FRT 1-33319-107-1 01 1 1112-
62 GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33132-045-2 01 1 1112-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33141-033-0 01 1 1112-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE 		0-28151-016-0 08 1 1112-
73 GASKET; SIDE COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33142-036-0 01 1 1112-
86 BOLT; RR COVER
(A) M17X35 		1-09044-076-0 08 1 1112-
86 BOLT; RR COVER
(B) M12X60 		1-09044-084-0 01 1 1112-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK 		1-09625-513-0 01 1 1112-
97 STUD; PARKING BRK
M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1112-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE 		8-98044-944-0 06 1 1112-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40 		0-44011-025-0 02 1 1112-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE 		0-91180-210-0 02 1 1112-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 1112-
421 COVER; RR,TRANS 1-33131-177-1 01 1 1112-
429 PIN; STRAIGHT
OD=10 L=18 		9-08151-018-0 02 1 1112-
430 PLUG; OIL DRAIN
M24X17 FLANGE 		1-09604-023-0 01 1 1112-
434 HOUSING; CLU 1-31110-169-0 01 1 1112-
435 CASE; TRANS 1-33111-355-0 01 1 1112-

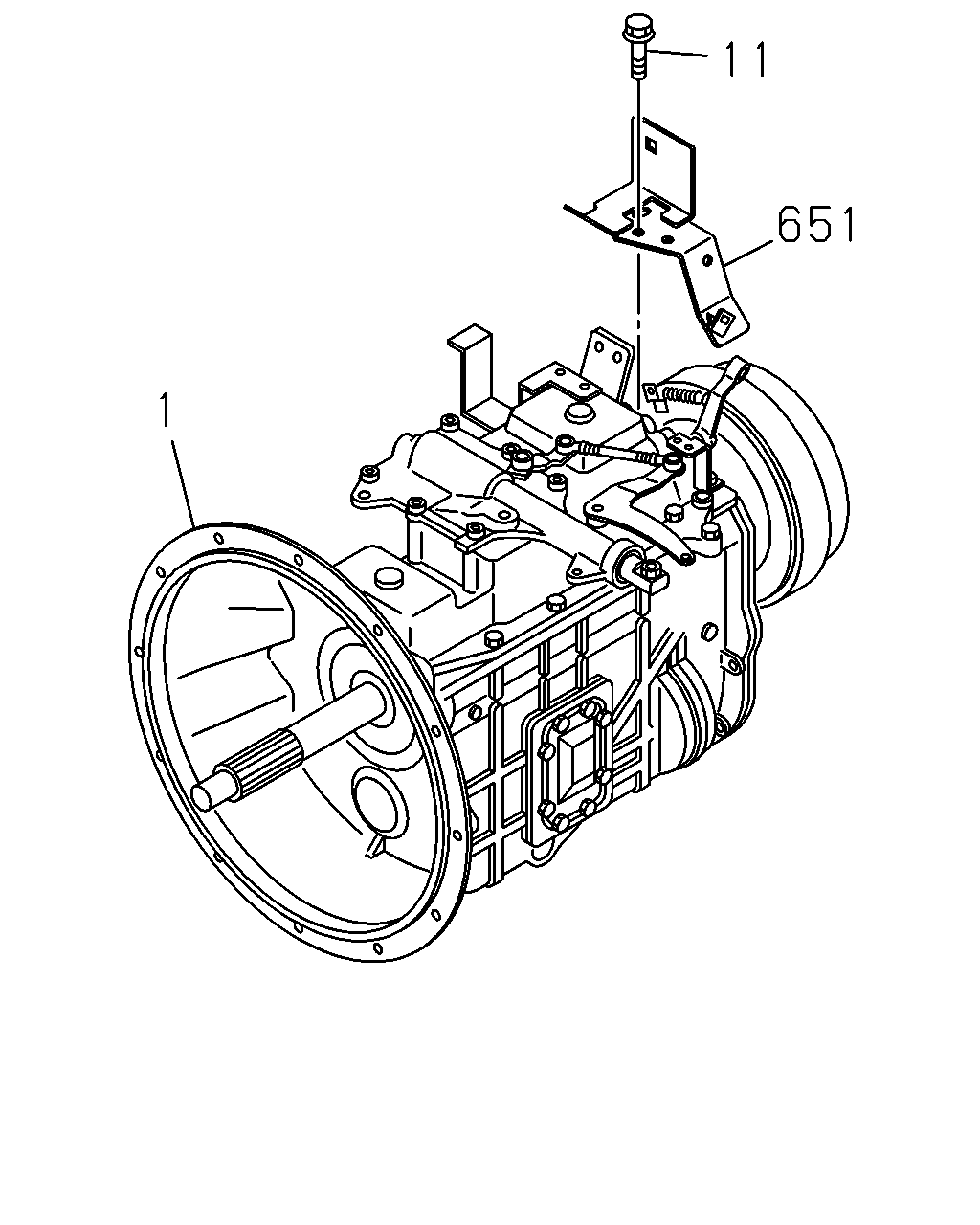

çizim 150452
11 651 1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-33044-542-0 01 1 1112-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> 		1-33044-542-0 01 1 1112-
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33044-543-0 01 1 1112-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8> 		1-33044-543-0 01 1 1112-
11 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 1112-
651 BRACKET; T/M HARNESS 8-98141-228-0 01 1 1112-
