Sayfa 6-84 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶

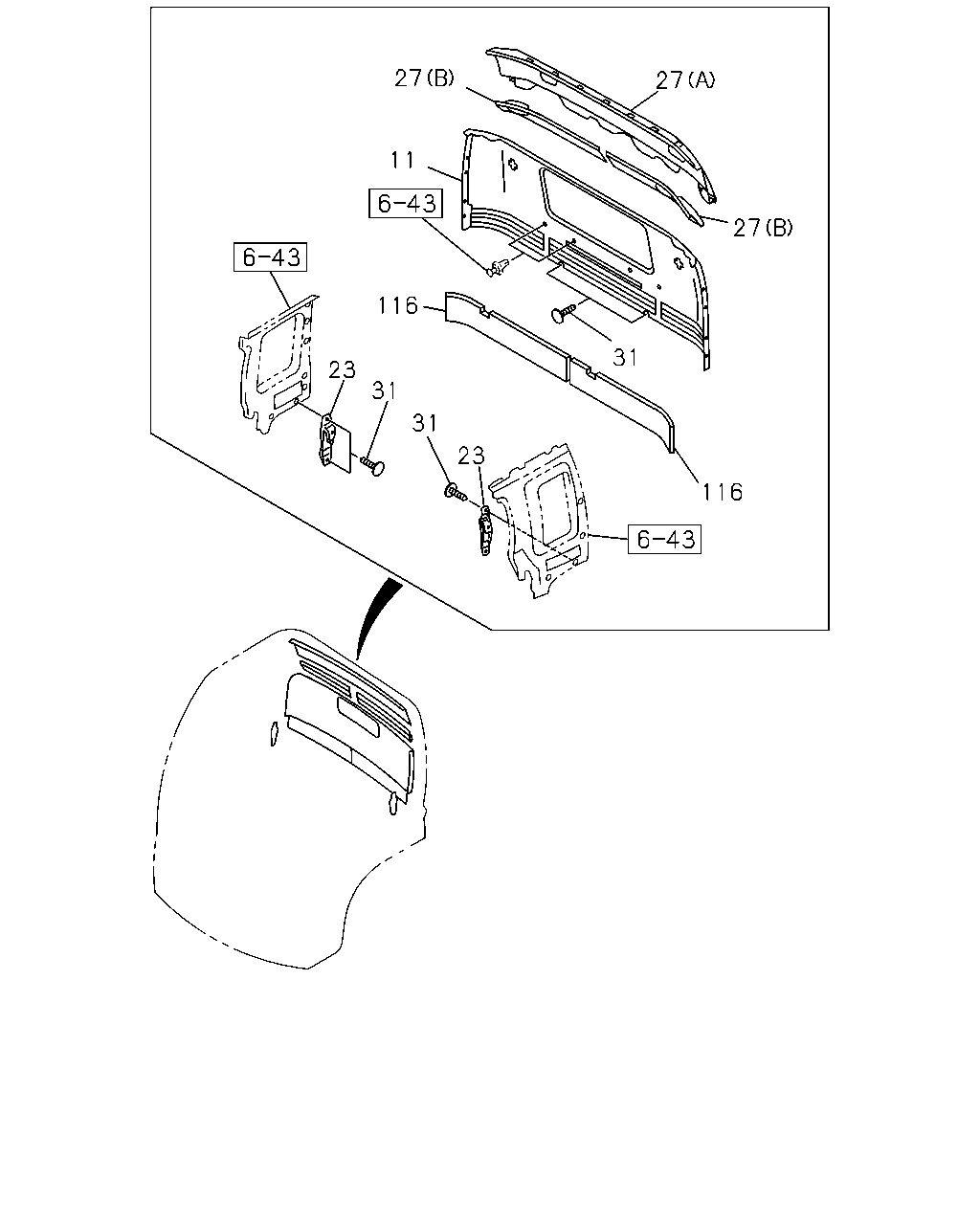

6-84 — BACK TRIM (#6185) — 19 parça

27 27 11 27 116 31 23 31 31 23 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	TRIM; ROOM,BACK INNER CENTER SEAT DELETE(SP9)	1-73347-852-1	01	1	9905-0104
11	TRIM; ROOM,BACK INNER CENTER SEAT DELETE(SP9)	1-73347-892-3	01	1	0105-0602
11	TRIM; ROOM,BACK INNER CENTER SEAT DELETE(SP9)	1-73347-904-2	01	1	0603-
11	TRIM; ROOM,BACK INNER EXC. CENTER SEAT DELETE(SP9)	1-73347-796-3	01	1	9905-0104
11	TRIM; ROOM,BACK INNER EXC. CENTER SEAT DELETE(SP9)	1-73347-893-3	01	1	0105-0602
11	TRIM; ROOM,BACK INNER EXC. CENTER SEAT DELETE(SP9)	1-73347-905-2	01	1	0603-
23	FINISHER; BACK INNER PANEL	1-73347-789-1	01	1	9905-
23	FINISHER; BACK INNER PANEL	1-73347-788-1	01	1	9905-
27	COVER; TRIM,BACK HIGH ROOF<S2F> EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (A)	1-73347-806-2	01	1	9905-0104
27	COVER; TRIM,BACK SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (A)	1-73347-746-3	01	1	9905-0104
27	COVER; TRIM,BACK SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B)	1-73347-767-5	01	1	9905-0104
27	COVER; TRIM,BACK EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B)	1-73347-767-5	01	1	9905-0104
27	COVER; TRIM,BACK SPEAKER SYSTEM 4 SPEAKER<NBV> HIGH ROOF<S2F> (B)	1-73347-766-5	01	1	9905-0104
27	COVER; TRIM,BACK EXC. SPEAKER SYSTEM 4 SPEAKER<NBV> (B)	1-73347-766-5	01	1	9905-0104
27	COVER; TRIM,BACK SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (B)	1-73347-769-3	01	1	9905-0104
27	COVER; TRIM,BACK SPEAKER SYSTEM 4 SPEAKER<NBV> EXC. HIGH ROOF<S2F> (B)	1-73347-768-3	01	1	9905-0104
31	CLIP; TRIM PAD D6X23 DARK GRAY	1-09987-238-0	24	1	9905-0104
31	CLIP; TRIM PAD D6X23 LIGHT GRAY	1-73318-629-0	24	1	0105-
116	INSULATOR; BACK PANEL	1-73367-019-2	02	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
