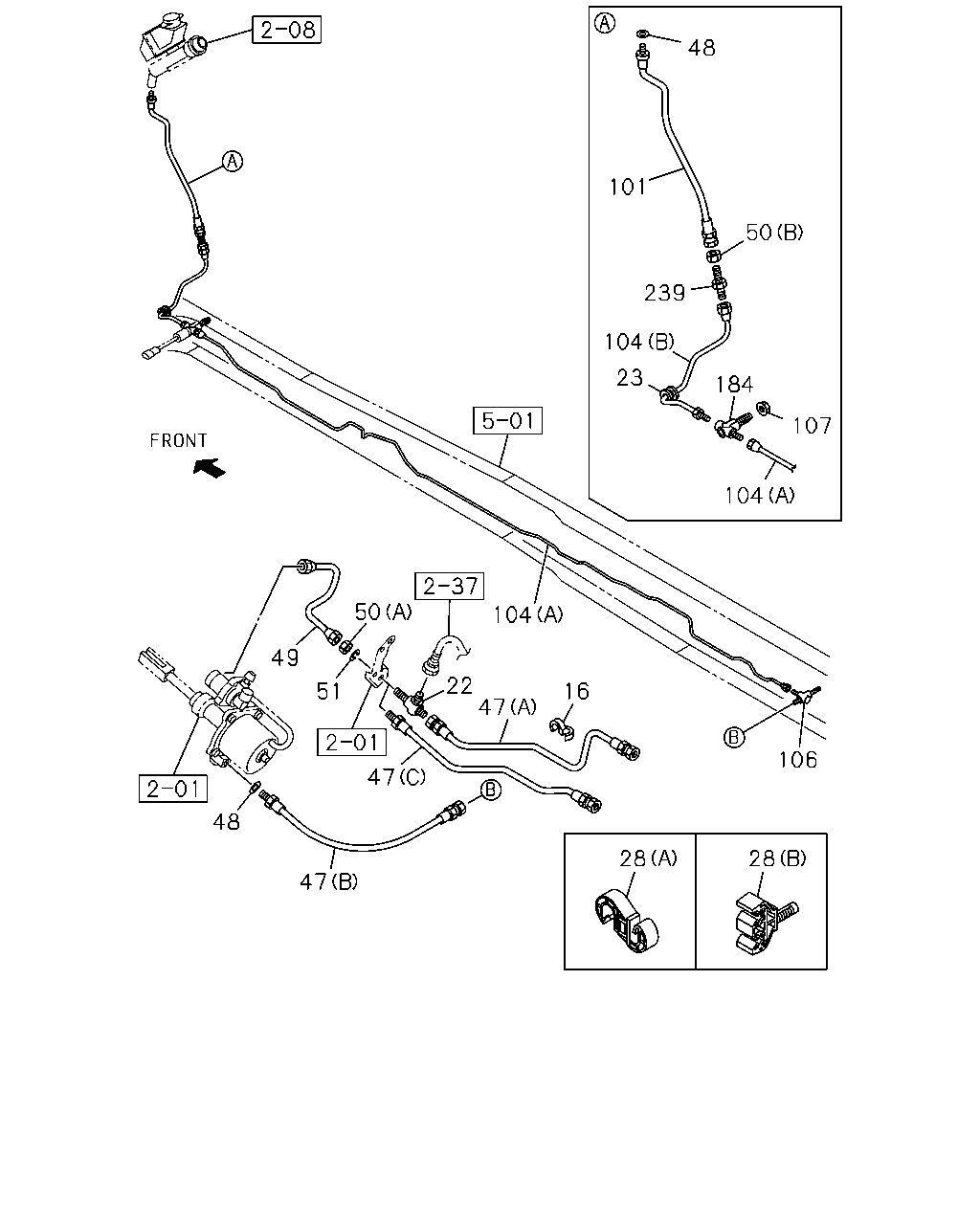

2-05 — CLUTCH PIPING
(#61849) — 22 parça
48
101
50
239
104
23
184
107
104
50
104
49
22
47
16
51
106
47
48
28
28
47
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; FLEX HOSE
ID=10 & 12
1-09709-278-1
01
1
1112-
22
UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY
0-92138-706-0
01
1
1112-
23
GROMMET; CLU PIPE
ID=15 OD=20 T=17.5
1-09332-130-0
01
1
1112-
28
CLIP; OIL PIPE
(A) ID=6.35 & 10.0
1-09709-274-1
02
1
1112-
28
CLIP; OIL PIPE
(B)
8-98012-254-1
02
1
1112-
47
HOSE; FLEX,CLU CONT
(B) L=430
8-98072-351-0
01
1
1112-
47
HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=300
1-09363-611-0
01
1
1112-
47
HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=370
1-09363-621-0
01
1
1112-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
1112-
48
GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0
9-09571-410-0
01
1
1112-
49
PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204
1-49117-400-0
01
1
1112-
50
NUT; UNION
(B) M12
0-91111-512-0
01
1
1112-
50
NUT; UNION
(A) M12
9-09840-280-0
01
1
1112-
51
WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-812-0
01
1
1112-
51
WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2
0-91510-512-0
01
1
1112-
101
HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440
8-98072-346-0
01
1
1112-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2613 SERVICED BY L=2650
1-47428-743-0
01
1
1112-
104
PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336
8-98067-058-0
01
1
1112-
106
UNION; OIL PIPE
M12 2WAY
1-09654-059-2
01
1
1112-
107
NUT; UNION,OIL PIPE
M12
0-91111-512-0
01
1
1112-
184
UNION; FLEX HOSE
8-98150-865-0
01
1
1112-
239
UNION; CLU HOSE
M12 L=66.5
0-92113-306-0
01
1
1112-
