11401 - FSS(RHD)EURO1
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-50 - EXHAUST PIPE AND SILENCER
▶
1-50 — EXHAUST PIPE AND SILENCER
(#61845) — 29 parça
◀
[150A] FIXING PARTS NO.1 (7 parça)
[150A] FIXING PARTS NO.2 (19 parça)
[150A] PIPING (3 parça)
▶
1
34
36
476
475
475
36
476
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98107-734-0
01
1
1112-
5
PROTECTOR; HEAT
8-98044-124-0
01
1
1112-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE
0-28650-825-0
02
1
1112-
34
WASHER; EXH PIPE
ID=13 OD=24 DISH
1-09500-030-0
03
1
1112-
36
NUT; EXH PIPE
M12
1-09400-010-0
06
1
1112-
475
BEARING; SEAL,VIBNON,EXH PIPE
1-22119-277-1
02
1
1112-
476
SPRING; VIBNON,EXH PIPE
1-09583-298-0
02
1
1112-
81
121
75
60
107
75
81
56
70
105
97
94
22
63
22
81
121
75
60
107
75
118
56
70
105
97
94
22
63
22
81
121
75
60
107
75
56
81
70
97
105
94
22
63
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CLAMP; EXH PIPE
ID=80-84
1-22133-233-0
06
1
1112-
56
BRACKET; CLAMP,EXH PIPE
(B) H=67
1-22139-050-0
01
1
1112-
56
BRACKET; CLAMP,EXH PIPE
(A)
1-22139-074-0
02
1
1112-
60
BRACKET; FRAME TO BRKT
(C)
1-22131-835-0
01
1
1112-
60
BRACKET; FRAME TO BRKT
(B)
1-22151-501-1
01
1
1112-
60
BRACKET; FRAME TO BRKT
(A)
1-22151-847-0
01
1
1112-
63
TUBE; DIST,BRKT
L=11
1-22139-026-0
03
1
1112-
70
BOLT; BRKT
M10X50
0-10856-050-0
03
1
1112-
75
RUBBER; SUPPORT,BRKT
OD=30
1-22159-106-1
06
1
1112-
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1112-
81
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
03
1
1112-
81
NUT; BRKT
(A) M10 LOCK NUT
0-91370-010-0
03
1
1112-
94
BOLT; CLAMP
M10X45 W/LK&PL WASHER
8-98055-085-0
06
1
1112-
97
WASHER; PL,CLAMP
ID=10.5
9-09164-510-0
06
1
1112-
105
NUT; CLAMP
M10
0-91110-510-0
06
1
1112-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
03
1
1112-
107
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
04
1
1112-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1112-
121
WASHER; PL,BRKT
ID=10.5 OD=32
0-91614-810-0
03
1
1112-

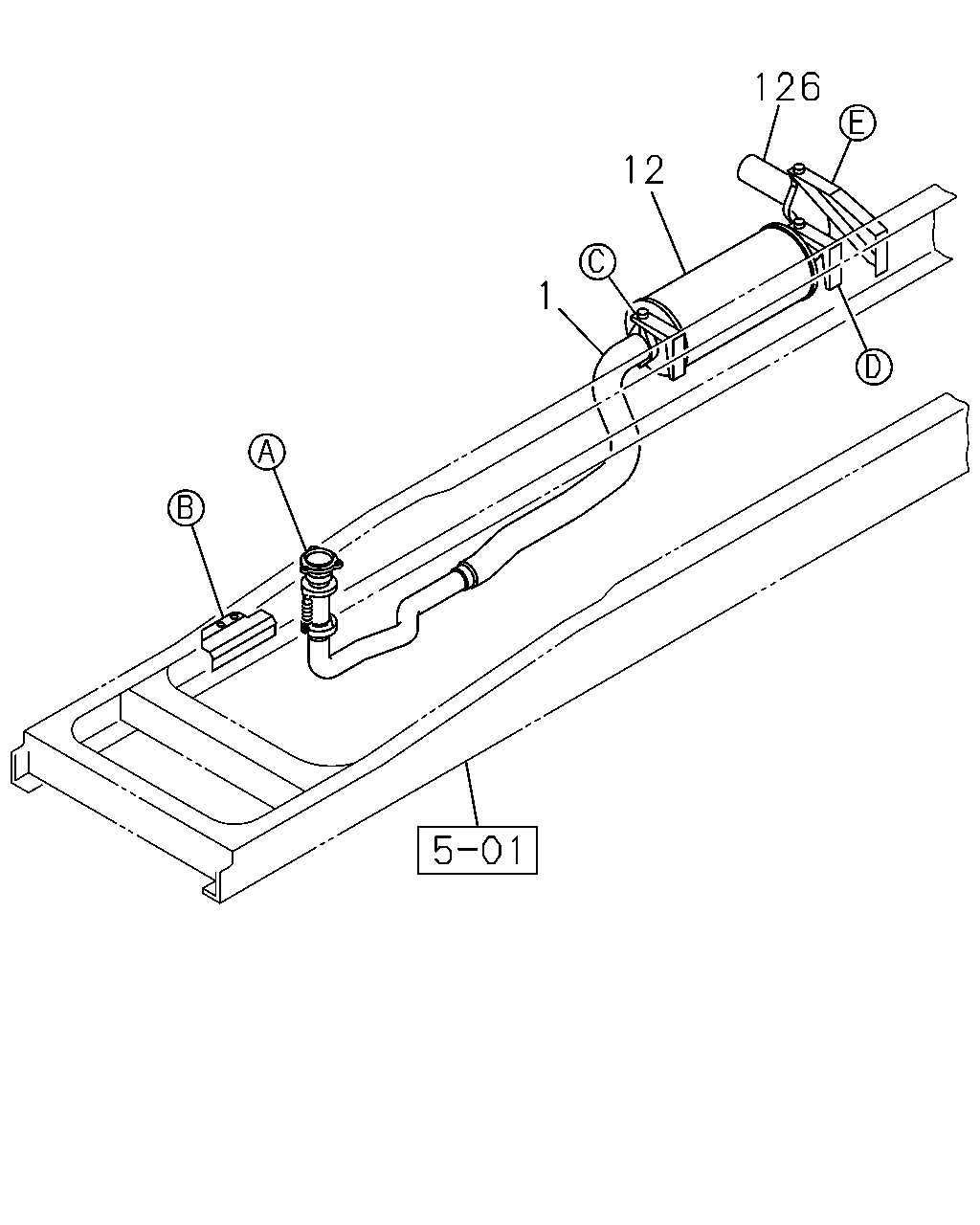

126
12
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
8-98107-734-0
01
1
1112-
12
SILENCER ASM; EXH
1-22140-880-0
01
1
1112-
126
PIPE; EXH,RR
1-22126-216-0
01
1
1112-
